Model Whirlpool 4ET18ZKXDN02 REFRIGERATOR – Common Parts & Diagrams
06 - UNIT, LIT/OPTIONAL
02 - FREEZER DOOR

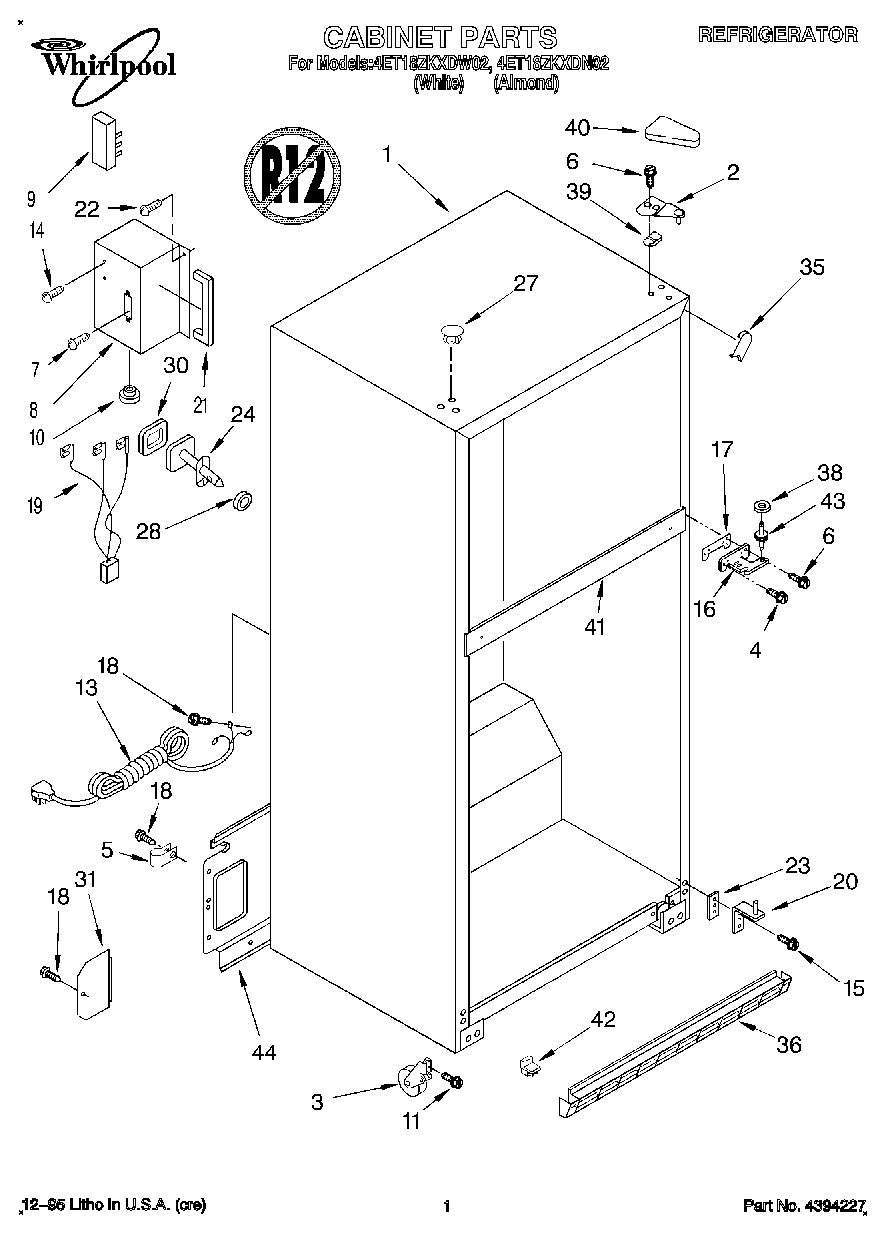

01 - CABINET

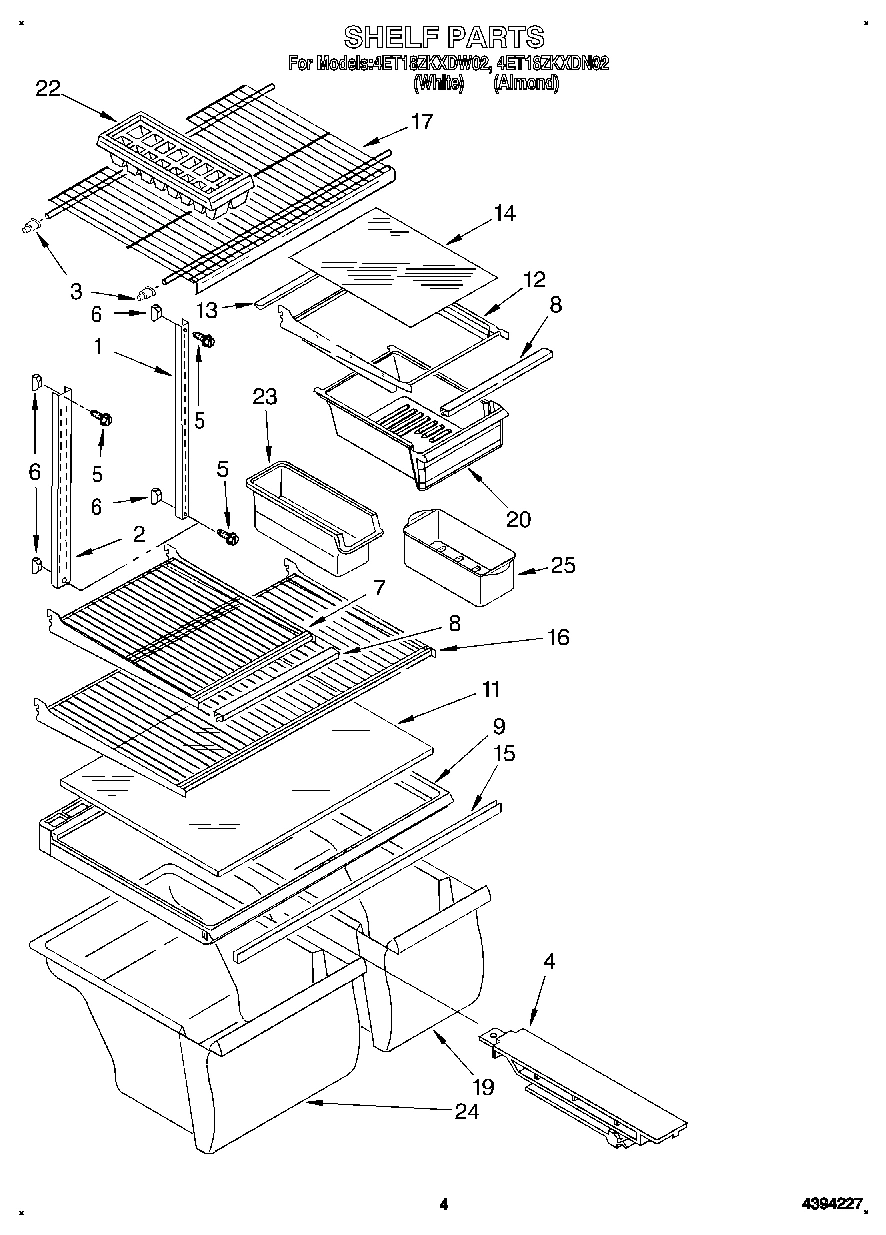

03 - SHELF
05 - LINER
04 - REFRIGERATOR DOOR
Common parts from model Whirlpool 4ET18ZKXDN02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI13596A7 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13601A5 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2171029 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2171030 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
7
Shelf, Cantilever WPL 2163853 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
8
Trim, Shelf WPL 2176262 Contact Us For Availability
9
Terminal Block WPL 1129346 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
9
Divider, Door Shelf WPL 2160050 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Bushing WPL 1129449 Contact Us For Availability
10
Fan Motor WPL 2166924 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Handle, Center (Almond) WPL 2170424 Contact Us For Availability
12
Handle, Center (White) WPL 2173622 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle, Center (Almond) WPL 943276 Contact Us For Availability
13
Shim WPL 935074 Contact Us For Availability
13
Service Cord WPL 1129332 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
14
Shim (Top) WPL 943187 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Screw WPL 489346 Contact Us For Availability
14
Glass, Meat Cover WPL 2166216 Contact Us For Availability
15
Screw WPL 489459 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Retainer WPL 2159417 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163856 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171037 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Nameplate (Almond) WPL 2165147 Contact Us For Availability
18
Nameplate (White) WPL 2165148 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Insert, Handle (White) WPL 2166438 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2166784 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Wire Assembly, Terminal Box WPL 2166651 Contact Us For Availability
19
Endcap WPL 1105804 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
20
Trim, Door Shelf WPL 2171038 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket WPL 2167227 Contact Us For Availability
21
Trim, Door Shelf WPL 2184570 Contact Us For Availability
22
Knob, Thermostat WPL 2182421 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Insert, Handle (White) WPL 1108828 Contact Us For Availability
23
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Trim, Door Shelf WPL 2171040 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI13597A3 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Screw WPL 489022 Contact Us For Availability
27
Hole Plug (12) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI13598A1 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
29
Endcap, Trim (2) WPL 2156001 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI13599A3 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
35
Trim, Door Shelf WPL 2171039 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
37
Wire Assembly, F.C. WPL 2179824 Contact Us For Availability
37
Trim-Door Shelf WPL 2171041 Contact Us For Availability
38
Clip, Defrost (2) WPL 2176341 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI13600A5 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
