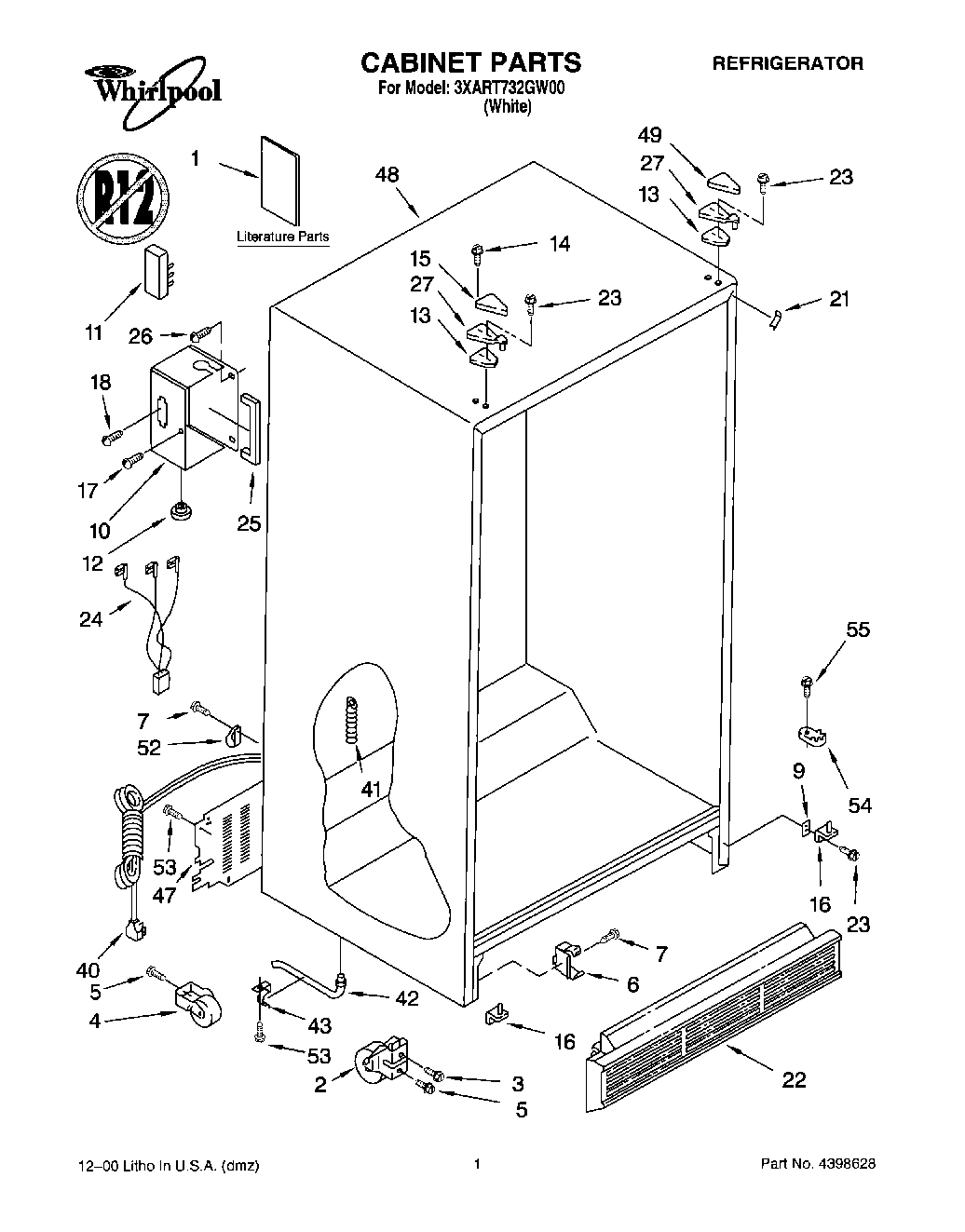

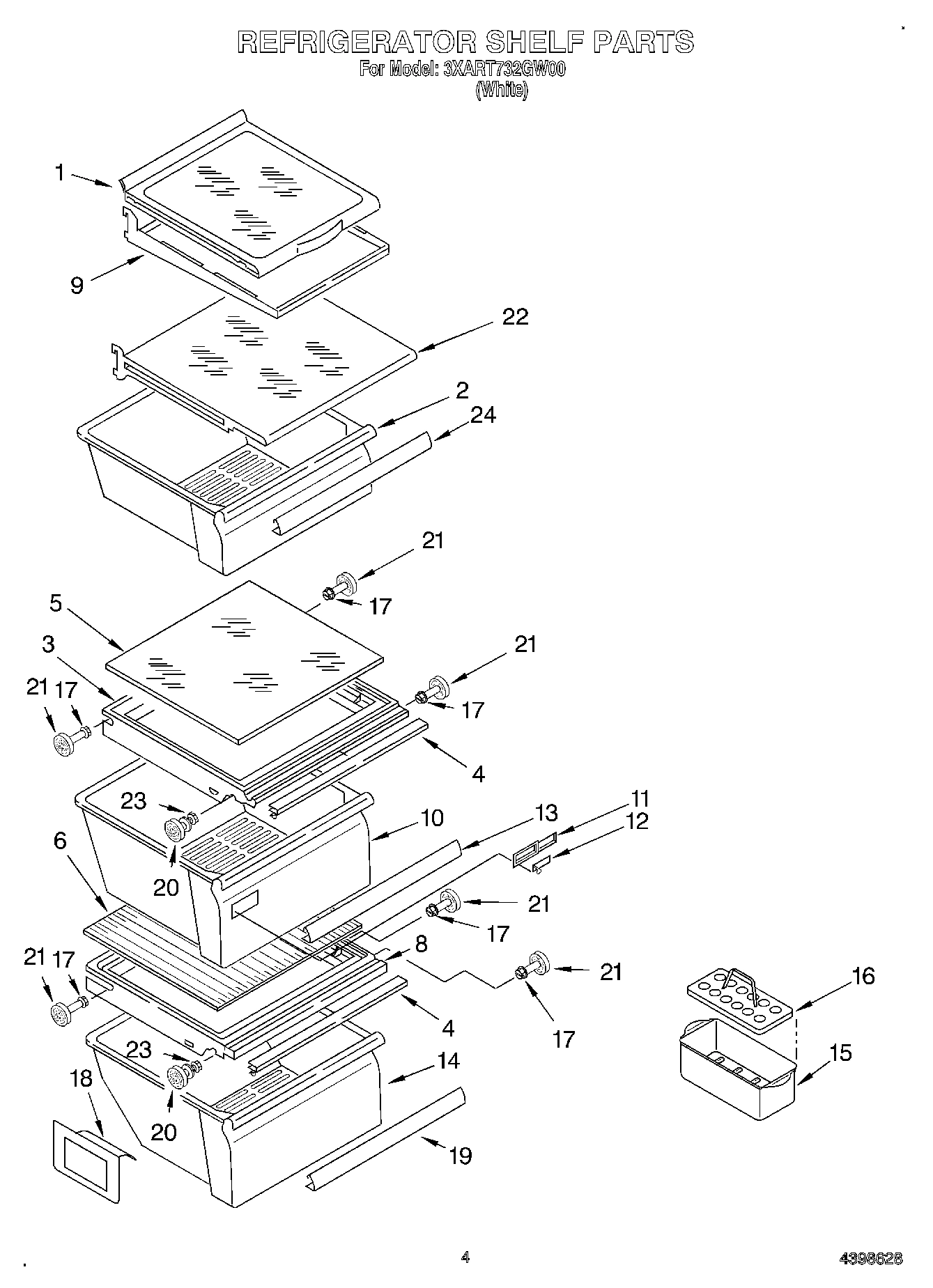

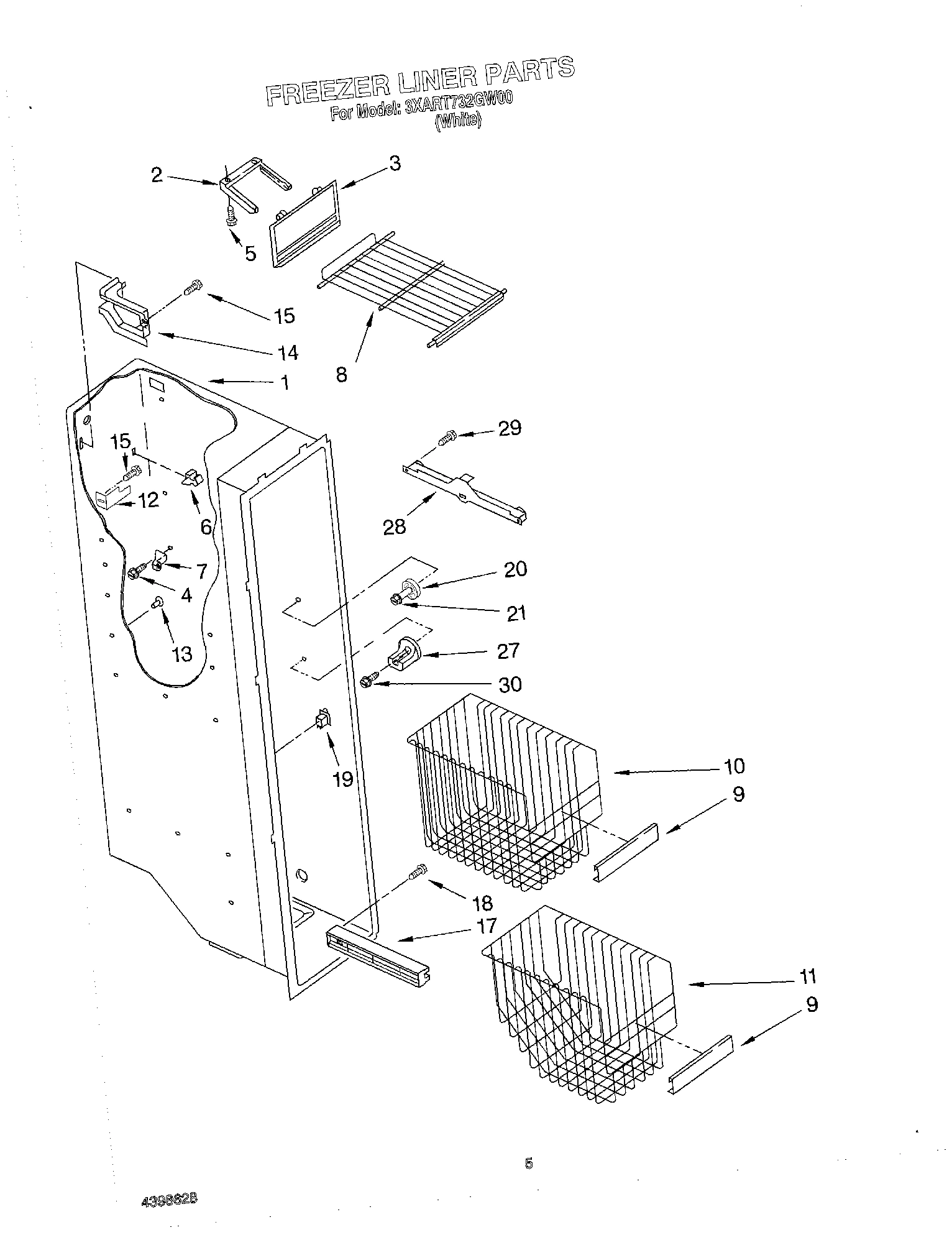

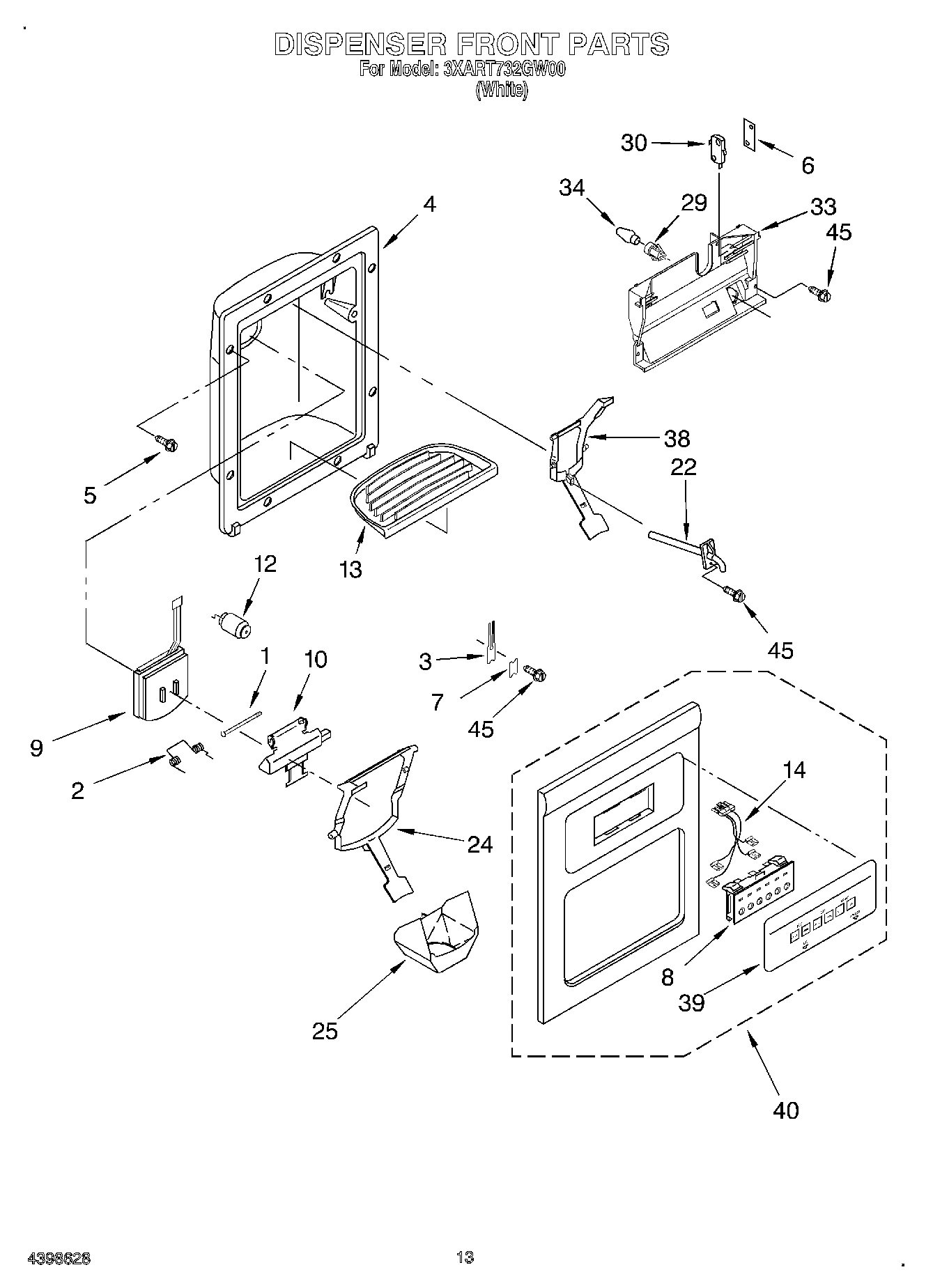

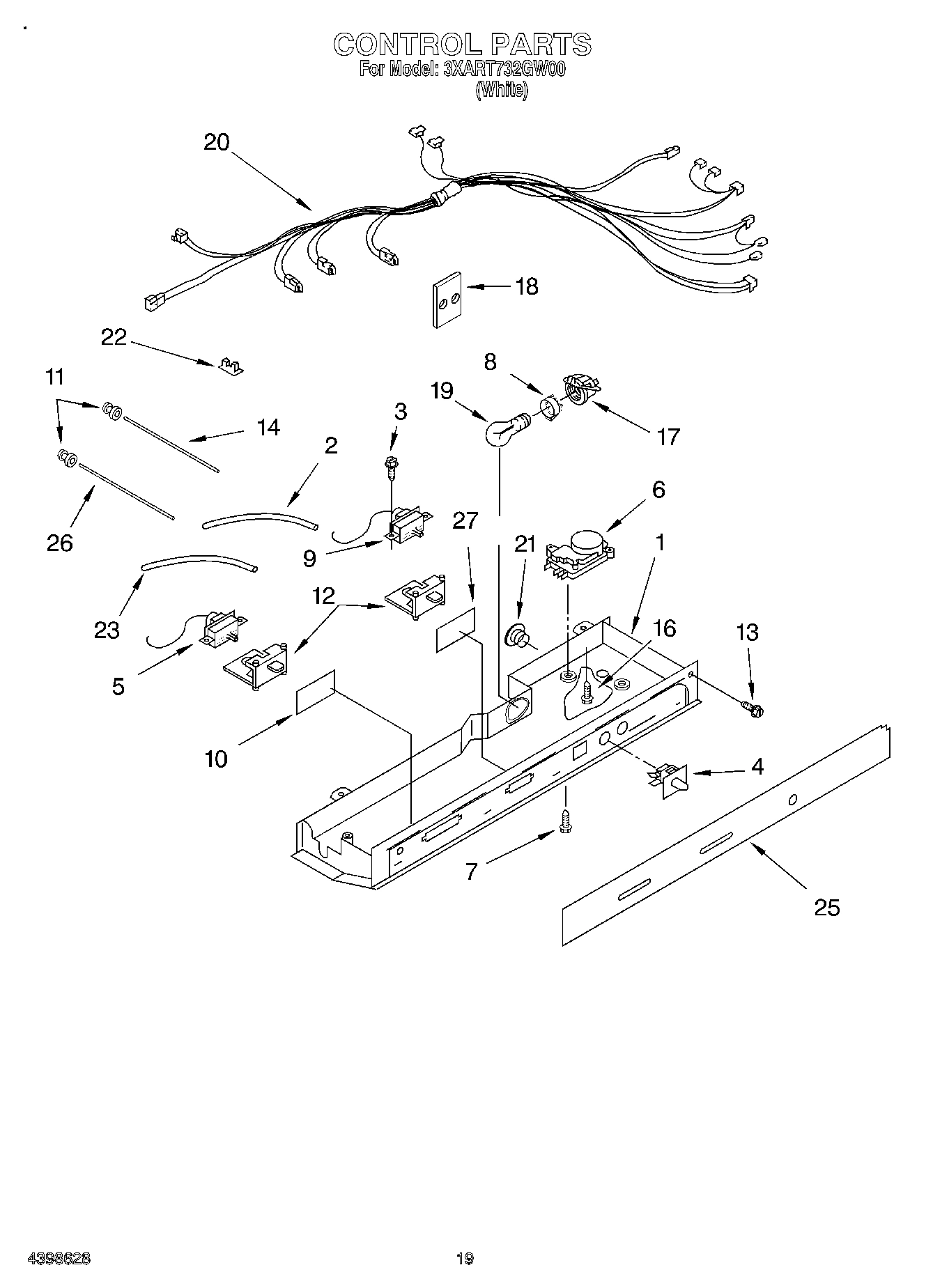

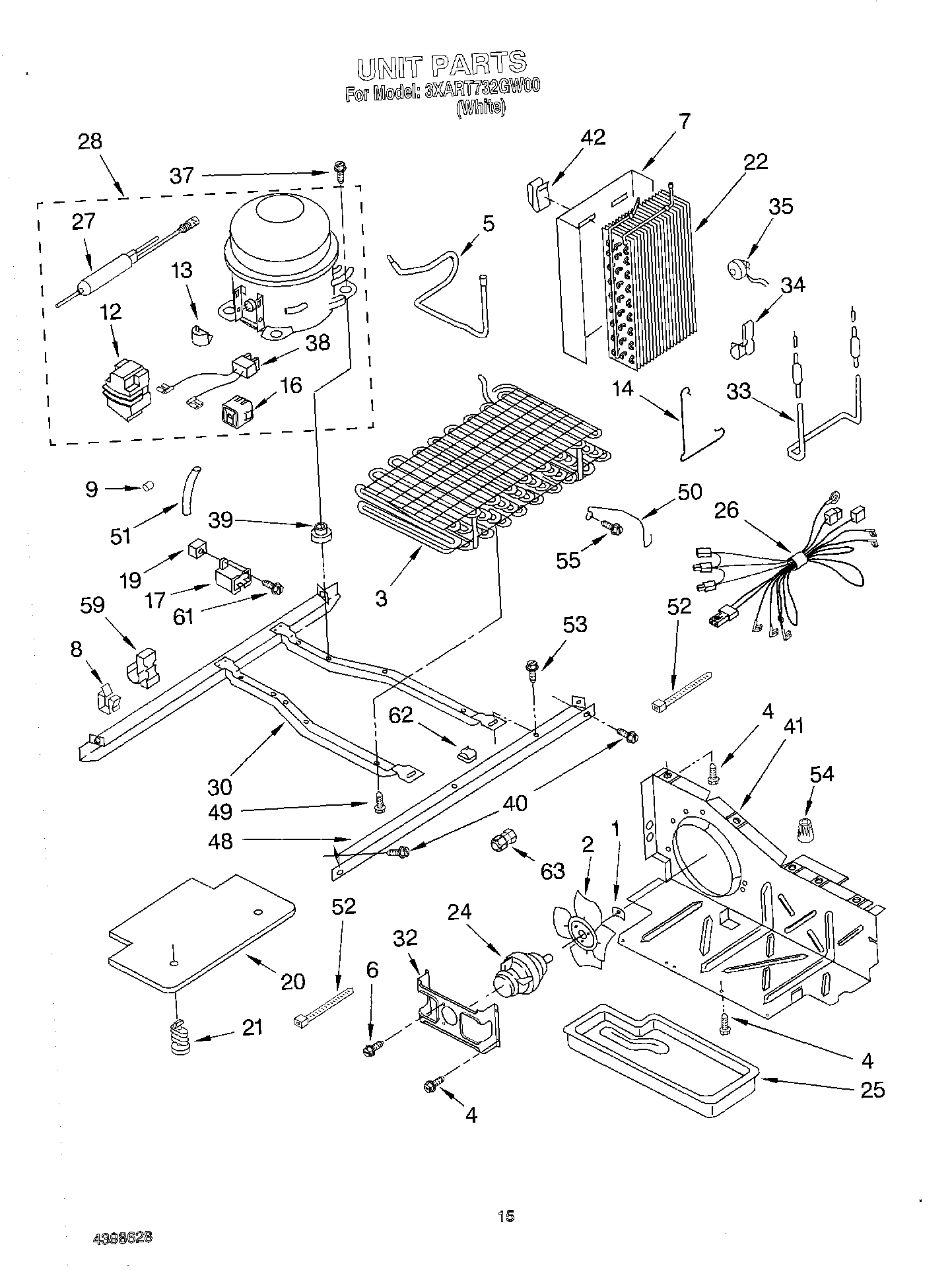

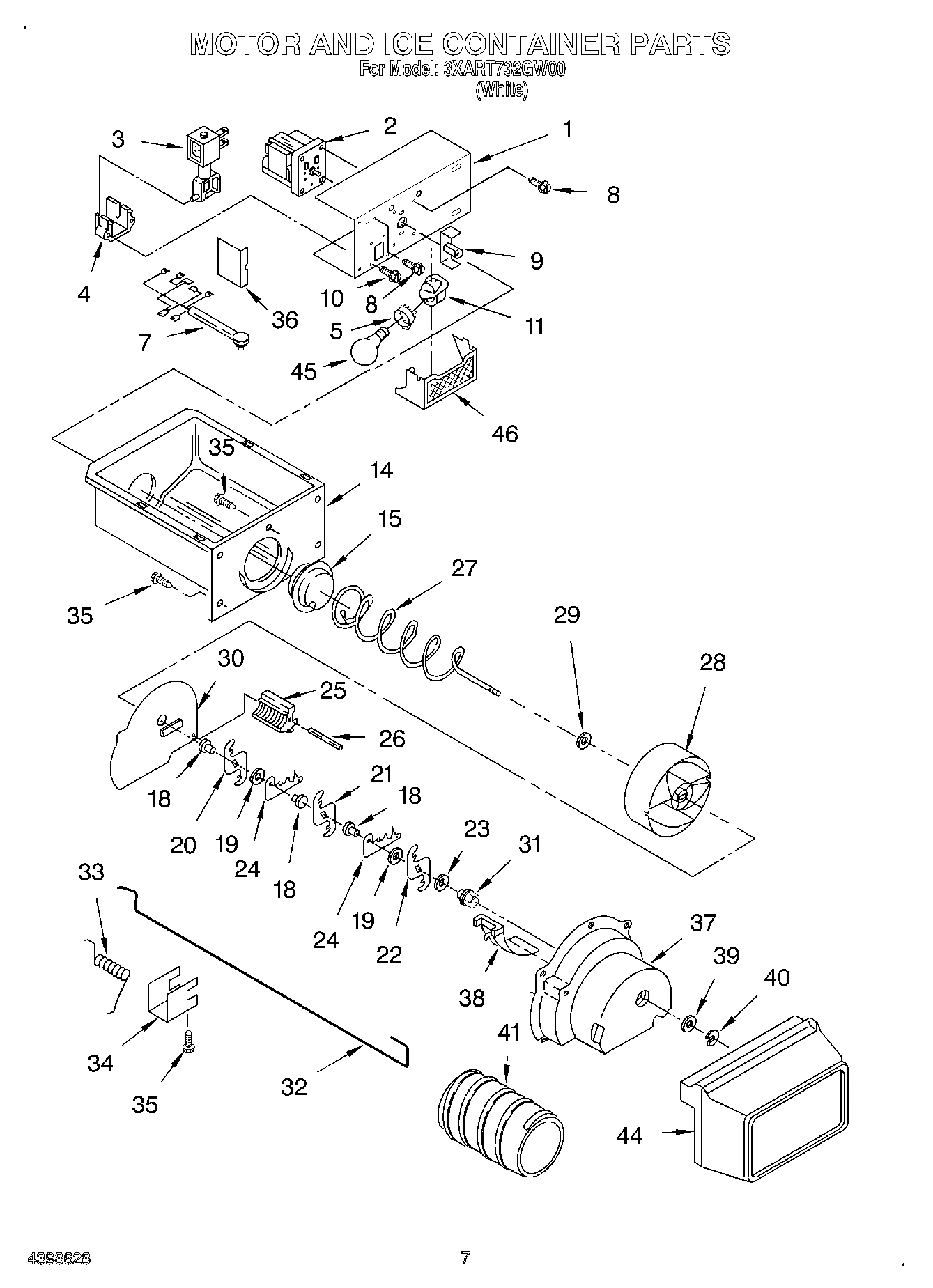

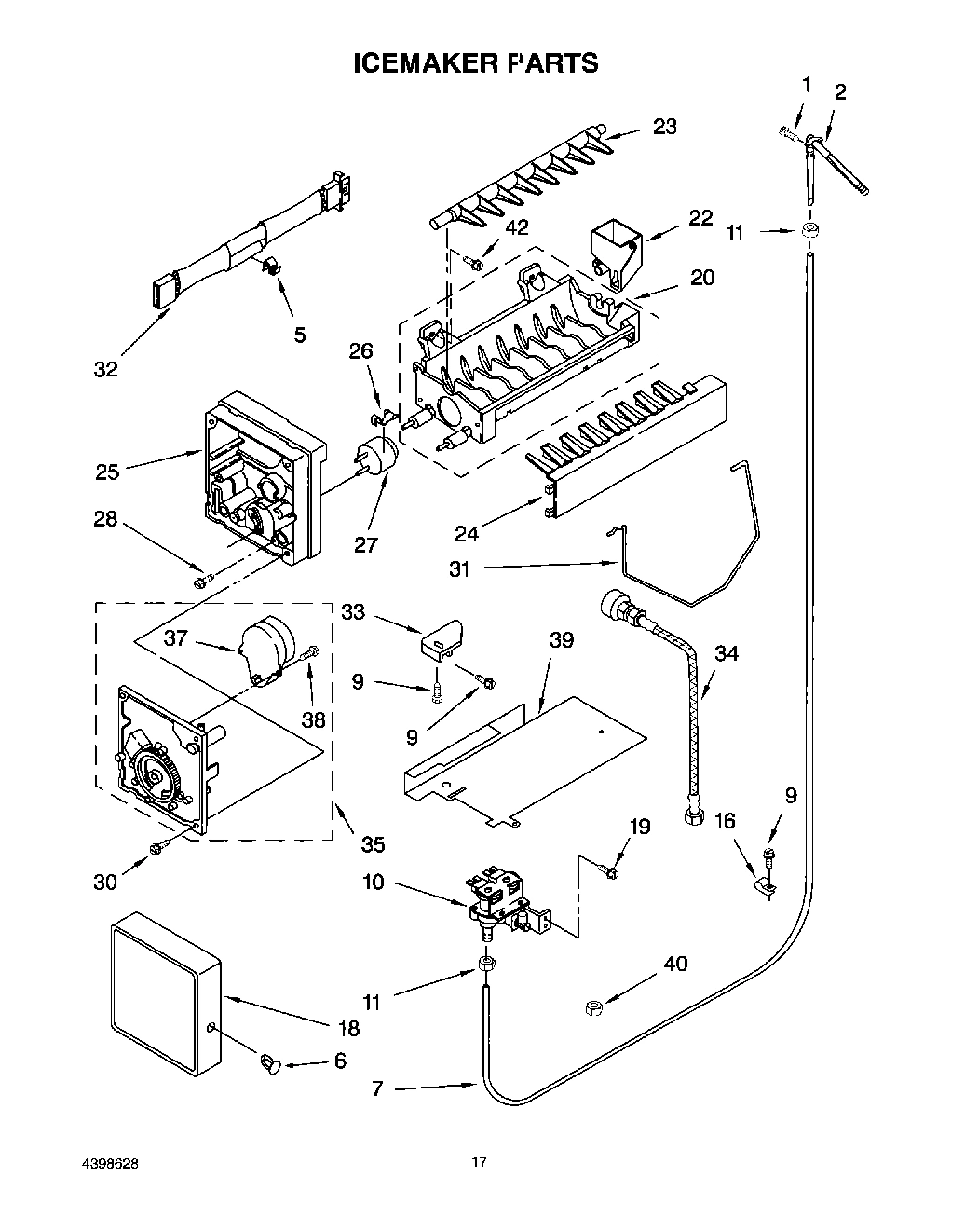

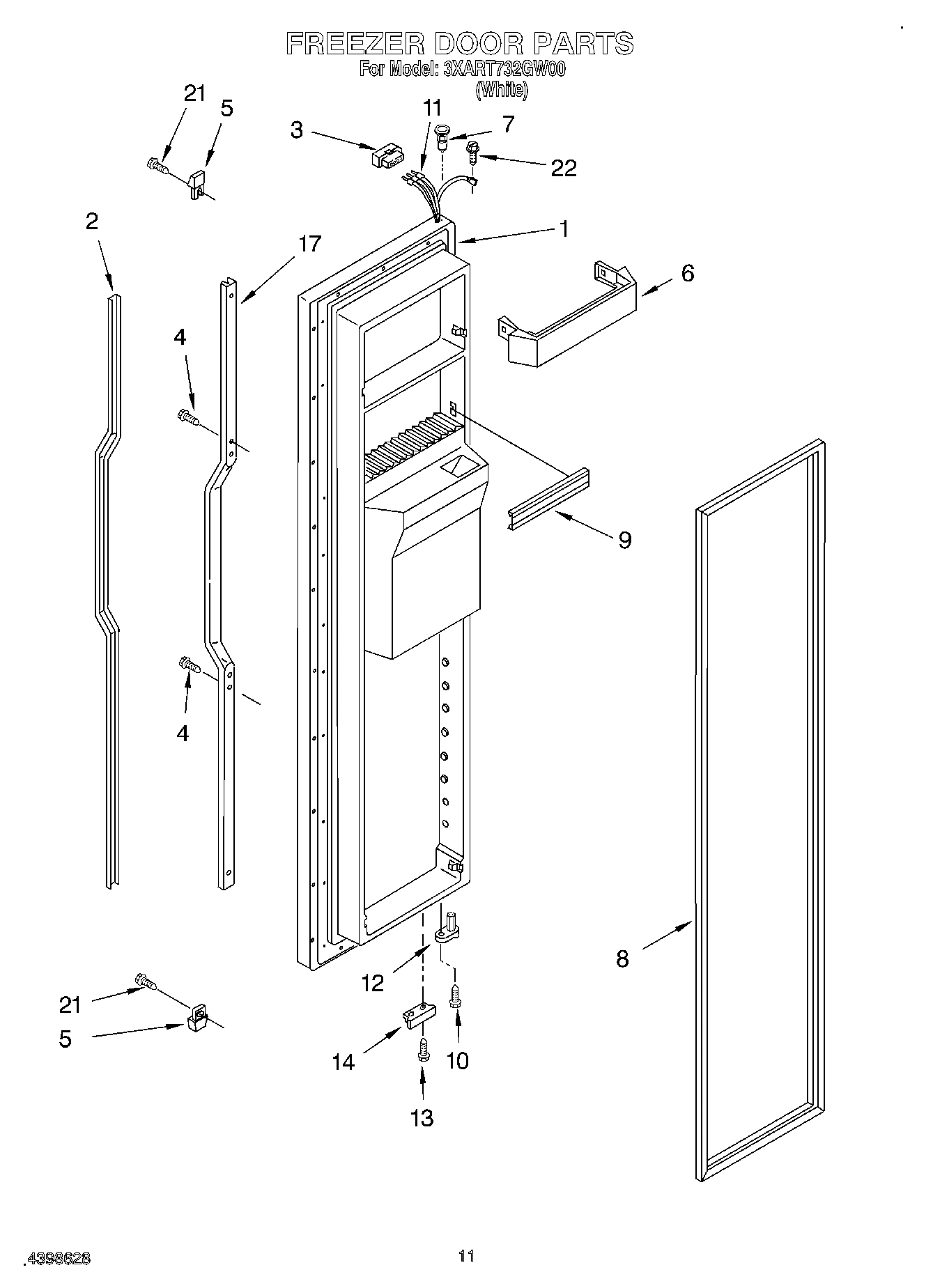

Model Whirlpool 3XART732GW00 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI12950A5 Contact Us For Availability

1

Bracket, Motor WPL 2183728 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Slide, Ice Door WPL 1115380 Contact Us For Availability

2

Motor, Dispenser WPL 2188386 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WPW10129867 Whirlpool Refrigerator Solenoid Backorder WPL WPW10129867 $82.75

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $37.48

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $88.09

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $27.52

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Thermostat (FC) WPL 2187158 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2188379 Whirlpool Refrigerator Defrost Time Backorder WPL WP2188379 $106.65

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

6

Spacer, Switch (2) WPL 625834 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

7

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

7

Fan Motor WPL 2187151 Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2186815 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

8

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $113.37

8

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

9

2195904K Whirlpool Refrigerator Basket Trim Backorder WPL 2195904K $30.25

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Gasket WPL 2209604 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Basket, Tall WPL 2181761 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Grommet, Light Bar WPL 2172906 Contact Us For Availability

Basket, Slope WPL 2181762 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Delay Mechanism WPL 2180223 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186799 Contact Us For Availability

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

NLA:SCREW Backorder WPL WPW10141645 $3.70

Grommet (4) WPL 2176134 Contact Us For Availability

Grille, Overflow WPL 2180323 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

15

Hinge Cover WPL 1129262 Contact Us For Availability

15

Gasket WPL 2209605 Contact Us For Availability

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

16

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

16

Bracket, Door Stop WPL 2195950 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

19

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

20

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

20

Harness, Control Box WPL 2186813 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

Light Lens WPL 2203266 Contact Us For Availability

Filler, Wrapper WPL 2196094 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $88.11

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

CLIP, WIRING WPL 1115375 Contact Us For Availability

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

23

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP2179243 Whirlpool Refrigerator Pan Trim In Stock WPL WP2179243 $34.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Lever, Ice Dispenser WPL 2180256 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Escutcheon, Control Box WPL 2175179 Contact Us For Availability

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

26

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

26

Light Bar (FC) WPL 2179921 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

KIT, FOAM WPL 876029 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

29

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

30

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Bulb, Light WPL 989331 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

36

1129563 Whirlpool Shield Backorder WPL 1129563 $27.52

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $36.47

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

Overlay, Front Cover WPL 2187029W Contact Us For Availability

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

40

Front Cover, Housing (Includes Items 8, 14 & WPL 2197745W Contact Us For Availability

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $86.61

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

45

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

49

Hinge Cover WPL 1119787 Contact Us For Availability

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
