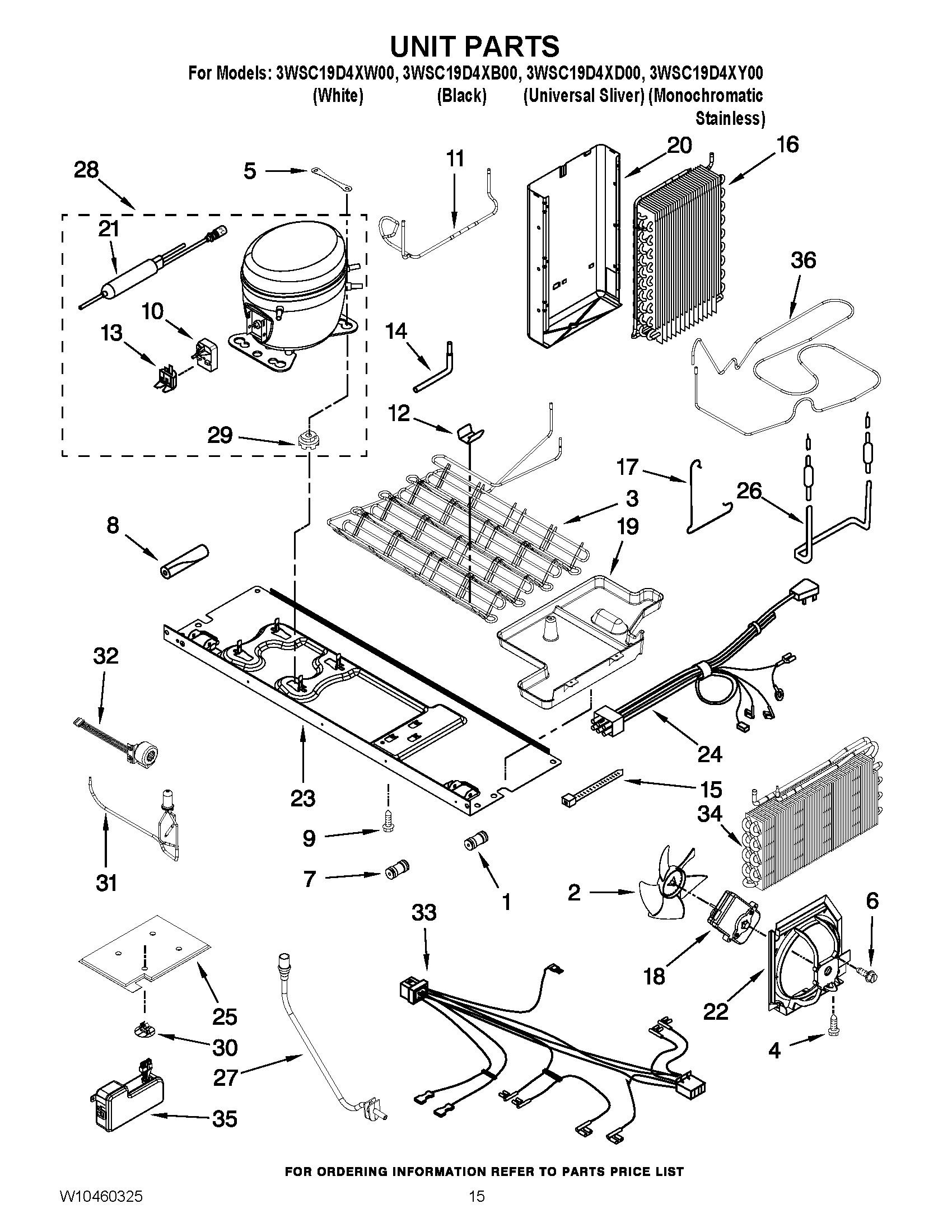

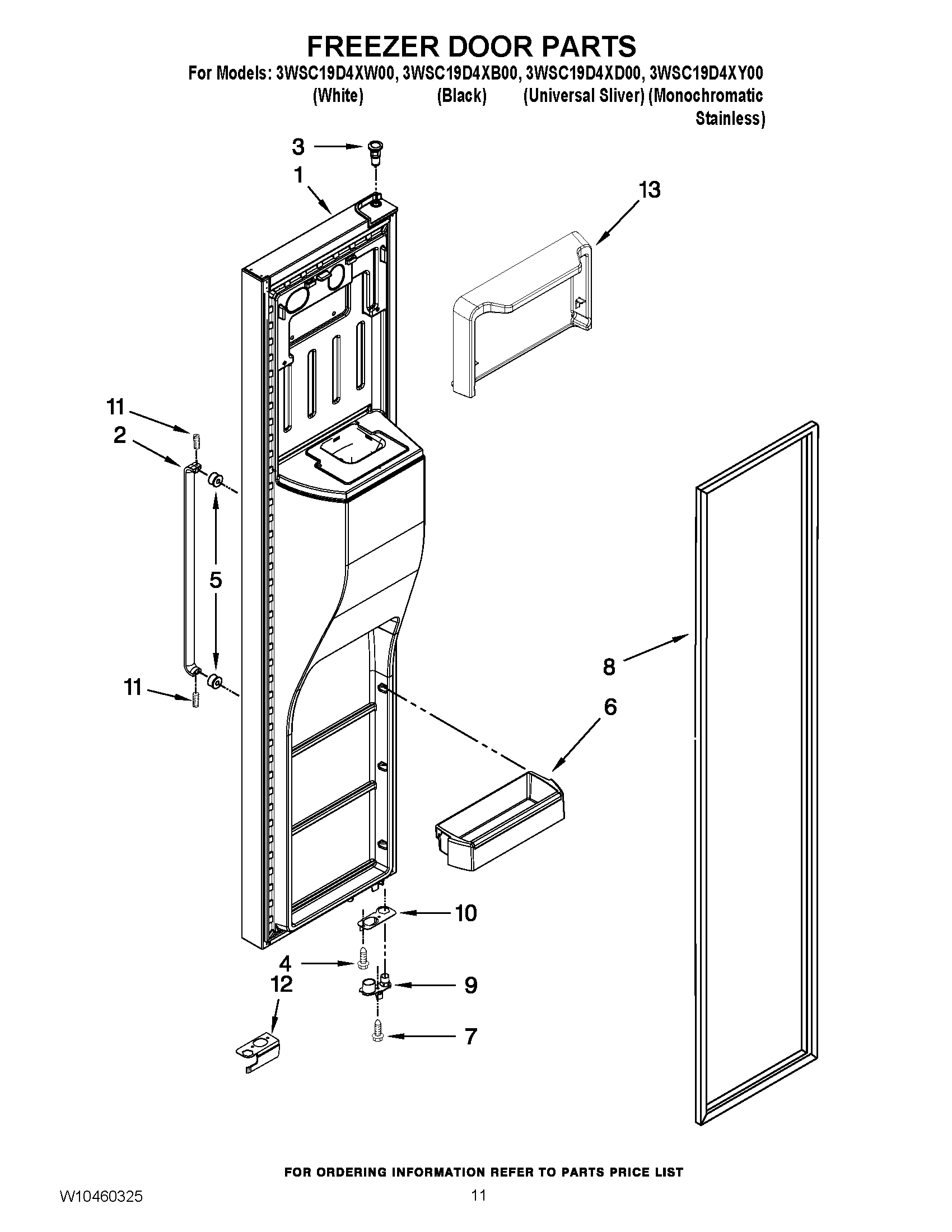

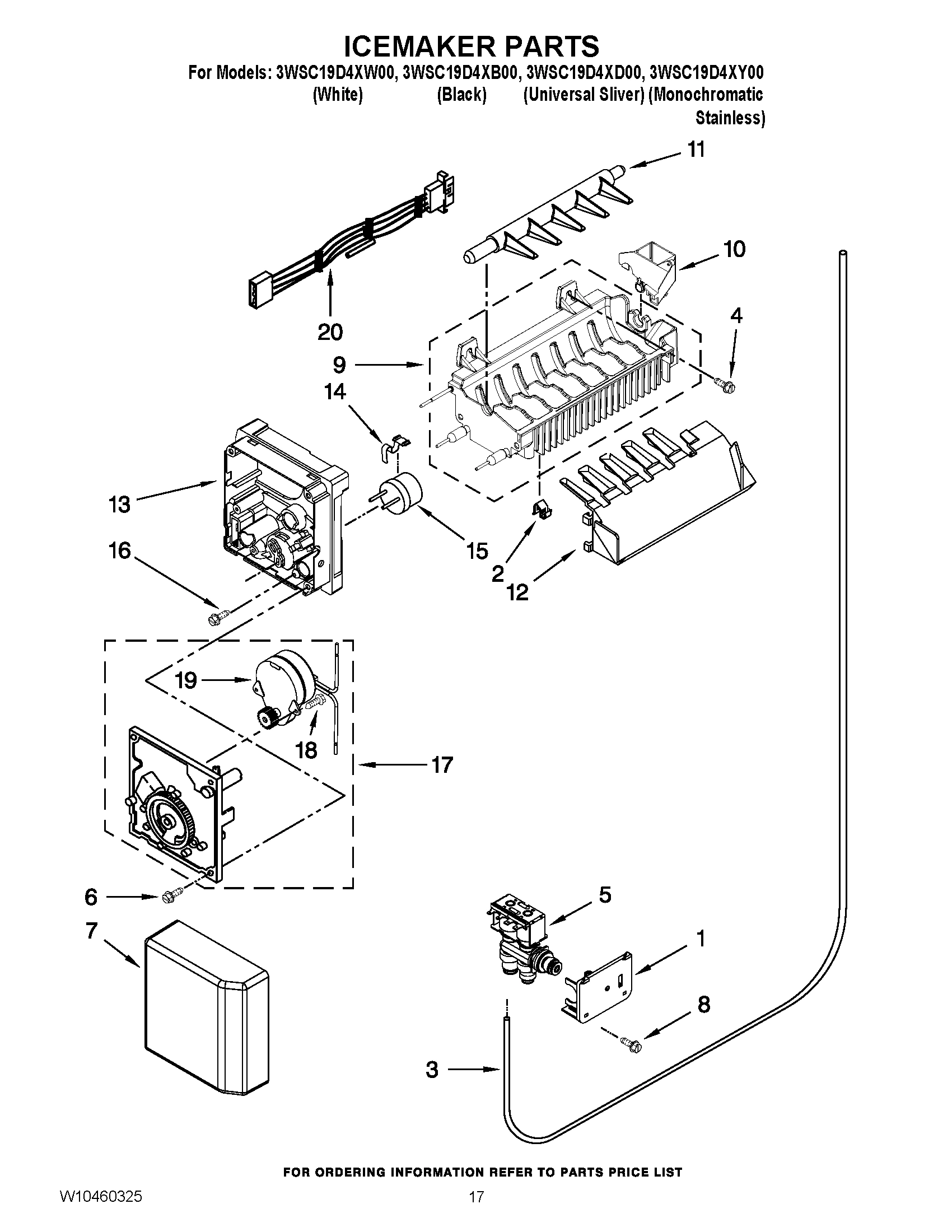

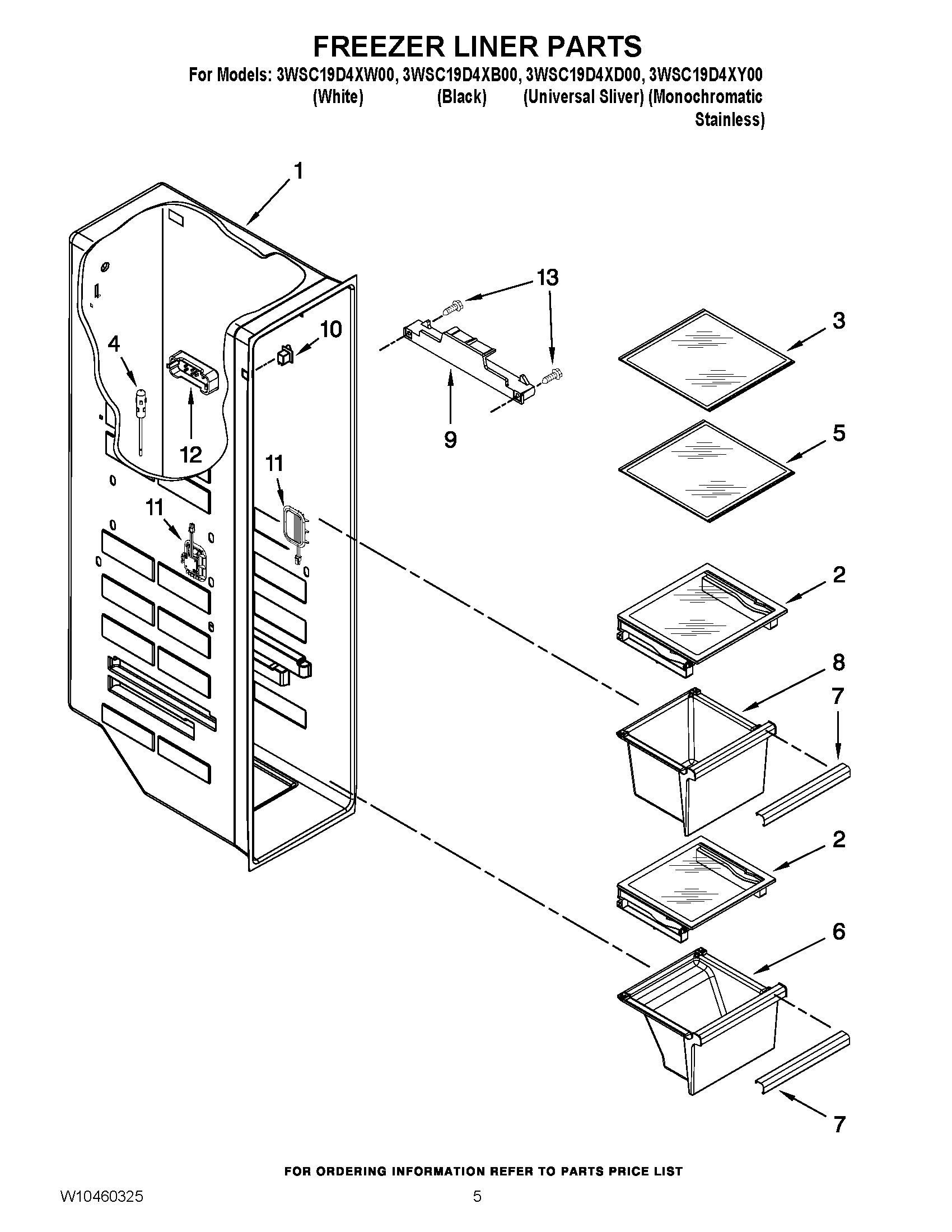

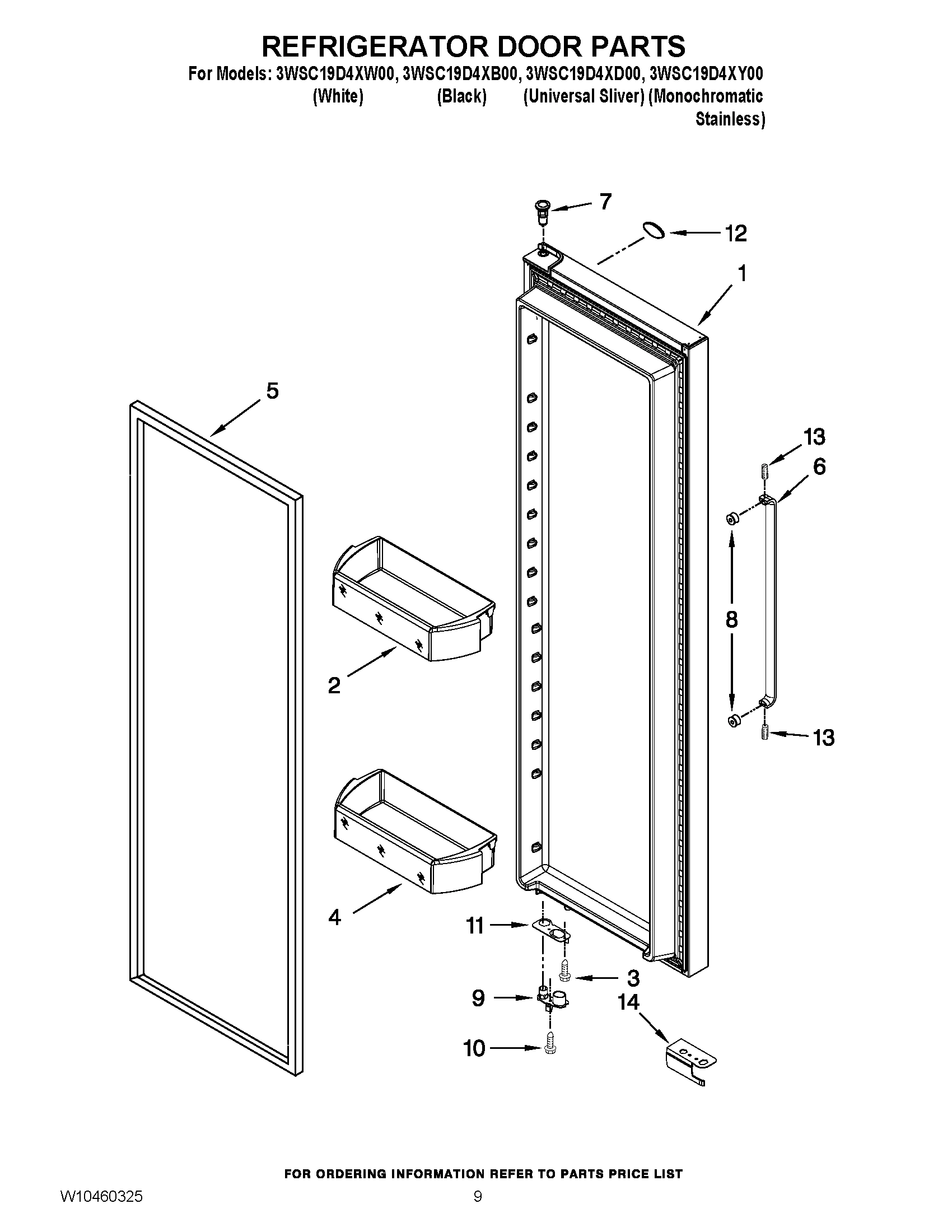

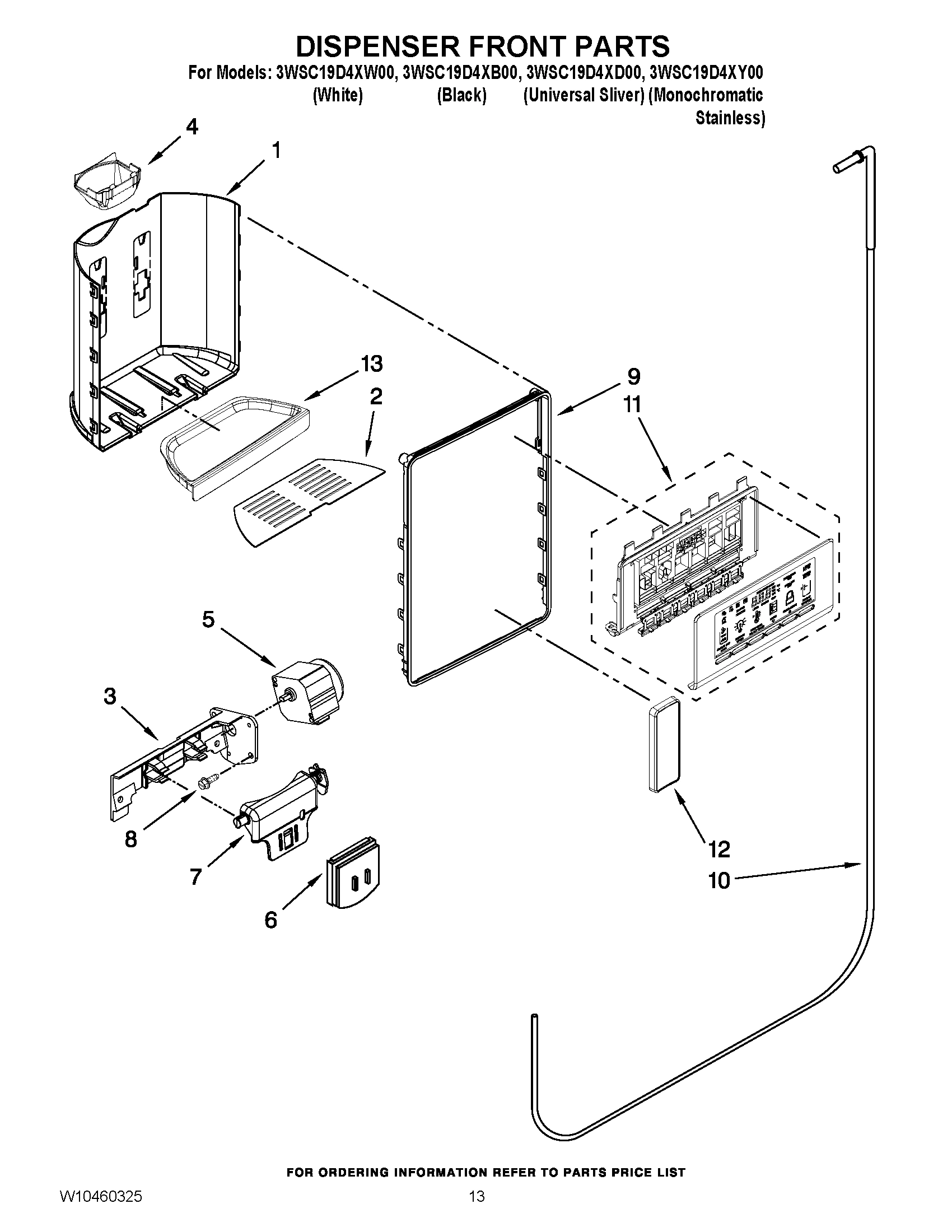

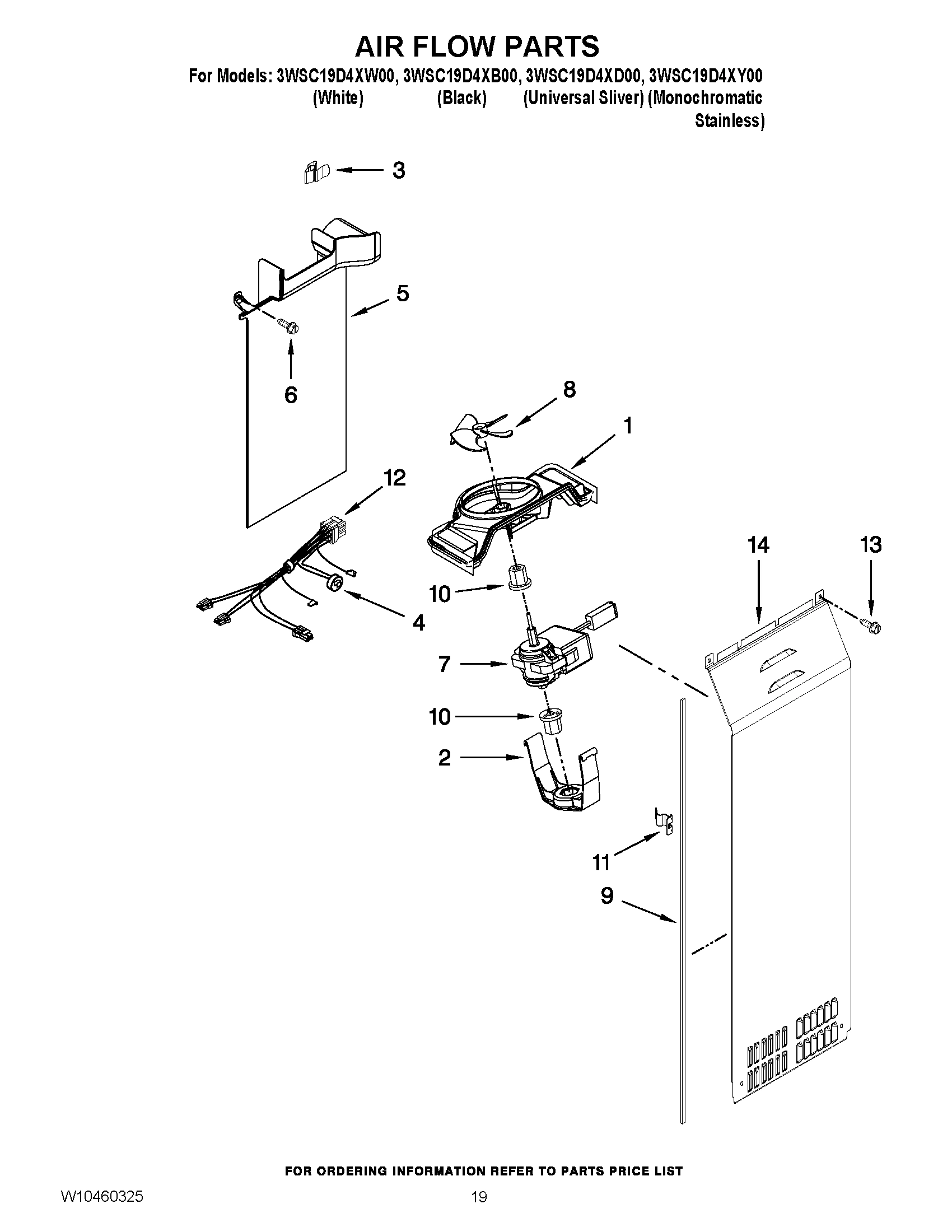

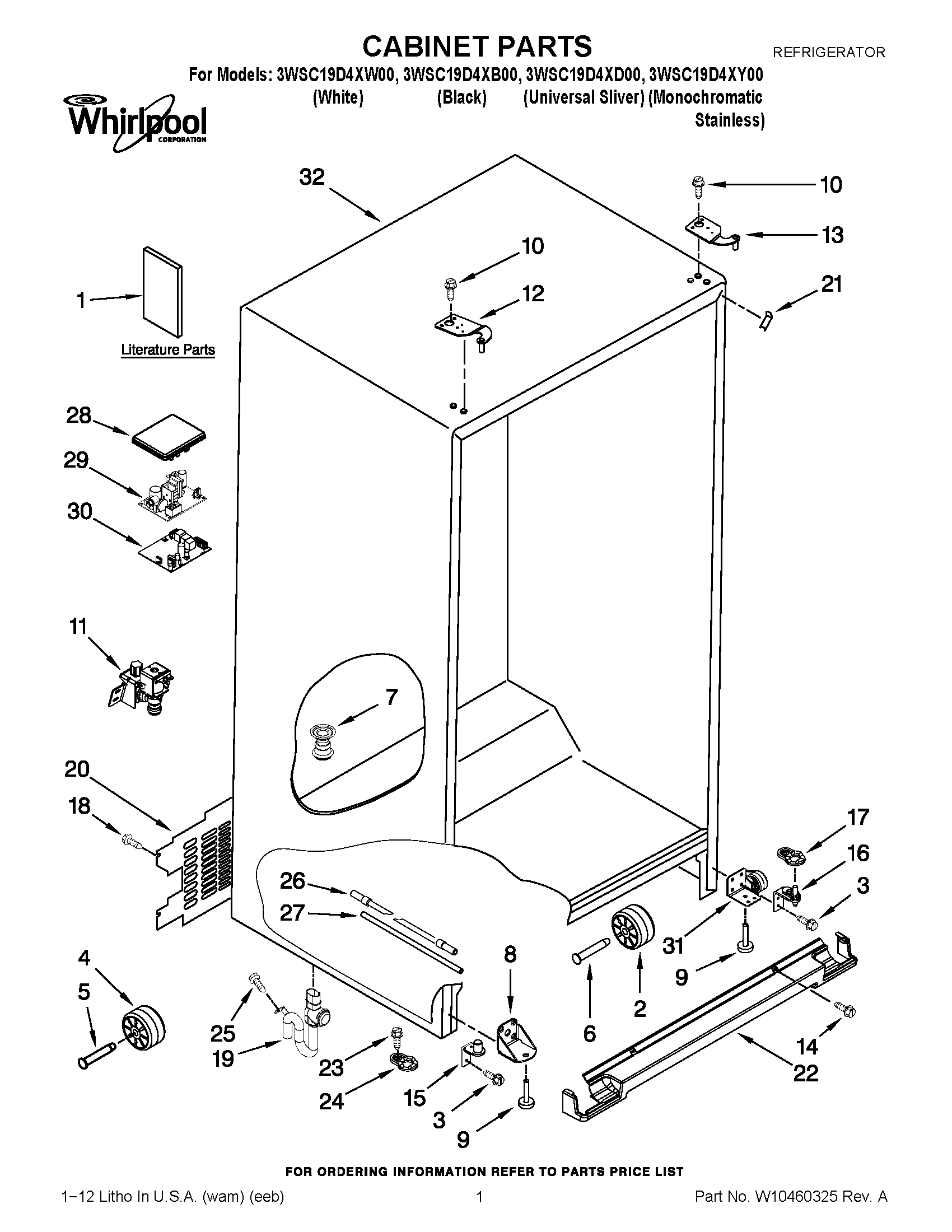

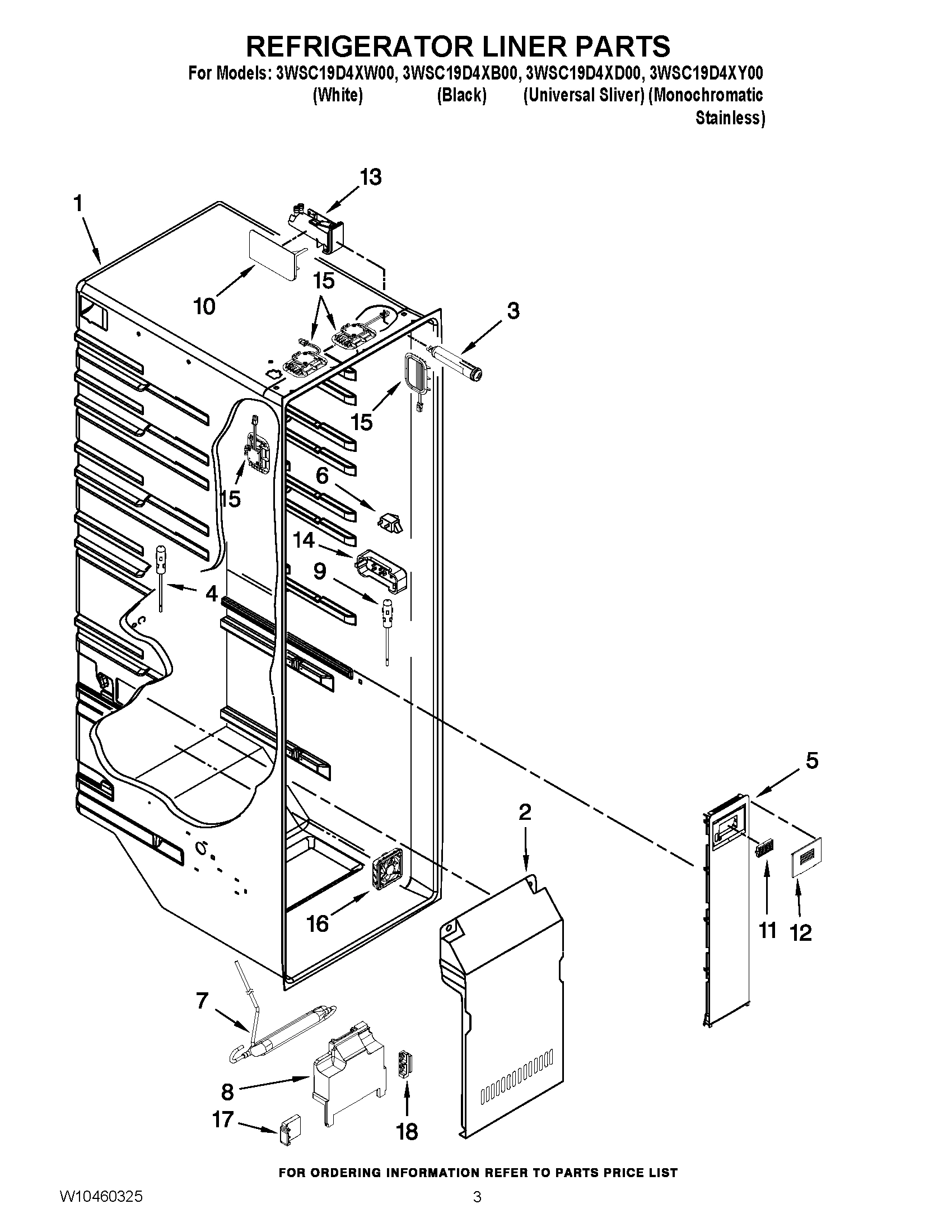

Model Whirlpool 3WSC19D4XD00 REFRIGERATOR – Common Parts &amp; Diagrams

1

W10847867 Whirlpool Refrigerator Bracket Backorder WPL W10847867 $30.43

1

WPW10269156 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10269156 $76.69

1

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $13.41

1

HOUSING, DISPENSER (NOT SERVICED) WPL NP Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STA WPL W10287403 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE) WPL W10396534 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK) WPL W10396535 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (UNIVERSA WPL W10396536 Contact Us For Availability

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $9.96

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

WPW10335220 Whirlpool Refrigerator Cantilever Backorder WPL WPW10335220 $48.82

2

WPW10387382 Whirlpool Refrigerator Evaporator In Stock WPL WPW10387382 $101.98

2

GRATE, DRIP TRAY (BLACK) WPL W10276259 Contact Us For Availability

2

GRATE, DRIP TRAY (WHITE) WPL W10330965 Contact Us For Availability

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

W10331728 Whirlpool Refrigerator Clip Backorder WPL W10331728 $28.80

3

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

3

W11708426 Whirlpool Condenser Assembly Backorder WPL W11708426 $98.26

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $11.38

3

SCREW WPL W10296816 Contact Us For Availability

4

W10316760 Whirlpool Thermistor Kit In Stock WPL W10316760 $32.54

4

W11590570 Whirlpool Bimetal Defrost Backorder WPL W11590570 $26.08

4

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

4

WPW10296855 Whirlpool Refrigerator Door Bin In Stock WPL WPW10296855 $44.18

4

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

5

W10236396 Whirlpool Refrigerator Strap Backorder WPL W10236396 $7.81

5

W10251474 Whirlpool Refrigerator Air Duct Backorder WPL W10251474 $60.04

5

W10355582 Whirlpool Refrigerator Door Gasket In Stock WPL W10355582 $141.53

5

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

5

WPW10205978 Whirlpool Motor Backorder WPL WPW10205978 $35.32

5

WPW10247884 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10247884 $147.01

5

WPW10249912 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249912 $144.80

5

WPW10258563 Whirlpool Inlet Valve Backorder WPL WPW10258563 $105.09

5

WPW10269161 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10269161 $69.21

6

W10781989 Whirlpool Refrigerator Ice Door Backorder WPL W10781989 $58.50

6

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

6

HANDLE WPL W10277354 Contact Us For Availability

7

W10247979 Whirlpool Refrigerator Fitting Backorder WPL W10247979 $27.27

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

WPW10346124 Whirlpool Refrigerator Support Backorder WPL WPW10346124 $15.94

7

COVER WPL W10289697 Contact Us For Availability

7

FAN MOTOR WPL W10378923 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

8

WPW10247885 Whirlpool Door Gasket In Stock WPL WPW10247885 $151.09

8

WPW10249913 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249913 $146.07

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

W11607100 Whirlpool Refrigerator Thimble Cam Backorder WPL W11607100 $4.90

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

9

WPW10248011 Whirlpool Refrigerator White Door In Stock WPL WPW10248011 $8.78

9

WPW10248015 Whirlpool Refrigerator Door Cam Backorder WPL WPW10248015 $9.35

9

WPW10257201 Whirlpool Door Closing Cam In Stock WPL WPW10257201 $8.67

9

WPW10257203 Whirlpool Refrigerator Lower Door In Stock WPL WPW10257203 $8.80

9

WPW10257206 Whirlpool Refrigerator Door Cam Backorder WPL WPW10257206 $9.17

9

WPW10276257 Whirlpool Dispenser Trim Backorder WPL WPW10276257 $53.91

9

MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 WPL W10136599 Contact Us For Availability

9

TRIM RING (WHITE) WPL W10330884 Contact Us For Availability

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

W10300484 Whirlpool Refrigerator Filter Cover Backorder WPL W10300484 $49.59

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $24.28

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WPW10296804 Whirlpool Refrigerator Screw Backorder WPL WPW10296804 $4.28

WPW10308750 Whirlpool Refrigerator Screw Backorder WPL WPW10308750 $26.21

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

WPW10386778 Whirlpool Refrigerator Water Tube Backorder WPL WPW10386778 $52.08

W10311524 Whirlpool Refrigerator FreshFlow Ai In Stock WPL W10311524 $5.04

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

W11037957 Whirlpool Refrigerator Bracket Backorder WPL W11037957 $27.82

W11164152 Whirlpool Drawer Roller In Stock WPL W11164152 $6.08

W11232019 Whirlpool Refrigerator Clip Backorder WPL W11232019 $4.39

WPW10223328 Whirlpool Refrigerator Tube In Stock WPL WPW10223328 $50.51

ELECTRONIC CONTROL ASSY WPL W10276268 Contact Us For Availability

W10901051 Whirlpool Refrigerator Door Hinge Backorder WPL W10901051 $26.55

W10901052 Whirlpool Refrigerator Door Hinge Backorder WPL W10901052 $26.55

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $8.55

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

WPW10257246 Whirlpool Refrigerator Axle Backorder WPL WPW10257246 $15.59

WPW10370592 Whirlpool Refrigerator Pad In Stock WPL WPW10370592 $125.88

WPW10370593 Whirlpool Refrigerator Pad Backorder WPL WPW10370593 $125.70

WPW10632062 Whirlpool Refrigerator Wire Cover Backorder WPL WPW10632062 $3.70

HARNESS, FAN EVAPORATOR (INCLUDES No.4) WPL W10193316 Contact Us For Availability

W10314925 Whirlpool Control Bin Backorder WPL W10314925 $42.69

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $24.69

W11568758 Whirlpool Top Hinge Backorder WPL W11568758 $8.55

W11573587 Whirlpool Refrigerator Door Hinge Backorder WPL W11573587 $8.55

W11661892 Whirlpool Refrigerator Ice Door Backorder WPL W11661892 $30.36

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WPW10238123 Whirlpool Refrigerator Housing In Stock WPL WPW10238123 $143.57

TRAY, HOUSING (WHITE) WPL W10276252 Contact Us For Availability

TRAY, HOUSING (BLACK) WPL W10276253 Contact Us For Availability

W10257216 Whirlpool Refrigerator Wire Cover Backorder WPL W10257216 $12.08

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

W10789144 Whirlpool Refrigerator Wire Cover Backorder WPL W10789144 $11.11

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10308489 Whirlpool Refrigerator Screw Backorder WPL WPW10308489 $3.92

WPW10388268 Whirlpool Refrigerator Evaporator Backorder WPL WPW10388268 $92.00

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $40.53

W10249941 Whirlpool Refrigerator Door Hinge Backorder WPL W10249941 $35.43

W11293373 Whirlpool Refrigerator Door Hinge Backorder WPL W11293373 $25.57

W11293374 Whirlpool Refrigerator Door Hinge Backorder WPL W11293374 $25.57

16

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

16

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

17

W10190933 Whirlpool Refrigerator Motor Assemb Backorder WPL W10190933 $191.63

17

W11028224 Whirlpool Refrigerator Support Backorder WPL W11028224 $6.28

17

Clamp WPL 2161324 Contact Us For Availability

18

Screw WPL W10001220 Contact Us For Availability

19

W11519143 Whirlpool Refrigerator Extension In Stock WPL W11519143 $13.03

20

HEAT SHIELD WPL W10348669 Contact Us For Availability

20

WIRE HARNESS WPL W10253288 Contact Us For Availability

21

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

21

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

22

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $48.39

23

W10277704 Whirlpool Refrigerator Support Backorder WPL W10277704 $108.63

24

W10876191 Whirlpool Refrigerator Door Cam In Stock WPL W10876191 $10.69

24

W10876198 Whirlpool Refrigerator Door Cam Backorder WPL W10876198 $5.09

27

W11409190 Whirlpool Refrigerator Drain Tube Backorder WPL W11409190 $22.91

29

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $226.83

31

W11590197 Whirlpool Refrigerator Valve Backorder WPL W11590197 $68.02

32

WPW10364560 Whirlpool Refrigerator Solenoid In Stock WPL WPW10364560 $96.71

100

WPW10122558 Whirlpool Ice Maker Backorder WPL WPW10122558 $92.42

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPW10300794 Whirlpool Refrigerator Hardware P Backorder WPL WPW10300794 $55.40

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability
