Model Whirlpool 3VET19NKFW00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
04 - UNIT
05 - SHELF, LIT/OPTIONAL

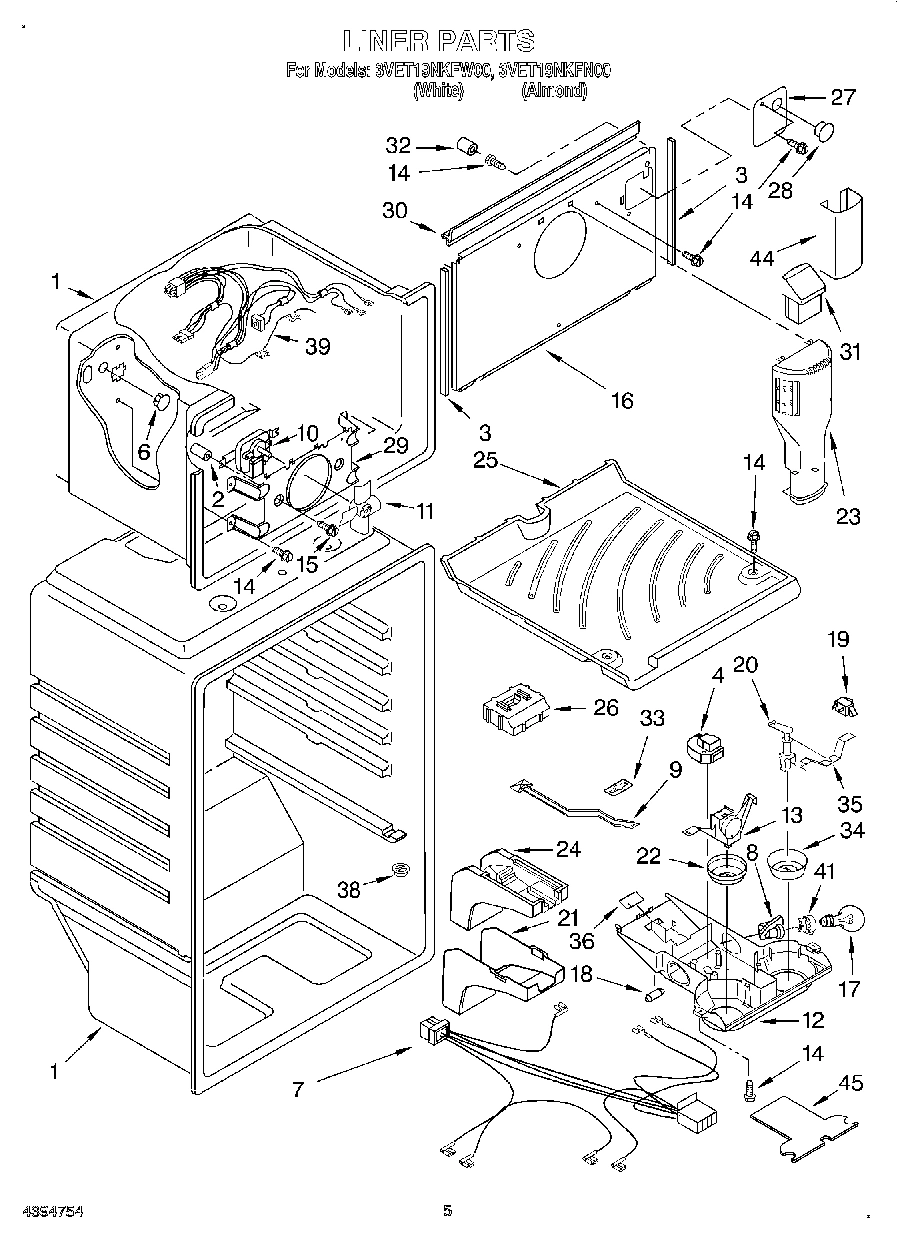

03 - LINER

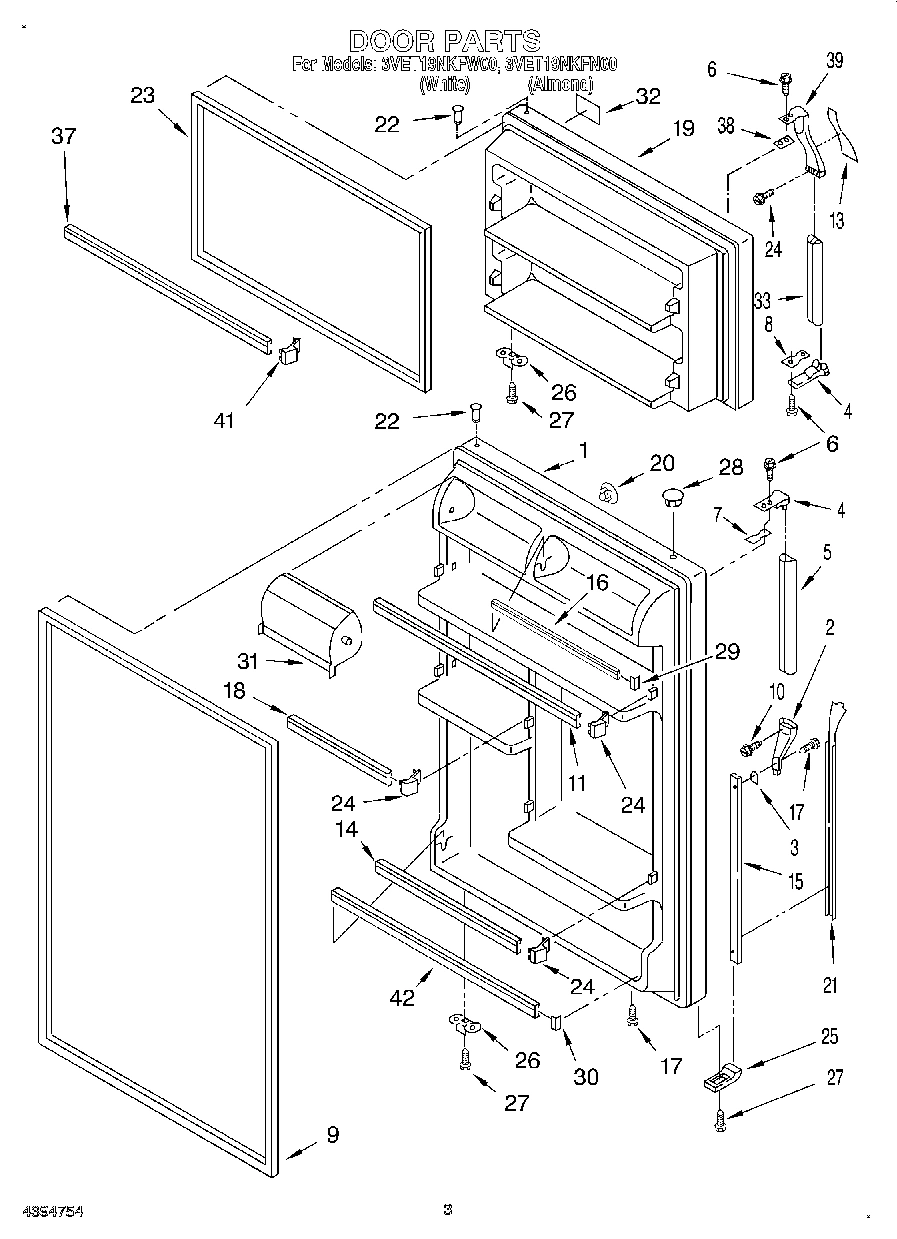

02 - DOOR
Common parts from model Whirlpool 3VET19NKFW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12574A9 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) (Wh WPL 2183948 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) (Al WPL 2183949 Contact Us For Availability
2
End Cap WPL 1109189 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Shim WPL 935075 Contact Us For Availability
4
End Cap, Handle (2) WPL 944157 Contact Us For Availability
5
Handle, Center (White) WPL 2150150 Contact Us For Availability
5
Handle Center (Almond) WPL 943068 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193492 Contact Us For Availability
8
Shim WPL 935074 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183828 Contact Us For Availability
10
Screw WPL 489022 Contact Us For Availability
11
Insert, Crisper Cover WPL 2166149 Contact Us For Availability
11
Trim, Door Shelf WPL 2195365 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Insert, Handle (White) WPL 1108828 Contact Us For Availability
13
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Retainer WPL 2159417 Contact Us For Availability
16
Shelf, Full Cantilever (2) WPL 2163856 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Trim, Door WPL 2195366 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) (White) WPL 2182487 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) (Almond WPL 2182491 Contact Us For Availability
20
Pan, Meat WPL 2169919 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Insert, Handle (White) WPL 2166438 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2166784 Contact Us For Availability
22
Support WPL 2189314 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
25
Endcap WPL 1105804 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
32
Nameplate (White) WPL 2175383 Contact Us For Availability
32
Nameplate (Almond) WPL 2175384 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2170424 Contact Us For Availability
33
Handle, F.C. (White) WPL 2173622 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
37
Trim-Door (2) WPL 2171282 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Handle End, WPL 944163 Contact Us For Availability
39
Wire Assembly, F.C. WPL 2195657 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Sleeve WPL 2179712 Contact Us For Availability
45
Shield WPL 2190519 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Door Reversal Instructions WPL 2172516 Contact Us For Availability
100
FeaturePak (Includes 11,14, 16,18,24,29,30, 3 WPL 2182569 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
