Model Whirlpool 3ED22DQXDW00 REFRIGERATOR – Common Parts & Diagrams

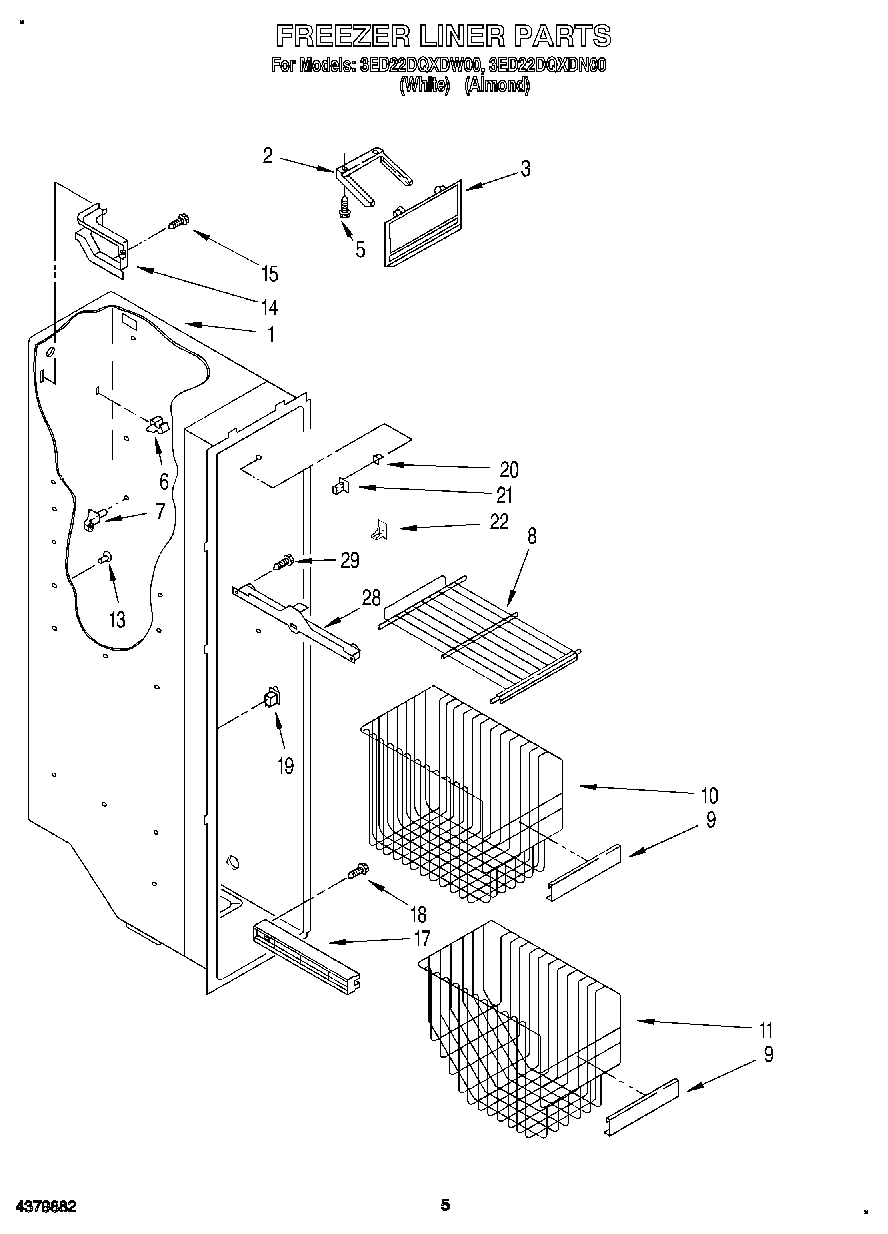

04 - FREEZER LINER

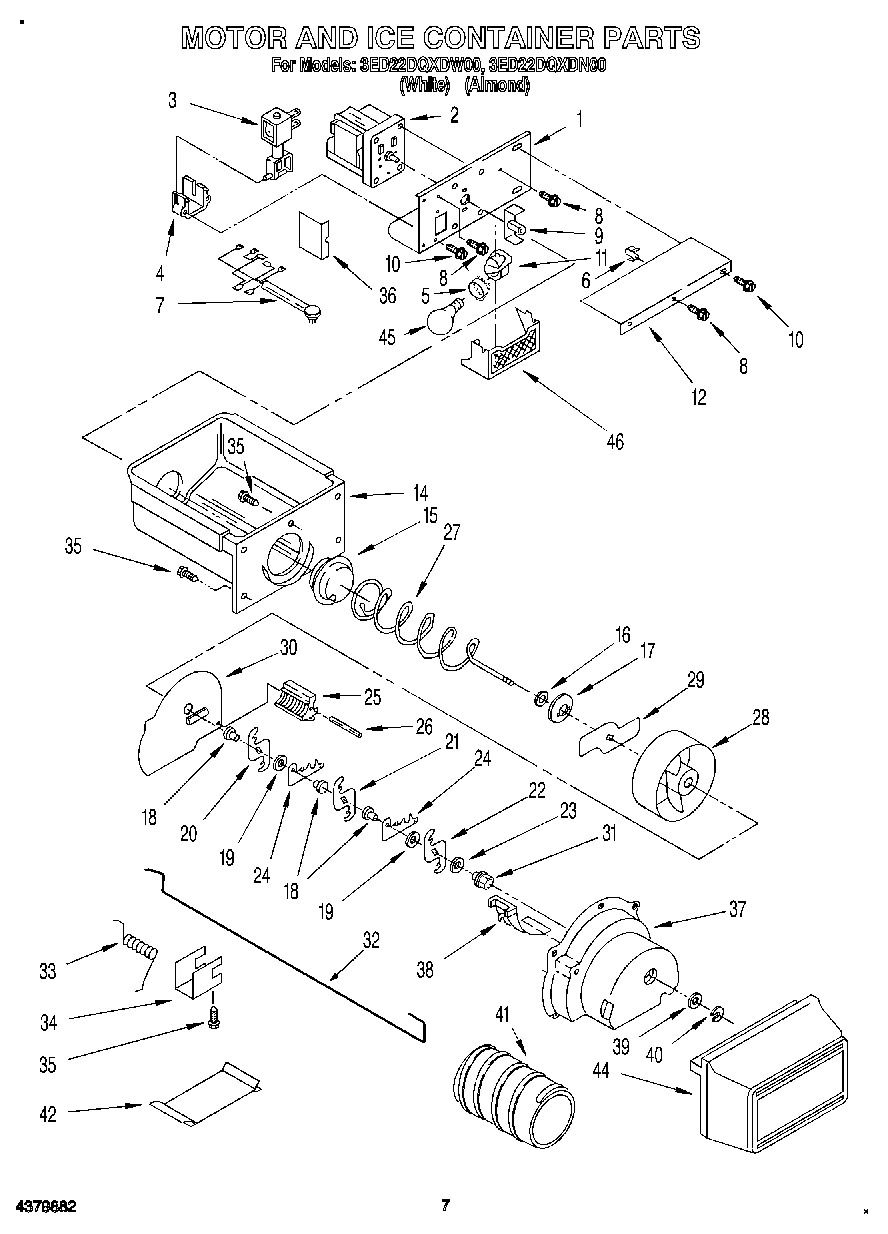

06 - MOTOR AND ICE CONTAINER
08 - FREEZER DOOR
02 - REFRIGERATOR LINER
09 - DISPENSER FRONT
05 - AIR FLOW
07 - REFRIGERATOR DOOR
01 - CABINET
03 - REFRIGERATOR SHELF
11 - ICEMAKER
10 - UNIT PARTS
12 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool 3ED22DQXDW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2165605 WPL LIT2165605 Contact Us For Availability
WPL LIT2170416 WPL LIT2170416 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2171082 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2171083 Contact Us For Availability
1
Control Box WPL 2166841 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
5
Gasket, Cover (Rear) WPL 2174483 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
7
Extension, Bottom (White) WPL 2174282 Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2174283 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Handle, Center (White) WPL 2179366 Contact Us For Availability
9
Handle, Center (Almond) WPL 2179367 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
11
Shim WPL 2179399 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2176138 Contact Us For Availability
12
Divider, Bin WPL 2171284 Contact Us For Availability
12
Bushing WPL 1129449 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Extension, Top (White) WPL 2174276 Contact Us For Availability
13
Extension, Top (Almond) WPL 2174277 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop WPL 2155332 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 987179 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
21
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174392 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2179361 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
26
Harness, Intermediate WPL 2167065 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
30
WPL 876029 WPL 876029 Contact Us For Availability
30
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
30
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
30
Washer WPL 486632 Contact Us For Availability
30
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
30
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
30
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174331 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2179206 Contact Us For Availability
40
Front Cover, Housing (White) WPL 2174309 Contact Us For Availability
40
Front Cover, Housing (Almond (Includes Item 3 WPL 2174498 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
47
Cover, Unit WPL 2160521 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI11784A3 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
