Model Whirlpool 3CGP2901DW1 GAS DRYER – Common Parts &amp; Diagrams

1

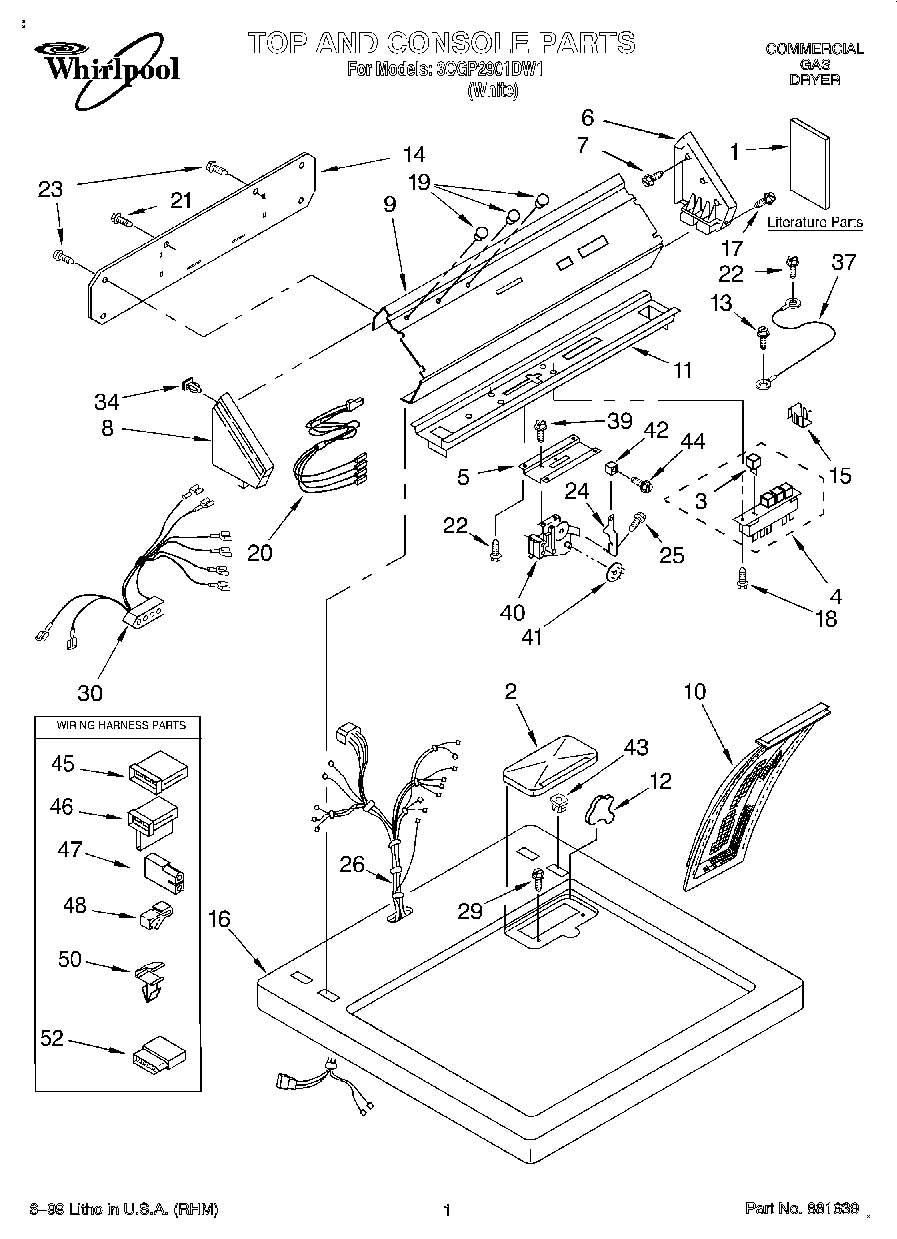

Panel, Rear WPL 3396807 Contact Us For Availability

2

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

2

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

3

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

3

Button (4) WPL 3348587 Contact Us For Availability

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

7

686889 Whirlpool Pad Backorder WPL 686889 $10.76

8

WP3387137 Whirlpool Thermostat In Stock WPL WP3387137 $45.40

9

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

10

SCREEN WPL 339392 Contact Us For Availability

11

WP8577230 Whirlpool Housing In Stock WPL WP8577230 $66.34

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

279980 Whirlpool Box In Stock WPL 279980 $128.16

15

W11050897 Whirlpool Dryer High Limit Thermost In Stock WPL W11050897 $6.28

15

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

17

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

WP8066048 Whirlpool Funnel Backorder WPL WP8066048 $54.08

19

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

19

WP3348109 Whirlpool Light Lens In Stock WPL WP3348109 $5.31

19

Seal, Blower WPL 3394196 Contact Us For Availability

20

Locator, Top (2) WPL 98669 Contact Us For Availability

21

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

21

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

22

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $54.79

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

23

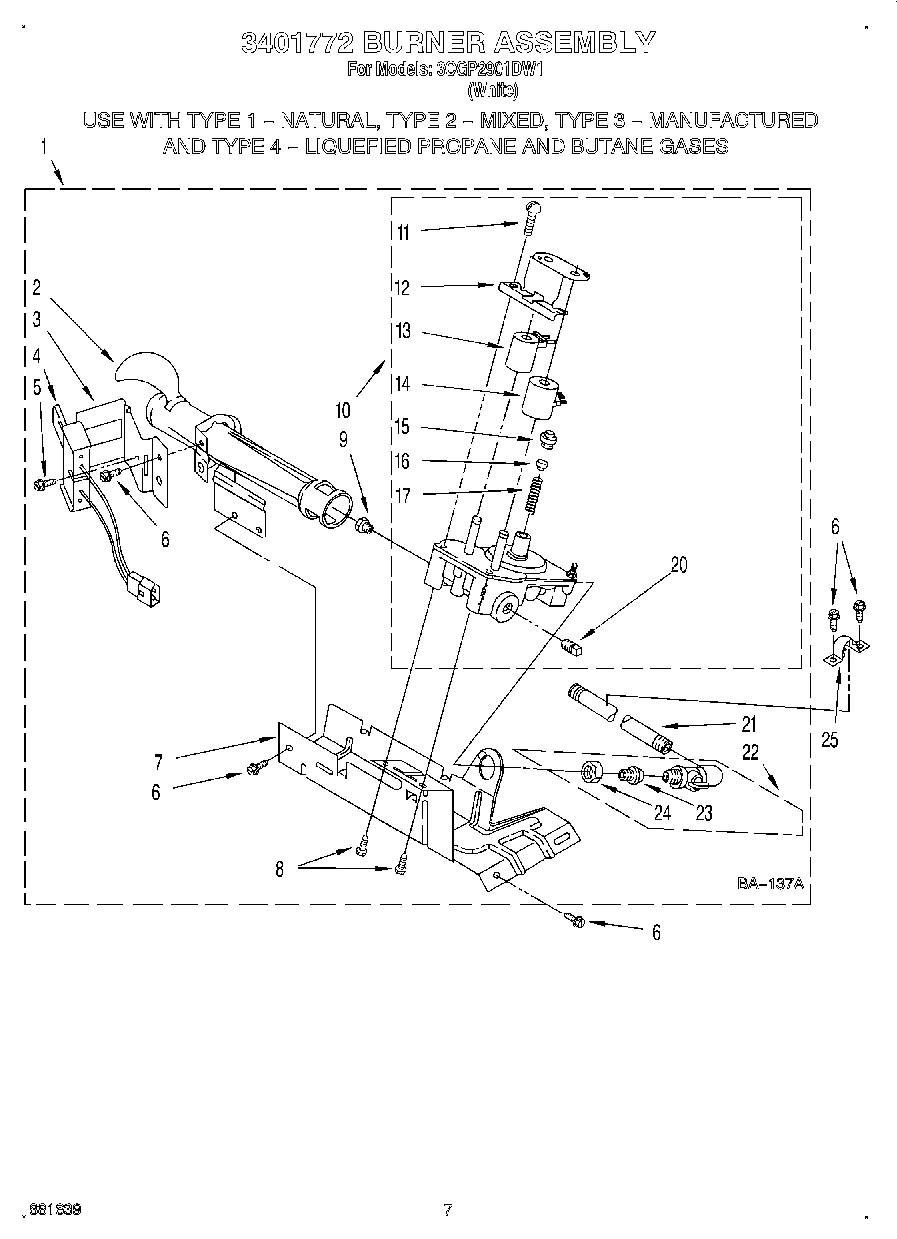

Burner Assembly (50 Hz.) (Refer to Parts Page WPL 3401772 Contact Us For Availability

24

W11398682 Whirlpool Bracket Backorder WPL W11398682 $20.90

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Front Panel Assembly WPL 693202 Contact Us For Availability

25

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

25

695237 Whirlpool Gas LP Conversion Backorder WPL 695237 $54.79

26

Panel, Toe WPL 692427 Contact Us For Availability

27

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

28

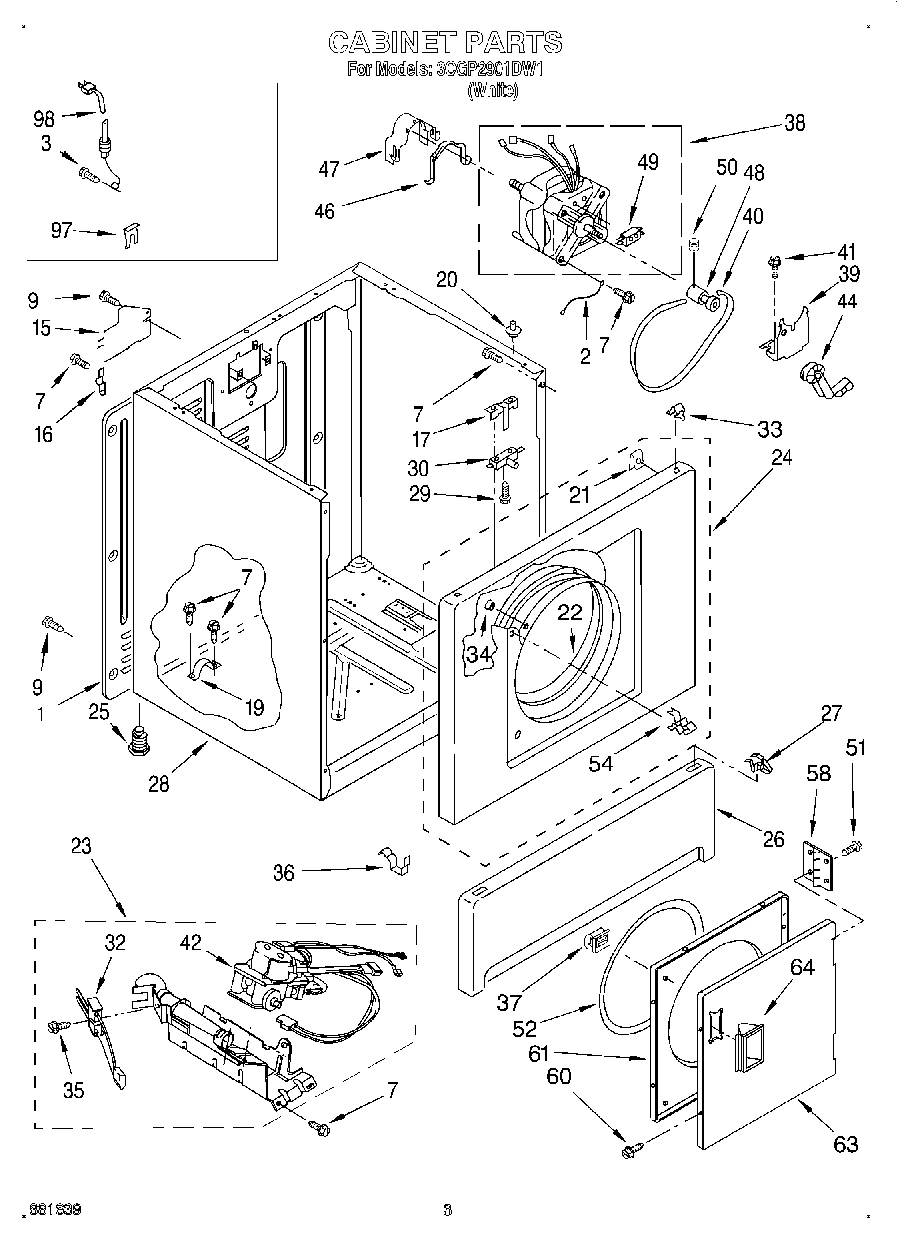

Cabinet Assembly (Includes Illus. Nos. 1, 15, WPL 3399580 Contact Us For Availability

29

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

30

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

32

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

33

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

34

279220 Whirlpool Clip In Stock WPL 279220 $11.93

34

NUT, PUSH IN WPL 689559 Contact Us For Availability

35

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

36

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

37

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

39

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

40

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

WP3387974 Whirlpool Cam In Stock WPL WP3387974 $5.37

WP339855 Whirlpool Cam Backorder WPL WP339855 $2.51

WP343777 Whirlpool Cam Backorder WPL WP343777 $3.70

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WP8281918 Whirlpool Gas Valve Backorder WPL WP8281918 $148.40

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

43

Nut, Push-In WPL 358473 Contact Us For Availability

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

44

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

47

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

48

W11618508 Whirlpool Drive Motor Backorder WPL W11618508 $199.23

48

Bulkhead WPL 3397264 Contact Us For Availability

49

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

50

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

50

Screw, Set WPL 690046 Contact Us For Availability

52

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $20.70

54

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

58

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

60

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

61

280077 Whirlpool Door Backorder WPL 280077 $122.39

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $42.93

63

WP348205 Whirlpool Door Backorder WPL WP348205 $58.63

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

64

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.88

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $30.40

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $52.08

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

74

Bracket, Support Shaft WPL 3976435 Contact Us For Availability

75

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

76

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

97

W11712577 Whirlpool Clip In Stock WPL W11712577 $2.43

98

Cord, Power WPL 3387258 Contact Us For Availability
