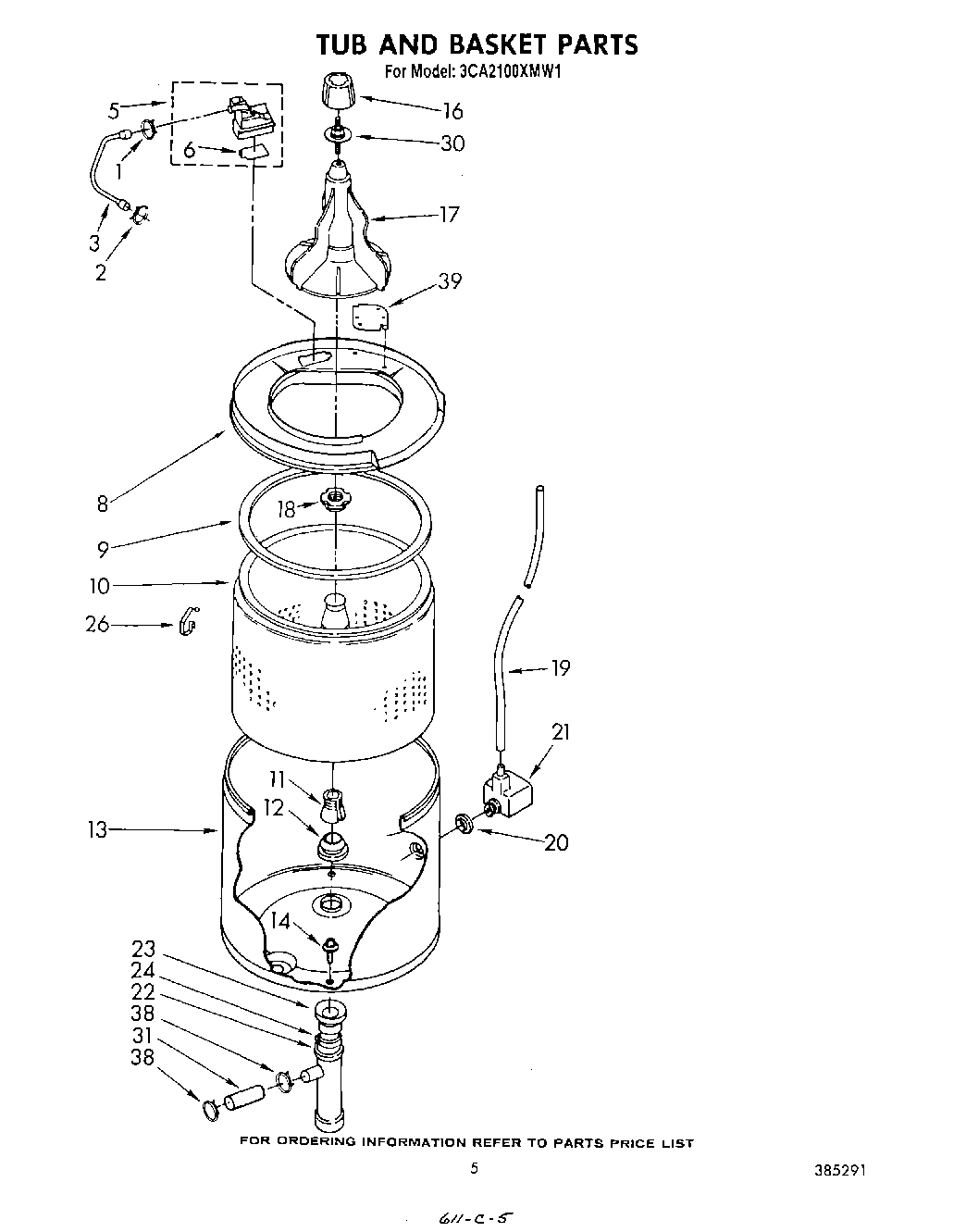

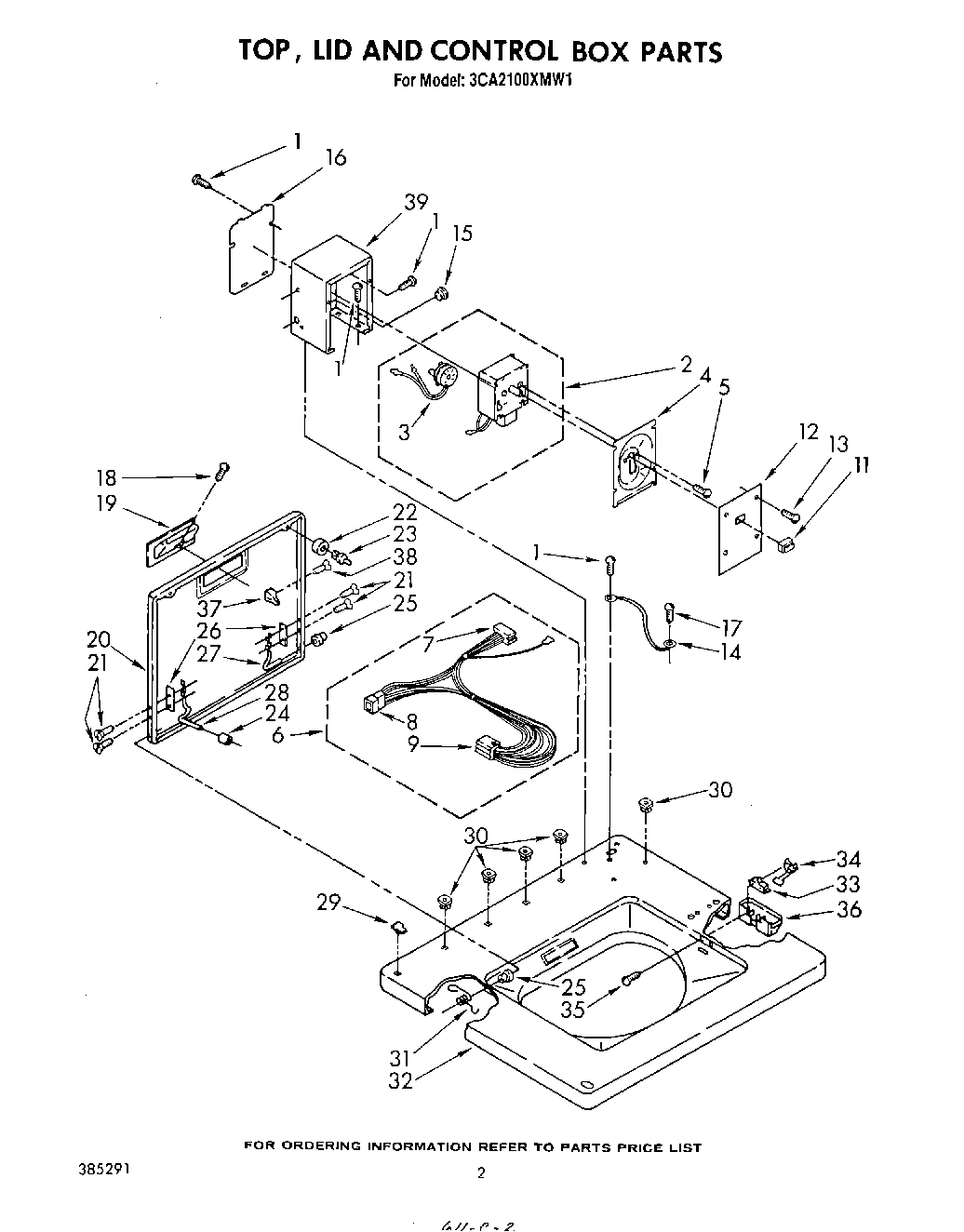

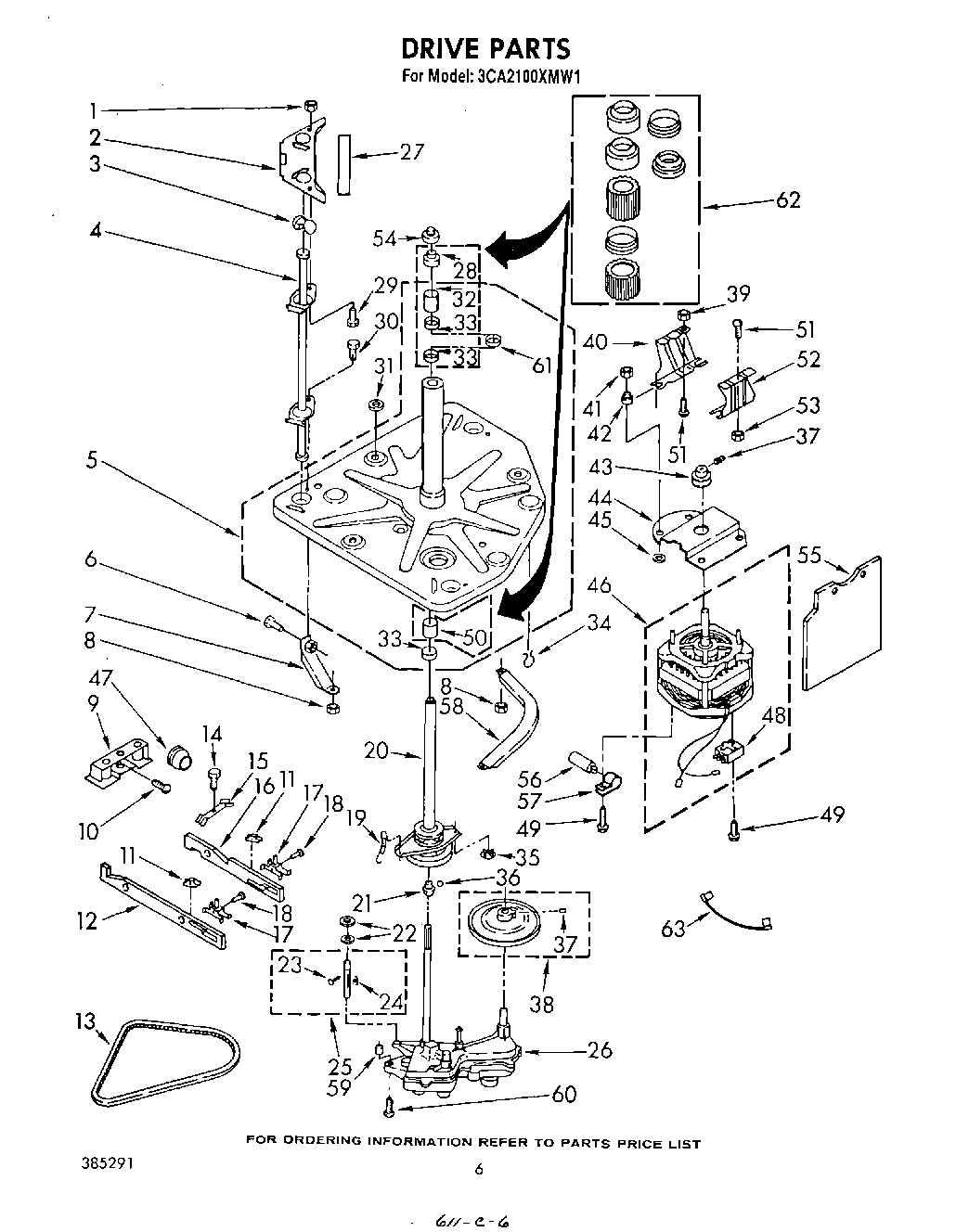

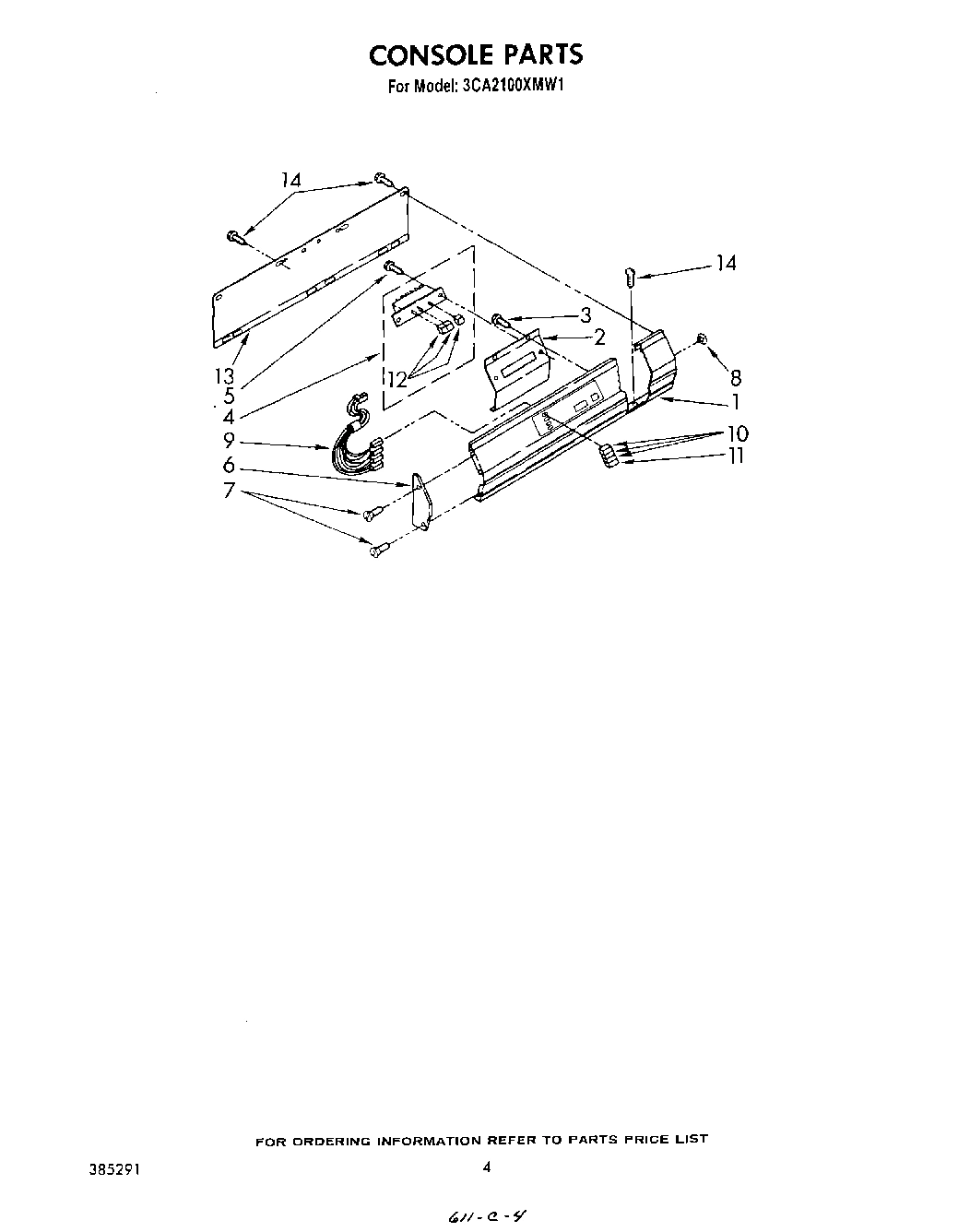

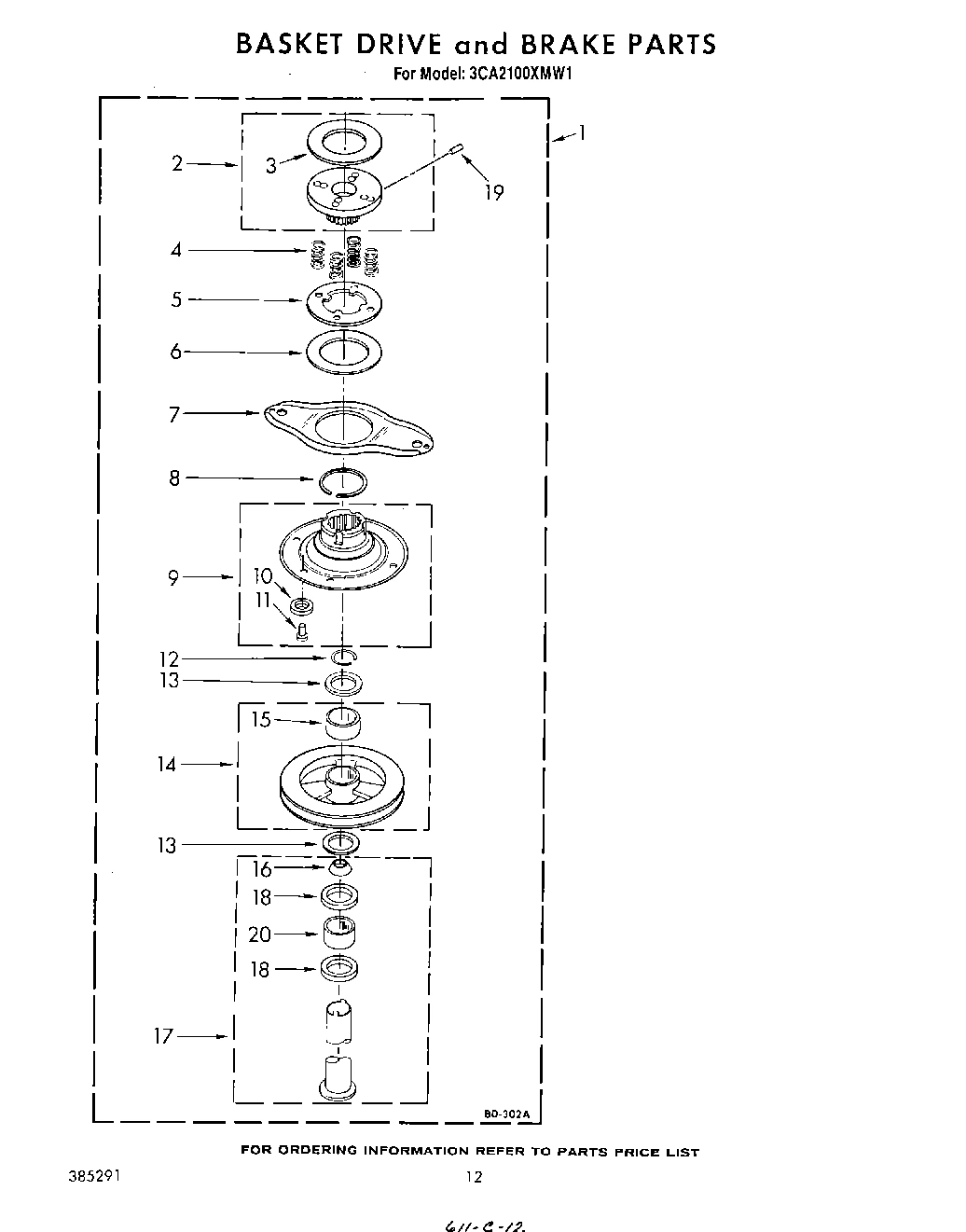

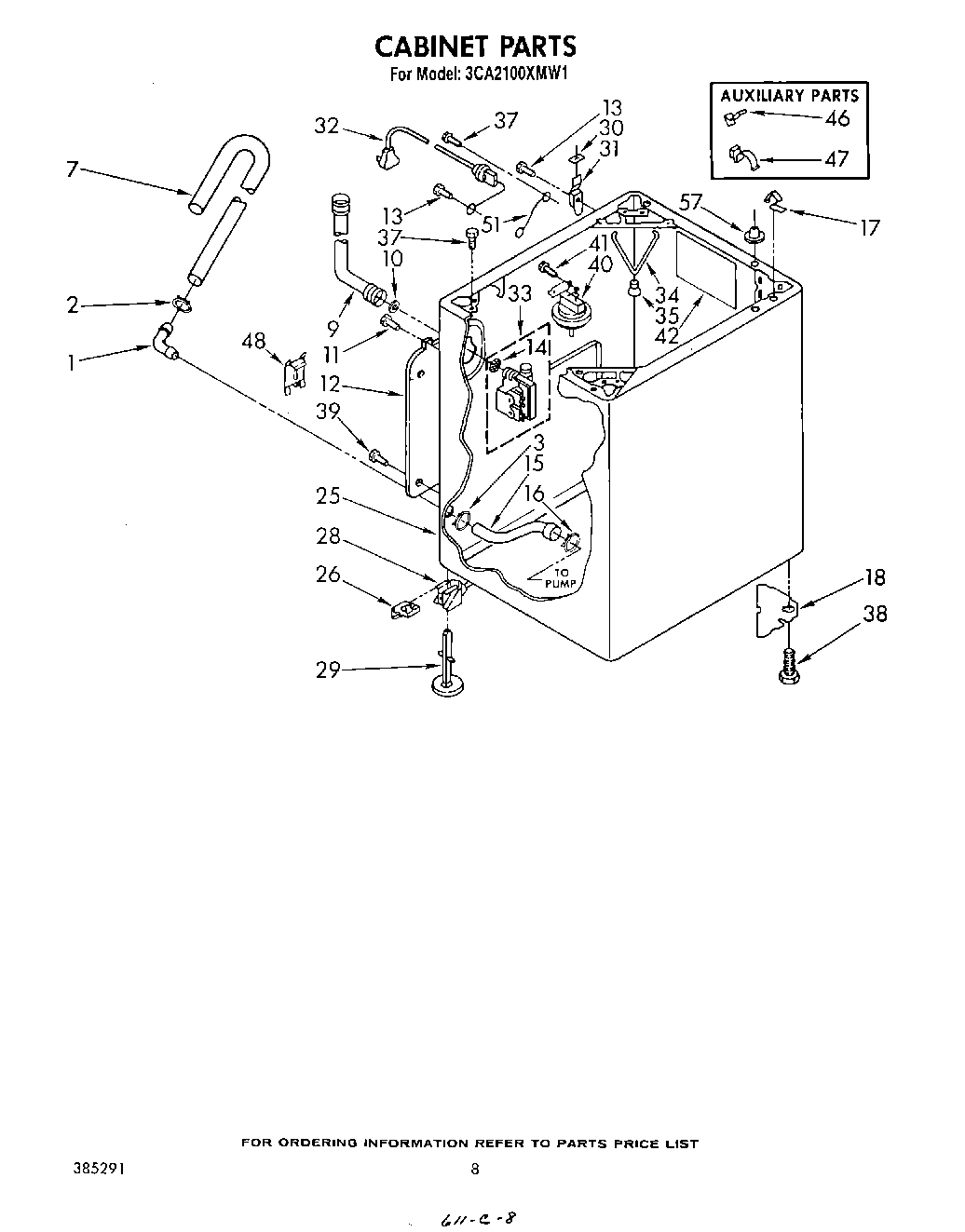

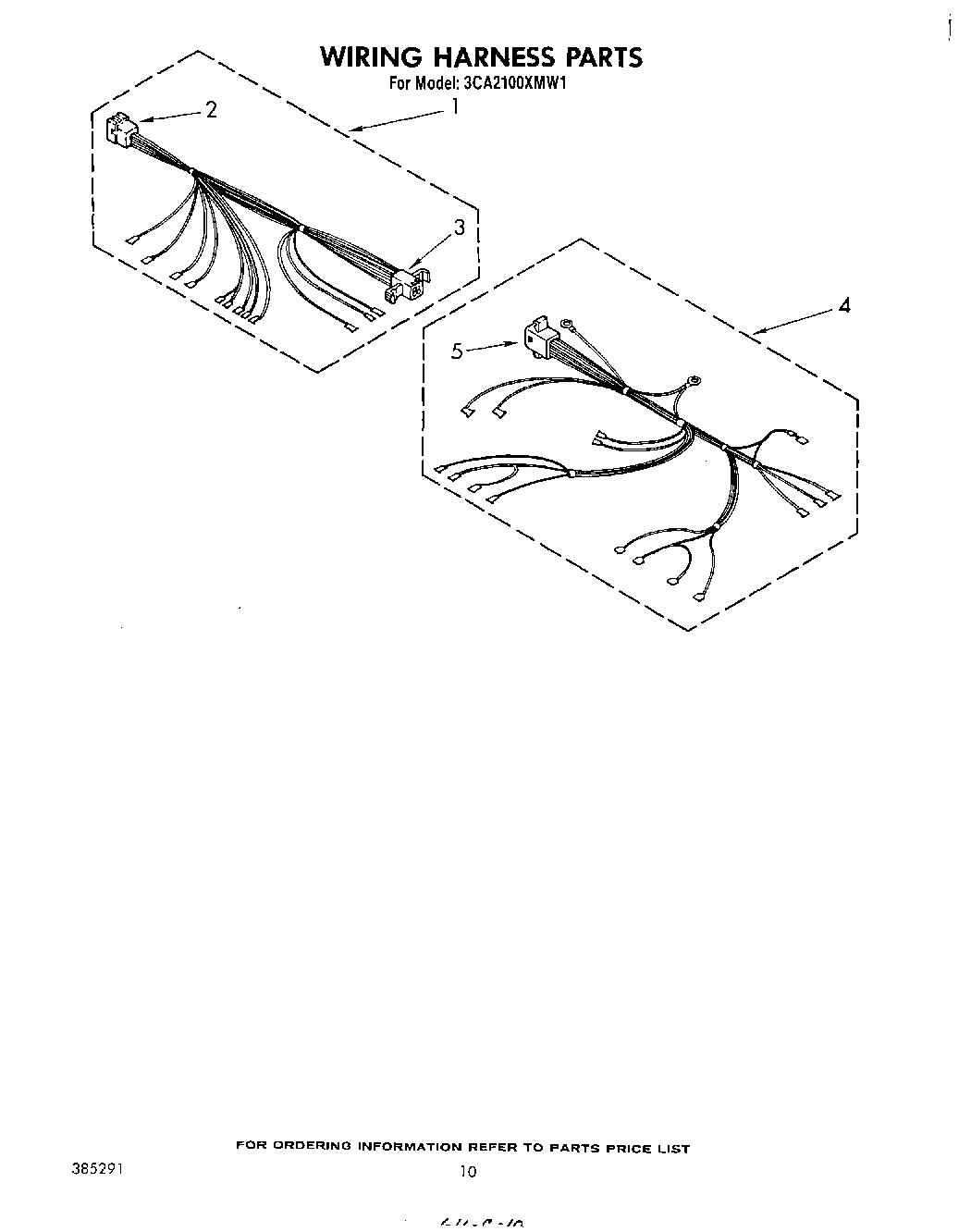

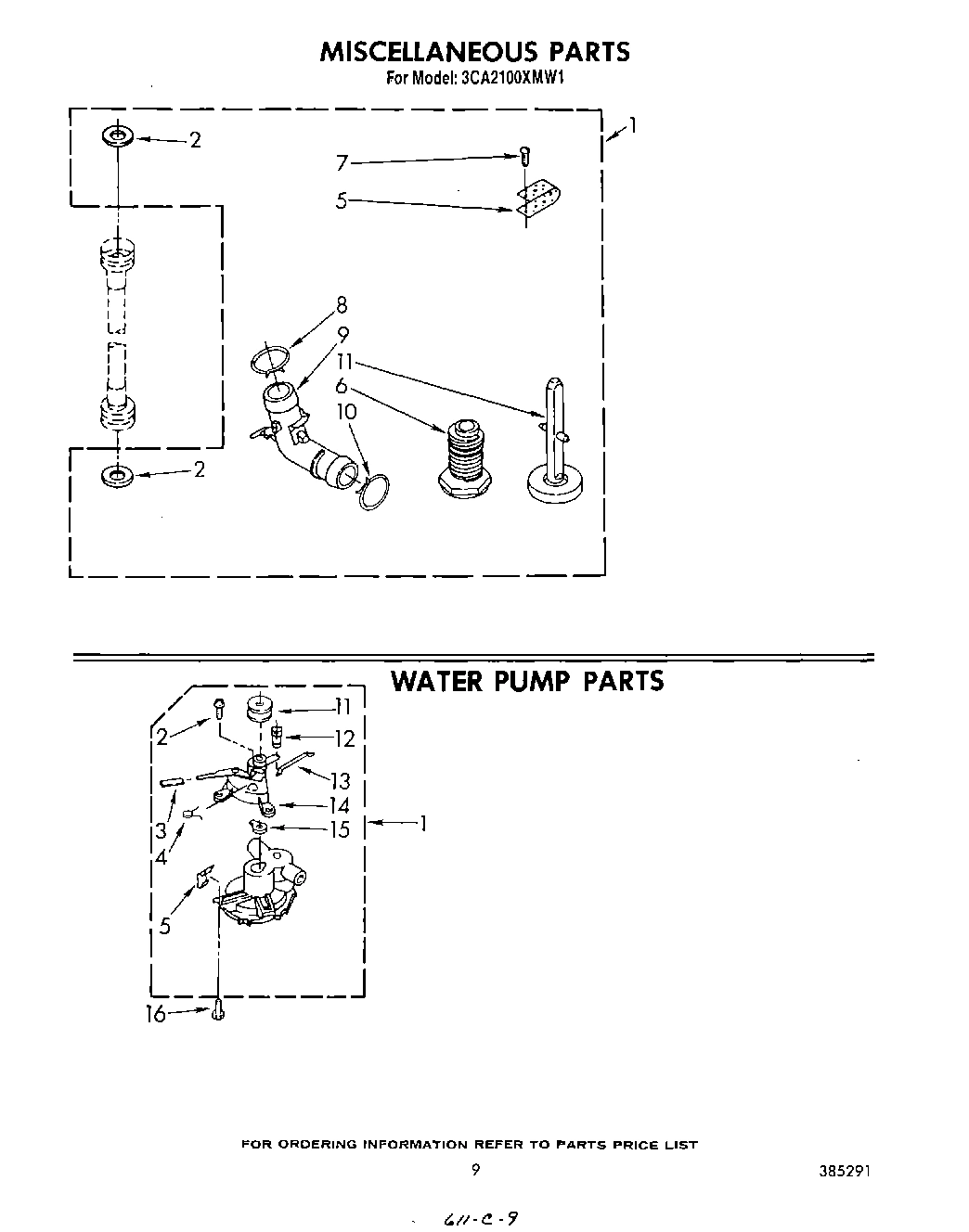

Model Whirlpool 3CA2100XMW1 WASHER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

Leveler (Thinner) WPL 350941 Contact Us For Availability

Sheet, Insert WPL LIT3347661 Contact Us For Availability

Sheet, Installation Instructions WPL LIT372074 Contact Us For Availability

List, Repair Parts WPL LIT385291 Contact Us For Availability

1

90984 Whirlpool Nut Backorder WPL 90984 $9.13

1

Basket Drive & Brake WPL 358364 Contact Us For Availability

1

Harness, Console WPL 385811 Contact Us For Availability

1

Billboard, Console WPL 386369 Contact Us For Availability

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

2

Cover, Gusset (L.R. & L.F.) WPL 352143 Contact Us For Availability

2

COVER, GUSSET (R.R.) WPL 94114 Contact Us For Availability

2

Timer, 50 Hz. (240 Volt) WPL 386298 Contact Us For Availability

2

Cap, Terminal (9 Way) (Uses Terminal 94613) WPL 94612 Contact Us For Availability

2

Bracket, Control WPL 386567 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Motor, Timer (50 Hz.) WPL 386010 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

4

Rod, Suspension (3) WPL 82584 Contact Us For Availability

4

Plate, Timer Mounting WPL 386791 Contact Us For Availability

4

Harness, Cabinet WPL 385812 Contact Us For Availability

4

Switch, Cycle Selector WPL 385749 Contact Us For Availability

4

Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability

5

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

5

Baseplate & Centerpost WPL 359430 Contact Us For Availability

5

Inlet, Water WPL 366072 Contact Us For Availability

5

Plug, Terminal (12 Way) (Uses Terminal 94614) WPL 94696 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

Harness, Timer WPL 386612 Contact Us For Availability

6

Flapper WPL 355584 Contact Us For Availability

6

Cap, End (L.H.) WPL 385799 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

7

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

7

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

7

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

7

Brace, Baseplate WPL 353301 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

8

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Cap, Terminal 12 Way (Uses Terminal 94613 WPL 94697 Contact Us For Availability

8

Ring, Tub (Includes Illus. 39) WPL 381971 Contact Us For Availability

8

Plug, Button WPL 54690 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

9

Connector, Hose WPL 95440 Contact Us For Availability

9

Magnet, 240V 50/60 Hz. WPL 386050 Contact Us For Availability

9

Plug, Terminal (9 Way) WPL 355410 Contact Us For Availability

9

Seal, Tub Ring WPL 383553 Contact Us For Availability

9

Lights, Indicator (240 Volt) WPL 385755 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Screw, Taper End WPL 16135 Contact Us For Availability

Basket WPL 383963 Contact Us For Availability

Lens, Amber (3) WPL 301006 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

Guide, Cam Bar WPL 95462 Contact Us For Availability

Pushbutton WPL 386276 Contact Us For Availability

Lens, Yellow (11) WPL 358741 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Cam, Bar Spin WPL 354838 Contact Us For Availability

Cover, Control Box WPL 386273 Contact Us For Availability

Panel, Rear WPL 85279 Contact Us For Availability

Pushbutton (3) WPL 385798 Contact Us For Availability

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Tub Assembly WPL 359590 Contact Us For Availability

Panel, Rear Billboard WPL 386370 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Wire, Ground WPL 690853 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Bushing, Snap WPL 352481 Contact Us For Availability

Hose, Pump Discharge WPL 21114 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $26.43

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Panel, Control Box Rear WPL 94216 Contact Us For Availability

Agitator Cap WPL 357787 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Plunger WPL 84866 Contact Us For Availability

Screw, Ground Wire to Top WPL 90057 Contact Us For Availability

Agitator WPL 363633 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Rivet WPL 354959 Contact Us For Availability

Screw, Lid Handle WPL 359243 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Handle, Lid (White) WPL 379884 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

20

Seal WPL 351830 Contact Us For Availability

20

Lid (White) WPL 382792 Contact Us For Availability

20

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

21

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

21

Support, Spin Tube WPL 358586 Contact Us For Availability

21

Air Dome Assembly WPL 360804 Contact Us For Availability

22

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

22

BUMPER WPL 356908 Contact Us For Availability

22

Manifold Assembly WPL 84091 Contact Us For Availability

23

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Hose, Tub Outlet WPL 93553 Contact Us For Availability

24

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Clip, Hose WPL 9421321 Contact Us For Availability

25

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

25

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

25

Cabinet (White) WPL 384793 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

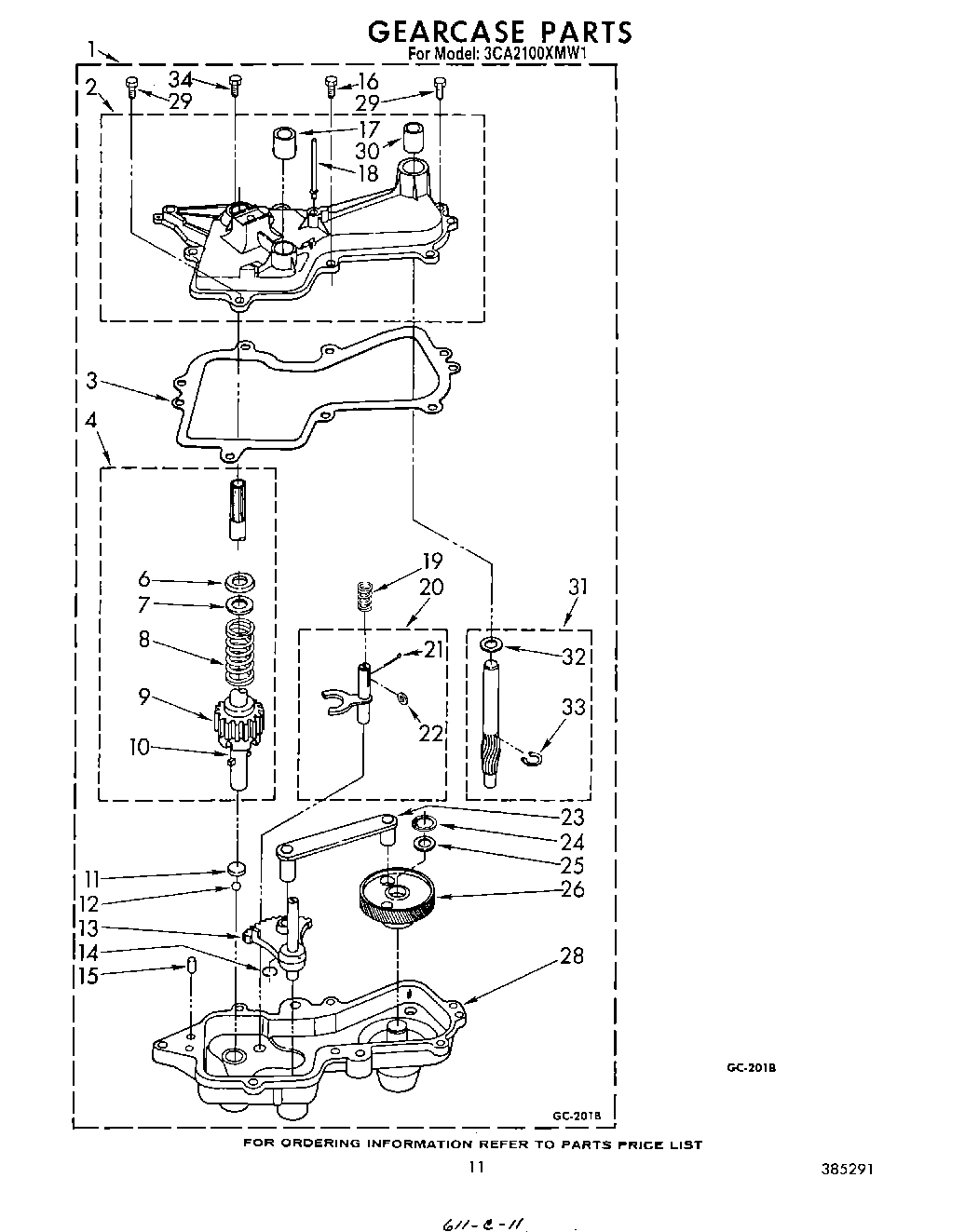

Gearcase (For Further Breakdown, Refer To Pag WPL 362901 Contact Us For Availability

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

27

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

27

Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability

28

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

28

Hinge, Lid (L.H.) WPL 91099 Contact Us For Availability

28

Leveling Link Assembly WPL 359059 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (2) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Bolt, 5/16-18 x 2-3/4 (1) WPL 354730 Contact Us For Availability

Nut, Push-In WPL 353878 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $9.13

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Nut, Push-In (8) WPL 98219 Contact Us For Availability

Screw & Seal Assembly WPL 359192 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Spring, Lid (L.H.) WPL 92398 Contact Us For Availability

Hose WPL 92231 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

32

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

32

Top (White) WPL 386373 Contact Us For Availability

32

Cord, Power WPL 3347285 Contact Us For Availability

33

285874 Whirlpool Valve Assembly Backorder WPL 285874 $78.16

33

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

33

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

16515 Whirlpool Clip Backorder WPL 16515 $11.62

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

Actuator, Lid Switch WPL 370959 Contact Us For Availability

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

Spring, Snubber WPL 357977 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

35

Screw & Washer (2) WPL 354764 Contact Us For Availability

36

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

36

Ball WPL 358585 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

37

Strike, Lid Switch WPL 357633 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

38

Screw & Washer WPL 354975 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

39

Box, Control (White) WPL 386366 Contact Us For Availability

39

Plate, Snubber WPL 355852 Contact Us For Availability

40

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

40

Switch, Water Level WPL 359361 Contact Us For Availability

41

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

41

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

42

Barrier, Splash WPL 353885 Contact Us For Availability

43

Pulley, Motor (50 Hz.) WPL 93219 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

Washer, Motor Mounting (4) WPL 92217 Contact Us For Availability

46

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

46

Motor, 5 WPL 357282 Contact Us For Availability

47

WP385728 Whirlpool Bushing Backorder WPL WP385728 $2.51

47

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

48

WPL 362738 WPL 362738 Contact Us For Availability

48

Plug, Cabinet (1) WPL 354179 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

51

Ground Wire WPL 364089 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

WPL 359190 WPL 359190 Contact Us For Availability

55

WPL 357571 WPL 357571 Contact Us For Availability

56

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

57

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

57

Locator, Top WPL 98669 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 358804 WPL 358804 Contact Us For Availability

62

WPL 285134 WPL 285134 Contact Us For Availability

63

WPL 370950 WPL 370950 Contact Us For Availability
