Model GE 363.48257890 Refrigerator (Kenmore 36348257890) – Common Parts & Diagrams

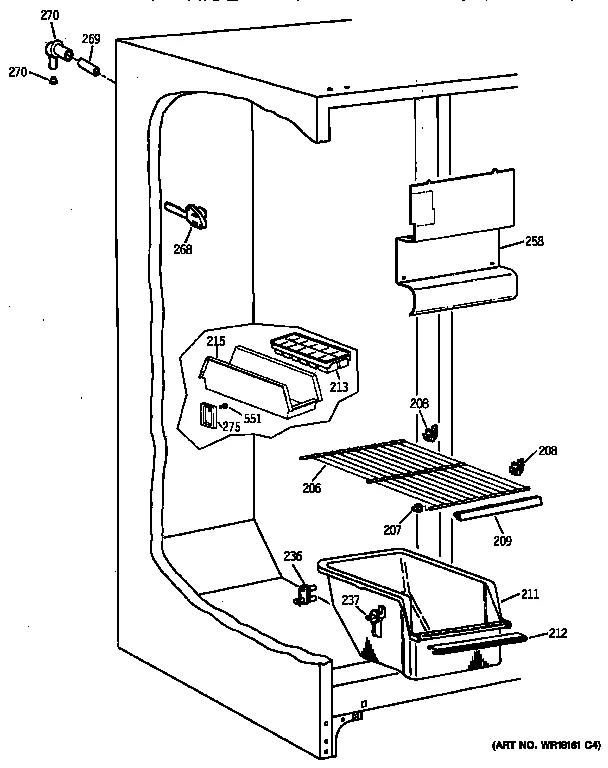

FREEZER SECTION

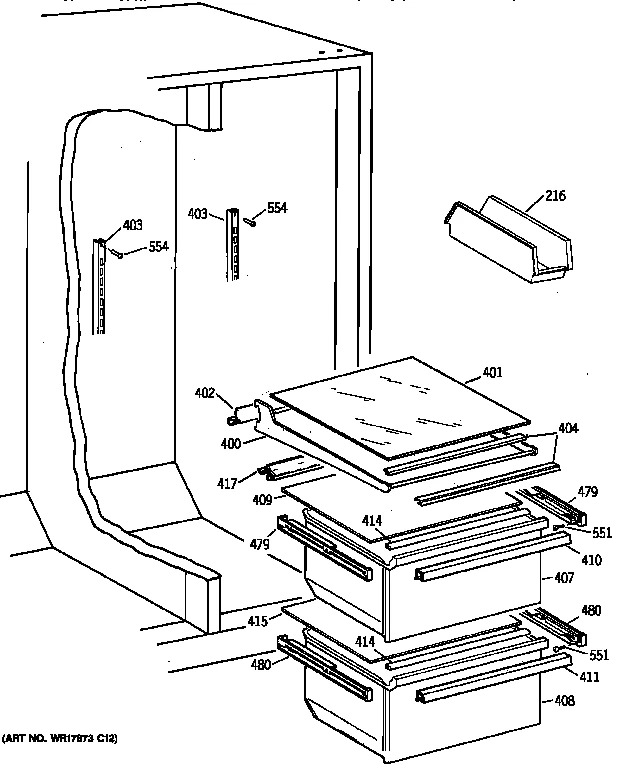

FRESH FOOD SECTION
All Parts
FREEZER SECTION

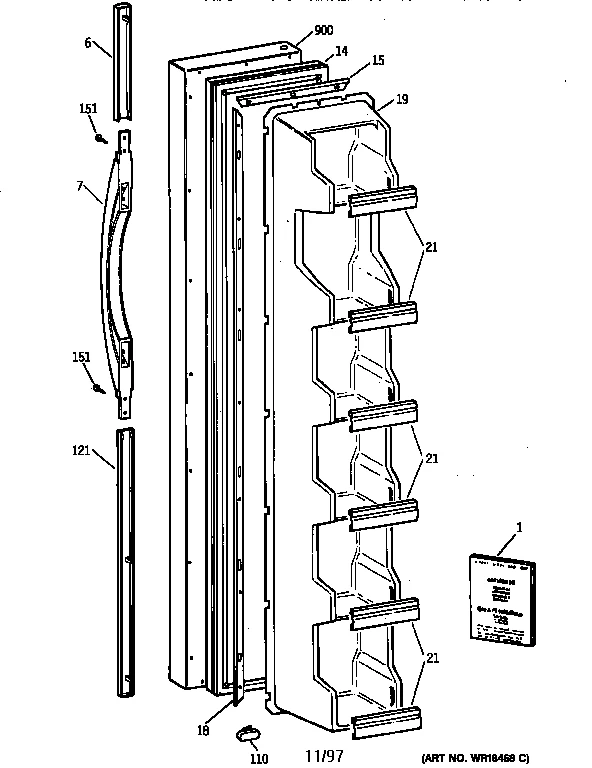

FREEZER DOOR
FRESH FOOD SECTION

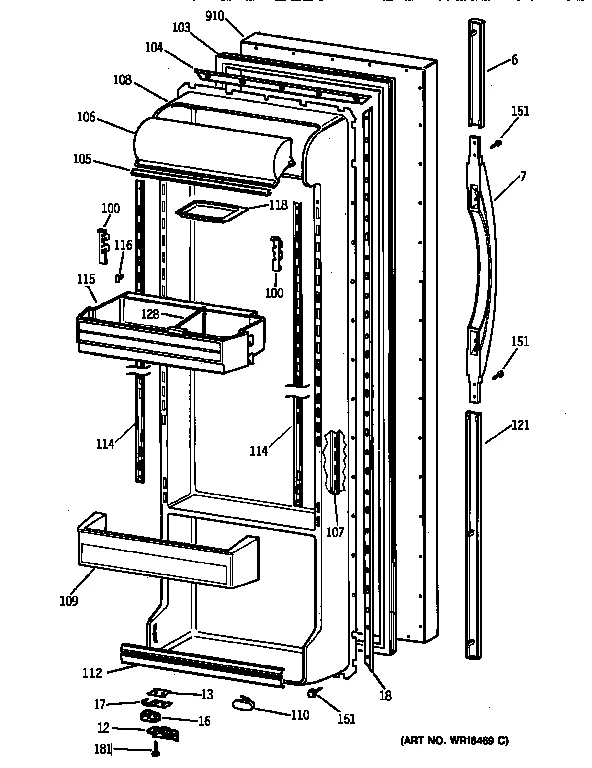

FRESH FOOD DOOR

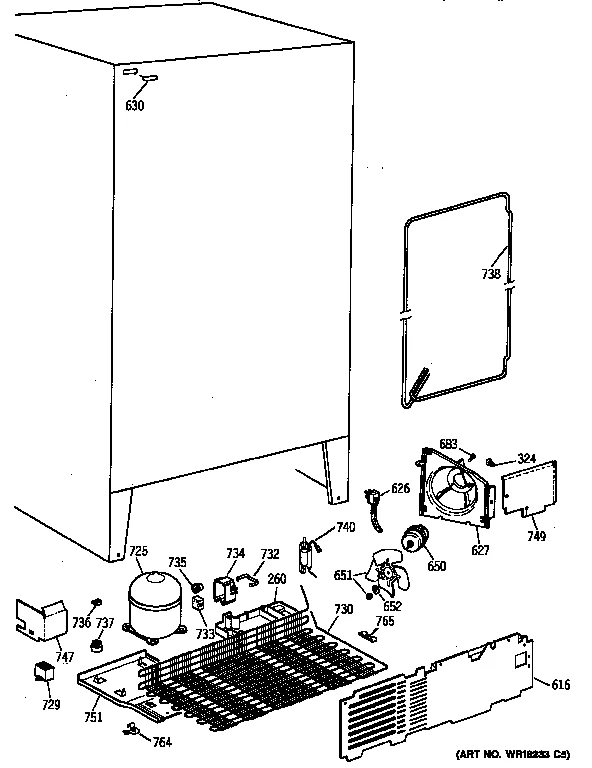

UNIT PARTS
Common parts from model GE 363.48257890 Refrigerator (Kenmore 36348257890)
1A
Refrigerator Mini Wiring Manual GEN 31-51135 Contact Us For Availability
1B
Refrigerator Owner's Manual GEN SR6167 Contact Us For Availability
1C
Refrigerator Parts List GEN SR3819 Contact Us For Availability
1D
Energy Guide Label GEN SR1223 Contact Us For Availability
1E
Refrigerator Owner's Manual GEN SR1087 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10041 Contact Us For Availability
7
Handle Sxs A GEN WR12X10039 Contact Us For Availability
12
Stop Door Ad GEN WR02X9302 Contact Us For Availability
13A
Shim Cam GEN WR02X7490 Contact Us For Availability
13B
Refrigerator Nut Strip GEN WR02X4599 Contact Us For Availability
14
Refrigerator Door Gasket GEN WR24X0527 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X3119 Contact Us For Availability
18
Refrigerator Retainer Strip GEN WR17X1169 Contact Us For Availability
19
I.d.panel Fz GEN WR77X0597 Contact Us For Availability
21
Door Front GEN WR17X10090 Contact Us For Availability
100A
Hook Mdl L/s GEN WR02X8410 Contact Us For Availability
100B
Hook Mdl R/s GEN WR02X8409 Contact Us For Availability
103
Refrigerator Door Gasket GEN WR24X0529 Contact Us For Availability
104
Refrigerator Door Gasket Retainer GEN WR17X1168 Contact Us For Availability
105
Refrigerator Door Trim GEN WR38X10068 Contact Us For Availability
106
Dairy Door GEN WR22X0383 Contact Us For Availability
107
Drive Track GEN WR72X0256 Contact Us For Availability
108B
Refrigerator Door Liner GEN WR77X0672 Contact Us For Availability
109
Refrigerator Door Shelf GEN WR71X10052 Contact Us For Availability
110
Support Bumper GEN WR02X8989 Contact Us For Availability
112
Refrigerator Door Shelf GEN WR17X10114 Contact Us For Availability
114
Refrigerator Drive Shelf Track GEN WR72X0257 Contact Us For Availability
115
Refrigerator Door Shelf GEN WR71X10051 Contact Us For Availability
116
Cap Drive Track GEN WR02X7829 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10040 Contact Us For Availability
128
Refrigerator Snugger Module GEN WR02X7971 Contact Us For Availability
177
Refrigerator Screw GEN WR01X5034 Contact Us For Availability
181
Refrigerator Screw GEN WZ06X0105 Contact Us For Availability
189
Refrigerator Button Plug GEN WR01X2115 Contact Us For Availability
206
Refrigerator Freezer Shelf GEN WR71X1888 Contact Us For Availability
207
Refrigerator Support GEN WR02X4676 Contact Us For Availability
208
Refrigerator Shelf Support GEN WR02X4674 Contact Us For Availability
209
Refrigerator Trim Shelf Wire GEN WR38X10037 Contact Us For Availability
211
Refrigerator Freezer Basket GEN WR21X0188 Contact Us For Availability
212
Refrigerator Handle Trim GEN WR38X10035 Contact Us For Availability
214C
Refrigerator Cover Clip Evaporator GEN WR01X2128 Contact Us For Availability
215
Util Bucket GEN WR32X0897 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
220
Plug Linerfz GEN WR02X9002 Contact Us For Availability
224
Refrigerator Grommet GEN WR02X8657 Contact Us For Availability
225A
Refrigerator Clamp GEN WR01X5042 Contact Us For Availability
225B
Refrigerator Drain Tube GEN WR02X8293 Contact Us For Availability
230B
Refrigerator Defrost Heater Bracket GEN WR02X8671 Contact Us For Availability
236
Refrigerator Support GEN WR02X4548 Contact Us For Availability
237
Freezer Support Basket GEN WR02X7036 Contact Us For Availability
247A
Support Orifice GEN WR02X4845 Contact Us For Availability
247B
Refrigerator Orifice GEN WR17X3483 Contact Us For Availability
248
Refrigerator Gasket GEN WR14X0272 Contact Us For Availability
251
Refrigerator Support GEN WR02X2880 Contact Us For Availability
258
Refrigerator Fan Cover GEN WR17X3662 Contact Us For Availability
260
Refrigerator Water Dispenser Pan GEN WR32X1427 Contact Us For Availability
265
Axle & Cotte GEN WR02X4742 Contact Us For Availability
269
Refrigerator Fill Tube GEN WR02X6087 Contact Us For Availability
270A
Refrigerator Button Plug GEN WR02X3248 Contact Us For Availability
275
Cover Icemaker Receptacle GEN WR02X9004 Contact Us For Availability
277
Rail Mach Mt GEN WR17X3136 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10057 Contact Us For Availability
280
C Cap Oc Ad GEN WR02X8519 Contact Us For Availability
288
Base Grille GEN WR74X0224 Contact Us For Availability
293
Grille Clip GEN WR02X7080 Contact Us For Availability
324A
Refrigerator Button Plug GEN WR02X7069 Contact Us For Availability
324B
Refrigerator Button Plug GEN WR02X7051 Contact Us For Availability
400
Refrigerator Cantilever Shelf Frame GEN WR71X2292 Contact Us For Availability
401
Refrigerator Glass Shelf GEN WR32X10031 Contact Us For Availability
402
Refrigerator Glass Shelf GEN WR38X10067 Contact Us For Availability
403
Refrigerator Shelf Support GEN WR71X2588 Contact Us For Availability
404
Refrigerator Glass Trim GEN WR38X10066 Contact Us For Availability
405
Duct Air Ret GEN WR17X3890 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10029 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10113 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X0431 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
417
Gskt Shld Lo GEN WR14X0470 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10104 Contact Us For Availability
423
Grommet Support GEN WR02X10050 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR09X0569 Contact Us For Availability
425
Refrigerator Knob GEN WR02X8398 Contact Us For Availability
426A
Foam Nozzle GEN WR02X8425 Contact Us For Availability
426B
Housing Nozzle GEN WR02X8514 Contact Us For Availability
427
Refrigerator Harness GEN WR23X0316 Contact Us For Availability
428A
Control Damper GEN WR02X8582 Contact Us For Availability
428B
Refrigerator Gear Control GEN WR02X8513 Contact Us For Availability
429
Heater Holder GEN WR02X8516 Contact Us For Availability
432
Duct Mullion GEN WR02X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR02X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR02X7736 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR02X8570 Contact Us For Availability
446
Hinge Tp Asm GEN WR13X0647 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X8263 Contact Us For Availability
448
Hinge Tp Asm GEN WR13X0646 Contact Us For Availability
450
Refrigerator Shim GEN WR02X4194 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR02X9442 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1744 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1745 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1746 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1747 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1748 Contact Us For Availability
458A
U Nut GEN WR02X4739 Contact Us For Availability
458B
Breaker Mullion GEN WR02X7033 Contact Us For Availability
458C
Mullion Ad GEN WR40X1751 Contact Us For Availability
458D
Refrigerator Bracket Mullion GEN WR02X9376 Contact Us For Availability
480A
Refrigerator Slide Assembly, Left GEN WR72X0252 Contact Us For Availability
480B
Refrigerator Slide Assembly, Right GEN WR72X0253 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
560
Refrigerator Screw GEN WR01X2140 Contact Us For Availability
564
Refrigerator Screw GEN WR01X1194 Contact Us For Availability
610
Refrigerator Fan Motor GEN WR60X0188 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X8549 Contact Us For Availability
615
Grommet GEN WR02X7391 Contact Us For Availability
616
Refrigerator Access Cover Assembly GEN WR82X10012 Contact Us For Availability
627
Hous Con Fan GEN WR17X3811 Contact Us For Availability
651A
Refrigerator Nut GEN WR01X1515 Contact Us For Availability
651B
Condenser Fan Blade GEN WR60X0220 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0188 Contact Us For Availability
735
Refrigerator Overload GEN WR08X0170 Contact Us For Availability
737
Mounting Grommet GEN WR02X7238 Contact Us For Availability
738B
Refrigerator Condenser GEN WR84X0169 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X3643 Contact Us For Availability
749
Refrigerator Baffle GEN WR17X4147 Contact Us For Availability
751
Complete Plate GEN WR17X3645 Contact Us For Availability
765
Clip Condenser GEN WR01X1985 Contact Us For Availability
900
DOOR FOAM ASM FZ AD GEN WR78X10048 Contact Us For Availability
910
Door Foam Assembly GEN WR78X10047 Contact Us For Availability
NI
Refrigerator Screw GEN WB01K5052 Contact Us For Availability
NI
Refrigerator Grommet GEN WR01X1510 Contact Us For Availability
NI
Refrigerator Rivet GEN WR01X1987 Contact Us For Availability
NI
Plug Fastner GEN WR01X2110 Contact Us For Availability
NI
Refrigerator Foam Strip GEN WR02X7493 Contact Us For Availability
NI
Refrigerator Screw GEN WZ06X0136 Contact Us For Availability
× ![]()
