Model Whirlpool 110.97093100 Gas Dryer (Kenmore 11097093100) – Common Parts &amp; Diagrams

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $32.06

1

(338471) (ALT.) WPL N/P Contact Us For Availability

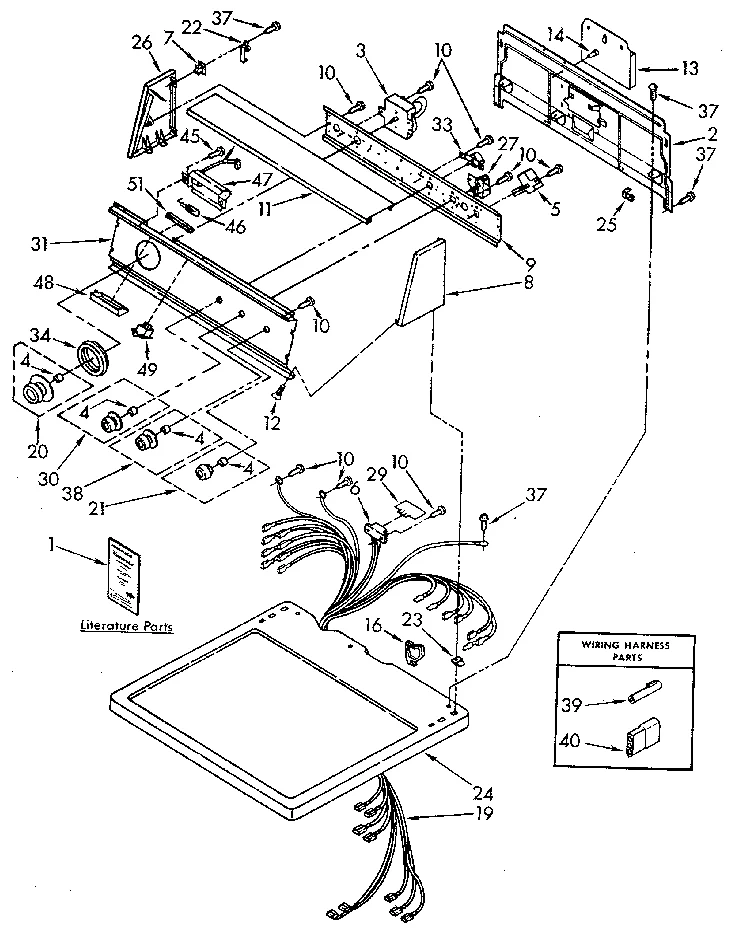

1A

Wiring Diagram WPL LIT3391708 Contact Us For Availability

1B

Operating Instructions WPL LIT3392300 Contact Us For Availability

1C

Operating Instructions WPL LIT3390910 Contact Us For Availability

1D

Owner's Manual WPL LIT3388865 Contact Us For Availability

1E

Installation Instructions WPL LIT3389091 Contact Us For Availability

1F

U&c Label WPL LIT3392449 Contact Us For Availability

1G

Parts List WPL LIT3391531 Contact Us For Availability

2A

Rear Panel (White) WPL 3388660 Contact Us For Availability

2B

Rear Panel (Almond) WPL 3388661 Contact Us For Availability

2C

Panel WPL 3388662 Contact Us For Availability

2D

Panel (Platinum) WPL 3388663 Contact Us For Availability

3

Dryer Timer WPL 3388752 Contact Us For Availability

4

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

5

WP3391902 Whirlpool Lid Switch In Stock WPL WP3391902 $33.36

5

WP346343 Whirlpool Relay Push to Start Backorder WPL WP346343 $124.23

5

Air Duct WPL 3387259 Contact Us For Availability

6

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $41.12

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

Connector WPL 341141 Contact Us For Availability

7

End Cap Clip WPL 689559 Contact Us For Availability

7A

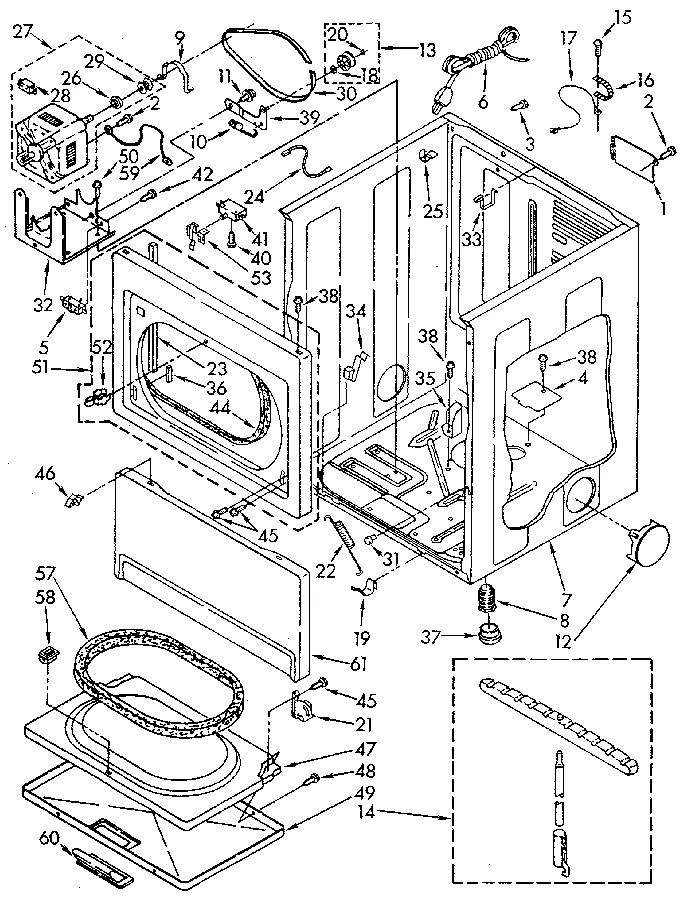

Cabinet WPL 3388456 Contact Us For Availability

7B

Cabnt Al WPL 3388457 Contact Us For Availability

7C

Cabnt Tst WPL 3388458 Contact Us For Availability

7D

Cabnt Plt WPL 3388459 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8A

Endcap Wht WPL 388204 Contact Us For Availability

8B

Endcap Alm WPL 388206 Contact Us For Availability

8C

Endcap Tst WPL 388207 Contact Us For Availability

8D

Endcap Plt WPL 388208 Contact Us For Availability

9

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $46.54

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

Exhaust Extension WPL 3389494 Contact Us For Availability

9A

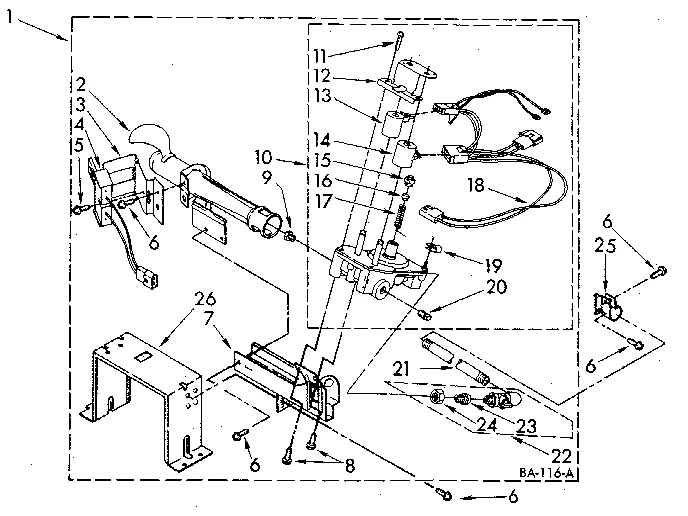

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $15.42

9D

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

10

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

10

Adapter WPL 3391032 Contact Us For Availability

11

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $2.51

11A

Control Panel (White) WPL 3350937 Contact Us For Availability

11B

Control Panel (Almond) WPL 3350938 Contact Us For Availability

11C

Control Panel WPL 3350939 Contact Us For Availability

11D

Control Panel (Platinum) WPL 3350940 Contact Us For Availability

12

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

12

Washer WPL 3390028 Contact Us For Availability

12A

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

12B

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $41.69

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $12.04

13

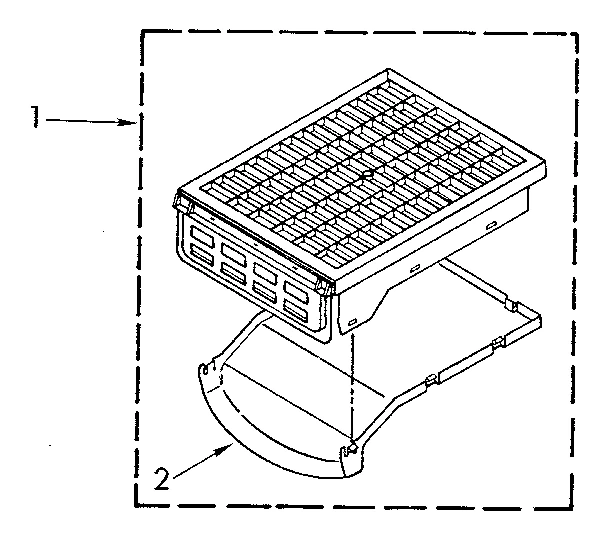

Rack WPL 3388908 Contact Us For Availability

14

Hanger WPL 3388707 Contact Us For Availability

14

Fastener WPL 3389802 Contact Us For Availability

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

15

Screw WPL 3390648 Contact Us For Availability

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Ground Strap WPL 22965 Contact Us For Availability

Hex Nut WPL 3387709 Contact Us For Availability

Clip WPL 688412 Contact Us For Availability

17

W11299300 Whirlpool Bulkhead Assembly Backorder WPL W11299300 $125.51

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

Ground Wire WPL 364089 Contact Us For Availability

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $10.07

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.18

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $24.12

19

Wire Harness WPL 3392260 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

20A

Knob Timer (White) WPL 3389826 Contact Us For Availability

20B

Knob (Almond) WPL 3389827 Contact Us For Availability

20C

Timer Knob WPL 3389828 Contact Us For Availability

20D

Knob Timer (Platinum) WPL 3389829 Contact Us For Availability

21

WP3387560 Whirlpool Door Hinge In Stock WPL WP3387560 $54.34

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $8.34

21A

WP3387559 Whirlpool Door Hinge Backorder WPL WP3387559 $54.34

21A

Control Knob (White) WPL 3389816 Contact Us For Availability

21B

Control Knob (Almond) WPL 3389817 Contact Us For Availability

21C

Control Knob WPL 3389818 Contact Us For Availability

21D

Knob Control (Platinum) WPL 3389819 Contact Us For Availability

Dryer Gas Shut-Off Valve WPL 697441 No Longer Available

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $29.17

WP3387565 Whirlpool Door Spring Backorder WPL WP3387565 $13.56

Hinge Panel WPL 387402 Contact Us For Availability

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

23

Light Seal WPL 3388392 Contact Us For Availability

23

Housing WPL 697768 Contact Us For Availability

24

Nut Union WPL 233076 Contact Us For Availability

24

Wire WPL 3387377 Contact Us For Availability

24

Aluminum Tape WPL 3388646 Contact Us For Availability

24A

Top W WPL 697202 Contact Us For Availability

24B

Top Al WPL 697203 Contact Us For Availability

24C

Top WPL 697204 Contact Us For Availability

24D

Top Pl WPL 697205 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $159.97

25

Harness Clip WPL 3390514 Contact Us For Availability

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $56.87

26

Screw WPL 697777 Contact Us For Availability

26A

End Cap (White) WPL 388210 Contact Us For Availability

26B

End Cap (Almond) WPL 388212 Contact Us For Availability

26C

Endcap Tst WPL 388213 Contact Us For Availability

26D

Endcap Plt WPL 388214 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $108.05

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $26.94

27

Buzzer WPL 347137 Contact Us For Availability

28

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

28

Dryer Thermostat Heater WPL 61894 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

29

Screw WPL 309100 Contact Us For Availability

29

Dryer Control WPL 661513 Contact Us For Availability

30

W11667280 Whirlpool Belt Assembly Backorder WPL W11667280 $12.19

30

Wire WPL 3392258 Contact Us For Availability

30A

Knob Control (White) WPL 3350984 Contact Us For Availability

30B

Knob Control (Almond) WPL 3350985 Contact Us For Availability

30C

Control Knob WPL 3350986 Contact Us For Availability

30D

Knob Control (Platinum) WPL 3350987 Contact Us For Availability

31

693152 Whirlpool Bumper In Stock WPL 693152 $7.06

31A

Control Panel (White) WPL 3389758 Contact Us For Availability

31B

Control Panel (Almond) WPL 3389759 Contact Us For Availability

31C

Control Panel WPL 3389760 Contact Us For Availability

31D

Control Panel (Platinum) WPL 3389761 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $49.90

32

Hose WPL 3391033 Contact Us For Availability

33

Harness Clip WPL 3391881 Contact Us For Availability

33

Signal WPL 3391706 Contact Us For Availability

33

Temperature Switch WPL 696321 Contact Us For Availability

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.59

34

Clip WPL 3388600 Contact Us For Availability

34A

Trim Ring WPL 388259 Contact Us For Availability

34B

Trim Ring WPL 3350942 Contact Us For Availability

34C

Trim Ring WPL 3350943 Contact Us For Availability

34D

Trim Ring WPL 3350944 Contact Us For Availability

35

Guard Idler WPL 3389503 Contact Us For Availability

35

Lens WPL 3390788 Contact Us For Availability

36

Bumper WPL 3390174 Contact Us For Availability

36

Bulb WPL 3387683 Contact Us For Availability

37

WP3391943 Whirlpool Foot Boot Backorder WPL WP3391943 $3.70

37

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

38

Socket WPL 3392255 Contact Us For Availability

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $12.68

39

Receptacle WPL 351296 Contact Us For Availability

40

Screw WPL 3389484 Contact Us For Availability

40

Receptacle WPL 691707 Contact Us For Availability

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

42

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $2.51

42

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

43

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $6.13

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $62.79

45

Duct Lint WPL 3390532 Contact Us For Availability

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

46

Funnel WPL 697757 Contact Us For Availability

46

Light Bulb WPL 3350382 Contact Us For Availability

47

Door WPL 697655 Contact Us For Availability

47

Socket WPL 3392401 Contact Us For Availability

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

48A

Lens W WPL 3350945 Contact Us For Availability

48B

Lens Alm WPL 3350946 Contact Us For Availability

48C

Lens Tst WPL 3350947 Contact Us For Availability

48D

Lens Plt WPL 3350948 Contact Us For Availability

49A

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $33.82

49A

Dryer Door WPL 697221 Contact Us For Availability

49B

Door Al WPL 697222 Contact Us For Availability

49C

Door To WPL 697223 Contact Us For Availability

49D

Door Pl WPL 697224 Contact Us For Availability

50

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

51

Protector WPL 3350384 Contact Us For Availability

51A

Panel WPL 697227 Contact Us For Availability

51B

Panel Al WPL 697228 Contact Us For Availability

51C

Panel To WPL 697229 Contact Us For Availability

51D

Panel Pl WPL 697230 Contact Us For Availability

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $34.59

53

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

53

Drum Baffle WPL 697693 Contact Us For Availability

54

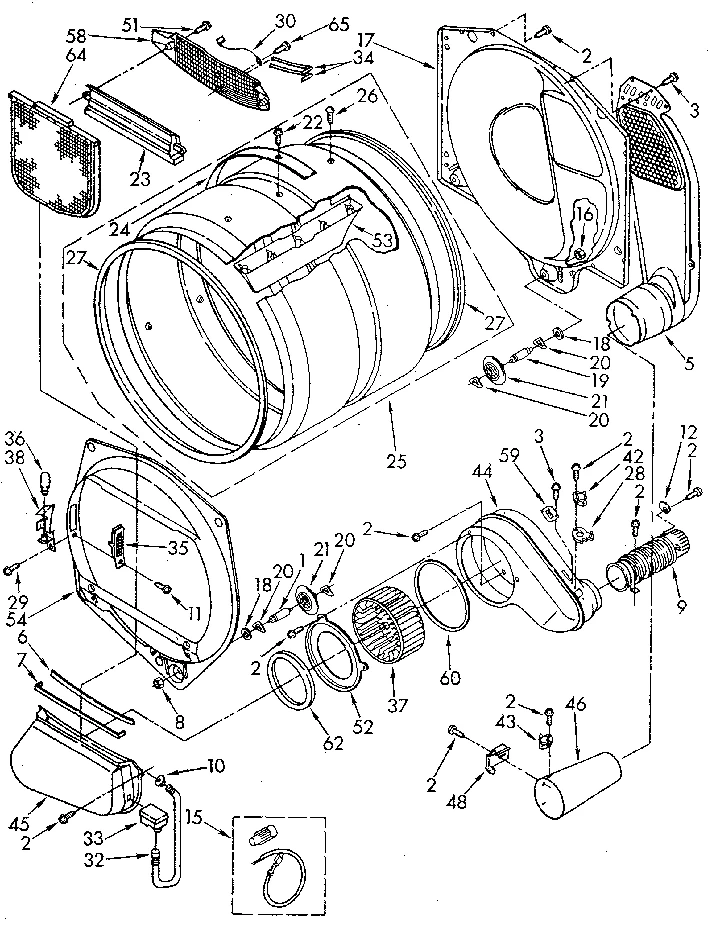

Bulkhead WPL 697563 Contact Us For Availability

57

W10823582 Whirlpool Door Seal In Stock WPL W10823582 $47.01

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

58

Grill WPL 697767 Contact Us For Availability

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $7.98

59

Wire WPL 3387376 Contact Us For Availability

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $48.46

60B

Handle (Almond) WPL 689457 Contact Us For Availability

60C

Handle WPL 695174 Contact Us For Availability

60D

Handle (Platinum) WPL 695175 Contact Us For Availability

61A

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $90.75

61B

Toepnl Al WPL 697216 Contact Us For Availability

61C

Toepnl To WPL 697217 Contact Us For Availability

61D

Toepnl Pl WPL 697218 Contact Us For Availability

62

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $32.06

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Paint (White) WPL 799344 Contact Us For Availability
