Model Whirlpool 110.86993810 Electric Dryer (Kenmore 11086993810) – Common Parts & Diagrams

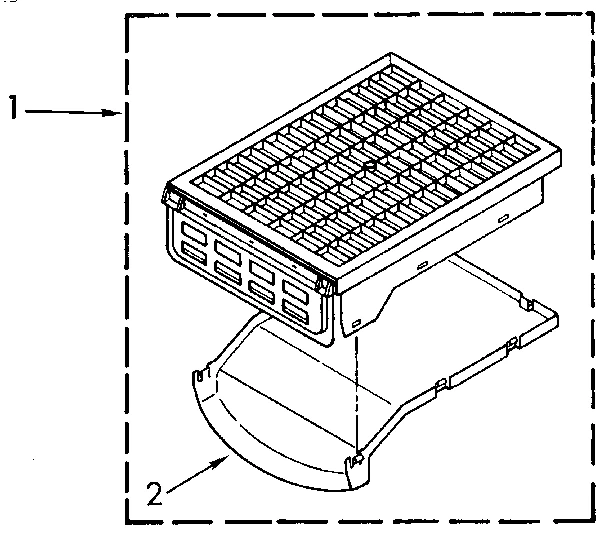

DRY RACK
All Parts

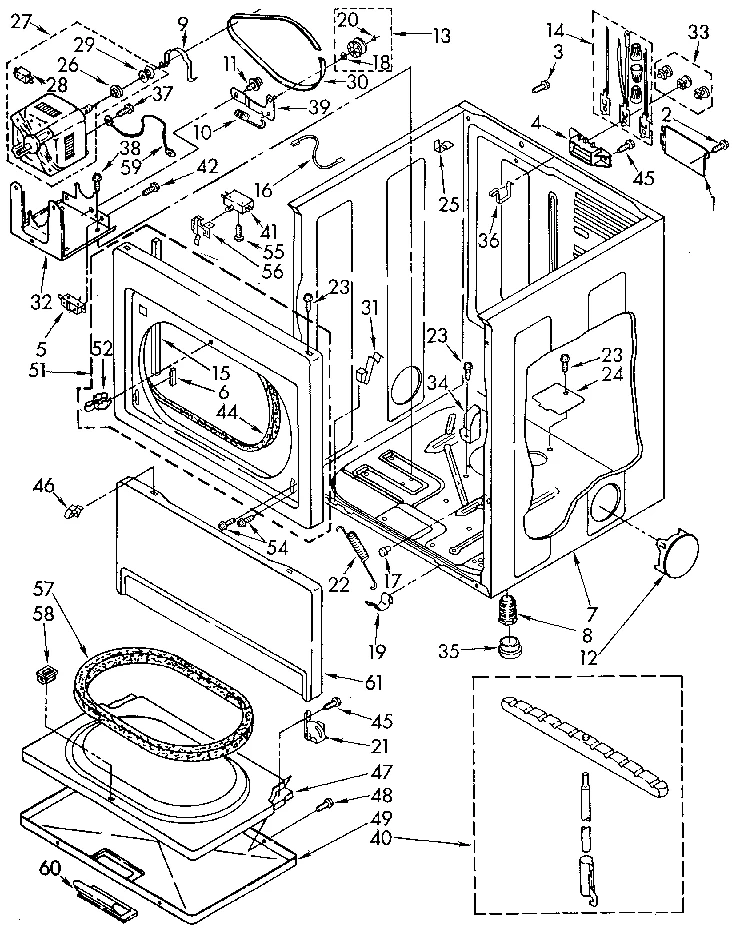

CABINET

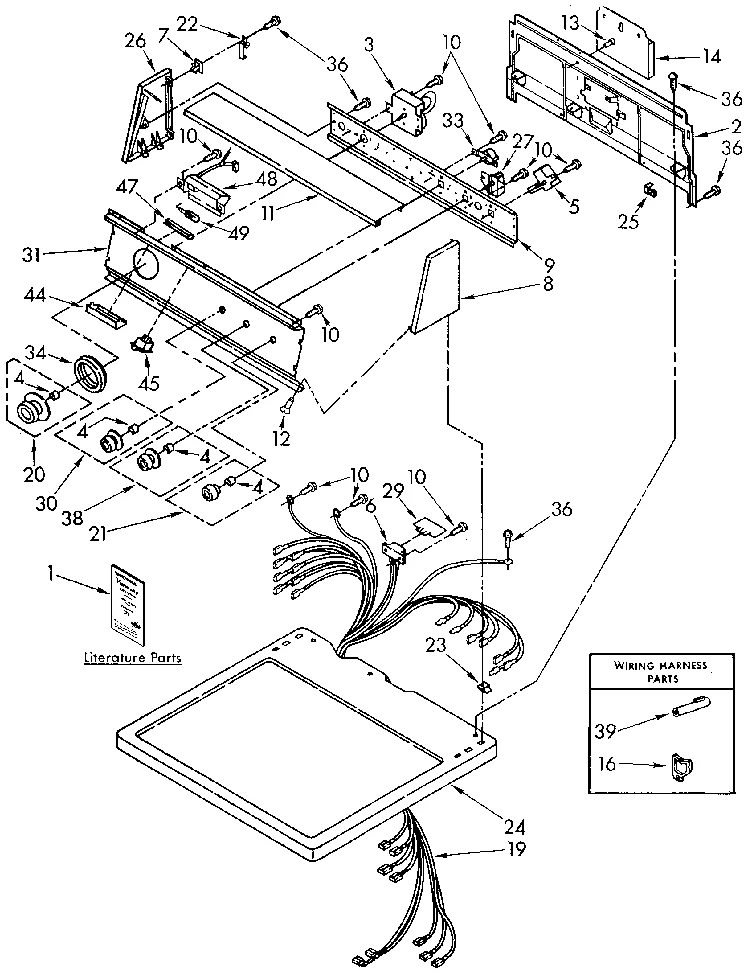

TOP AND CONSOLE

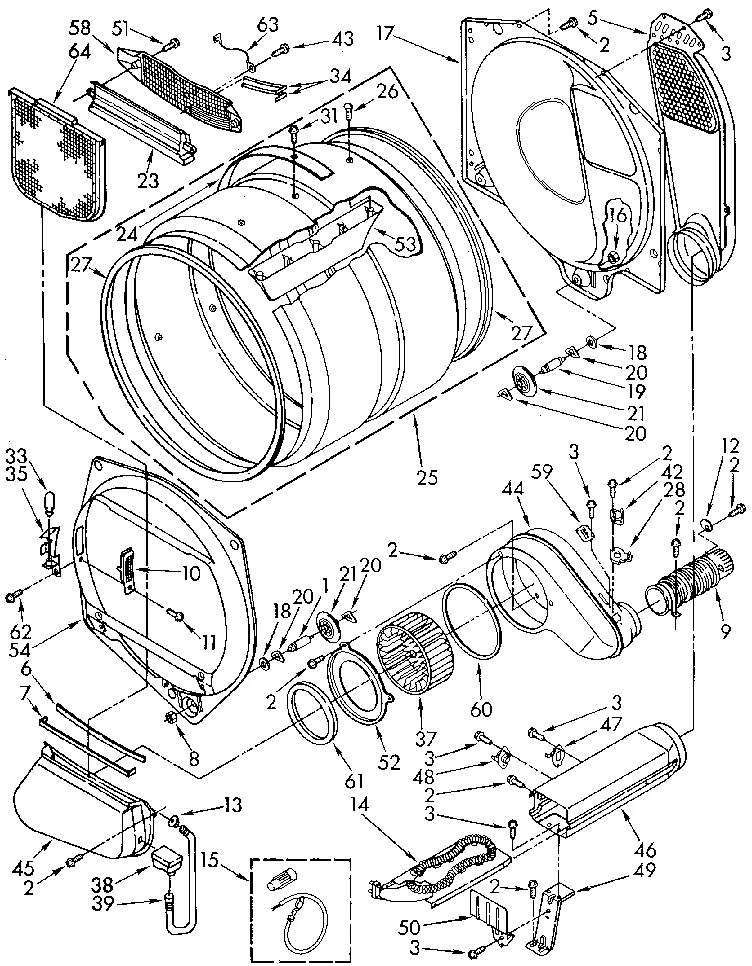

BULKHEAD
Common parts from model Whirlpool 110.86993810 Electric Dryer (Kenmore 11086993810)
1
(338471) (ALT.) WPL N/P Contact Us For Availability
1A
Wiring Diagram WPL LIT3391707 Contact Us For Availability
1B
Operating Instructions WPL LIT3392306 Contact Us For Availability
1C
Operating Instructions WPL LIT3390910 Contact Us For Availability
1D
Owner's Manual WPL LIT3388865 Contact Us For Availability
1E
Installation Instructions WPL LIT3389090 Contact Us For Availability
1F
U&c Label WPL LIT3392449 Contact Us For Availability
1G
Parts List WPL LIT3391534 Contact Us For Availability
2A
Rear Panel (White) WPL 3388660 Contact Us For Availability
2B
Panel (Platinum) WPL 3388663 Contact Us For Availability
2C
Rear Panel WPL 3388666 Contact Us For Availability
2D
Panel WPL 3388662 Contact Us For Availability
2E
Rear Panel (Almond) WPL 3388661 Contact Us For Availability
3
Dryer Timer WPL 3388752 Contact Us For Availability
6
Connector WPL 341141 Contact Us For Availability
7
End Cap Clip WPL 689559 Contact Us For Availability
8A
Endcap Wht WPL 388204 Contact Us For Availability
8B
Endcap Alm WPL 388206 Contact Us For Availability
8C
Endcap Eby WPL 388205 Contact Us For Availability
8D
Endcap Tst WPL 388207 Contact Us For Availability
8E
Endcap Plt WPL 388208 Contact Us For Availability
9
Exhaust Extension WPL 3389494 Contact Us For Availability
10
Lens WPL 3390788 Contact Us For Availability
11A
Control Panel (White) WPL 3350937 Contact Us For Availability
11B
Control Panel (Almond) WPL 3350938 Contact Us For Availability
11C
Control Panel WPL 3350941 Contact Us For Availability
11D
Control Panel WPL 3350939 Contact Us For Availability
11E
Control Panel (Platinum) WPL 3350940 Contact Us For Availability
12
Washer WPL 3390028 Contact Us For Availability
13
Fastener WPL 3389802 Contact Us For Availability
13
Adapter WPL 3391032 Contact Us For Availability
14
Rack WPL 3388908 Contact Us For Availability
16
Clip WPL 688412 Contact Us For Availability
16
Hex Nut WPL 3387709 Contact Us For Availability
19
Wire Harness WPL 3392259 Contact Us For Availability
20A
Knob Timer (White) WPL 3389826 Contact Us For Availability
20B
Knob (Almond) WPL 3389827 Contact Us For Availability
20C
Timer Knob WPL 3389825 Contact Us For Availability
20D
Timer Knob WPL 3389828 Contact Us For Availability
20E
Knob Timer (Platinum) WPL 3389829 Contact Us For Availability
21A
Control Knob (White) WPL 3389816 Contact Us For Availability
21B
Control Knob (Almond) WPL 3389817 Contact Us For Availability
21C
Control Knob WPL 3389815 Contact Us For Availability
21D
Control Knob WPL 3389818 Contact Us For Availability
21E
Knob Control (Platinum) WPL 3389819 Contact Us For Availability
22
Hinge Panel WPL 387402 Contact Us For Availability
23
Housing WPL 697768 Contact Us For Availability
24
Aluminum Tape WPL 3388646 Contact Us For Availability
24A
Top W WPL 3388603 Contact Us For Availability
24B
Top Al WPL 3388604 Contact Us For Availability
24C
Top Eby WPL 3388607 Contact Us For Availability
24D
Top Tst WPL 3388605 Contact Us For Availability
24E
Top Plt WPL 3388606 Contact Us For Availability
25
Harness Clip WPL 3390514 Contact Us For Availability
26
Screw WPL 697777 Contact Us For Availability
26A
End Cap (White) WPL 388210 Contact Us For Availability
26B
End Cap (Almond) WPL 388212 Contact Us For Availability
26C
Endcap Eby WPL 388211 Contact Us For Availability
26D
Endcap Tst WPL 388213 Contact Us For Availability
26E
Endcap Plt WPL 388214 Contact Us For Availability
27
Buzzer WPL 347137 Contact Us For Availability
28
Dryer Thermostat Heater WPL 61894 Contact Us For Availability
29
Dryer Control WPL 661513 Contact Us For Availability
30A
Knob Control (White) WPL 3350984 Contact Us For Availability
30B
Knob Control (Almond) WPL 3350985 Contact Us For Availability
30C
Control Knob WPL 388036 Contact Us For Availability
30D
Control Knob WPL 3350986 Contact Us For Availability
30E
Knob Control (Platinum) WPL 3350987 Contact Us For Availability
31
Clip WPL 3388600 Contact Us For Availability
31A
Control Panel (White) WPL 3389758 Contact Us For Availability
31B
Control Panel (Almond) WPL 3389759 Contact Us For Availability
31C
Control Panel WPL 3389762 Contact Us For Availability
31D
Control Panel WPL 3389760 Contact Us For Availability
31E
Control Panel (Platinum) WPL 3389761 Contact Us For Availability
33
Temperature Switch WPL 696321 Contact Us For Availability
33
Bulb WPL 3387683 Contact Us For Availability
34
Guard Idler WPL 3389503 Contact Us For Availability
34A
Trim Ring WPL 388259 Contact Us For Availability
34B
Trim Ring WPL 3350942 Contact Us For Availability
34C
Trim Ring WPL 388258 Contact Us For Availability
34D
Trim Ring WPL 3350943 Contact Us For Availability
34E
Trim Ring WPL 3350944 Contact Us For Availability
35
Socket WPL 3392255 Contact Us For Availability
36
Harness Clip WPL 3391881 Contact Us For Availability
38
Signal WPL 3391706 Contact Us For Availability
39
Receptacle WPL 351296 Contact Us For Availability
39
Hose WPL 3391033 Contact Us For Availability
40
Hanger WPL 3388707 Contact Us For Availability
44A
Lens W WPL 3350945 Contact Us For Availability
44B
Lens Alm WPL 3350946 Contact Us For Availability
44C
Lens Bl WPL 3349577 Contact Us For Availability
44D
Lens Tst WPL 3350947 Contact Us For Availability
44E
Lens Plt WPL 3350948 Contact Us For Availability
45
Duct Lint WPL 3390532 Contact Us For Availability
47
Door WPL 697655 Contact Us For Availability
47
Protector WPL 3350384 Contact Us For Availability
48
Socket WPL 3392401 Contact Us For Availability
49
Light Bulb WPL 3350382 Contact Us For Availability
49
Bracket WPL 697700 Contact Us For Availability
49A
Dryer Door WPL 697221 Contact Us For Availability
49B
Door Al WPL 697222 Contact Us For Availability
49C
Door Eby WPL 3388441 Contact Us For Availability
49D
Door To WPL 697223 Contact Us For Availability
49E
Door Pl WPL 697224 Contact Us For Availability
50
Heater Shield WPL 697699 Contact Us For Availability
51A
Panel WPL 697227 Contact Us For Availability
51B
Panel Al WPL 697228 Contact Us For Availability
51C
Panel Eby WPL 3389890 Contact Us For Availability
51D
Panel To WPL 697229 Contact Us For Availability
51E
Panel Pl WPL 697230 Contact Us For Availability
53
Drum Baffle WPL 697693 Contact Us For Availability
54
Bulkhead WPL 697563 Contact Us For Availability
55
Screw WPL 3389484 Contact Us For Availability
58
Grill WPL 697767 Contact Us For Availability
59
Wire WPL 3387376 Contact Us For Availability
60B
Handle (Almond) WPL 689457 Contact Us For Availability
60C
Handle WPL 693848 Contact Us For Availability
60D
Handle WPL 695174 Contact Us For Availability
60E
Handle (Platinum) WPL 695175 Contact Us For Availability
61B
Toepnl Al WPL 697216 Contact Us For Availability
61C
Toepnl Eby WPL 3388446 Contact Us For Availability
61D
Toepnl To WPL 697217 Contact Us For Availability
61E
Toepnl Pl WPL 697218 Contact Us For Availability
62
Screw WPL 309100 Contact Us For Availability
63
Wire WPL 3392258 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
× ![]()
