Whirlpool 110.86662700 Electric Dryer (Kenmore 11086662700) Parts List

1

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $26.28

View on Model

2

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

View on Model

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

View on Model

4

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

View on Model

4

279771 Whirlpool Clip Backorder WPL 279771 $6.20

View on Model

5

Panel WPL 346368 Contact Us For Availability

View on Model

5

Box WPL 685457 Contact Us For Availability

View on Model

6

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

View on Model

7

End Cap Clip WPL 689559 Contact Us For Availability

View on Model

7A

Cabinet (White) WPL 690847 Contact Us For Availability

View on Model

7B

Cabinet WPL 690851 Contact Us For Availability

View on Model

7C

Cabinet (Almond) WPL 690848 Contact Us For Availability

View on Model

7D

Cabinet WPL 694874 Contact Us For Availability

View on Model

7E

Cabinet (Platinum) WPL 694875 Contact Us For Availability

View on Model

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

View on Model

10

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $3.70

View on Model

12

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

View on Model

13

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

View on Model

14

279318 Whirlpool Terminal In Stock WPL 279318 $44.05

View on Model

14

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

View on Model

14A

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

View on Model

17

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

View on Model

17

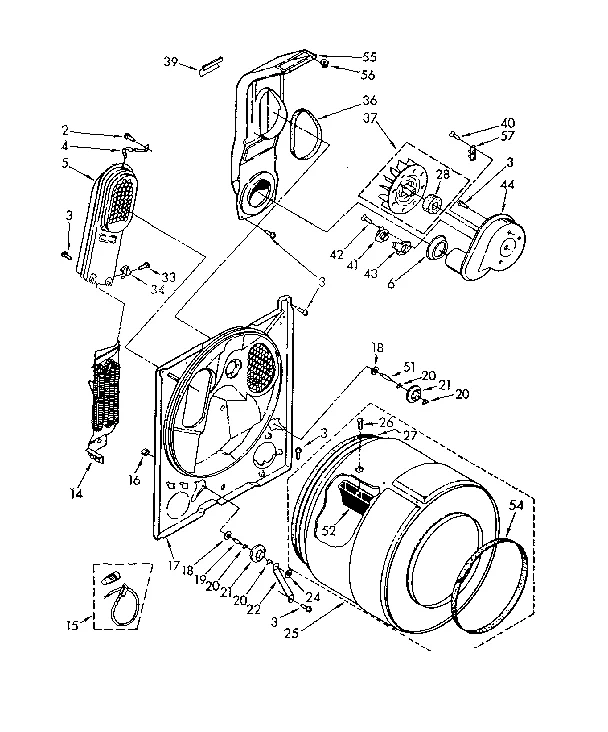

Bulkhead WPL 685775 Contact Us For Availability

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

View on Model

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $34.33

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

View on Model

21

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $8.16

View on Model

21

Door Hinge WPL 238456 Contact Us For Availability

View on Model

21A

WP238460 Whirlpool Hinge In Stock WPL WP238460 $2.51

View on Model

22

WP337186 Whirlpool Door Spring In Stock WPL WP337186 $2.51

View on Model

22

Bracket WPL 348945 Contact Us For Availability

View on Model

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

View on Model

24

Clip WPL 688412 Contact Us For Availability

View on Model

25

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

View on Model

25

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

View on Model

26

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

View on Model

26

Screw WPL 690372 Contact Us For Availability

View on Model

27

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $25.73

View on Model

28

Seal WPL 694630 Contact Us For Availability

View on Model

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $19.20

View on Model

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.00

View on Model

30

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

View on Model

31

279872 Whirlpool Resistor In Stock WPL 279872 $29.17

View on Model

31

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $40.41

View on Model

32

Clip WPL 689567 Contact Us For Availability

View on Model

33

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.06

View on Model

34

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $54.50

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

View on Model

37

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

View on Model

37

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

View on Model

38

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

View on Model

39

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

View on Model

39

Control Panel WPL 696859 Contact Us For Availability

View on Model

40

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

View on Model

40

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

View on Model

40

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

View on Model

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

View on Model

41

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

View on Model

42

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

View on Model

42

End Cap WPL 388203 Contact Us For Availability

View on Model

43

279220 Whirlpool Clip Backorder WPL 279220 $11.93

View on Model

43

WP388257 Whirlpool Trim Ring Backorder WPL WP388257 $3.70

View on Model

43

Dryer Thermostat Heater WPL 61894 Contact Us For Availability

View on Model

44

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $51.86

View on Model

44

Housing WPL 695081 Contact Us For Availability

View on Model

45

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

View on Model

46

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

View on Model

47

Door WPL 695953 Contact Us For Availability

View on Model

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

View on Model

49A

Door (White) WPL 348737 Contact Us For Availability

View on Model

49B

Door WPL 689487 Contact Us For Availability

View on Model

49C

Door (Almond) WPL 689485 Contact Us For Availability

View on Model

49D

Door WPL 695166 Contact Us For Availability

View on Model

49E

Door (Platinum) WPL 695167 Contact Us For Availability

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

View on Model

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $29.44

View on Model

51A

Panel (White) WPL 337464 Contact Us For Availability

View on Model

51B

Panel WPL 689527 Contact Us For Availability

View on Model

51C

Panel (Almond) WPL 689525 Contact Us For Availability

View on Model

51D

Panel WPL 695150 Contact Us For Availability

View on Model

51E

Panel (Platinum) WPL 695151 Contact Us For Availability

View on Model

52

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $54.61

View on Model

54

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.96

View on Model

54

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

View on Model

55

279505 Whirlpool Chute Backorder WPL 279505 $139.21

View on Model

56

98460 Whirlpool Nut Backorder WPL 98460 $9.59

View on Model

57

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $21.94

View on Model

57

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

View on Model

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

View on Model

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $48.46

View on Model

60B

Handle WPL 689459 Contact Us For Availability

View on Model

60C

Handle (Almond) WPL 689457 Contact Us For Availability

View on Model

60D

Handle WPL 695174 Contact Us For Availability

View on Model

60E

Handle (Platinum) WPL 695175 Contact Us For Availability

View on Model

61

Door Cable Guide WPL 337182 Contact Us For Availability

View on Model

61A

Guide WPL 337183 Contact Us For Availability

View on Model

62

DOOR CABLE Backorder CMP 230131CM $4.48

View on Model

63

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

View on Model

64

Wire WPL 690236 Contact Us For Availability

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

View on Model

NI

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

View on Model

NI

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model

Model Whirlpool 110.86662700 Electric Dryer (Kenmore 11086662700) – Common Parts & Diagrams

Common parts from model Whirlpool 110.86662700 Electric Dryer (Kenmore 11086662700)
