Model Whirlpool 106.9552911 Refrigerator – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

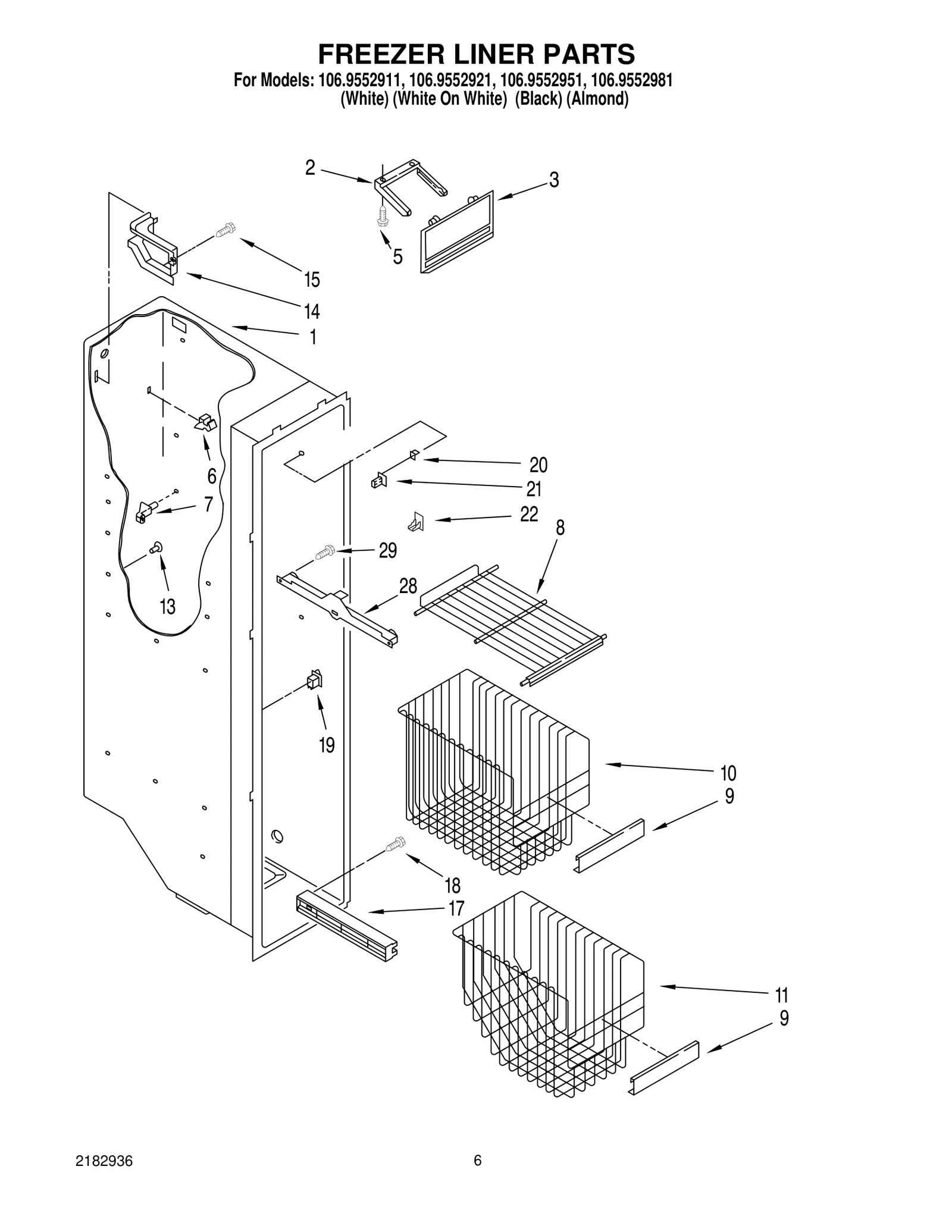

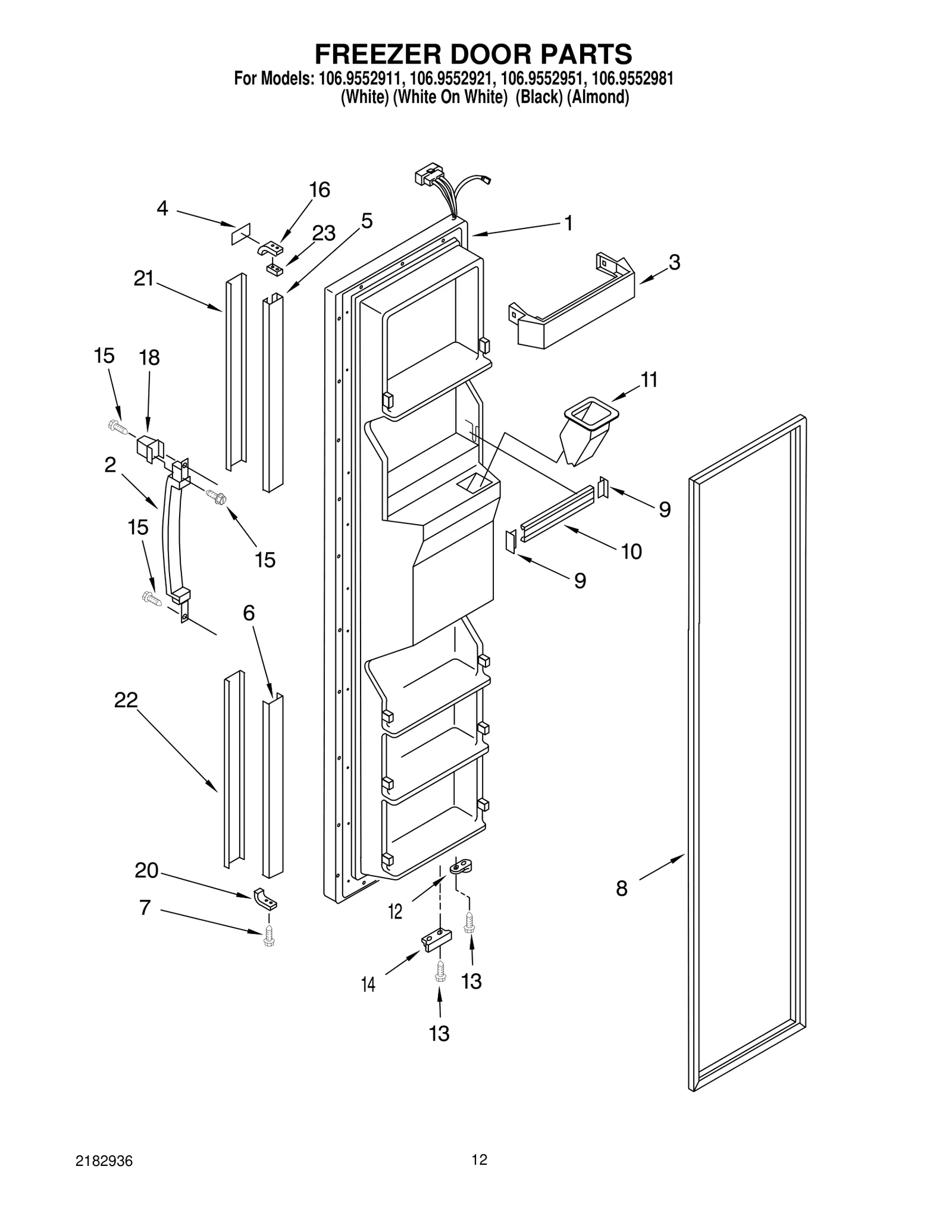

Freezer Door (Includes Item #8 And Dispenser WPL 2189772 Contact Us For Availability

1

Freezer Door (Includes Item #8 And Dispenser WPL 2189773 Contact Us For Availability

1

Freezer Door (Includes Item #8 And Dispenser WPL 2189774 Contact Us For Availability

1

Freezer Door (Includes Item #8 And Dispenser WPL 2189775 Contact Us For Availability

1

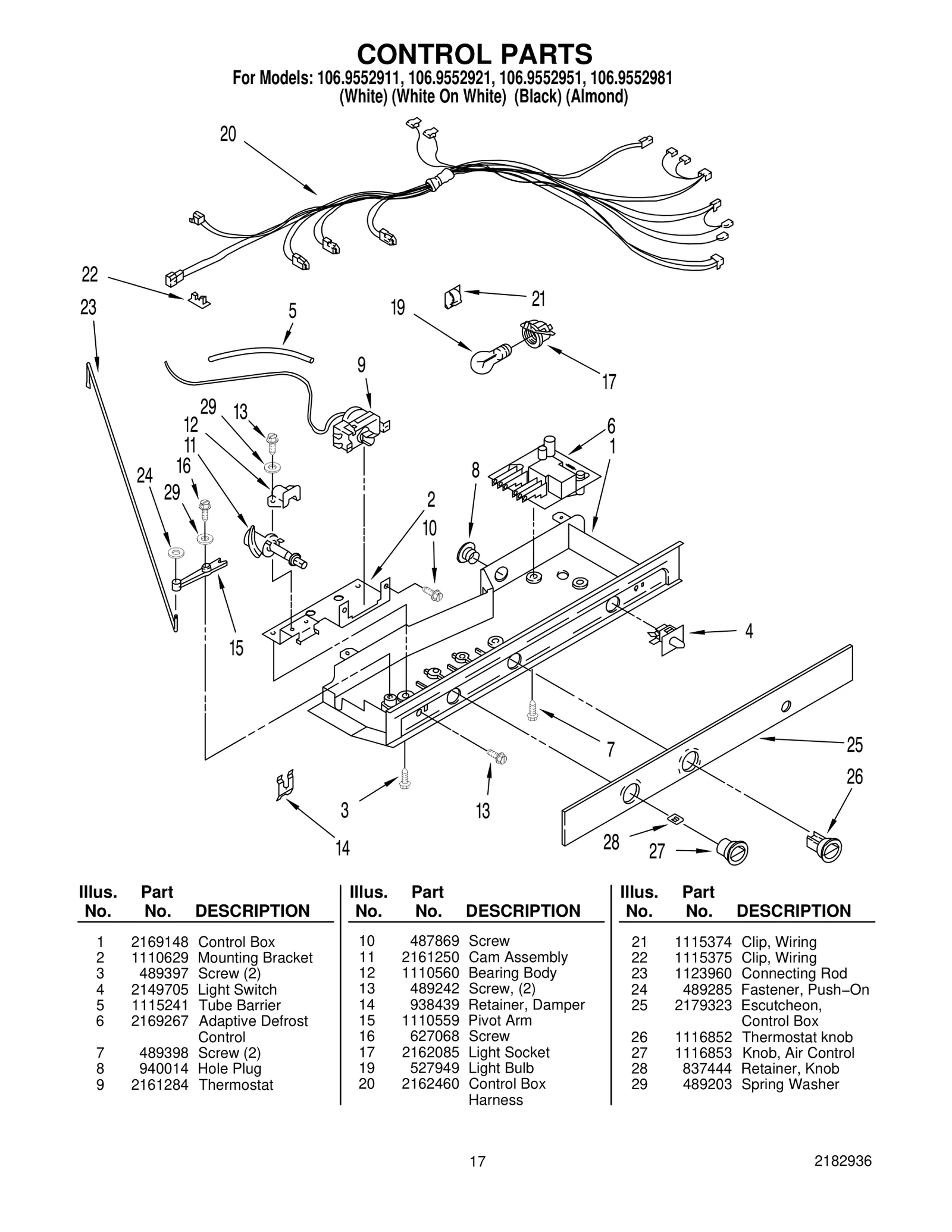

Control Box WPL 2169148 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Handle — Black WPL 2169729 Contact Us For Availability

2

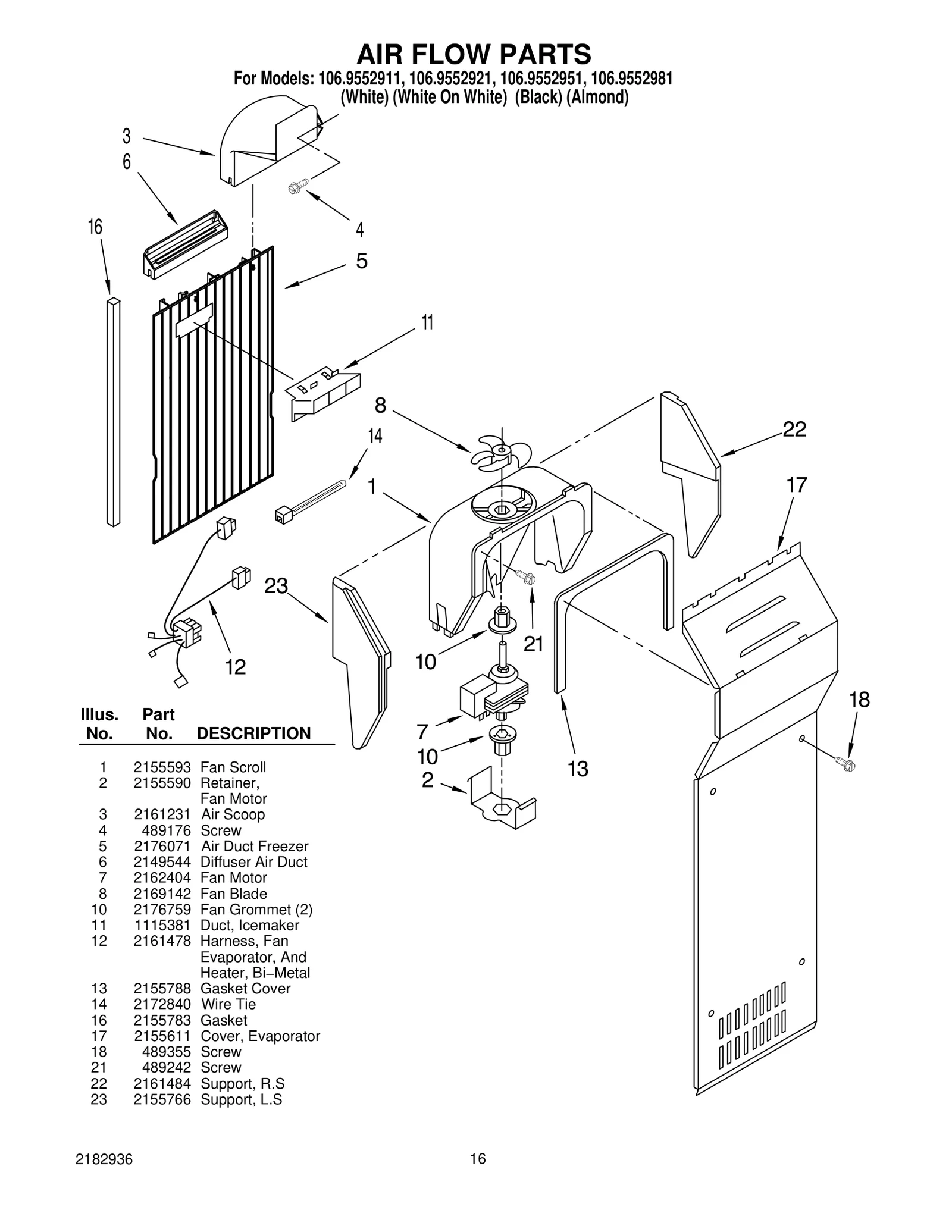

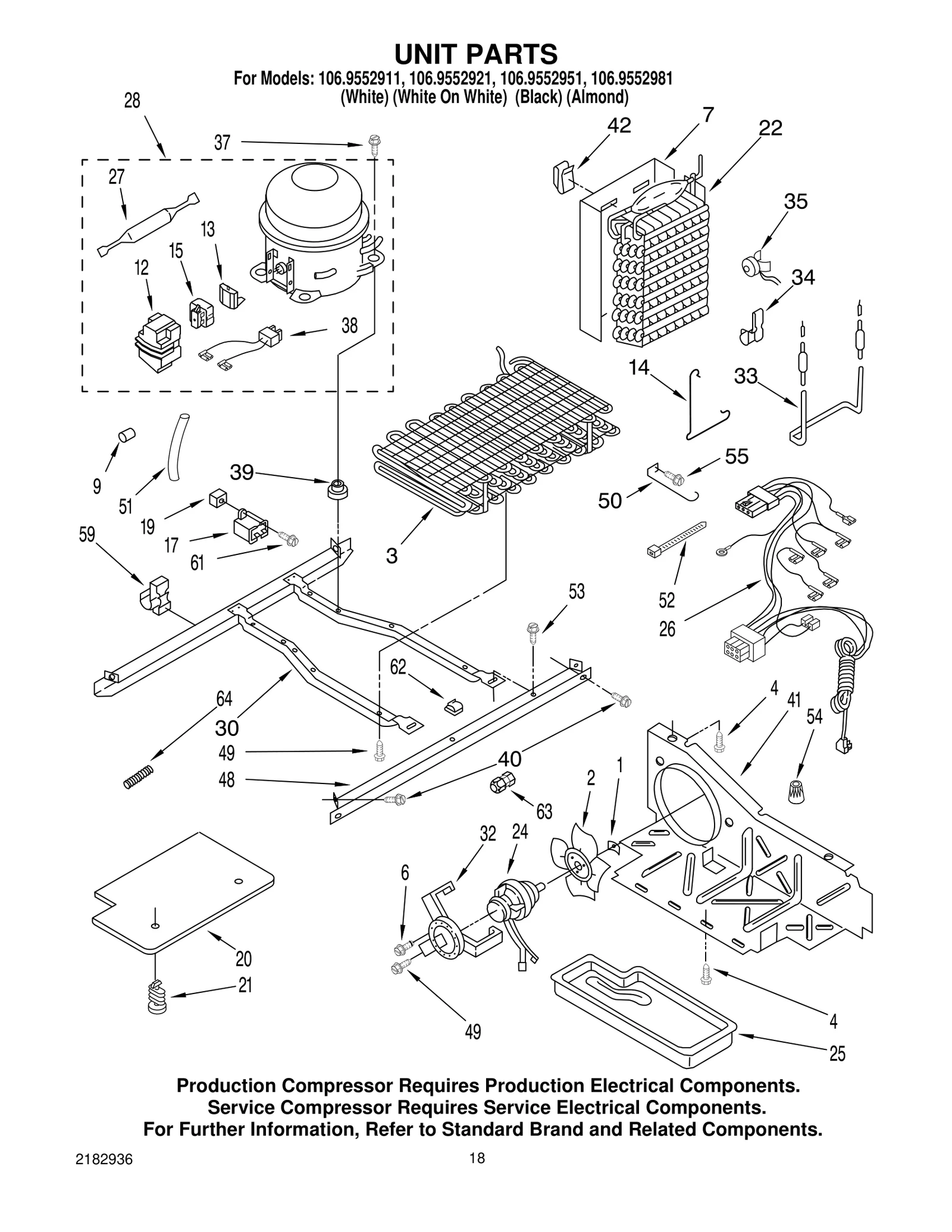

Retainer, Fan Motor WPL 2155590 Contact Us For Availability

2

Fan Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle — White WPL 2169730 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $106.45

3

WP2156021 Whirlpool Refrigerator Door Trim Backorder WPL WP2156021 $44.49

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

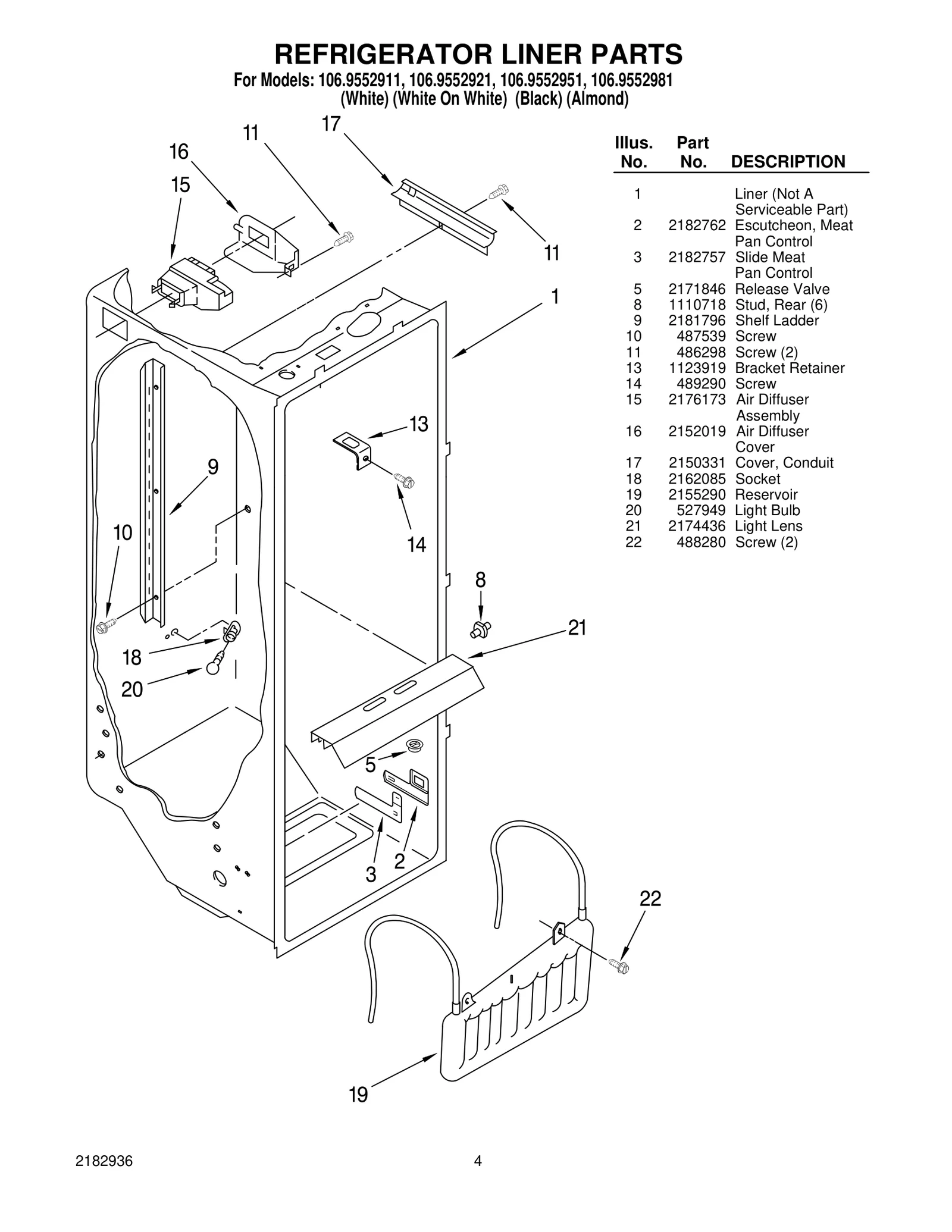

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

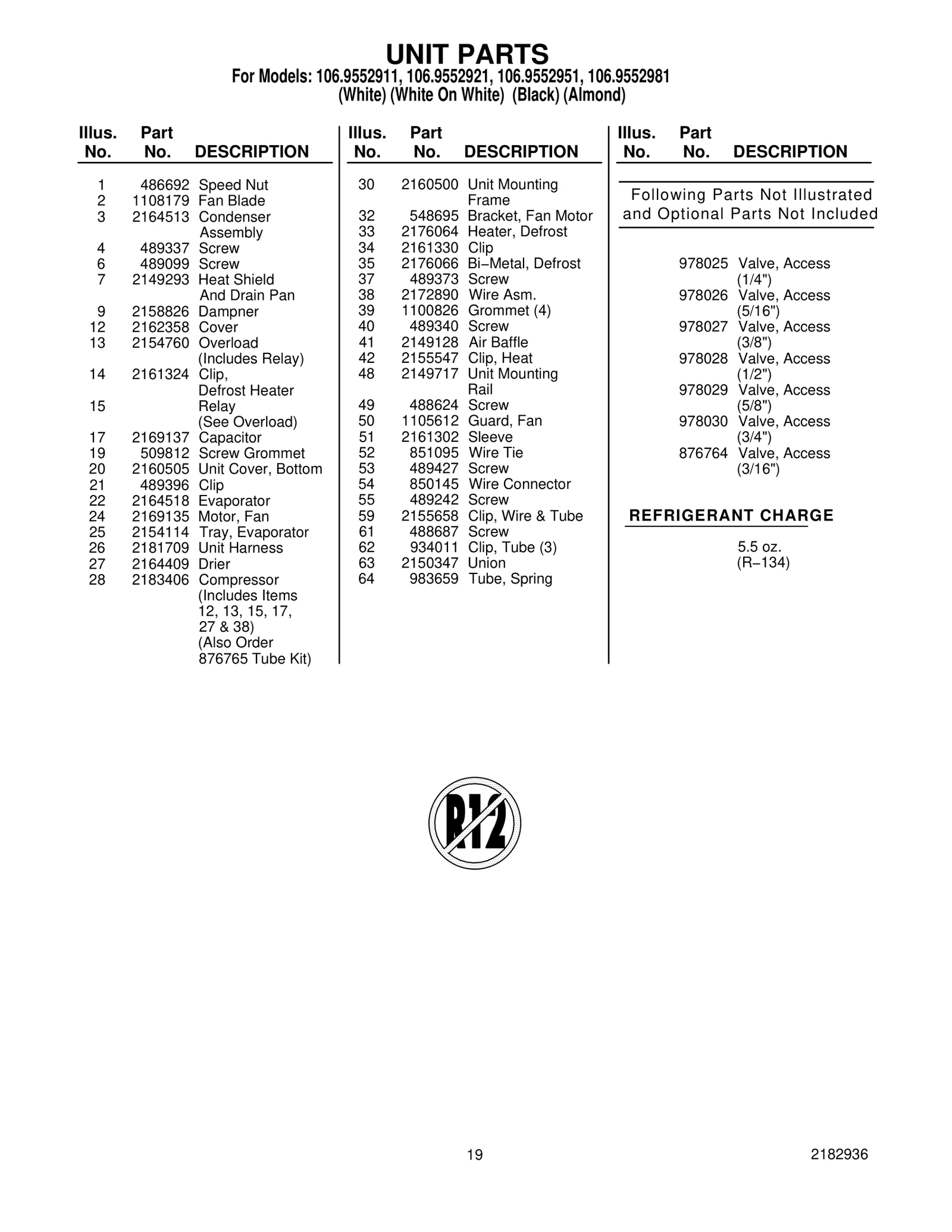

Condenser Assembly WPL 2164513 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

Nameplate — White WPL 2160452 Contact Us For Availability

4

Nameplate — Black WPL 2155971 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Release Valve WPL 2171846 Contact Us For Availability

5

Track, Roll−Top WPL 2154319 Contact Us For Availability

6

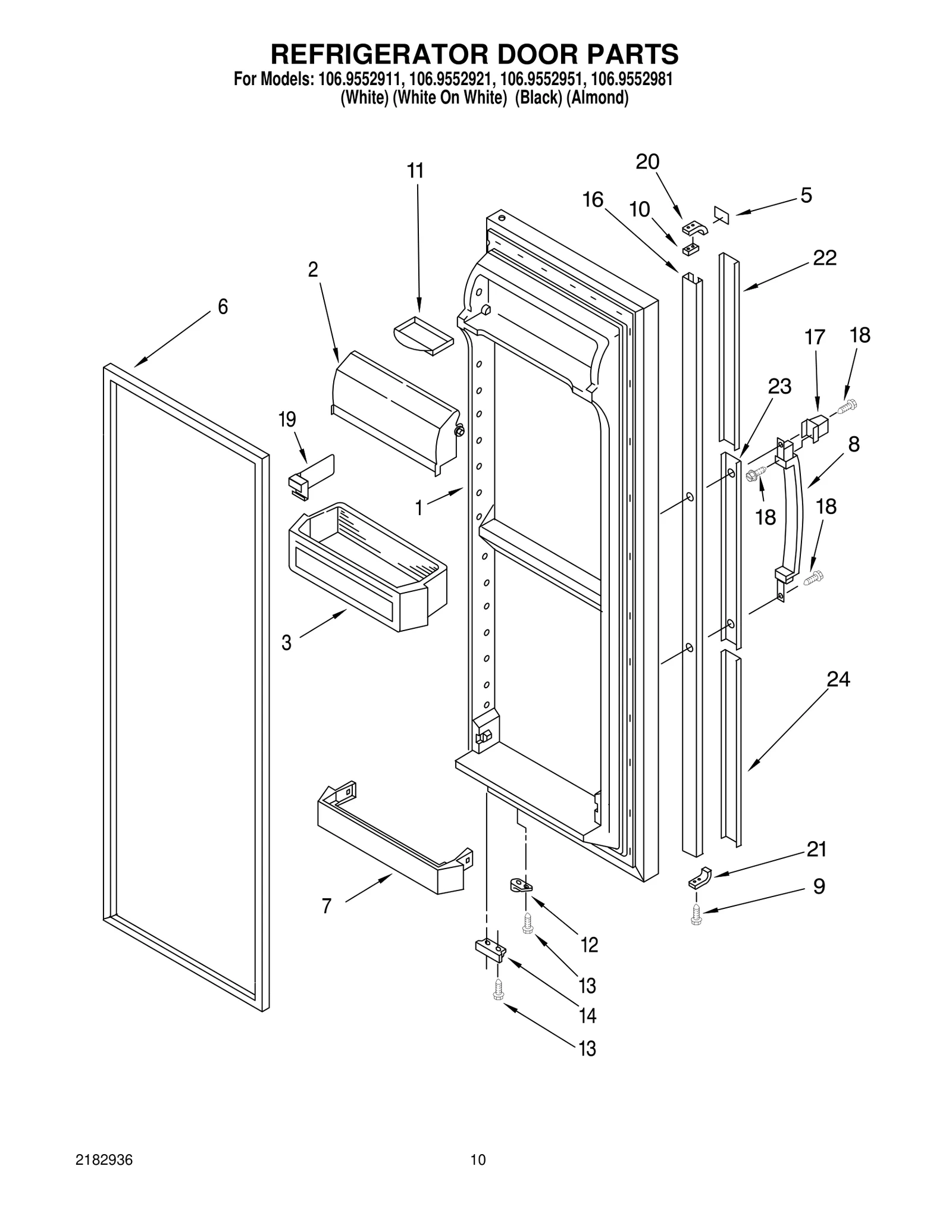

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $87.85

6

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $164.67

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

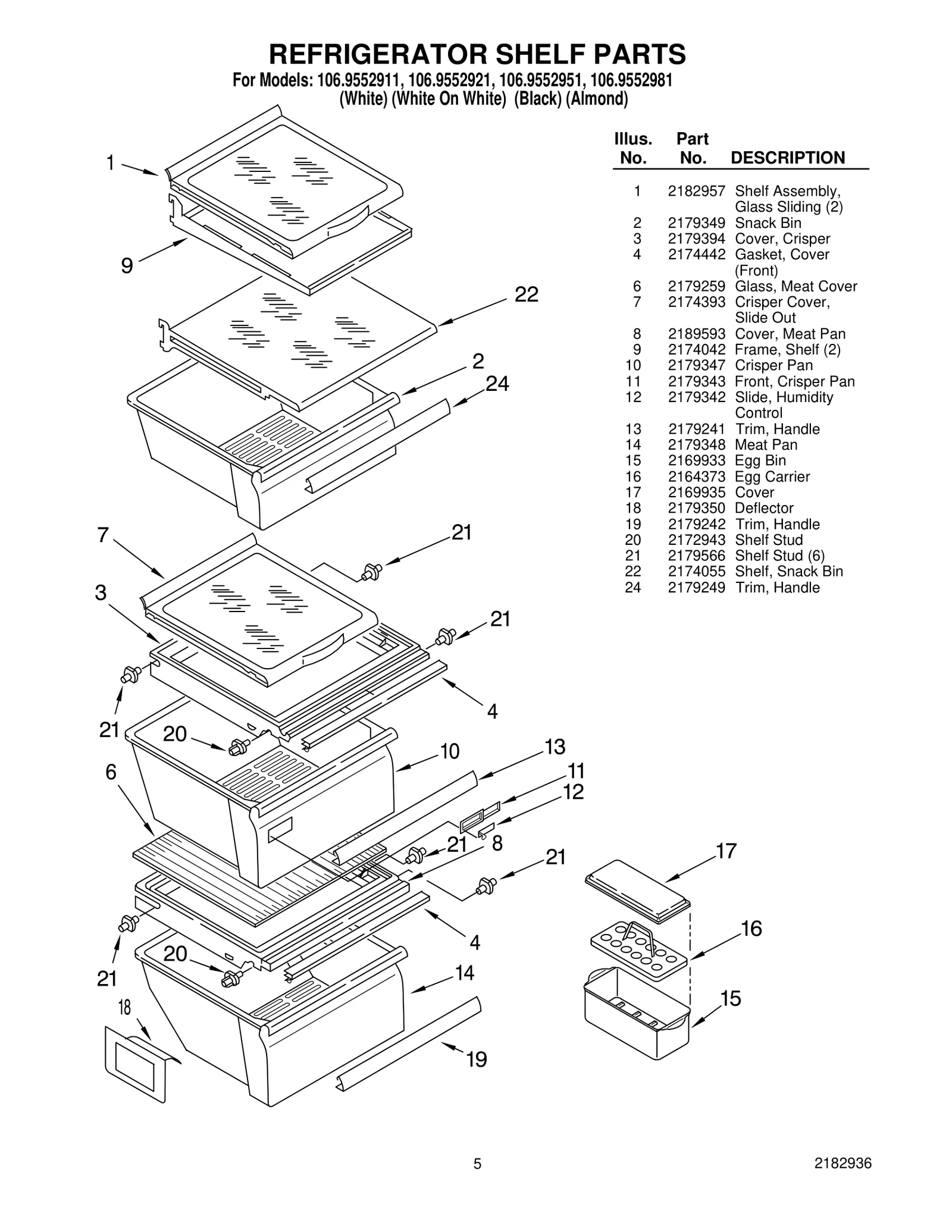

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

6

Track, Roll−Bottom WPL 2154320 Contact Us For Availability

6

Diffuser Air Duct WPL 2149544 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.95

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.36

7

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $39.73

7

Frame, Slides — White WPL 2152717 Contact Us For Availability

7

Frame, Slides — Black WPL 2152716 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $97.61

8

2159080 Whirlpool Refrigerator Door Gasket Backorder WPL 2159080 $148.36

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Slide, Cube/Crush Switch — White WPL 2152720 Contact Us For Availability

8

Slide, Cube/Crush Switch — Black WPL 2152719 Contact Us For Availability

8

Hole Plug WPL 940014 Contact Us For Availability

9

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

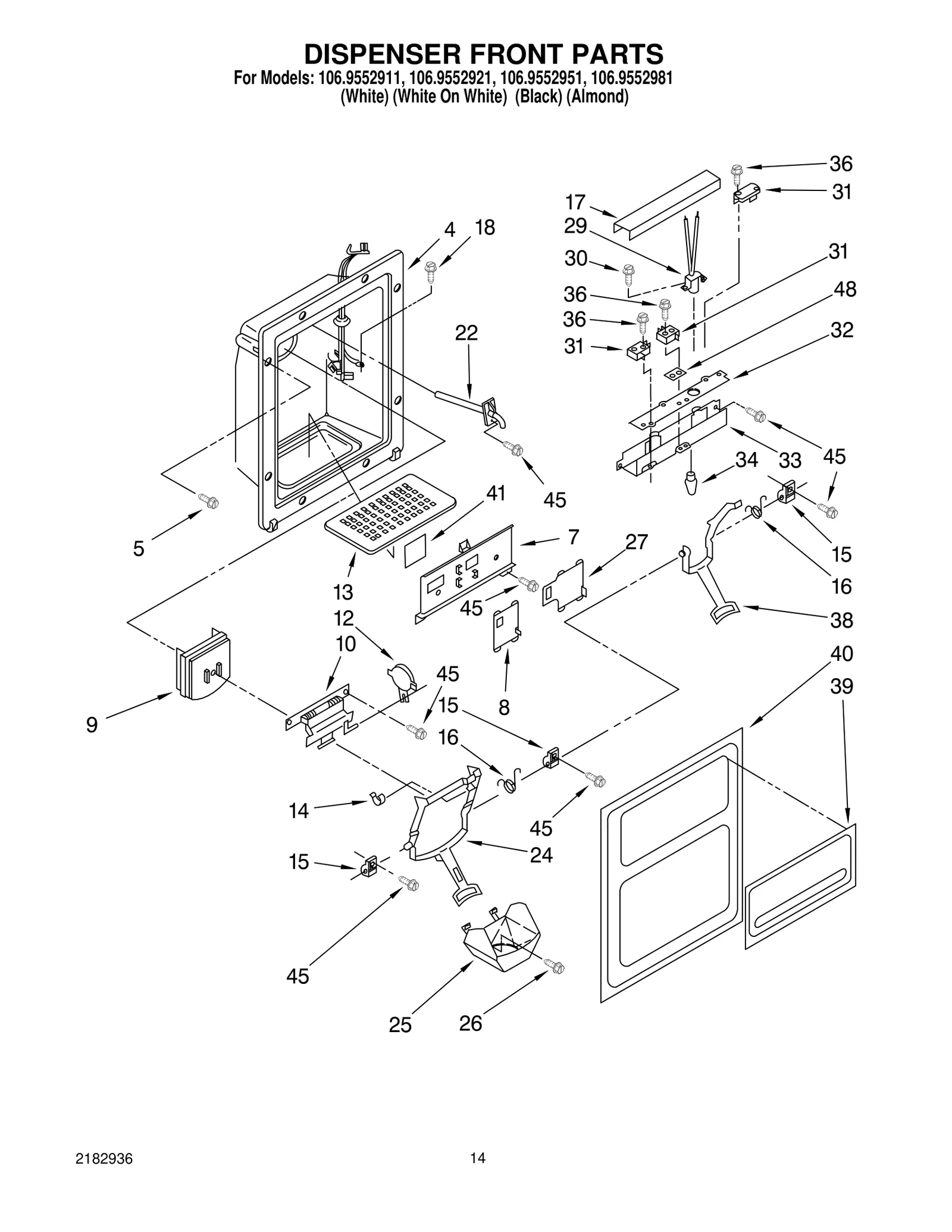

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.65

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

9

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

9

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

W10853654 Whirlpool Water Inlet Valve In Stock WPL W10853654 $80.14

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Door Mechanism Assembly WPL 2157650 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $36.51

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Butter Tray WPL 2151651 Contact Us For Availability

Chute, Ice WPL 2156145 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.99

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $89.54

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.42

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

Harness, Fan Evaporator, And Heater, Bi−Met WPL 2161478 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $76.53

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Grille, Overflow — Chrome WPL 983900 Contact Us For Availability

Tube, Water Inlet WPL 2171943 Contact Us For Availability

Grommet (4) WPL 2176134 Contact Us For Availability

Grille, Overflow — White WPL 1126120 Contact Us For Availability

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Bracket, Door Stop WPL 2155331 Contact Us For Availability

Clip, Bearing (2) WPL 987917 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

Hinge Cover — White WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Relay WPL N/S Contact Us For Availability

Bearing, Lever (3) WPL 983697 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $29.17

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Spring, Lever (2) WPL 983696 Contact Us For Availability

Track, Roll WPL 2154317 Contact Us For Availability

End Cap, (Top) WPL 2160457 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

Shield, Wiring WPL 2147165 Contact Us For Availability

Capacitor WPL 2169137 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

End Cap WPL 2181916 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Divider WPL 2171284 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

End Cap, Bottom WPL 2151819 Contact Us For Availability

Control Box Harness WPL 2162460 Contact Us For Availability

Unit Cover, Bottom WPL 2160505 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

Light Lens WPL 2174436 Contact Us For Availability

Trim, Door−Top — White WPL 2161054 Contact Us For Availability

Trim, Door−Top — Black WPL 2161271 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $93.40

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Grille — Black WPL 2155476 Contact Us For Availability

Trim, Door−Bottom — White WPL 2161056 Contact Us For Availability

Trim, Door−Bottom — Black WPL 2161273 Contact Us For Availability

Clip, Wiring WPL 1115375 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

Trim, Door−Middle — White WPL 2161055 Contact Us For Availability

Trim, Door−Middle — Black WPL 2161272 Contact Us For Availability

Shim WPL 2160458 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

Motor, Fan WPL 2169135 Contact Us For Availability

Lever, Ice Dispenser — White WPL 2177144 Contact Us For Availability

Fastener, Push−On WPL 489285 Contact Us For Availability

Trim, Door−Bottom — Black WPL 8175 Contact Us For Availability

Lever, Ice Dispenser — Black WPL 1127421 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

Guide, Ice — White WPL 1124730 Contact Us For Availability

Guide, Ice — Black WPL 1119035 Contact Us For Availability

Escutcheon, Control Box WPL 2179323 Contact Us For Availability

Tray, Evaporator WPL 2154114 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Screw WPL 488892 Contact Us For Availability

Unit Harness WPL 2181709 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

Slide, Light Switch — White WPL 2152726 Contact Us For Availability

Slide, Light Switch — Black WPL 2152724 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $27.52

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $51.59

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $56.13

Retainer, Knob WPL 837444 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

Lamp Holder WPL 2147131 Contact Us For Availability

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $106.63

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Screw WPL 488361 Contact Us For Availability

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $28.40

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $48.79

Insulator, Control Bracket WPL 2147164 Contact Us For Availability

Bracket, Fan Motor WPL 548695 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $52.59

Bracket, Control WPL 2147163 Contact Us For Availability

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.31

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

Screw, WPL 489155 Contact Us For Availability

36

Clip, Support (2) WPL 2155021 Contact Us For Availability

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

Lever, Water Dispenser — White WPL 2177149 Contact Us For Availability

Lever, Water Dispenser — Black WPL 2159196 Contact Us For Availability

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

Plaque, Front Cover — White WPL 2174321 Contact Us For Availability

Plaque, Front Cover — Black WPL 2174320 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

Front Cover, Housing — White WPL 2174299 Contact Us For Availability

Front Cover, Housing — Black WPL 2174298 Contact Us For Availability

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $40.19

41

Heat Shield, Frame WPL 2147172 Contact Us For Availability

42

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

42

Clip, Heat WPL 2155547 Contact Us For Availability

44

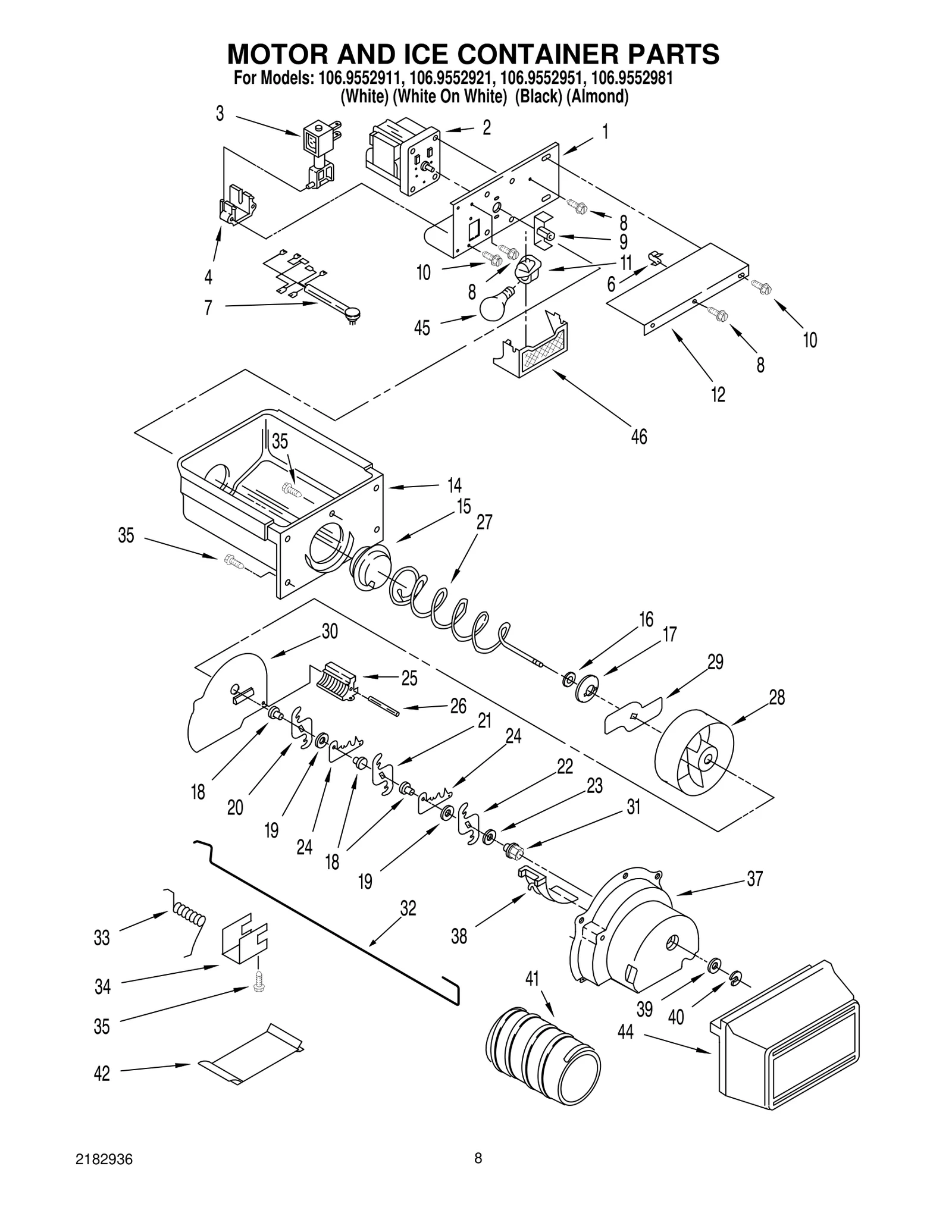

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $33.64

48

Spacer WPL 625834 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Hinge Cover — White WPL 1119787 Contact Us For Availability

49

Hinge Cover — Black WPL 2155938 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $26.83

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

Wire Tie WPL 851095 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

59

Clip, Wire & Tube WPL 2155658 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

62

Clip, Tube (3) WPL 934011 Contact Us For Availability

63

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access WPL 978029 Contact Us For Availability

Tube, Spring Following Parts Not Illustrated WPL 983659 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

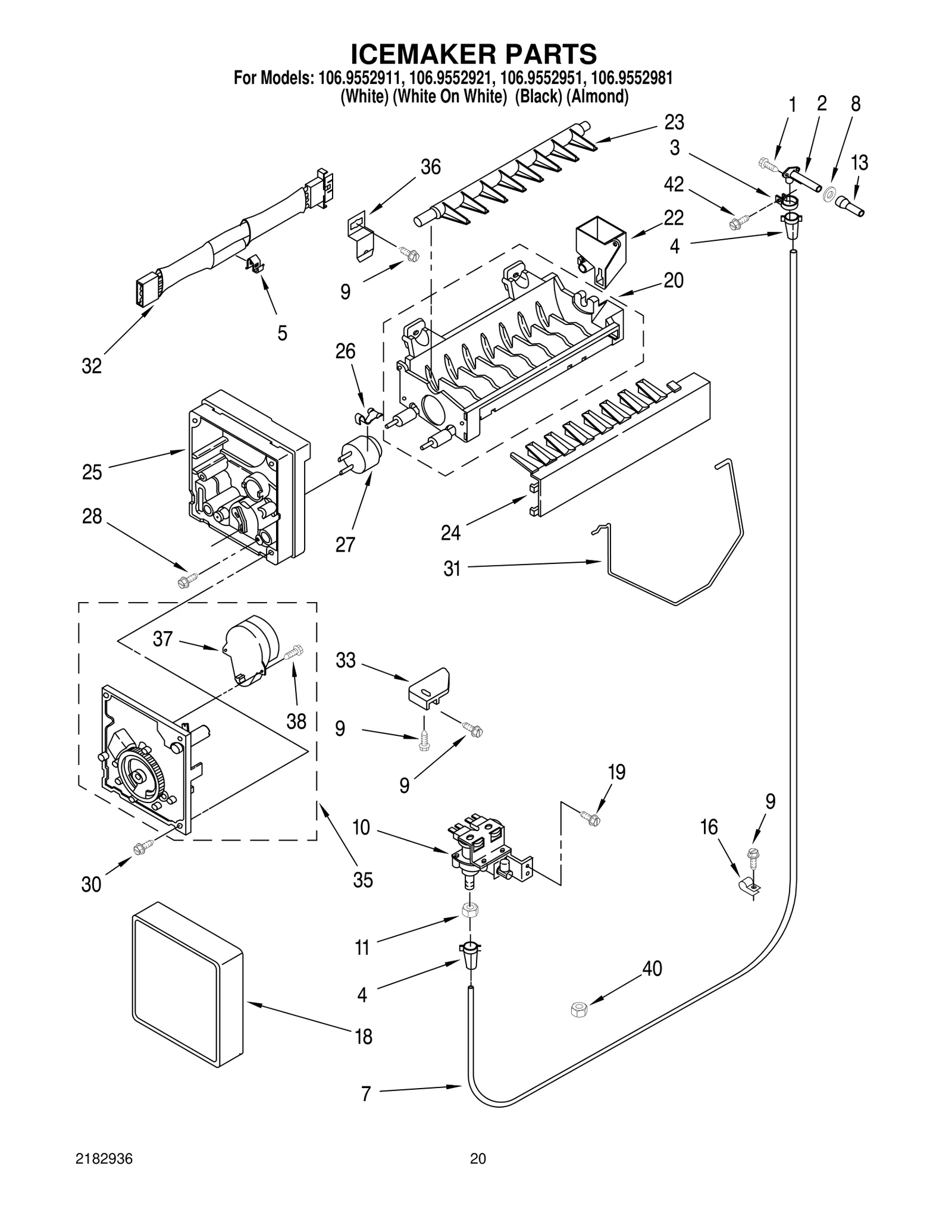

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $107.21

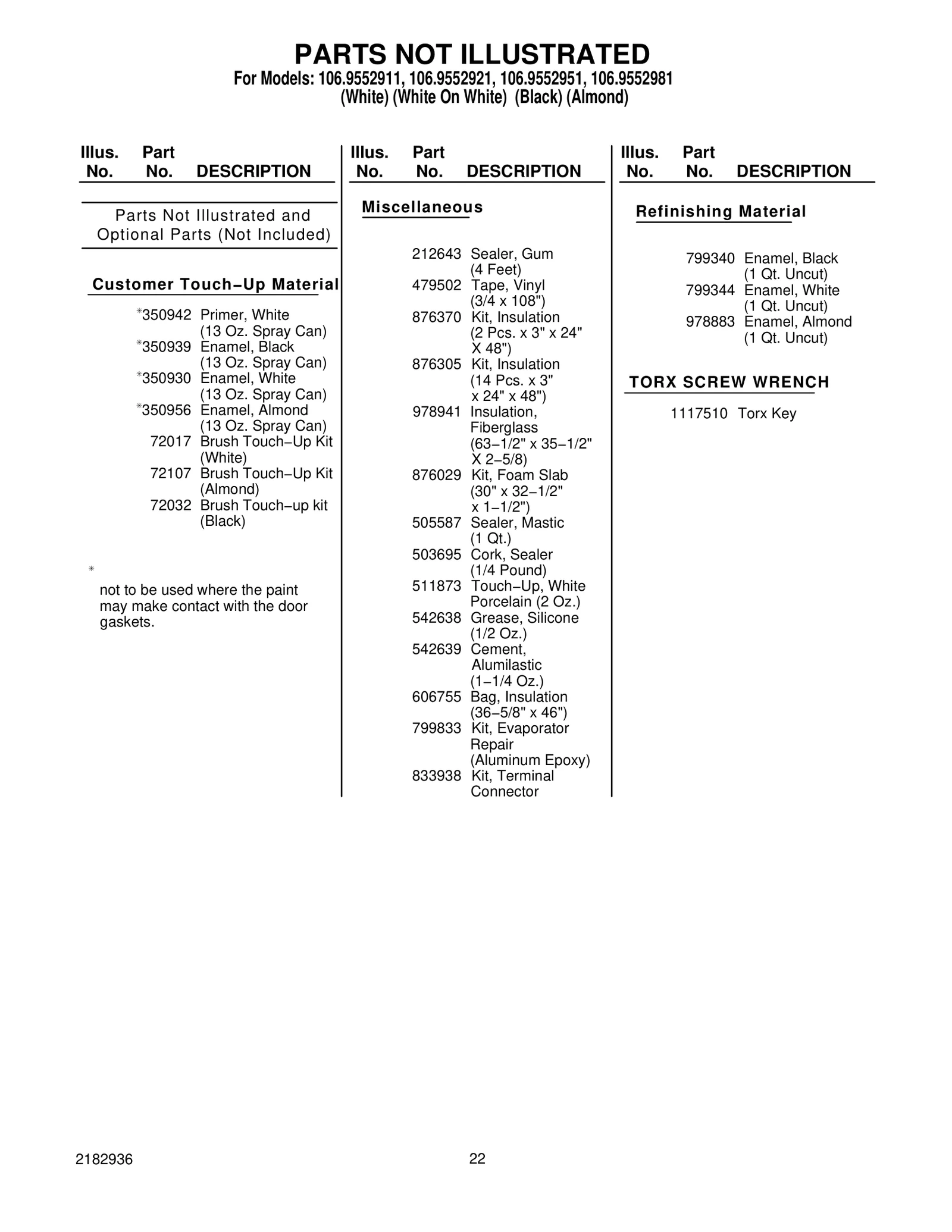

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

OPT-5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-6

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

OPT-7

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

OPT-8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-9

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-11

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

OPT-13

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-16

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

OPT-17

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-18

Cement, WPL 542639 Contact Us For Availability

OPT-19

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

OPT-20

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-22

Enamel, Black WPL 799340 Contact Us For Availability

OPT-23

Enamel, White WPL 799344 Contact Us For Availability

OPT-24

Enamel, Almond WPL 978883 Contact Us For Availability

OPT-25

Torx Key WPL 1117510 Contact Us For Availability
