Model Whirlpool 106.74909401 Refrigerator – Common Parts & Diagrams
COVER

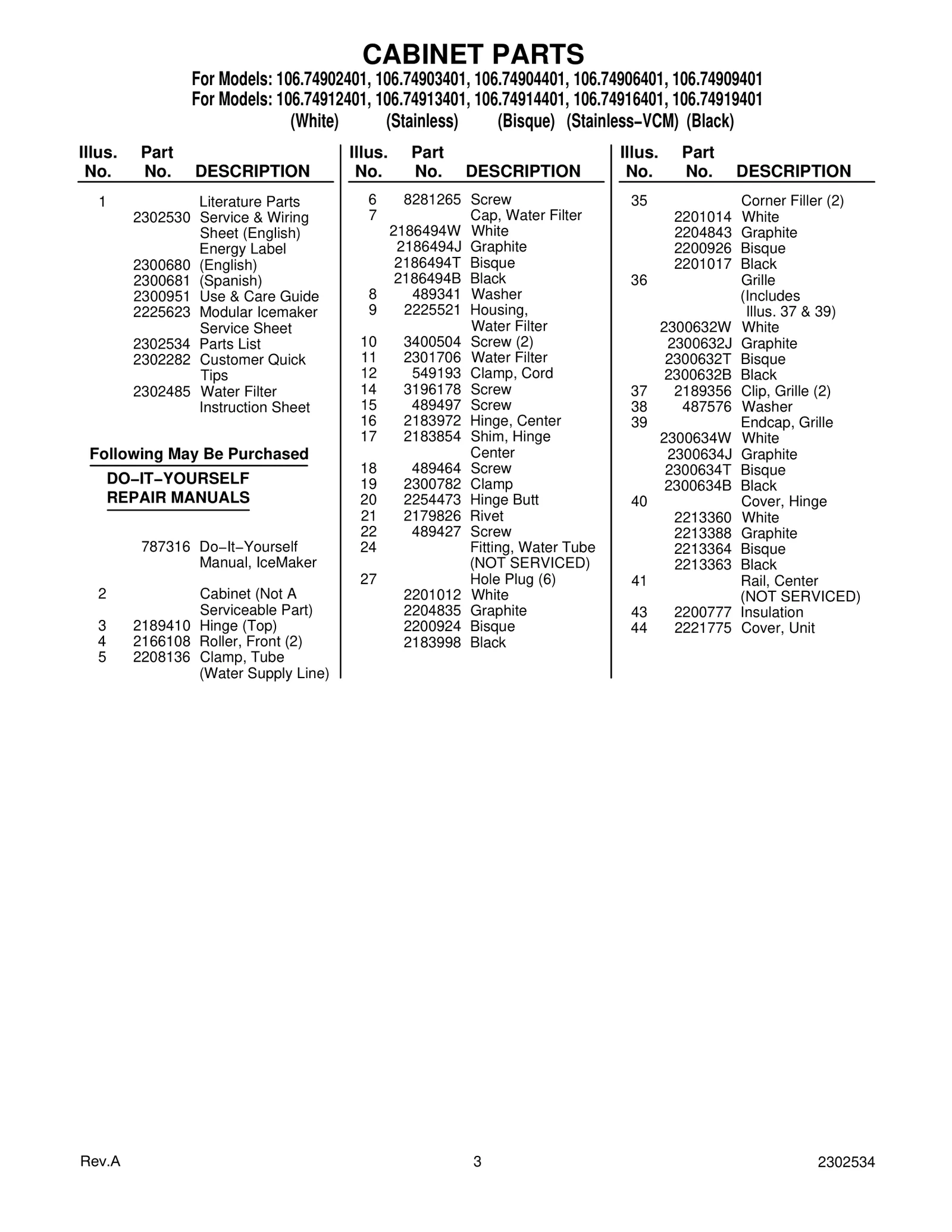

CABINET PARTS
CABINET PARTS

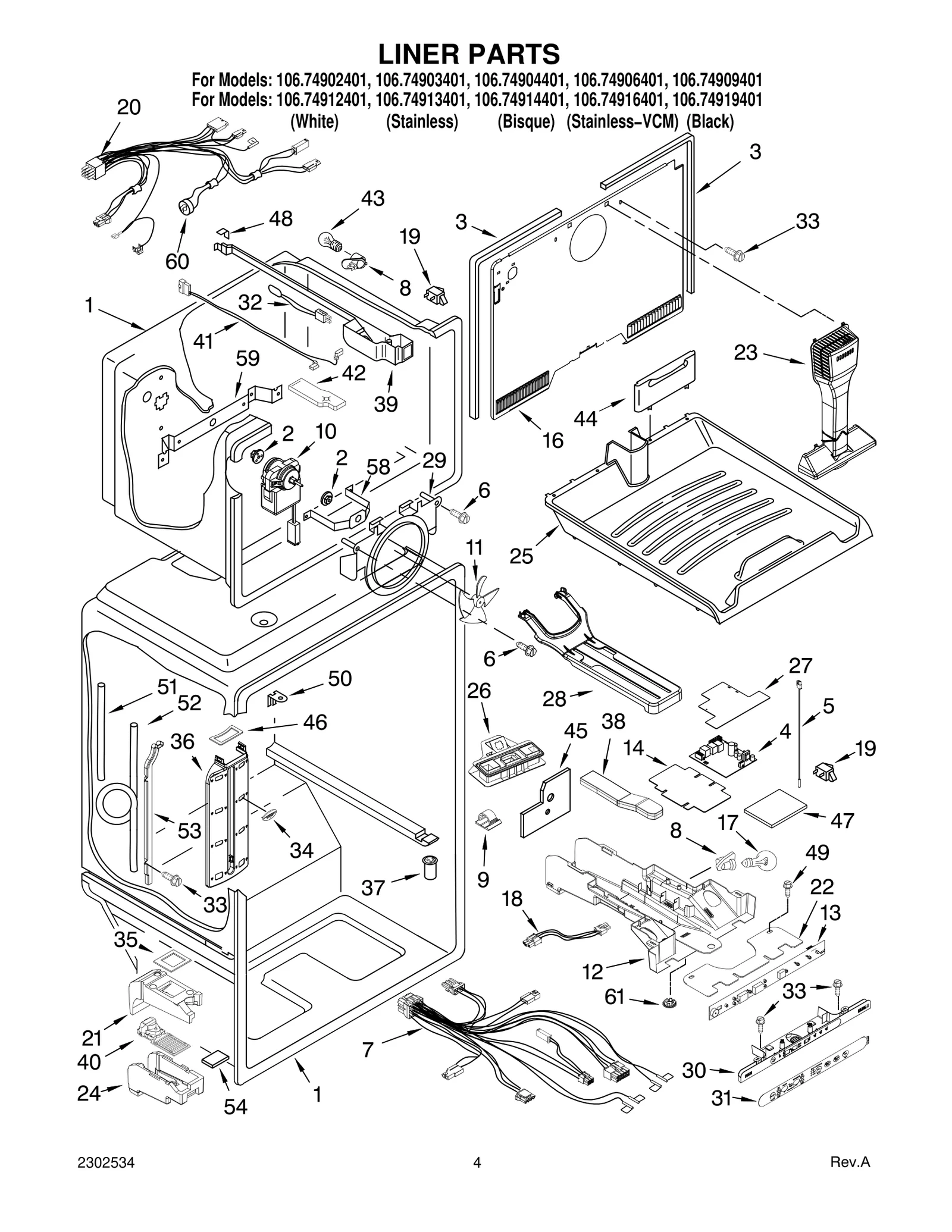

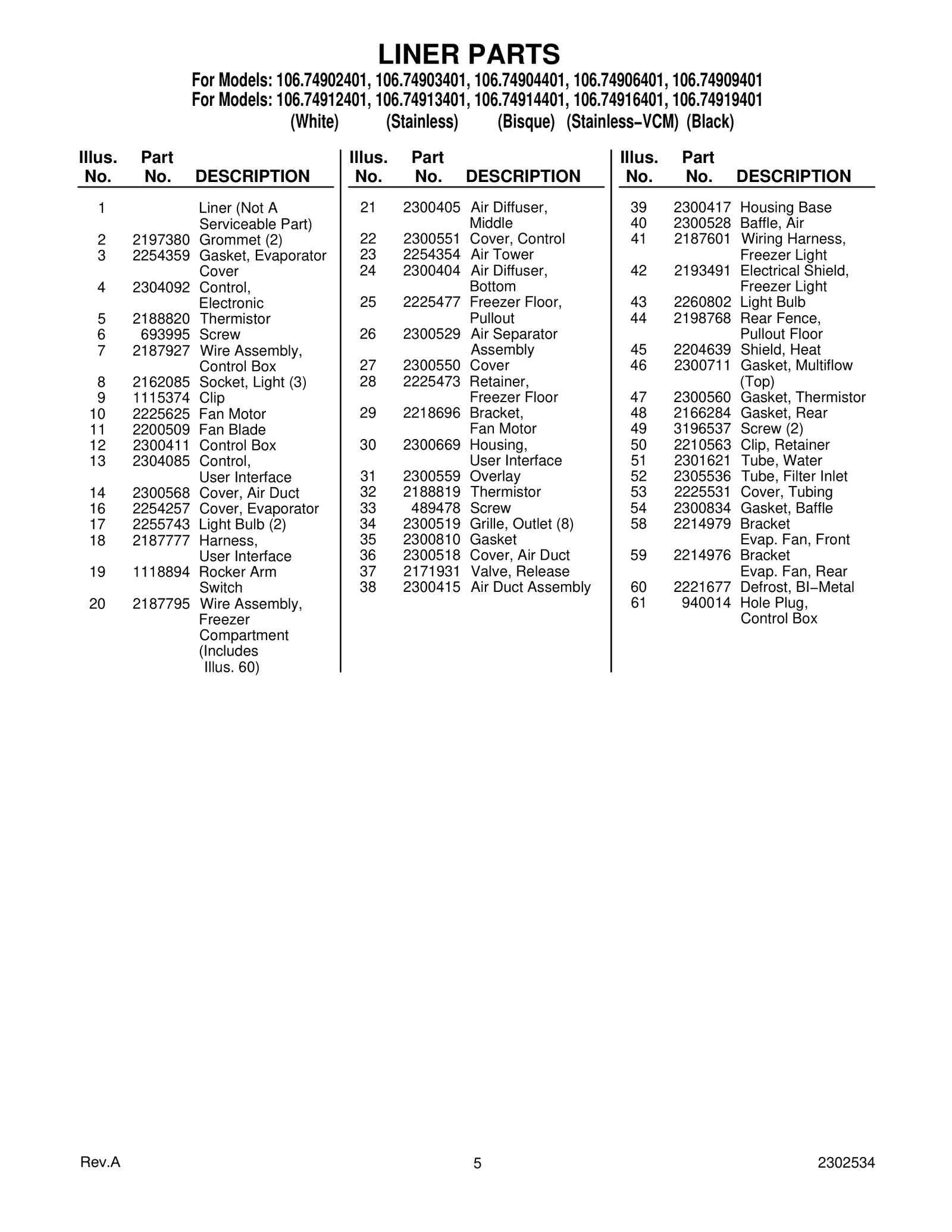

LINER PARTS
LINER PARTS

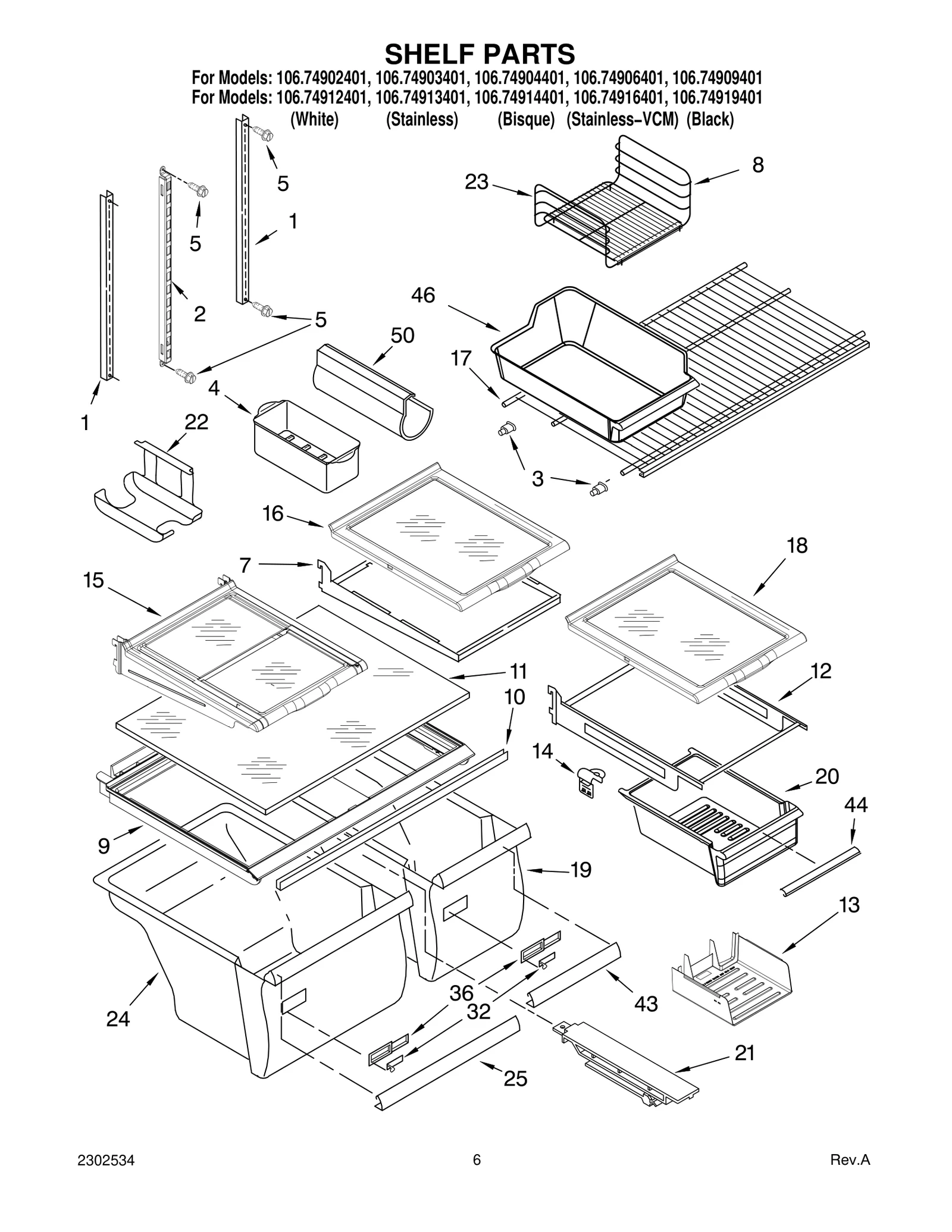

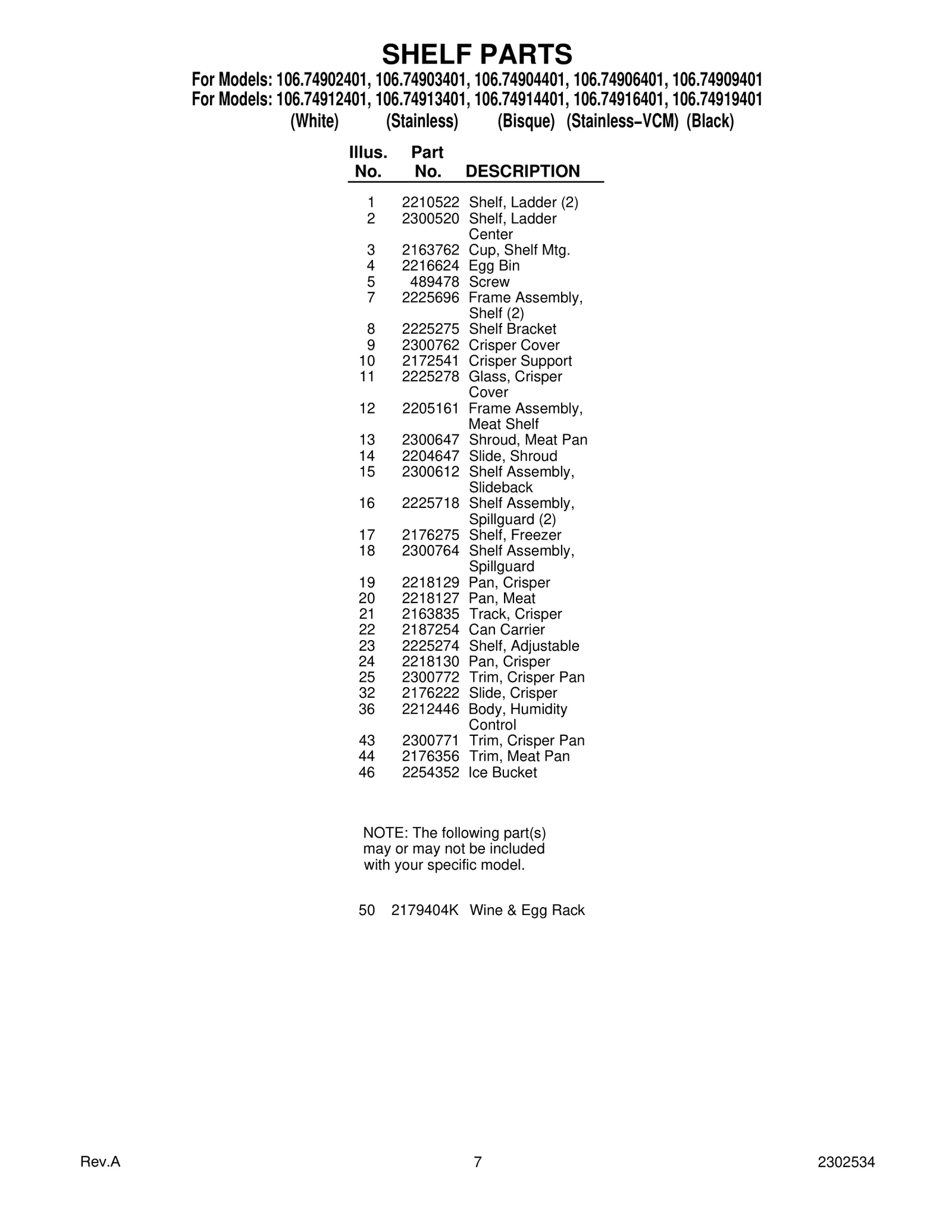

SHELF PARTS
SHELF PARTS

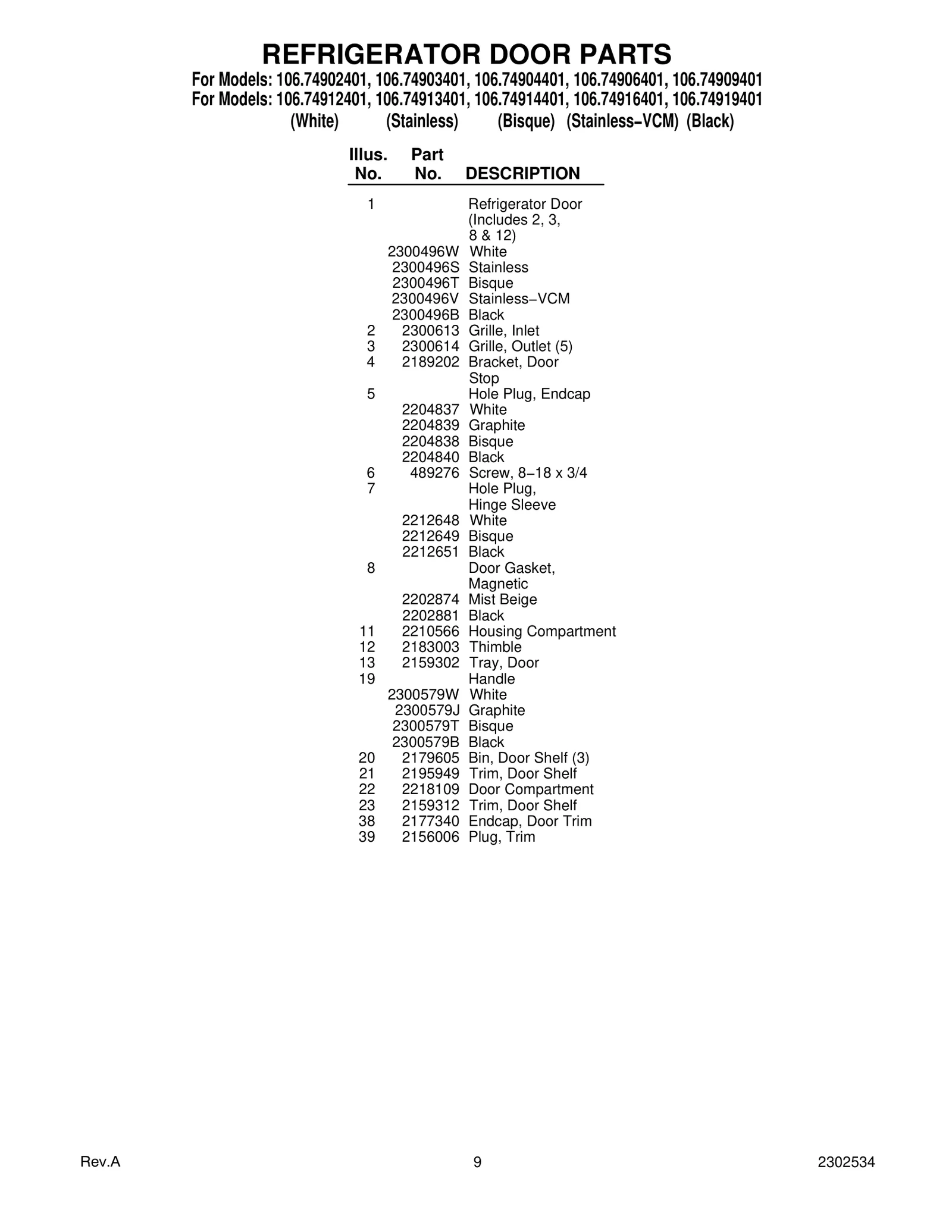

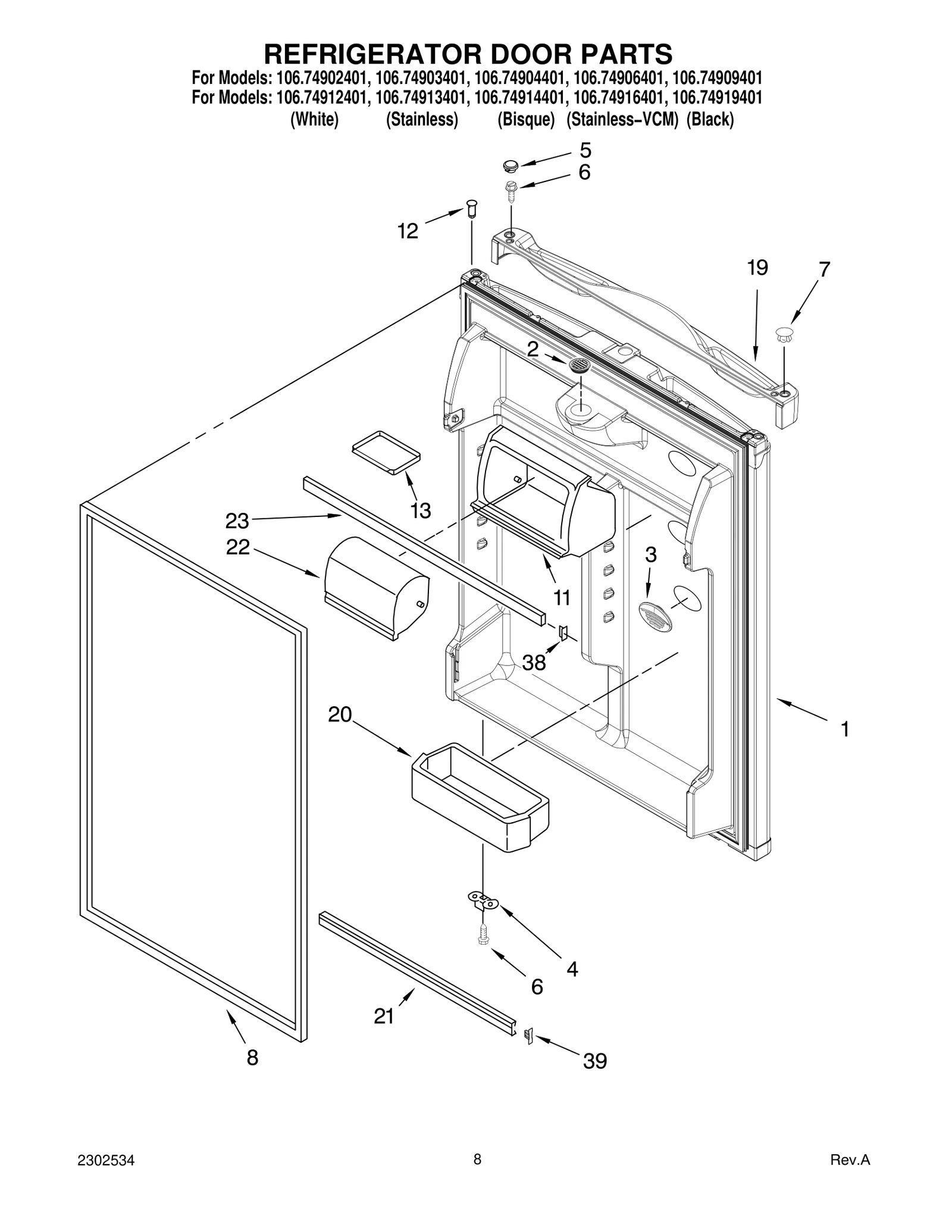

REFRIGERATOR DOOR PARTS
REFRIGERATOR DOOR PARTS

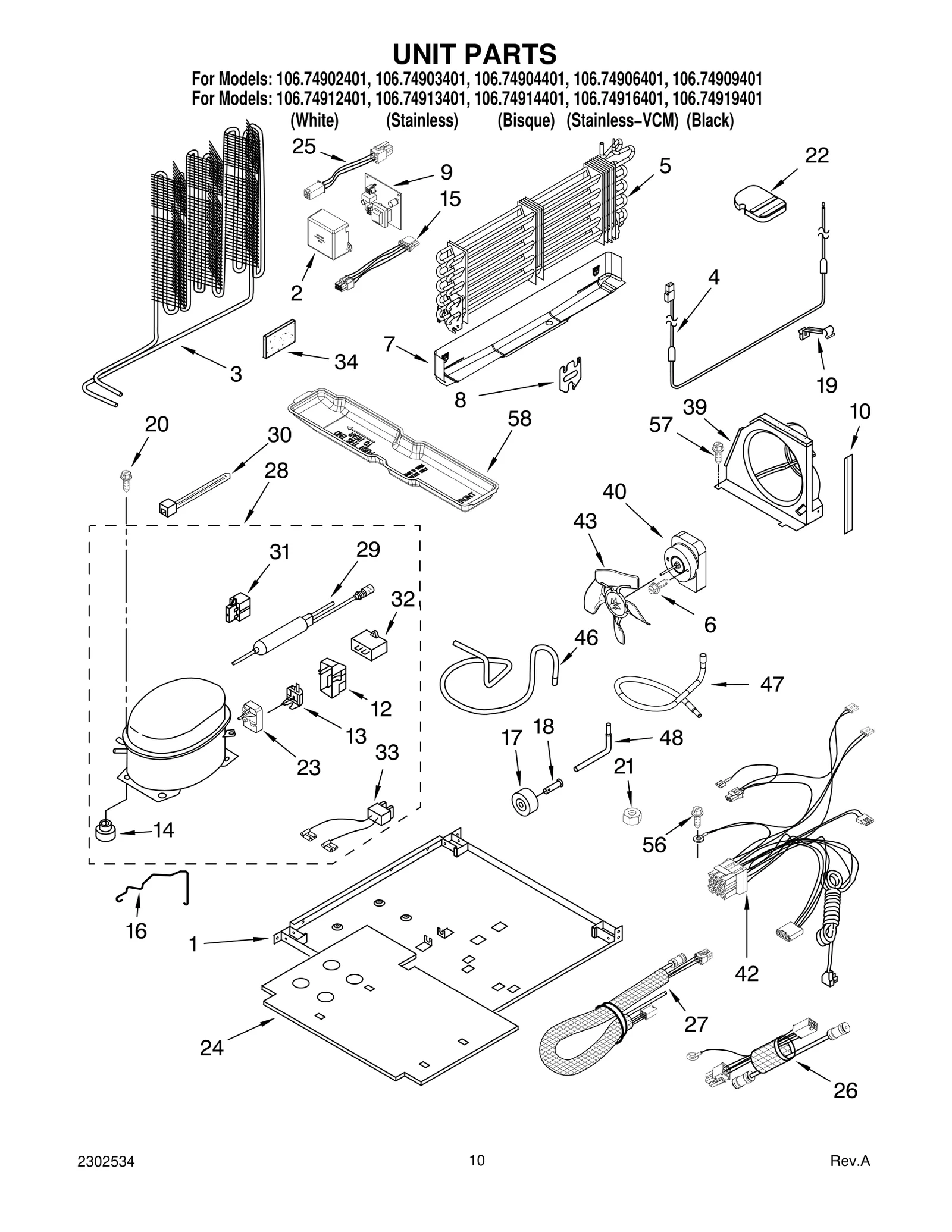

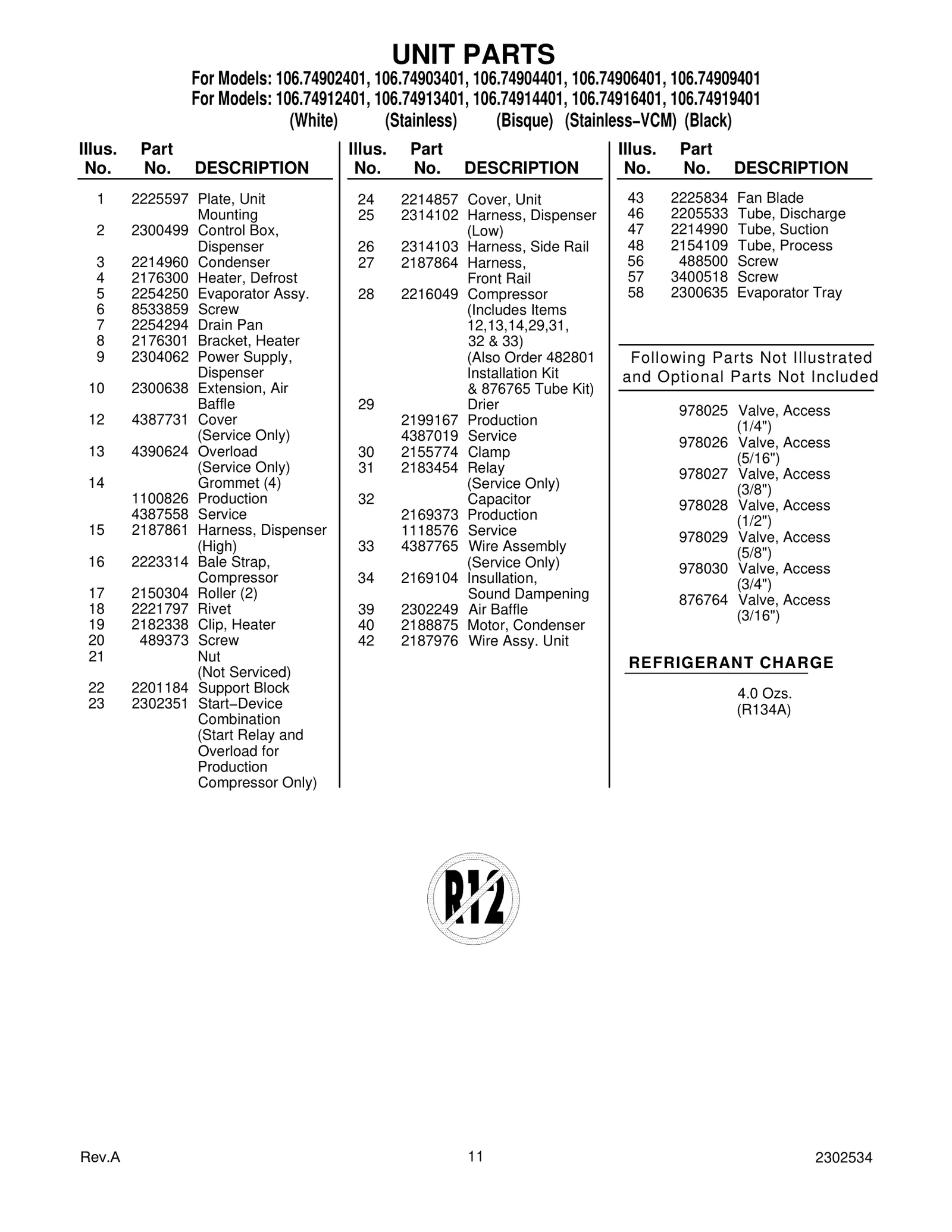

UNIT PARTS
UNIT PARTS

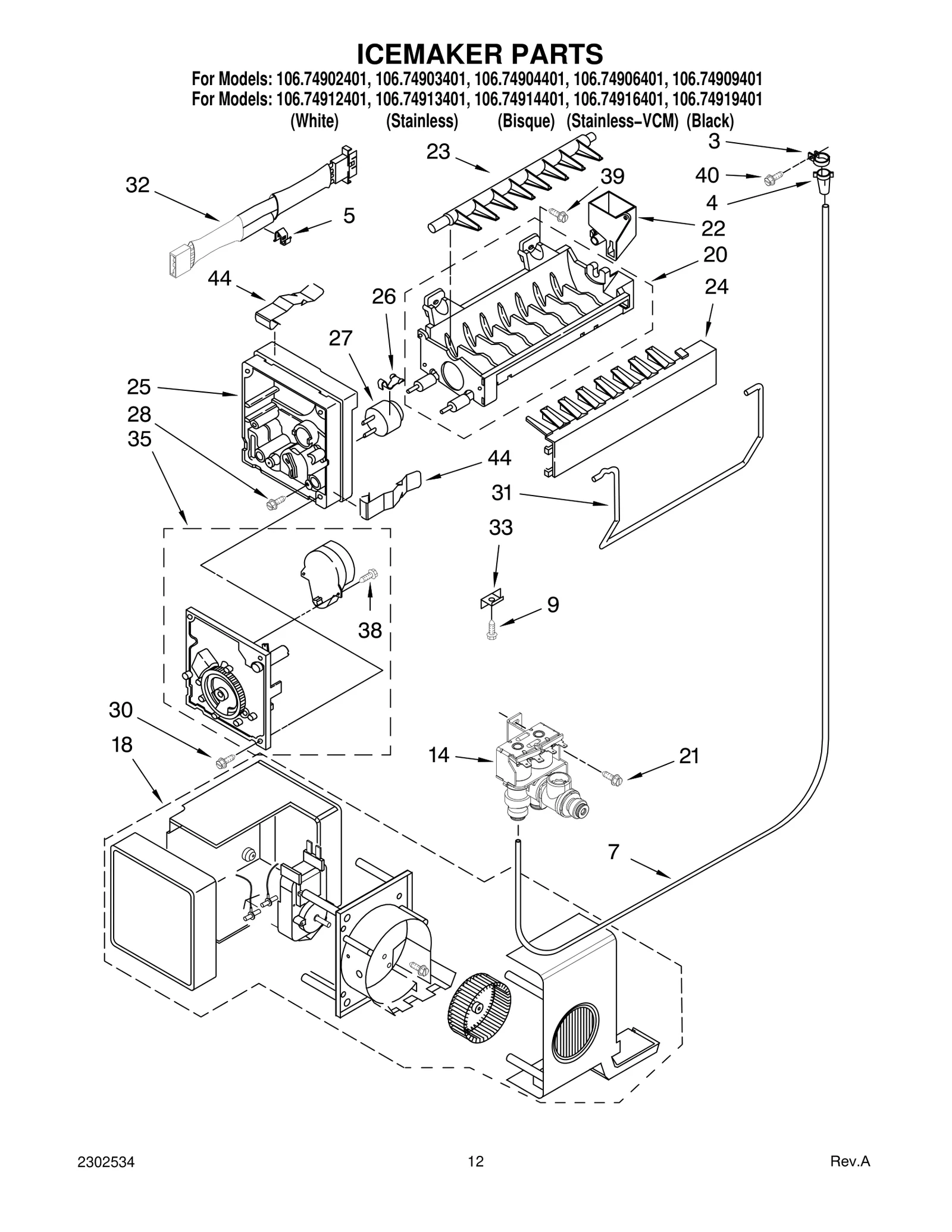

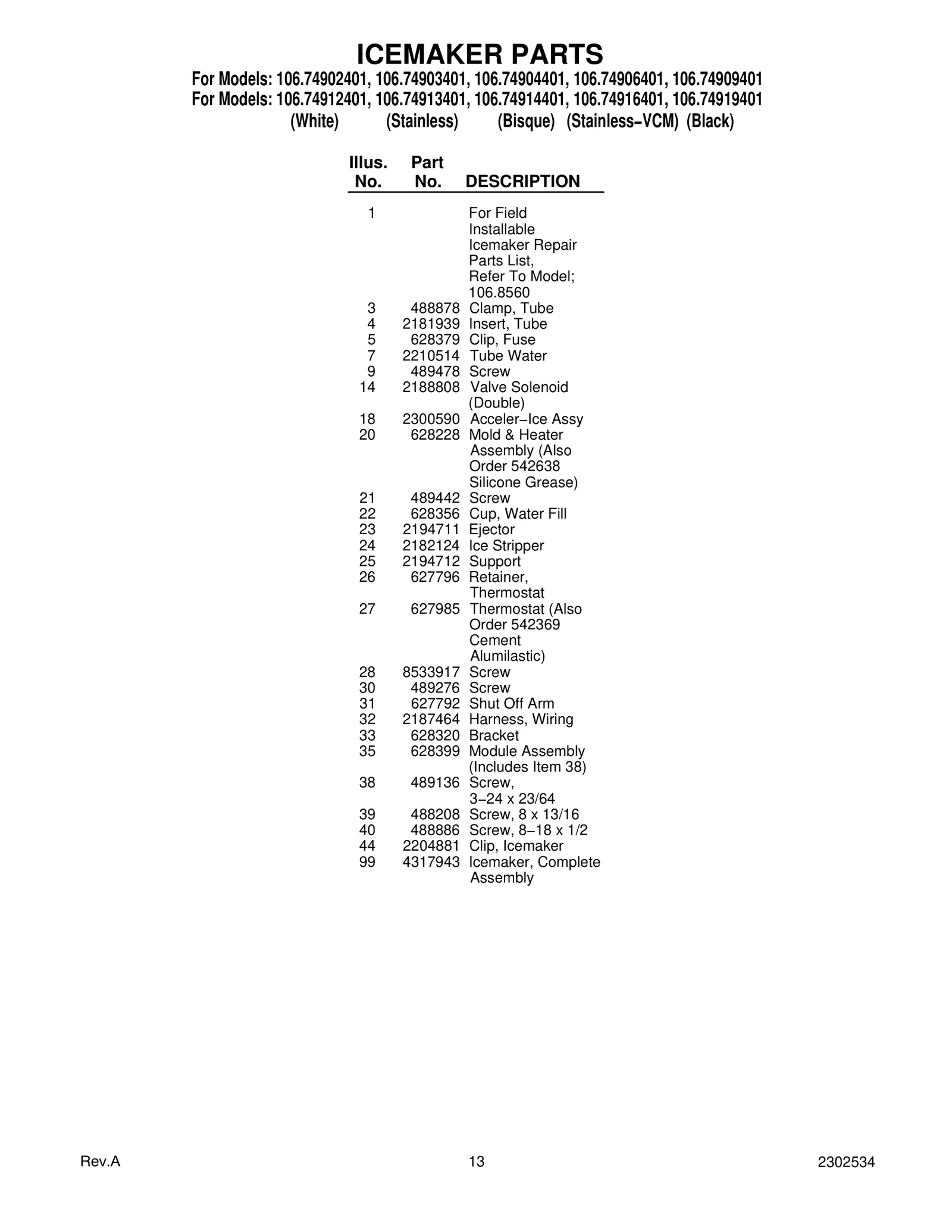

ICEMAKER PARTS
ICEMAKER PARTS

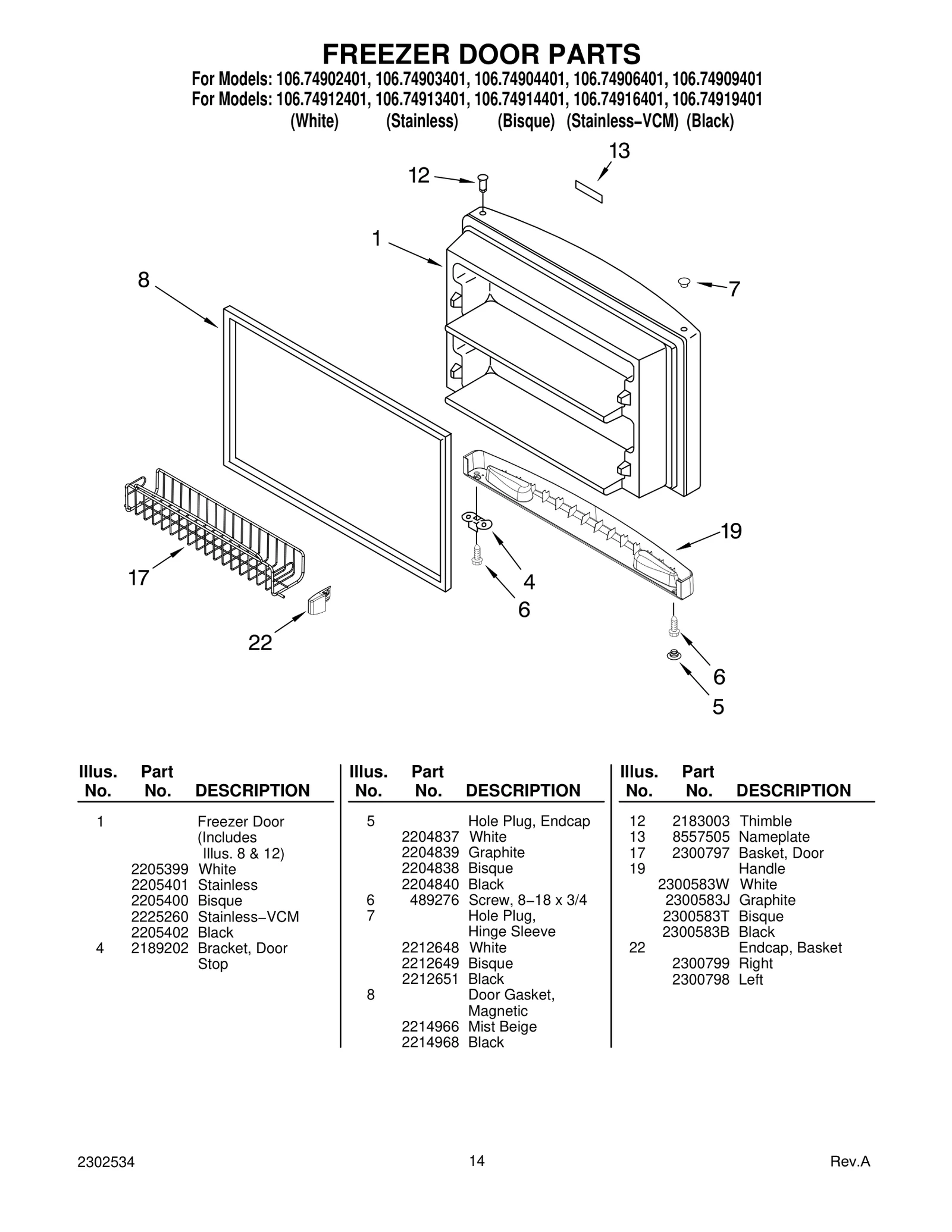

FREEZER DOOR PARTS

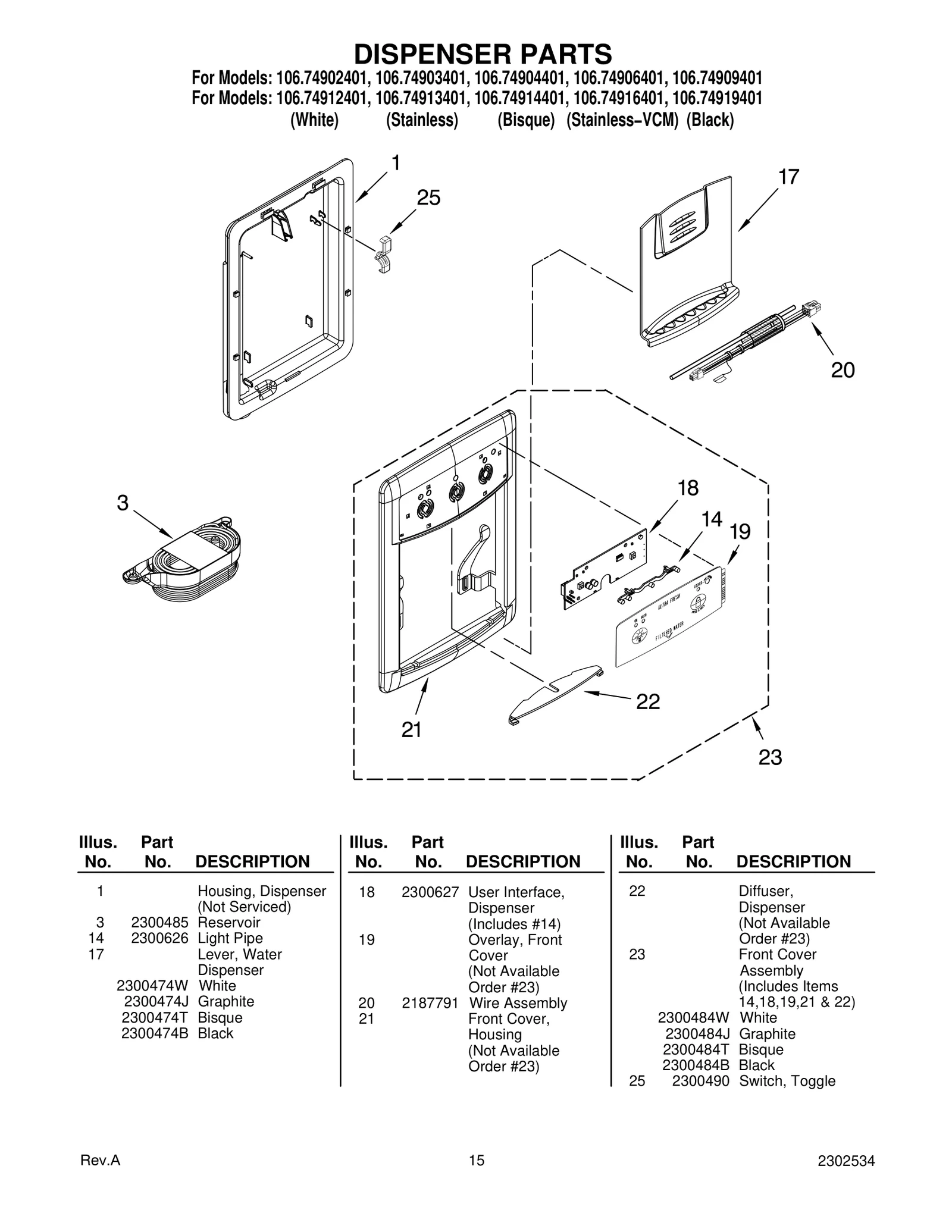

DISPENSER PARTS

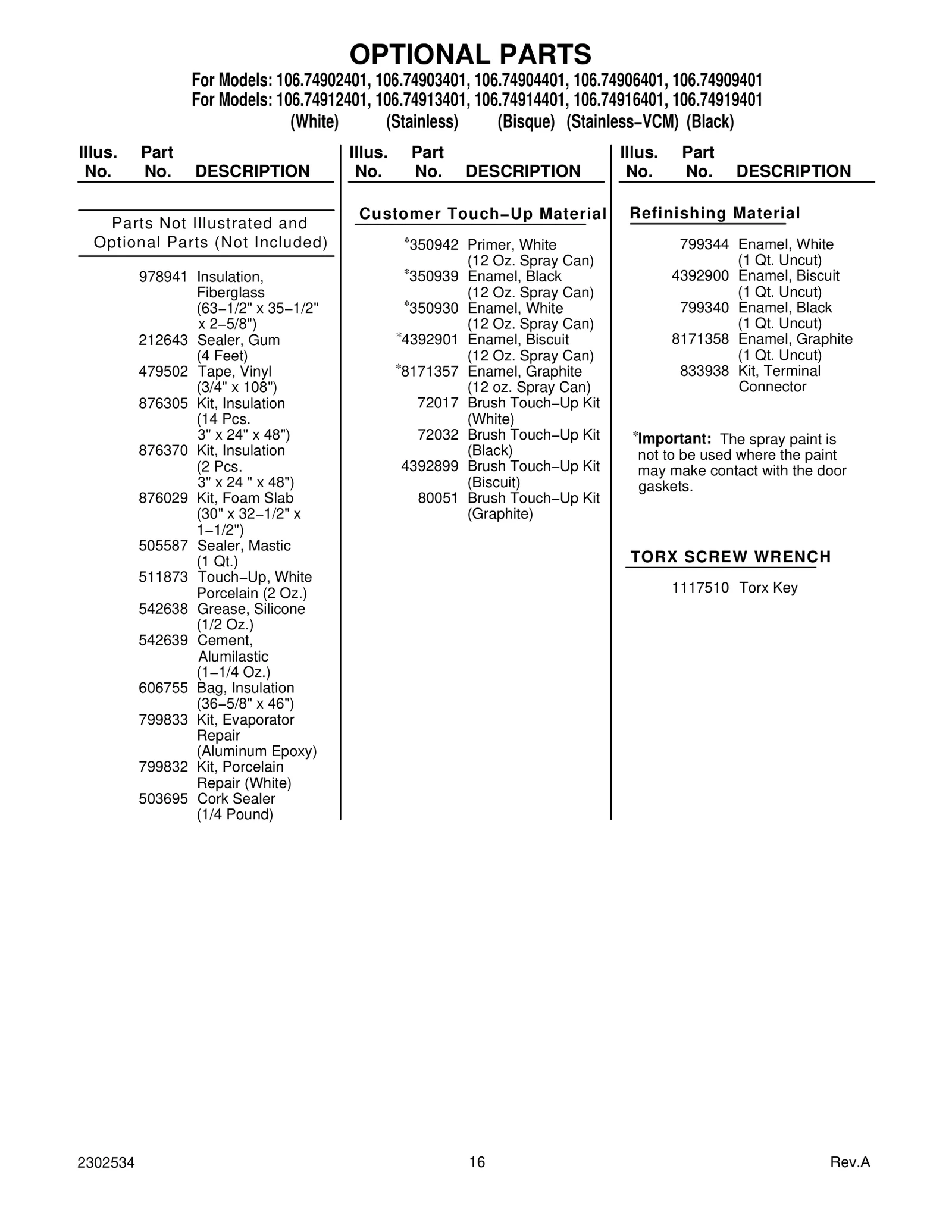

OPTIONAL PARTS
Common parts from model Whirlpool 106.74909401 Refrigerator
1
Refrigerator Door (Includes 2, 3, 8 & 12) — WPL 2300496W Contact Us For Availability
1
Refrigerator Door (Includes 2, 3, 8 & 12) — WPL 2300496S Contact Us For Availability
1
Refrigerator Door (Includes 2, 3, 8 & 12) — WPL 2300496T Contact Us For Availability
1
Refrigerator Door (Includes 2, 3, 8 & 12) — WPL 2300496V Contact Us For Availability
1
Refrigerator Door (Includes 2, 3, 8 & 12) — WPL 2300496B Contact Us For Availability
1
Plate, Unit Mounting WPL 2225597 Contact Us For Availability
1
Freezer Door (Includes — White WPL 2205399 Contact Us For Availability
1
Freezer Door (Includes — Stainless WPL 2205401 Contact Us For Availability
1
Freezer Door (Includes — Bisque WPL 2205400 Contact Us For Availability
1
Freezer Door (Includes — Stainless−VCM WPL 2225260 Contact Us For Availability
1
Freezer Door (Includes — Black WPL 2205402 Contact Us For Availability
2
Grille, Inlet WPL 2300613 Contact Us For Availability
2
Control Box, Dispenser WPL 2300499 Contact Us For Availability
3
Condenser WPL 2214960 Contact Us For Availability
3
Reservoir WPL 2300485 Contact Us For Availability
3
Grille, Outlet (5) WPL 2300614 Contact Us For Availability
5
Hole Plug, Endcap — White WPL 2204837 Contact Us For Availability
5
Hole Plug, Endcap — Graphite WPL 2204839 Contact Us For Availability
5
Hole Plug, Endcap — Bisque WPL 2204838 Contact Us For Availability
5
Hole Plug, Endcap — Black WPL 2204840 Contact Us For Availability
5
Evaporator Assy. WPL 2254250 Contact Us For Availability
7
Wire Assembly, Control Box WPL 2187927 Contact Us For Availability
7
Drain Pan WPL 2254294 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Power Supply, Dispenser WPL 2304062 Contact Us For Availability
10
Extension, Air Baffle WPL 2300638 Contact Us For Availability
11
Housing Compartment WPL 2210566 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2205161 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Shroud, Meat Pan WPL 2300647 Contact Us For Availability
14
Slide, Shroud WPL 2204647 Contact Us For Availability
14
Light Pipe WPL 2300626 Contact Us For Availability
15
Shelf Assembly, Slideback WPL 2300612 Contact Us For Availability
15
Harness, Dispenser WPL 2187861 Contact Us For Availability
16
Shelf Assembly, Spillguard (2) WPL 2225718 Contact Us For Availability
17
Basket, Door WPL 2300797 Contact Us For Availability
17
Lever, Water Dispenser — White WPL 2300474W Contact Us For Availability
17
Lever, Water Dispenser — Graphite WPL 2300474J Contact Us For Availability
17
Lever, Water Dispenser — Bisque WPL 2300474T Contact Us For Availability
17
Lever, Water Dispenser — Black WPL 2300474B Contact Us For Availability
18
Shelf Assembly, Spillguard WPL 2300764 Contact Us For Availability
18
Valve Solenoid WPL 2300590 Contact Us For Availability
18
User Interface, Dispenser WPL 2300627 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle — White WPL 2300579W Contact Us For Availability
19
Handle — White WPL 2300583W Contact Us For Availability
19
Handle — Graphite WPL 2300579J Contact Us For Availability
19
Handle — Bisque WPL 2300579T Contact Us For Availability
19
Handle — Black WPL 2300579B Contact Us For Availability
19
Handle — Graphite WPL 2300583J Contact Us For Availability
19
Handle — Bisque WPL 2300583T Contact Us For Availability
19
Handle — Black WPL 2300583B Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2179605 Contact Us For Availability
20
Wire Assembly WPL 2187791 Contact Us For Availability
22
Door Compartment WPL 2218109 Contact Us For Availability
22
Support Block WPL 2201184 Contact Us For Availability
22
Can Carrier WPL 2187254 Contact Us For Availability
22
Diffuser, Dispenser (Not Available Order #23) WPL N/S Contact Us For Availability
22
Endcap, Basket — Right WPL 2300799 Contact Us For Availability
22
Endcap, Basket — Left WPL 2300798 Contact Us For Availability
23
Trim, Door Shelf WPL 2159312 Contact Us For Availability
23
Start−Device Combination (Start Relay and O WPL 2302351 Contact Us For Availability
23
Shelf, Adjustable WPL 2225274 Contact Us For Availability
23
Front Cover Assembly (Includes Items 14,18,19 WPL 2300484W Contact Us For Availability
23
Front Cover Assembly (Includes Items 14,18,19 WPL 2300484J Contact Us For Availability
23
Front Cover Assembly (Includes Items 14,18,19 WPL 2300484T Contact Us For Availability
23
Front Cover Assembly (Includes Items 14,18,19 WPL 2300484B Contact Us For Availability
24
Cover, Unit WPL 2214857 Contact Us For Availability
25
Trim, Crisper Pan WPL 2300772 Contact Us For Availability
25
Harness, Dispenser WPL 2314102 Contact Us For Availability
25
Switch, Toggle WPL 2300490 Contact Us For Availability
26
Harness, Side Rail WPL 2314103 Contact Us For Availability
27
Harness, Front Rail WPL 2187864 Contact Us For Availability
31
Relay WPL 2183454 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
37
Clip, Grille (2) WPL 2189356 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Housing Base WPL 2300417 Contact Us For Availability
39
Air Baffle WPL 2302249 Contact Us For Availability
40
Cover, Hinge — Graphite WPL 2213388 Contact Us For Availability
42
Wire Assy. Unit WPL 2187976 Contact Us For Availability
43
Trim, Crisper Pan WPL 2300771 Contact Us For Availability
44
Rear Fence, Pullout Floor WPL 2198768 Contact Us For Availability
44
Trim, Meat Pan WPL 2176356 Contact Us For Availability
44
Screw, 8−18 x 1/2 WPL 2204881 Contact Us For Availability
51
Tube, Water WPL 2301621 Contact Us For Availability
58
Valve, Access WPL 978029 Contact Us For Availability
58
Bracket Evap. Fan, Front WPL 2214979 Contact Us For Availability
58
Valve, Access WPL 978028 Contact Us For Availability
OPT-3
Tape, Vinyl WPL 479502 Contact Us For Availability
OPT-6
Kit, Foam Slab WPL 876029 Contact Us For Availability
OPT-10
Cement, WPL 542639 Contact Us For Availability
OPT-12
Kit, Evaporator WPL 799833 Contact Us For Availability
OPT-13
Kit, Porcelain WPL 799832 Contact Us For Availability
OPT-23
Brush Touch−Up Kit WPL 80051 Contact Us For Availability
OPT-24
Enamel, White WPL 799344 Contact Us For Availability
OPT-25
Enamel, Biscuit WPL 4392900 Contact Us For Availability
OPT-26
Enamel, Black WPL 799340 Contact Us For Availability
OPT-27
Enamel, Graphite WPL 8171358 Contact Us For Availability
OPT-29
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
