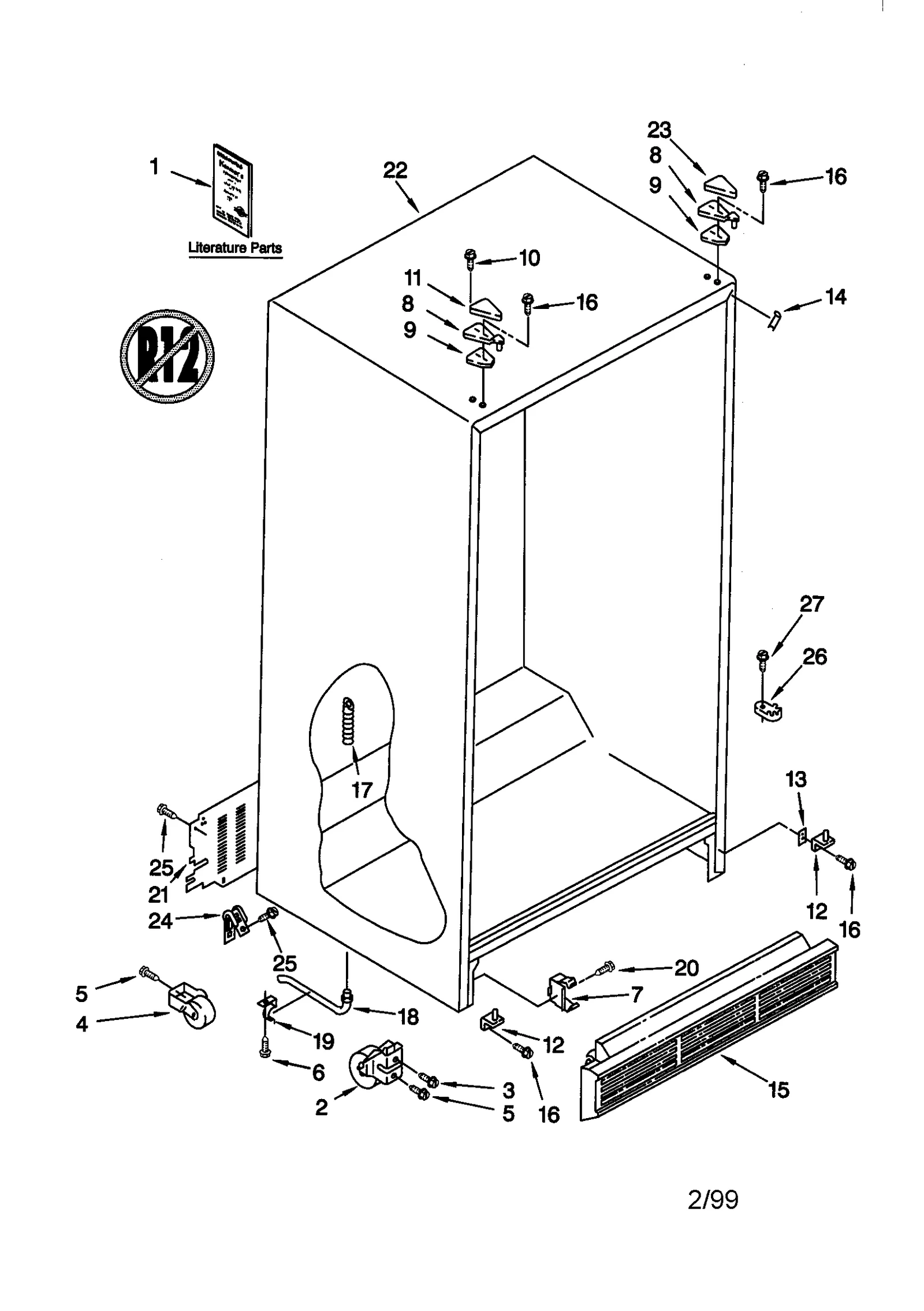

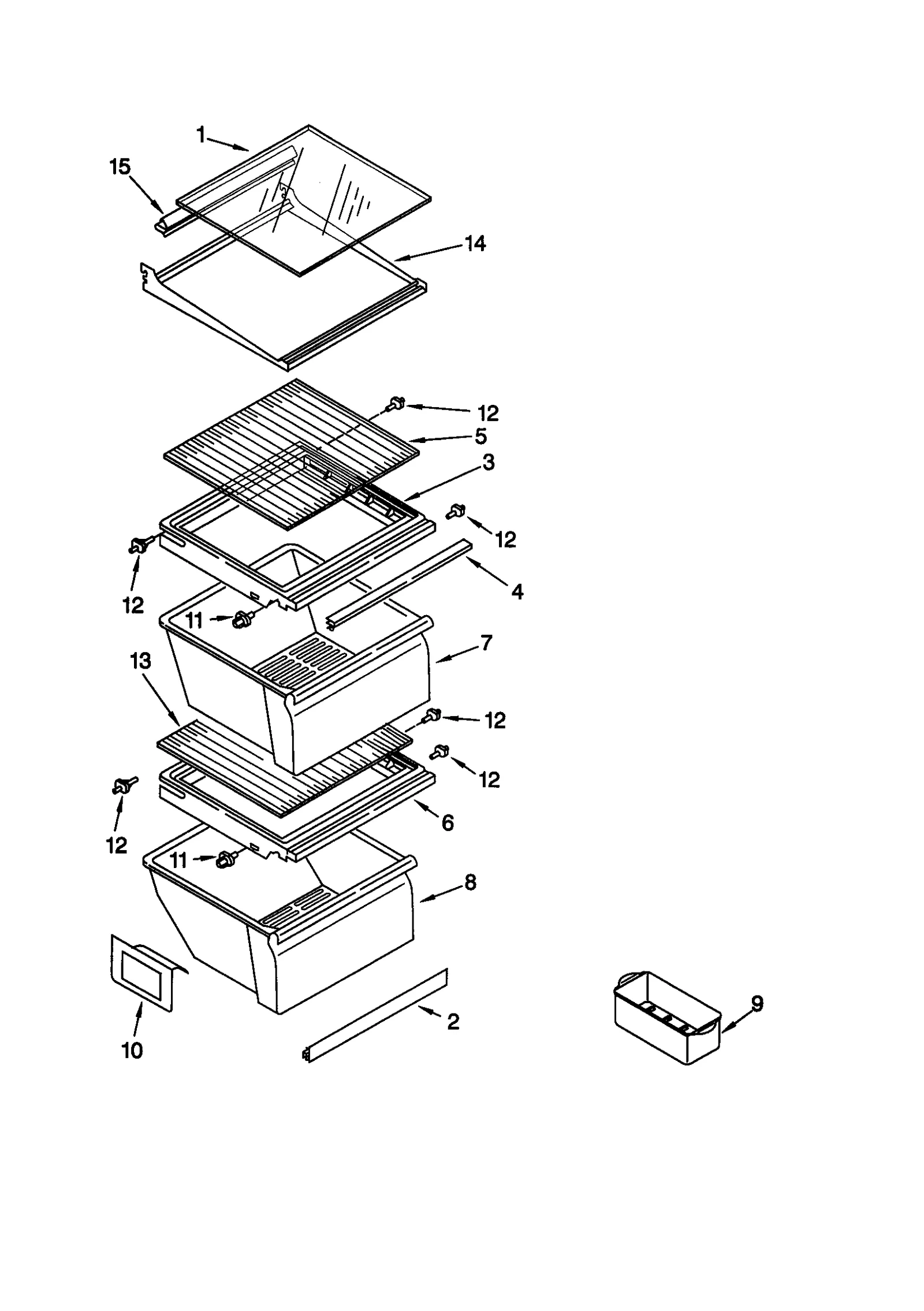

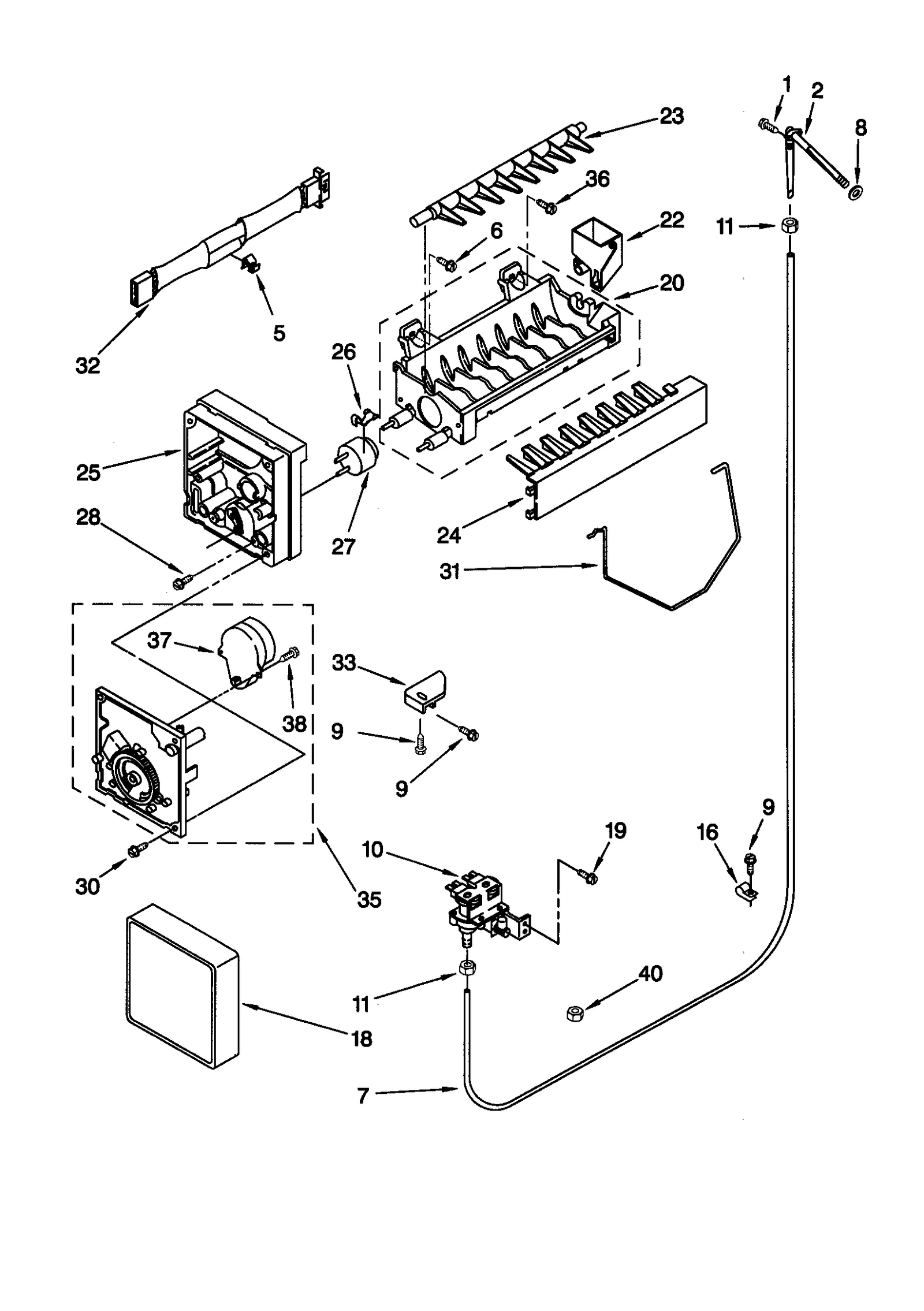

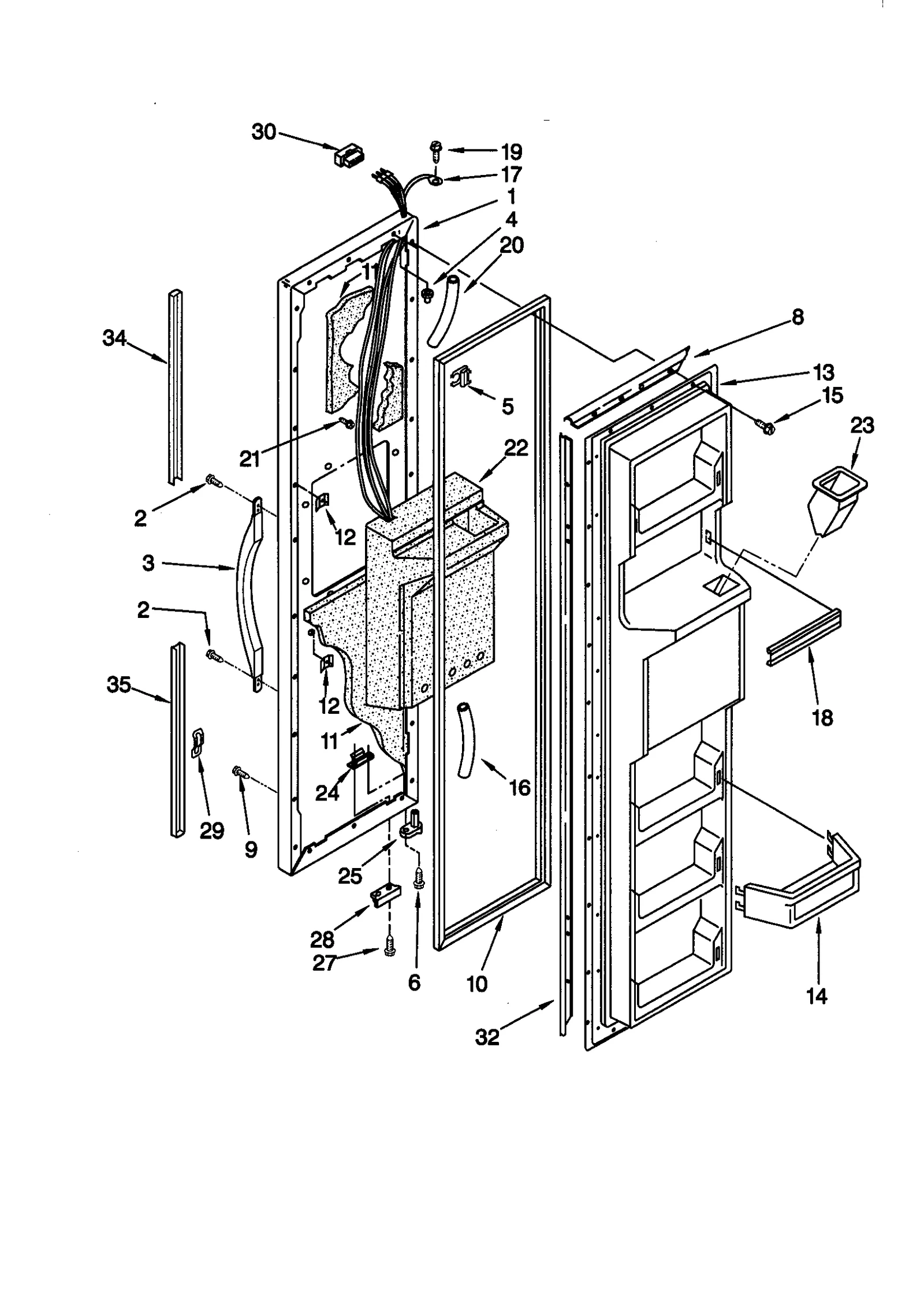

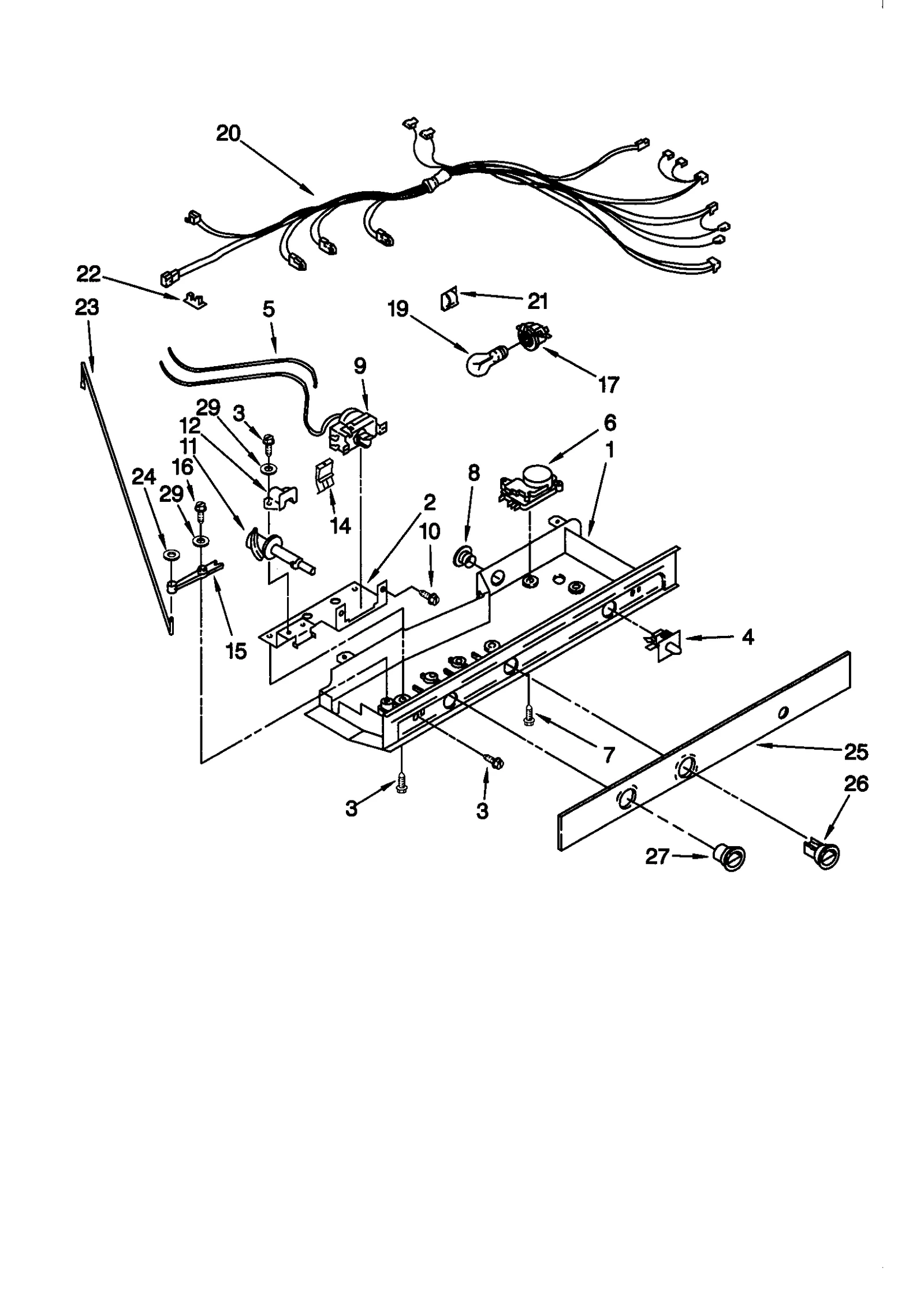

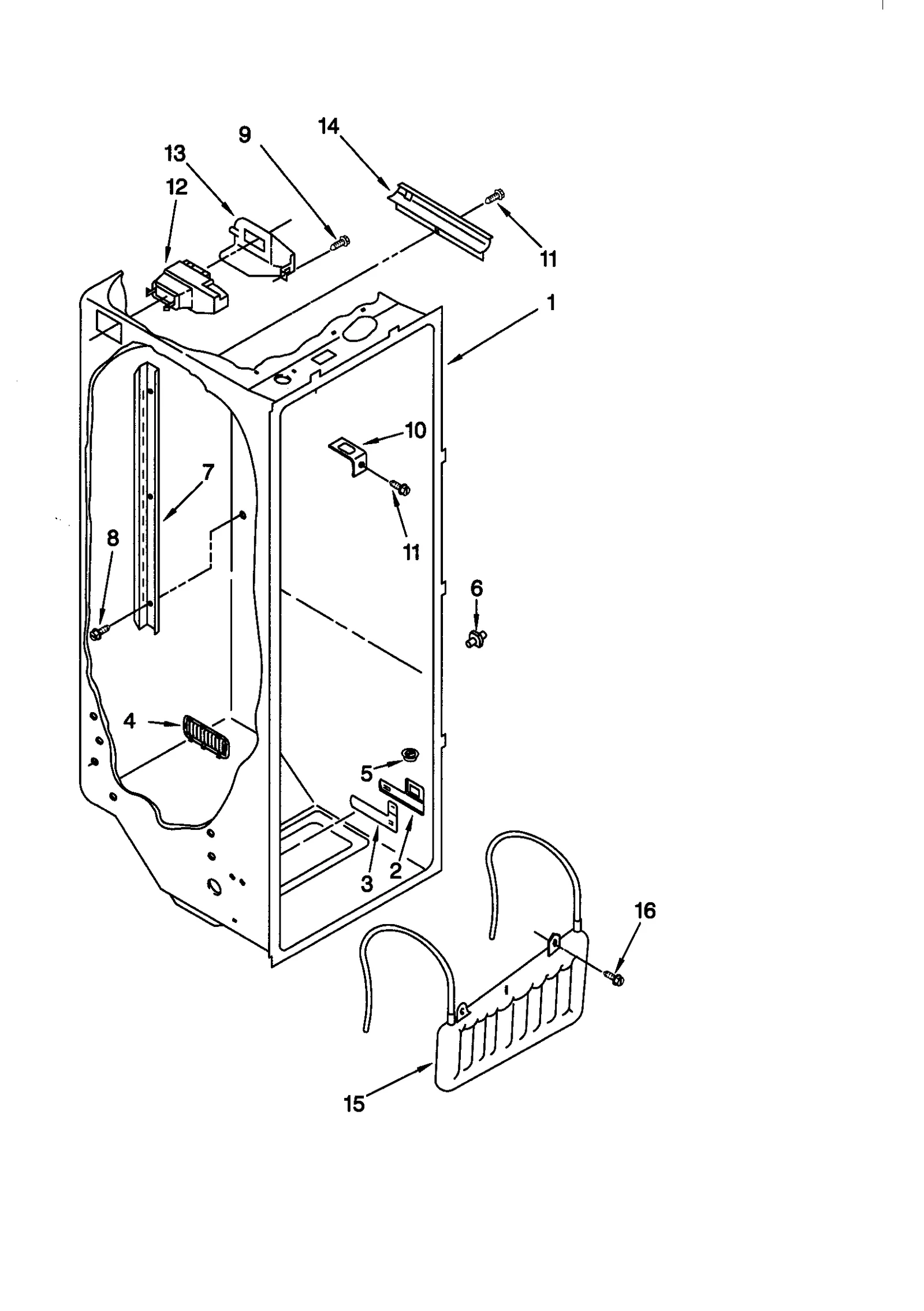

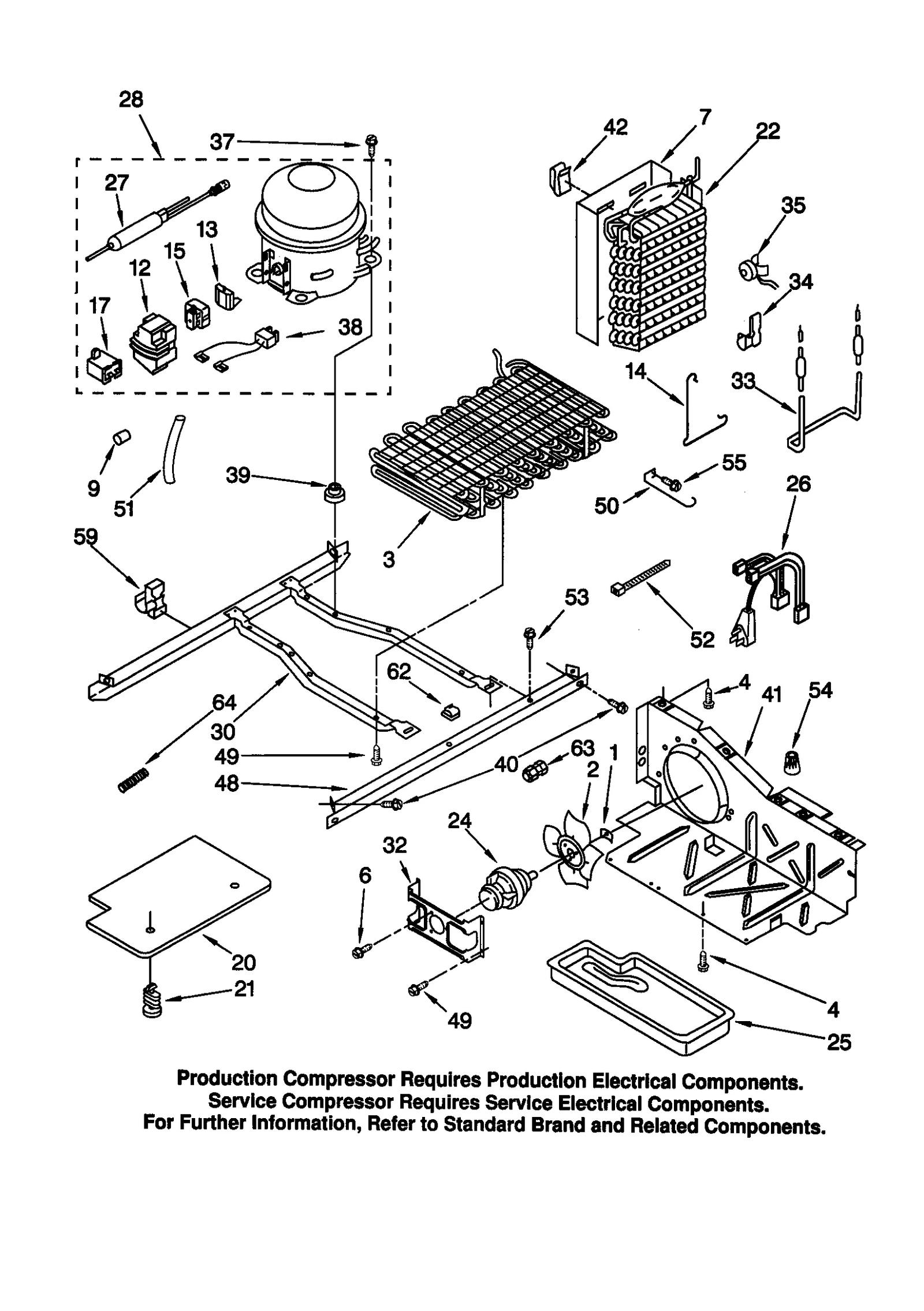

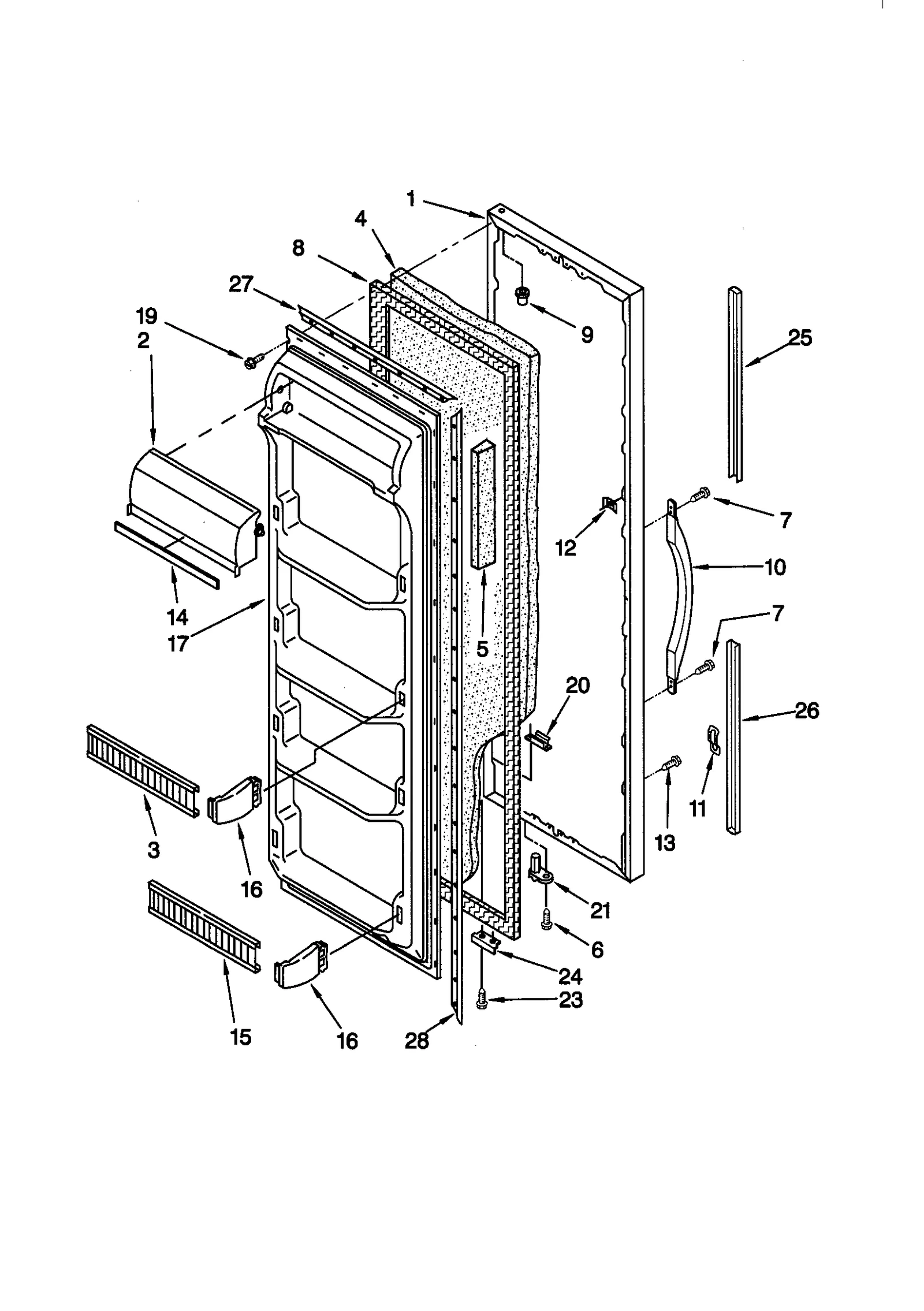

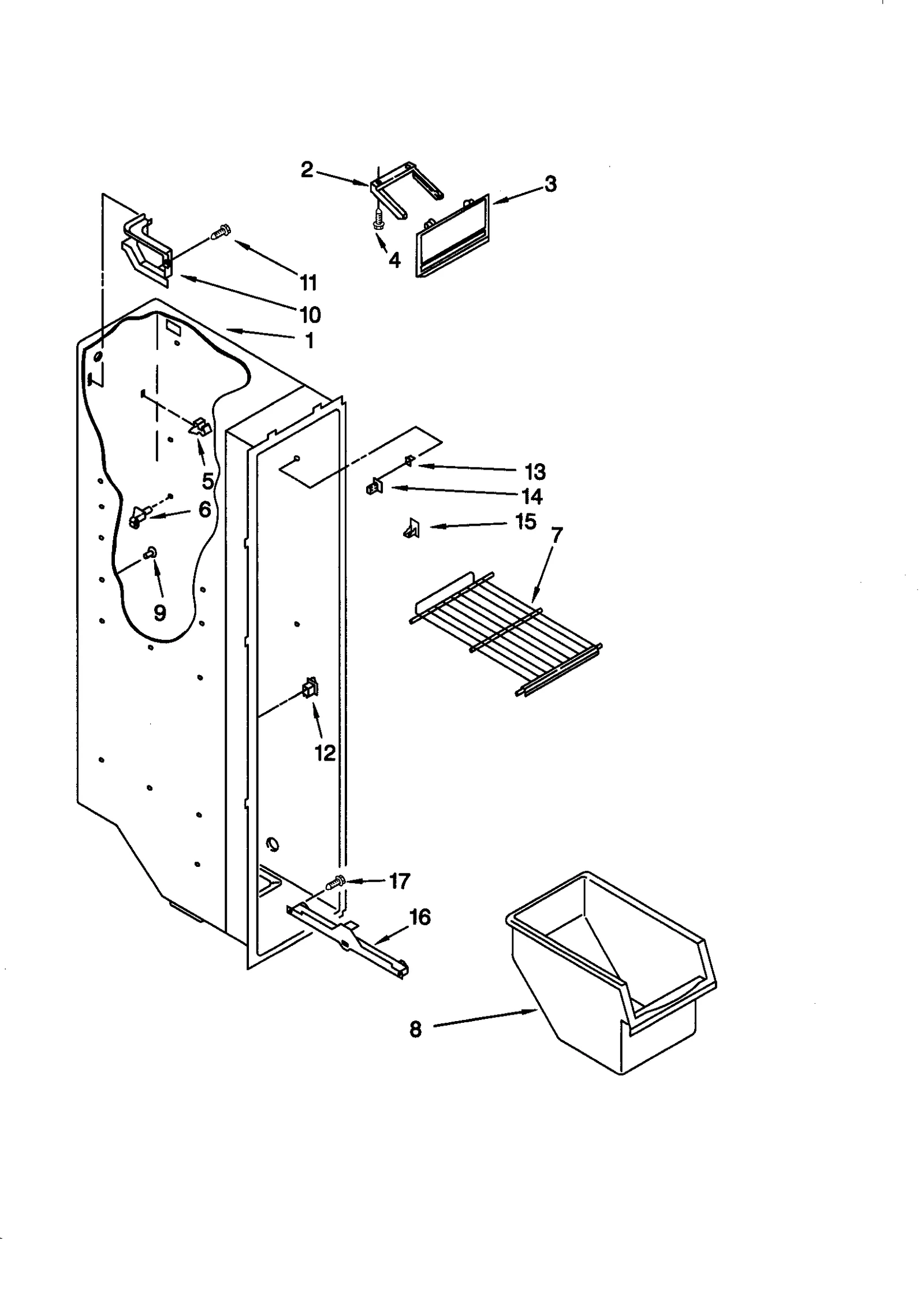

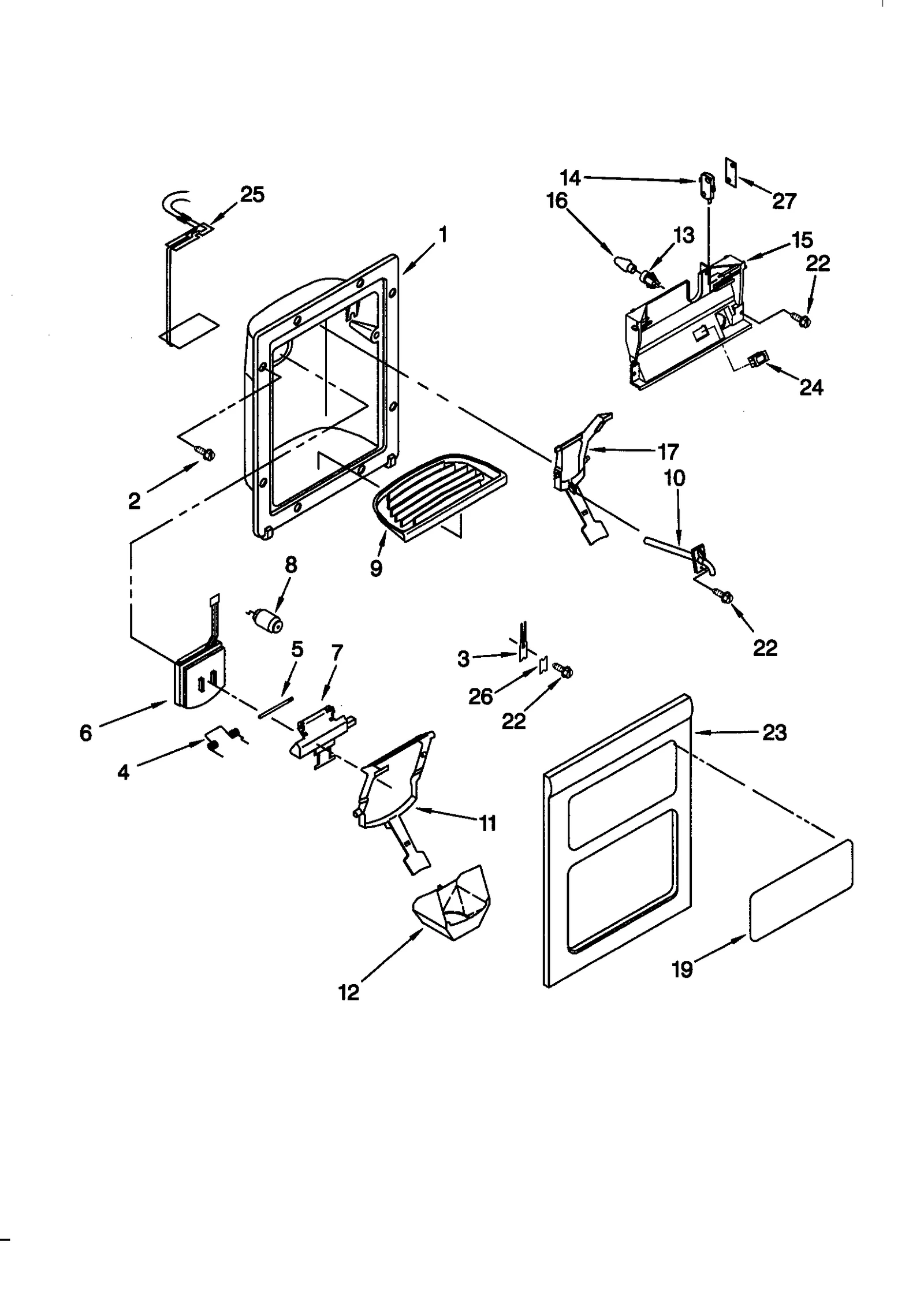

Model Whirlpool 106.59028990 Side-By-Side Refrigerator (Kenmore 10659028990) – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $122.77

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1

Refrigerator Energy Guide WPL LIT2203667 Contact Us For Availability

1A

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $51.59

1A

Refrigerator Energy Guide WPL LIT2203668 Contact Us For Availability

1B

Refrigerator Owner's Manual WPL LIT2200128 Contact Us For Availability

1C

Refrigerator Technical Sheet WPL LIT2186935 Contact Us For Availability

1D

Service Sheet WPL LIT628370 Contact Us For Availability

1E

Refrigerator Parts List WPL LIT2203666 Contact Us For Availability

1F

DO-IT-YOURSELF MANUAL REF./FRZ. (ENGLISH ONLY WPL LIT87808 Contact Us For Availability

1G

DO-IT-YOURSELF MANUAL, ICEMAKER WPL LIT87316 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $32.06

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Condenser Fan WPL 1108179 Contact Us For Availability

2

Refrigerator Thermistor Bracket WPL 1110629 Contact Us For Availability

2

Refrigerator Cabinet Roller WPL 2174748 Contact Us For Availability

2

Ice Slide WPL 1115380 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $47.62

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2182189 Whirlpool Door Shelf Bar In Stock WPL WP2182189 $59.11

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Refrigerator Auger Motor WPL 2188241 Contact Us For Availability

4

Cabinet Louver WPL 2182147 Contact Us For Availability

5

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Inglis Refrigerator Pressure Relief Valve WPL 2171846 Contact Us For Availability

6

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.60

6

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.36

7

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

7

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

7

Refrigerator Shield WPL 2149293 Contact Us For Availability

7

Refrigerator Ladder WPL 2181796 Contact Us For Availability

7

Refrigerator Shelf Wire WPL 2174269 Contact Us For Availability

7A

Refrigerator Shelf Wire WPL 2174270 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $37.79

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

8

Refrigerator Freezer Bin WPL 2171707 Contact Us For Availability

9

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2196090 Whirlpool Refrigerator Container Backorder WPL WP2196090 $80.00

9

Refrigerator Dispenser Drip Tray WPL 2183787B Contact Us For Availability

9

Refrigerator Freezer Shelf Support Grommet WPL 2176134 Contact Us For Availability

9

Refrigerator Shim WPL 2196048 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

W10853654 Whirlpool Water Inlet Valve In Stock WPL W10853654 $80.14

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Refrigerator Door Hinge Cover Mounting Screw WPL 489284 Contact Us For Availability

Refrigerator Wire Cover WPL 2155572 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $36.51

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Refrigerator Freezer Door Upper Hinge Cover WPL 1129262 Contact Us For Availability

11A

Refrigerator Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $31.44

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.76

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.42

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.37

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $37.19

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.95

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

WP61006294 Whirlpool Refrigerator Overload Backorder WPL WP61006294 $54.30

Stud WPL 946355 Contact Us For Availability

13A

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $76.53

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

Refrigerator Ice Maker Air Baffle WPL 2181722 Contact Us For Availability

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

Refrigerator Wire Cover WPL 2150330 Contact Us For Availability

Stud WPL 946356 Contact Us For Availability

14A

Refrigerator Filler WPL 2196095 Contact Us For Availability

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.11

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $67.09

Refrigerator Damper Control Pivot Arm WPL 1110559 Contact Us For Availability

Refrigerator Start Relay WPL 2183454 Contact Us For Availability

Refrigerator Grille WPL 2198469B Contact Us For Availability

Refrigerator Shelf Stud WPL 1106982 Contact Us For Availability

WP2196190 Whirlpool Shelf Retainer Bar Suppor In Stock WPL WP2196190 $4.48

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Screw WPL 488280 Contact Us For Availability

Refrigerator Freezer Drawer Slide Rail, Left WPL 1115383 Contact Us For Availability

16A

WP2196189 Whirlpool Shelf Retainer Bar Backorder WPL WP2196189 $4.48

17

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

17

W11566763 Whirlpool Fitting In Stock WPL W11566763 $21.01

17

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $90.19

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

18

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

19

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

20

Refrigerator Compressor Access Panel WPL 2182057 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $33.64

21

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $72.69

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

23

Inglis Refrigerator Door Hinge Cover WPL 1119787 Contact Us For Availability

23A

Refrigerator Hinge Cover (Almond) WPL 1119789 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $139.73

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

Refrigerator Air Damper Control Clip WPL 489285 Contact Us For Availability

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.59

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

NLA:SCREW Backorder WPL WPW10141645 $3.70

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.59

Refrigerator Temperature Control Knob WPL 2182111 Contact Us For Availability

Refrigerator Wire Harness WPL 2194746 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

Spacer WPL 625834 Contact Us For Availability

Refrigerator Temperature Control Knob WPL 2197871 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

29

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

30

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Heater Support WPL 2160498 Contact Us For Availability

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $28.40

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $48.79

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $52.59

34

Refrigerator Defrost Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

37

Refrigerator Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Refrigerator Nut WPL 1129179 Contact Us For Availability

41

Refrigerator Air Baffle WPL 2196201 Contact Us For Availability

42

Exchange Clip WPL 2155547 Contact Us For Availability

48

Rail Unit WPL 2149717 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $26.83

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Nut WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Refrigerator Clamp WPL 2155658 Contact Us For Availability

62

Refrigerator Clip WPL 934011 Contact Us For Availability

63

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

64

Refrigerator Spring WPL 983659 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $107.21

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

285006 Whirlpool Spray In Stock WPL 285006 $44.38

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Foam Slab WPL 876029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

Adhesive WPL 542639 Contact Us For Availability

Pnt-blk-qrt WPL 799340 Contact Us For Availability

Epoxy WPL 799833 Contact Us For Availability

Refrigerator Service Valve WPL 978028 Contact Us For Availability

Touch-Up Paint (Almond) WPL 978883 Contact Us For Availability
