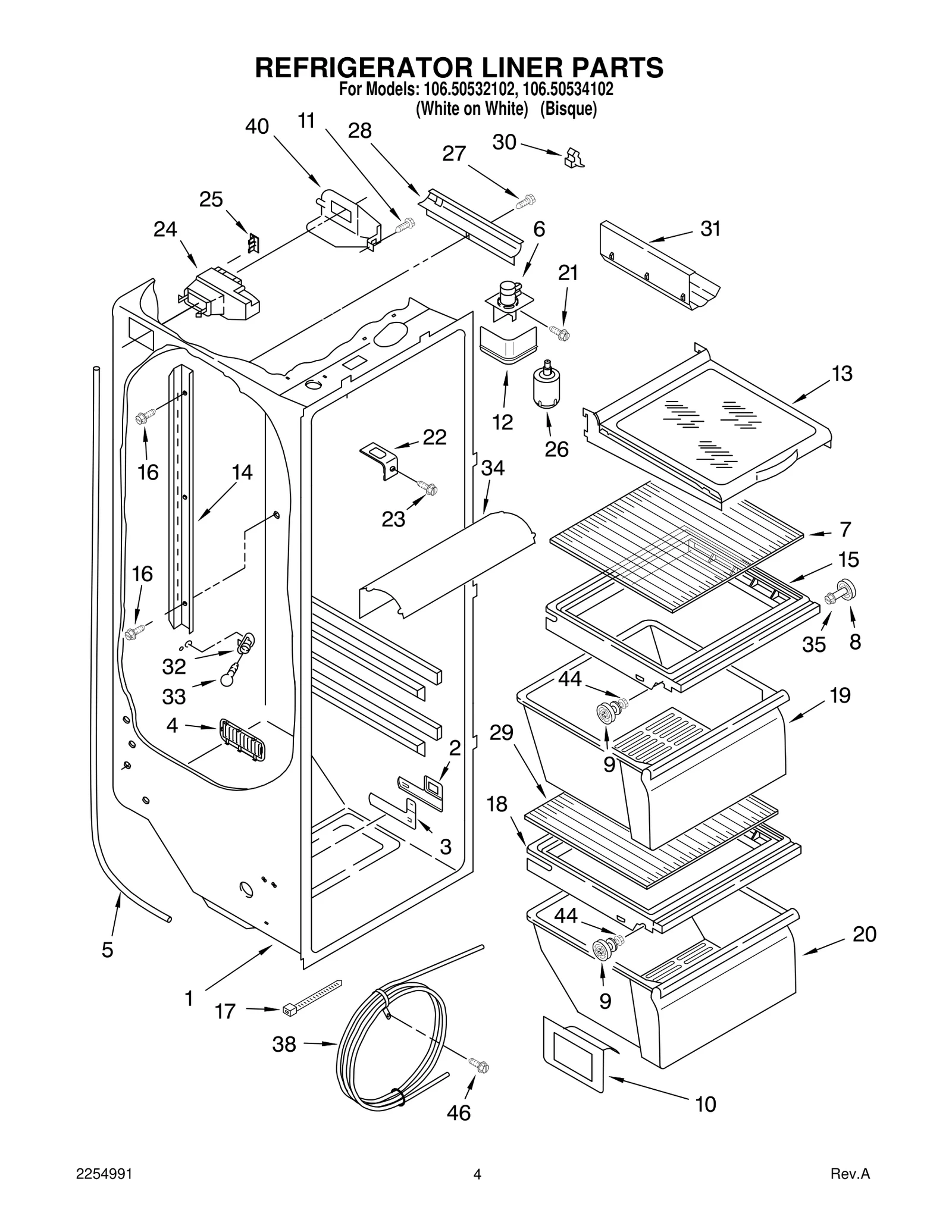

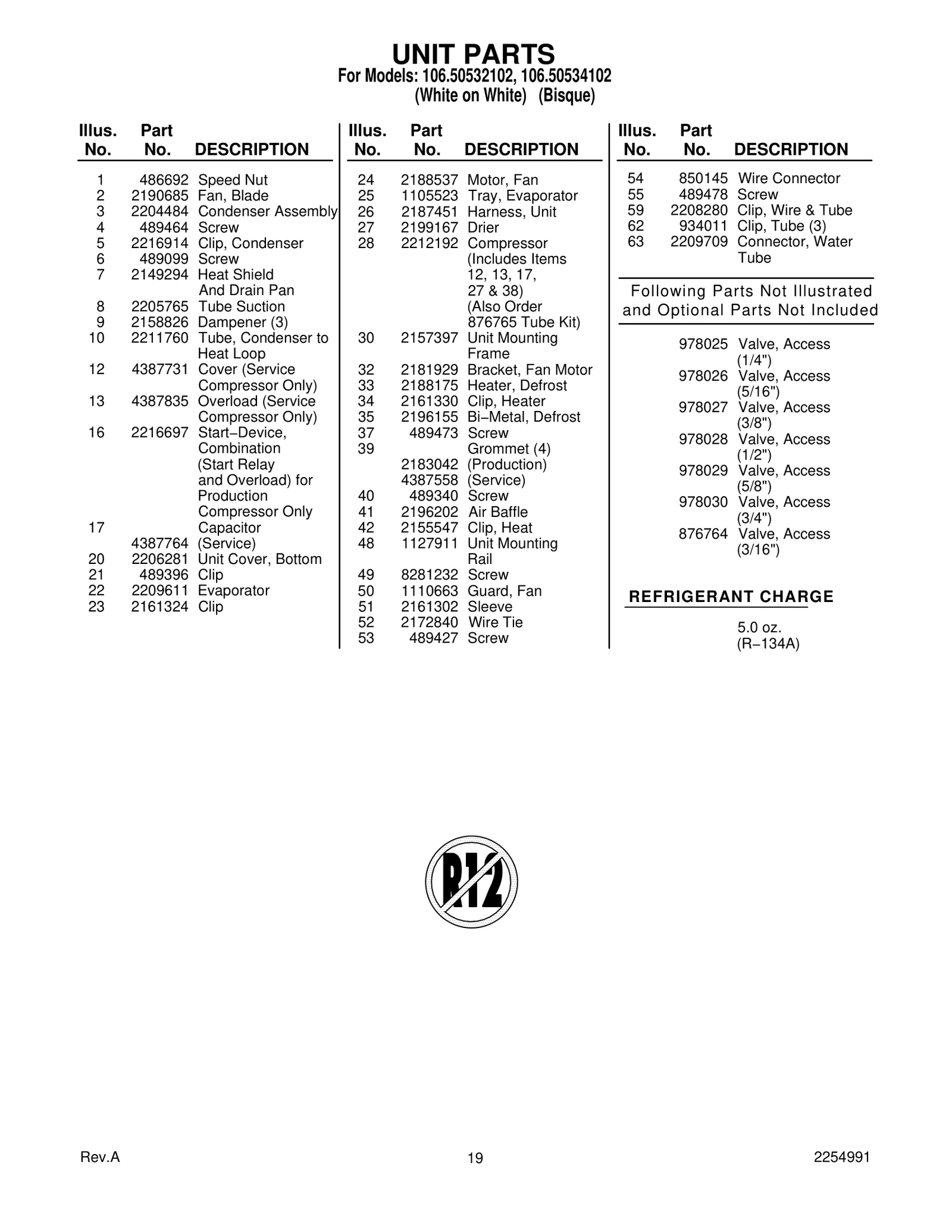

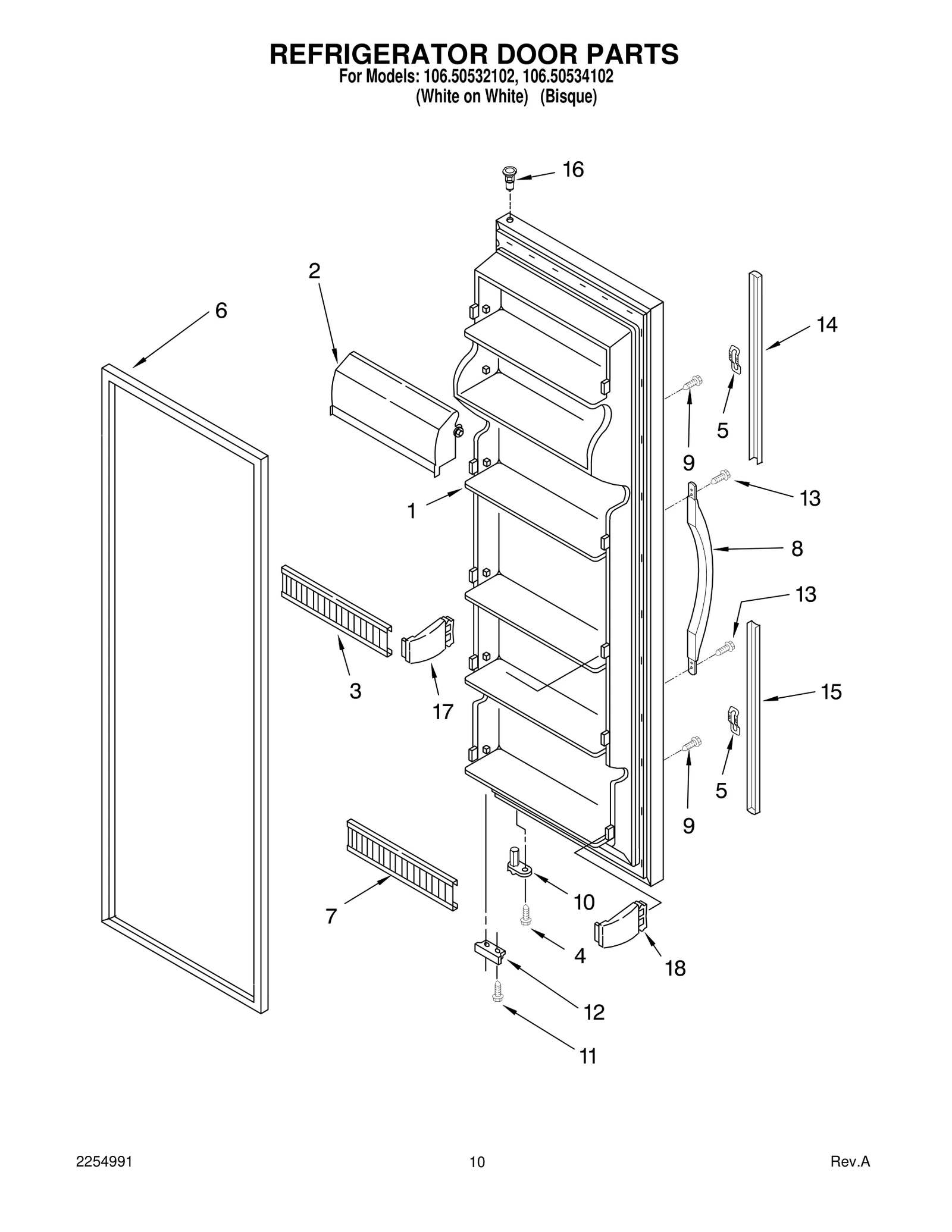

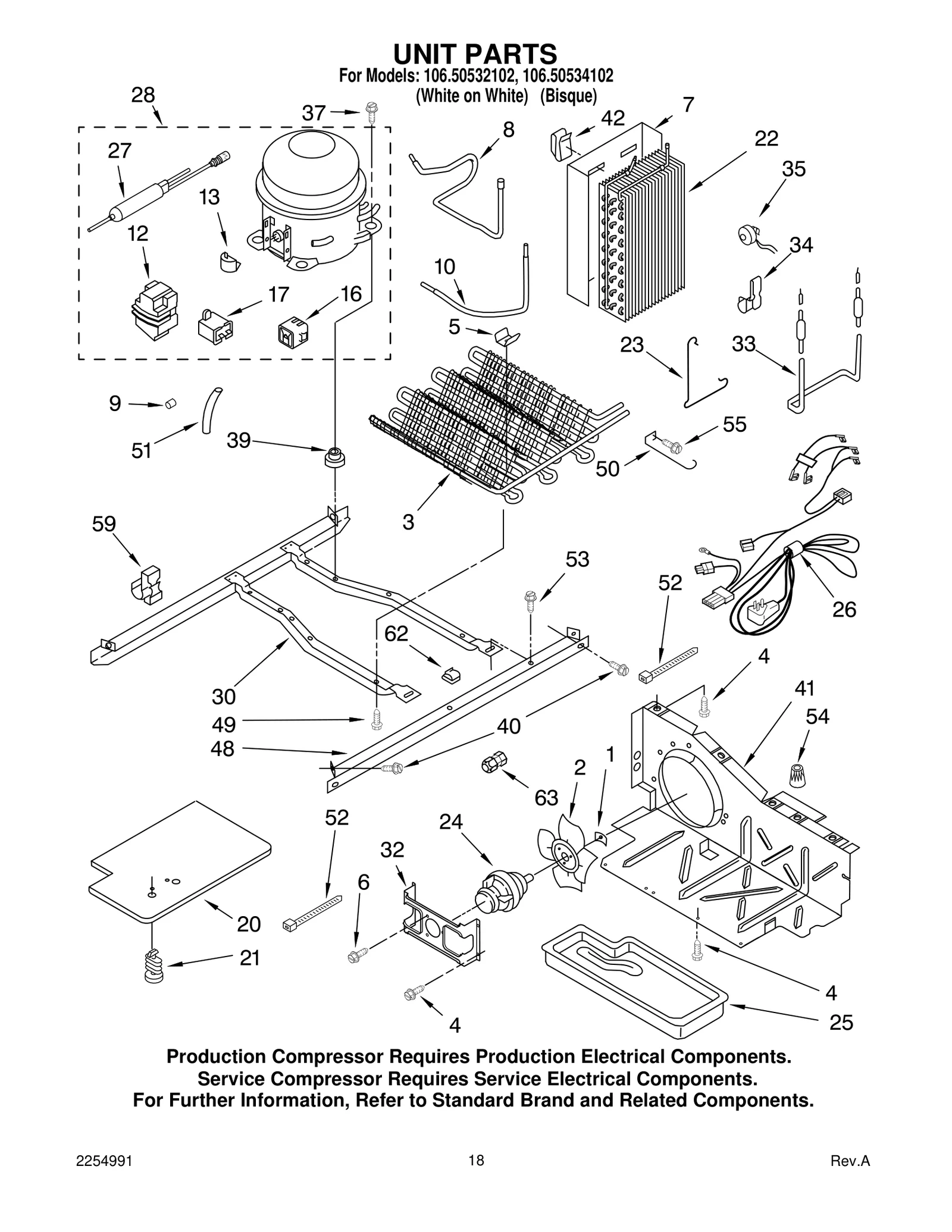

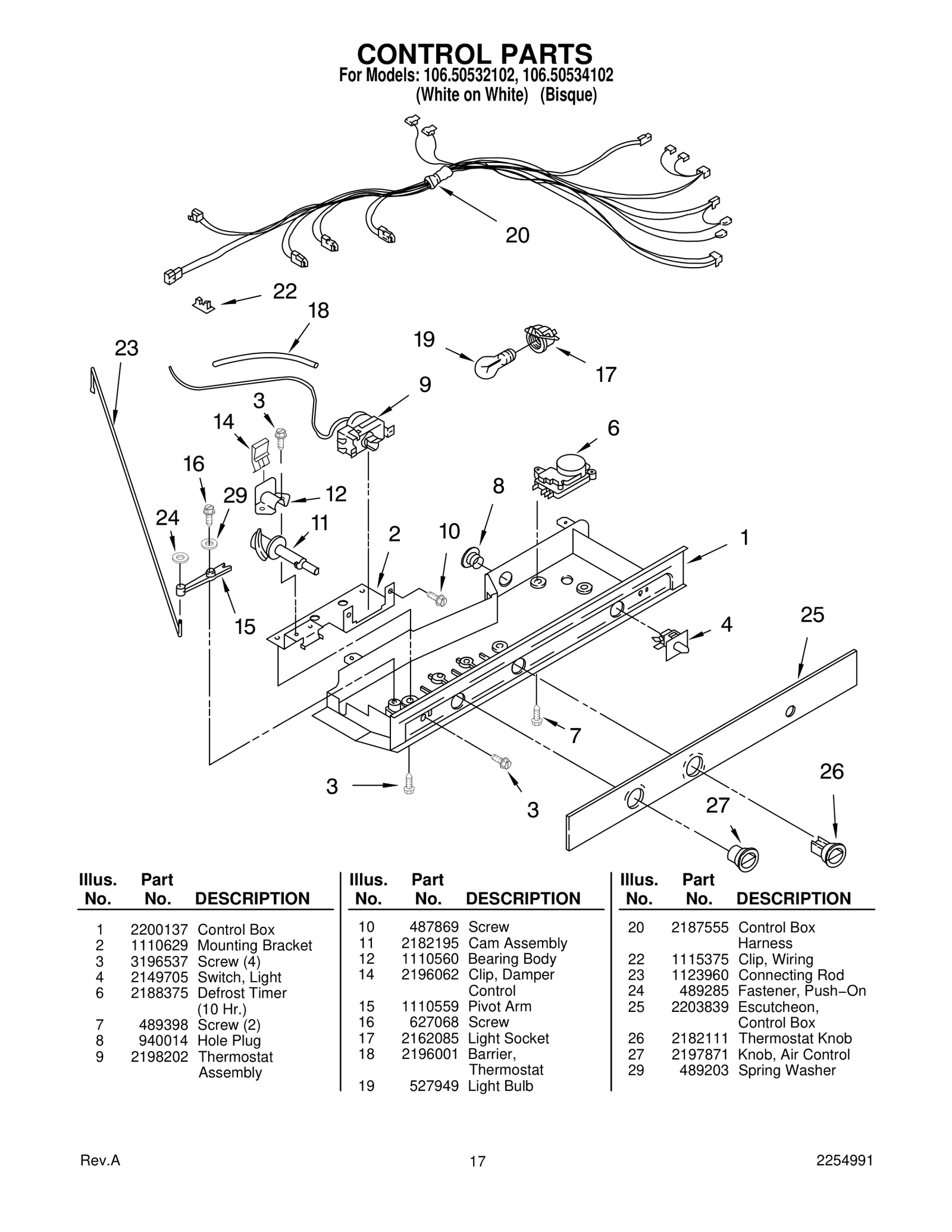

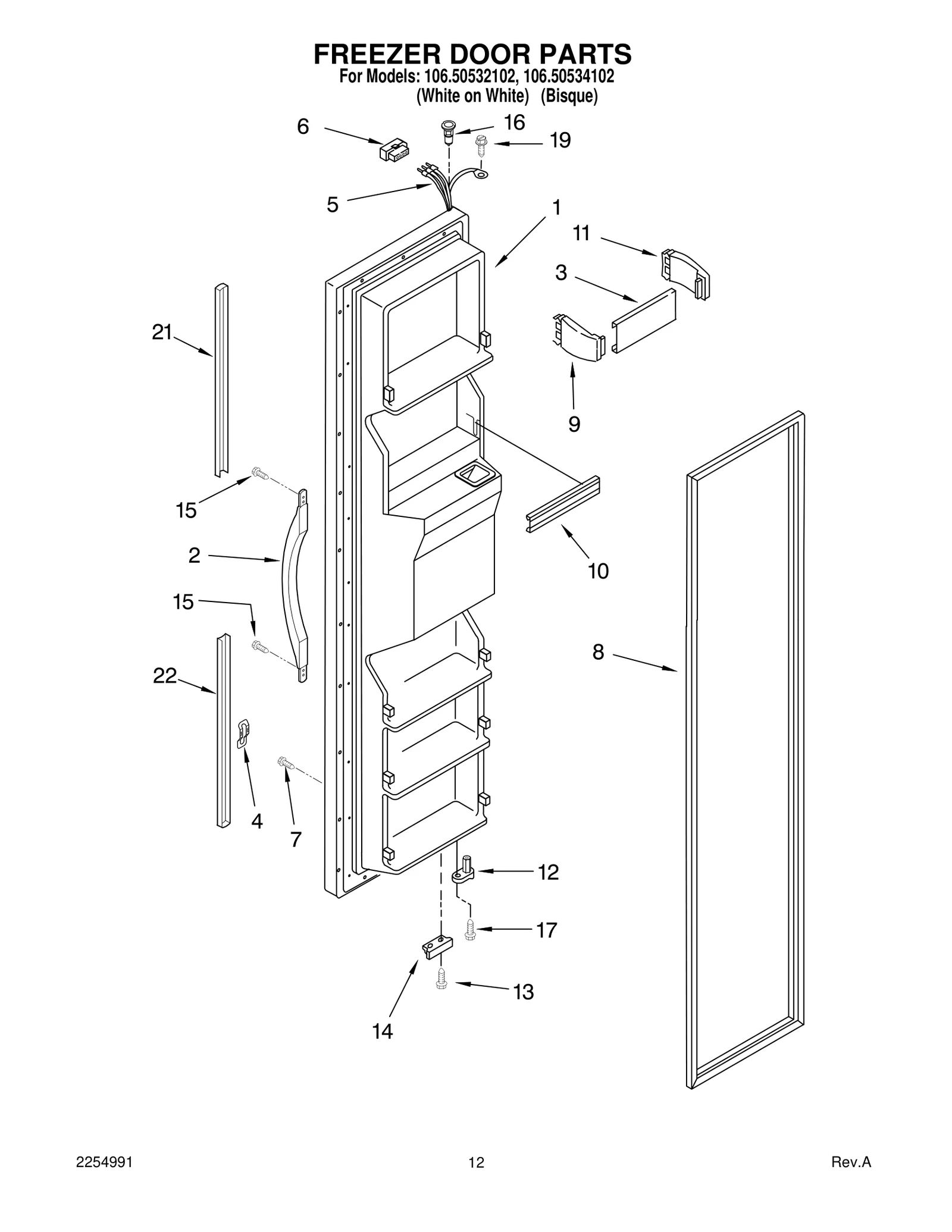

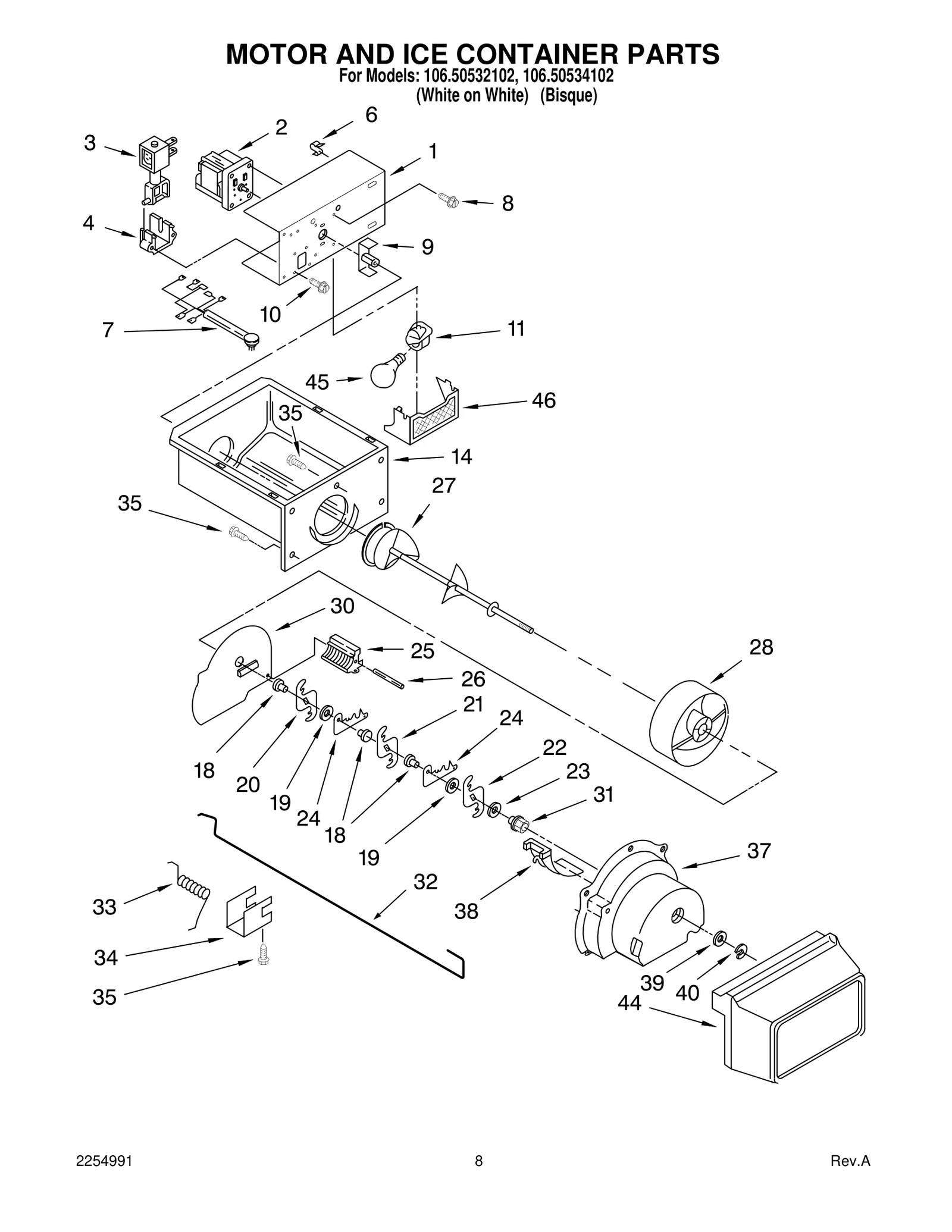

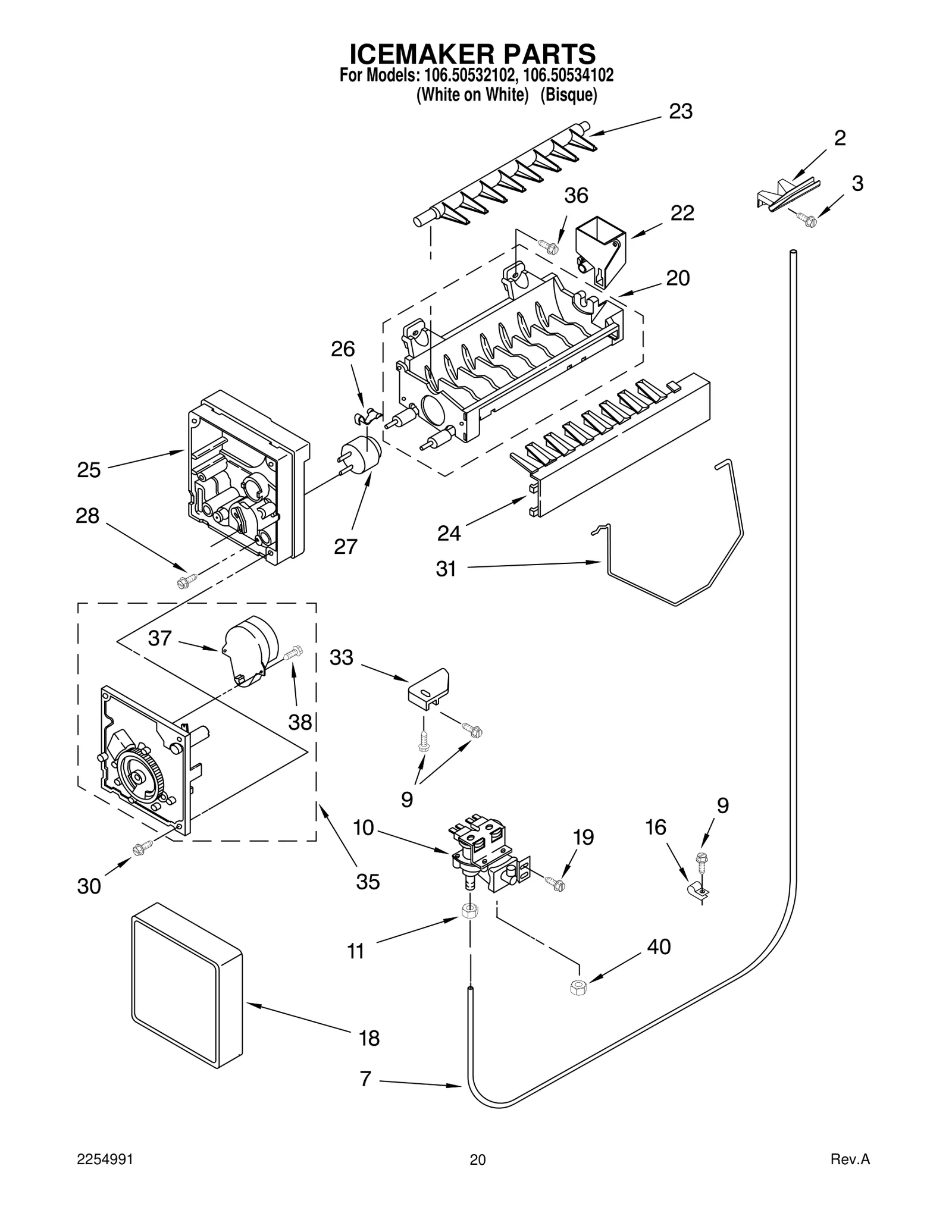

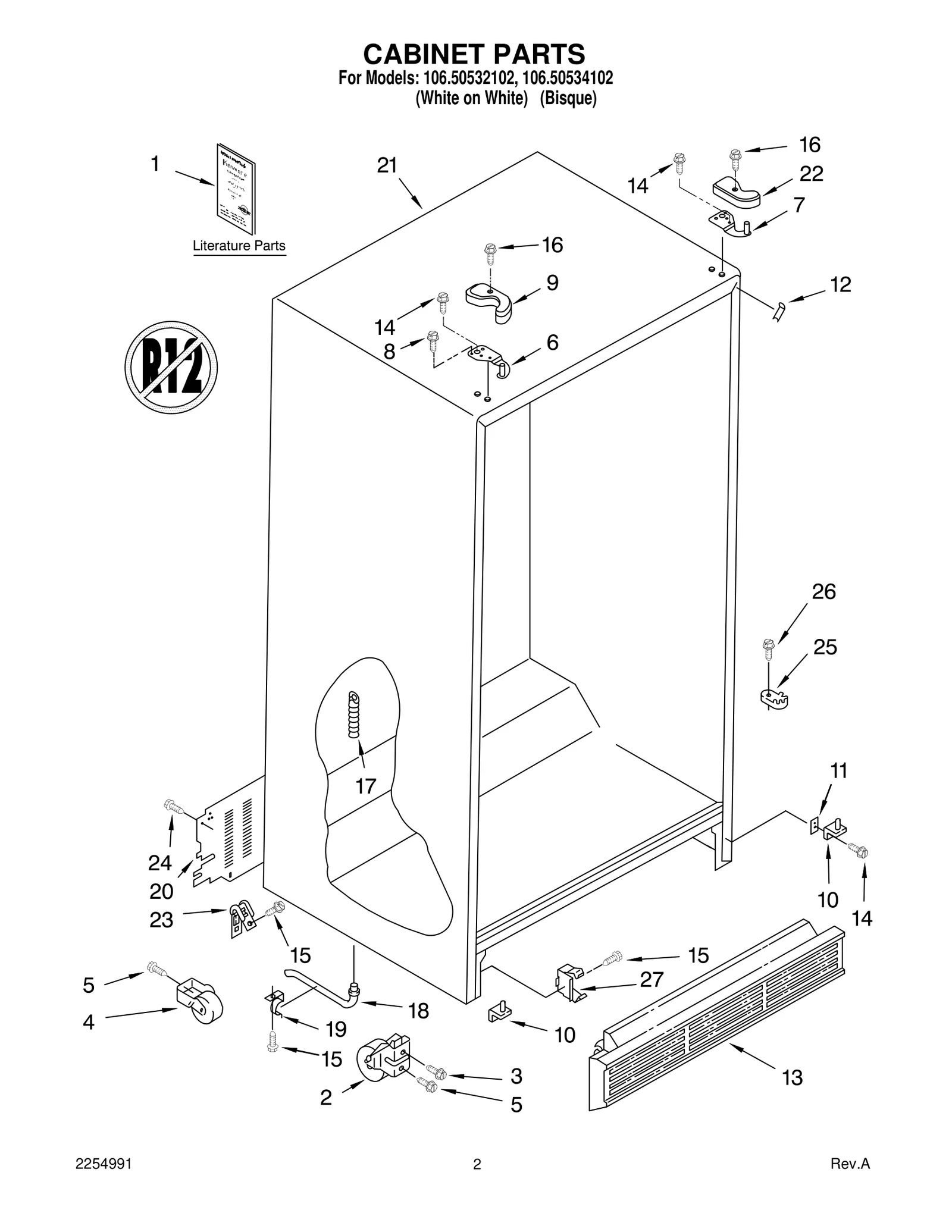

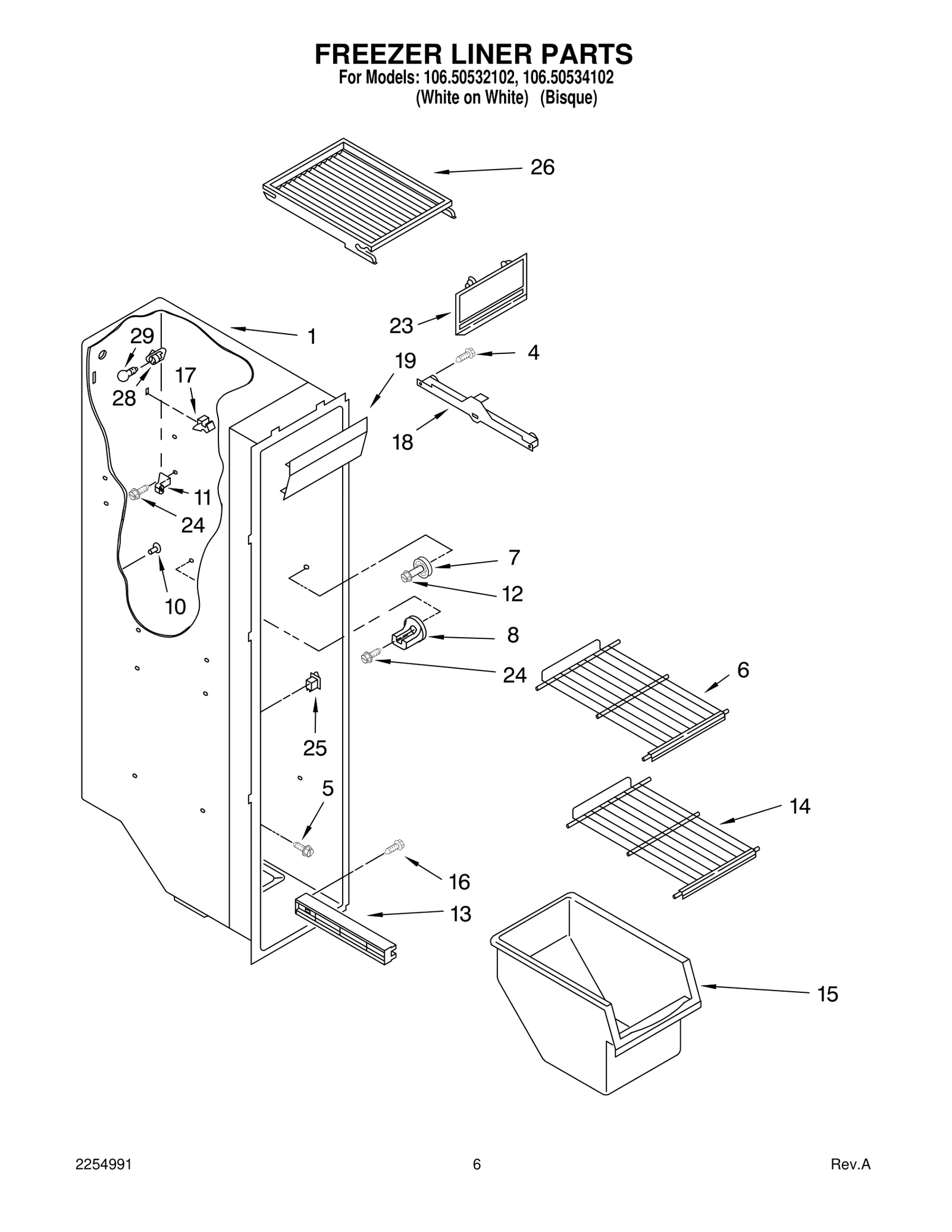

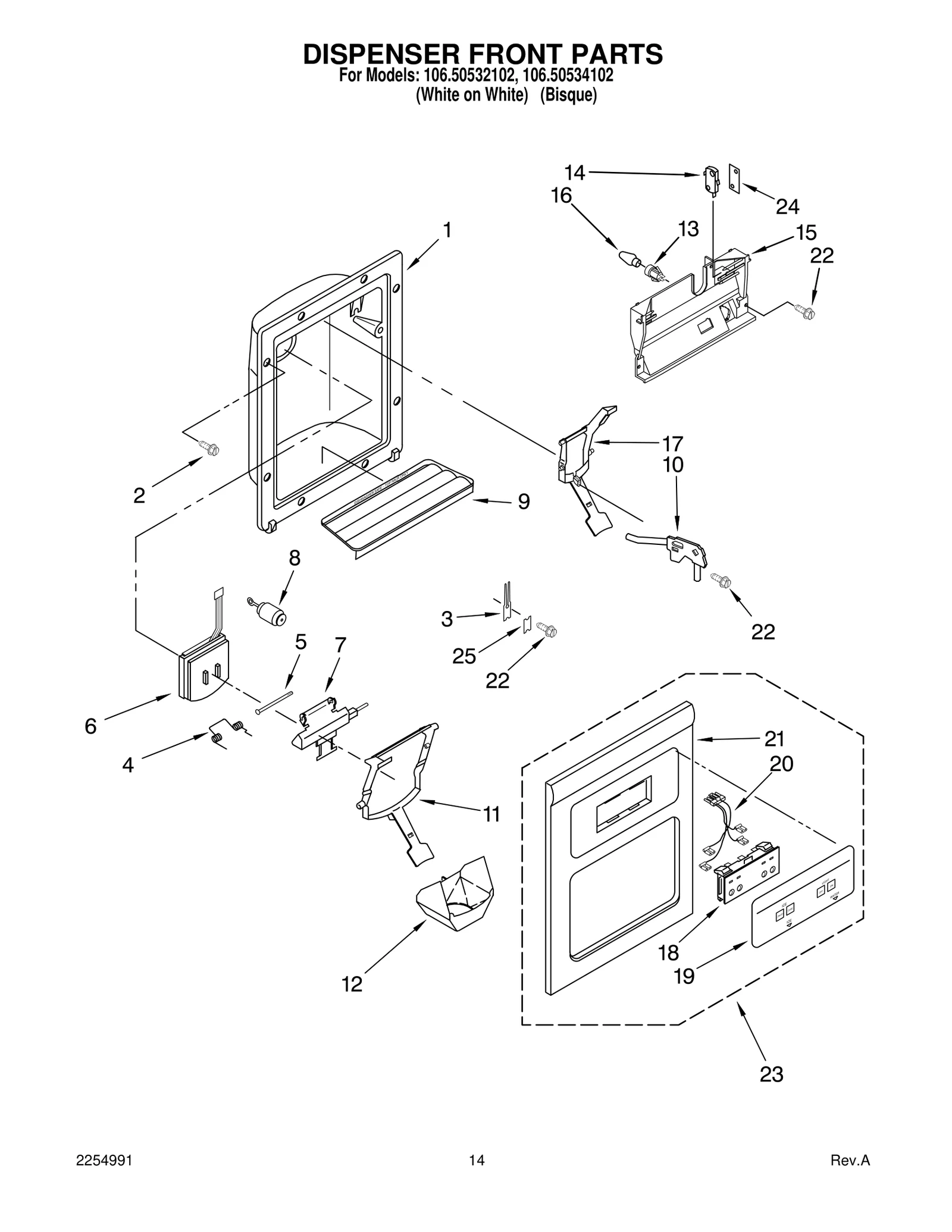

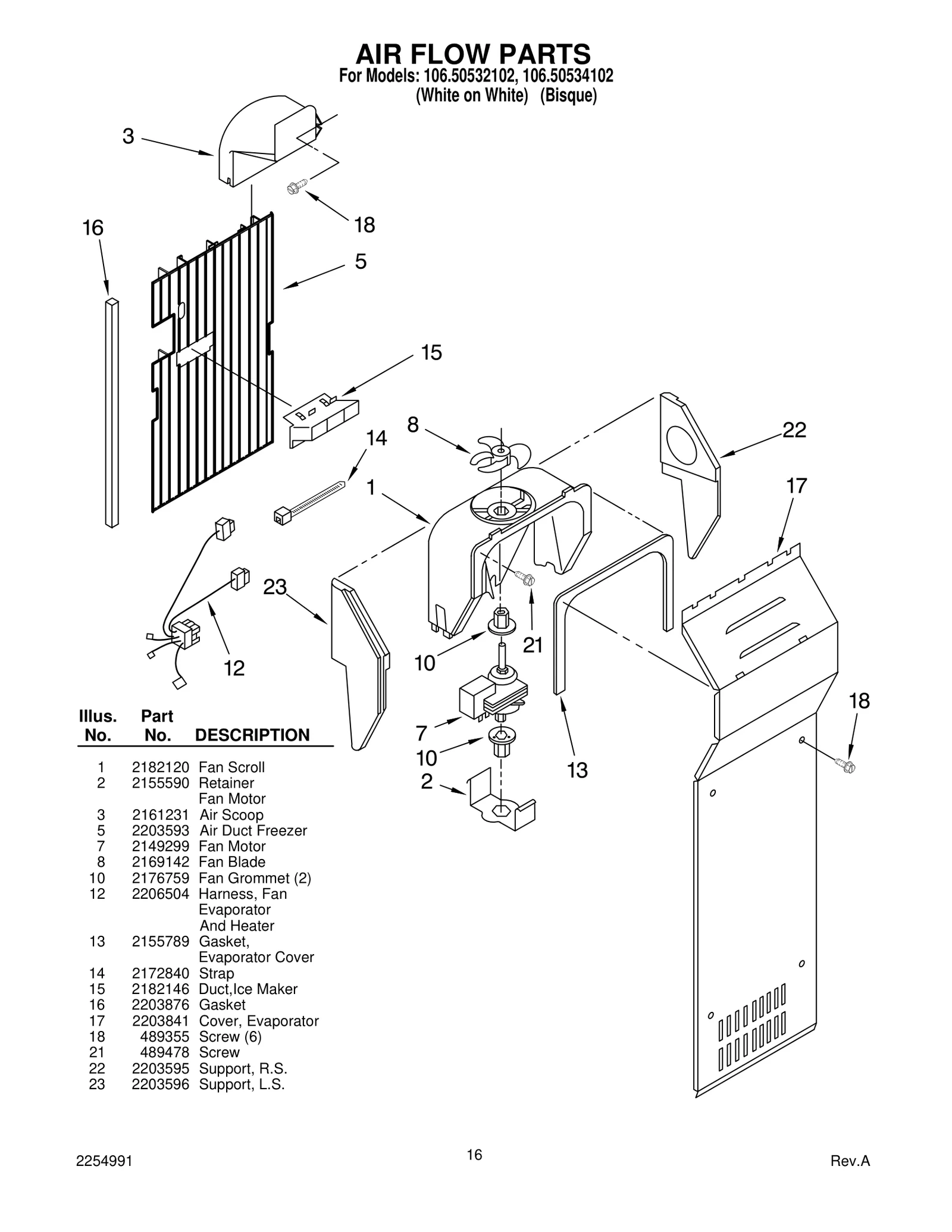

Model Whirlpool 106.50534102 Refrigerator – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.76

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $32.59

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.55

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Retainer Fan Motor WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $108.21

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Slide, Meat Pan Control WPL 2182757 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.71

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.73

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.76

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.81

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.94

6

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $53.38

6

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $34.11

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.58

7

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $36.36

7

Trim, Door WPL 2195934 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.88

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.41

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.55

8

Stud, Rear WPL 2196207 Contact Us For Availability

8

Tube Suction WPL 2205765 Contact Us For Availability

9

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $14.06

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.75

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $52.49

9

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.70

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $41.05

9

WP2206670W Whirlpool Dispenser Tray Backorder WPL WP2206670W $30.76

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.69

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.76

Valve, Solenoid WPL 2206123 Contact Us For Availability

Grommet (8) WPL 2176134 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

11

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.23

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.67

11

Lever, Ice Dispenser — Bisque WPL 2195089T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.80

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.96

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.50

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.65

Filler, Wrapper — White WPL 2196094 Contact Us For Availability

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $35.53

13

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $65.70

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.95

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $14.02

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.65

Shelf (2) WPL 2174268 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $37.11

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $81.33

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.55

Pivot Arm WPL 1110559 Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.94

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.89

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.65

Start−Device, Combination (Start Relay and WPL 2216697 Contact Us For Availability

17

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.55

17

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $91.69

17

Lever, Water Dispenser — Bisque WPL 2195090T Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $52.43

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $57.06

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.75

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.23

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.74

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.34

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.68

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.95

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.75

19

Lens, Light WPL 2171705 Contact Us For Availability

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $156.08

20

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.80

21

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.76

21

Trim, Door−Top — White WPL 2194707W Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $196.39

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.85

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.84

Trim, Door−Bottom — White WPL 2194705W Contact Us For Availability

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $46.46

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.67

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.59

Clip WPL 2161324 Contact Us For Availability

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $142.09

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $30.32

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.76

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push−On WPL 489285 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.94

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.89

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.98

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.67

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.67

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.65

Thermostat Knob WPL 2182111 Contact Us For Availability

Harness, Unit WPL 2187451 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $25.31

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.76

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $47.43

Knob, Air Control WPL 2197871 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.29

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.75

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $27.97

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $314.61

29

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $117.31

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.37

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.55

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $28.87

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.76

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.31

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.77

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.19

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.52

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.71

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.83

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $53.67

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.63

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.76

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.75

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.60

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.76

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $37.31

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.63

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.17

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $40.85

42

Clip, Heat WPL 2155547 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $34.19

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $29.65

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.75

50

1110663 Whirlpool Fan Guard Backorder WPL 1110663 $27.27

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.37

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.55

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.76

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.55

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

62

Clip, Tube (3) WPL 934011 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $36.55

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $38.41

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $40.18

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $25.63

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.30

Valve, Access WPL 978029 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $109.02

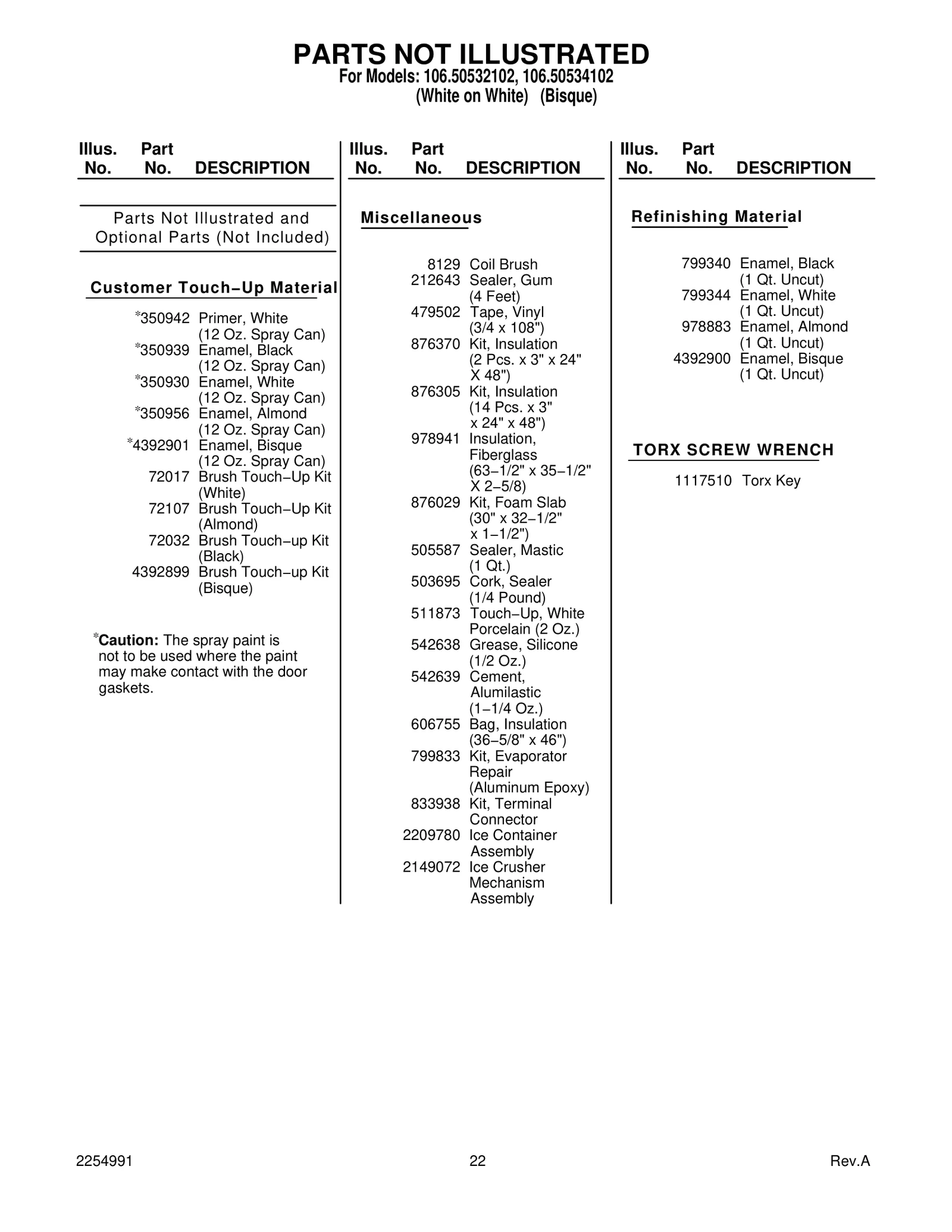

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $51.15

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $45.11

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.76

OPT-4

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.30

OPT-5

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $44.64

OPT-6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $5.00

OPT-7

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.23

OPT-8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.33

OPT-9

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.33

OPT-10

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.45

OPT-11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.75

OPT-12

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-14

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $108.62

OPT-16

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-17

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $65.43

OPT-18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $44.32

OPT-19

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.53

OPT-20

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.96

OPT-21

Cement, WPL 542639 Contact Us For Availability

OPT-22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.65

OPT-23

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-24

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.76

OPT-26

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $185.42

OPT-27

Enamel, Black WPL 799340 Contact Us For Availability

OPT-28

Enamel, White WPL 799344 Contact Us For Availability

OPT-29

Enamel, Almond WPL 978883 Contact Us For Availability

OPT-30

Enamel, Bisque WPL 4392900 Contact Us For Availability

OPT-31

Torx Key WPL 1117510 Contact Us For Availability
