Model Bosch SHV46C13UC/30 Dishwasher – Common Parts & Diagrams
Common parts from model Bosch SHV46C13UC/30 Dishwasher
0108
Key BOS 00424501 No Longer Available
0209
Dispenser BOS 00490467 Contact Us For Availability
0222
Insulating part BOS 00437048 Contact Us For Availability

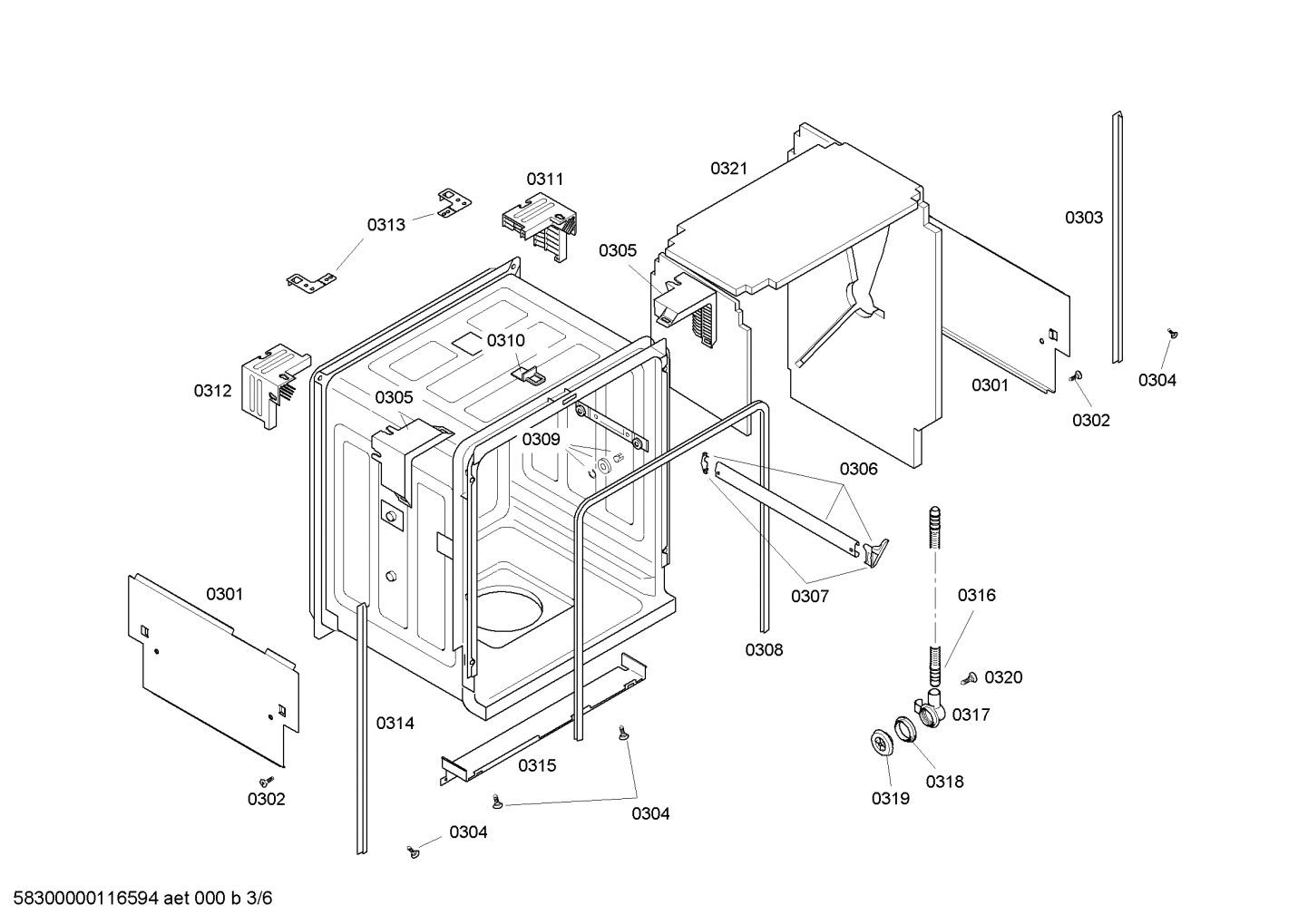

0315
Cover sheet BOS 00350318 Contact Us For Availability
0316
Hose-vent BOS 00265832 Contact Us For Availability
0318
Sealing BOS 00065303 Contact Us For Availability
0319
Cover BOS 00066400 No Longer Available

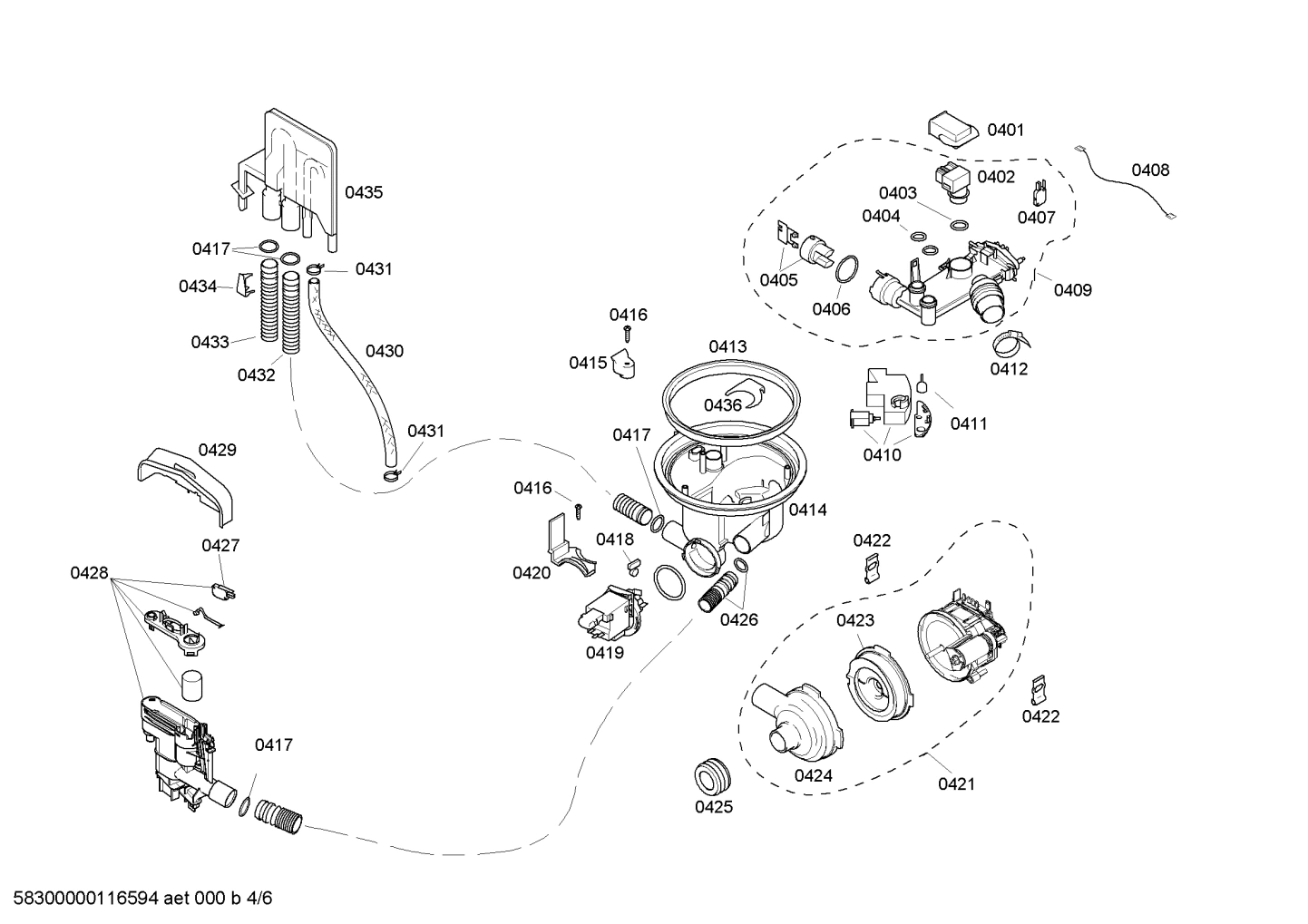

0407
Switch BOS 00426400 Contact Us For Availability
0411
Float BOS 00165273 Contact Us For Availability
0415
Holder BOS 00165265 Contact Us For Availability
0422
Suspension BOS 00171596 Contact Us For Availability

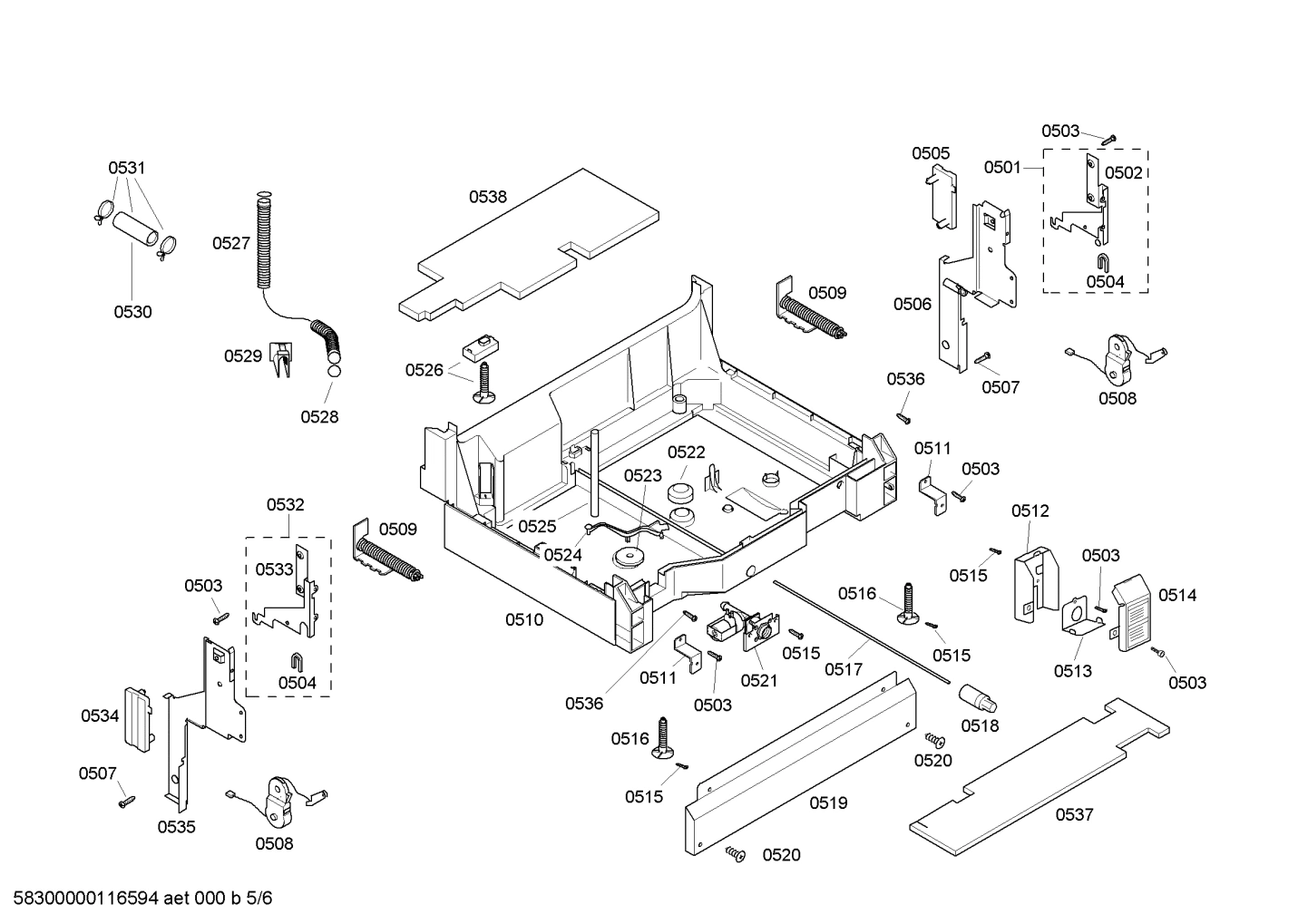

0505
Hinge-cover BOS 00422794 Contact Us For Availability
0511
Bracket BOS 00167079 Contact Us For Availability
0512
Terminal box BOS 00492036 Contact Us For Availability
0513
Stress-relief BOS 00422806 Contact Us For Availability
0514
Cover BOS 00422795 Contact Us For Availability
0522
Hood BOS 00167243 Contact Us For Availability
0524
Lever BOS 00263123 No Longer Available
0525
Tube BOS 00263122 Contact Us For Availability
0526
Foot BOS 00165330 Contact Us For Availability
0534
Hinge-cover BOS 00422793 Contact Us For Availability
0537
Insulating part BOS 00187984 Contact Us For Availability

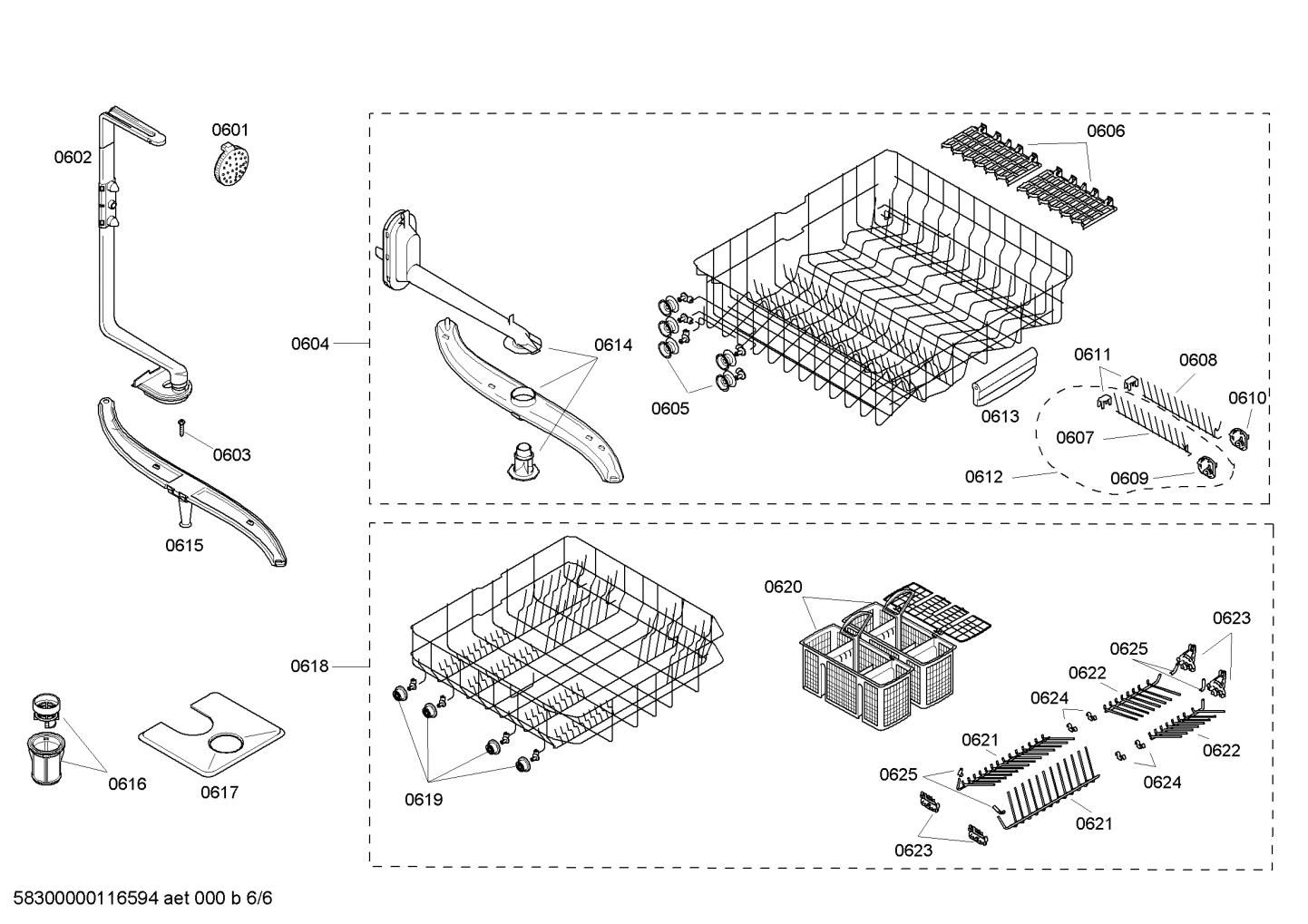

0605
Dishwasher Rack Wheel BOS 00421129 No Longer Available
0615
Spray Arm BOS 00359975 No Longer Available
× ![]()
