Model Bosch SGS456ZS/01 Range Oven – Common Parts & Diagrams
Diagram 1
Diagram 2

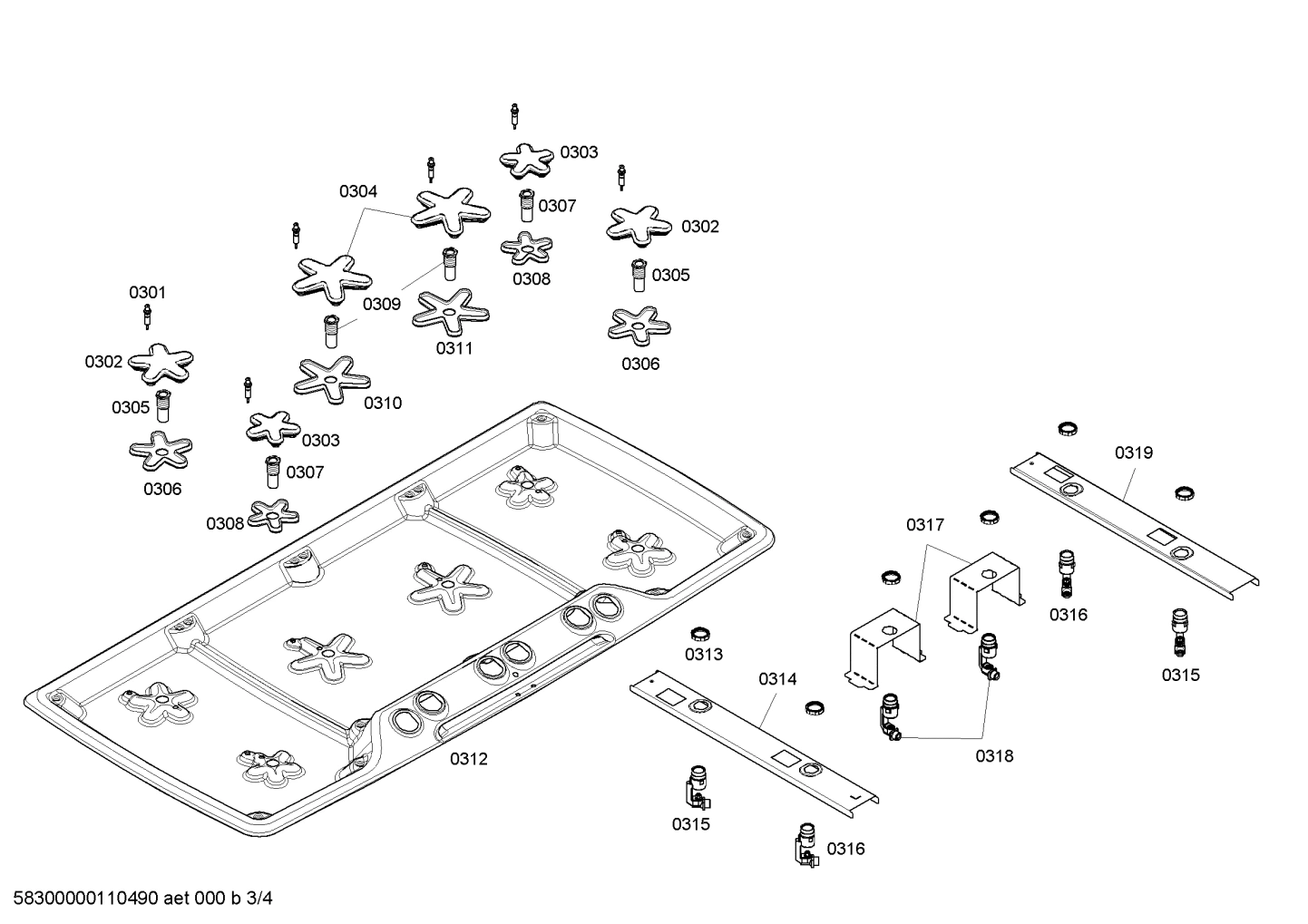

Diagram 3

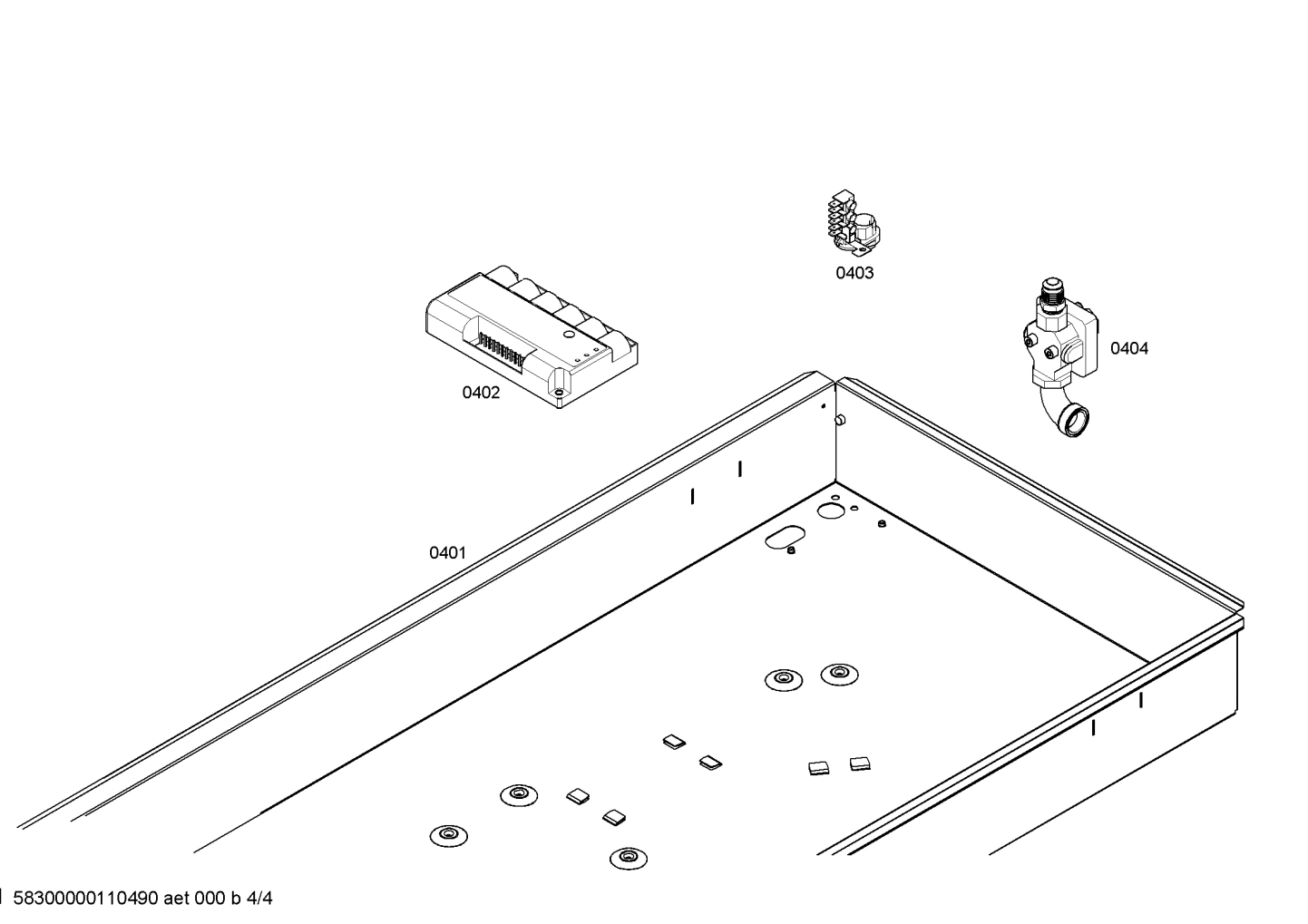

Diagram 4
Common parts from model Bosch SGS456ZS/01 Range Oven
0104
Lens BOS 00189118 Contact Us For Availability
0105
Lamp BOS 00189038 Contact Us For Availability
0106
Knob BOS 00189011 Contact Us For Availability
0203
Tube BOS 00366945 Contact Us For Availability
0204
Tube BOS 00366946 Contact Us For Availability
0207
Screw BOS 00188964 Contact Us For Availability
0209
Retaining washer BOS 00188980 No Longer Available
0211
Washer BOS 00188962 Contact Us For Availability
0212
Gas hob tap BOS 00188996 Contact Us For Availability
0213
Gas hob tap BOS 00188960 Contact Us For Availability
0214
Gas hob tap BOS 00188997 Contact Us For Availability
0302
Burner cap BOS 00189014 Contact Us For Availability
0303
Burner cap BOS 00189016 Contact Us For Availability
0304
Burner cap BOS 00189015 Contact Us For Availability
0306
Base BOS 00497058 Contact Us For Availability
0308
Base BOS 00497059 Contact Us For Availability
0310
Base BOS 00419186 Contact Us For Availability
0311
Base BOS 00497060 Contact Us For Availability
0317
Bracket BOS 00497061 Contact Us For Availability
0319
Bracket BOS 00188967 Contact Us For Availability
0351
Wire BOS 00189057 Contact Us For Availability
0352
Wire BOS 00189095 Contact Us For Availability
0353
Wire BOS 00189096 Contact Us For Availability
0355
Wire BOS 00189109 Contact Us For Availability
0402
Ignition device BOS 00189010 Contact Us For Availability
0404
Regulator-pressure BOS 00189034 No Longer Available
× ![]()
