Model Samsung RF266AZPN/XAA-00 Refrigerator – Common Parts &amp; Diagrams

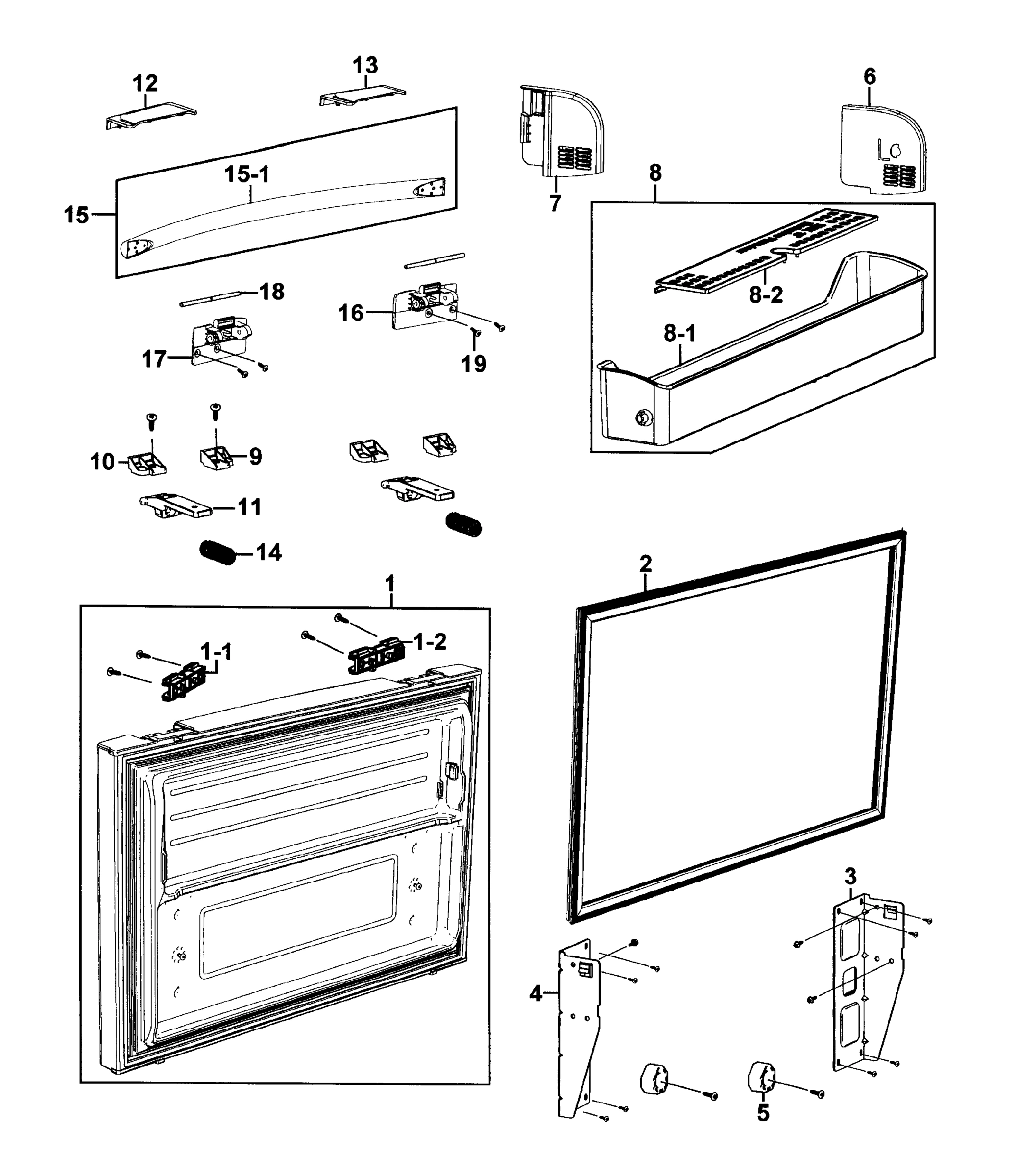

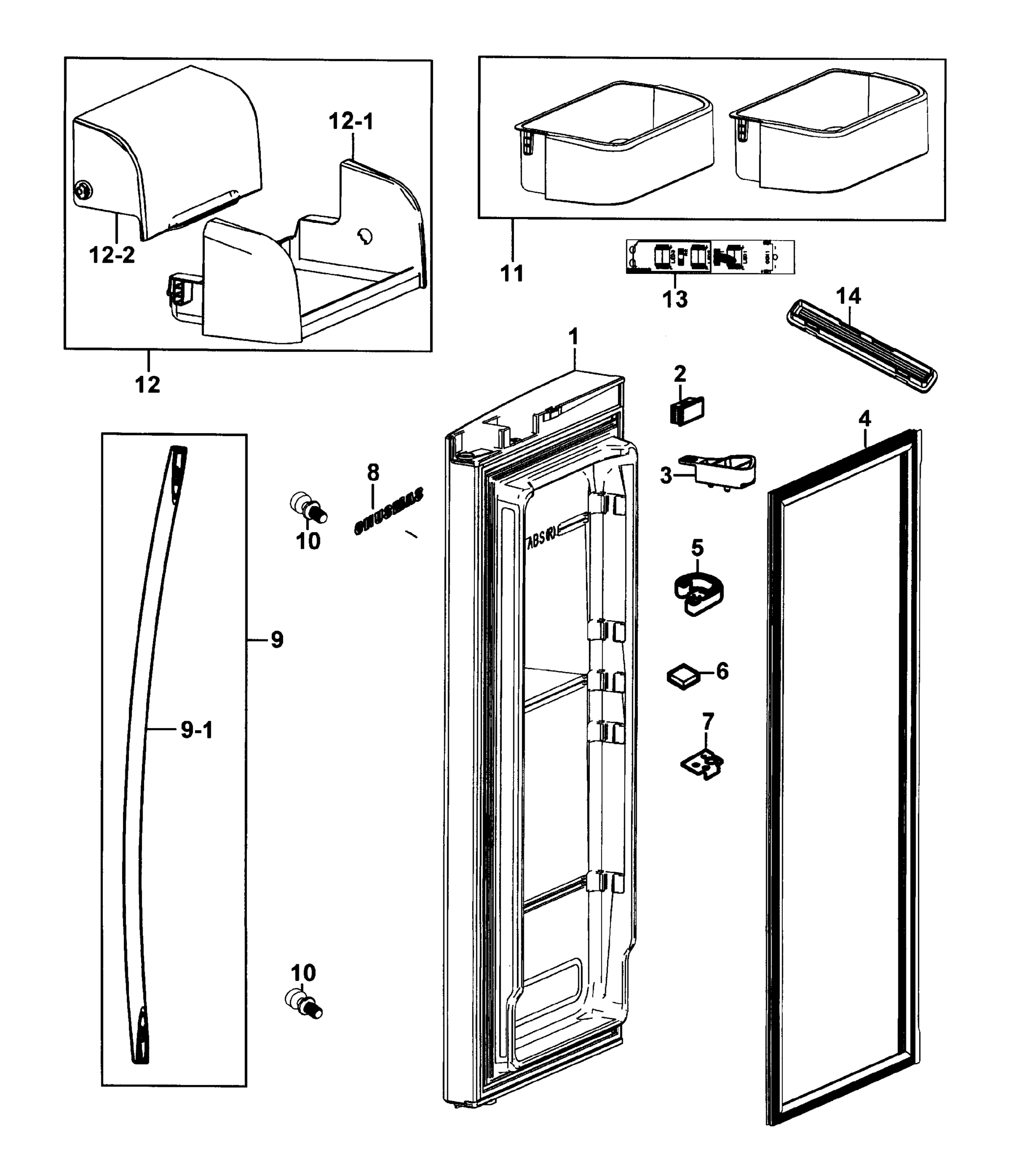

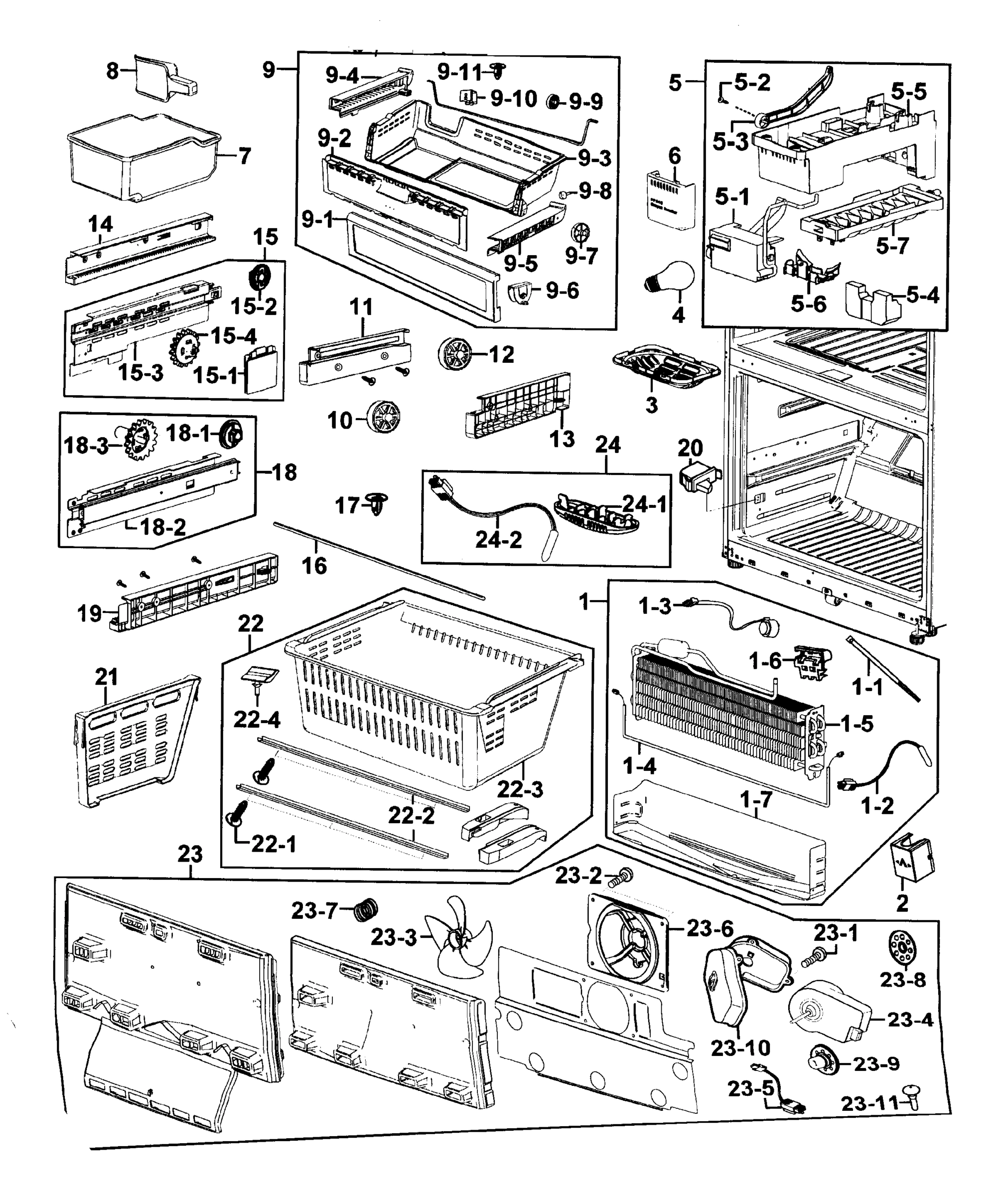

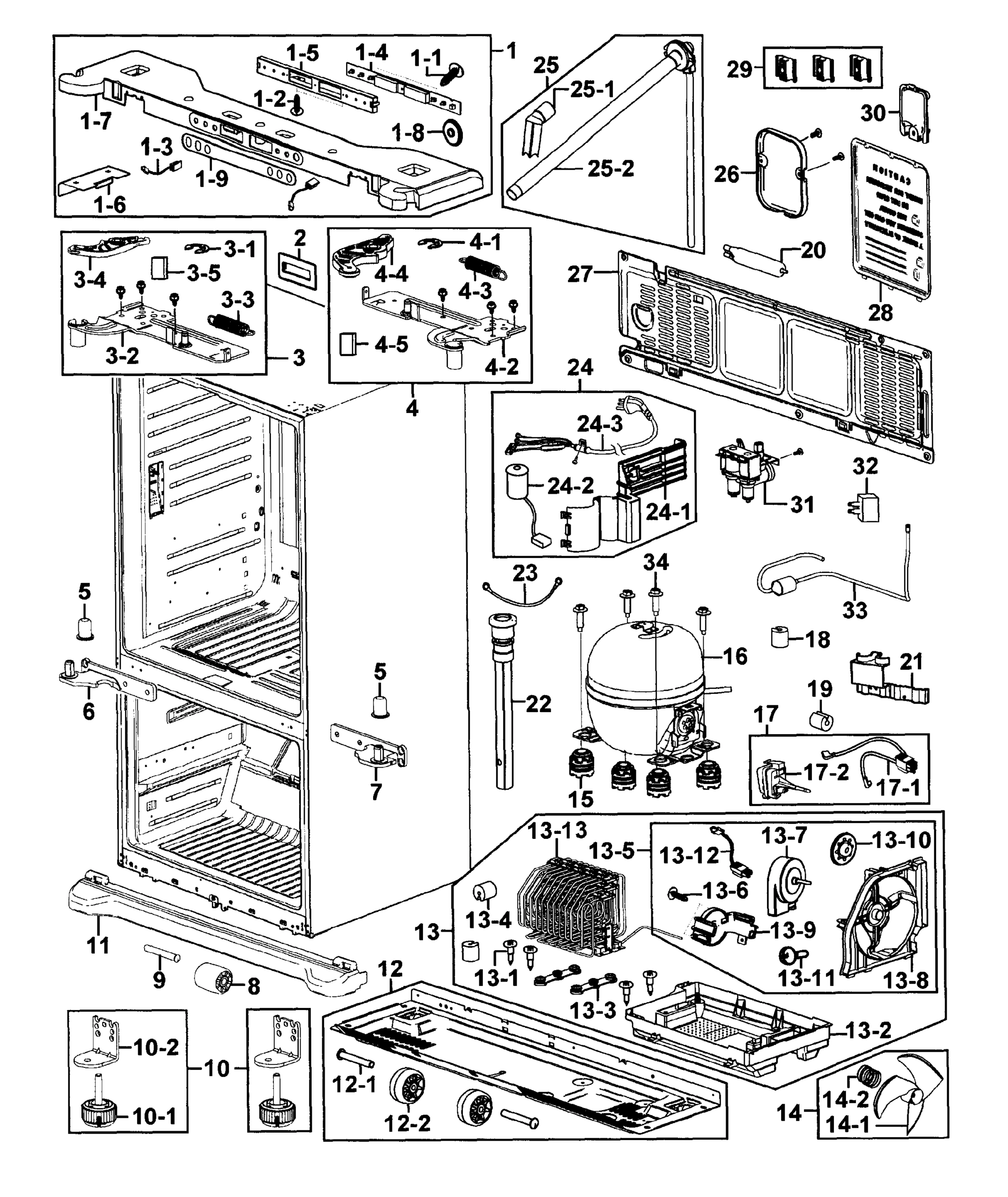

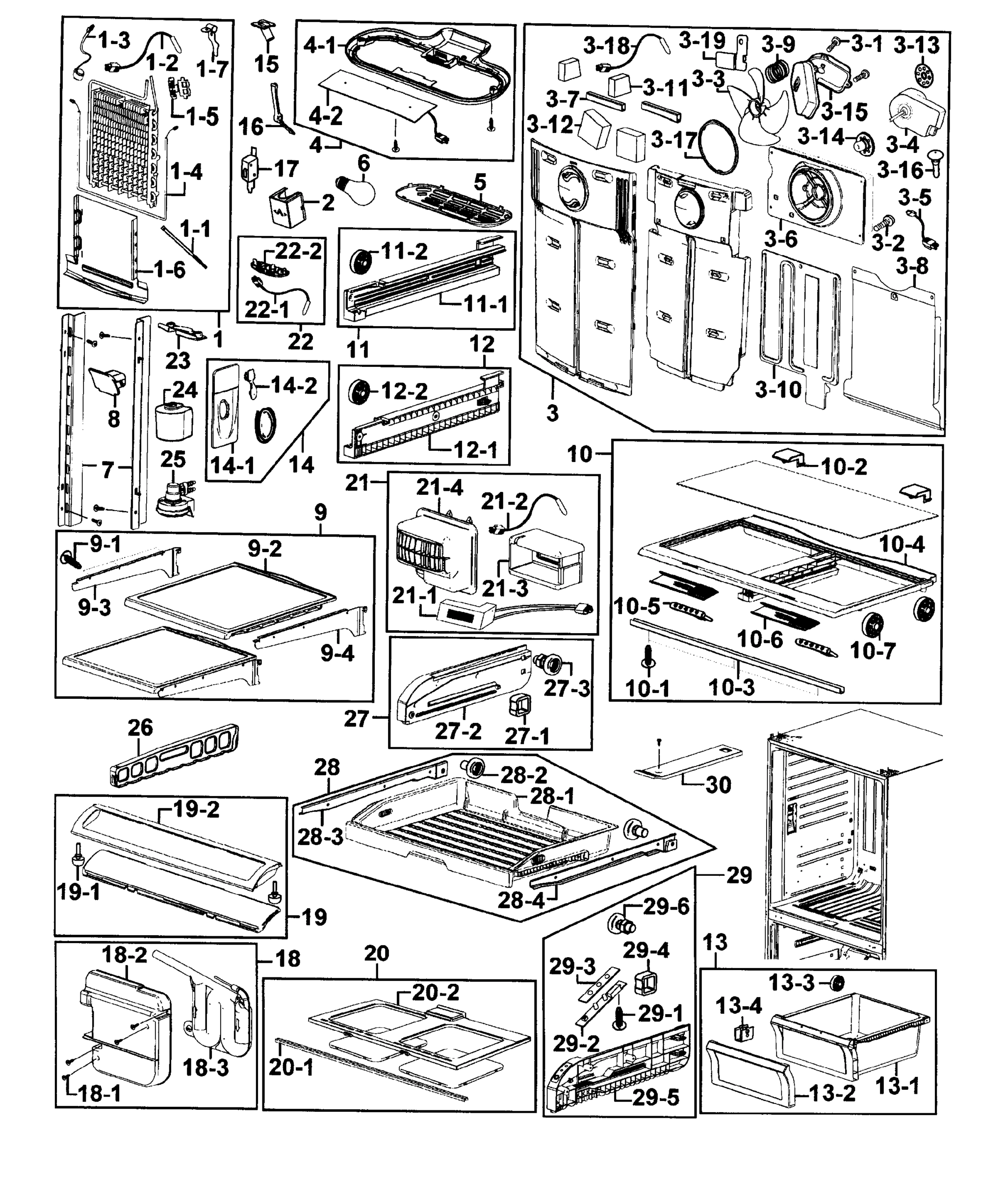

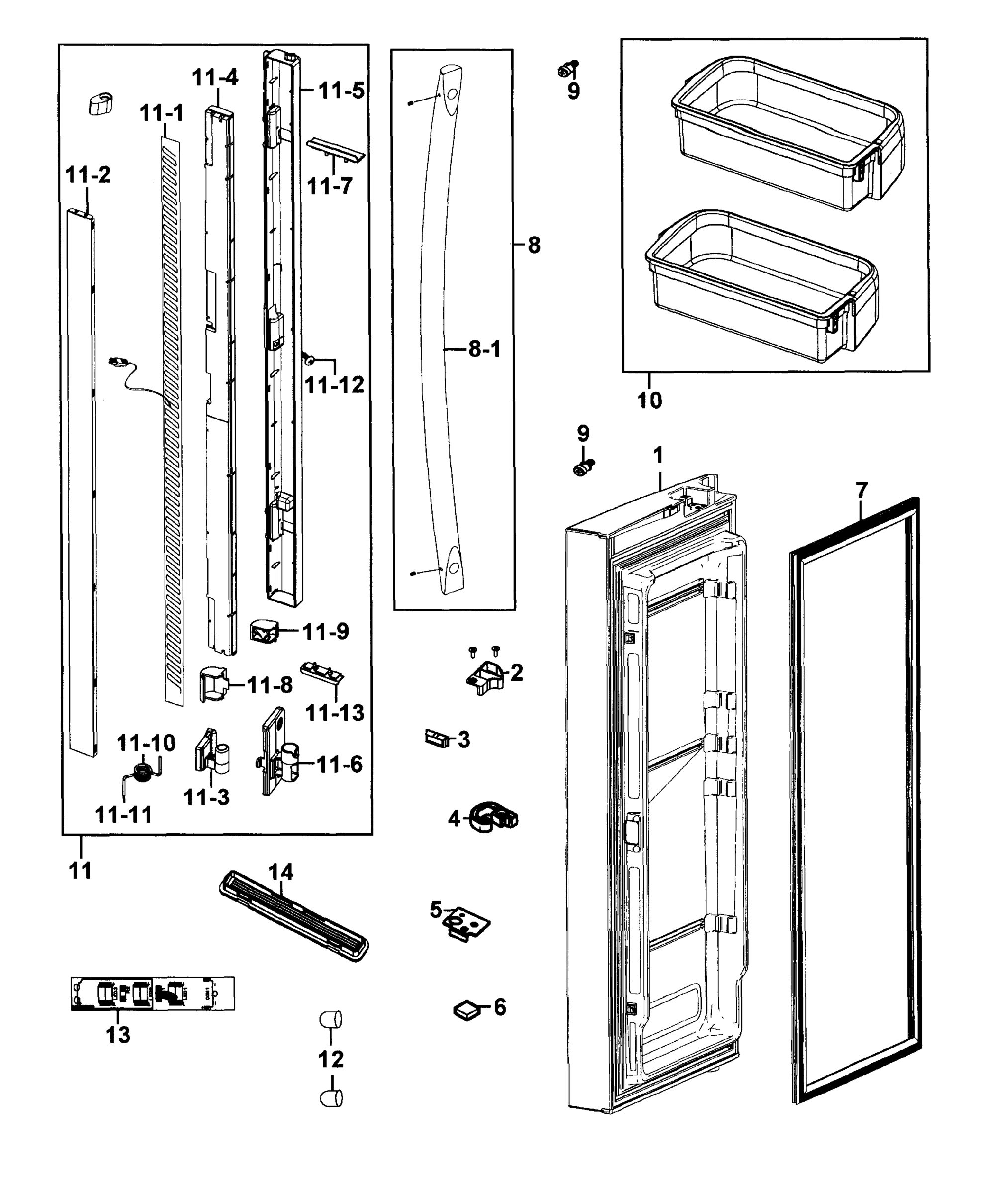

1-1

DA67-02055B Samsung Refrigerator Freezer Left Backorder SMG DA67-02055B $5.42

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.97

DA32-00006Q Samsung Refrigerator Defrost Temp In Stock SMG DA32-00006Q $20.82

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $21.71

DA67-02054B Samsung Right Refrigerator Door C Backorder SMG DA67-02054B $8.14

1-3

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $26.25

1-4

DA47-00244A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00244A $103.90

1-4

DA47-00424B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00424B $93.28

1-4

Refrigerator Power Control Board SMG DA41-00412K Contact Us For Availability

1-5

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.35

1-6

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.35

1-6

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $45.20

1-7

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $8.14

2

DA66-00442B Samsung Refrigerator Auto Close C Backorder SMG DA66-00442B $4.07

2

DA67-01613B Samsung Refrigerator Top Cap Tabl Backorder SMG DA67-01613B $1.35

2

DA97-05557Y Samsung Freezer Door Gasket Assem In Stock SMG DA97-05557Y $142.00

3

DA61-02738F Samsung Refrigerator Magnet Assem Backorder SMG DA61-02738F $4.52

3

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $61.77

3-3

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $6.33

3-3

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

3-4

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $126.00

3-4

DA97-04903B Samsung Refrigerator Auto Close L Backorder SMG DA97-04903B $21.27

3-5

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $130.23

3-6

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $13.12

3-8

DA61-03186C Samsung Refrigerator Evaporator I Backorder SMG DA61-03186C $31.00

3-10

Refrigerator Evaporator Insulation SMG DA62-01382A Contact Us For Availability

3-13

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.07

3-14

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.63

3-15

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $11.77

3-18

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $18.10

3-19

DA61-03599A Samsung Refrigerator Galvanized H Backorder SMG DA61-03599A $1.81

4

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $58.22

4-2

DA96-00398J Samsung Refrigerator Led Lamp Ass Backorder SMG DA96-00398J $136.62

5

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $5.42

5

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $19.45

5

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.35

5

DA97-07603B Samsung Refrigerator Ice Maker Backorder SMG DA97-07603B $150.86

5-1

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $139.16

5-2

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

5-3

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $4.98

5-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $26.25

5-5

DA61-05227A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-05227A $35.82

5-6

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.26

5-7

DA63-02284B Samsung Refrigerator Ice Cube Tra Backorder SMG DA63-02284B $20.82

6

DA61-03762A Samsung Refrigerator Left Side Su In Stock SMG DA61-03762A $15.38

6

DA63-04974A Samsung Refrigerator Cover-Ice Ma Backorder SMG DA63-04974A $12.22

6

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.97

7

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $26.15

7

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $55.24

7

DA97-05253B Samsung Refrigerator Door Gasket In Stock SMG DA97-05253B $80.75

7

Refrigerator freezer door shelf rail end cap SMG DA61-03763A Contact Us For Availability

8

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

8

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $0.97

8

DA97-04880A Samsung Refrigerator Guard Assemb Backorder SMG DA97-04880A $59.99

8

Refrigerator nameplate SMG DA64-01985A Contact Us For Availability

9

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

9

DA97-11081C Samsung Refrigerator Handle Bar A Backorder SMG DA97-11081C $135.28

9

Refrigerator freezer door handle mounting blo SMG DA61-04254A Contact Us For Availability

9-2

DA67-01606D Samsung Refrigerator Glass Shelf Backorder SMG DA67-01606D $63.13

9-4

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $16.29

9-6

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.70

9-7

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.52

9-10

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.35

10

DA61-04255A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04255A $0.97

10

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.98

10

Refrigerator Drawer Cover SMG DA97-07019A Contact Us For Availability

10-2

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.35

DA61-04108A Samsung Refrigerator Upper Slide Backorder SMG DA61-04108A $118.40

DA63-03467A Samsung Refrigerator Guard Backorder SMG DA63-03467A $39.85

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $24.55

Refrigerator Flipper Assembly SMG DA97-07244C Contact Us For Availability

11-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $22.62

11-3

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $2.72

11-4

DA61-03234A Samsung Refrigerator French Door Backorder SMG DA61-03234A $49.85

11-6

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.79

11-8

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.07

11-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.52

12

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $23.08

12

Refrigerator freezer handle cover, left SMG DA63-04247B Contact Us For Availability

12-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $23.99

12-1

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.63

12-2

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $4.98

12-2

Refrigerator dairy bin cover SMG DA63-03462A Contact Us For Availability

DA41-00519R Samsung Refrigerator LED Lamp PBA In Stock SMG DA41-00519R $10.52

DA61-04109A Samsung Refrigerator Upper Slide Backorder SMG DA61-04109A $128.18

DA97-04846A Samsung Refrigerator Vegetable Ca Backorder SMG DA97-04846A $125.88

Refrigerator freezer handle cover, right SMG DA63-04248B Contact Us For Availability

13-5

DA97-07754C Samsung Refrigerator Circuit Moto Backorder SMG DA97-07754C $140.77

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.48

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.26

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $37.83

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $46.84

DA97-04952B Samsung Refrigerator Water Dispen In Stock SMG DA97-04952B $27.77

14-2

DA64-02113A Samsung Refrigerator Dispenser Co Backorder SMG DA64-02113A $2.26

15-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.63

15-1

DA64-03945C Samsung Refrigerator Freezer Door Backorder SMG DA64-03945C $138.05

15-2

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.35

15-4

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

16

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $30.59

16

DA67-02057A Samsung Refrigerator Door Cap Han In Stock SMG DA67-02057A $26.69

16

Refrigerator Compressor SMG BK190CL2C/E02 Contact Us For Availability

17

DA67-02056A Samsung Refrigerator Freezer Door In Stock SMG DA67-02056A $25.34

17

DA97-08310E Samsung Refrigerator Compressor A Backorder SMG DA97-08310E $62.82

17-1

DA39-00154D Samsung Refrigerator Wire Harness Backorder SMG DA39-00154D $47.50

17-2

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $25.77

18

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $7.70

18

DA97-07129E Samsung Refrigerator Cover Assemb Backorder SMG DA97-07129E $131.15

18

DA97-08806A Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08806A $291.98

18-3

DA97-07150C Samsung Refrigerator Water Tank A Backorder SMG DA97-07150C $125.04

18-3

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

19

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $41.86

19-2

DA63-03764A Samsung Refrigerator Pantry Drawe Backorder SMG DA63-03764A $33.00

20

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.18

20

DA97-05370A Samsung Assembly Refrigerator Cri Backorder SMG DA97-05370A $188.66

21

Refrigerator Damper Motor Assembly SMG DA97-06324B Contact Us For Availability

21-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.45

21-4

DA63-04274A Samsung Refrigerator DC Motor Dam Backorder SMG DA63-04274A $10.40

22

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $13.07

23

DA97-04938D Samsung Refrigerator Evaporator C Backorder SMG DA97-04938D $172.70

23-4

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $92.22

24-2

DA27-00019D Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019D $93.59

24-2

DA32-10105B Samsung Refrigerator Temperature In Stock SMG DA32-10105B $16.29

24-3

Refrigerator Power Cord SMG DA39-10165E Contact Us For Availability

25

DA97-00209T Samsung Refrigerator Water Pipe A Backorder SMG DA97-00209T $88.89

25

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $92.48

25-2

DA73-00134D Samsung Refrigerator Water Pipe A Backorder SMG DA73-00134D $45.55

27

DA97-05371B Samsung Refrigerator Left Pantry Backorder SMG DA97-05371B $54.87

27-3

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $16.29

28-2

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $12.22

29

Refrigerator Pantry Drawer Slide Cover Assemb SMG DA97-05384C Contact Us For Availability

29-1

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.97

29-2

DA41-00423C Samsung Refrigerator Printed Circ Backorder SMG DA41-00423C $31.79

31

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $99.14

33

DA97-00918E Samsung Refrigerator Connection P Backorder SMG DA97-00918E $57.75

1110

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $3.63

1111

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $0.97
