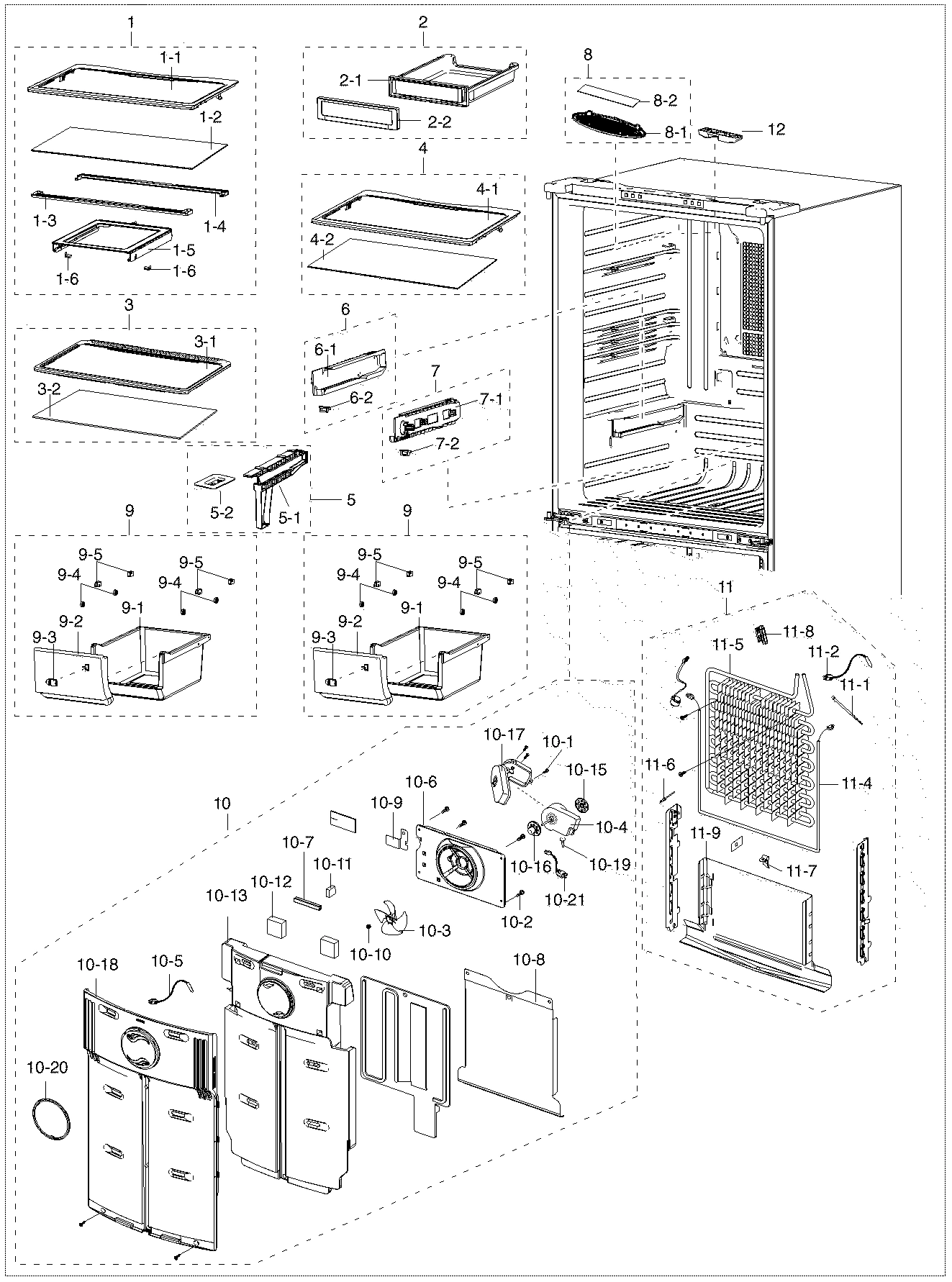

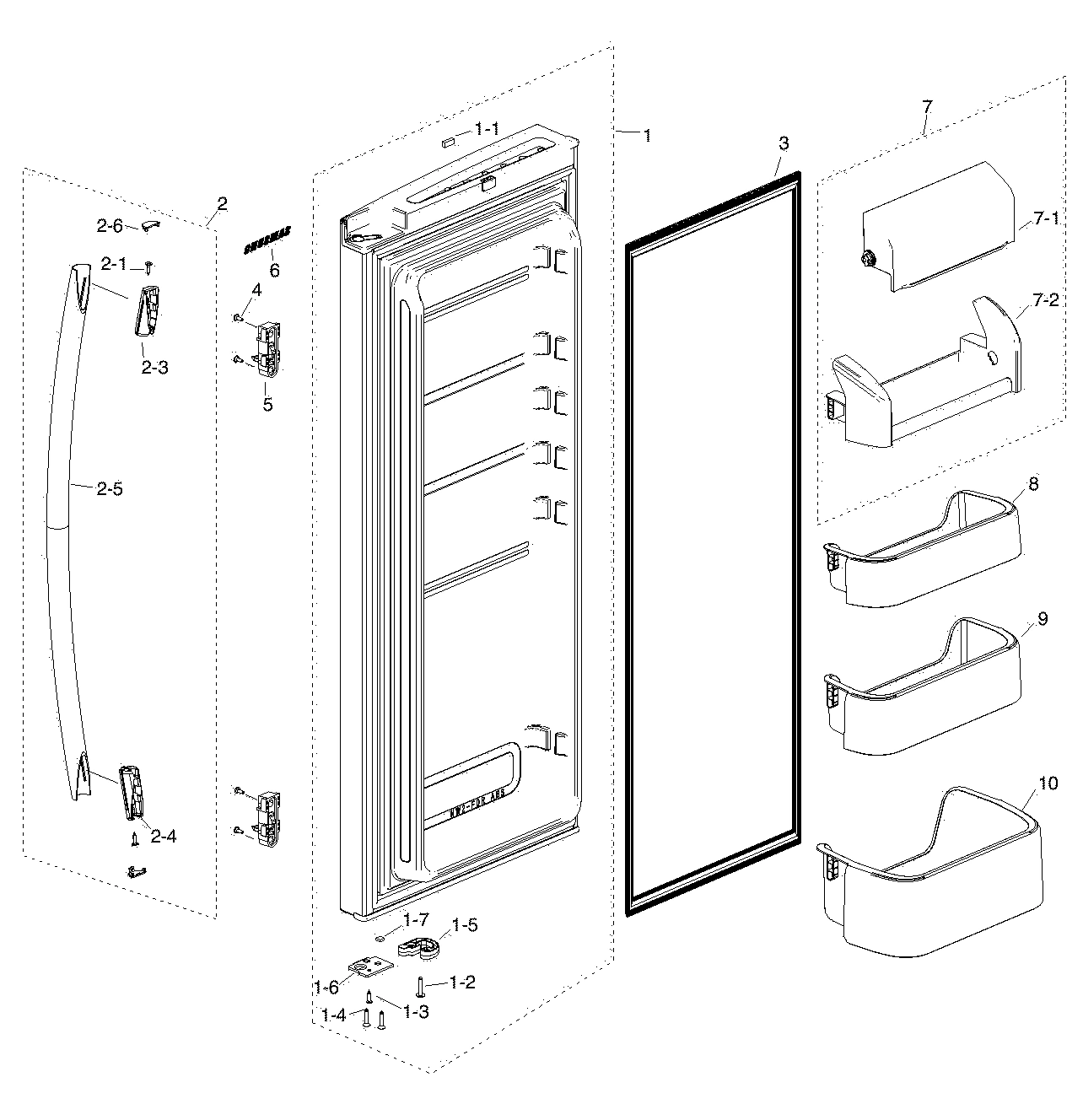

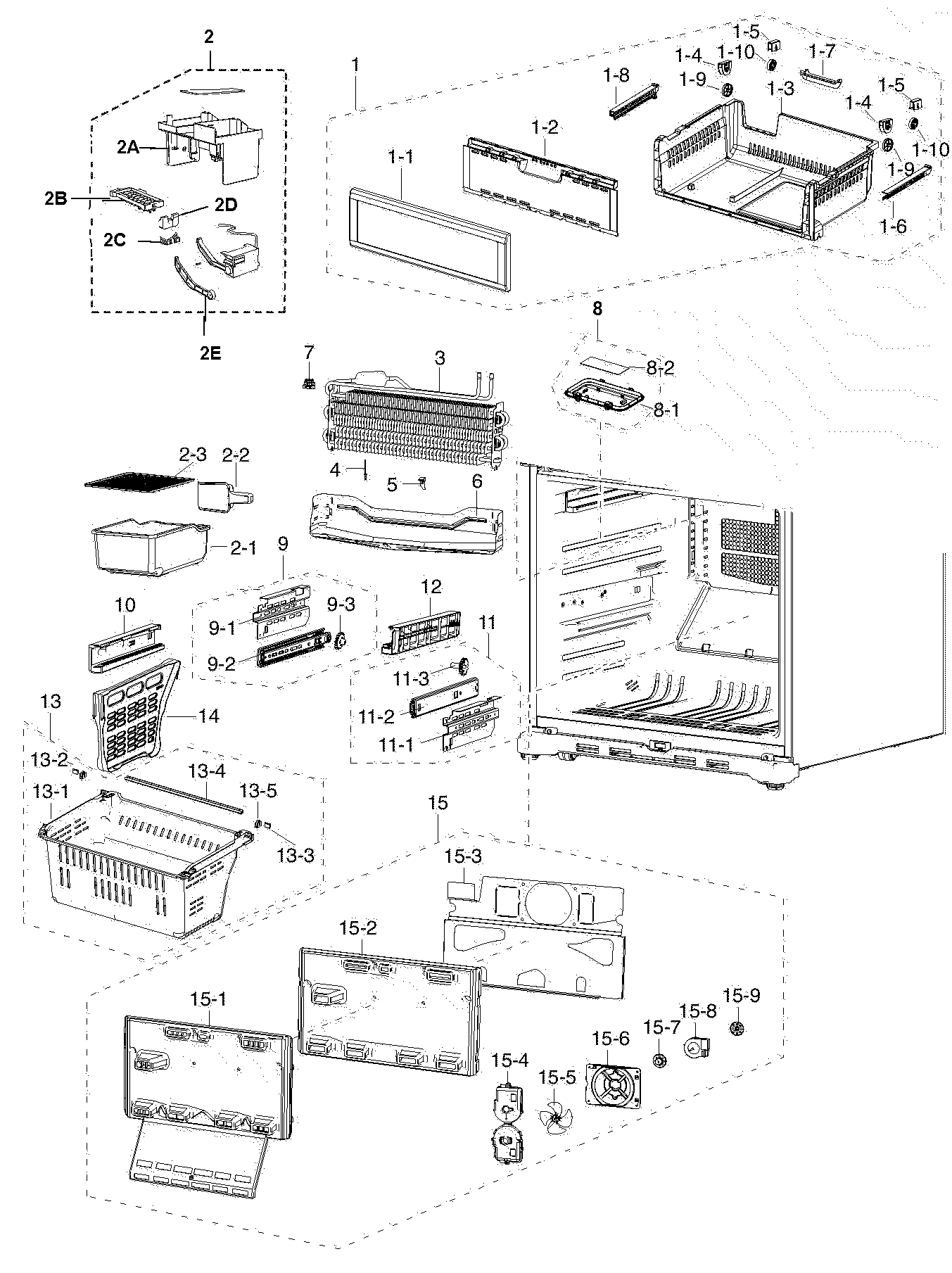

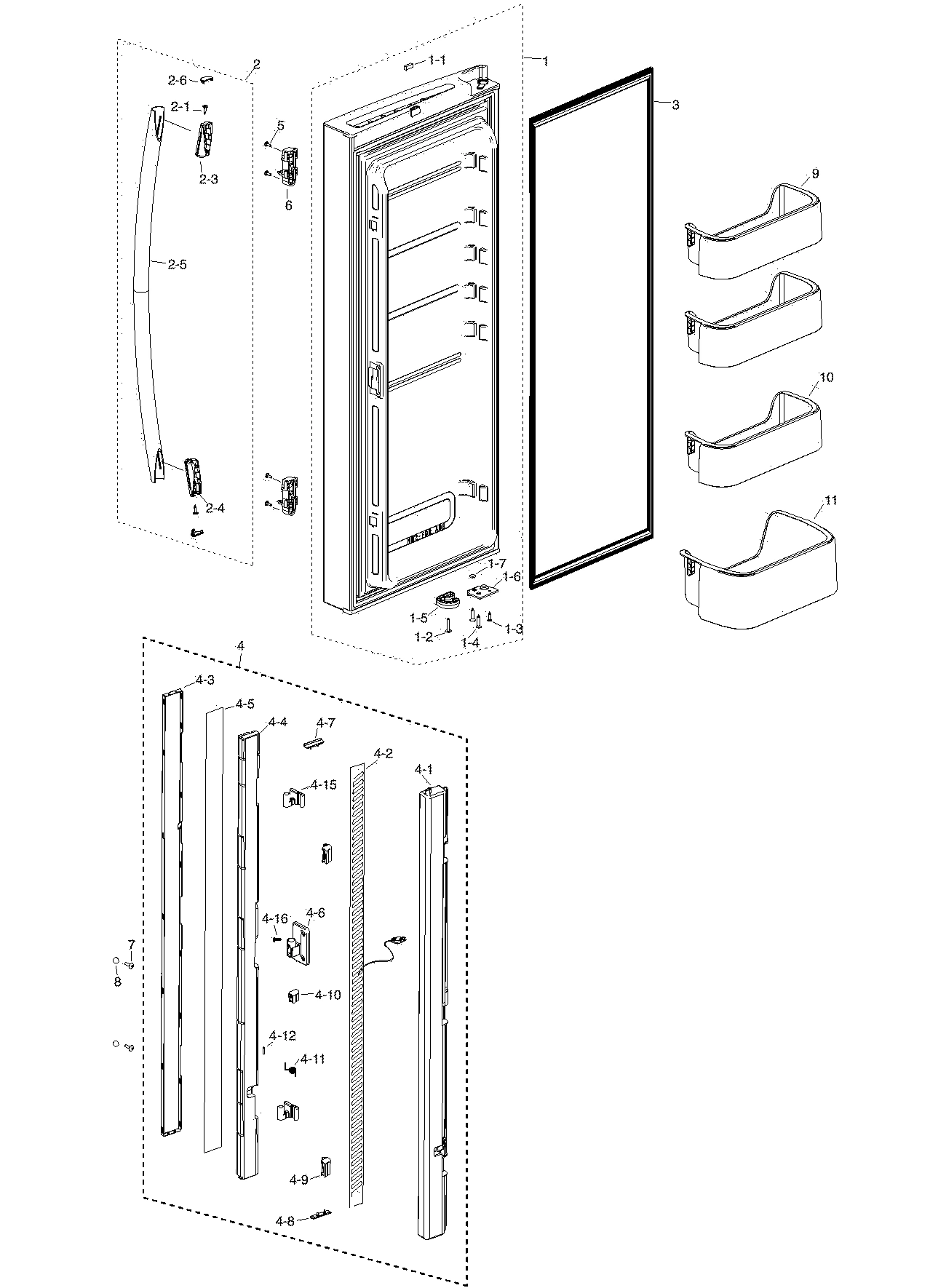

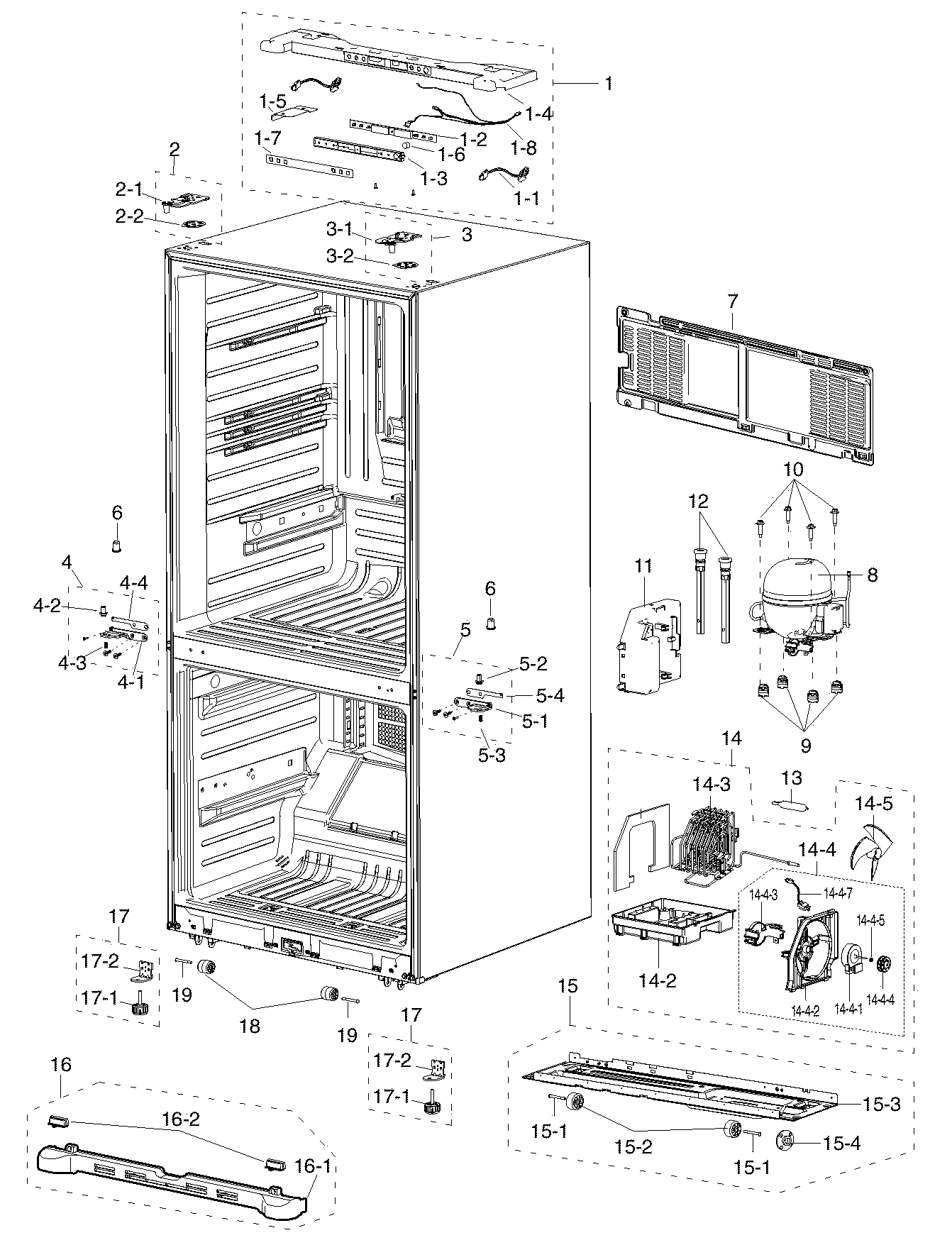

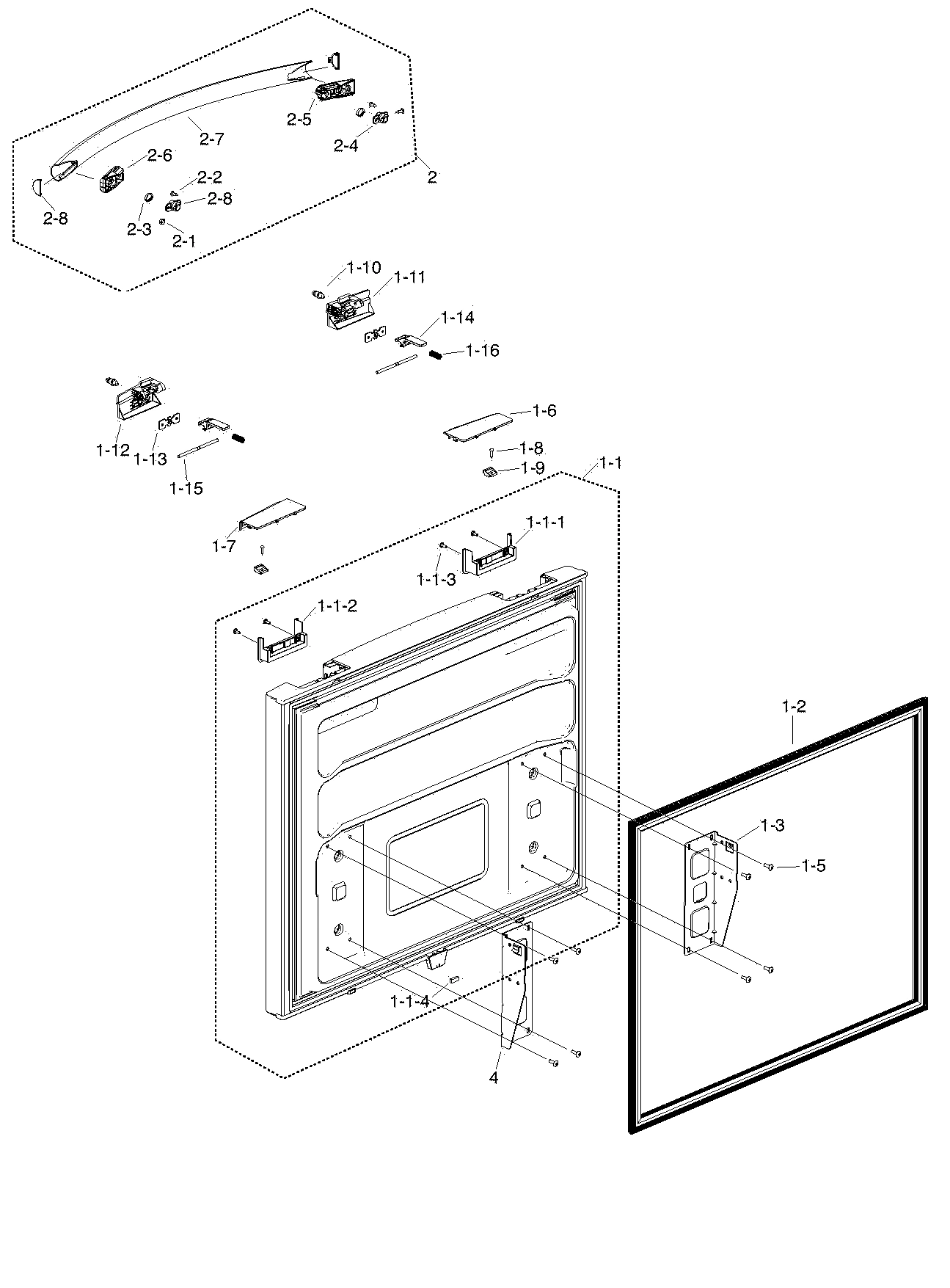

Samsung RF217ACBP/XAA-00 Refrigerator Parts List

1

Refrigerator Door Assembly SMG DA91-03420A Contact Us For Availability

View on Model

1

Refrigerator Door Assembly SMG DA91-03062A Contact Us For Availability

View on Model

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $26.69

View on Model

1-2

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.97

View on Model

1-2

DA97-07722A Samsung Refrigerator Door Gasket Backorder SMG DA97-07722A $110.70

View on Model

1-3

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $0.97

View on Model

1-3

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $61.77

View on Model

1-3

DA61-05316A Samsung Refrigerator Case PCB Dis Backorder SMG DA61-05316A $6.33

View on Model

1-3

DA63-05359A Samsung Refrigerator Upper Tray N Backorder SMG DA63-05359A $112.80

View on Model

1-4

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $0.97

View on Model

1-4

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $58.22

View on Model

1-4

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.70

View on Model

1-5

DA61-15273A Samsung Refrigerator Door Close S Backorder SMG DA61-15273A $6.79

View on Model

1-6

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $19.45

View on Model

1-6

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $26.15

View on Model

1-6

DA63-05034A Samsung Refrigerator Handle Cover Backorder SMG DA63-05034A $7.70

View on Model

1-7

DA63-05033A Samsung Refrigerator Handle Cover Backorder SMG DA63-05033A $7.24

View on Model

1-7

DA63-05184A Samsung Refrigerator Ice Cover Backorder SMG DA63-05184A $6.33

View on Model

1-7

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.97

View on Model

1-8

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $16.29

View on Model

1-9

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.52

View on Model

1-10

Refrigerator door handle mounting bolt SMG DA61-05327A Contact Us For Availability

View on Model

1-11

DA67-02639C Samsung Refrigerator Handle Cap - Backorder SMG DA67-02639C $23.08

View on Model

1-12

Refrigerator freezer door handle mounting cap SMG DA67-02638C Contact Us For Availability

View on Model

1-13

DA61-05215A Samsung Refrigerator Freezer Door Backorder SMG DA61-05215A $4.07

View on Model

1-16

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.26

View on Model

2

DA97-06715C Samsung Refrigerator Door Hinge A Backorder SMG DA97-06715C $63.55

View on Model

2

Refrigerator Handle SMG DA97-08879A Contact Us For Availability

View on Model

2-1

6002-001364 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001364 $0.97

View on Model

2-1

DA61-03189A Samsung Refrigerator Ice Cube Buc Backorder SMG DA61-03189A $46.28

View on Model

2-1

DA61-04475B Samsung Refrigerator Upper Hinge Backorder SMG DA61-04475B $52.01

View on Model

2-3

Refrigerator Support SMG DA61-06253A Contact Us For Availability

View on Model

2-4

DA61-06254A Samsung Refrigerator Handle Suppo Backorder SMG DA61-06254A $15.85

View on Model

2-5

DA61-06215A Samsung Refrigerator Freezer Door Backorder SMG DA61-06215A $6.33

View on Model

2-5

Refrigerator Door Handle Assembly SMG DA64-03342A Contact Us For Availability

View on Model

2-6

DA61-06216A Samsung Refrigerator Door Handle Backorder SMG DA61-06216A $5.89

View on Model

2-6

Refrigerator Handle Cap SMG DA67-02673B Contact Us For Availability

View on Model

2B

DA63-02284B Samsung Refrigerator Ice Cube Tra Backorder SMG DA63-02284B $20.82

View on Model

2C

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.26

View on Model

2D

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $26.25

View on Model

2E

DA61-00954B Samsung Refrigerator Full Ice Gui In Stock SMG DA61-00954B $2.26

View on Model

3

DA97-06716D Samsung Refrigerator Upper Door H Backorder SMG DA97-06716D $49.14

View on Model

3

DA97-07668A Samsung Refrigerator Door Gasket Backorder SMG DA97-07668A $188.66

View on Model

3-1

DA61-04476B Samsung Refrigerator Upper Right Backorder SMG DA61-04476B $30.90

View on Model

4

DA97-07514C Samsung Refrigerator Left Mid Hin Backorder SMG DA97-07514C $72.08

View on Model

4

Refrigerator Flipper Assembly SMG DA97-07661A Contact Us For Availability

View on Model

4-1

Refrigerator Flipper Housing SMG DA61-05315A Contact Us For Availability

View on Model

4-2

DA47-00245E Samsung Refrigerator French Heate Backorder SMG DA47-00245E $53.44

View on Model

4-3

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.35

View on Model

4-3

Refrigerator Plate SMG DA61-05291A Contact Us For Availability

View on Model

4-4

Refrigerator Insulation SMG DA62-02212A Contact Us For Availability

View on Model

4-5

DA62-02294A Samsung Refrigerator Cut-French S Backorder SMG DA62-02294A $20.36

View on Model

4-6

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.79

View on Model

4-7

Refrigerator Flipper Seal SMG DA63-03508A Contact Us For Availability

View on Model

4-8

DA63-05158A Samsung Refrigerator French Gaske Backorder SMG DA63-05158A $10.40

View on Model

4-9

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.07

View on Model

4-10

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.52

View on Model

4-11

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $3.63

View on Model

4-12

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $0.97

View on Model

4-13

DA67-02306A Samsung Refrigerator French Door Backorder SMG DA67-02306A $0.97

View on Model

4-14

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.97

View on Model

4-15

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $2.72

View on Model

4-16

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

View on Model

5

6002-000468 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000468 $0.97

View on Model

5

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.35

View on Model

5

Fixer Ss SMG DA61-04440A Contact Us For Availability

View on Model

6

Refrigerator Nameplate SMG DA64-01985A Contact Us For Availability

View on Model

6-2

c SMG DA63-40006A Contact Us For Availability

View on Model

7

DA97-00103P Samsung RAIL-VEG Assembly Backorder SMG DA97-00103P $26.56

View on Model

7

DA97-07681A Samsung Refrigerator Dairy Guard Backorder SMG DA97-07681A $43.41

View on Model

7-1

DA61-60127E Samsung Refrigerator Vegetable Ra Backorder SMG DA61-60127E $28.97

View on Model

7-1

DA63-05042A Samsung Dairy Guard Backorder SMG DA63-05042A $39.04

View on Model

7-2

DA63-05050A Samsung Dairy Guard Cover Backorder SMG DA63-05050A $18.55

View on Model

8

DA67-30218R Samsung Cap Screw Backorder SMG DA67-30218R $0.97

View on Model

8

DA97-08606A Samsung Lamp Cover Assembly Backorder SMG DA97-08606A $102.51

View on Model

8-1

c SMG DA63-05430A Contact Us For Availability

View on Model

8-2

DA96-00398F Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-00398F $87.25

View on Model

9

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $3.63

View on Model

9

DA63-05131A Samsung Refrigerator Upper Guard Backorder SMG DA63-05131A $25.78

View on Model

9

DA97-06700B Samsung Refrigerator New Projecto Backorder SMG DA97-06700B $100.91

View on Model

9

DA97-06703B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-06703B $155.81

View on Model

9-1

Refrigerator Lamp Assembly SMG DA61-00762A Contact Us For Availability

View on Model

9-2

Refrigerator Case Assembly SMG DA63-04445B Contact Us For Availability

View on Model

9-3

DA64-00656A Samsung Refrigerator Humidity Kno In Stock SMG DA64-00656A $1.81

View on Model

9-4

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $5.42

View on Model

9-5

DA71-20145A Samsung Refrigerator Roller Fixer Backorder SMG DA71-20145A $0.97

View on Model

10

DA61-04507A Samsung Refrigerator Low Support Backorder SMG DA61-04507A $46.26

View on Model

10

DA63-05035A Samsung Refrigerator Mid Guard As Backorder SMG DA63-05035A $26.25

View on Model

10

DA63-05036A Samsung Refrigerator Low Shelf Gu Backorder SMG DA63-05036A $44.47

View on Model

10

Refrigerator Freezer Roller SMG DA97-06656F Contact Us For Availability

View on Model

10-2

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.97

View on Model

10-3

Refrigerator Screw SMG DA31-00124A Contact Us For Availability

View on Model

10-5

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $18.10

View on Model

10-6

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $13.12

View on Model

10-7

DA61-03182A Samsung Refrigerator Evaporator G Backorder SMG DA61-03182A $0.97

View on Model

10-8

Refrigerator Evaporator Fan Motor Bracket SMG DA61-04701B Contact Us For Availability

View on Model

10-9

DA61-03599A Samsung Refrigerator Galvanized H Backorder SMG DA61-03599A $1.81

View on Model

11

DA96-00762A Samsung Refrigerator Evaporator A Backorder SMG DA96-00762A $158.33

View on Model

11-1

6501-000123 Samsung Refrigerator Cable Tie Backorder SMG 6501-000123 $0.97

View on Model

11-2

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $21.71

View on Model

11-3

DA47-00243K Samsung Refrigerator Bi-metal Def In Stock SMG DA47-00243K $38.64

View on Model

11-3

DA66-00435A Samsung Refrigerator Gear Assembl Backorder SMG DA66-00435A $4.52

View on Model

11-4

DA47-00244B Samsung Refrigerator Defrost Heat Backorder SMG DA47-00244B $86.39

View on Model

11-5

Refrigerator Protector SMG DA59-00399A Contact Us For Availability

View on Model

11-6

DA60-90005A Samsung Refrigerator Rivet Fasten Backorder SMG DA60-90005A $0.97

View on Model

11-7

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $8.14

View on Model

11-8

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.35

View on Model

11-9

DA61-06186A Samsung Drain Plate Backorder SMG DA61-06186A $122.54

View on Model

12

DA61-04506A Samsung Refrigerator Low Support Backorder SMG DA61-04506A $44.27

View on Model

12

DA61-05292A Samsung Refrigerator French Door Backorder SMG DA61-05292A $28.58

View on Model

13-4

DA61-06159A Samsung Refrigerator Drawer Box R Backorder SMG DA61-06159A $49.14

View on Model

14-2

DA63-04466B Samsung Refrigerator Water Drain Backorder SMG DA63-04466B $10.52

View on Model

14-5

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.48

View on Model

15-1

DA63-04444A Samsung Refrigerator Evaporator C Backorder SMG DA63-04444A $99.87

View on Model

15-1

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.63

View on Model

15-2

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $4.98

View on Model

15-4

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $11.77

View on Model

15-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.63

View on Model

15-8

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $126.00

View on Model

17-1

DA61-04977A Samsung Refrigerator Front Foot A Backorder SMG DA61-04977A $4.52

View on Model

18

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

View on Model

19

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

View on Model

113

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.97

View on Model

114

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.26

View on Model

1010

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.97

View on Model

1011

DA62-01383A Samsung Refrigerator Evaporator I Backorder SMG DA62-01383A $0.97

View on Model

1012

DA62-01423A Samsung Refrigerator Insulation E Backorder SMG DA62-01423A $0.97

View on Model

1013

Refrigerator Insulation SMG DA62-01941A Contact Us For Availability

View on Model

1014

Refrigerator Evaporator Cover Air Duct Insula SMG DA62-01969A Contact Us For Availability

View on Model

1018

Refrigerator Fan Motor Grommet SMG DA63-04439A Contact Us For Availability

View on Model

1019

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.35

View on Model

1020

DA64-02065A Samsung Refrigerator Evaporator C Backorder SMG DA64-02065A $19.45

View on Model

1021

DA96-00042P Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042P $39.26

View on Model

1441

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $92.22

View on Model

1444

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.07

View on Model

NI

3903-000400 Samsung Power Cord Refrigerator In Stock SMG 3903-000400 $78.06

View on Model

NI

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $25.77

View on Model

NI

DA62-01477A Samsung Refrigerator Water Inlet In Stock SMG DA62-01477A $75.32

View on Model

NI

DA63-03613A Samsung Refrigerator Cover-Ice Ma Backorder SMG DA63-03613A $11.77

View on Model

NI

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $17.64

View on Model

Model Samsung RF217ACBP/XAA-00 Refrigerator – Common Parts & Diagrams

Common parts from model Samsung RF217ACBP/XAA-00 Refrigerator

Search result for :
