Model GE ZKD90DPSN4SS Electric Range – Common Parts & Diagrams
CONTROL PANEL
UPPER DOOR

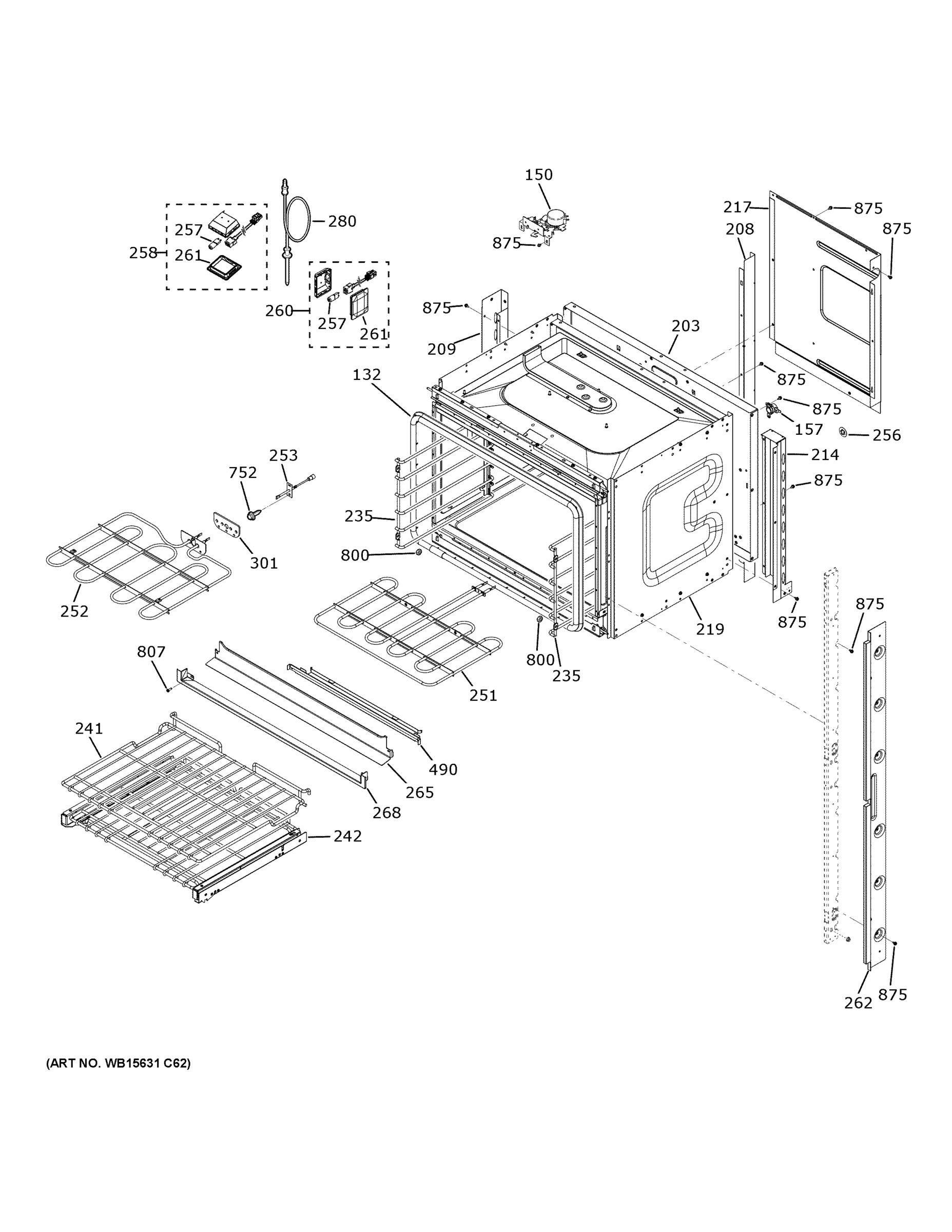

UPPER OVEN

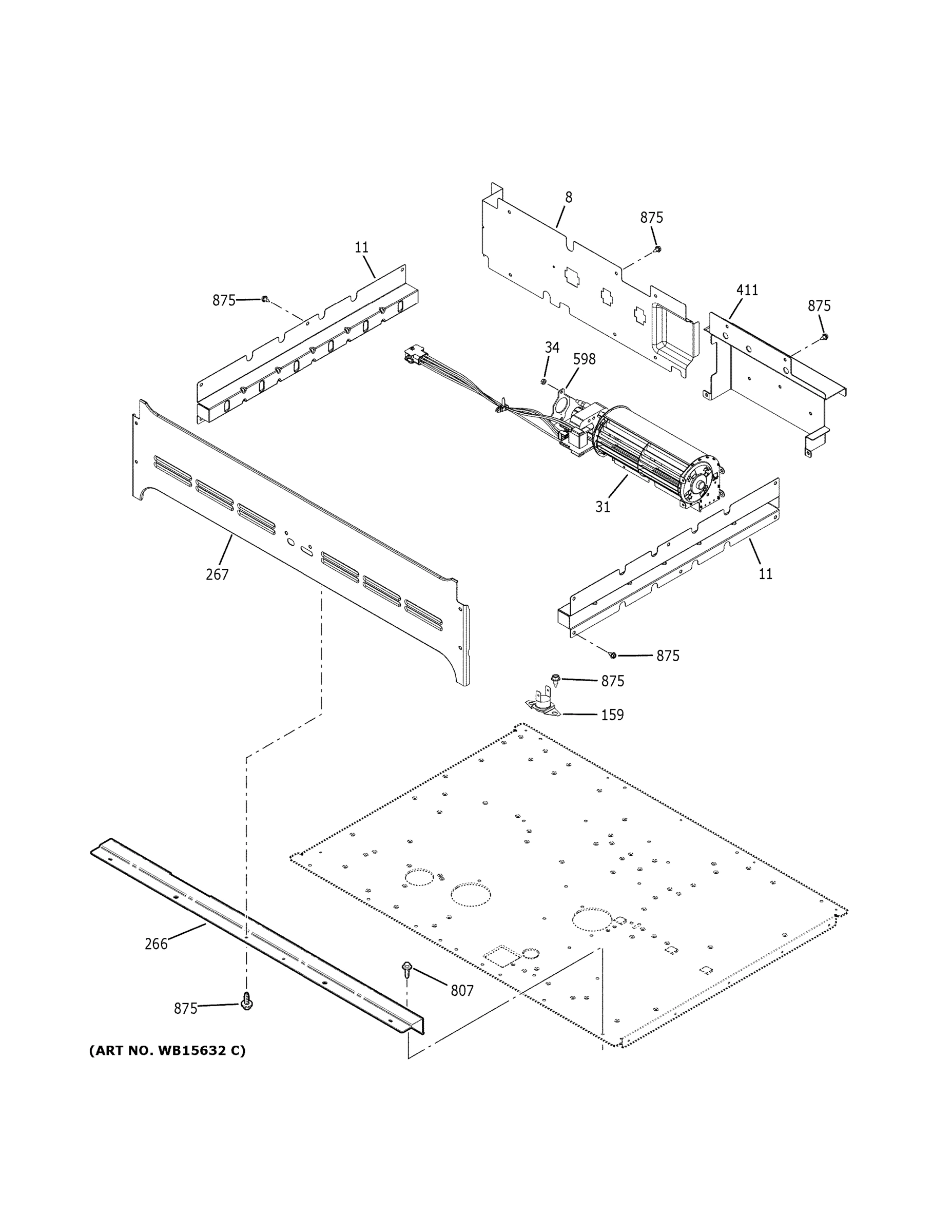

CENTER SPACER

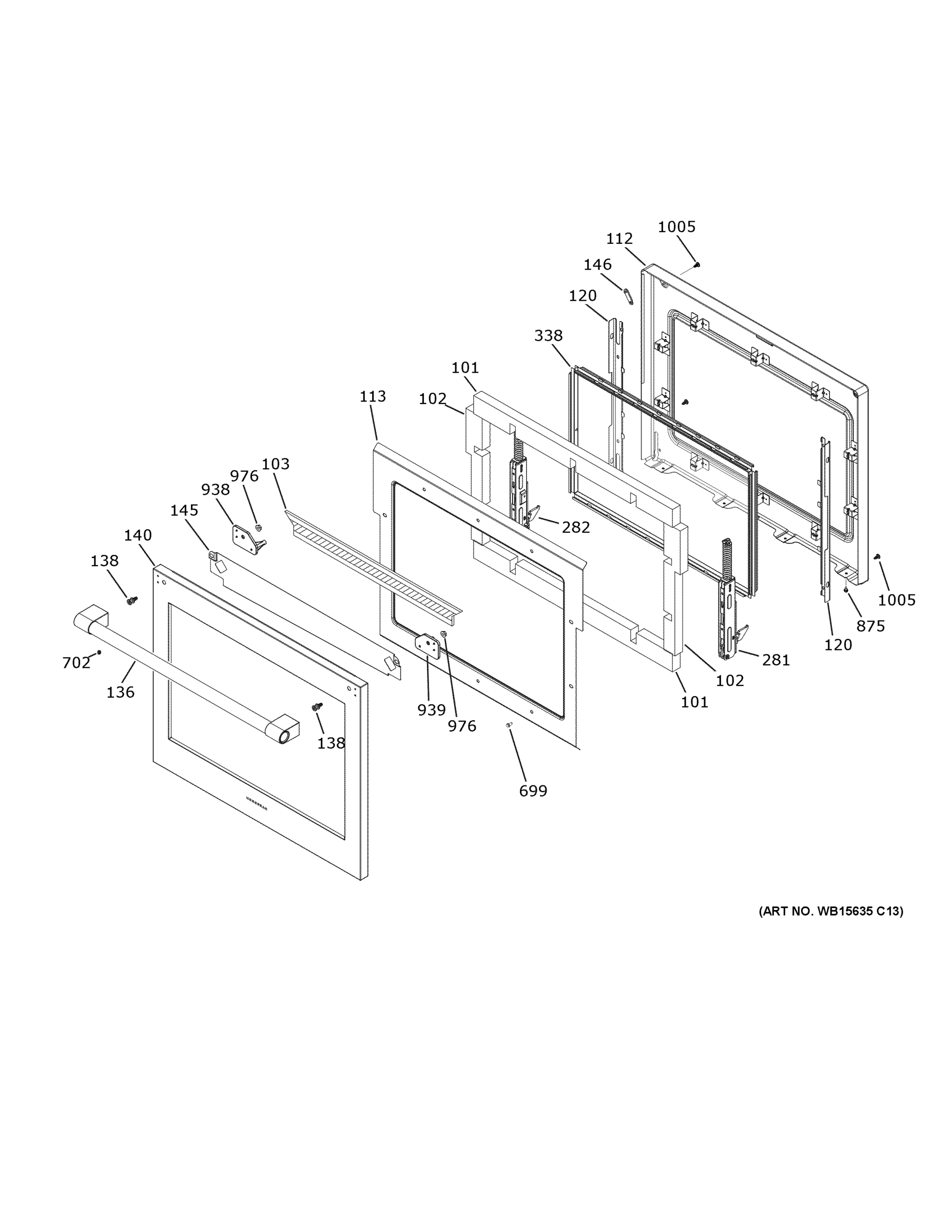

LOWER DOOR

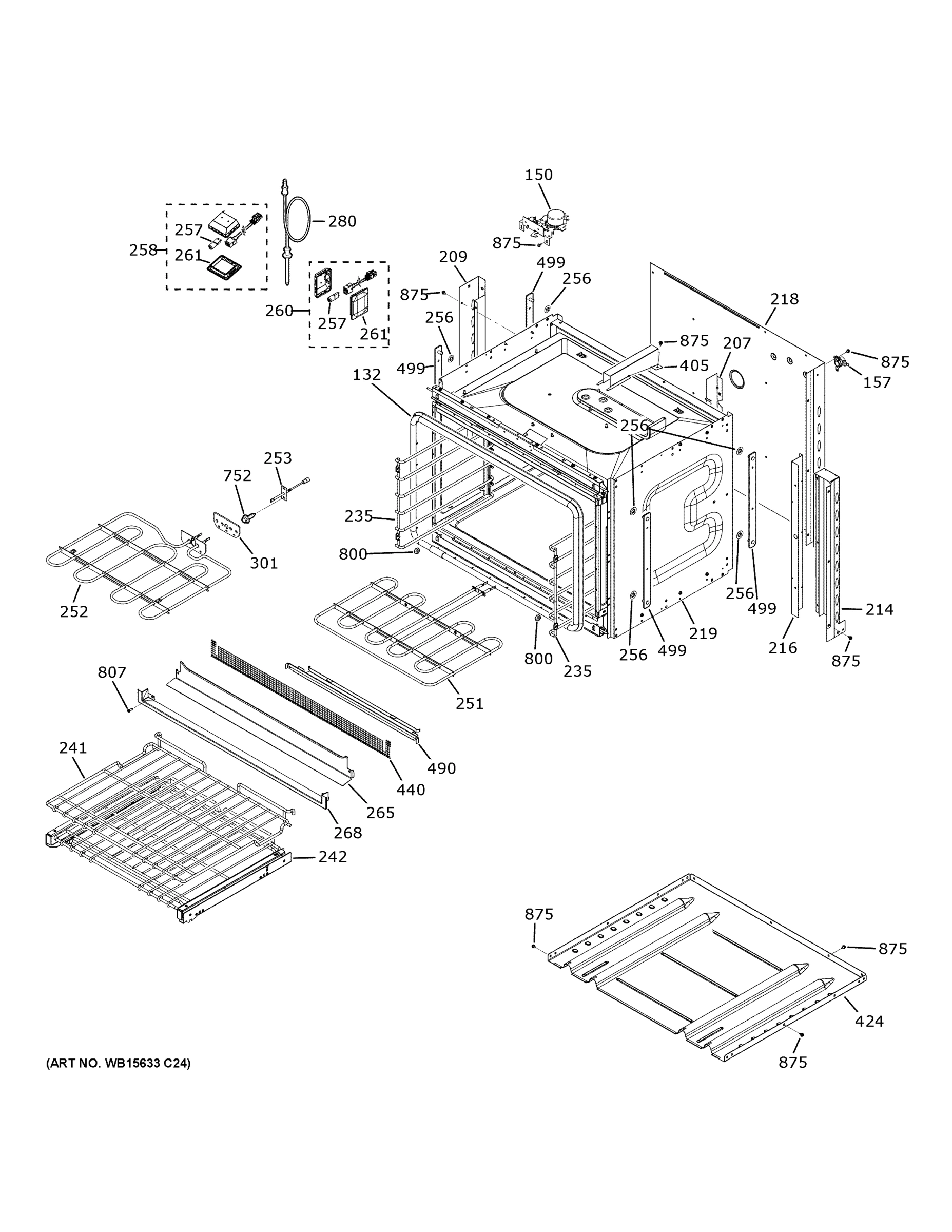

LOWER OVEN

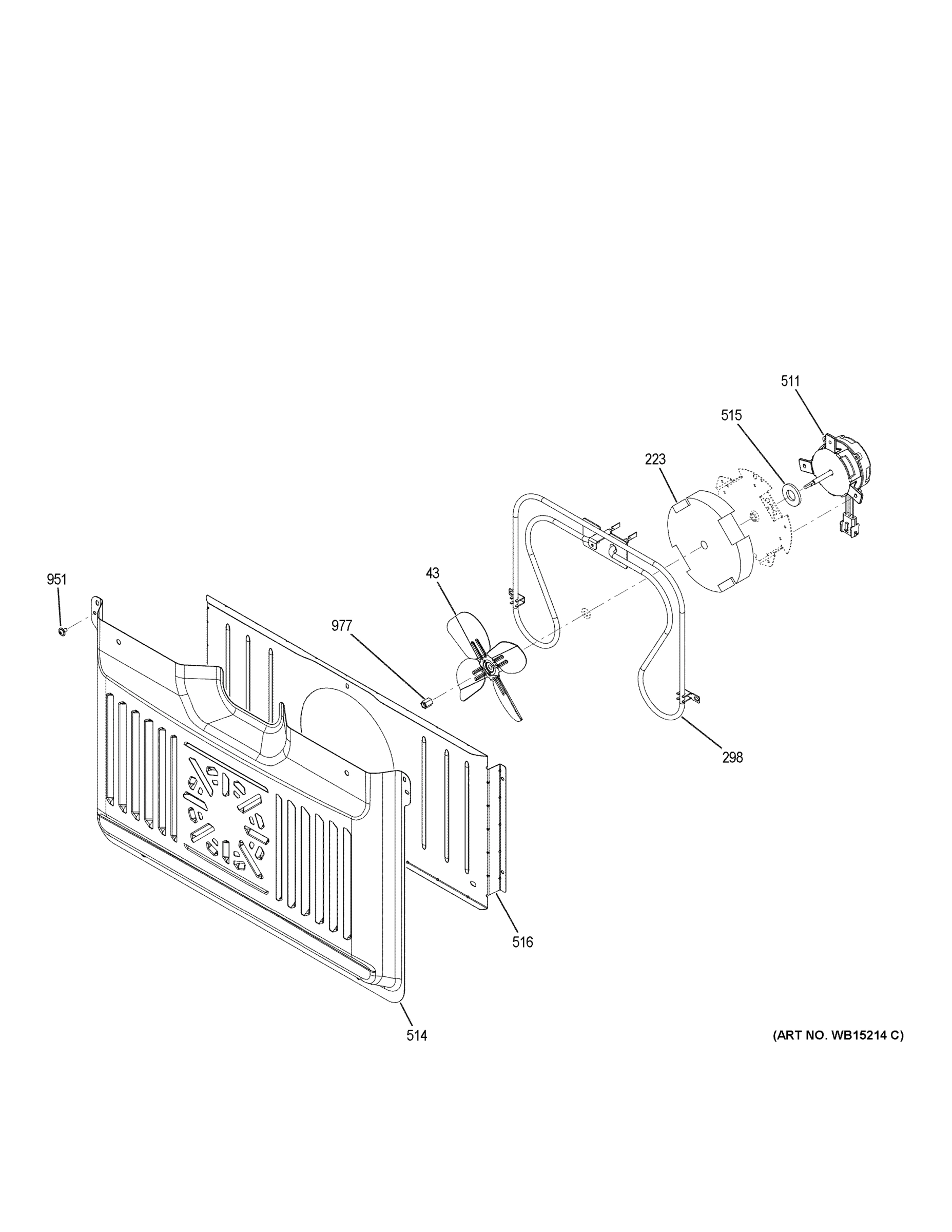

CONVECTION FAN
Common parts from model GE ZKD90DPSN4SS Electric Range
8
REAR EXTENSION GEN WB34X23821 Contact Us For Availability
11
EXTENSION SIDE GEN WB34T10146 Contact Us For Availability
13
JUMPER GEN WB18X30704 Contact Us For Availability
31
COOLING FAN LOWER GEN WB26X35089 Contact Us For Availability
32
FAN BLOWER GEN WB26X31060 Contact Us For Availability
34
NUT HEX M4-.7 THREAD GEN WB01T10133 Contact Us For Availability
102
DOOR SIDE INSULATION GEN WB35X31513 Contact Us For Availability
103
INSULATION DOOR 27" GEN WB35X33912 Contact Us For Availability
112
OVEN DOOR LINER ASM GEN WB63X32570 Contact Us For Availability
113
DOOR INSULATION RETAINER GEN WB34X31515 Contact Us For Availability
120
LINER SUPPORT GEN WB34X46746 Contact Us For Availability
132
GASKET OVEN DOOR GEN WB35X34867 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
136
STAINLESS HANDLE GEN WB15X35753 Contact Us For Availability
138
MOUNTING STUD GEN WB01X31574 Contact Us For Availability
140
GLASS AND TRIM OUTER DOOR W/ LOGO GEN WB56X43388 Contact Us For Availability
145
DEFLECTOR OUTER GLASS DOOR GEN WB34X33869 Contact Us For Availability
146
DOOR LINER PLUG GEN WB02X32816 Contact Us For Availability
150
LATCH ASM GEN WB10X28391 Contact Us For Availability
207
DIVIDER AIR CENTER GEN WB34T10134 Contact Us For Availability
208
DIVIDER AIR DOUBLE OVEN GEN WB34T10140 Contact Us For Availability
209
CHANNEL REAR GEN WB34X35265 Contact Us For Availability
214
CHANNEL REAR GEN WB55X10971 Contact Us For Availability
216
DIVIDER AIR DUCT RIGHT GEN WB34T10139 Contact Us For Availability
218
COVER LOWER REAR DUCT GEN WB34T10138 Contact Us For Availability
219
RETAINER INSLN SDE GEN WB34X21913 Contact Us For Availability
223
INSULATION CONVECT FAN GEN WB35T10259 Contact Us For Availability
235
GUIDE OVN RACK RT GEN WB48X21765 Contact Us For Availability
241
RACK FLAT 27" GEN WB48X34651 Contact Us For Availability
242
RACK OVEN SLIDE ASM 27" GEN WB48X34700 Contact Us For Availability
251
HIDDEN BAKE ELEMENT GEN WB44X48675 Contact Us For Availability
252
BROIL ELEMENT GEN WB44X48680 Contact Us For Availability
256
RETAINER BOLT GEN WB01T10107 Contact Us For Availability
258
HALOGEN LAMP ASM GEN WB25X31223 Contact Us For Availability
260
HALOGEN LAMP ASM GEN WB25X31221 Contact Us For Availability
261
OVEN LIGHT LENS GEN WB34X31317 Contact Us For Availability
265
TRIM VENT LWR GEN WB07X21777 Contact Us For Availability
266
UPPER VENT TRIM GEN WB07X33065 Contact Us For Availability
267
MIDDLE VENT TRIM GEN WB07X33066 Contact Us For Availability
268
STAINLESS STEEL BOTTOM TRIM ASM GEN WB07X33163 Contact Us For Availability
271
RELAY BOARD AND FRAME ASM GEN WB27X33083 Contact Us For Availability
281
SOFT CLOSE HINGE RIGHT DOOR GEN WB10X36951 Contact Us For Availability
282
SOFT CLOSE HINGE LEFT DOOR GEN WB10X36949 Contact Us For Availability
298
CONVECTION ELEMENT GEN WB44X48668 Contact Us For Availability
301
GASKET BROIL ELEMENT GEN WB35X21972 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X27502 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
405
CHANNEL LOWER AIR GEN WB34T10160 Contact Us For Availability
411
BRACKET FAN MOUNTING LOWER GEN WB37X35106 Contact Us For Availability
416
COVER TOP FRONT GEN WB34T10159 Contact Us For Availability
440
SCREEN SUPPORT GEN WB34X43347 Contact Us For Availability
499
CAVITY BRACE ASM GEN WB34X30789 Contact Us For Availability
514
COVER CONVECTION FAN GEN WB37T10019 Contact Us For Availability
515
GASKET CONV FAN GEN WB01T10079 Contact Us For Availability
516
DUCT CONVECTION OVEN GEN WB37T10020 Contact Us For Availability
598
BOARD SENSOR GEN WB27X28659 Contact Us For Availability
701
SCR 8-18 AB TRT20NBS 5/8 GEN WB01X21650 Contact Us For Availability
752
SCREW GEN WB01X21742 Contact Us For Availability
938
SUPPORT LEFT HANDLE GEN WB02X34647 Contact Us For Availability
939
SUPPORT HANDLE RIGHT GEN WB02X34674 Contact Us For Availability
951
SCREW 8-18 T20 3/8 IN GEN WB01T10134 Contact Us For Availability
976
HEX NUT 1/4-20 GEN WB01X31575 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
