Model GE ZISB42EMC Refrigerator – Common Parts & Diagrams

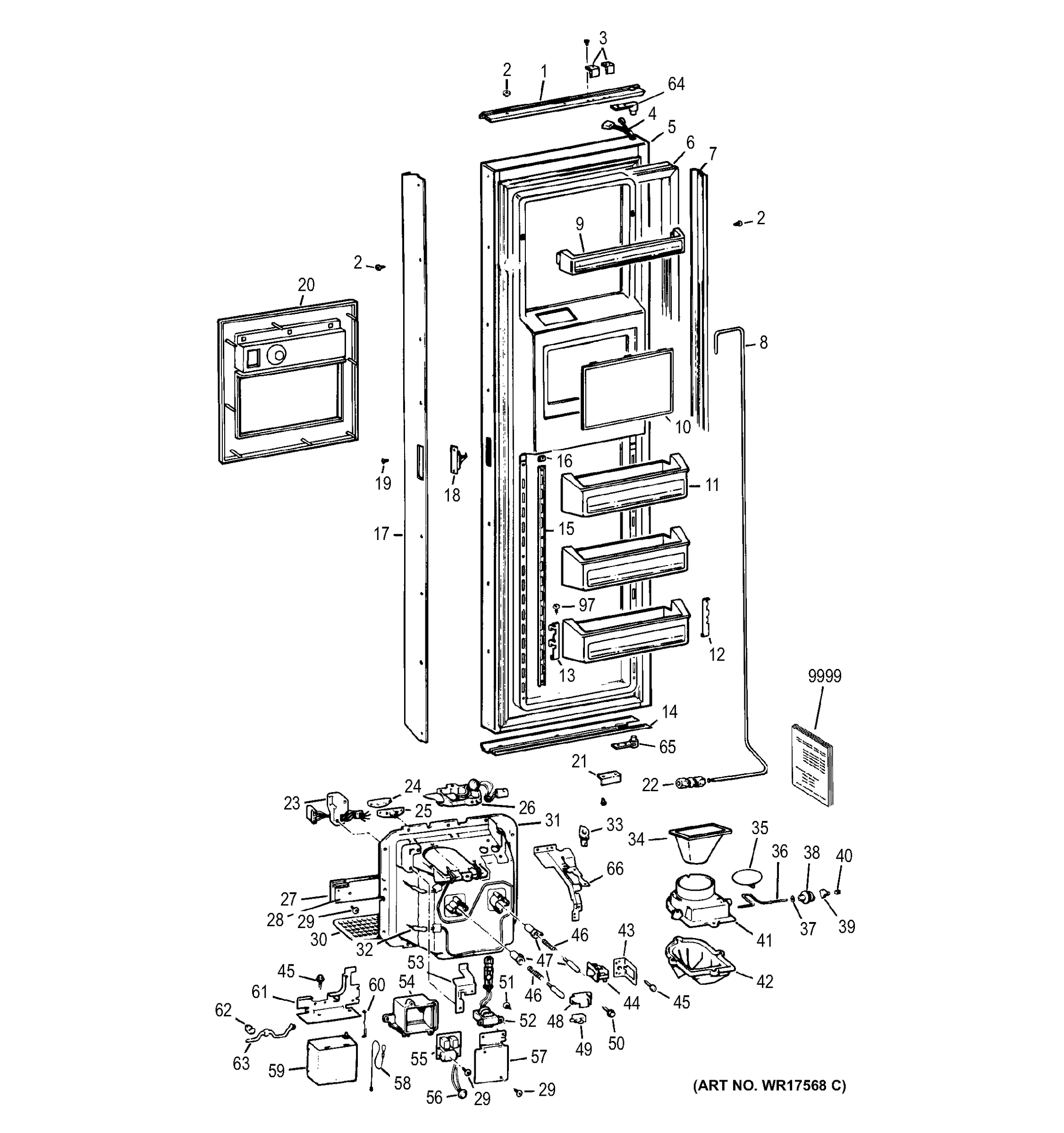

FREEZER DOOR

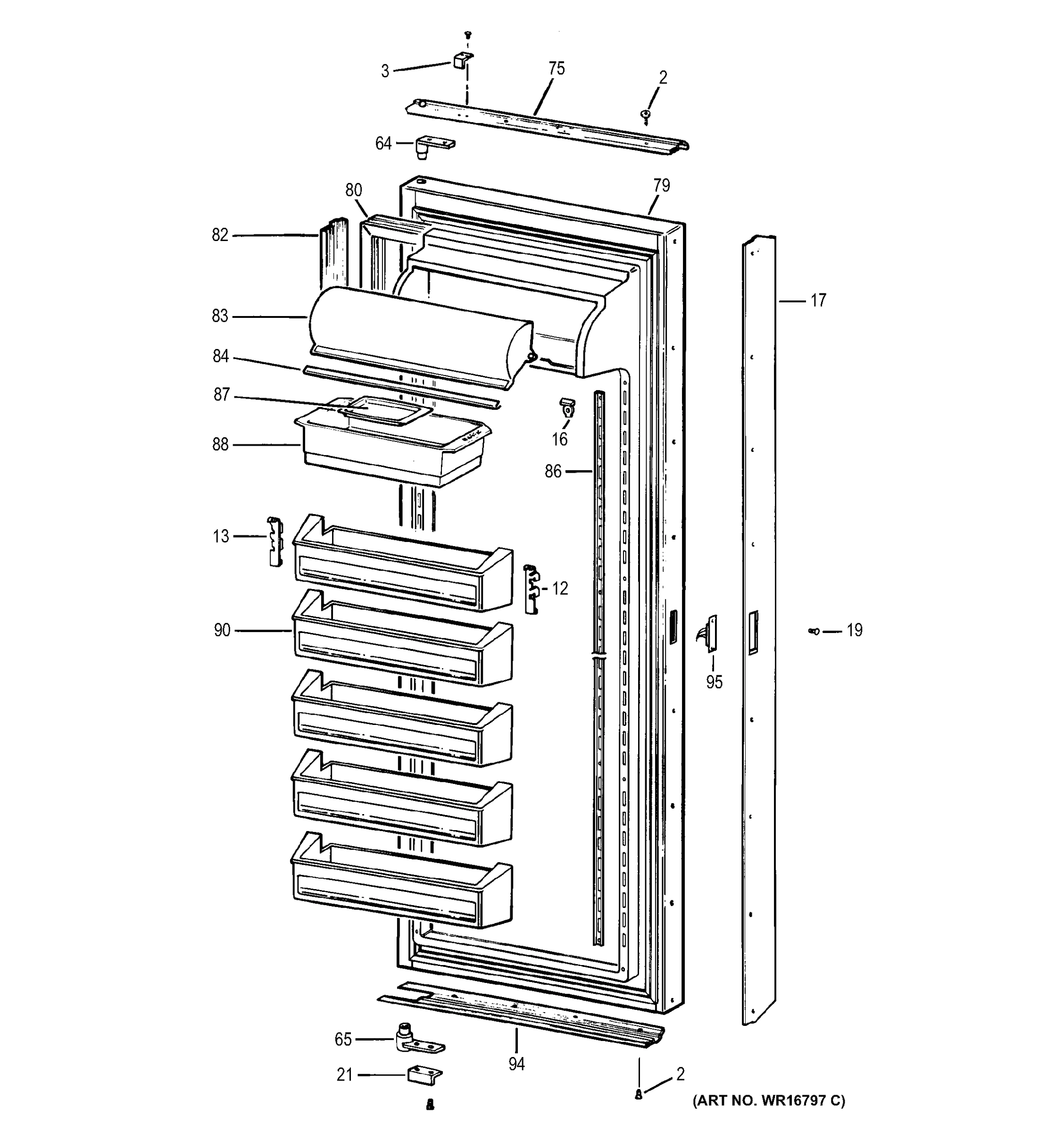

FRESH FOOD DOOR
FREEZER SECTION
FRESH FOOD SECTION
MACHINE COMPARTMENT
Common parts from model GE ZISB42EMC Refrigerator
3
SCREW-ACTIVATOR GEN WR01X5622 Contact Us For Availability
3
ACTIVATOR-SWITCH GEN WR02X7541 Contact Us For Availability
3
RISER-TOP GEN WR02X7879 Contact Us For Availability
10
SPEED CLIP GEN WR01X5689 Contact Us For Availability
10
WR17X2920 GEN WR17X6336 Contact Us For Availability
11
DOOR SHELF ASSY GEN WR17X6337 Contact Us For Availability
12
HOOK R/S GEN WR02X7544 Contact Us For Availability
13
HOOK L/S GEN WR02X7543 Contact Us For Availability
14
5B6382-02 GEN WR17X6338 Contact Us For Availability
15
TRACK GEN WR17X6339 Contact Us For Availability
16
CAP-TRACK TOP & BOTTOM GEN WR02X7542 Contact Us For Availability
17
DOOR HANDLE GEN WR12X5187 Contact Us For Availability
18
SENSOR DOOR FF & FZ GEN WR23X0310 Contact Us For Availability
19
SCREW-SENSOR GEN WR01X5687 Contact Us For Availability
20
FASTENER TUBULAR GEN WR02X3757 Contact Us For Availability
20
TRIM-RECESS GEN WR38X5413 Contact Us For Availability
20
WR38X2248 GEN WR38X5414 Contact Us For Availability
21
SCREW-STOP GEN WR01X5686 Contact Us For Availability
21
DOOR STOP GEN WR02X7880 Contact Us For Availability
23
HARNESS & HOUSING-RECESS GEN WR23X0306 Contact Us For Availability
24
PAD GEN WR02X7887 Contact Us For Availability
24
PAD GEN WR02X7888 Contact Us For Availability
25
CRADLE GEN WR02X7889 Contact Us For Availability
26
INSULATOR HOUSING GEN WR02X4570 Contact Us For Availability
26
HOUSING & SOCKET AS DISP GEN WR02X7243 Contact Us For Availability
27
CONTROL PANEL ASM GEN WR55X0020 Contact Us For Availability
28
PLUG SWITCH GEN WR02X7313 Contact Us For Availability
28
CLIP-PLASTIC GEN WR02X7314 Contact Us For Availability
28
BOARD ASM LOGIC GEN WR55X0016 Contact Us For Availability
29
SCR 6-20 AB PH 3/8 S GEN WZ02X0561 Contact Us For Availability
30
GRILLE RECESS GEN WR02X7891 Contact Us For Availability
31
RECESS DISP GEN WR17X2588 Contact Us For Availability
32
HEATER RECESS & DUCT ASM GEN WR51X0313 Contact Us For Availability
33
GROMMET WATER FILL RECES GEN WR02X4571 Contact Us For Availability
34
ICE CHUTE GEN WR17X6341 Contact Us For Availability
35
DUCT DOOR W/O LEVER GEN WR17X1586 Contact Us For Availability
36
CRANK DOOR DUCT DISP GEN WR02X4814 Contact Us For Availability
37
WASHER GEN WR01X1385 Contact Us For Availability
38
PULLEY TIME DELAY GEN WR17X1457 Contact Us For Availability
39
ARM TIME DELAY DISPLAY GEN WR17X1045 Contact Us For Availability
40
RING COMPRESSION GEN WR02X4595 Contact Us For Availability
41
GASKET DUCT-R. SIDE GEN WR14X0246 Contact Us For Availability
41
GASKET DUCT-L. SIDE GEN WR14X0247 Contact Us For Availability
41
DUCT RECESS GEN WR17X1257 Contact Us For Availability
42
SHIELD FUNNEL ASSY DISPL GEN WR17X6342 Contact Us For Availability
43
PLATE WATER SW RECESS GEN WR02X4771 Contact Us For Availability
44
SWITCH-CRADLE-WATER SIDE GEN WR23X0192 Contact Us For Availability
45
SCREW GEN WZ04X0364 Contact Us For Availability
46
SPRING-RECESS DUCT GEN WR02X3951 Contact Us For Availability
47
PLUNGER SCW & SLEEVE GEN WR02X4822 Contact Us For Availability
48
SUPPORT SW. GEN WR02X7068 Contact Us For Availability
49
PLATE MTG-DISP SWITCH GEN WR02X7237 Contact Us For Availability
49
SWITCH SELECT-CUBES DISP GEN WR23X0144 Contact Us For Availability
50
SCR 6-18 SPEC HXW 9/16 S GEN WR01X1464 Contact Us For Availability
52
TRANSFORMER ASM GEN WR62X0039 Contact Us For Availability
53
SUPPORT SELECTOR SWITCH GEN WR02X7245 Contact Us For Availability
54
HOUS GEN WR02X7349 Contact Us For Availability
55
GEN WR55X0013 GEN WR55X0013 Contact Us For Availability
56
GEN WR52X0024 GEN WR52X0024 Contact Us For Availability
57
GEN WR02X7350 GEN WR02X7350 Contact Us For Availability
58
GEN WR02X4237 GEN WR02X4237 Contact Us For Availability
59
GEN WR09X0268 GEN WR09X0268 Contact Us For Availability
60
GEN WR02X4248 GEN WR02X4248 Contact Us For Availability
61
GEN WR02X4235 GEN WR02X4235 Contact Us For Availability
62
GEN WR02X4234 GEN WR02X4234 Contact Us For Availability
63
GEN WR17X1048 GEN WR17X1048 Contact Us For Availability
64
SCREW-RISER GEN WR01X5626 Contact Us For Availability
65
RISER-BTM GEN WR02X7878 Contact Us For Availability
66
GEN WR02X7244 GEN WR02X7244 Contact Us For Availability
75
TRIM-TOP GEN WR17X6315 Contact Us For Availability
79
OUTER DOOR ASSY-FF GEN WR78X8053 Contact Us For Availability
80
WR24X493 GEN WR24X5251 Contact Us For Availability
82
TRIM DOOR GEN WR17X6316 Contact Us For Availability
83
5D6049-02 GEN WR22X5084 Contact Us For Availability
84
TRIM-DOOR GEN WR38X5412 Contact Us For Availability
86
TRACK GEN WR17X6317 Contact Us For Availability
87
DISH BUTTER GEN WR19X5003 Contact Us For Availability
88
WR32X897 GEN WR32X5192 Contact Us For Availability
90
DOOR SHELF ASSY GEN WR17X6318 Contact Us For Availability
94
TRIM BTM GEN WR17X6319 Contact Us For Availability
95
MAGNET DOOR SENSOR GEN WR02X7315 Contact Us For Availability
97
GEN WR01X5623 GEN WR01X5623 Contact Us For Availability
101
TUBE & GROMMET GEN WR17X6332 Contact Us For Availability
102
SHIM GEN WR02X7881 Contact Us For Availability
102
TOP HINGE GEN WR13X5221 Contact Us For Availability
105
DEFLECTOR GEN WR17X6343 Contact Us For Availability
106
TRIM GEN WR17X6250 Contact Us For Availability
108
5D7058-03 GEN WR23X5165 Contact Us For Availability
109
GUIDE-BUCKET GEN WR02X7902 Contact Us For Availability
111
AIR DEFLECTOR GEN WR17X6401 Contact Us For Availability
112
BTM-HOUSING GEN WR02X8079 Contact Us For Availability
113
COMPRESSOR BUSHING GEN WR02X8080 Contact Us For Availability
114
BAFFLE-CONTROL GEN WR02X8083 Contact Us For Availability
115
CONTROL GEN WR09X0452 Contact Us For Availability
116
CONTROL PANEL GEN WR17X6346 Contact Us For Availability
117
KNOB-CONTROL GEN WR02X7895 Contact Us For Availability
118
LIGHT SHIELD GEN WR17X6347 Contact Us For Availability
119
SUPPORT-SHLF BUCKT RF&LR GEN WR02X7896 Contact Us For Availability
120
SUPPORT-SHLF BUCKT LF&RR GEN WR02X7897 Contact Us For Availability
121
10 X 3/8 SMS PH PHIL GEN WR02X8081 Contact Us For Availability
121
COVER-LINER GEN WR17X6402 Contact Us For Availability
122
SCREW-COVER GEN WR01X5710 Contact Us For Availability
123
PROTECTOR SHELF GEN WR02X4566 Contact Us For Availability
123
SHELF BUCKET BTM DISPLAY GEN WR71X1729 Contact Us For Availability
125
NUT J GEN WR01X1547 Contact Us For Availability
126
DRIVE AUGER DISPENSER GEN WR02X4854 Contact Us For Availability
127
SUPP0RT TWIST GEN WR02X7310 Contact Us For Availability
128
COVER MOTOR & SOLENOID GEN WR17X2051 Contact Us For Availability
138
MOTOR AUGER DISP GEN WR60X0111 Contact Us For Availability
140
HARNESS MOTOR DISP GEN WR23X0194 Contact Us For Availability
141
TRACK SHELF FF GEN WR17X6325 Contact Us For Availability
142
SCREW GEN WR01X5635 Contact Us For Availability
143
SHELF GEN WR71X6076 Contact Us For Availability
144
TRIM GEN WR17X6349 Contact Us For Availability
145
CLIP SHELF TRIM GEN WR02X5008 Contact Us For Availability
146
BASKET GEN WR21X5116 Contact Us For Availability
147
HANDLE GEN WR12X5188 Contact Us For Availability
149
SUPPORT-FRONT GEN WR02X7898 Contact Us For Availability
150
SUPPORT-REAR GEN WR02X7899 Contact Us For Availability
151
HINGE-BOTTOM GEN WR13X5223 Contact Us For Availability
152
SHIM GEN WR02X7886 Contact Us For Availability
153
HINGE COVER GEN WR02X7900 Contact Us For Availability
154
CAP COVER GEN WR02X7901 Contact Us For Availability
155
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
156
LEVELING LEG GEN WR02X7560 Contact Us For Availability
158
AXLE GEN WR02X3595 Contact Us For Availability
158
COTTER PIN GEN WR02X3598 Contact Us For Availability
159
BREAKER STRIP-SIDES GEN WR40X5574 Contact Us For Availability
160
BREAKER STRIP-BOTTOM GEN WR40X5577 Contact Us For Availability
160
BREAKER STRIP-TOP GEN WR40X5578 Contact Us For Availability
161
CORNERS-BREAKER GEN WR40X5575 Contact Us For Availability
163
PIN SPIRAL GEN WR02X4141 Contact Us For Availability
164
GEN WR17X2059 GEN WR17X2059 Contact Us For Availability
164
SPRING ICE DEFLECTOR GEN WR02X4561 Contact Us For Availability
164
SCREW GEN WZ05X0194 Contact Us For Availability
166
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
166
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
168
GEN WR02X4139 GEN WR02X4139 Contact Us For Availability
169
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
174
GEN WR17X2062 GEN WR17X2062 Contact Us For Availability
175
GEN WR17X2060 GEN WR17X2060 Contact Us For Availability
176
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
177
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
178
GEN WR17X2056 GEN WR17X2056 Contact Us For Availability
178
GEN WR17X2057 GEN WR17X2057 Contact Us For Availability
179
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
180
GEN WR17X2054 GEN WR17X2054 Contact Us For Availability
184
GEN WR17X6456 GEN WR17X6456 Contact Us For Availability
185
GEN WR17X6461 GEN WR17X6461 Contact Us For Availability
185
GEN WR38X1157 GEN WR38X1157 Contact Us For Availability
186
GEN WR51X5215 GEN WR51X5215 Contact Us For Availability
187
GEN WR17 GEN WR17 Contact Us For Availability
201
SOCKET LIGHT GEN WR23X5156 Contact Us For Availability
202
SOCKET LIGHT GEN WR23X5164 Contact Us For Availability
203
REFLECTOR GEN WR17X6320 Contact Us For Availability
204
THEMODISC GEN WR50X0108 Contact Us For Availability
205
LIGHT SHIELD GEN WR17X6321 Contact Us For Availability
206
TOP TRIM GEN WR17X6322 Contact Us For Availability
209
RETAINER GEN WR17X6323 Contact Us For Availability
210
CONTROL PANEL GEN WR17X6324 Contact Us For Availability
211
GASKET R/S GEN WR14X5162 Contact Us For Availability
212
GASKET L/S GEN WR14X5163 Contact Us For Availability
213
SUPPORT GEN WR02X7882 Contact Us For Availability
214
SWITCH POWER SAVER GEN WR23X0309 Contact Us For Availability
215
SCREW PLATE GEN WR01X5632 Contact Us For Availability
215
PLATE-SWITCH GEN WR02X7883 Contact Us For Availability
216
CONTROL ASSEMBLY GEN WR09X0445 Contact Us For Availability
217
KNOB-CONTROL GEN WR02X7884 Contact Us For Availability
218
BRACKET-TANK GEN WR02X7885 Contact Us For Availability
219
WATER TANK GEN WR17X1482 Contact Us For Availability
220
HINGE R/S GEN WR13X5222 Contact Us For Availability
220
SCREW-HINGE GEN WR01X5653 Contact Us For Availability
221
BREAKER STRIP-TOP GEN WR40X5573 Contact Us For Availability
221
BREAKER STRIP-BTM GEN WR40X5576 Contact Us For Availability
223
MULLION HEATER GEN WR51X5214 Contact Us For Availability
224
SCREW-PLATE GEN WR01X5643 Contact Us For Availability
224
KICKPLATE GEN WR79X5174 Contact Us For Availability
225
SIDE TRIM-CABINET GEN WR17X6249 Contact Us For Availability
227
GLASS SHELF GEN WR32X5311 Contact Us For Availability
228
RETAINER GEN WR02X7549 Contact Us For Availability
229
SHELF GEN WR71X6075 Contact Us For Availability
230
TRIM-SHELF GEN WR17X6326 Contact Us For Availability
231
REFLECTOR GEN WR17X6327 Contact Us For Availability
232
WR17X3364 GEN WR17X6235 Contact Us For Availability
233
GASKET REAR GEN WR14X5155 Contact Us For Availability
233
GASKET FRONT GEN WR14X5157 Contact Us For Availability
234
SLIDE R/S GEN WR72X5059 Contact Us For Availability
235
SLIDE L/S GEN WR72X5060 Contact Us For Availability
236
HANDLE-PAN GEN WR17X6237 Contact Us For Availability
237
SNACK PAN GEN WR32X5312 Contact Us For Availability
238
RACK GEN WR17X6236 Contact Us For Availability
239
HANDLE RACK GEN WR17X6328 Contact Us For Availability
240
LOUVER-GLASS COVER GEN WR17X6329 Contact Us For Availability
241
VEG PAN COVER (GLASS) GEN WR32X5313 Contact Us For Availability
243
WR2X8965 GEN WR14X5159 Contact Us For Availability
244
SCREW SLIDE GEN WR01X5636 Contact Us For Availability
244
WR72X5061 GEN WR72X5054 Contact Us For Availability
245
SHIM GEN WR02X7552 Contact Us For Availability
246
HANDLE PAN GEN WR17X6330 Contact Us For Availability
247
PAN FRONT GEN WR17X6239 Contact Us For Availability
247
SCREW-FRONT GEN WZ04X0244 Contact Us For Availability
248
VEG PAN GEN WR32X5330 Contact Us For Availability
249
WR72X5062 GEN WR72X5055 Contact Us For Availability
250
PAN COVER (GLASS) GEN WR32X5331 Contact Us For Availability
251
HANDLE PAN GEN WR17X6331 Contact Us For Availability
252
SLIDE R/S GEN WR72X5061 Contact Us For Availability
253
SLIDE L/S GEN WR72X5062 Contact Us For Availability
254
DISH COVER (LGE) GEN WR02X7555 Contact Us For Availability
256
DISH COVER (SM) GEN WR02X7554 Contact Us For Availability
257
WR17X4009 GEN WR17X6241 Contact Us For Availability
258
CLIP GEN WR01X5709 Contact Us For Availability
258
HEATER GEN WR51X5218 Contact Us For Availability
259
DUCT GEN WR02X8082 Contact Us For Availability
260
HINGE COVER GEN WR13X5235 Contact Us For Availability
301
SCREW-GRILLE TO GRILLE GEN WR01X5685 Contact Us For Availability
301
MEDALLION GEN WR03X5133 Contact Us For Availability
301
5C0384-03 GEN WR79X5173 Contact Us For Availability
304
FAN ORIFICE GEN WR17X6351 Contact Us For Availability
306
BRACKET EVAP FAN GEN WR02X4792 Contact Us For Availability
307
GROMMET GEN WR02X2945 Contact Us For Availability
308
MOTOR EVAP FAN GEN WR60X0182 Contact Us For Availability
309
SCREW GEN WR01X1483 Contact Us For Availability
309
BRACKET EVAP FAN GEN WR02X7137 Contact Us For Availability
311
FOAM BLOCK GEN WR17X6311 Contact Us For Availability
312
DEFROST THERMOSTAT GEN WR50X0109 Contact Us For Availability
313
EVAPORATOR GEN WR85X0223 Contact Us For Availability
314
SUCTION & CAPILLARY TUBE GEN WR86X0089 Contact Us For Availability
316
WR17X10687 GEN WR17X6312 Contact Us For Availability
318
BASE-PAN GEN WR17X6313 Contact Us For Availability
320
CURRENT SENSOR GEN WR23X0319 Contact Us For Availability
321
5B7325-00 GEN WR23X5163 Contact Us For Availability
322
CONDENSER GEN WR84X0137 Contact Us For Availability
323
NUT LOCKING GEN WR01X1515 Contact Us For Availability
324
BLADE COND FAN GEN WR60X0167 Contact Us For Availability
327
NO ITEM DESCRIPTION GEN WR87X6314 Contact Us For Availability
329
RELAY (PTCR) GEN WR07X0190 Contact Us For Availability
330
CLIP GUARDETTE GEN WR02X7227 Contact Us For Availability
331
GUARDETTE GEN WR08X0101 Contact Us For Availability
332
COVER GEN WR02X7834 Contact Us For Availability
333
CLAMP COVER GEN WR02X7226 Contact Us For Availability
336
STEEL COLLAR GEN WR01X5648 Contact Us For Availability
336
GROMMET COMP MTG GEN WR02X7238 Contact Us For Availability
337
CLIP COMP MTG GEN WR02X7228 Contact Us For Availability
338
RELAY GEN WR07X0193 Contact Us For Availability
340
HARNESS-VALVE GEN WR23X5176 Contact Us For Availability
341
BAFFLE GEN WR17X6462 Contact Us For Availability
342
INSULATION GEN WR82X5056 Contact Us For Availability
9999
GEN 496606 GEN 496606 Contact Us For Availability
× ![]()
