Model GE ZISB36DYA Refrigerator – Common Parts & Diagrams

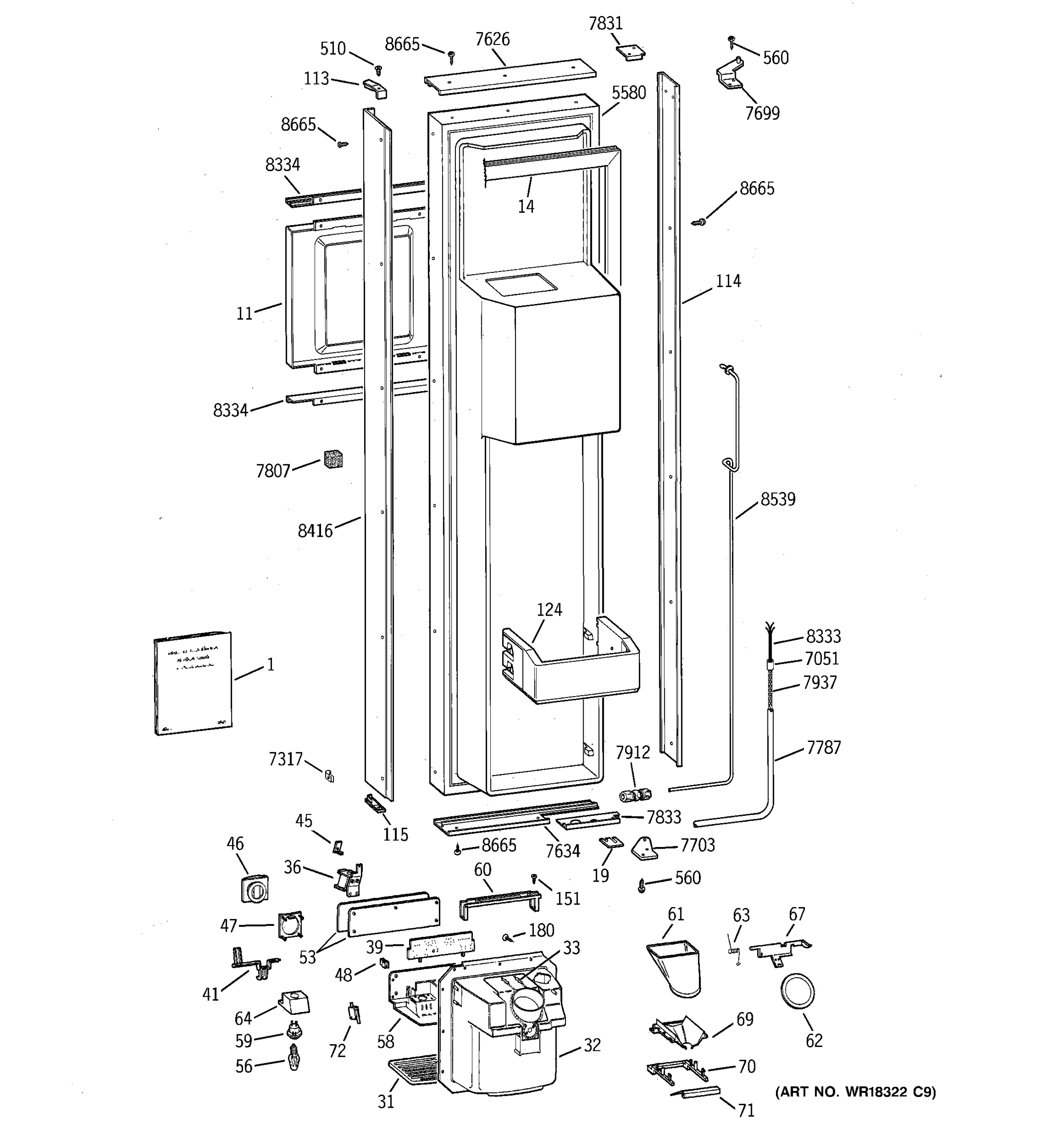

FREEZER DOOR

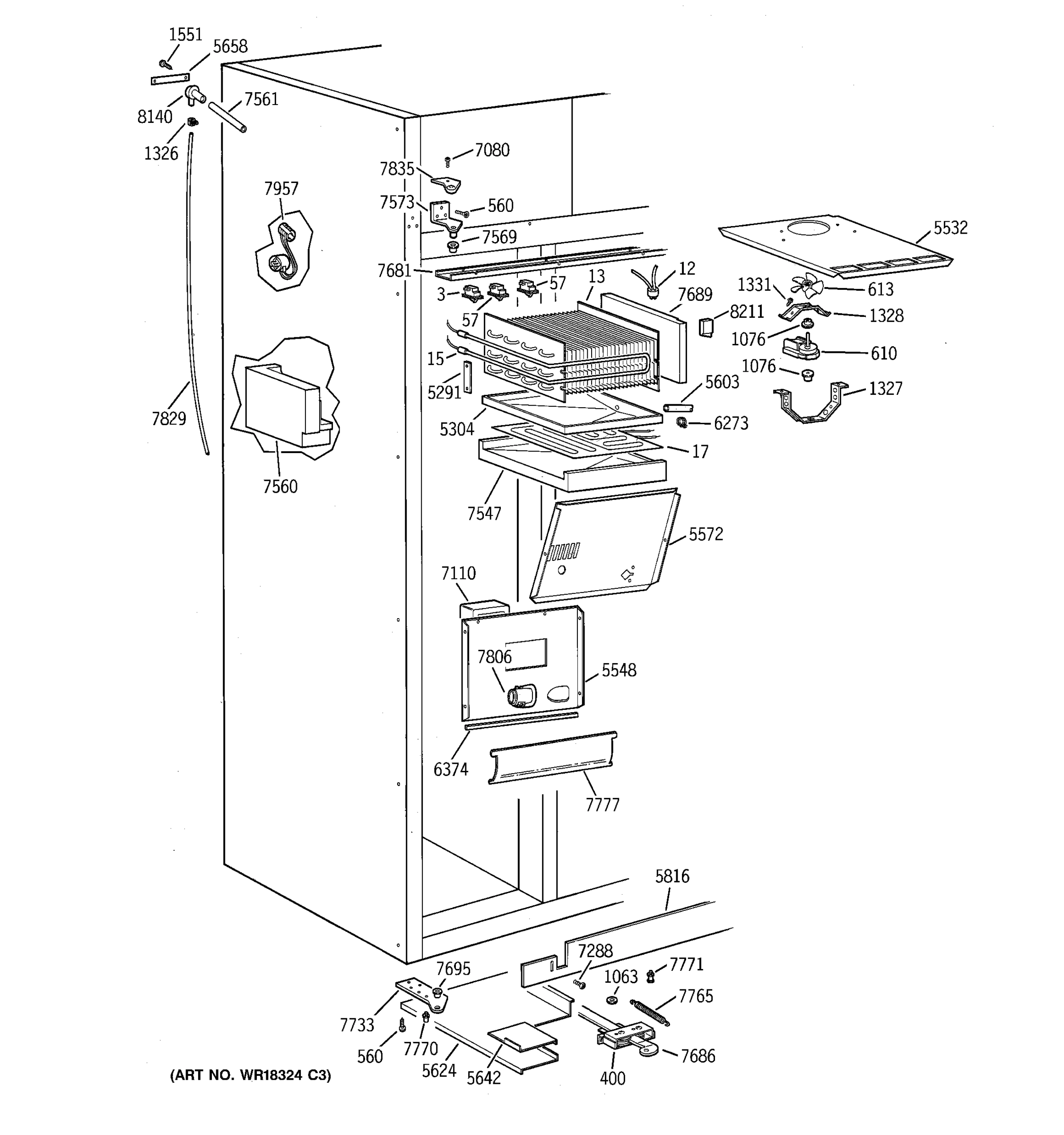

FREEZER SECTION
FREEZER SECTION

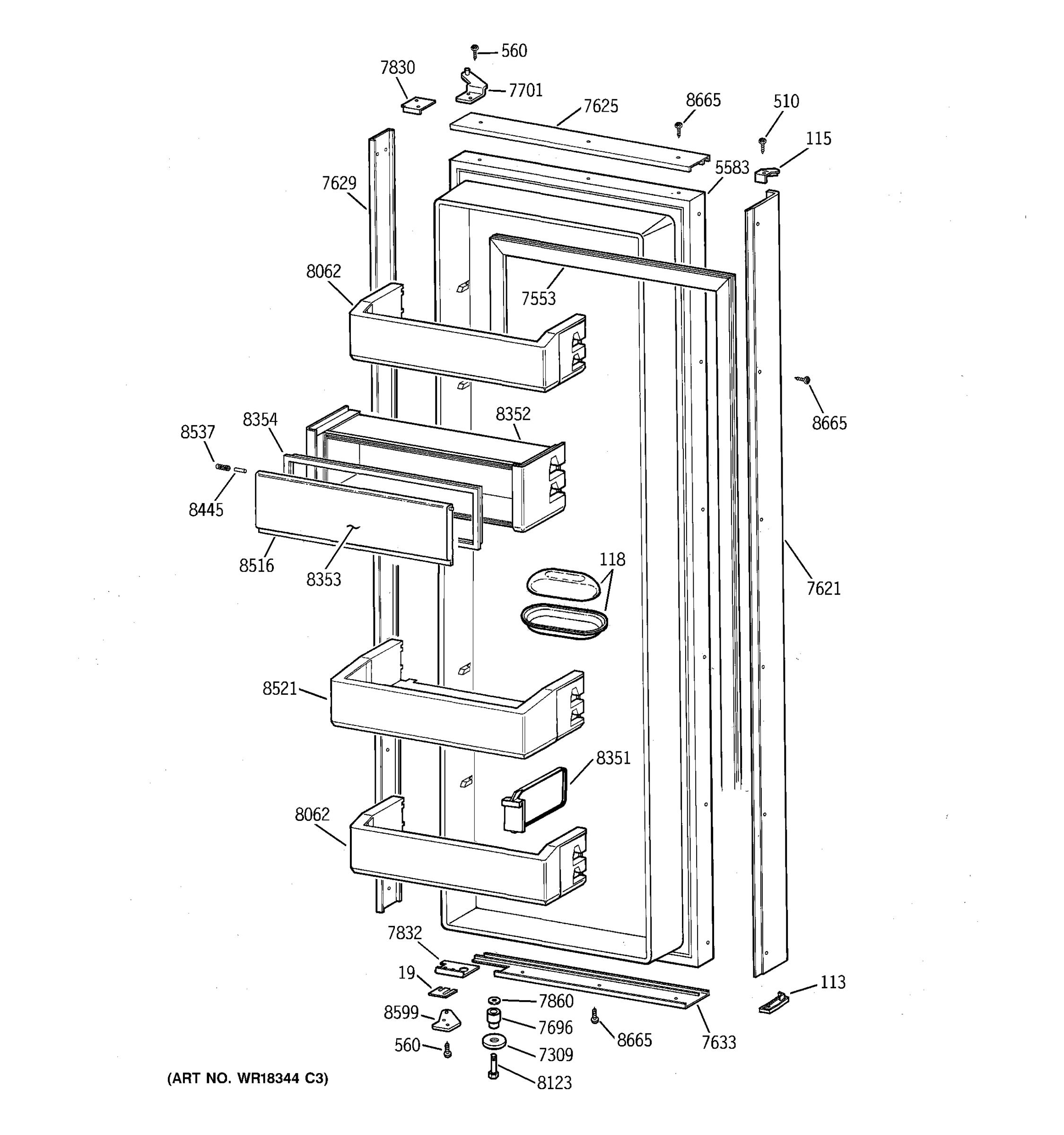

FRESH FOOD DOOR

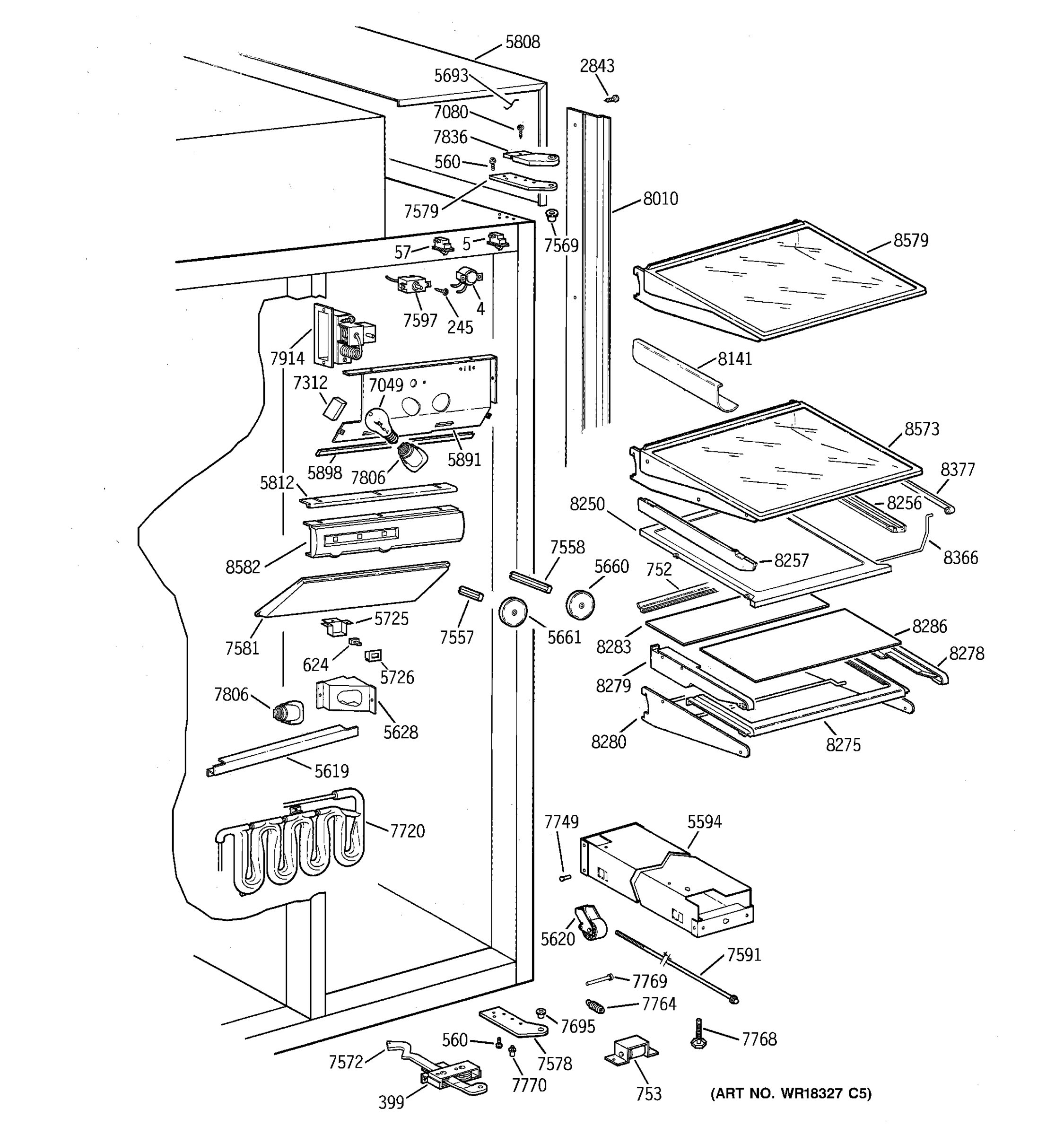

FRESH FOOD SECTION

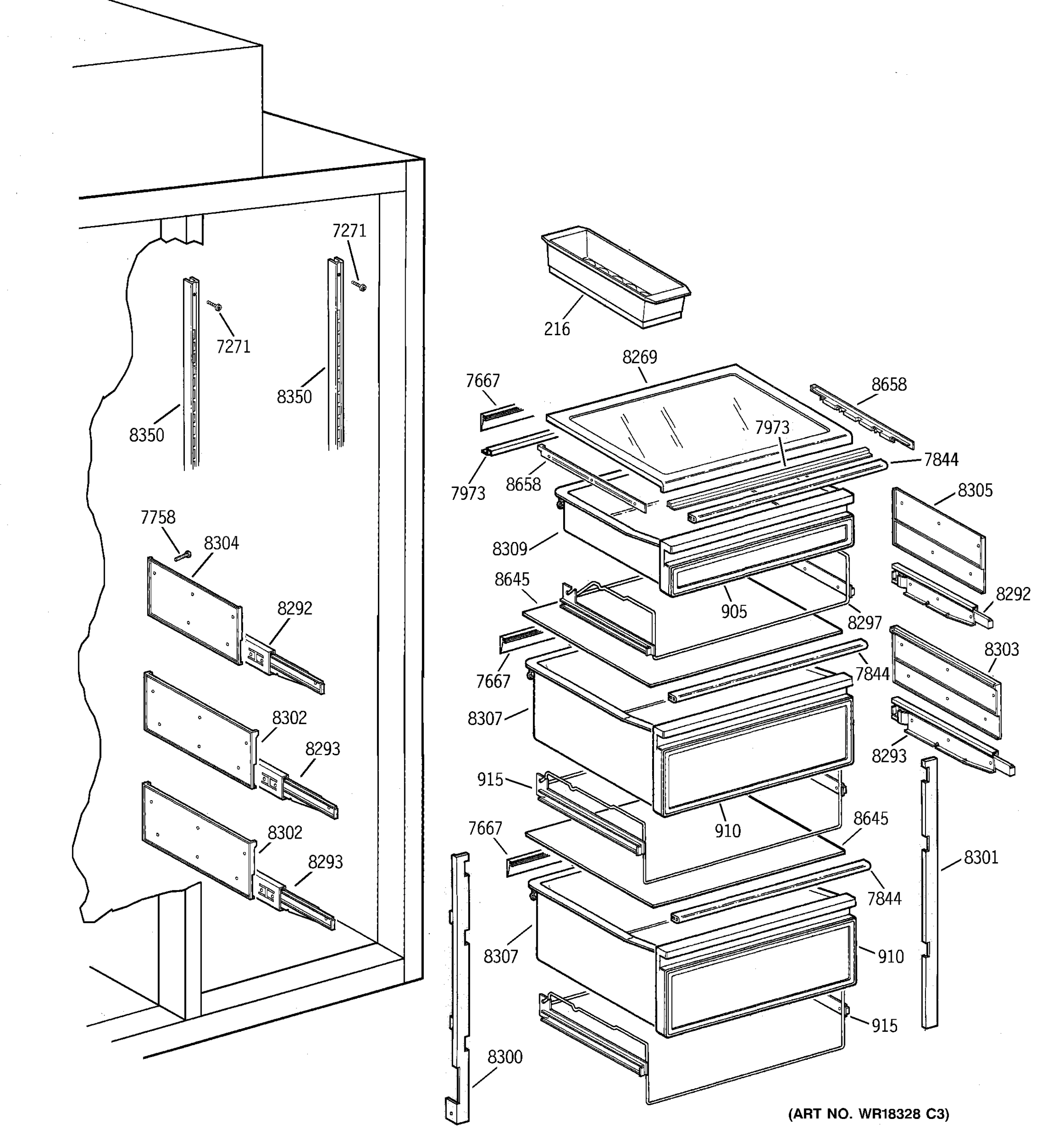

FRESH FOOD SECTION

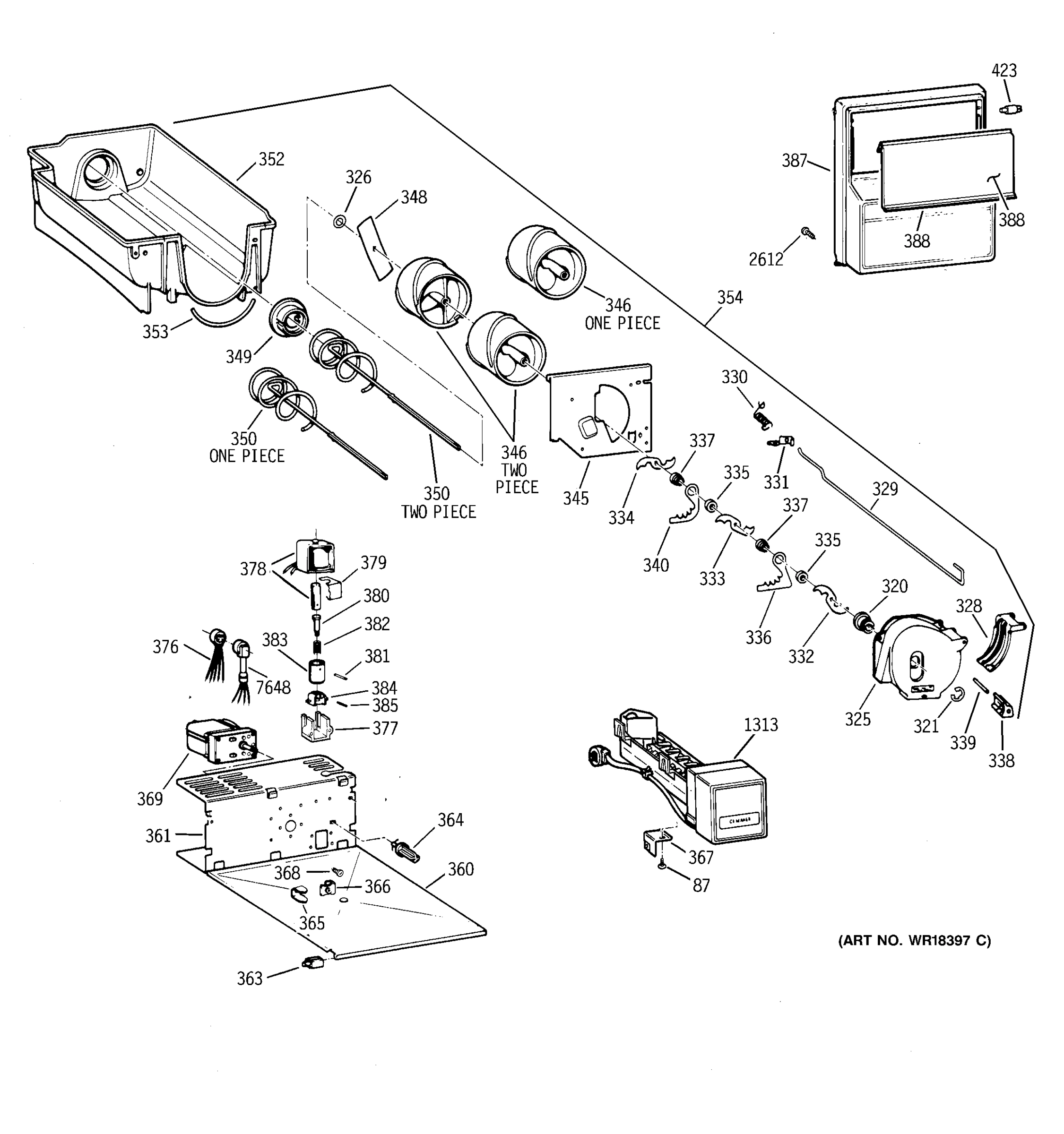

ICE BUCKET ASSEMBLY

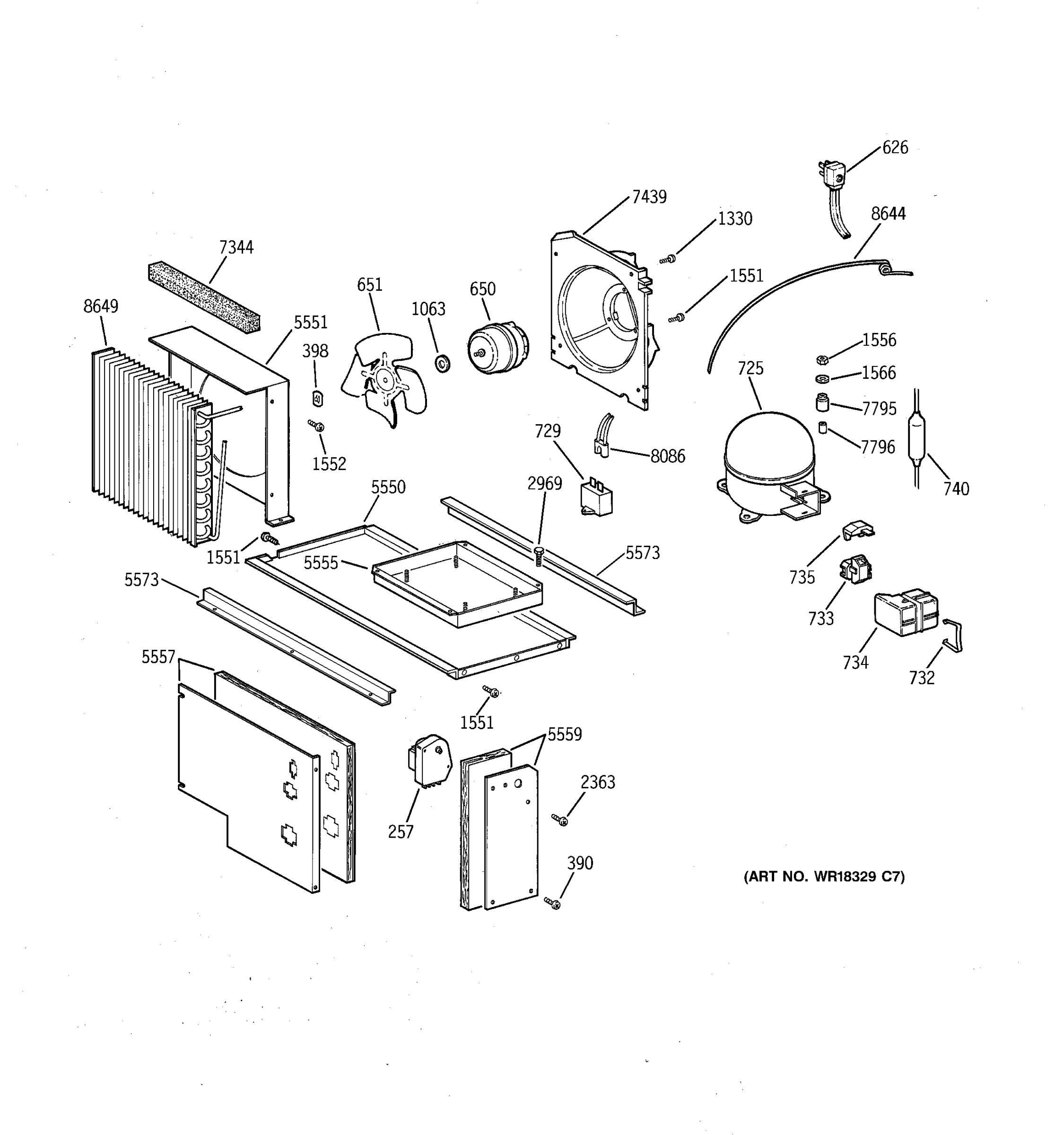

UNIT PARTS
Common parts from model GE ZISB36DYA Refrigerator
4
LIGHT THERMOSTAT GEN WR50X0108 Contact Us For Availability
12
GEN WR50X0109 GEN WR50X0109 Contact Us For Availability
13
GEN WR85X0223 GEN WR85X0223 Contact Us For Availability
19
GEN WR02X8589 GEN WR02X8589 Contact Us For Availability
19
GEN WR02X8590 GEN WR02X8590 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
58
GEN WR17X3139 GEN WR17X3139 Contact Us For Availability
59
GEN WR02X4244 GEN WR02X4244 Contact Us For Availability
59
GEN WR02X8662 GEN WR02X8662 Contact Us For Availability
59
GEN WR02X9132 GEN WR02X9132 Contact Us For Availability
60
GEN WR02X8674 GEN WR02X8674 Contact Us For Availability
61
GEN WR17X4217 GEN WR17X4217 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
64
GEN WR02X8725 GEN WR02X8725 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
GEN WR02X8943 GEN WR02X8943 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
113
END CAP FZ TOP/FF BTM GEN WR12X0864 Contact Us For Availability
114
GEN WR17X3020 GEN WR17X3020 Contact Us For Availability
115
END CAP FF TOP/FZ BTM GEN WR12X0866 Contact Us For Availability
124
GEN WR71X2276 GEN WR71X2276 Contact Us For Availability
180
SCR 6-22 PL IHW 3/8 GEN WR01X1966 Contact Us For Availability
216
GEN WR32X1435 GEN WR32X1435 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X2740 GEN WR17X2740 Contact Us For Availability
350
AUGER HELIX DISP (1 PC) GEN WR17X4309 Contact Us For Availability
360
GEN WR71X2431 GEN WR71X2431 Contact Us For Availability
361
GEN WR71X2430 GEN WR71X2430 Contact Us For Availability
363
SHELF SUPPORT GEN WR02X4465 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
367
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
371
GEN WR17X3300 GEN WR17X3300 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X2964 GEN WR17X2964 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
398
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
399
CLOSURE FF DOOR GEN WR02X9467 Contact Us For Availability
400
CLOSURE FZ DOOR GEN WR02X9468 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
454
GEN WR72X0284 GEN WR72X0284 Contact Us For Availability
455
GEN WR72X0285 GEN WR72X0285 Contact Us For Availability
610
GEN WR60X0182 GEN WR60X0182 Contact Us For Availability
624
GEN WR23X0096 GEN WR23X0096 Contact Us For Availability
651
FAN BLADE GEN WR60X0167 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0170 GEN WR08X0170 Contact Us For Availability
752
GEN WR02X9418 GEN WR02X9418 Contact Us For Availability
905
GEN WR71X2662 GEN WR71X2662 Contact Us For Availability
910
GEN WR71X2665 GEN WR71X2665 Contact Us For Availability
915
GEN WR02X9420 GEN WR02X9420 Contact Us For Availability
1063
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
1076
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
1327
BRACKET FAN REAR GEN WR02X8806 Contact Us For Availability
1328
BRACKET FAN FRONT GEN WR02X8805 Contact Us For Availability
1330
SCREW GEN WR01X1716 Contact Us For Availability
1331
GEN WZ06X0133 GEN WZ06X0133 Contact Us For Availability
1552
SCREW GEN WR29X5175 Contact Us For Availability
1556
NUT COMP GEN WR01X1898 Contact Us For Availability
1566
GEN WR01X5649 GEN WR01X5649 Contact Us For Availability
2363
GEN WR01X1737 GEN WR01X1737 Contact Us For Availability
2612
GEN WR01X1937 GEN WR01X1937 Contact Us For Availability
2969
BOLT GEN WR01X1899 Contact Us For Availability
5532
GEN WR17X3036 GEN WR17X3036 Contact Us For Availability
5548
GEN WR17X3496 GEN WR17X3496 Contact Us For Availability
5550
GEN WR17X3041 GEN WR17X3041 Contact Us For Availability
5555
GEN WR17X3043 GEN WR17X3043 Contact Us For Availability
5557
GEN WR17X3044 GEN WR17X3044 Contact Us For Availability
5559
GEN WR17X3045 GEN WR17X3045 Contact Us For Availability
5572
GEN WR17X3497 GEN WR17X3497 Contact Us For Availability
5580
GEN WR78X8835 GEN WR78X8835 Contact Us For Availability
5583
GEN WR78X8846 GEN WR78X8846 Contact Us For Availability
5586
GEN WR13X0670 GEN WR13X0670 Contact Us For Availability
5594
GEN WR13X0671 GEN WR13X0671 Contact Us For Availability
5603
GEN WR17X3030 GEN WR17X3030 Contact Us For Availability
5619
GEN WR02X8597 GEN WR02X8597 Contact Us For Availability
5624
GEN WR17X3423 GEN WR17X3423 Contact Us For Availability
5626
GEN WR02X8605 GEN WR02X8605 Contact Us For Availability
5627
GEN WR02X8604 GEN WR02X8604 Contact Us For Availability
5628
GEN WR17X3027 GEN WR17X3027 Contact Us For Availability
5633
COPPER TUBE GEN WR02X8959 Contact Us For Availability
5642
GEN WR17X3424 GEN WR17X3424 Contact Us For Availability
5651
GEN WR71X2668 GEN WR71X2668 Contact Us For Availability
5660
GEN WR02X8600 GEN WR02X8600 Contact Us For Availability
5661
GEN WR02X8601 GEN WR02X8601 Contact Us For Availability
5693
GEN WR17X3617 GEN WR17X3617 Contact Us For Availability
5725
POWER SAVER SW HSG GEN WR02X8918 Contact Us For Availability
5726
POWER SAVER SW COV GEN WR02X8919 Contact Us For Availability
5738
GEN WR74X0277 GEN WR74X0277 Contact Us For Availability
5791
GEN WR74X0245 GEN WR74X0245 Contact Us For Availability
5808
GEN WR17X3298 GEN WR17X3298 Contact Us For Availability
5812
GEN WR14X0417 GEN WR14X0417 Contact Us For Availability
5816
GEN WR74X0267 GEN WR74X0267 Contact Us For Availability
5824
GEN WR02X9490 GEN WR02X9490 Contact Us For Availability
5891
GEN WR17X3026 GEN WR17X3026 Contact Us For Availability
5898
TRIM GEN WR38X1823 Contact Us For Availability
6273
GEN WR01X1843 GEN WR01X1843 Contact Us For Availability
6374
TRIM FZ LIGHT GEN WR38X1824 Contact Us For Availability
7051
GEN WR02X8810 GEN WR02X8810 Contact Us For Availability
7080
GEN WR01X1933 GEN WR01X1933 Contact Us For Availability
7110
GEN WR02X8975 GEN WR02X8975 Contact Us For Availability
7271
SCREW GEN WR01X5635 Contact Us For Availability
7288
SCREW GEN WR01X1831 Contact Us For Availability
7312
DUTC EXTENSION GEN WR02X8962 Contact Us For Availability
7344
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
7439
GEN WR17X2161 GEN WR17X2161 Contact Us For Availability
7547
GEN WR17X3037 GEN WR17X3037 Contact Us For Availability
7557
GEN WR02X8602 GEN WR02X8602 Contact Us For Availability
7558
GEN WR02X8603 GEN WR02X8603 Contact Us For Availability
7560
GEN WR17X3039 GEN WR17X3039 Contact Us For Availability
7569
GEN WR02X8587 GEN WR02X8587 Contact Us For Availability
7572
ACTUATOR ARM FF GEN WR02X8925 Contact Us For Availability
7573
GEN WR13X0640 GEN WR13X0640 Contact Us For Availability
7578
GEN WR13X0643 GEN WR13X0643 Contact Us For Availability
7579
GEN WR13X0642 GEN WR13X0642 Contact Us For Availability
7581
GEN WR17X3025 GEN WR17X3025 Contact Us For Availability
7597
TEMP CONTROL FZ GEN WR09X0509 Contact Us For Availability
7621
GEN WR12X0862 GEN WR12X0862 Contact Us For Availability
7625
GEN WR17X4165 GEN WR17X4165 Contact Us For Availability
7626
GEN WR17X3019 GEN WR17X3019 Contact Us For Availability
7629
GEN WR17X3016 GEN WR17X3016 Contact Us For Availability
7633
GEN WR17X4167 GEN WR17X4167 Contact Us For Availability
7634
GEN WR17X3021 GEN WR17X3021 Contact Us For Availability
7648
GEN WR02X8964 GEN WR02X8964 Contact Us For Availability
7667
GEN WR14X0416 GEN WR14X0416 Contact Us For Availability
7681
GEN WR17X3902 GEN WR17X3902 Contact Us For Availability
7686
GEN WR02X8926 GEN WR02X8926 Contact Us For Availability
7689
BAFFLE FF GEN WR17X3040 Contact Us For Availability
7695
BUSHING BTM HINGE GEN WR02X8588 Contact Us For Availability
7696
BUSHING HINGE BOLT GEN WR01X1836 Contact Us For Availability
7699
GEN WR13X0635 GEN WR13X0635 Contact Us For Availability
7701
GEN WR13X0633 GEN WR13X0633 Contact Us For Availability
7702
GEN WR71X2278 GEN WR71X2278 Contact Us For Availability
7703
GEN WR13X0636 GEN WR13X0636 Contact Us For Availability
7720
GEN WR17X3226 GEN WR17X3226 Contact Us For Availability
7733
GEN WR13X0641 GEN WR13X0641 Contact Us For Availability
7749
GEN WR01X1838 GEN WR01X1838 Contact Us For Availability
7758
GEN WR01X1840 GEN WR01X1840 Contact Us For Availability
7760
BARREL NUT GEN WR01X1900 Contact Us For Availability
7764
GEN WR02X8916 GEN WR02X8916 Contact Us For Availability
7765
GEN WR02X8804 GEN WR02X8804 Contact Us For Availability
7768
GEN WR02X7560 GEN WR02X7560 Contact Us For Availability
7769
GEN WR02X8800 GEN WR02X8800 Contact Us For Availability
7771
GEN WR01X1839 GEN WR01X1839 Contact Us For Availability
7777
SHIELD FZ LIGHT GEN WR17X3034 Contact Us For Availability
7787
GEN WR02X8808 GEN WR02X8808 Contact Us For Availability
7795
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
7796
SCREW GEN WR01X5648 Contact Us For Availability
7806
GEN WR02X8928 GEN WR02X8928 Contact Us For Availability
7807
GEN WR02X8798 GEN WR02X8798 Contact Us For Availability
7830
GEN WR02X8585 GEN WR02X8585 Contact Us For Availability
7831
GEN WR02X8592 GEN WR02X8592 Contact Us For Availability
7832
GEN WR02X8586 GEN WR02X8586 Contact Us For Availability
7833
GEN WR02X8593 GEN WR02X8593 Contact Us For Availability
7836
GEN WR13X0639 GEN WR13X0639 Contact Us For Availability
7844
GEN WR14X0415 GEN WR14X0415 Contact Us For Availability
7860
WASHER GEN WR01X1835 Contact Us For Availability
7871
NUT & FERRUL GEN WR57X0097 Contact Us For Availability
7937
GEN WR02X8809 GEN WR02X8809 Contact Us For Availability
7957
GEN WR51X0216 GEN WR51X0216 Contact Us For Availability
7973
GEN WR02X9489 GEN WR02X9489 Contact Us For Availability
8010
GEN WR17X3442 GEN WR17X3442 Contact Us For Availability
8011
GEN WR17X3443 GEN WR17X3443 Contact Us For Availability
8012
GEN WR49X0360 GEN WR49X0360 Contact Us For Availability
8013
GEN WR02X8972 GEN WR02X8972 Contact Us For Availability
8062
GEN WR71X2723 GEN WR71X2723 Contact Us For Availability
8086
GEN WR23X0474 GEN WR23X0474 Contact Us For Availability
8123
GEN WR01X2164 GEN WR01X2164 Contact Us For Availability
8141
GEN WR17X4141 GEN WR17X4141 Contact Us For Availability
8211
GEN WR02X9301 GEN WR02X9301 Contact Us For Availability
8250
GEN WR32X1554 GEN WR32X1554 Contact Us For Availability
8256
GEN WR72X0259 GEN WR72X0259 Contact Us For Availability
8257
GEN WR72X0258 GEN WR72X0258 Contact Us For Availability
8269
GEN WR32X1557 GEN WR32X1557 Contact Us For Availability
8275
GEN WR71X2661 GEN WR71X2661 Contact Us For Availability
8278
GEN WR72X0260 GEN WR72X0260 Contact Us For Availability
8279
GEN WR72X0261 GEN WR72X0261 Contact Us For Availability
8280
GEN WR71X2660 GEN WR71X2660 Contact Us For Availability
8283
GEN WR32X1556 GEN WR32X1556 Contact Us For Availability
8286
GEN WR32X1555 GEN WR32X1555 Contact Us For Availability
8297
GEN WR02X9419 GEN WR02X9419 Contact Us For Availability
8300
GEN WR17X4142 GEN WR17X4142 Contact Us For Availability
8301
GEN WR17X4143 GEN WR17X4143 Contact Us For Availability
8302
GEN WR02X9408 GEN WR02X9408 Contact Us For Availability
8303
GEN WR02X9407 GEN WR02X9407 Contact Us For Availability
8304
GEN WR02X9406 GEN WR02X9406 Contact Us For Availability
8305
GEN WR02X9405 GEN WR02X9405 Contact Us For Availability
8307
GEN WR32X1563 GEN WR32X1563 Contact Us For Availability
8309
GEN WR32X1652 GEN WR32X1652 Contact Us For Availability
8312
GEN WR21X0205 GEN WR21X0205 Contact Us For Availability
8333
GEN WR23X0476 GEN WR23X0476 Contact Us For Availability
8334
GEN WR17X4169 GEN WR17X4169 Contact Us For Availability
8351
GEN WR02X9400 GEN WR02X9400 Contact Us For Availability
8352
GEN WR71X2724 GEN WR71X2724 Contact Us For Availability
8353
GEN WR22X0525 GEN WR22X0525 Contact Us For Availability
8354
GEN WR14X0487 GEN WR14X0487 Contact Us For Availability
8366
GEN WR02X9429 GEN WR02X9429 Contact Us For Availability
8377
GEN WR02X9413 GEN WR02X9413 Contact Us For Availability
8416
GEN WR12X1051 GEN WR12X1051 Contact Us For Availability
8445
GEN WR01X2168 GEN WR01X2168 Contact Us For Availability
8516
GEN WR38X2264 GEN WR38X2264 Contact Us For Availability
8521
GEN WR71X2678 GEN WR71X2678 Contact Us For Availability
8537
GEN WR01X2169 GEN WR01X2169 Contact Us For Availability
8539
GEN WR02X9414 GEN WR02X9414 Contact Us For Availability
8573
GEN WR32X1553 GEN WR32X1553 Contact Us For Availability
8579
GEN WR32X1559 GEN WR32X1559 Contact Us For Availability
8582
GEN WR17X3024 GEN WR17X3024 Contact Us For Availability
8599
GEN WR13X0766 GEN WR13X0766 Contact Us For Availability
8628
GEN WR02X9450 GEN WR02X9450 Contact Us For Availability
8645
GEN WR32X1558 GEN WR32X1558 Contact Us For Availability
8651
GEN WR02X9425 GEN WR02X9425 Contact Us For Availability
8658
GEN WR02X9404 GEN WR02X9404 Contact Us For Availability
× ![]()
