Model GE ZIS42NSB Refrigerator – Common Parts & Diagrams
FREEZER DOOR
FREEZER SECTION

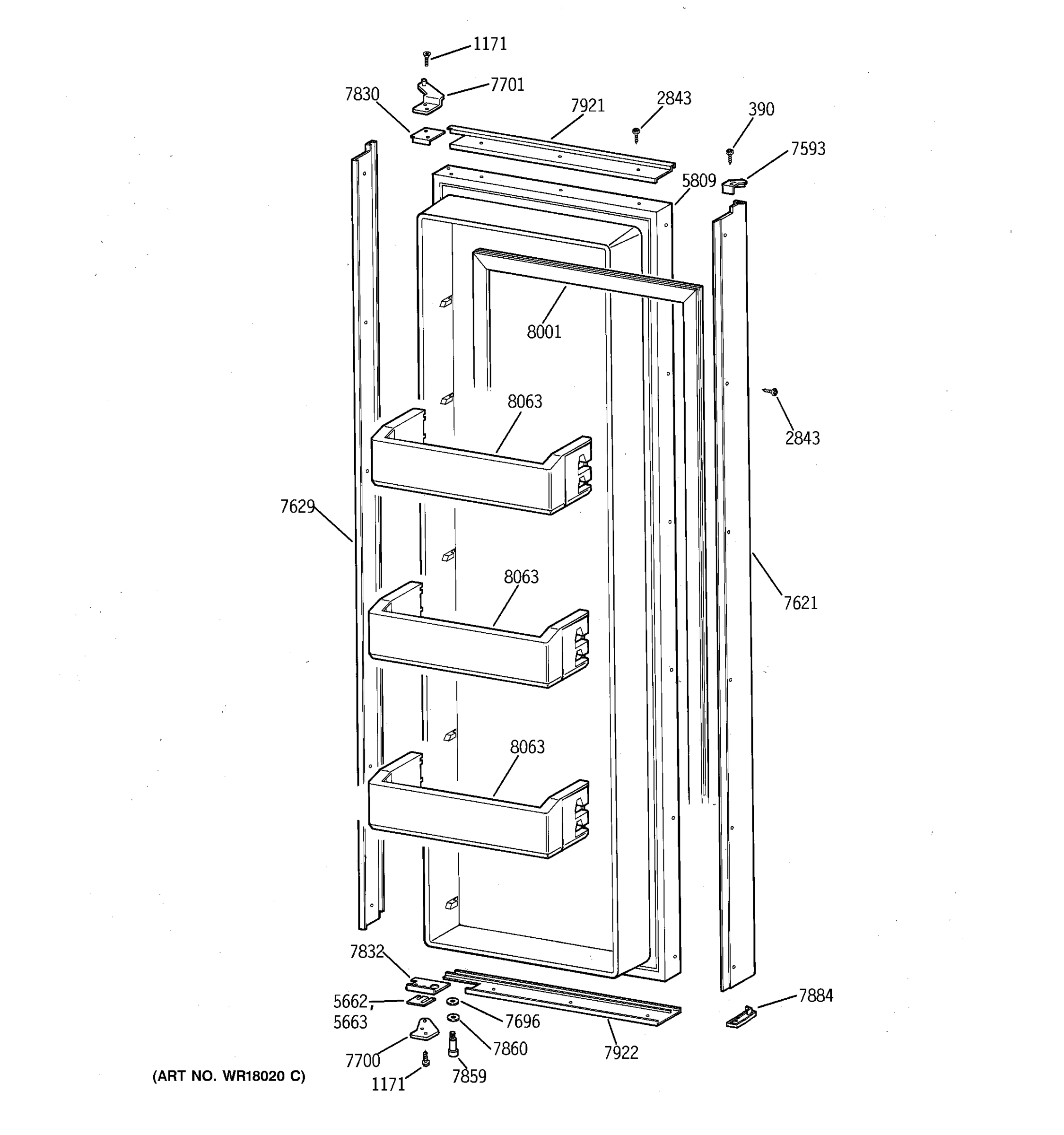

FRESH FOOD DOOR

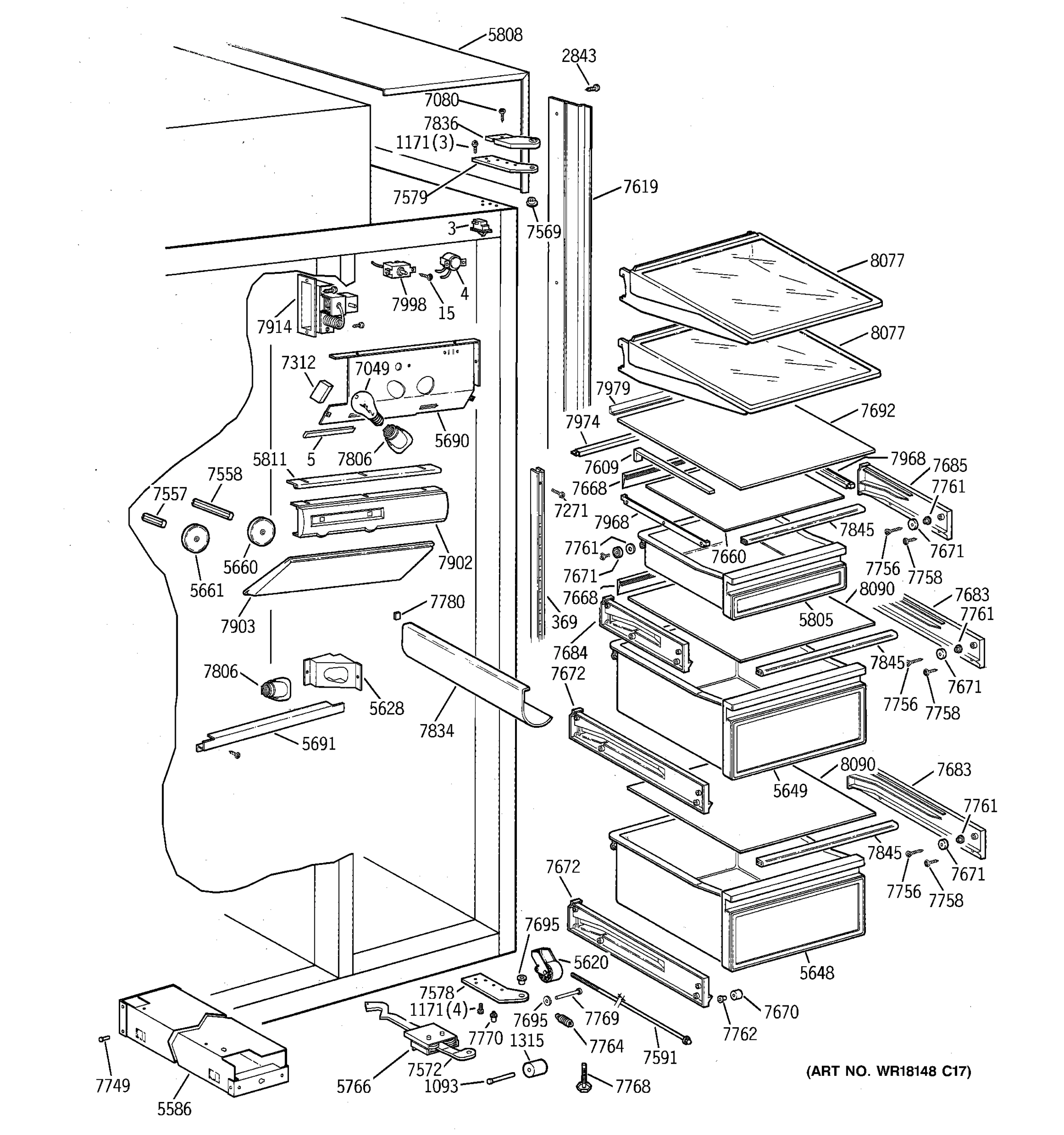

FRESH FOOD SECTION

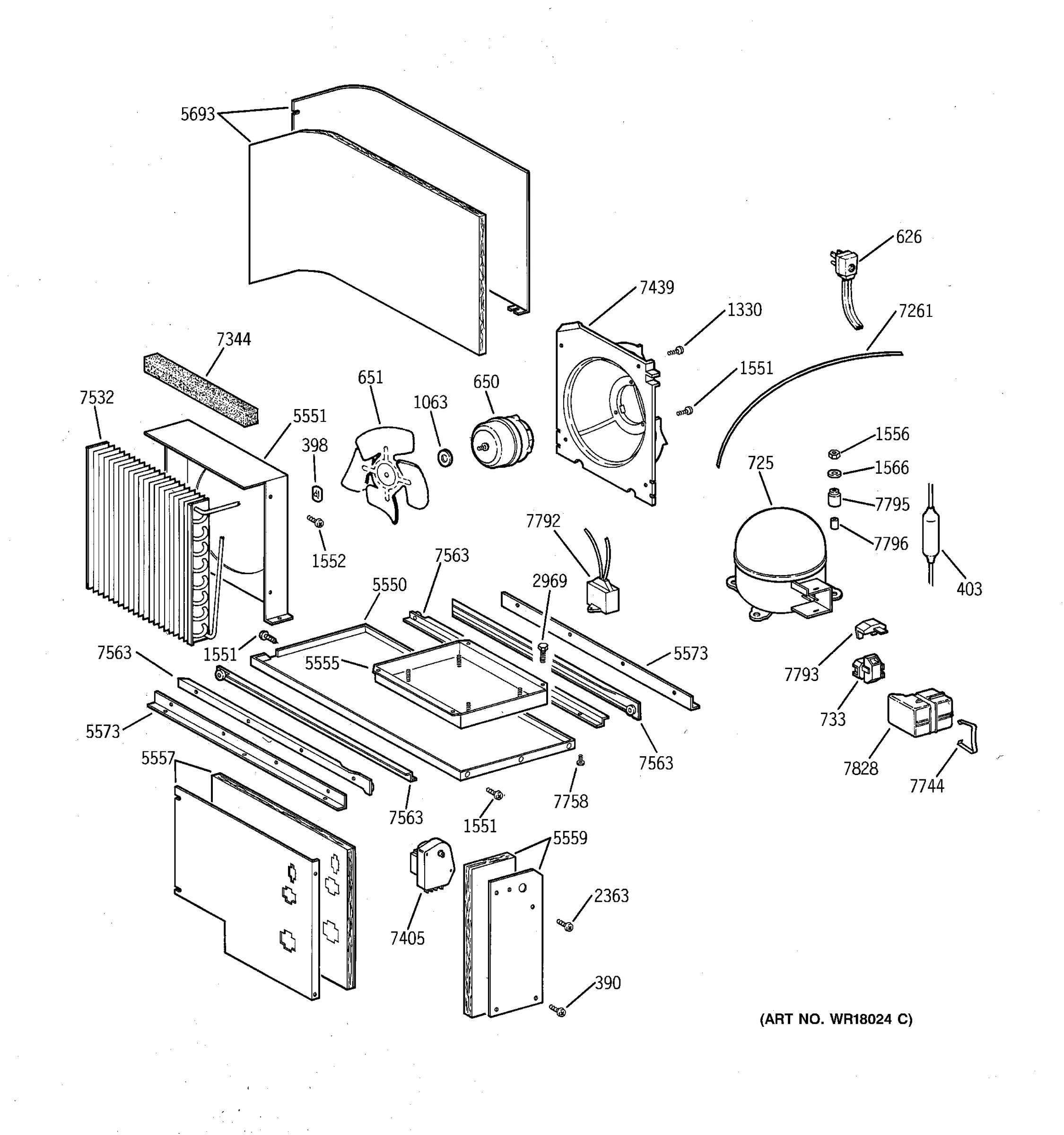

UNIT PARTS
Common parts from model GE ZIS42NSB Refrigerator
1
GEN 31-5238 GEN 31-5238 Contact Us For Availability
1
GEN 31-5842 GEN 31-5842 Contact Us For Availability
1
USE & CARE MANUAL GEN 49-6746 Contact Us For Availability
4
GEN WR50X0108 GEN WR50X0108 Contact Us For Availability
5
GEN WR38X1824 GEN WR38X1824 Contact Us For Availability
12
GEN WR50X0109 GEN WR50X0109 Contact Us For Availability
13
GEN WR85X0223 GEN WR85X0223 Contact Us For Availability
367
GEN WR17X3300 GEN WR17X3300 Contact Us For Availability
369
GEN WR17X6325 GEN WR17X6325 Contact Us For Availability
398
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
651
FAN BLADE GEN WR60X0167 Contact Us For Availability
733
RELAY GEN WR07X0190 Contact Us For Availability
1063
WASHER CUSHION GEN WR01X1714 Contact Us For Availability
1076
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
1093
GEN WR02X8801 GEN WR02X8801 Contact Us For Availability
1327
BRACKET FAN REAR GEN WR02X8806 Contact Us For Availability
1328
BRACKET FAN FRONT GEN WR02X8805 Contact Us For Availability
1330
SCREW GEN WR01X1716 Contact Us For Availability
1331
GEN WZ06X0133 GEN WZ06X0133 Contact Us For Availability
1552
SCREW GEN WR29X5175 Contact Us For Availability
1556
WASHER COMP GEN WR01X1898 Contact Us For Availability
1566
GEN WR01X5649 GEN WR01X5649 Contact Us For Availability
2363
GEN WR01X1737 GEN WR01X1737 Contact Us For Availability
2969
BOLT GEN WR01X1899 Contact Us For Availability
5532
GEN WR17X3036 GEN WR17X3036 Contact Us For Availability
5548
GEN WR17X3496 GEN WR17X3496 Contact Us For Availability
5550
GEN WR17X3041 GEN WR17X3041 Contact Us For Availability
5555
GEN WR17X3043 GEN WR17X3043 Contact Us For Availability
5557
GEN WR17X3044 GEN WR17X3044 Contact Us For Availability
5572
GEN WR17X3497 GEN WR17X3497 Contact Us For Availability
5586
GEN WR13X0670 GEN WR13X0670 Contact Us For Availability
5586
GEN WR13X0671 GEN WR13X0671 Contact Us For Availability
5603
GEN WR17X3030 GEN WR17X3030 Contact Us For Availability
5626
GEN WR02X8605 GEN WR02X8605 Contact Us For Availability
5627
GEN WR02X8604 GEN WR02X8604 Contact Us For Availability
5628
GEN WR17X3027 GEN WR17X3027 Contact Us For Availability
5633
COPPER TUBE GEN WR02X8959 Contact Us For Availability
5648
GEN WR32X1430 GEN WR32X1430 Contact Us For Availability
5649
GEN WR32X1431 GEN WR32X1431 Contact Us For Availability
5652
GEN WR21X0186 GEN WR21X0186 Contact Us For Availability
5660
GEN WR02X8600 GEN WR02X8600 Contact Us For Availability
5661
GEN WR02X8601 GEN WR02X8601 Contact Us For Availability
5662
GEN WR02X8589 GEN WR02X8589 Contact Us For Availability
5663
GEN WR02X8590 GEN WR02X8590 Contact Us For Availability
5690
GEN WR02X8960 GEN WR02X8960 Contact Us For Availability
5691
GEN WR02X8961 GEN WR02X8961 Contact Us For Availability
5693
GEN WR17X3617 GEN WR17X3617 Contact Us For Availability
5766
GEN WR02X8607 GEN WR02X8607 Contact Us For Availability
5767
GEN WR02X8606 GEN WR02X8606 Contact Us For Availability
5788
GEN WR02X8973 GEN WR02X8973 Contact Us For Availability
5789
GEN WR02X8974 GEN WR02X8974 Contact Us For Availability
5792
GEN WR74X0240 GEN WR74X0240 Contact Us For Availability
5805
GEN WR32X1432 GEN WR32X1432 Contact Us For Availability
5808
GEN WR17X3498 GEN WR17X3498 Contact Us For Availability
5809
GEN WR78X8648 GEN WR78X8648 Contact Us For Availability
5811
GEN WR14X0449 GEN WR14X0449 Contact Us For Availability
6126
GEN WR01X1833 GEN WR01X1833 Contact Us For Availability
6273
GEN WR01X1843 GEN WR01X1843 Contact Us For Availability
6374
TRIM GEN WR38X1823 Contact Us For Availability
7049
GEN PUR LOC GEN PUR LOC Contact Us For Availability
7080
GEN WR01X1933 GEN WR01X1933 Contact Us For Availability
7110
GEN WR02X8975 GEN WR02X8975 Contact Us For Availability
7261
GEN WR86X0089 GEN WR86X0089 Contact Us For Availability
7271
SCREW GEN WR01X5635 Contact Us For Availability
7288
SCREW GEN WR01X1831 Contact Us For Availability
7312
GEN WR02X8962 GEN WR02X8962 Contact Us For Availability
7344
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
7456
GEN WR60X0182 GEN WR60X0182 Contact Us For Availability
7547
GEN WR17X3037 GEN WR17X3037 Contact Us For Availability
7557
GEN WR02X8602 GEN WR02X8602 Contact Us For Availability
7558
GEN WR02X8603 GEN WR02X8603 Contact Us For Availability
7560
GEN WR17X3039 GEN WR17X3039 Contact Us For Availability
7563
GEN WR02X8611 GEN WR02X8611 Contact Us For Availability
7569
GEN WR02X8587 GEN WR02X8587 Contact Us For Availability
7572
ACTUATOR ARM FF GEN WR02X8925 Contact Us For Availability
7573
GEN WR13X0640 GEN WR13X0640 Contact Us For Availability
7578
GEN WR13X0643 GEN WR13X0643 Contact Us For Availability
7579
GEN WR13X0642 GEN WR13X0642 Contact Us For Availability
7592
GEN WR12X0866 GEN WR12X0866 Contact Us For Availability
7593
GEN WR12X0864 GEN WR12X0864 Contact Us For Availability
7609
GEN WR02X8598 GEN WR02X8598 Contact Us For Availability
7619
GEN WR17X3028 GEN WR17X3028 Contact Us For Availability
7620
GEN WR17X3029 GEN WR17X3029 Contact Us For Availability
7621
GEN WR12X0862 GEN WR12X0862 Contact Us For Availability
7622
GEN WR12X0861 GEN WR12X0861 Contact Us For Availability
7626
TRIM FZ DOOR GEN WR17X3019 Contact Us For Availability
7629
GEN WR17X3016 GEN WR17X3016 Contact Us For Availability
7630
GEN WR17X3020 GEN WR17X3020 Contact Us For Availability
7634
GEN WR17X3021 GEN WR17X3021 Contact Us For Availability
7660
GEN WR71X2447 GEN WR71X2447 Contact Us For Availability
7668
GEN WR02X8963 GEN WR02X8963 Contact Us For Availability
7670
GEN WR02X8595 GEN WR02X8595 Contact Us For Availability
7671
ROLLER PAN LH GEN WR02X8596 Contact Us For Availability
7672
GEN WR72X0226 GEN WR72X0226 Contact Us For Availability
7683
GEN WR72X0227 GEN WR72X0227 Contact Us For Availability
7684
GEN WR72X0228 GEN WR72X0228 Contact Us For Availability
7685
GEN WR72X0229 GEN WR72X0229 Contact Us For Availability
7686
GEN WR02X8926 GEN WR02X8926 Contact Us For Availability
7689
BAFFLE FF GEN WR17X3040 Contact Us For Availability
7692
GEN WR71X2448 GEN WR71X2448 Contact Us For Availability
7695
BUSHING ACTUATOR ARM GEN WR01X1836 Contact Us For Availability
7696
BUSHING BTM HINGE GEN WR02X8588 Contact Us For Availability
7699
GEN WR13X0635 GEN WR13X0635 Contact Us For Availability
7700
GEN WR13X0634 GEN WR13X0634 Contact Us For Availability
7701
GEN WR13X0633 GEN WR13X0633 Contact Us For Availability
7702
SHELF CANT FZ GEN WR71X2278 Contact Us For Availability
7703
GEN WR13X0636 GEN WR13X0636 Contact Us For Availability
7704
GEN WR02X8615 GEN WR02X8615 Contact Us For Availability
7705
GEN WR02X8616 GEN WR02X8616 Contact Us For Availability
7733
GEN WR13X0641 GEN WR13X0641 Contact Us For Availability
7744
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
7749
GEN WR01X1838 GEN WR01X1838 Contact Us For Availability
7756
GEN WR01X1830 GEN WR01X1830 Contact Us For Availability
7758
SCREW GEN WR01X1840 Contact Us For Availability
7761
GEN WR01X1829 GEN WR01X1829 Contact Us For Availability
7762
GEN WR01X1828 GEN WR01X1828 Contact Us For Availability
7764
GEN WR02X8916 GEN WR02X8916 Contact Us For Availability
7765
GEN WR02X8804 GEN WR02X8804 Contact Us For Availability
7768
GEN WR02X7560 GEN WR02X7560 Contact Us For Availability
7769
GEN WR02X8800 GEN WR02X8800 Contact Us For Availability
7771
GEN WR01X1839 GEN WR01X1839 Contact Us For Availability
7777
GEN WR17X3499 GEN WR17X3499 Contact Us For Availability
7780
GEN WR02X8599 GEN WR02X8599 Contact Us For Availability
7793
GEN WR08X0118 GEN WR08X0118 Contact Us For Availability
7795
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
7796
SCREW GEN WR01X5648 Contact Us For Availability
7806
GEN WR02X8928 GEN WR02X8928 Contact Us For Availability
7807
GEN WR02X8798 GEN WR02X8798 Contact Us For Availability
7828
COVER RELAY GEN WR02X7834 Contact Us For Availability
7830
GEN WR02X8585 GEN WR02X8585 Contact Us For Availability
7831
GEN WR02X8592 GEN WR02X8592 Contact Us For Availability
7832
GEN WR02X8586 GEN WR02X8586 Contact Us For Availability
7833
GEN WR02X8593 GEN WR02X8593 Contact Us For Availability
7834
GEN WR17X3023 GEN WR17X3023 Contact Us For Availability
7836
GEN WR13X0639 GEN WR13X0639 Contact Us For Availability
7845
GEN WR02X8965 GEN WR02X8965 Contact Us For Availability
7859
GEN WR01X1834 GEN WR01X1834 Contact Us For Availability
7860
WASHER GEN WR01X1835 Contact Us For Availability
7871
NUT & FERRUL GEN WR57X0097 Contact Us For Availability
7884
GEN WR12X0865 GEN WR12X0865 Contact Us For Availability
7885
GEN WR12X0867 GEN WR12X0867 Contact Us For Availability
7893
GEN WR02X8617 GEN WR02X8617 Contact Us For Availability
7902
GEN WR02X8966 GEN WR02X8966 Contact Us For Availability
7903
GEN WR02X8967 GEN WR02X8967 Contact Us For Availability
7914
GEN WR02X8957 GEN WR02X8957 Contact Us For Availability
7921
DOOR TRIM TOP GEN WR38X2026 Contact Us For Availability
7922
DOOR TRIM FF BOTTOM GEN WR38X2027 Contact Us For Availability
7925
GEN WR74X0243 GEN WR74X0243 Contact Us For Availability
7928
GEN WR02X8968 GEN WR02X8968 Contact Us For Availability
7957
GEN WR51X0369 GEN WR51X0369 Contact Us For Availability
7968
GEN WR02X8969 GEN WR02X8969 Contact Us For Availability
7974
GEN WR02X8970 GEN WR02X8970 Contact Us For Availability
7979
GEN WR02X8971 GEN WR02X8971 Contact Us For Availability
7998
GEN WR09X0523 GEN WR09X0523 Contact Us For Availability
8004
TOE KICK DISP GEN WR74X0276 Contact Us For Availability
8008
GEN WR17X3656 GEN WR17X3656 Contact Us For Availability
8012
GEN WR49X0360 GEN WR49X0360 Contact Us For Availability
8013
GEN WR02X8972 GEN WR02X8972 Contact Us For Availability
8063
GEN WR71X2449 GEN WR71X2449 Contact Us For Availability
8077
GEN WR71X2450 GEN WR71X2450 Contact Us For Availability
8085
GEN WR74X0242 GEN WR74X0242 Contact Us For Availability
8090
GEN WR32X1429 GEN WR32X1429 Contact Us For Availability
8092
GEN WR01X1938 GEN WR01X1938 Contact Us For Availability
× ![]()
