Model GE ZGU36ESL3SS – Common Parts & Diagrams

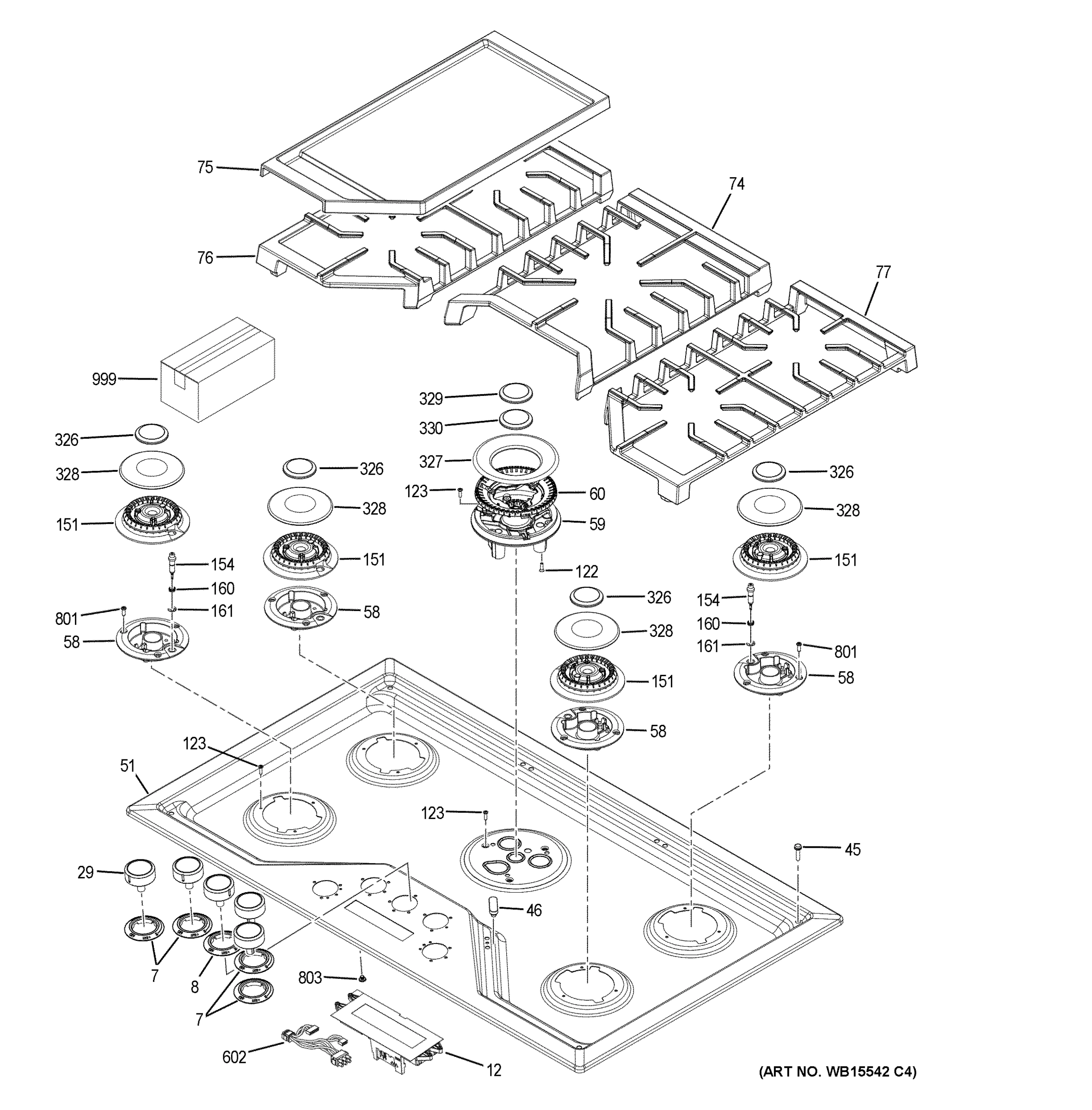

CONTROL PANEL & COOKTOP

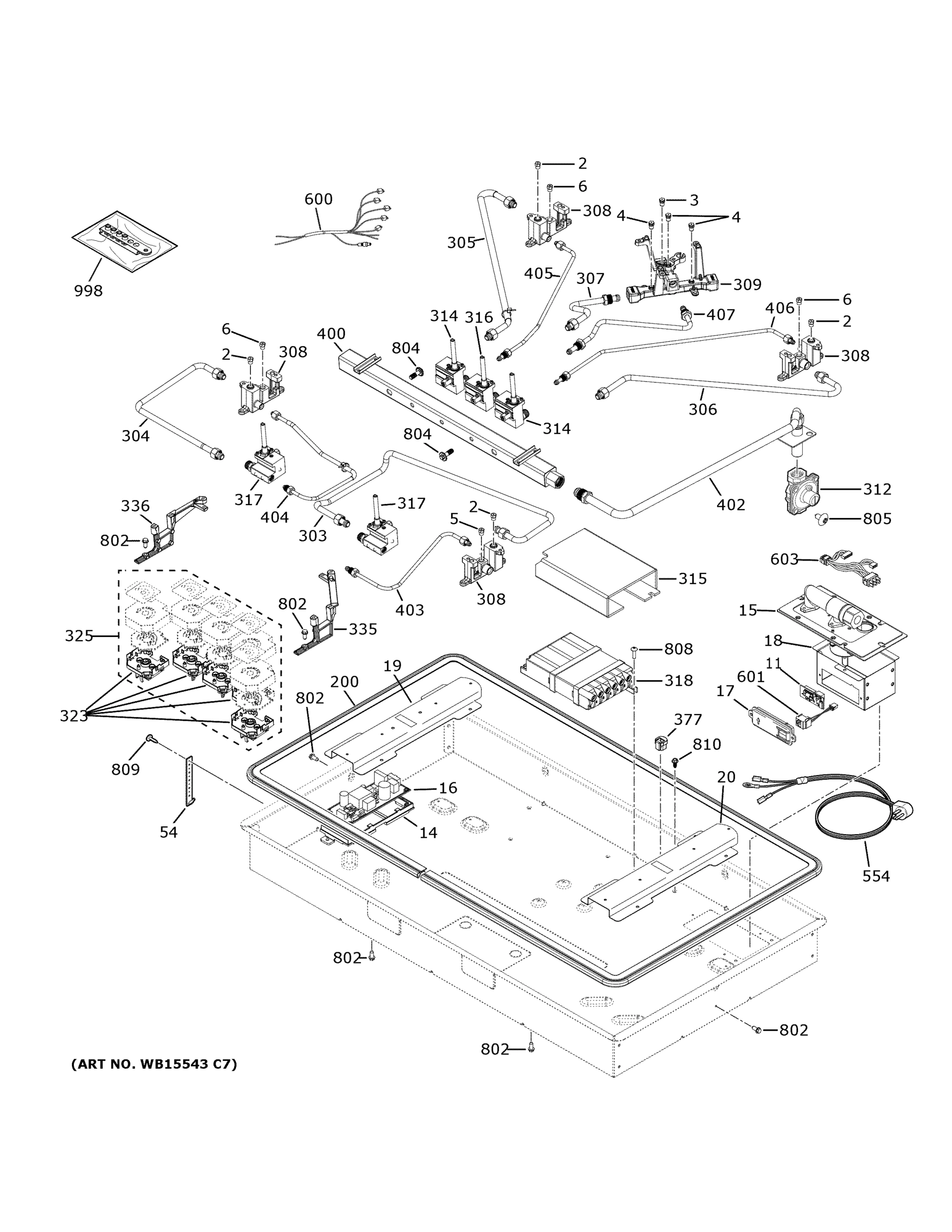

GAS & BURNER PARTS
Common parts from model GE ZGU36ESL3SS
2
ORIFICE SPUD (NG SIMMER) GEN WB28T10159 Contact Us For Availability
3
ORIFICE SPUD NG GEN WB28X29366 Contact Us For Availability
4
ORIFICE SPUD NG GEN WB28X29397 Contact Us For Availability
29
KNOB ASM GEN WB03X30498 Contact Us For Availability
45
BUMPER GEN WB02X24790 Contact Us For Availability
46
BRIDGE BUMPER GEN WB02X30761 Contact Us For Availability
58
BASE BURNER GEN WB16T10044 Contact Us For Availability
59
BASE BURNER GEN WB16X28656 Contact Us For Availability
60
HEAD BURNER GEN WB16X28764 Contact Us For Availability
74
MONOGRAM GRATE GEN WB31X30365 Contact Us For Availability
77
MONOGRAM GRATE GEN WB31X30363 Contact Us For Availability
122
SCREW SIMMER MAIN HD GEN WB01T10092 Contact Us For Availability
151
HEAD BURNER ASM 12K GEN WB16T10042 Contact Us For Availability
154
IGNITER GEN WB13X30325 Contact Us For Availability
160
SPRING IGNITER GEN WB09T10011 Contact Us For Availability
161
WASHER IGNITER GEN WB02T10323 Contact Us For Availability
308
INJET BURNER 18K GEN WB28T10114 Contact Us For Availability
309
INJET ASM GEN WB28X29391 Contact Us For Availability
312
REGULATOR CONVERT PRESS GEN WB19T10089 Contact Us For Availability
314
GAS VALVE DUAL REAR GEN WB21X30342 Contact Us For Availability
315
SPARK MODULE INSULATION GEN WB35X30326 Contact Us For Availability
316
GAS VALVE DUAL CTR GEN WB21X29369 Contact Us For Availability
317
GAS VALVE DUAL FRT GEN WB21X30343 Contact Us For Availability
318
SPARK MODULE GEN WB13X30331 Contact Us For Availability
323
SWITCH HARNESS ASM GEN WB18X33166 Contact Us For Availability
325
LED BOARDS SWITCH AND HARNESS ASM GEN WB27X31504 Contact Us For Availability
326
INNER CAP BRASS GEN WB16X32876 Contact Us For Availability
327
CAP OUTER GEN WB29X28253 Contact Us For Availability
329
CAP INNER GEN WB16X28252 Contact Us For Availability
335
MANIFOLD BRACKET RH GEN WB34X29311 Contact Us For Availability
336
MANIFOLD BRACKET LH GEN WB34X29312 Contact Us For Availability
377
STRAIN RELIEF-RT ANGLE GEN WB02K5275 Contact Us For Availability
400
MANIFOLD TUBE AND CLAMP ASM GEN WB28X29324 Contact Us For Availability
402
INLET GAS TUBE ASM GEN WB28X30383 Contact Us For Availability
403
SIMMER TUBE ASM RF GEN WB28X30372 Contact Us For Availability
404
SIMMER TUBE ASM LF GEN WB28X30370 Contact Us For Availability
405
SIMMER TUBE ASM LR GEN WB28X30371 Contact Us For Availability
406
SIMMER TUBE ASM RR GEN WB28X30373 Contact Us For Availability
407
GAS TUBE ASM SIMMER CTR GEN WB28X29370 Contact Us For Availability
554
CORD RANGE GEN WB18X25912 Contact Us For Availability
600
IGNITER AND HARNESS ASM GEN WB18X30324 Contact Us For Availability
601
RJ45 CONNECTOR HARNESS GEN WB18X30376 Contact Us For Availability
603
MAIN HARNESS WIRE GEN WB18X30788 Contact Us For Availability
804
SCREW 1/4-20 HXW GKT 3/4 GEN WB01X30011 Contact Us For Availability
808
SCREW 8-32 TT PNT15 5/8 S GEN WB01X30375 Contact Us For Availability
810
SCR 10-32 GX HXW 7/16 S GEN WS02X10087 Contact Us For Availability
998
LP CONVERSION KIT GEN WB28X29970 Contact Us For Availability
998
NG HIGH ALTITUDE CONVERSION KIT GEN WB28X29960 Contact Us For Availability
998
LP HIGH ALTITUDE CONVERSION KIT GEN WB28X29976 Contact Us For Availability
999
CLEANER-SS GEN WB02T10111 Contact Us For Availability
× ![]()
