Model Huebsch ZG2009* Dryer – Common Parts & Diagrams

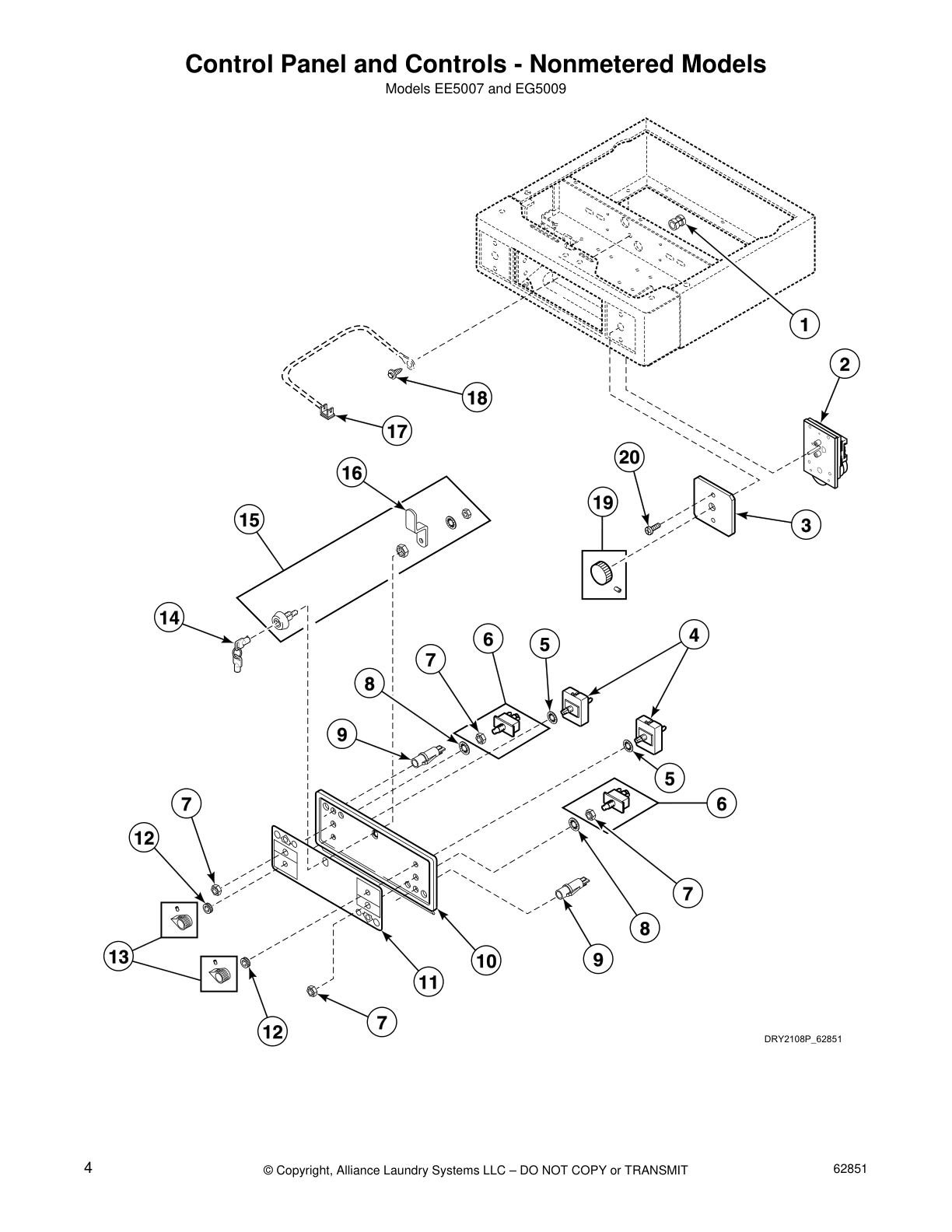

Control Panel and Controls - Nonmetered Models

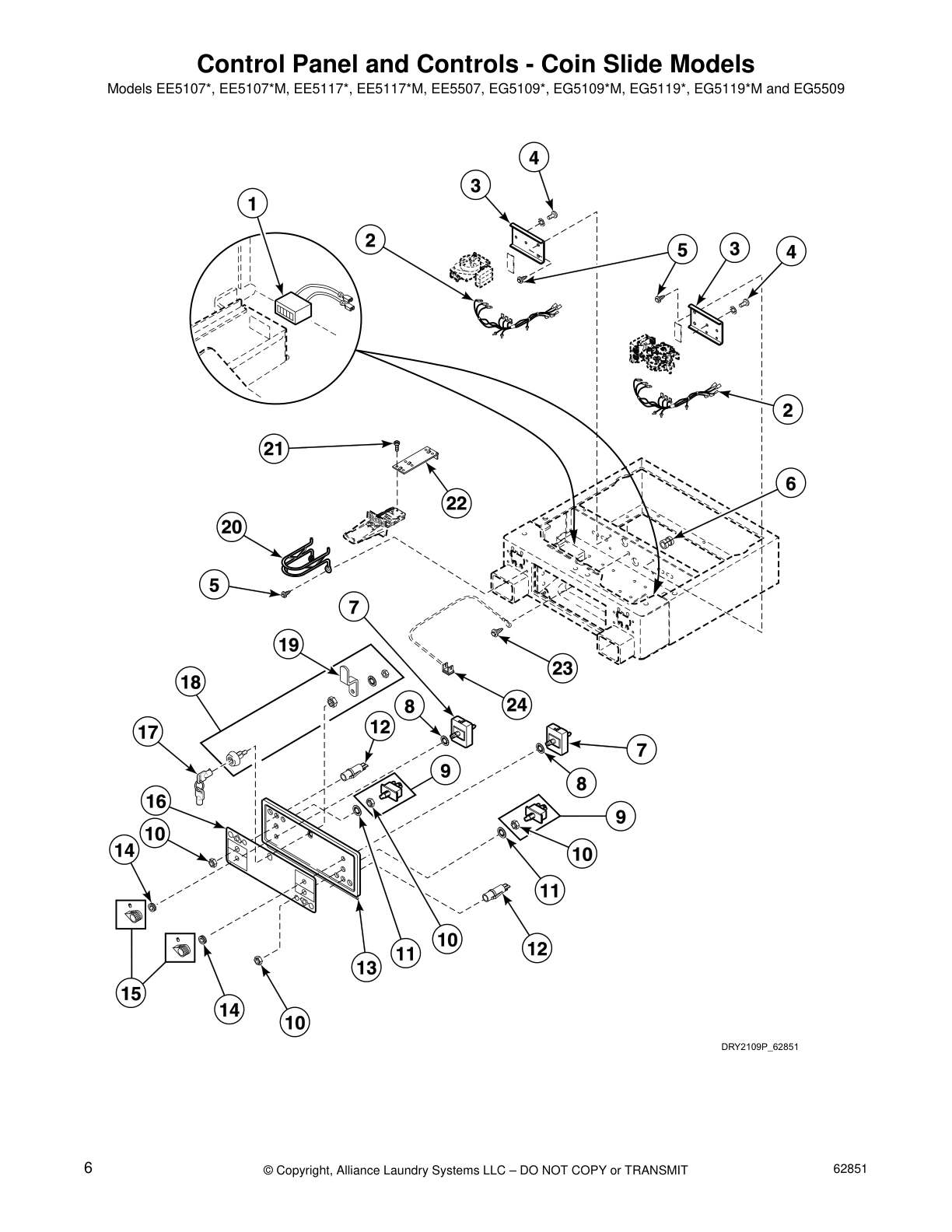

Control Panel and Controls - Coin Slide Models

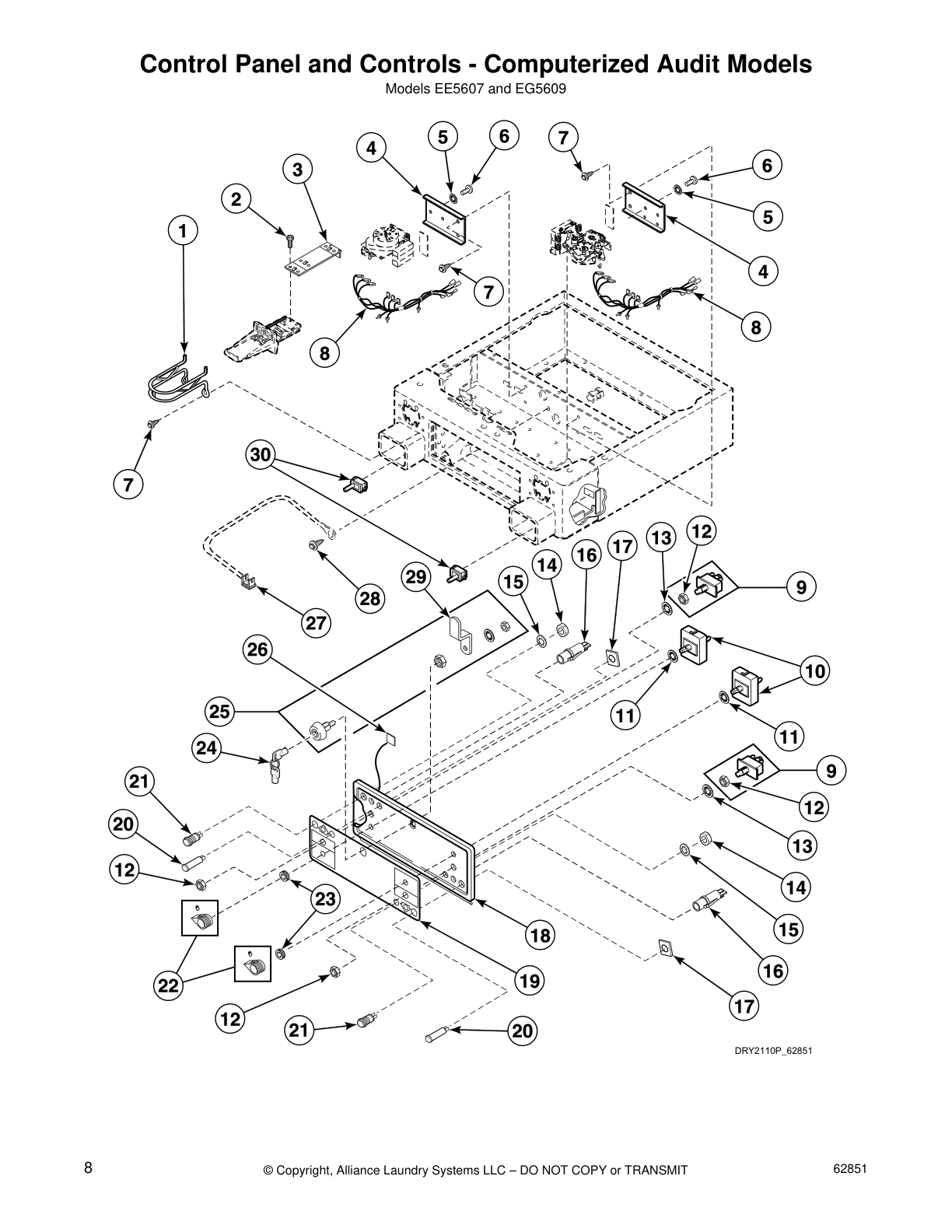

Control Panel and Controls - Computerized Audit Models

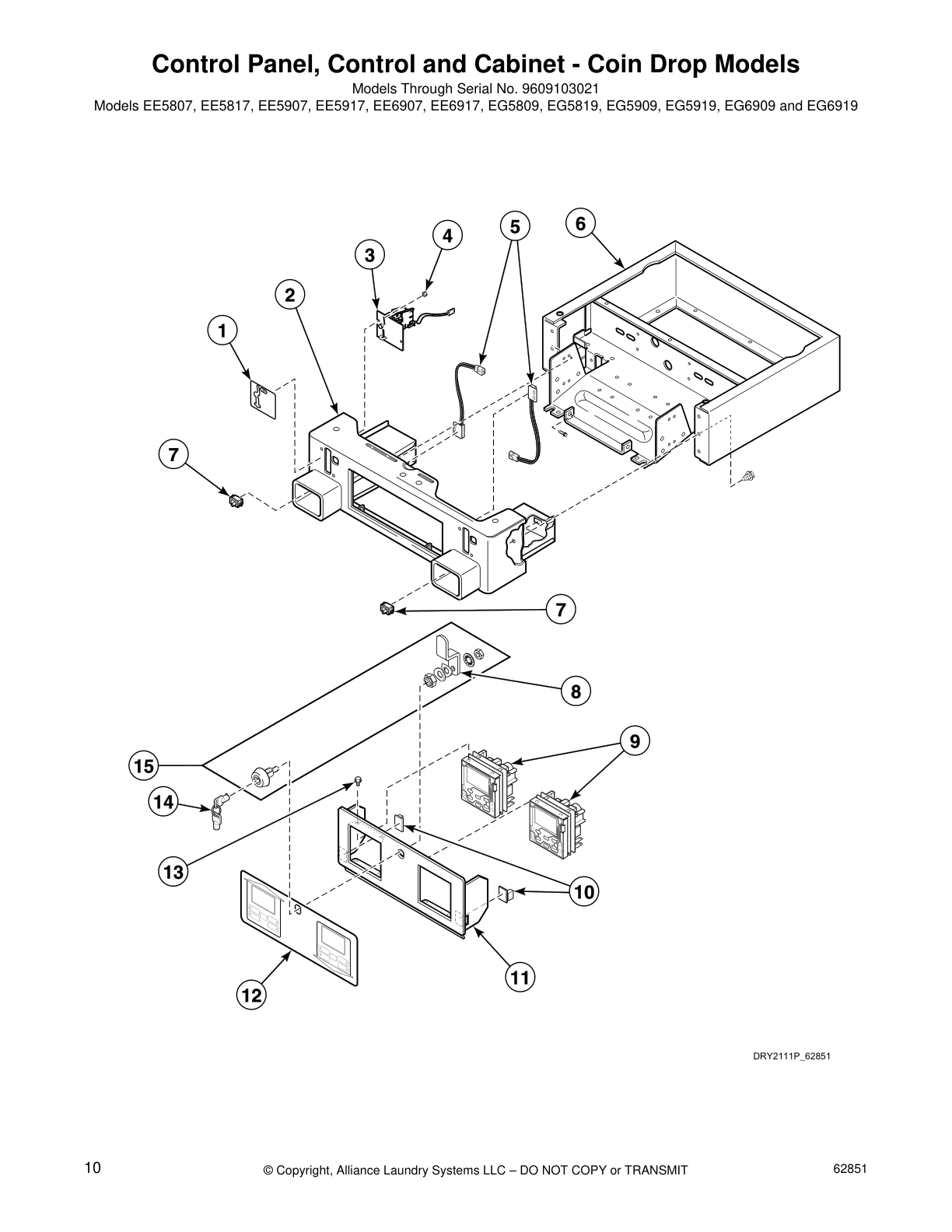

Control Panel, Control and Cabinet - Coin Drop Models

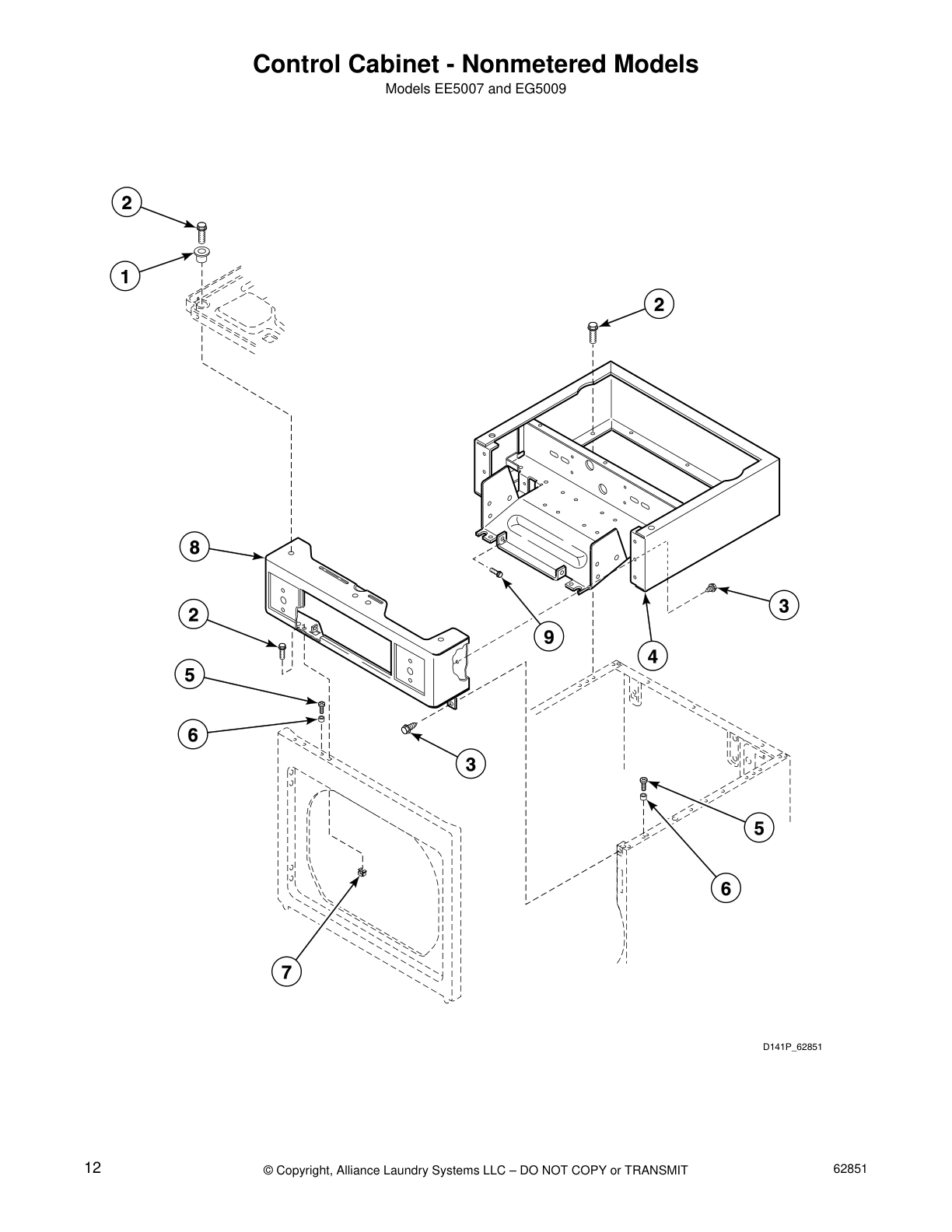

Control Cabinet - Nonmetered Models

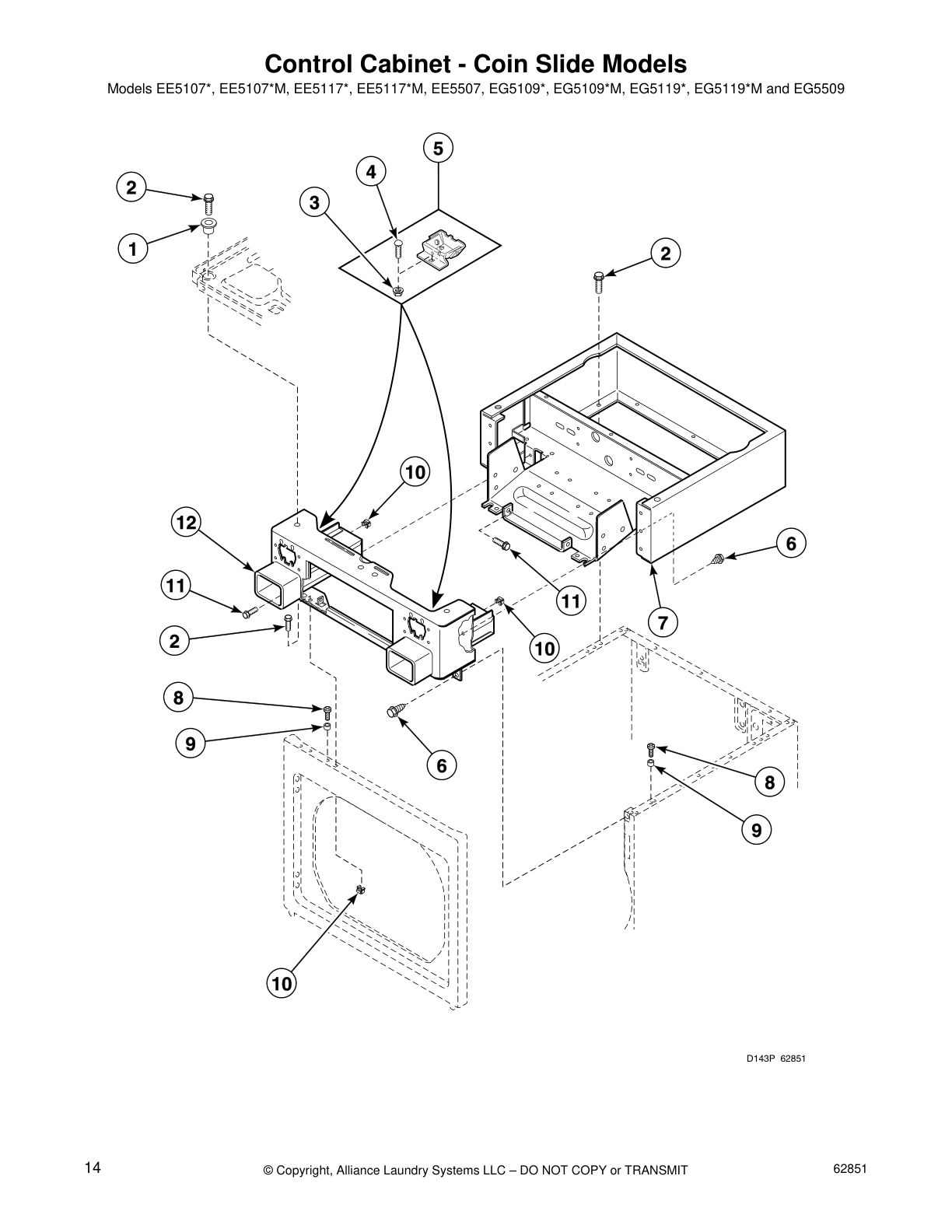

Control Cabinet - Coin Slide Models

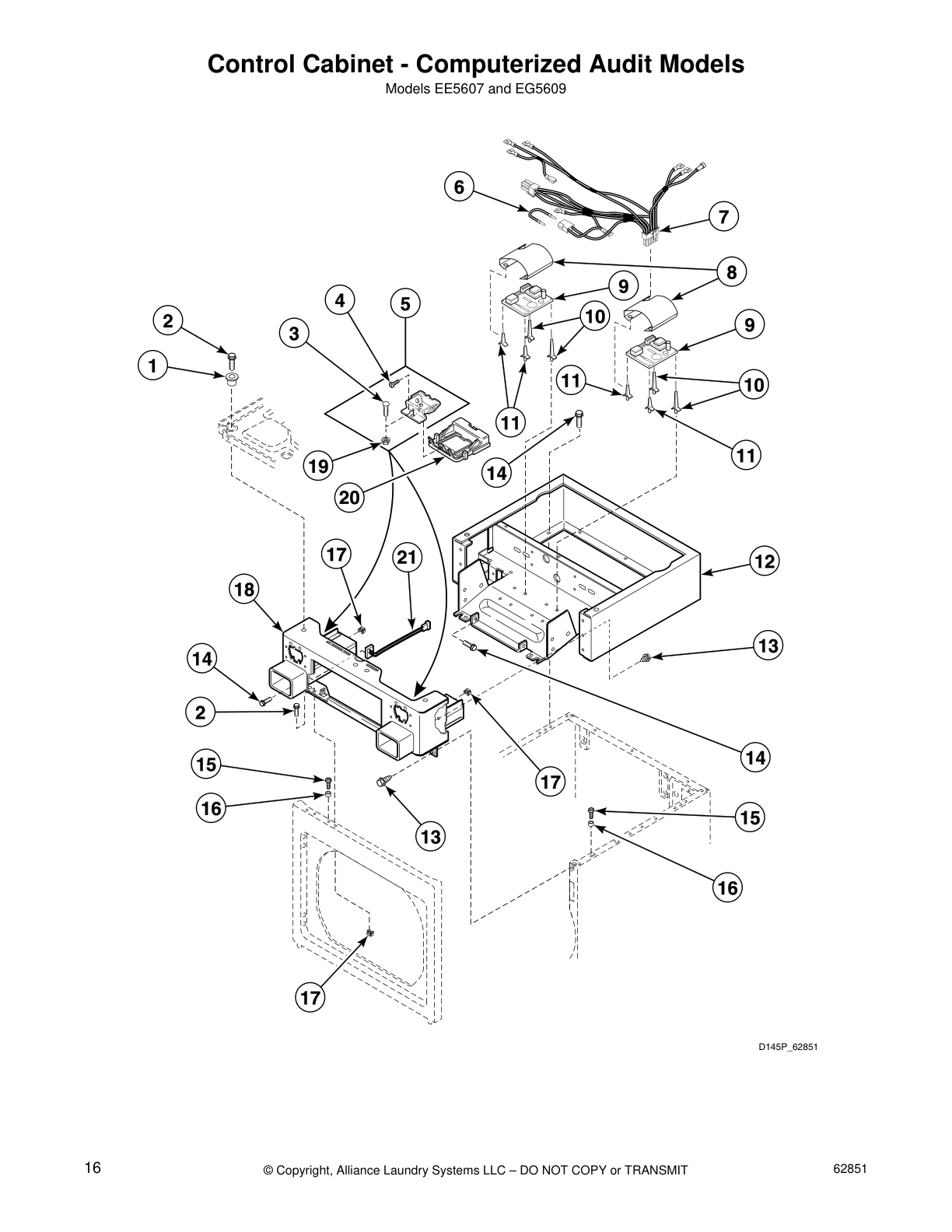

Control Cabinet - Computerized Audit Models

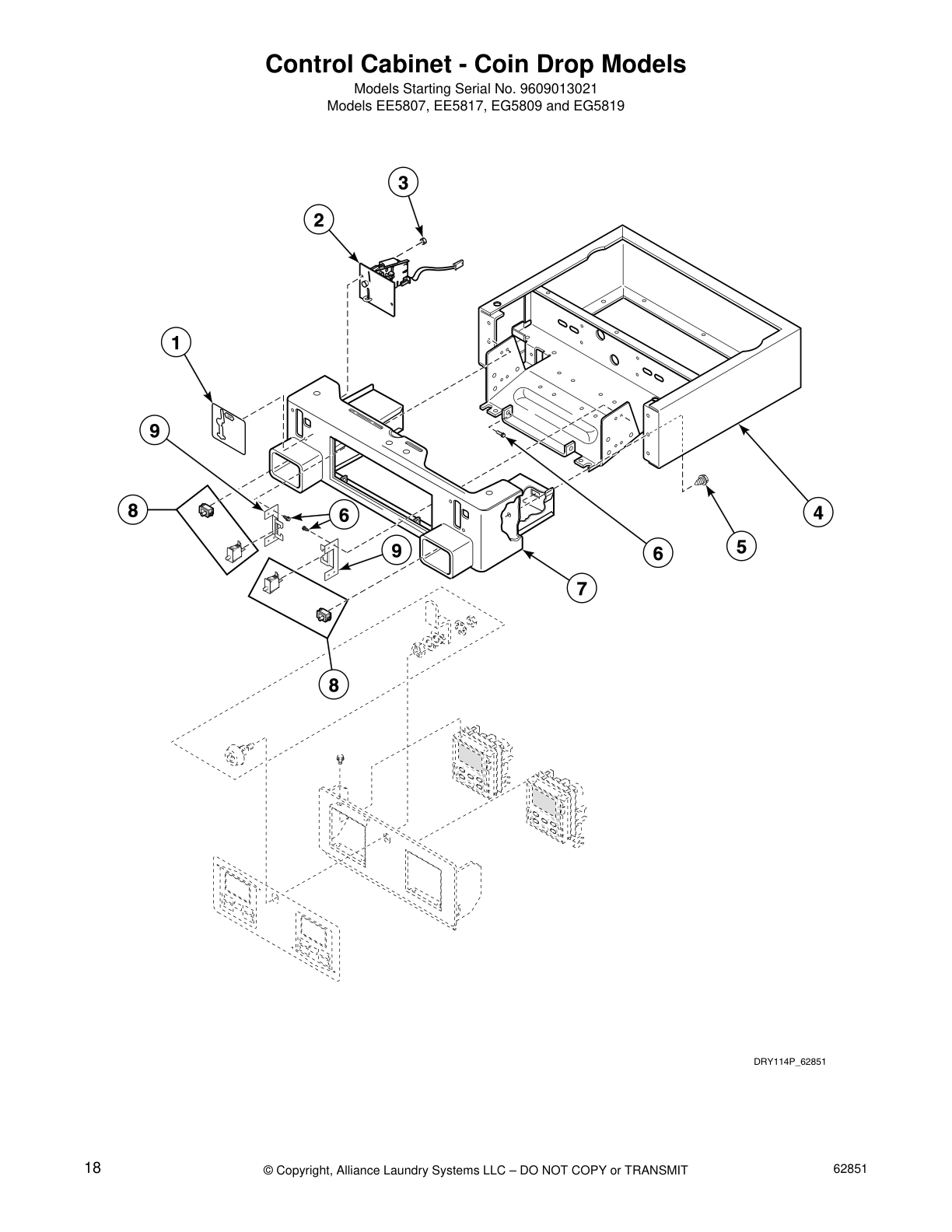

Control Cabinet - Coin Drop Models

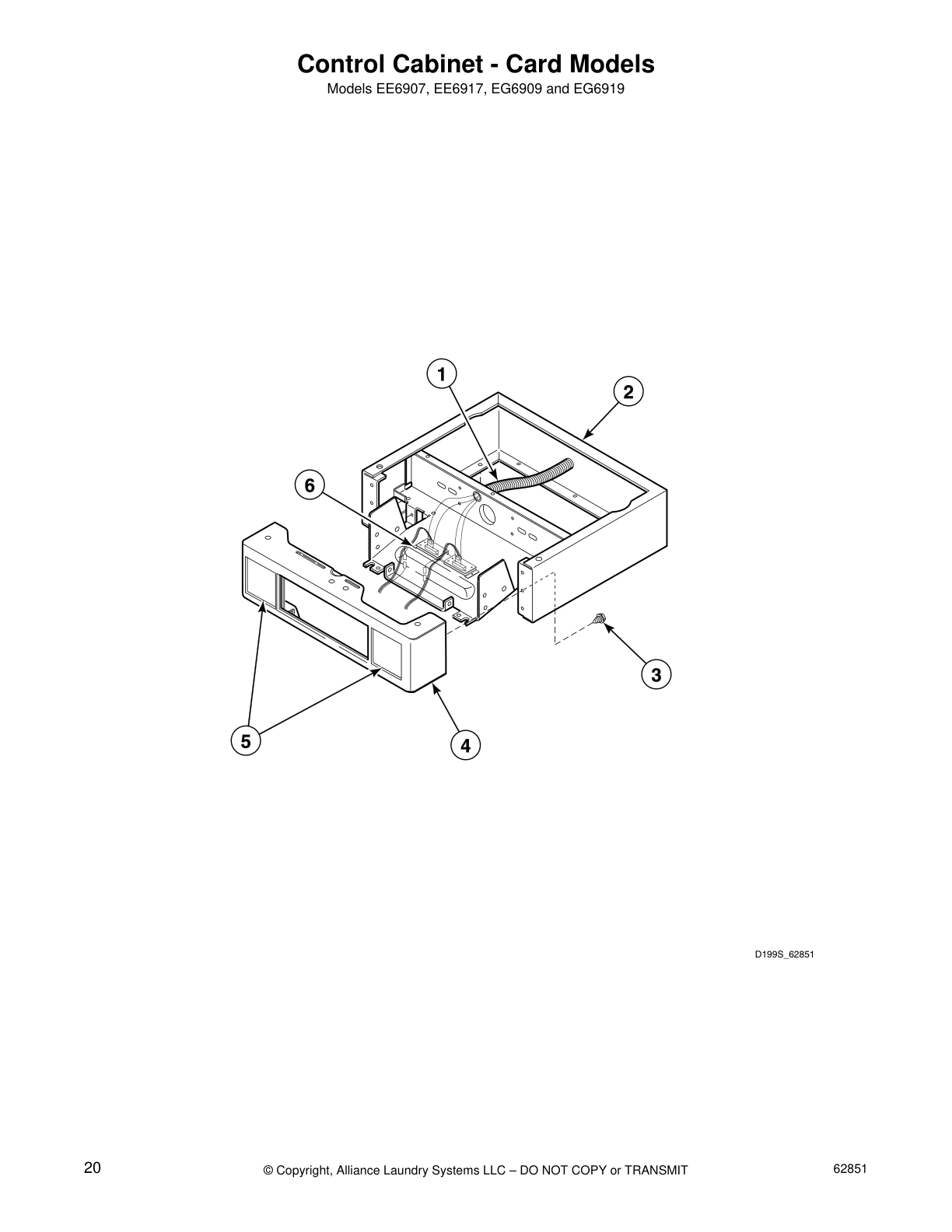

Control Cabinet - Card Models

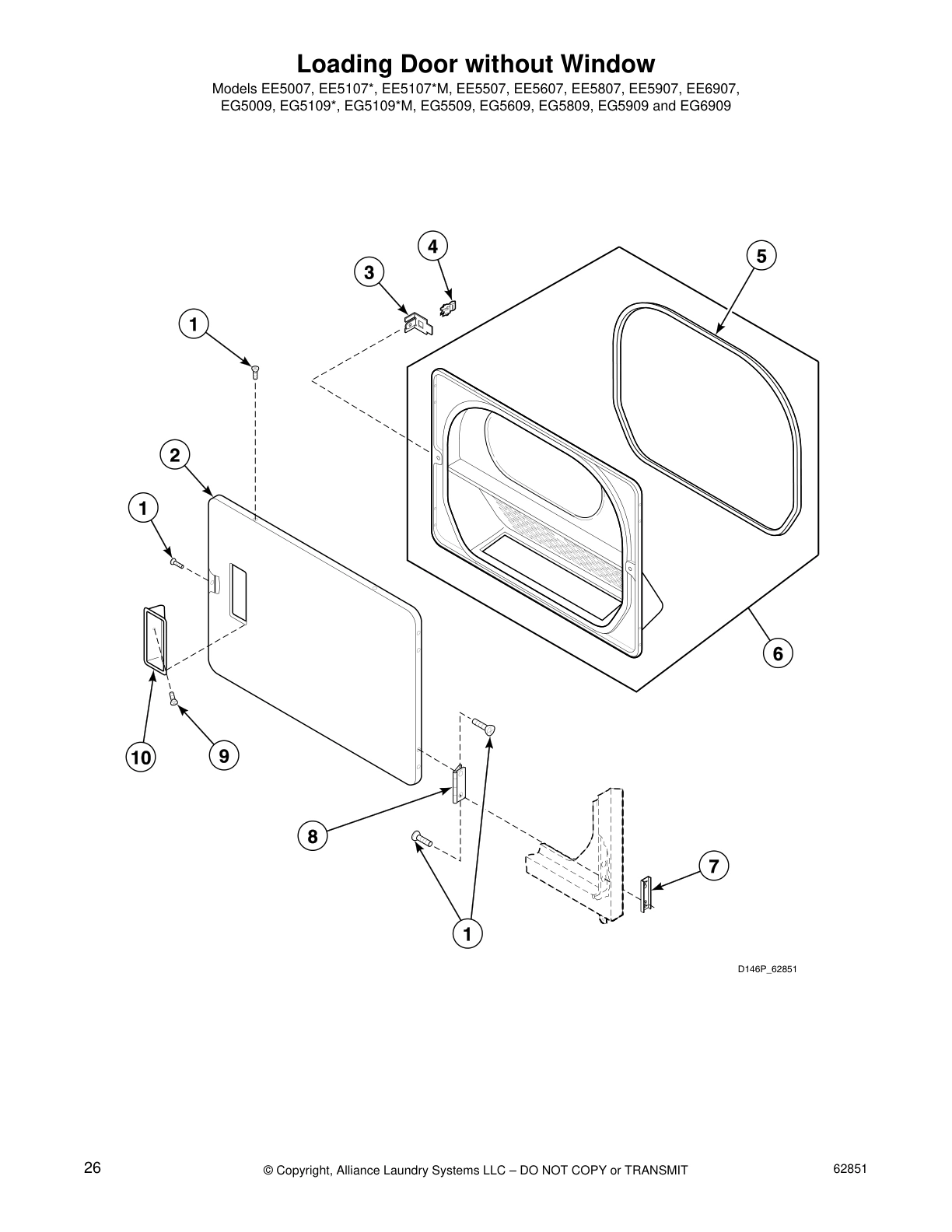

Loading Door without Window

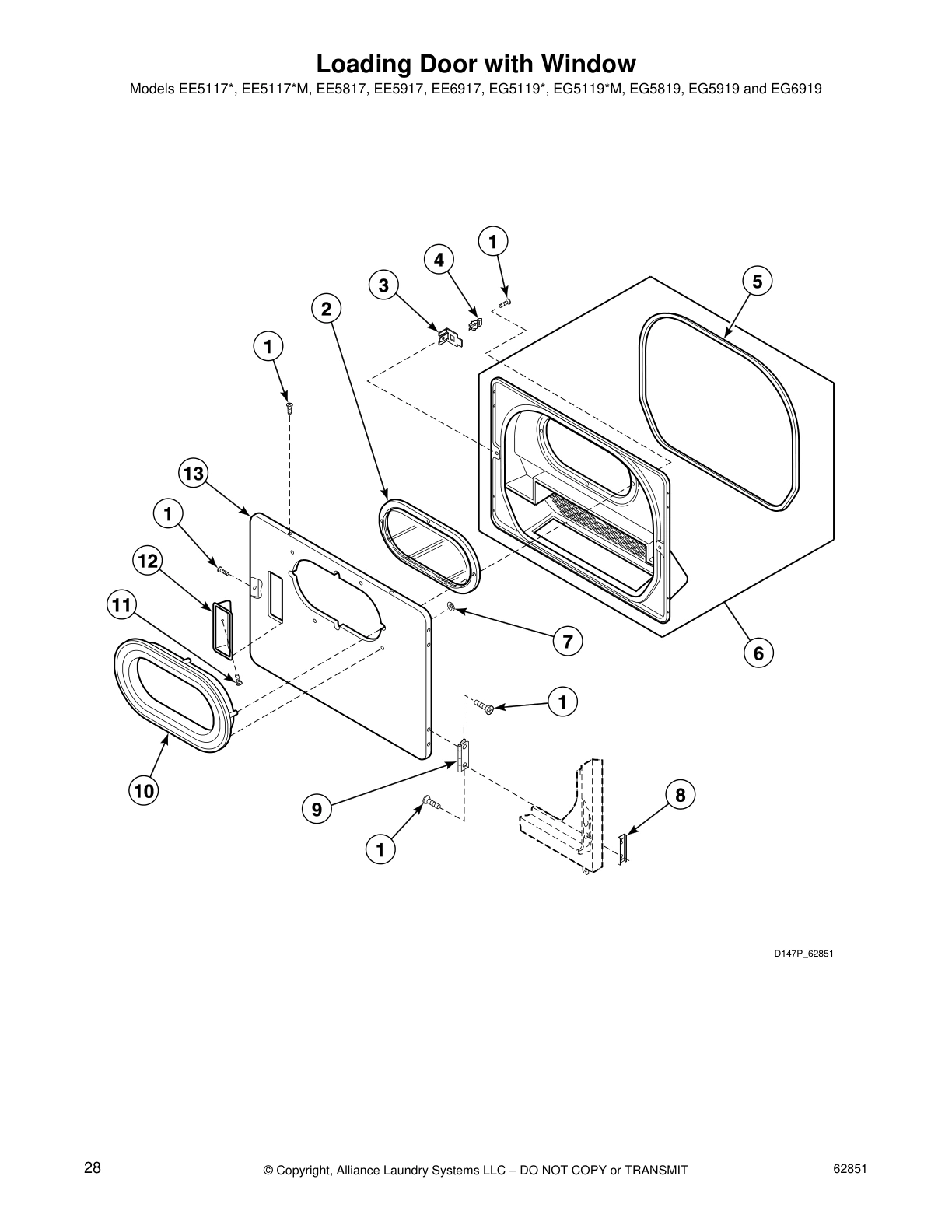

Loading Door with Window

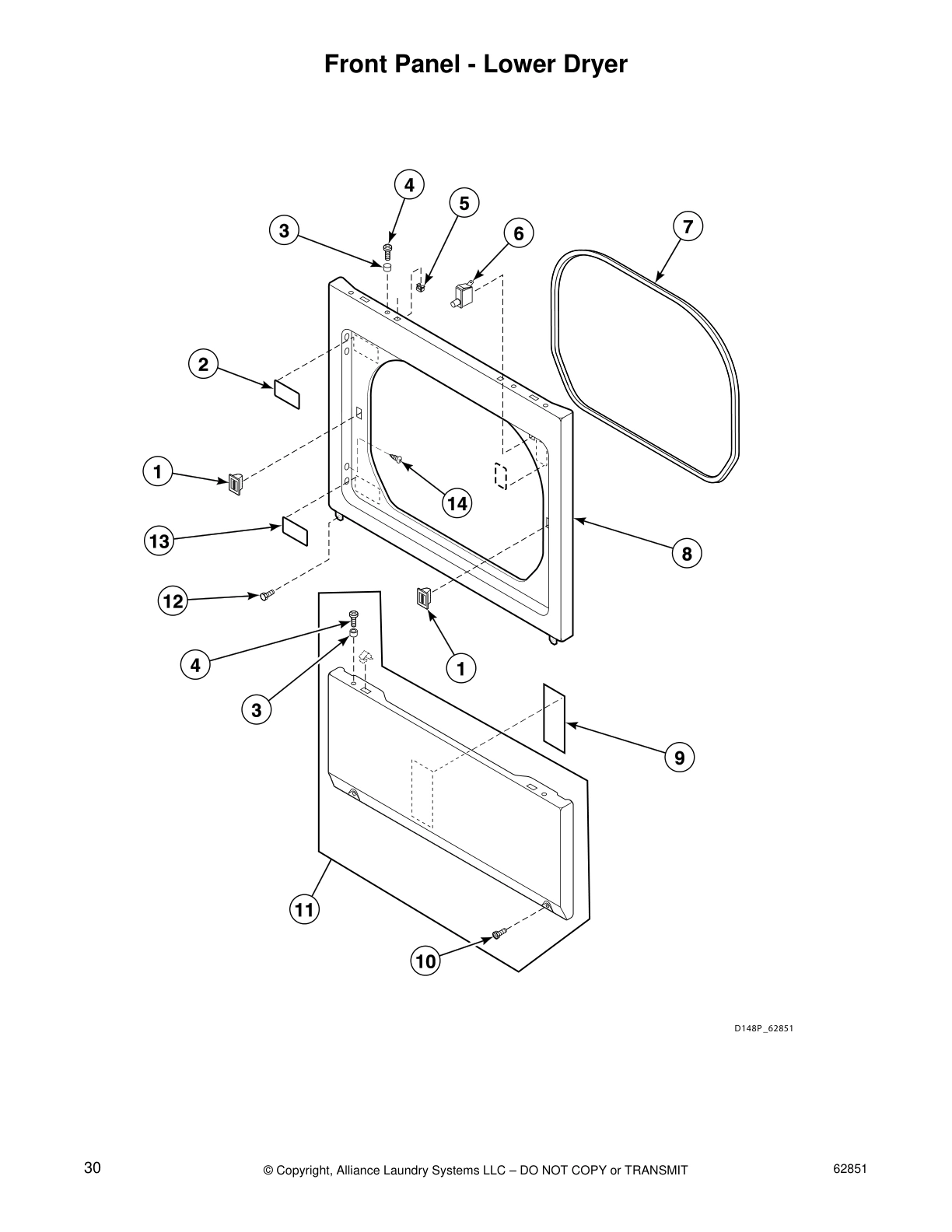

Front Panel - Lower Dryer

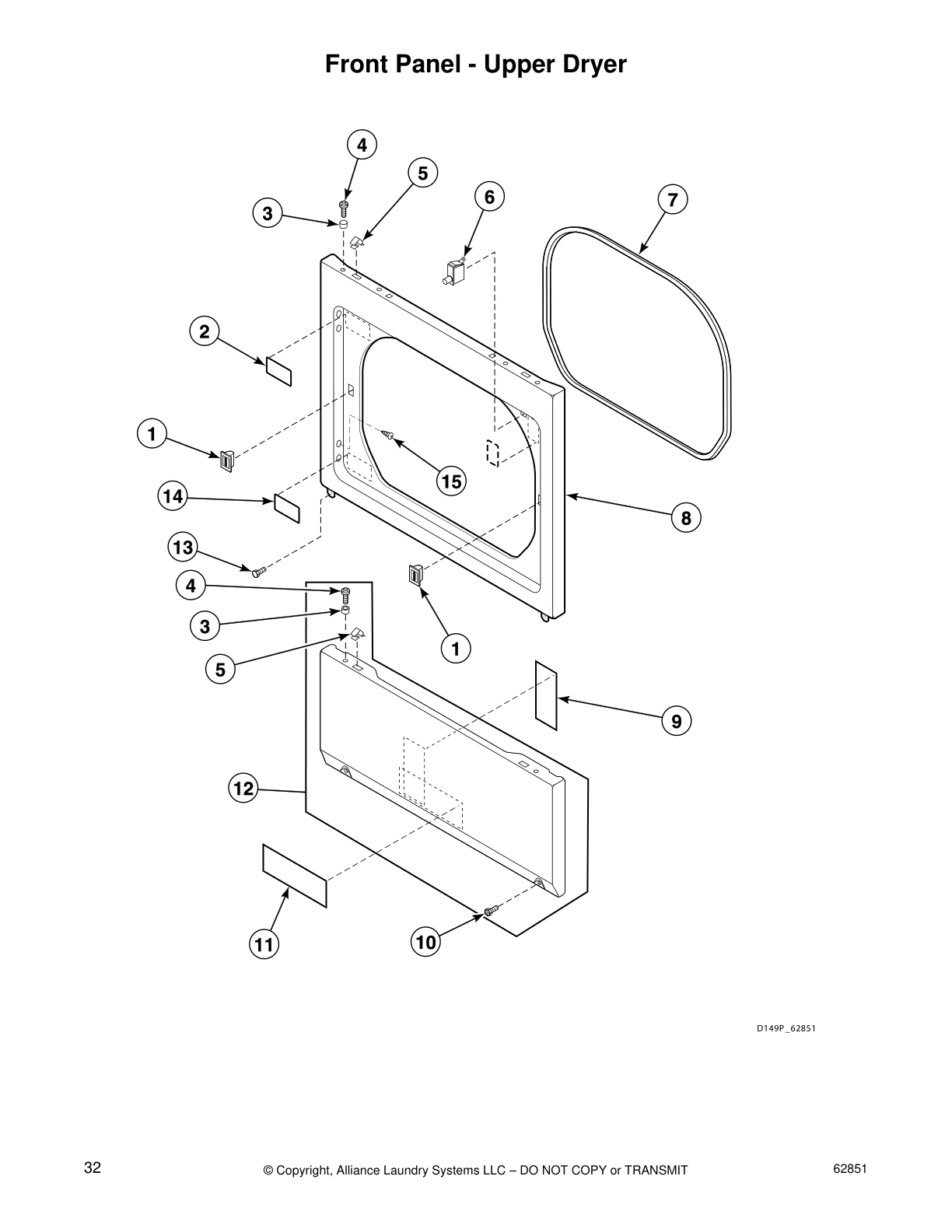

Front Panel - Upper Dryer

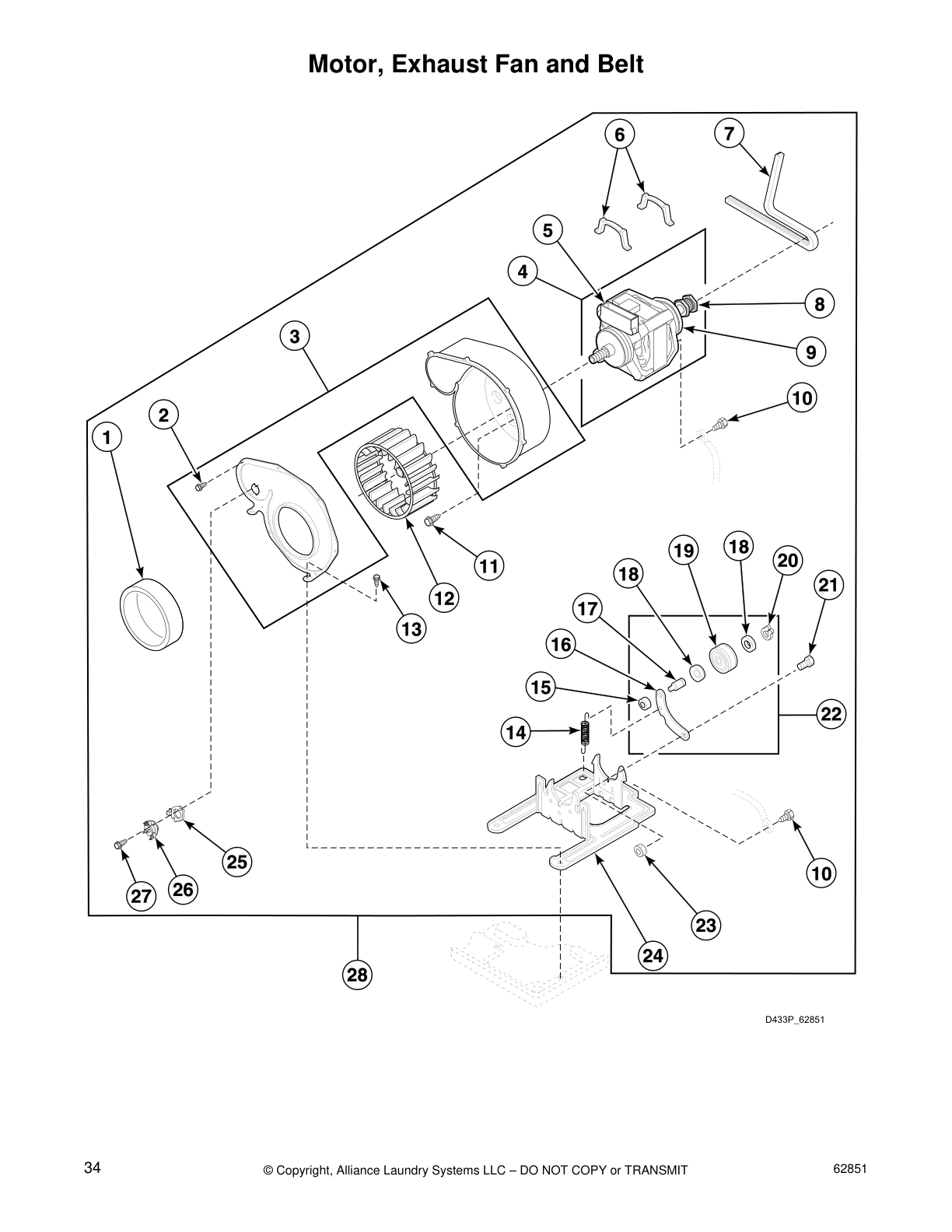

Motor, Exhaust Fan and Belt

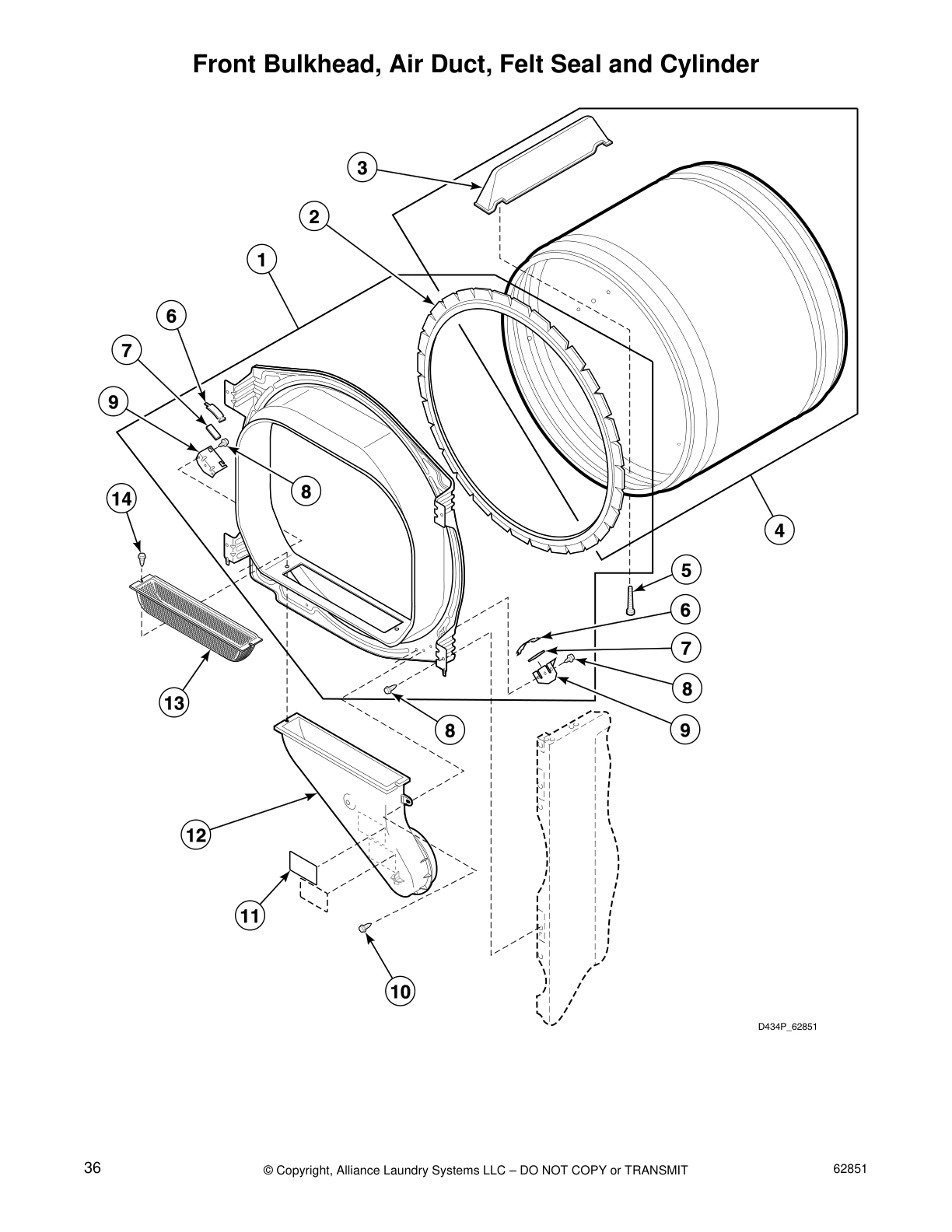

Front Bulkhead, Air Duct, Felt Seal and Cylinder

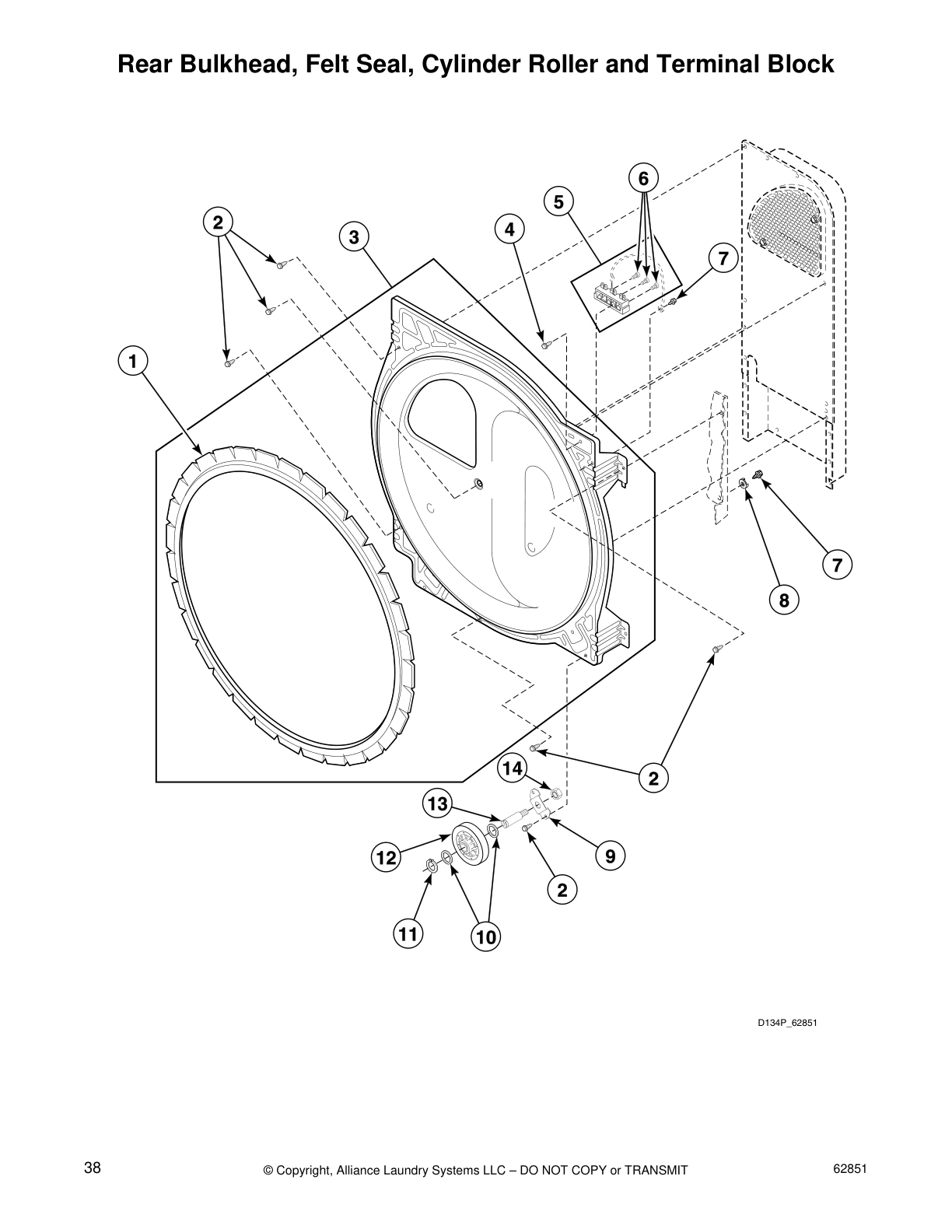

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

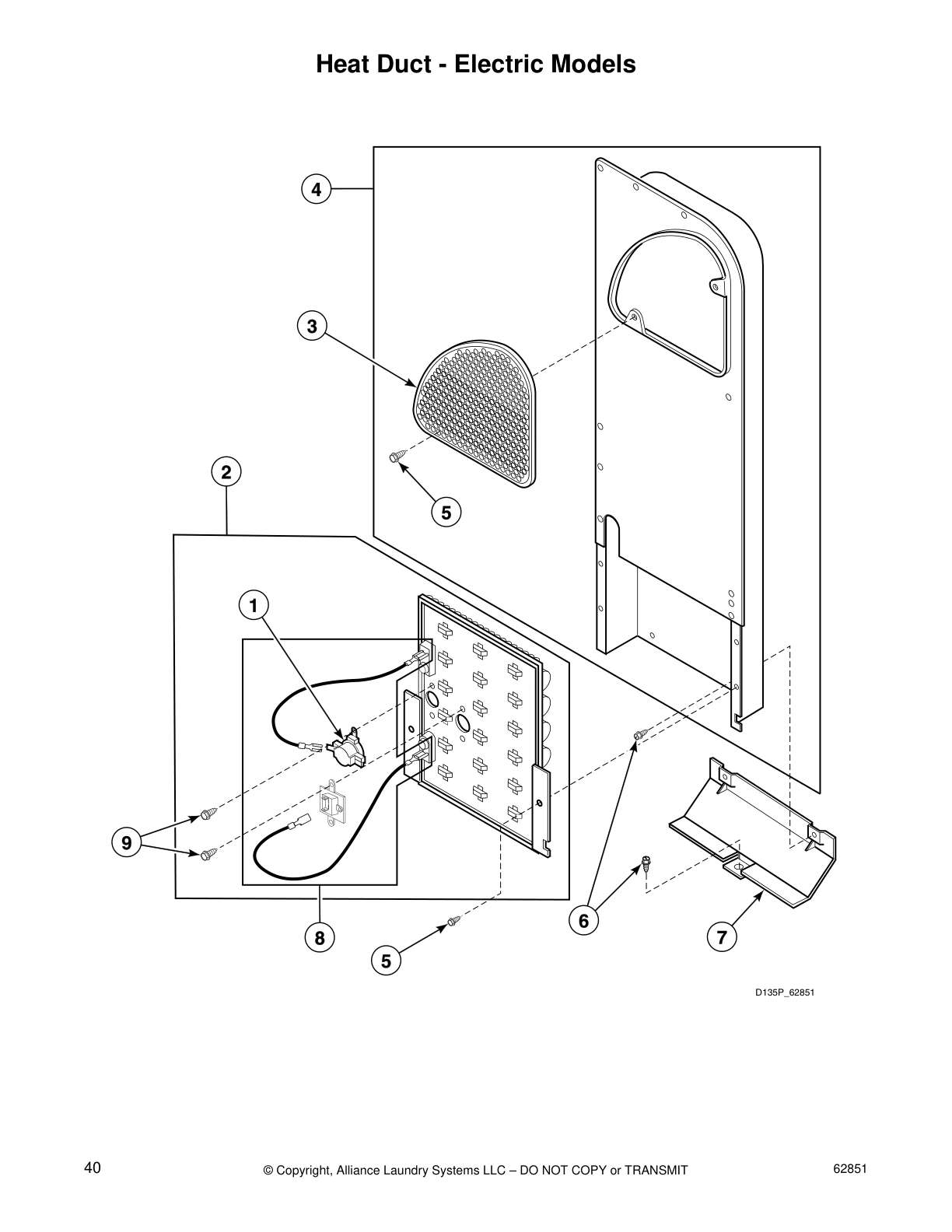

Heat Duct - Electric Models

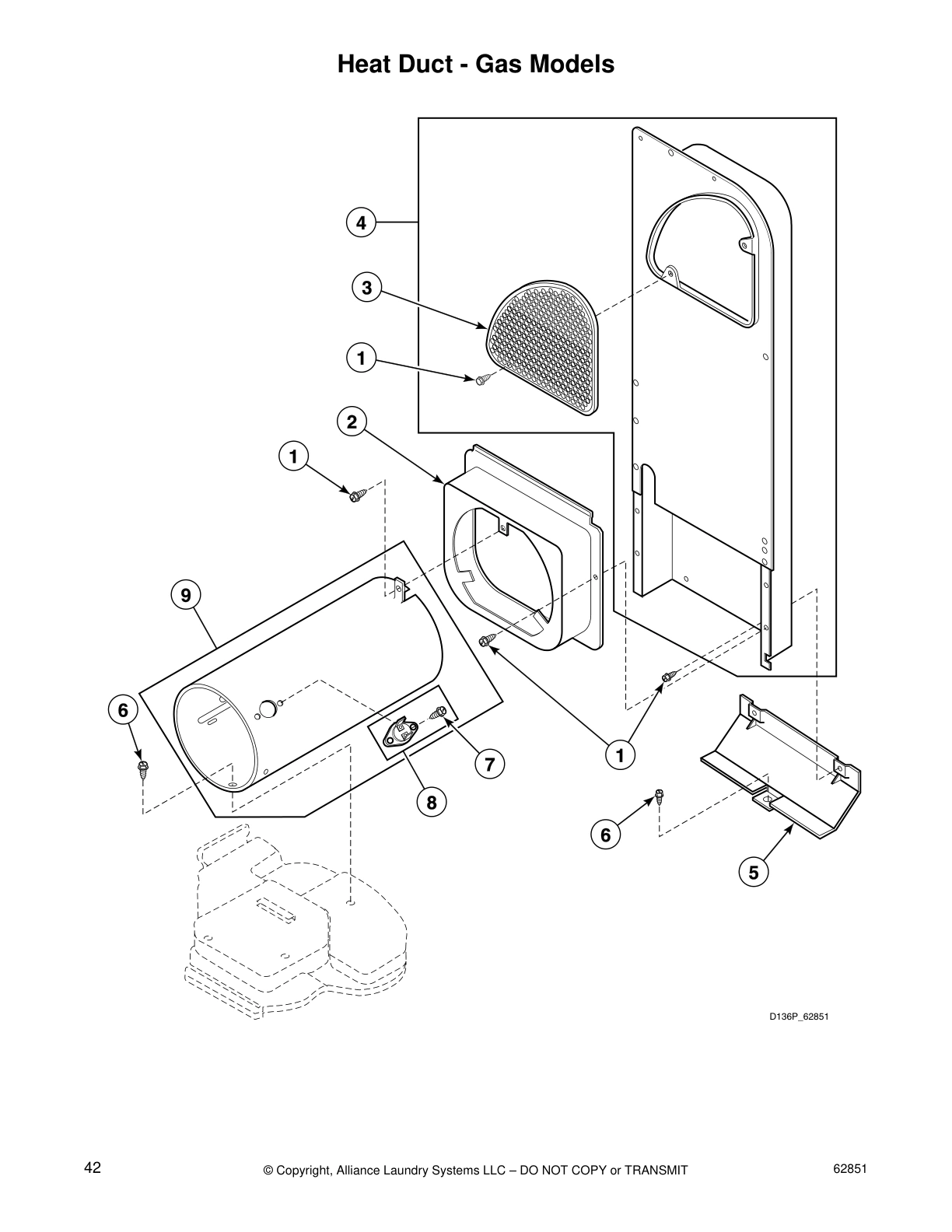

Heat Duct - Gas Models

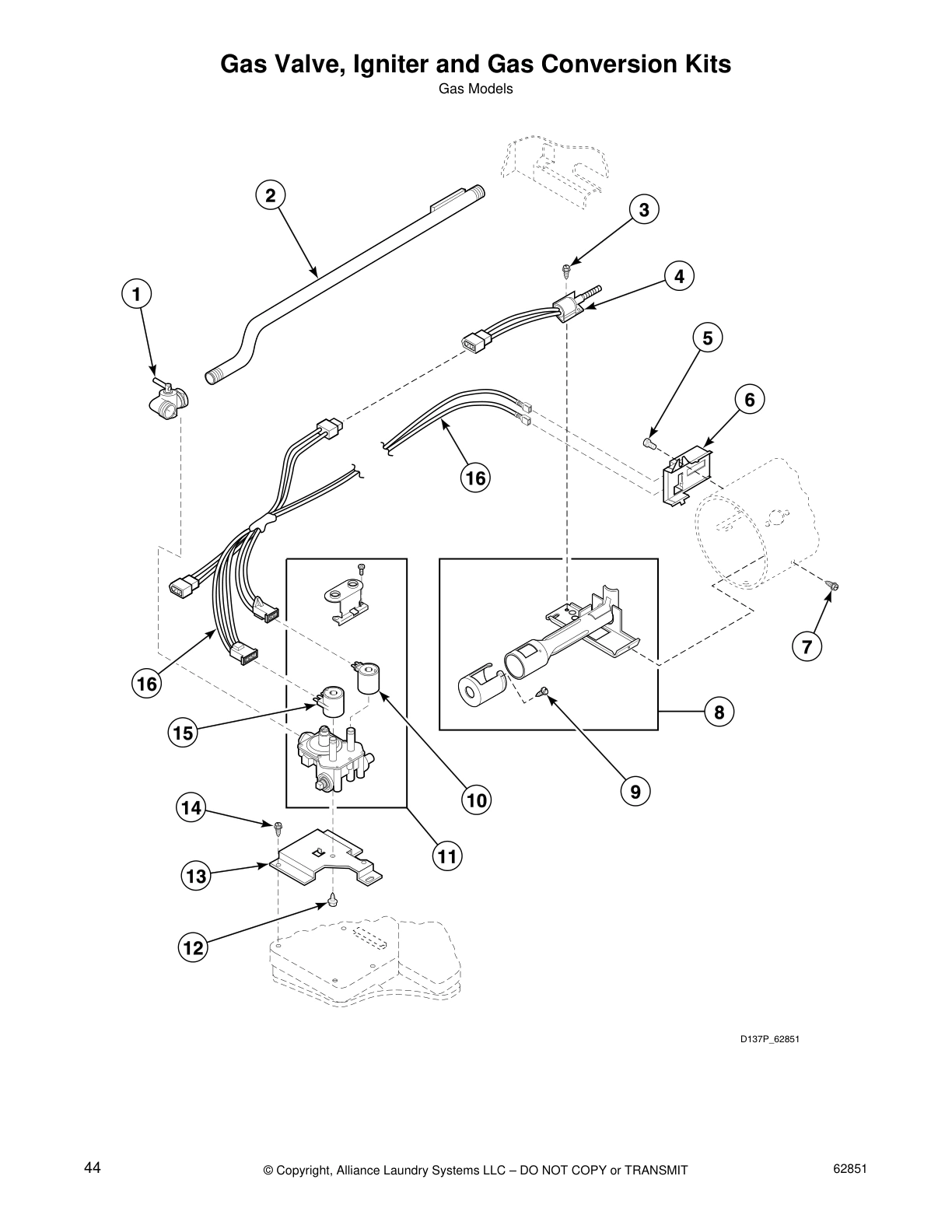

Gas Valve, Igniter and Gas Conversion Kits

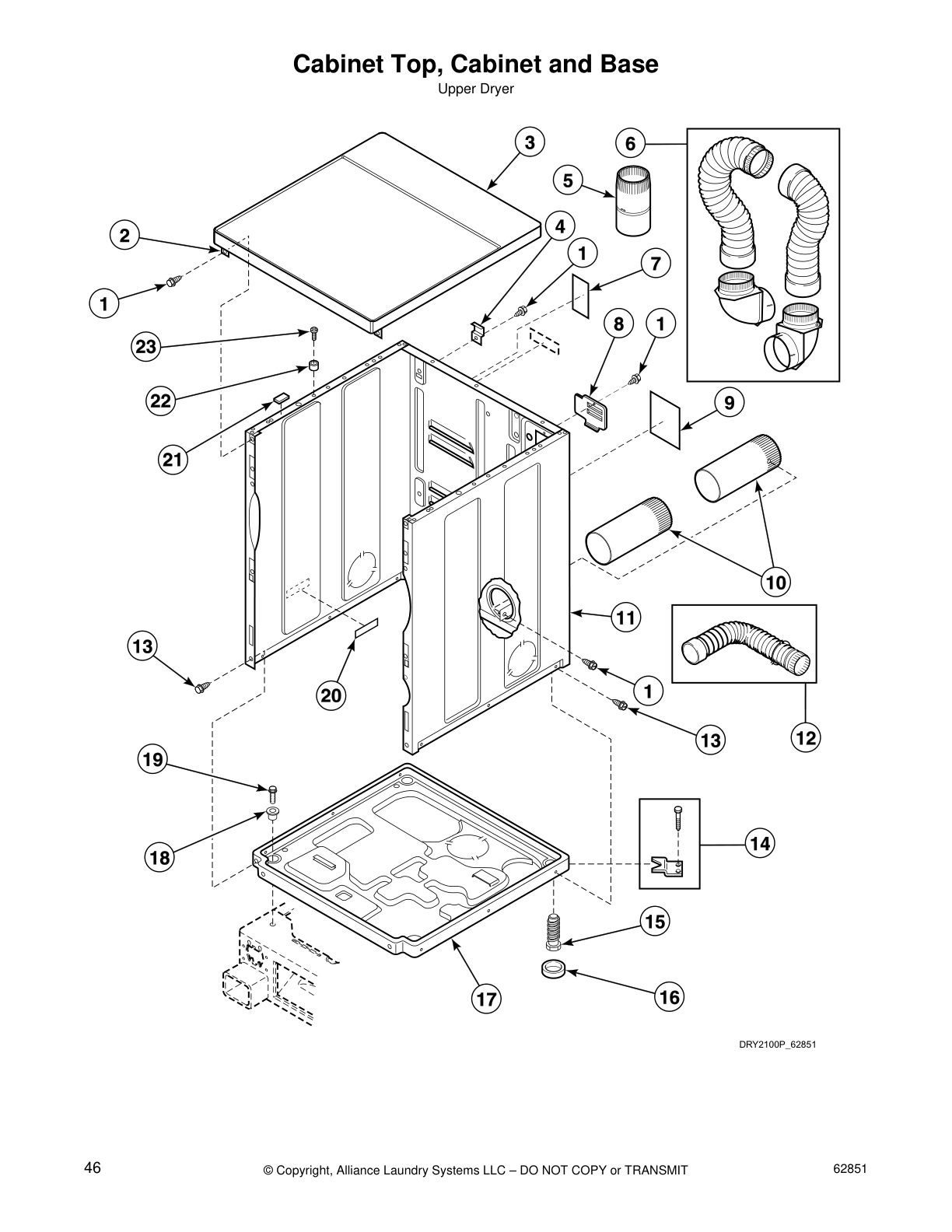

Cabinet Top, Cabinet and Base

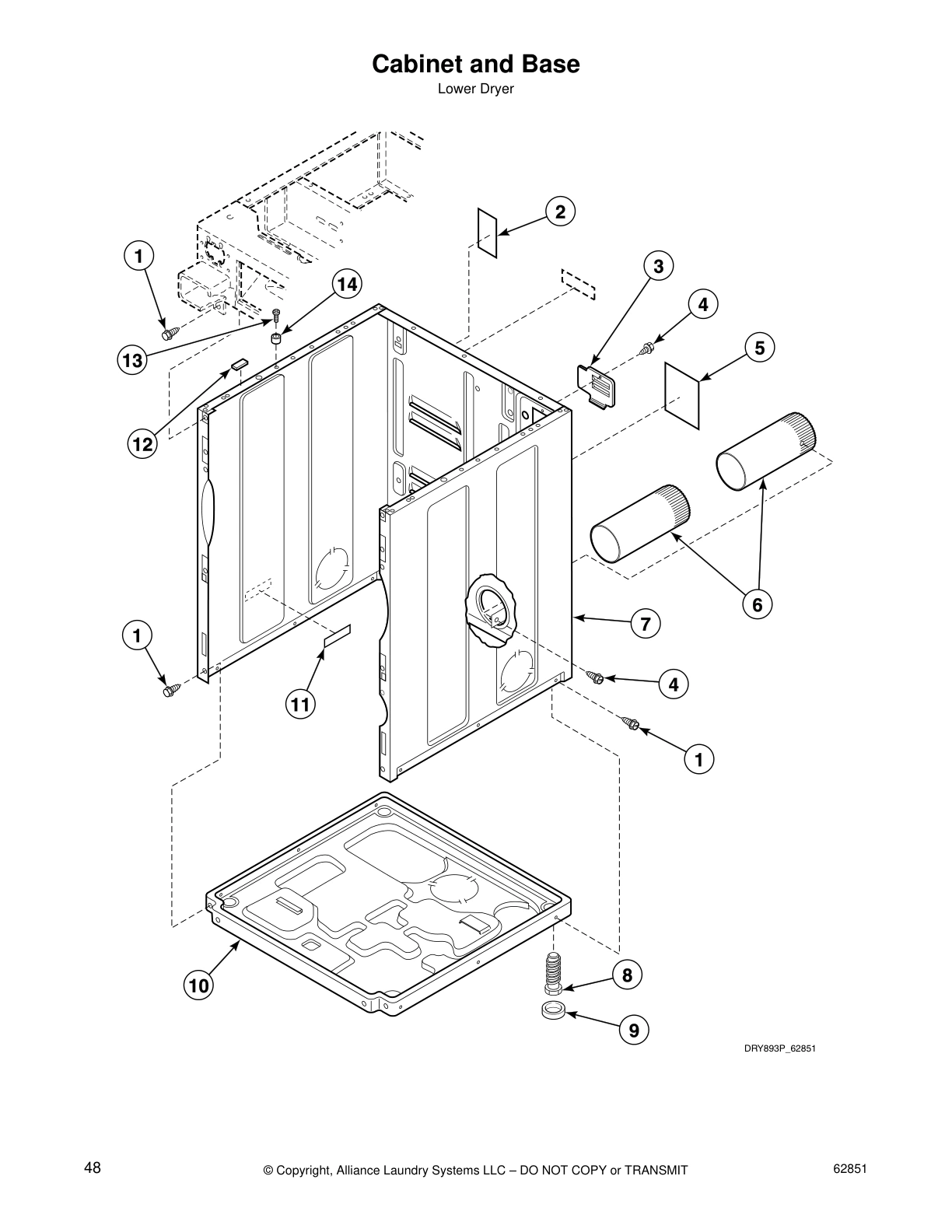

Cabinet and Base

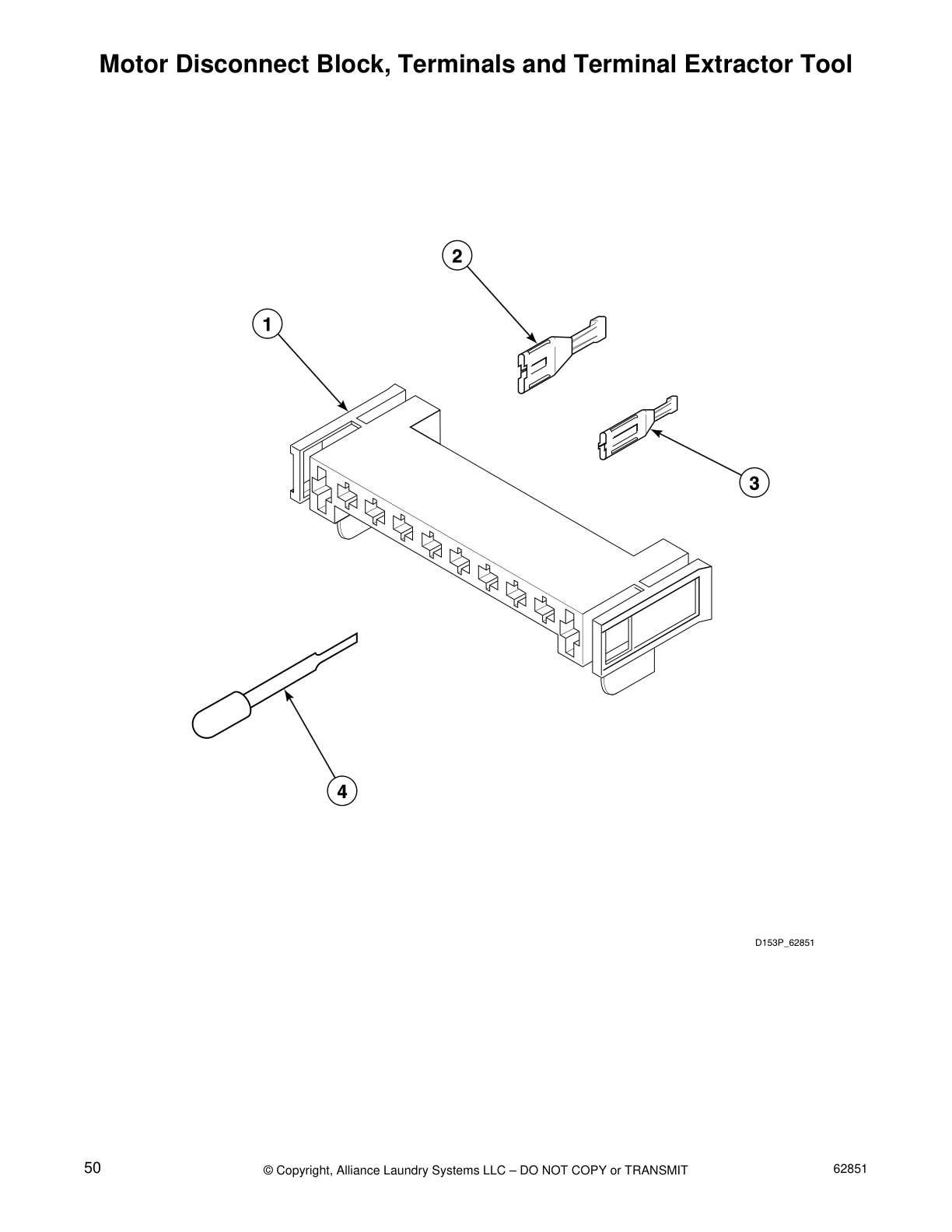

Motor Disconnect Block, Terminals and Terminal Extractor Tool

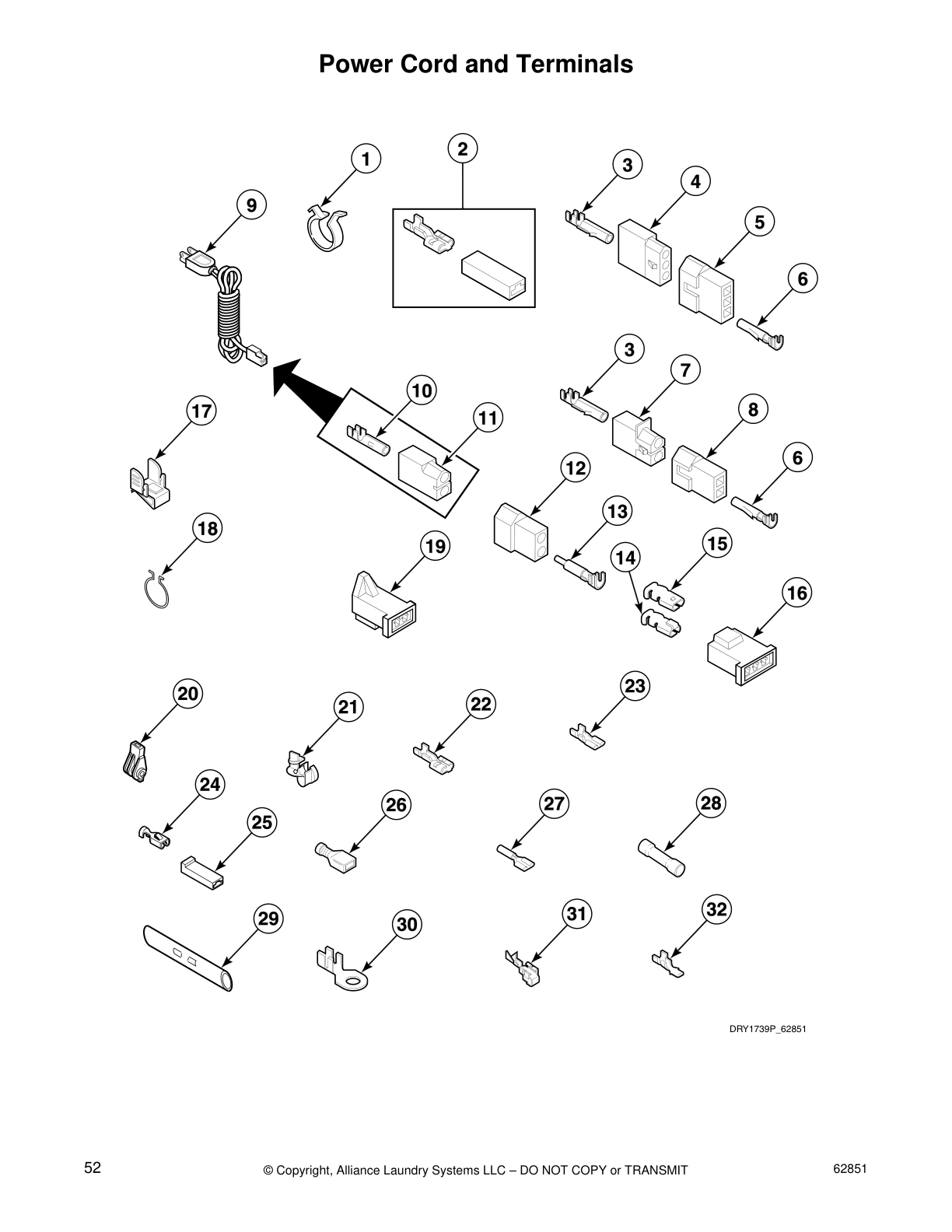

Power Cord and Terminals
Common parts from model Huebsch ZG2009* Dryer
11
Washer SPQ 91176 Contact Us For Availability
12
Access Panel SPQ 62853 Contact Us For Availability
13
Lint Filter SPQ D502140P Contact Us For Availability
26
Motor Pulley SPQ D503552 Contact Us For Availability
× ![]()
