Model GE ZFGP21HZJ SS Refrigerator – Common Parts & Diagrams

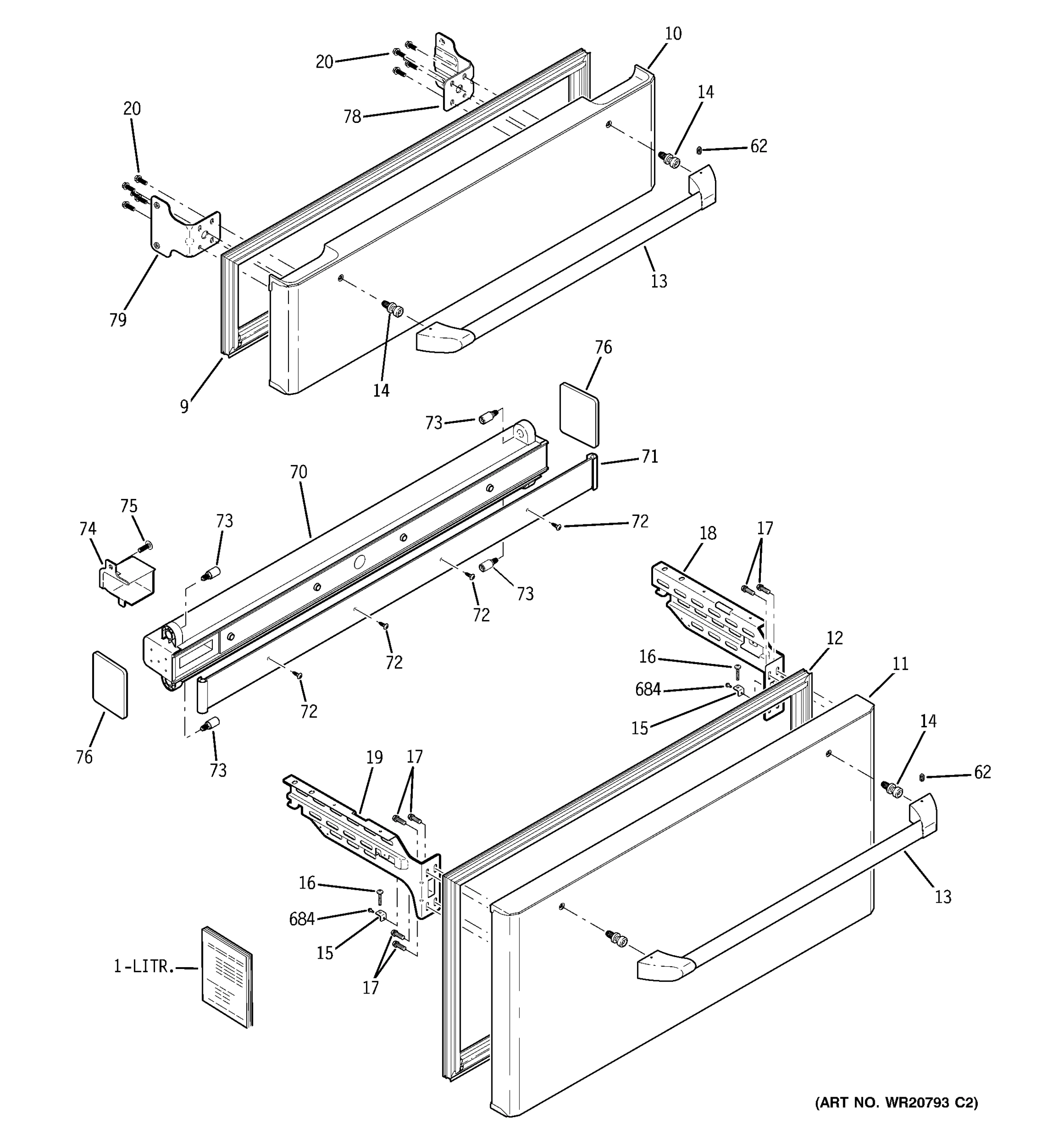

FREEZER DOORS

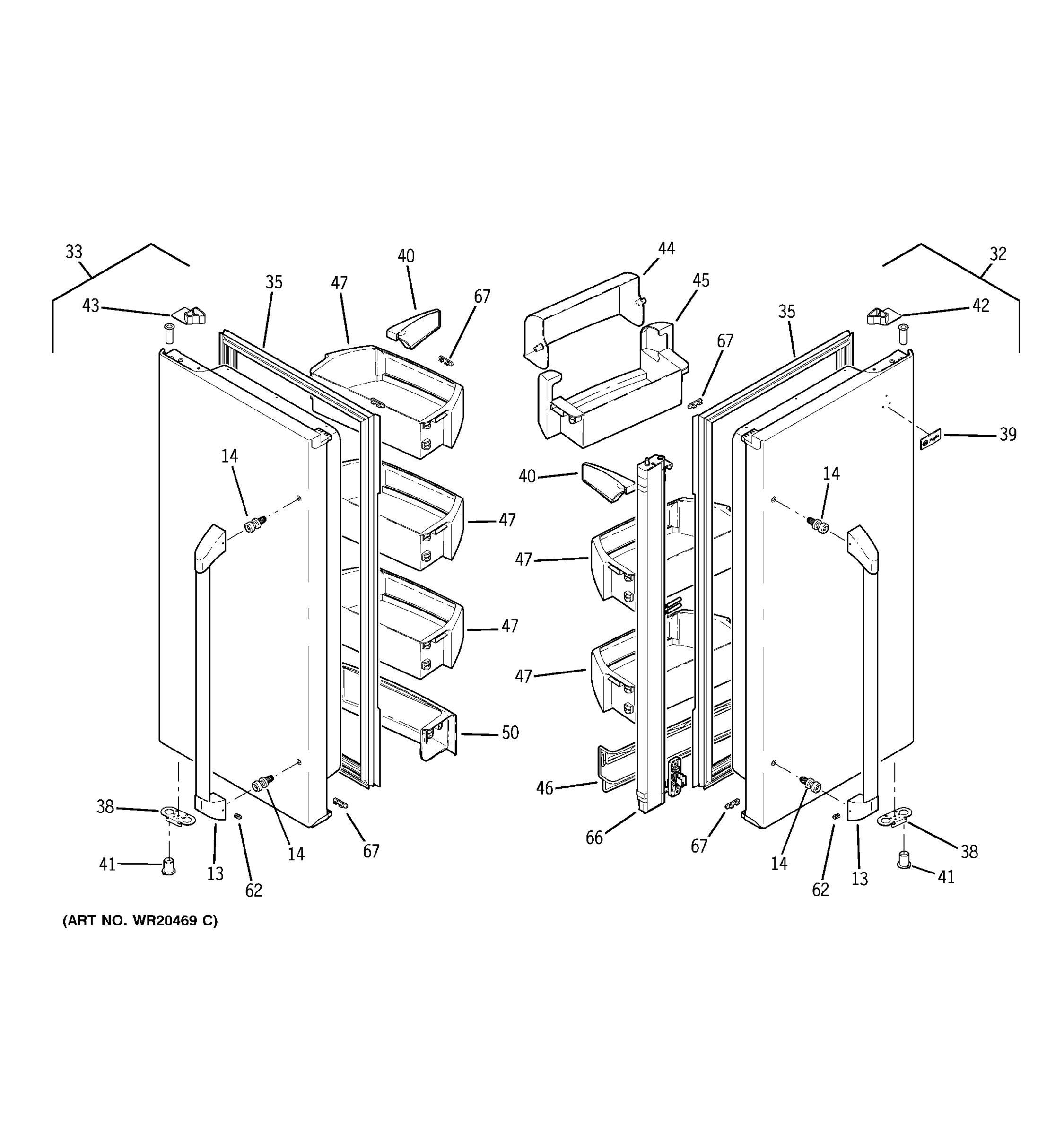

FRESH FOOD DOORS
FREEZER SECTION

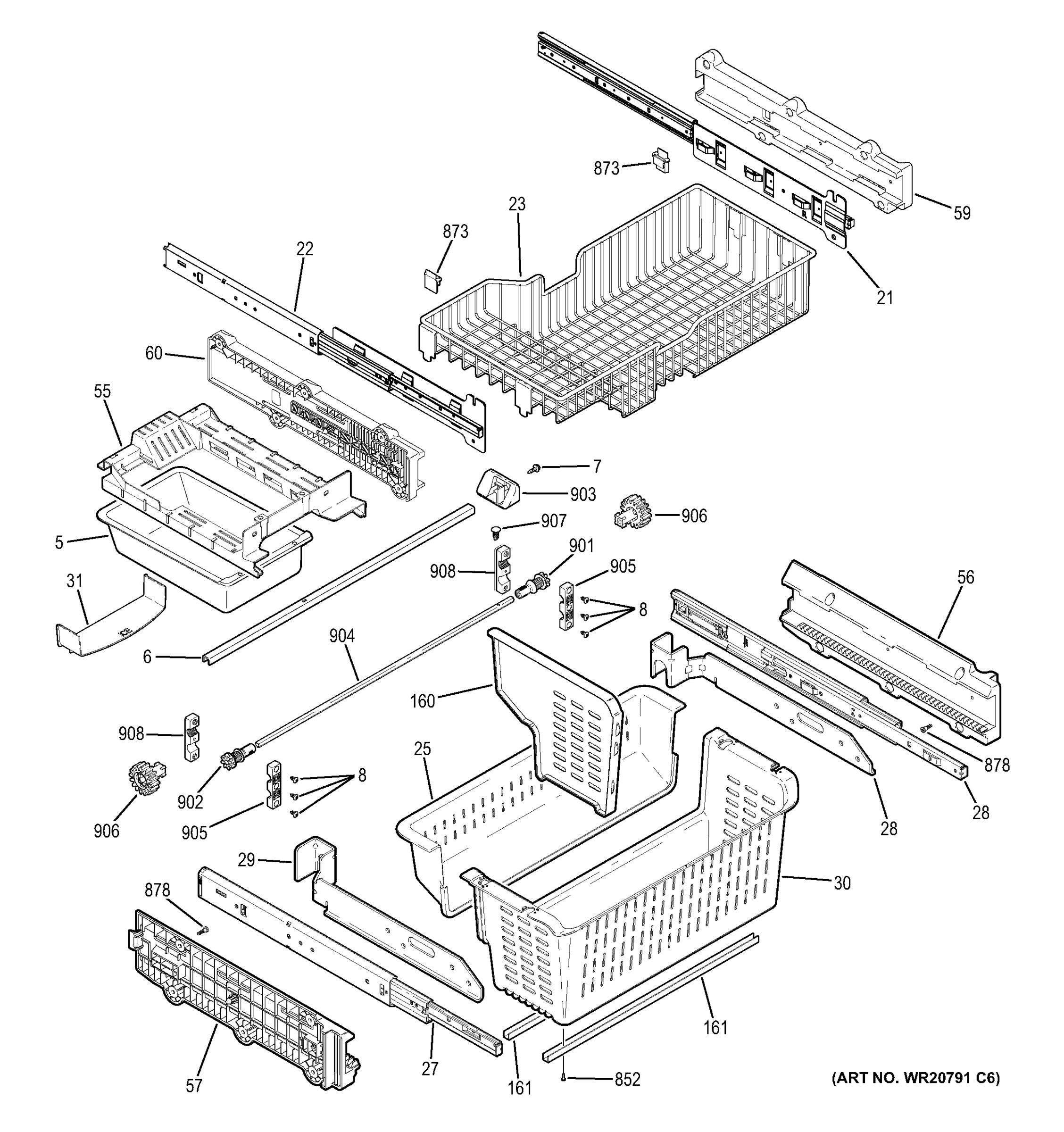

FREEZER SHELVES

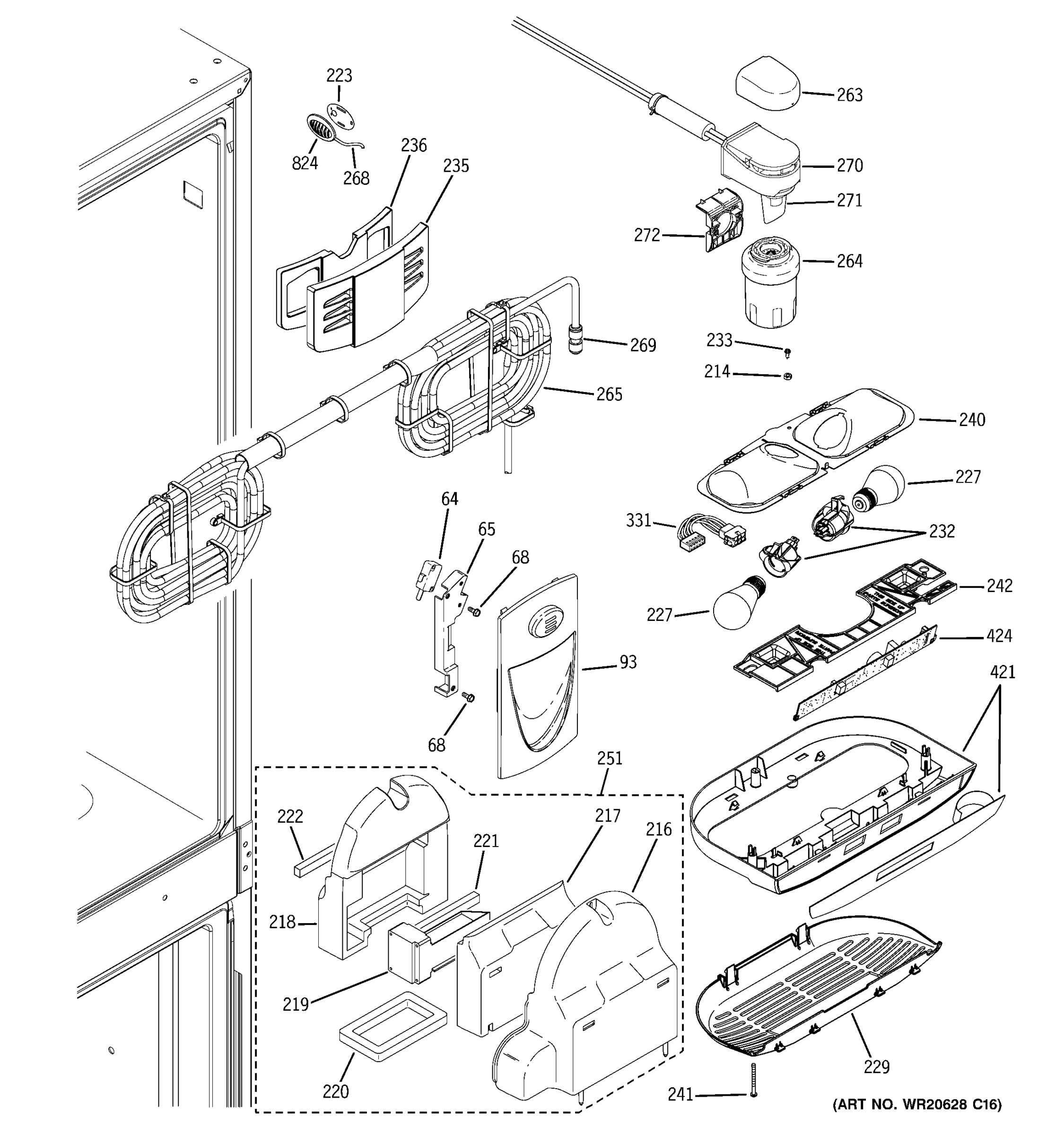

FRESH FOOD SECTION

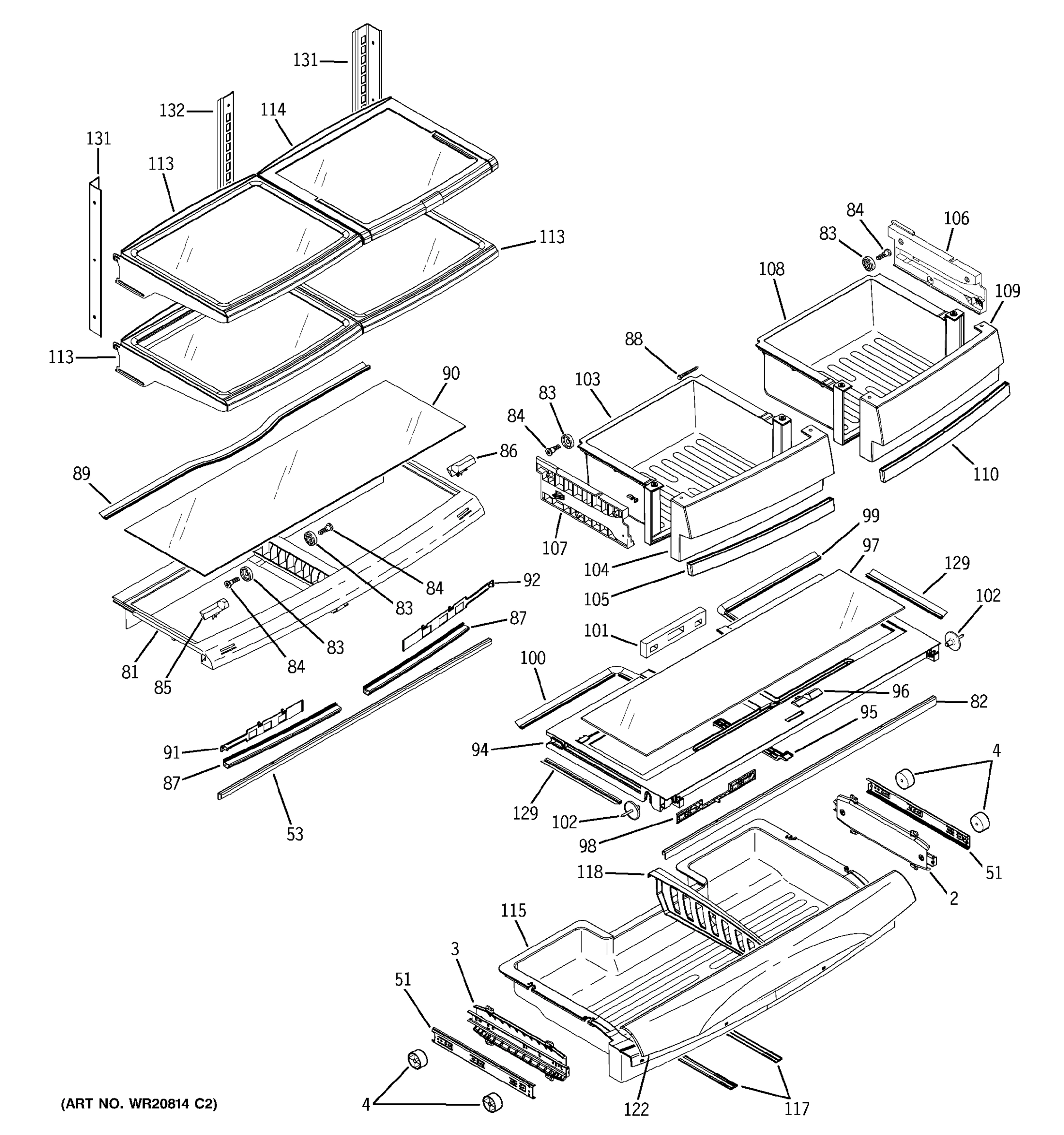

FRESH FOOD SHELVES

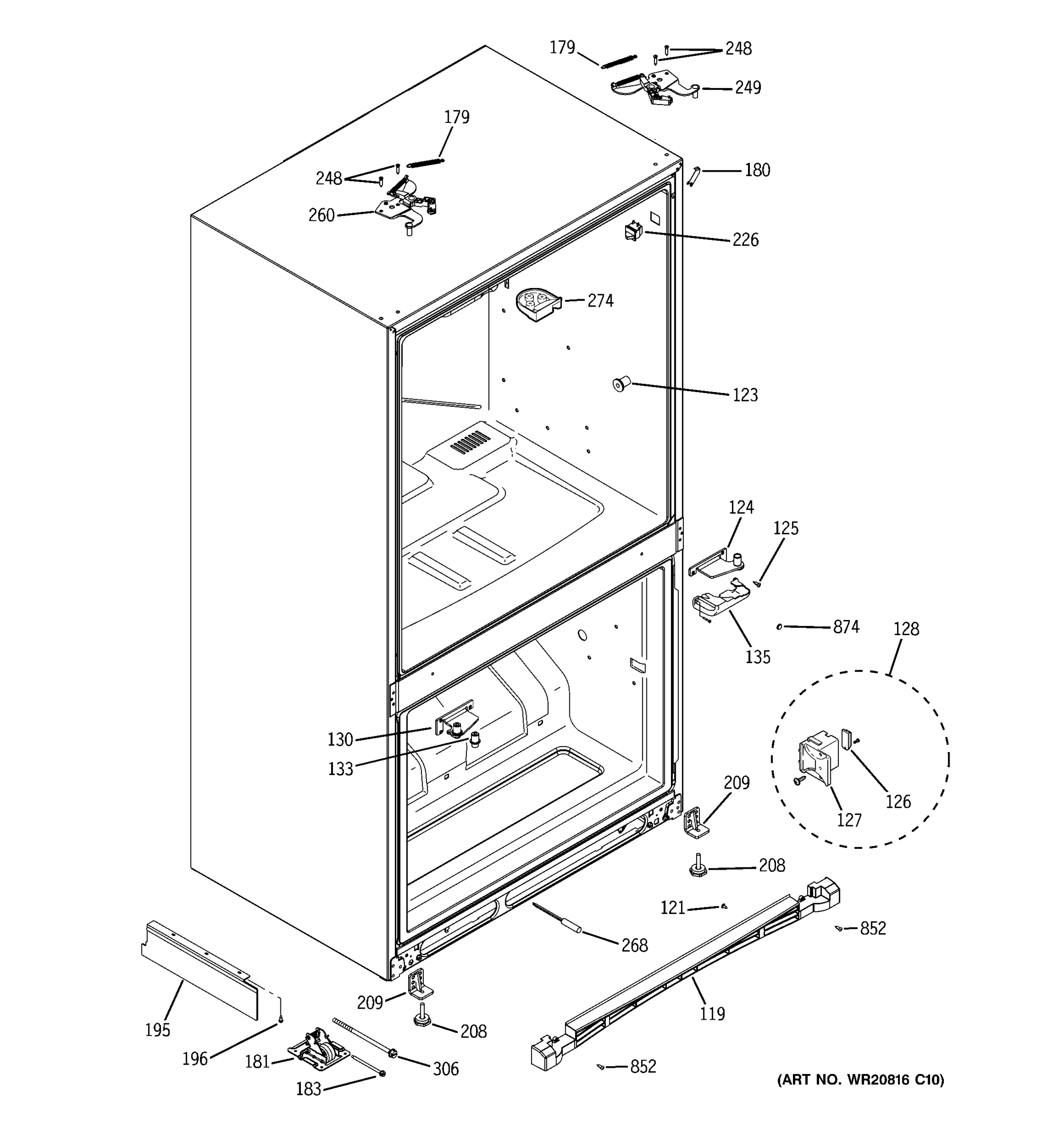

CASE PARTS

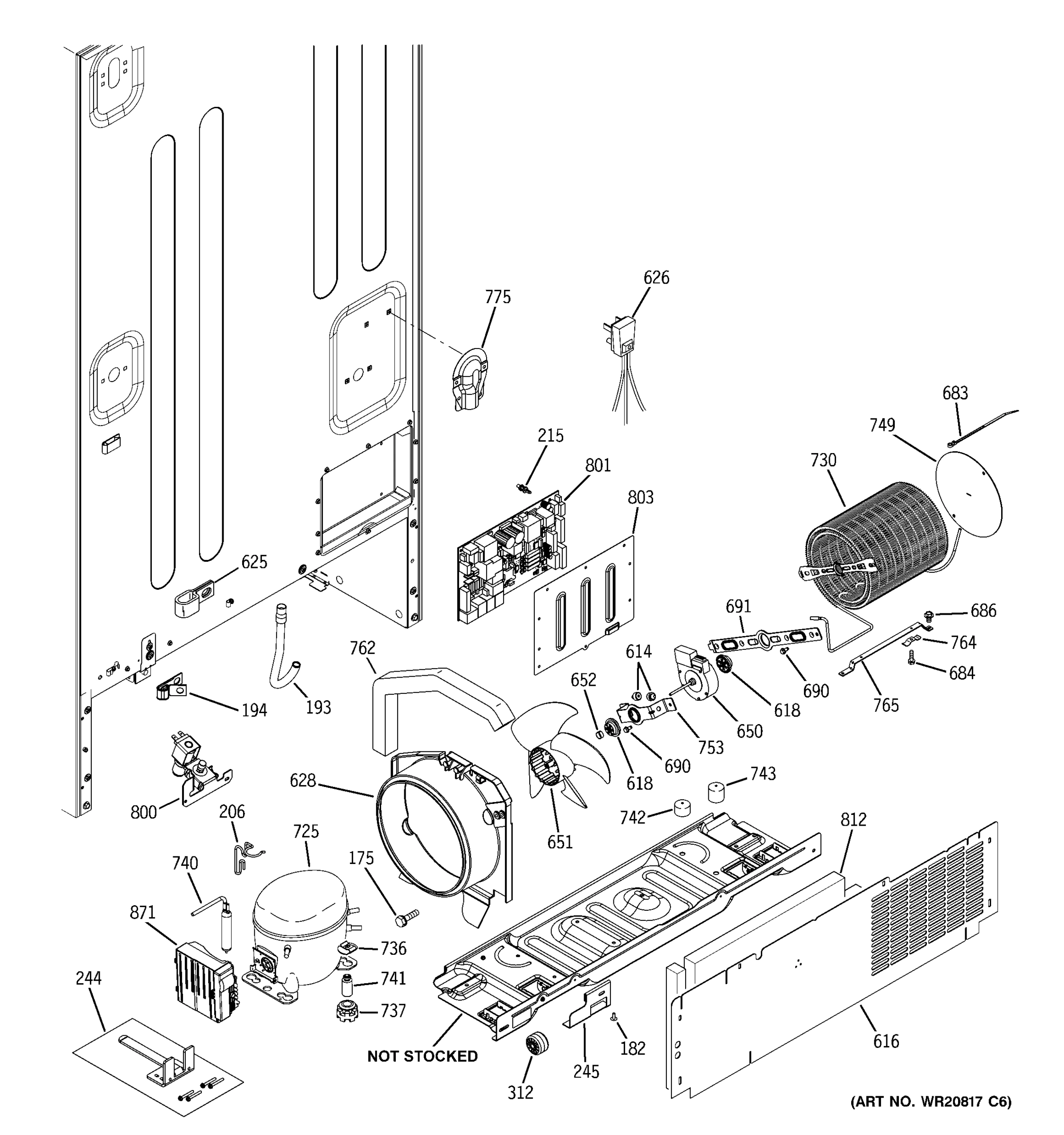

MACHINE COMPARTMENT
CLAD COMPONENTS
Common parts from model GE ZFGP21HZJ SS Refrigerator
5
BUCKET ICE GEN WR30X10147 Contact Us For Availability
6
BEAM SUPPORT GEN WR02X12692 Contact Us For Availability
9
GASKET GEN WR14X10340 Contact Us For Availability
12
GASKET GEN WR14X10341 Contact Us For Availability
16
SCR 1/4 - 20 UNC -2A GEN WR01X10843 Contact Us For Availability
17
SCR 1/4-20 RT FLAT 3/4 S GEN WR01X10885 Contact Us For Availability
18
BRACKET SLIDE LWR RH 21 GEN WR02X13378 Contact Us For Availability
19
BRACKET SLIDE LWR LH 21 GEN WR02X13379 Contact Us For Availability
27
SLIDE LOWER ASM 21 GEN WR17X20799 Contact Us For Availability
28
SLIDE LOWER ASM 21 RH GEN WR17X22008 Contact Us For Availability
35
GASKET FRENCH WITH FLAP GEN WR14X10237 Contact Us For Availability
39
BADGE MONOGRAM SMALL GEN WB02X10833 Contact Us For Availability
40
SNUGGER MODULE GEN WR02X10582 Contact Us For Availability
41
THIMBLE DOOR FF GEN WR02X12363 Contact Us For Availability
43
CAM FF CLOSURE LH GEN WR02X12360 Contact Us For Availability
44
DOOR DAIRY CLEAR GEN WR02X12364 Contact Us For Availability
45
COMPARTMENT DAIRY GEN WR71X10871 Contact Us For Availability
47
MODULE SHELF ASM FF GEN WR71X10875 Contact Us For Availability
50
MODULE SHELF FF FIXED GEN WR17X12830 Contact Us For Availability
53
BAR REINFORCEMENT GEN WR17X12946 Contact Us For Availability
57
RAIL HOLDER FZ LWR LH 21 GEN WR02X13381 Contact Us For Availability
64
SWITCH ACTUATOR GEN WR23X10333 Contact Us For Availability
66
ARTICULATION MULLION ASM GEN WR17X12753 Contact Us For Availability
67
BUMPER FRENCH DOOR GEN WR02X12469 Contact Us For Availability
70
MULLION FOAMED ASM GEN WR17X12440 Contact Us For Availability
75
SCR 8-18 AB RNDW 5/8 SS GEN WR01X10789 Contact Us For Availability
81
COVER TOP VEG PAN GEN WR32X10809 Contact Us For Availability
83
WHEEL SLIDE GEN WR01X10937 Contact Us For Availability
84
SCR10-16PL FLT25 5/8S ZN GEN WR01X10968 Contact Us For Availability
85
SLIDE CONTROL GEN WR17X12586 Contact Us For Availability
86
SLIDE CONTROL GEN WR17X12587 Contact Us For Availability
87
GASKET PAN CVR FRONT GEN WR14X10321 Contact Us For Availability
88
SCR 8-18 AB 13/4 S HXW GEN WR01X10634 Contact Us For Availability
89
GASKET PAN VEG FRAME GEN WR14X10215 Contact Us For Availability
90
GLASS COVER VEG PAN GEN WR32X10810 Contact Us For Availability
91
DAMPER GEN WR17X12588 Contact Us For Availability
92
DAMPER GEN WR17X12589 Contact Us For Availability
93
DISPENSER ASM GEN WR55X10794 Contact Us For Availability
94
FRAME PAN MEAT GEN WR72X10218 Contact Us For Availability
97
SHELF CANT GLASS GEN WR32X10606 Contact Us For Availability
101
GASKET INLET MEAT PAN GEN WR14X10219 Contact Us For Availability
104
PAN VEG FRONT LH GEN WR32X10812 Contact Us For Availability
105
HANDLE PAN VEG RH GEN WR17X12750 Contact Us For Availability
113
SHELF ASM SLIDEOUT GEN WR71X10873 Contact Us For Availability
121
SCR 12-24 TT OVT 1.000 S GEN WR01X10918 Contact Us For Availability
123
SUPPORT SHELF GEN WR02X12187 Contact Us For Availability
125
SCR 12-24 TT HXT20 .90 S GEN WR01X10683 Contact Us For Availability
126
SENSOR HUMIDITY GEN WR02X12711 Contact Us For Availability
128
SENSOR HUMIDITY ASM GEN WR55X10748 Contact Us For Availability
133
PIN HINGE ADJ BM GEN WR01X10793 Contact Us For Availability
161
STIFFNER GEN WR02X13383 Contact Us For Availability
179
SPRING CLOSURE GEN WR01X10827 Contact Us For Availability
181
MOBILITY FRONT ASM GEN WR02X12274 Contact Us For Availability
182
SCR 10-32 B IHXW 1/2 GEN WR01X10622 Contact Us For Availability
193
TUBE DRAIN GEN WR02X11426 Contact Us For Availability
198
GROMMET GEN WR02X10678 Contact Us For Availability
199
COVER EVAP FAN GEN WR17X12254 Contact Us For Availability
202
SHIELD LIGHT FZ GEN WR02X13341 Contact Us For Availability
208
SCREW LEVELING GEN WR01X10686 Contact Us For Availability
211
TUBE IM FILL GEN WR17X12258 Contact Us For Availability
213
HEATER FILL TUBE ASM GEN WR51X10093 Contact Us For Availability
215
STAND OFF GEN WR02X10663 Contact Us For Availability
220
GASKET FF INLET GEN WR14X10227 Contact Us For Availability
221
GASKET TOWER FF GEN WR14X10228 Contact Us For Availability
223
SHUNT SENSOR GEN WR02X10668 Contact Us For Availability
224
GRILLE SENSOR GEN WR02X10647 Contact Us For Availability
228
LOW SIDE ASM GEN WR85X10087 Contact Us For Availability
229
SHEILD LIGHT FF GEN WR17X12671 Contact Us For Availability
236
EPS VENT DUCT VERTICAL GEN WR17X12266 Contact Us For Availability
243
SCR 8-18 AB HXW 5/4 S GEN WR01X10626 Contact Us For Availability
248
SCR 12-24 TT HX 7/8 S GEN WR01X10792 Contact Us For Availability
249
HINGE CLOSURE GEN WR13X10427 Contact Us For Availability
251
AIR TOWER ASM GEN WR17X12456 Contact Us For Availability
254
WIRE TIE GEN WR02X11607 Contact Us For Availability
256
BRACKET EVAP FAN BTM GEN WR02X10764 Contact Us For Availability
257
SCR 10-32 GEN WR01X10620 Contact Us For Availability
260
HINGE CLOSURE ASM GEN WR13X10429 Contact Us For Availability
261
HEATER DEF ASM GEN WR51X10094 Contact Us For Availability
262
CUP FILL IM GEN WR29X10092 Contact Us For Availability
266
THERMOSTAT DEF GEN WR50X10069 Contact Us For Availability
270
FILTER HEAD ASM AND TUBE GEN WR17X11894 Contact Us For Availability
272
SPACER WATER FILTER GEN WR17X12757 Contact Us For Availability
306
SCREW MOBILITY GEN WR02X12271 Contact Us For Availability
312
WHEEL MOBILITY GEN WR02X10695 Contact Us For Availability
424
BOARD ASM TEMP CONTROL GEN WR55X10684 Contact Us For Availability
610
MOTOR DC EVAP FAN ASM GEN WR60X10277 Contact Us For Availability
614
BUMPER GEN WR02X10540 Contact Us For Availability
618
GROMMET EVAP FAN GEN WR02X11331 Contact Us For Availability
628
SHROUD CONDENSER GEN WR17X12668 Contact Us For Availability
652
RING COMPRESSION GEN WR02X12149 Contact Us For Availability
691
BRACKET COND FAN (REAR) GEN WR02X10593 Contact Us For Availability
730
PROD SERV CONDENSER GEN WR84X10022 Contact Us For Availability
736
CLIP COMPRESSOR MOUNT GEN WR02X8203 Contact Us For Availability
742
SUPPORT CONDENSER GEN WR02X10587 Contact Us For Availability
743
SUPPORT CONDENSER GEN WR02X10588 Contact Us For Availability
762
FOAM STRIP SE ADH GEN WR14X10053 Contact Us For Availability
765
BRACKET CONDENSER BAR GEN WR17X10763 Contact Us For Availability
775
COVER WATER LINE GEN WR17X10796 Contact Us For Availability
803
MAIN BOARD ENCLOSURE ASM GEN WR02X12025 Contact Us For Availability
812
INSULATION COVER ACCESS GEN WR14X10198 Contact Us For Availability
824
GRILLE SENSOR GEN WR02X13224 Contact Us For Availability
852
SCR 8-18 AB PNP 5/8 S GEN WR01X10858 Contact Us For Availability
874
WASHER HINGE-SHIM GEN WR01X10855 Contact Us For Availability
878
SCR 10-14 PL FLT20 3/4 S GEN WR01X10939 Contact Us For Availability
901
PINION LWR DRW RH DD GEN WR02X13413 Contact Us For Availability
902
PINION LWR DRW LH DD GEN WR02X13414 Contact Us For Availability
903
SUPPORT CROSS BAR GEN WR02X13385 Contact Us For Availability
905
CONNECTOR FRONT DD GEN WR02X13415 Contact Us For Availability
906
GEAR LWR DRW DD GEN WR02X13412 Contact Us For Availability
907
FASTNER PUSH GEN WR01X10947 Contact Us For Availability
908
CONNECTOR REAR DD GEN WR02X13416 Contact Us For Availability
1000
CLAD LEFT SIDE GEN WR79X10052 Contact Us For Availability
1001
CAGE NUT GEN WR01X10935 Contact Us For Availability
1002
SCREW 10N100TXP0Z GEN WR01X10933 Contact Us For Availability
1003
SCR 8-18 AB HW 1/2 S GEN WR01X10934 Contact Us For Availability
1004
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
1010
CLAD RIGHT SIDE GEN WR79X10051 Contact Us For Availability
1020
PANEL TOP GEN WR79X10050 Contact Us For Availability
× ![]()
