Model GE ZET757BA5BB – Common Parts & Diagrams
CENTER SPACER

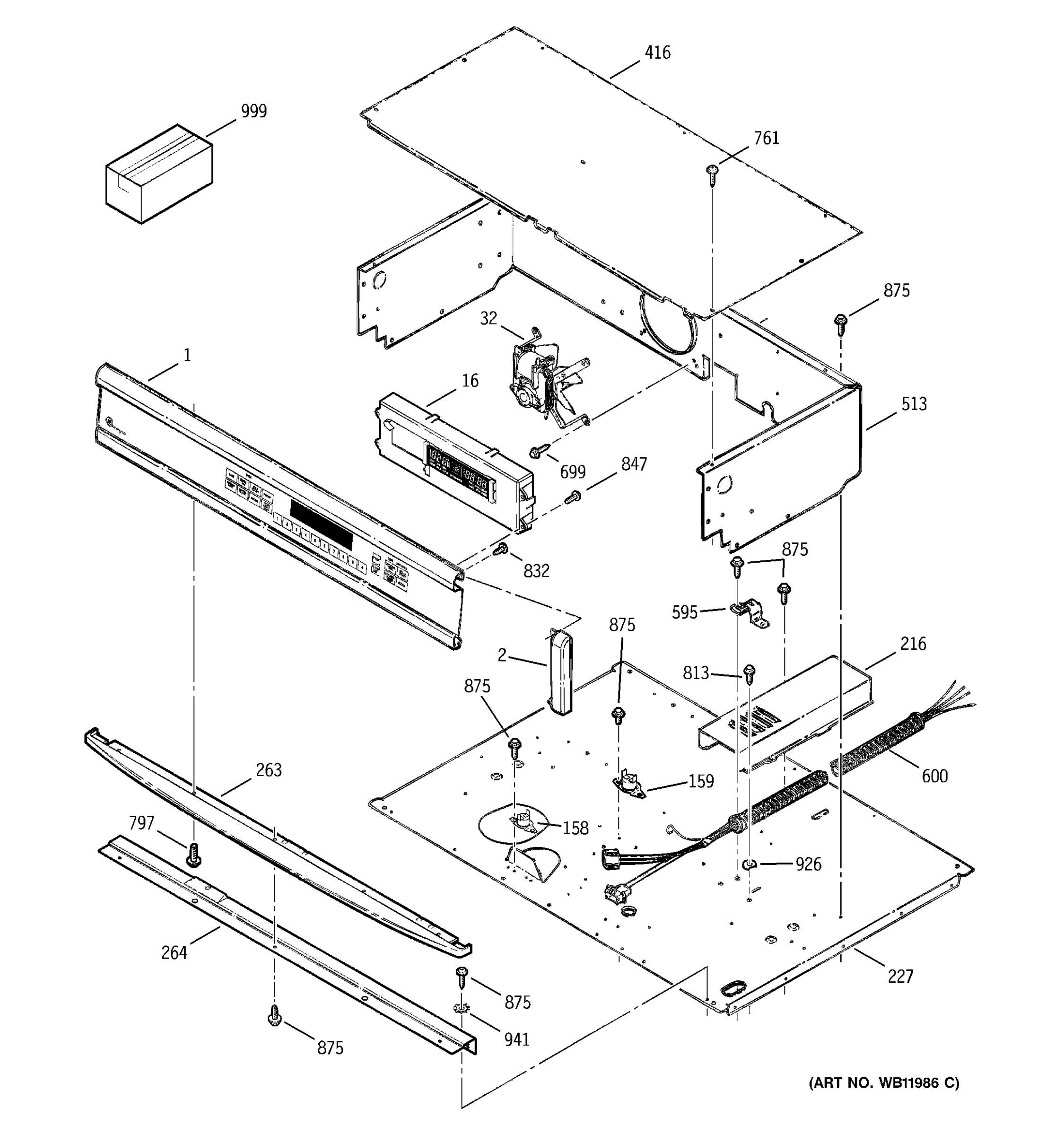

CONTROL PANEL

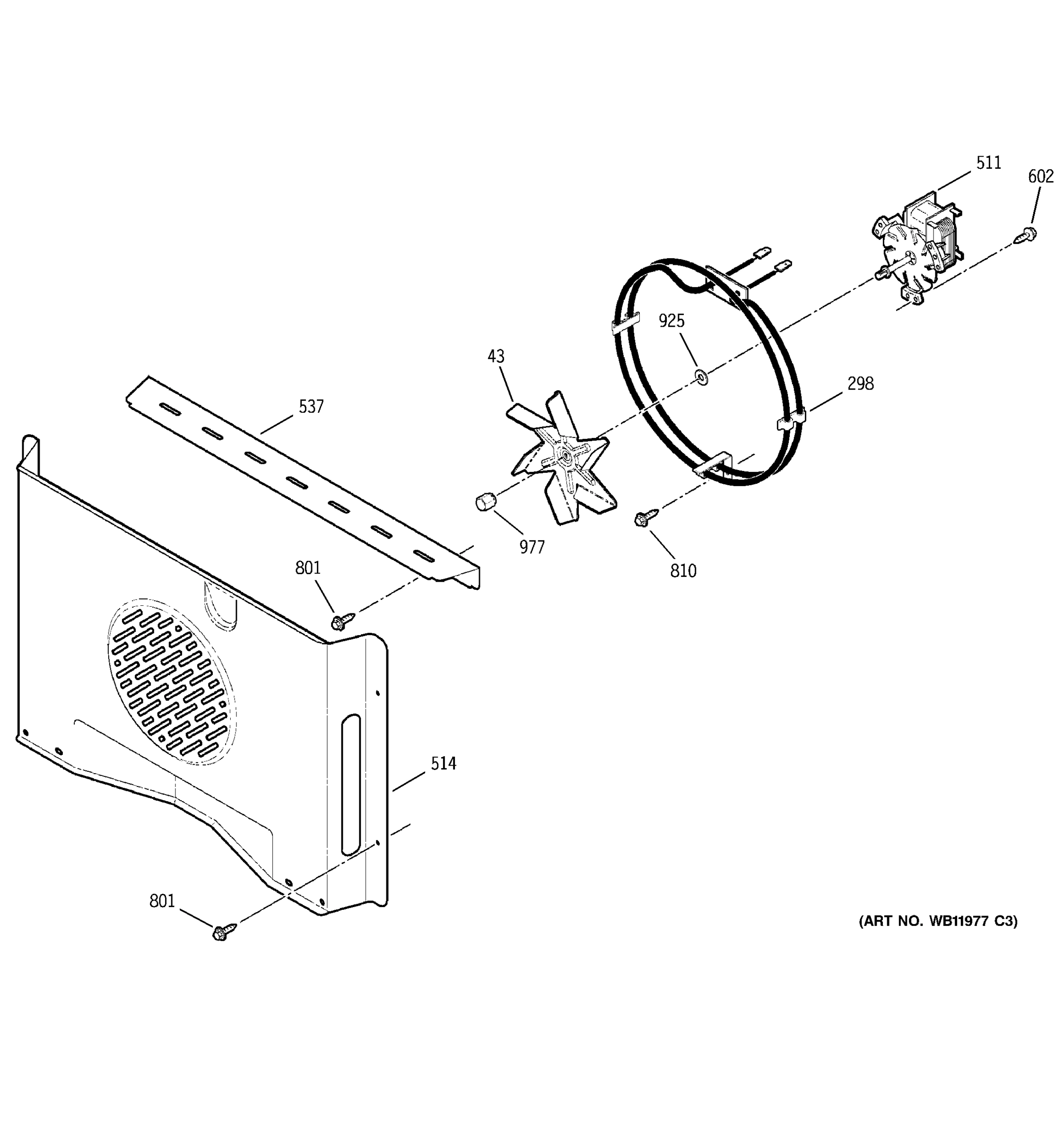

CONVECTION FAN

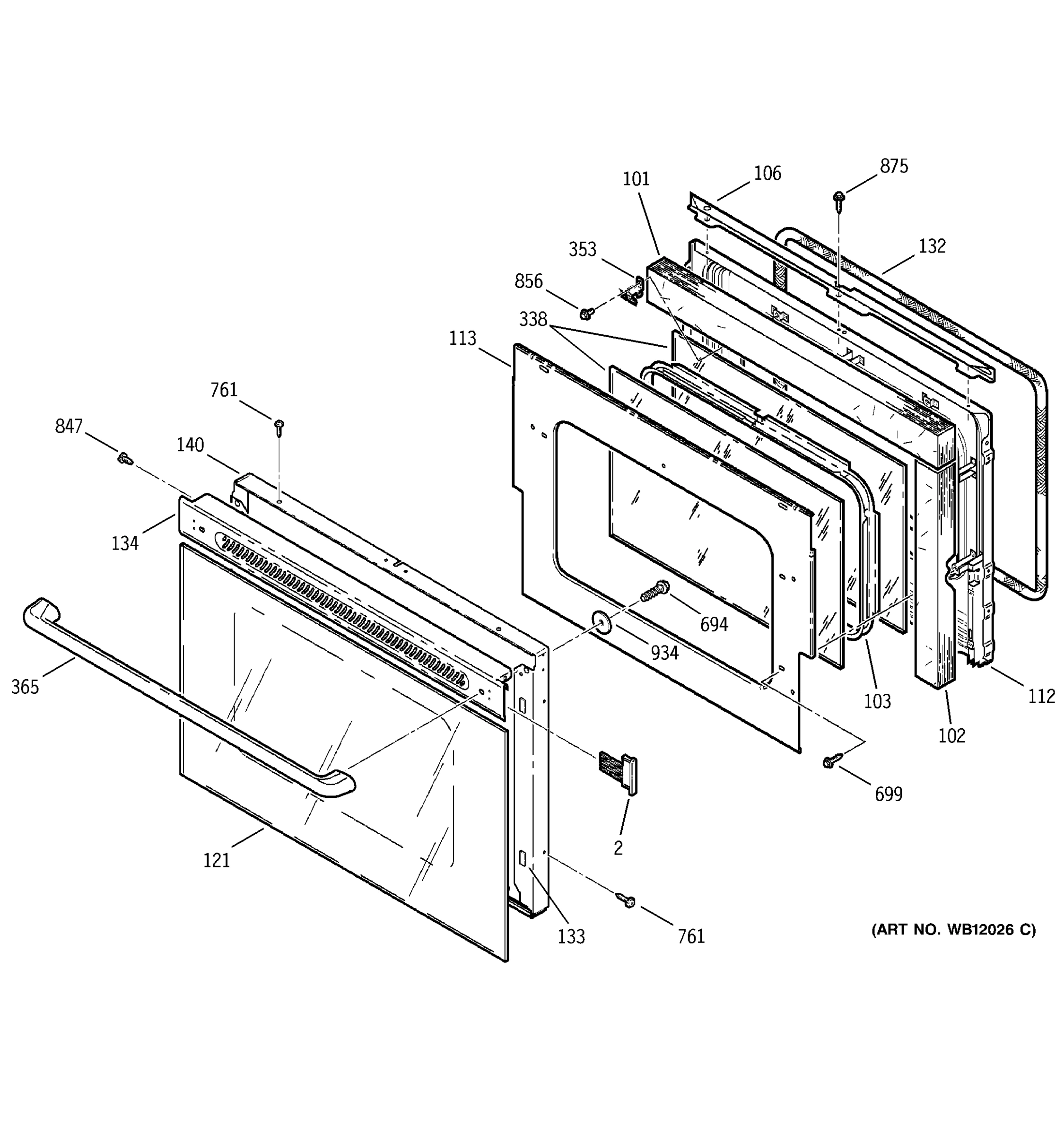

DOOR
DOOR LOCK

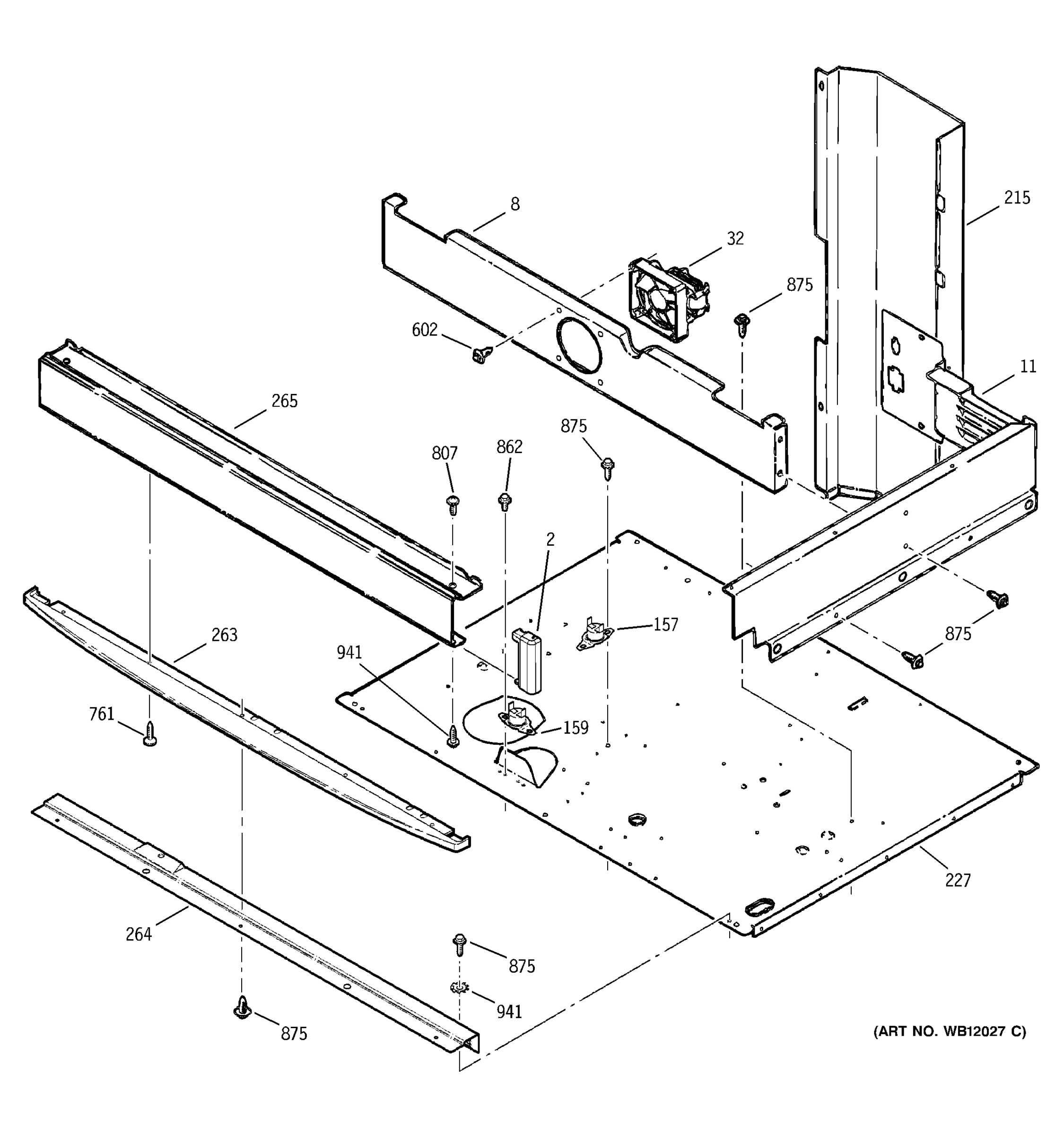

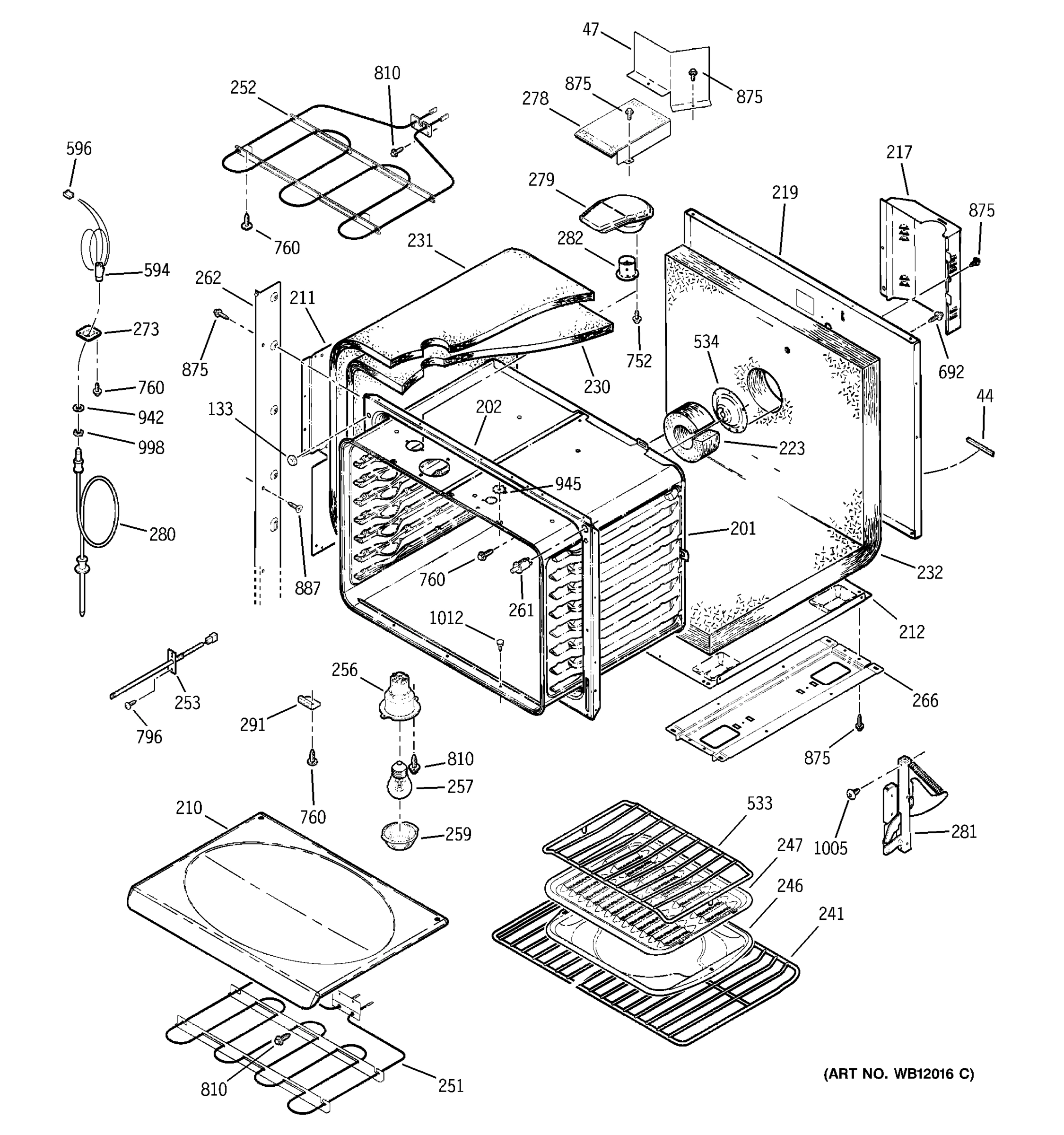

LOWER BODY

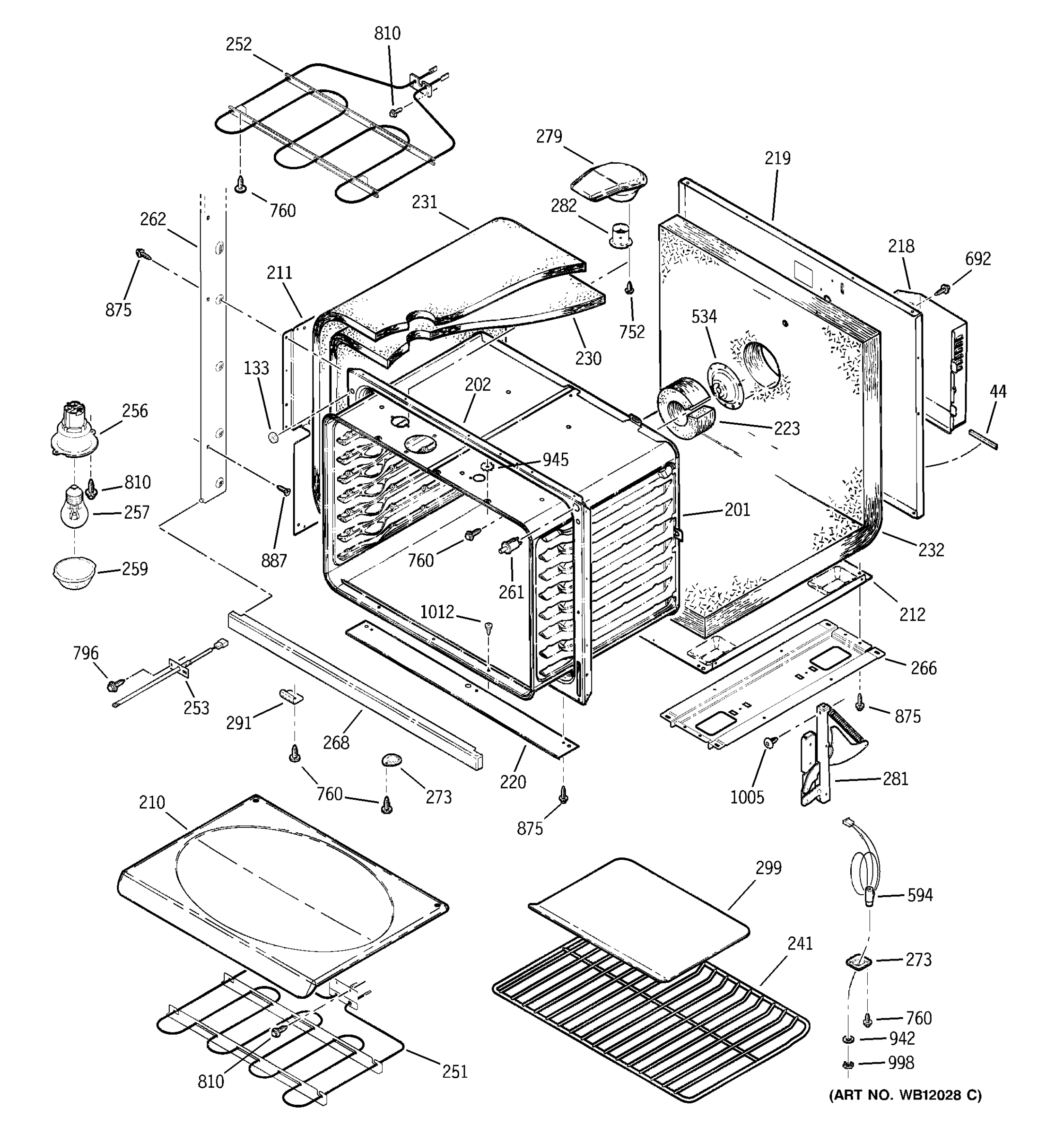

UPPER BODY
Common parts from model GE ZET757BA5BB
2
GEN WB07K5286 GEN WB07K5286 Contact Us For Availability
2
VENT END CAP-LT-BLK GEN WB07K5287 Contact Us For Availability
2
GEN WB07K5469 GEN WB07K5469 Contact Us For Availability
2
GEN WB07K5470 GEN WB07K5470 Contact Us For Availability
2
END CAP-LT-BLK-CONTROL GEN WB36K5519 Contact Us For Availability
2
END CAP-RT-BLK-CONTROL GEN WB36K5520 Contact Us For Availability
44
GEN WB02K5225 GEN WB02K5225 Contact Us For Availability
47
GEN WB39T10002 GEN WB39T10002 Contact Us For Availability
103
GEN WB02K5321 GEN WB02K5321 Contact Us For Availability
106
GEN WB07K10138 GEN WB07K10138 Contact Us For Availability
112
OV DR LINNING ASM GEN WB55T10017 Contact Us For Availability
113
GEN WB02K5322 GEN WB02K5322 Contact Us For Availability
121
GEN WB57T10091 GEN WB57T10091 Contact Us For Availability
134
GEN WB07K5401 GEN WB07K5401 Contact Us For Availability
140
GEN WB56T10058 GEN WB56T10058 Contact Us For Availability
151
GEN WB14T10008 GEN WB14T10008 Contact Us For Availability
159
LIMIT SWITCH GEN WB24T10059 Contact Us For Availability
201
OVEN BODY-UPPER GEN WB63T10063 Contact Us For Availability
202
GEN WB63T10064 GEN WB63T10064 Contact Us For Availability
211
INSULATION RETAINER-SIDE GEN WB02K5306 Contact Us For Availability
212
INSULATION RETAINER-BTM GEN WB02K10047 Contact Us For Availability
217
WIRE COVER UPR RR GEN WB34K5193 Contact Us For Availability
218
WIRE COVER LWR RR GEN WB34K5192 Contact Us For Availability
219
GEN WB56X10189 GEN WB56X10189 Contact Us For Availability
220
BTM TRIM SHIELD GEN WB34K5195 Contact Us For Availability
230
GEN WB35K5118 GEN WB35K5118 Contact Us For Availability
231
GEN WB35K5119 GEN WB35K5119 Contact Us For Availability
241
GEN WB48K5022 GEN WB48K5022 Contact Us For Availability
252
GEN WB44T10008 GEN WB44T10008 Contact Us For Availability
257
OVEN LIGHT GEN BUY LOCAL Contact Us For Availability
262
GEN WB07K5368 GEN WB07K5368 Contact Us For Availability
268
GEN WB07K5467 GEN WB07K5467 Contact Us For Availability
273
GEN WB34K5140 GEN WB34K5140 Contact Us For Availability
278
HEAT SHIELD ASM GEN WB34T10024 Contact Us For Availability
279
GEN WB38T10014 GEN WB38T10014 Contact Us For Availability
281
GEN WB14T10009 GEN WB14T10009 Contact Us For Availability
281
GEN WB14T10010 GEN WB14T10010 Contact Us For Availability
282
GEN WB28K5010 GEN WB28K5010 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
299
GEN WB06K5037 GEN WB06K5037 Contact Us For Availability
299
GEN WB06K5038 GEN WB06K5038 Contact Us For Availability
338
GEN WB56K0020 GEN WB56K0020 Contact Us For Availability
365
GEN WB15K5105 GEN WB15K5105 Contact Us For Availability
511
FAN MOTOR CONV. GEN WB26T10006 Contact Us For Availability
514
FAN COVER GEN WB26T10008 Contact Us For Availability
534
GEN WB26T10003 GEN WB26T10003 Contact Us For Availability
537
GEN WB26T10001 GEN WB26T10001 Contact Us For Availability
594
GEN WB08K5012 GEN WB08K5012 Contact Us For Availability
594
GEN WB08K5047 GEN WB08K5047 Contact Us For Availability
596
GEN WB08K5013 GEN WB08K5013 Contact Us For Availability
602
GEN WH02X0941 GEN WH02X0941 Contact Us For Availability
692
GEN WZ04X0413 GEN WZ04X0413 Contact Us For Availability
847
GEN WB01X1317 GEN WB01X1317 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
GEN WB01K5054 GEN WB01K5054 Contact Us For Availability
941
GEN WB01X1399 GEN WB01X1399 Contact Us For Availability
999
GEN 31-10435 GEN 31-10435 Contact Us For Availability
999
GEN 31-13831 GEN 31-13831 Contact Us For Availability
999
GEN 49-80059 GEN 49-80059 Contact Us For Availability
999
GEN 49-8443 GEN 49-8443 Contact Us For Availability
999
WIRE HARNESS F.O.D. GEN WB18T10106 Contact Us For Availability
999
GEN WB18T10210 GEN WB18T10210 Contact Us For Availability
999
GEN WB18T10211 GEN WB18T10211 Contact Us For Availability
× ![]()
