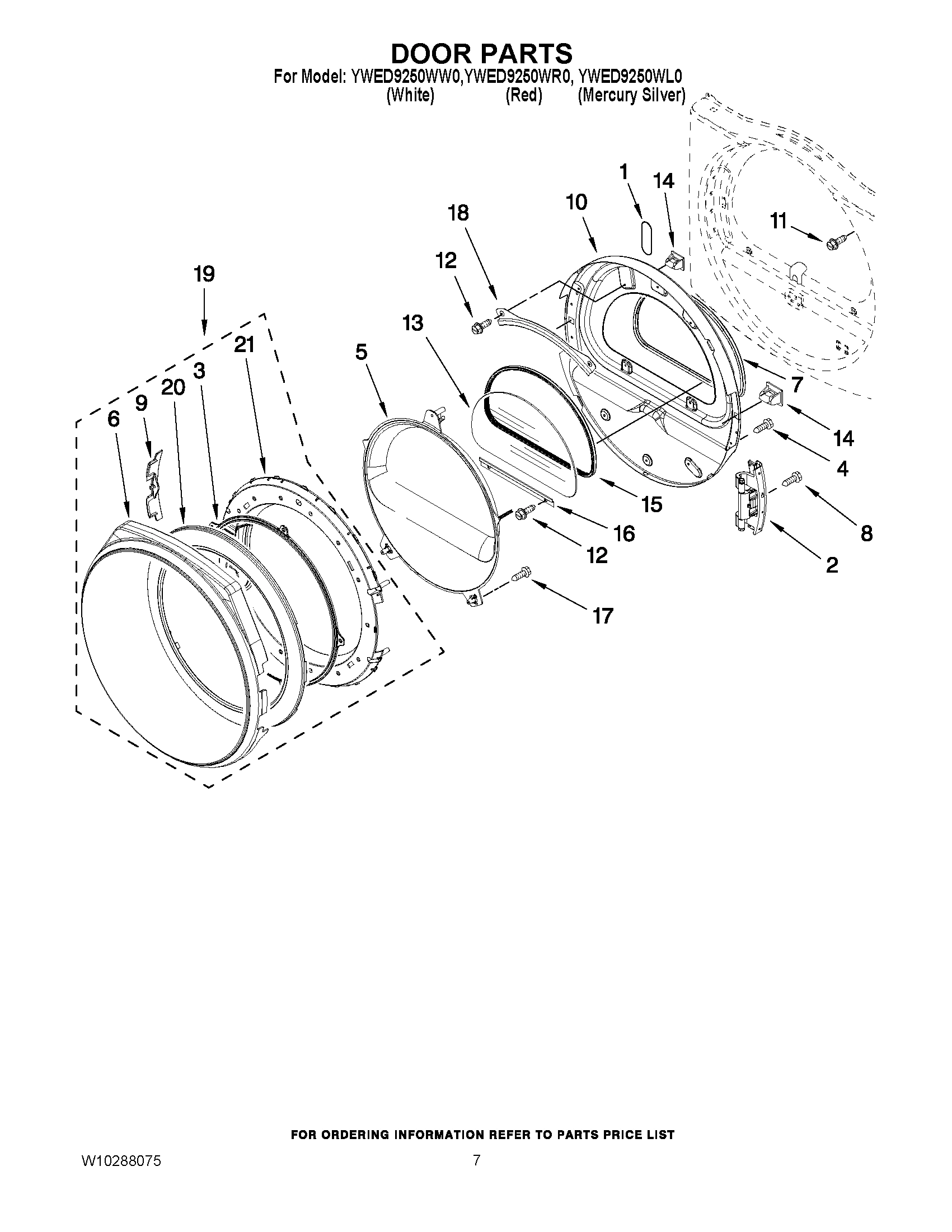

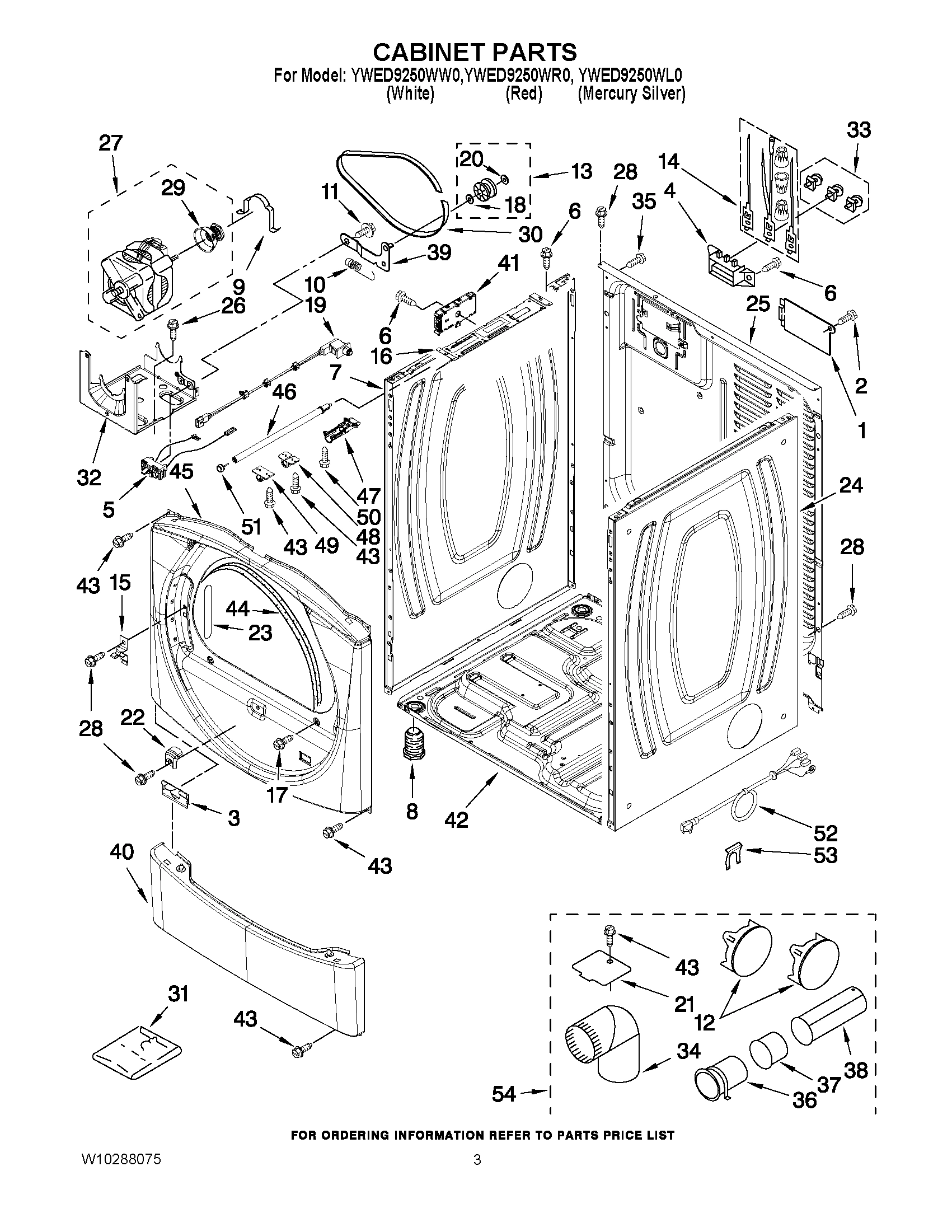

Model Whirlpool YWED9250WW0 27`` ELECTRIC DRYER – Common Parts &amp; Diagrams

2

Door, Hinge Assembly WPL 8578887 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $78.01

4

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

4

W11116979 Whirlpool Screw Backorder WPL W11116979 $9.13

4

PANEL, CONSOLE (INCLUDES, ITEM. 13) (WHITE) WPL W10215749 Contact Us For Availability

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

DOOR, INTERMEDIATE STATIONARY WPL W10215764 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

DOOR TRIM OUTER RING (WHITE) WPL W10215757 Contact Us For Availability

6

DOOR TRIM OUTER RING (MERCURY) WPL W10215823 Contact Us For Availability

6

DOOR TRIM OUTER RING (RED) WPL W10215824 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

WPW10163915 Whirlpool Door Seal In Stock WPL WPW10163915 $45.29

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

9

DOOR TRIM, HINGE COVER (WHITE) WPL W10215766 Contact Us For Availability

9

DOOR TRIM, HINGE COVER (MERCURY) WPL W10215825 Contact Us For Availability

9

DOOR TRIM, HINGE COVER (RED) WPL W10215826 Contact Us For Availability

10

WPW10164062 Whirlpool Door Assembly Backorder WPL WPW10164062 $129.23

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

11

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

12

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $39.33

13

WPW10286878 Whirlpool Window Backorder WPL WPW10286878 $107.14

14

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

14

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

14

WP3387747 Whirlpool Dryer Heating Element In Stock WPL WP3387747 $55.38

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

W11706993 Whirlpool Seal Backorder WPL W11706993 $9.75

WP8565122 Whirlpool Strike Assembly Backorder WPL WP8565122 $3.70

16

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

17

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $2.51

18

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

19

DOOR ASSEMBLY OUTER (WHITE) WPL W10215756 Contact Us For Availability

19

DOOR ASSEMBLY OUTER (MERCURY) WPL W10215830 Contact Us For Availability

19

DOOR ASSEMBLY OUTER (RED) WPL W10215831 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

TRIM-DOOR INNER RING (NOT SERVICEABLE SEPERAT WPL NP Contact Us For Availability

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

DOOR INTERMEDIATE ROTATIONAL WPL W10215762 Contact Us For Availability

22

8580015 Whirlpool Ramp Backorder WPL 8580015 $29.23

22

WP8563728 Whirlpool Exhaust Pipe Backorder WPL WP8563728 $56.54

23

W10085210 Whirlpool Label Backorder WPL W10085210 $30.51

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $33.01

24

W10542714 Whirlpool Panel Backorder WPL W10542714 $133.54

24

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

24

PANEL, SIDE (R.H.) (RED) WPL W10251217 Contact Us For Availability

25

Panel, Rear WPL 8565059 Contact Us For Availability

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

26

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $11.24

31

8572546 Whirlpool Washer Duet Sport Epic Stac In Stock WPL 8572546 $23.97

31

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $32.63

32

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

35

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

36

W11222979 Whirlpool Socket In Stock WPL W11222979 $43.76

36

WP8563747 Whirlpool Exhaust Pipe In Stock WPL WP8563747 $30.89

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $30.25

38

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $32.52

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $20.49

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

W10251210 Whirlpool Toe Panel Backorder WPL W10251210 $112.35

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

WP8540621 Whirlpool Toe Panel Backorder WPL WP8540621 $69.56

TOE PANEL (RED) WPL W10251209 Contact Us For Availability

41

CONTROL BOARD WPL W10235613 Contact Us For Availability

42

W11215531 Whirlpool Base Backorder WPL W11215531 $118.10

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $18.43

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

Front WPL 8580257 Contact Us For Availability

45

WPL W10251201 WPL W10251201 Contact Us For Availability

45

WPL W10251202 WPL W10251202 Contact Us For Availability

46

WPL W10103457 WPL W10103457 Contact Us For Availability

47

WPL W10101220 WPL W10101220 Contact Us For Availability

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

48

WPL W10101183 WPL W10101183 Contact Us For Availability

49

WPL W10101184 WPL W10101184 Contact Us For Availability

51

WPL W10011740 WPL W10011740 Contact Us For Availability

52

W11729831 Whirlpool Power Cord Backorder WPL W11729831 $49.48

53

W11712577 Whirlpool Clip In Stock WPL W11712577 $2.43

54

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $13.30

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $18.83

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $33.72

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $13.89

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $4.76

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. MAGNA RED) WPL W10218245 Contact Us For Availability

Hold Down Kit WPL 8529894 Contact Us For Availability
