Model Whirlpool WSR25D2RYW00 REFRIGERATOR – Common Parts &amp; Diagrams

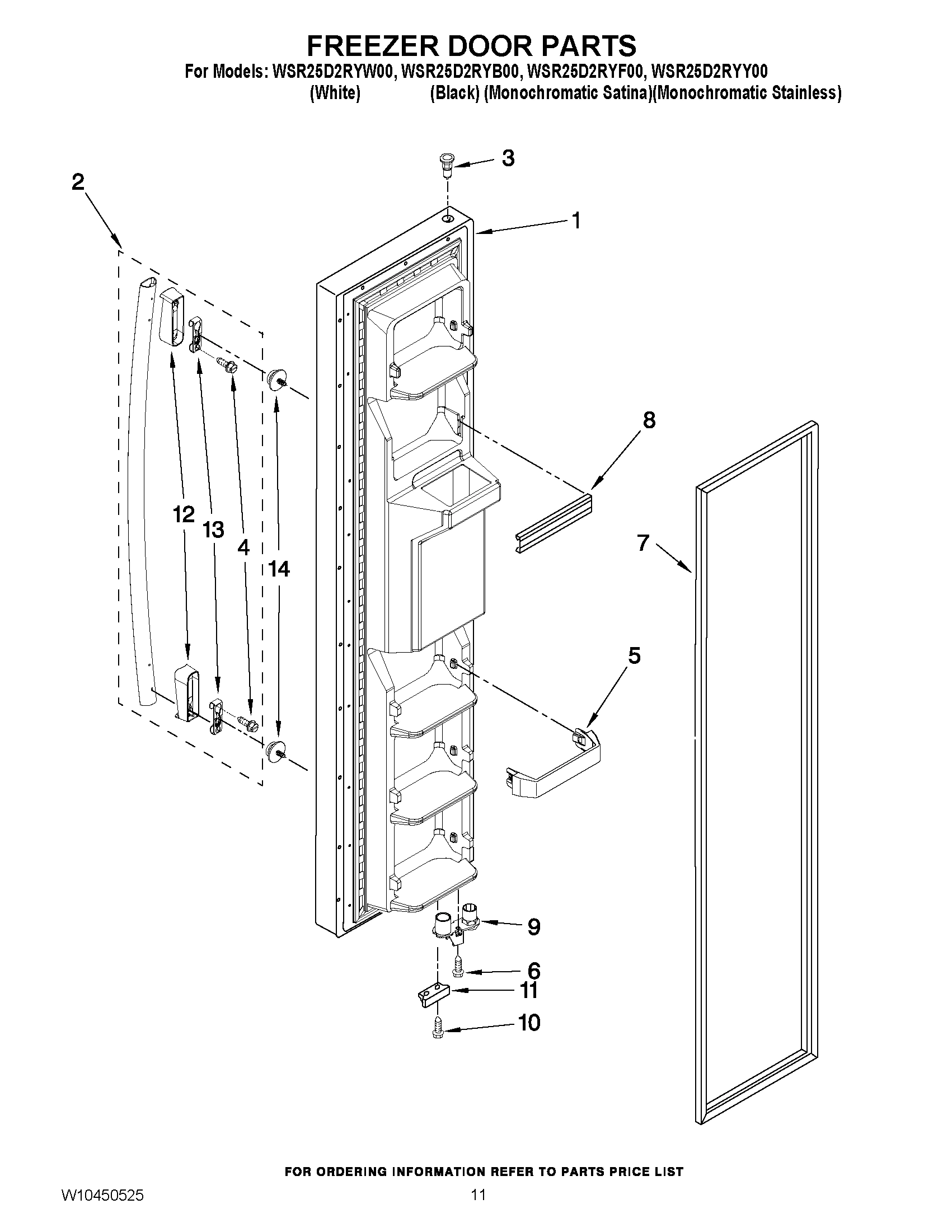

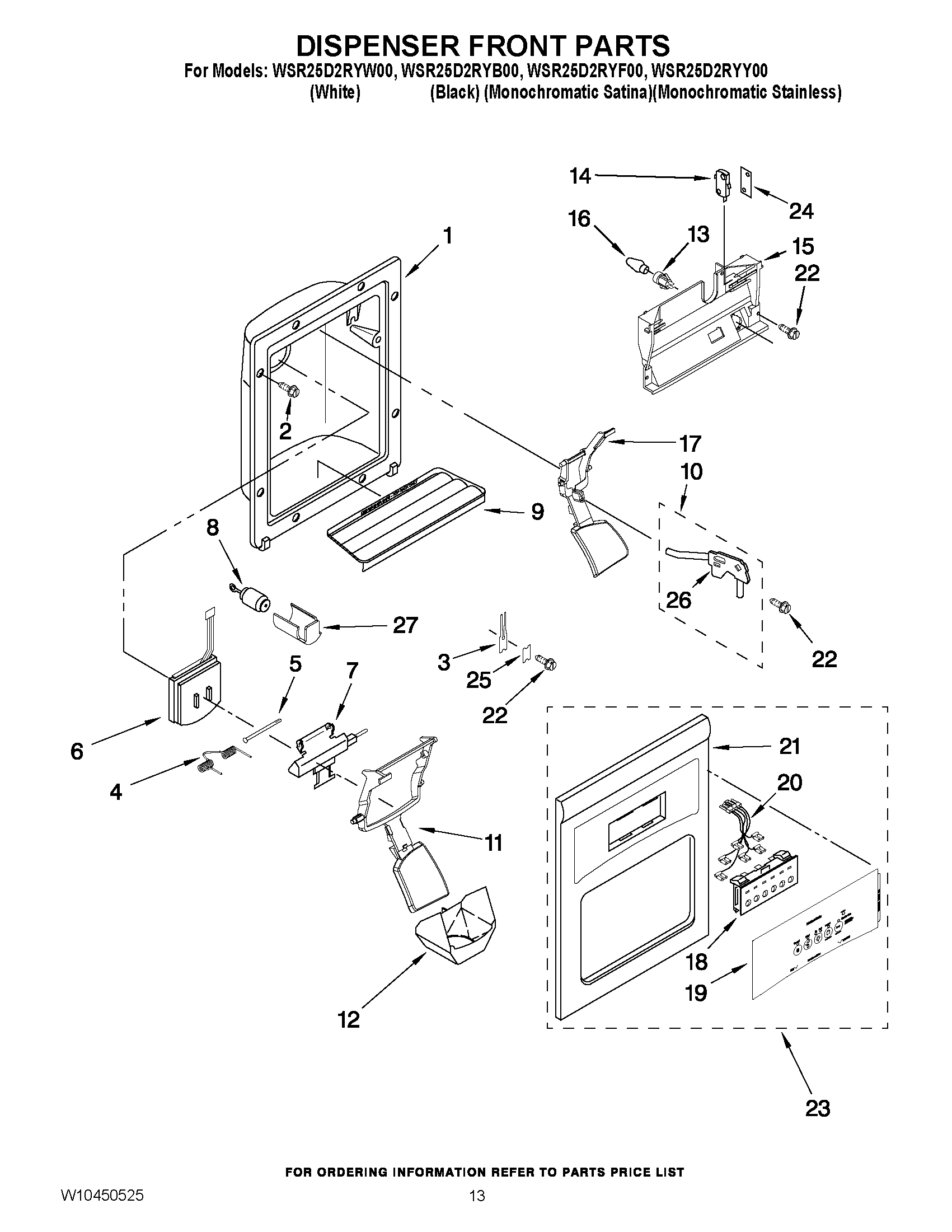

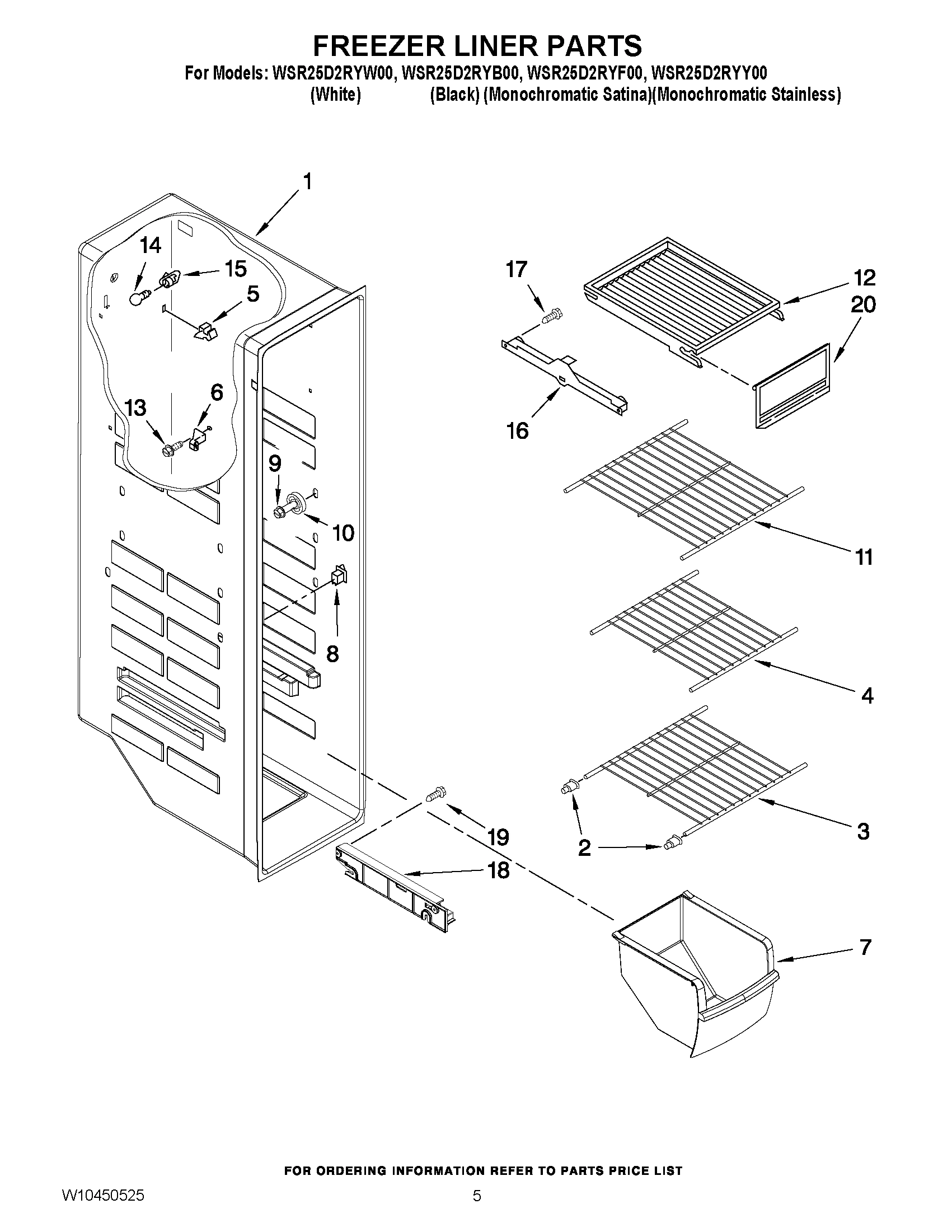

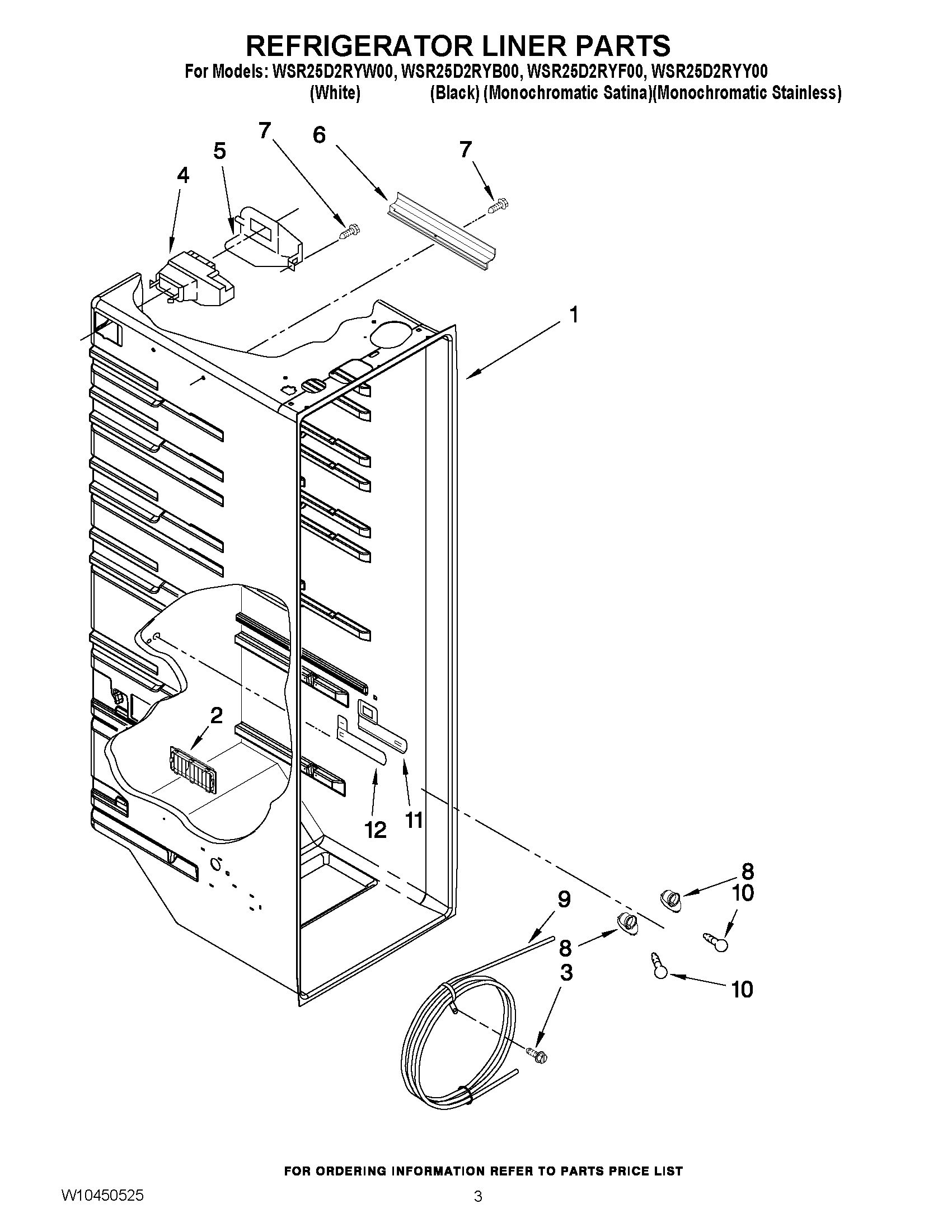

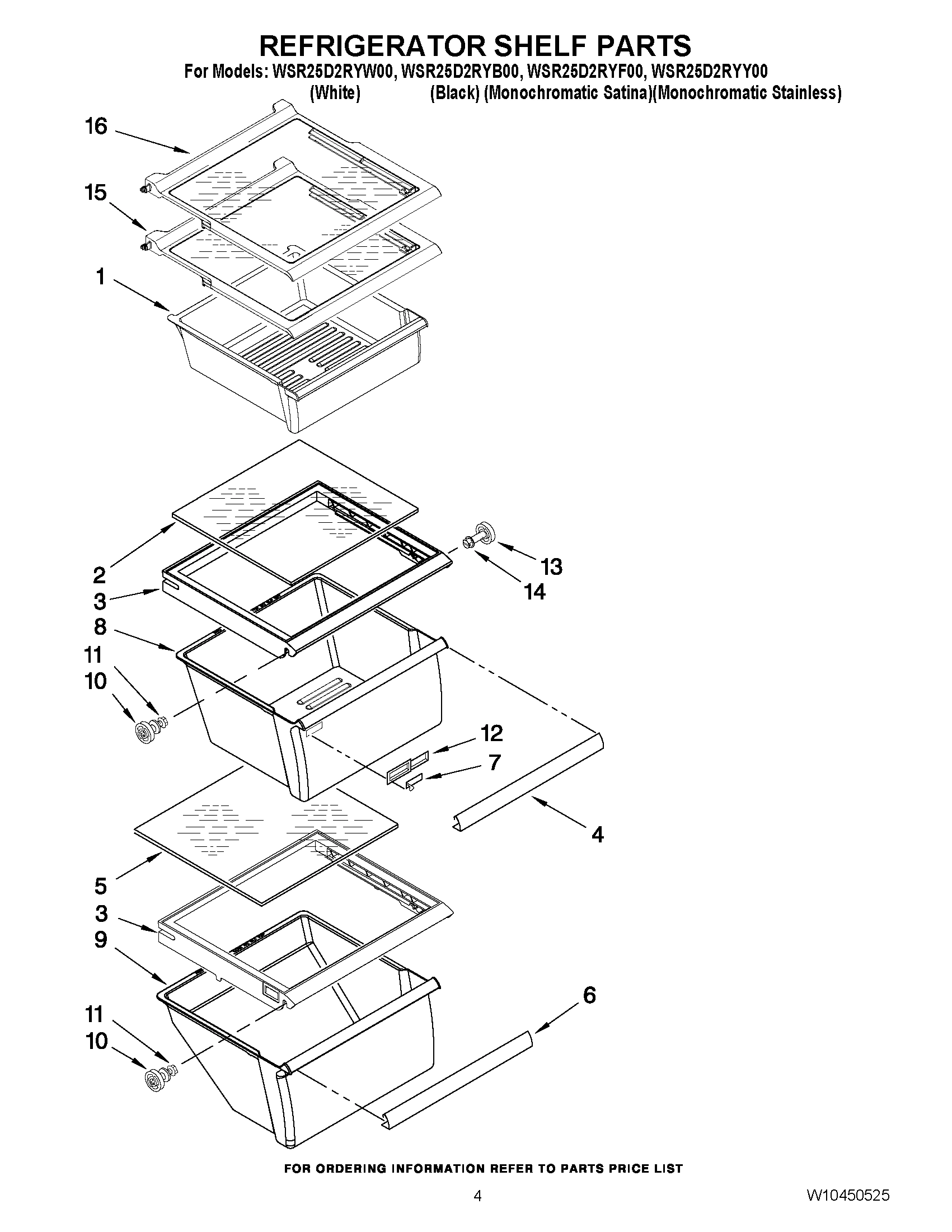

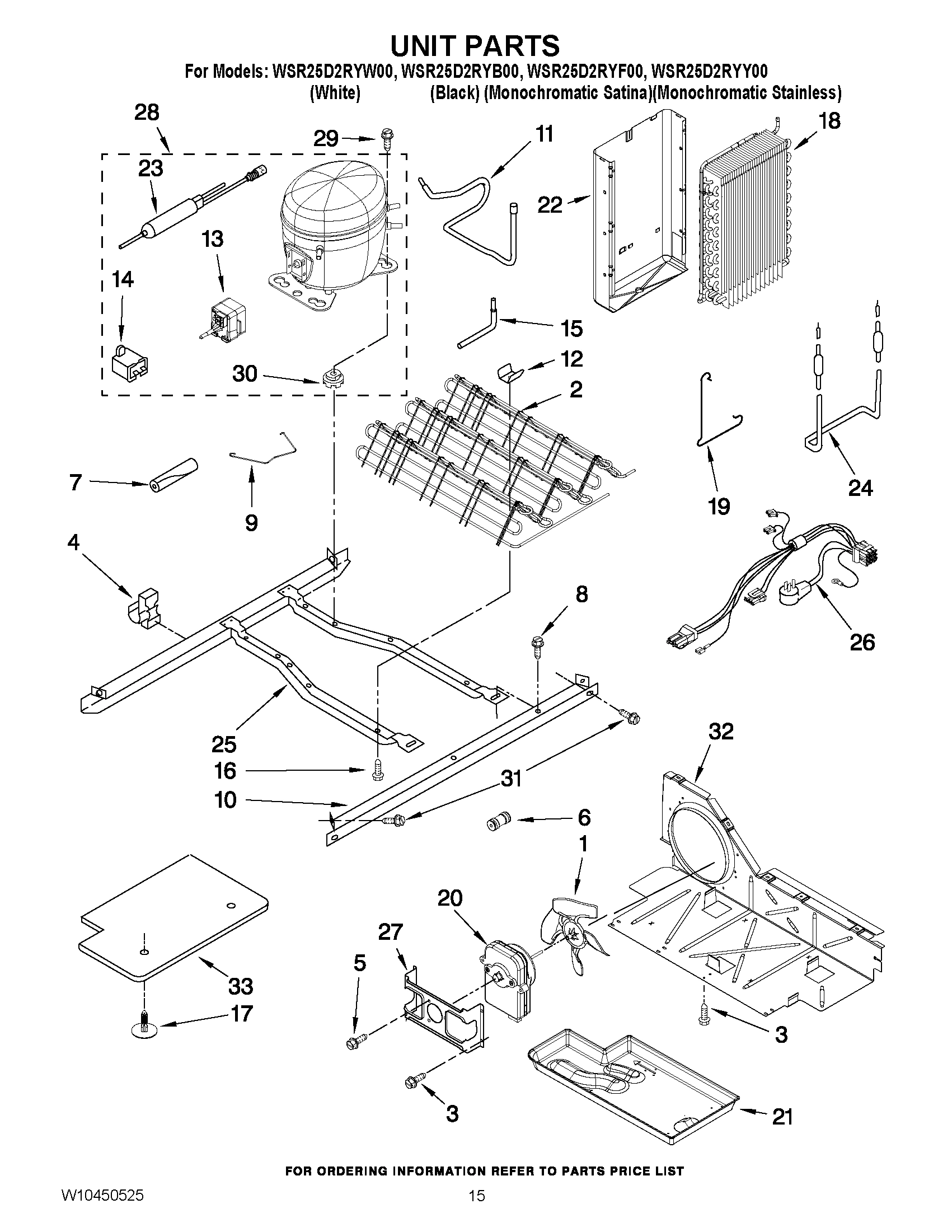

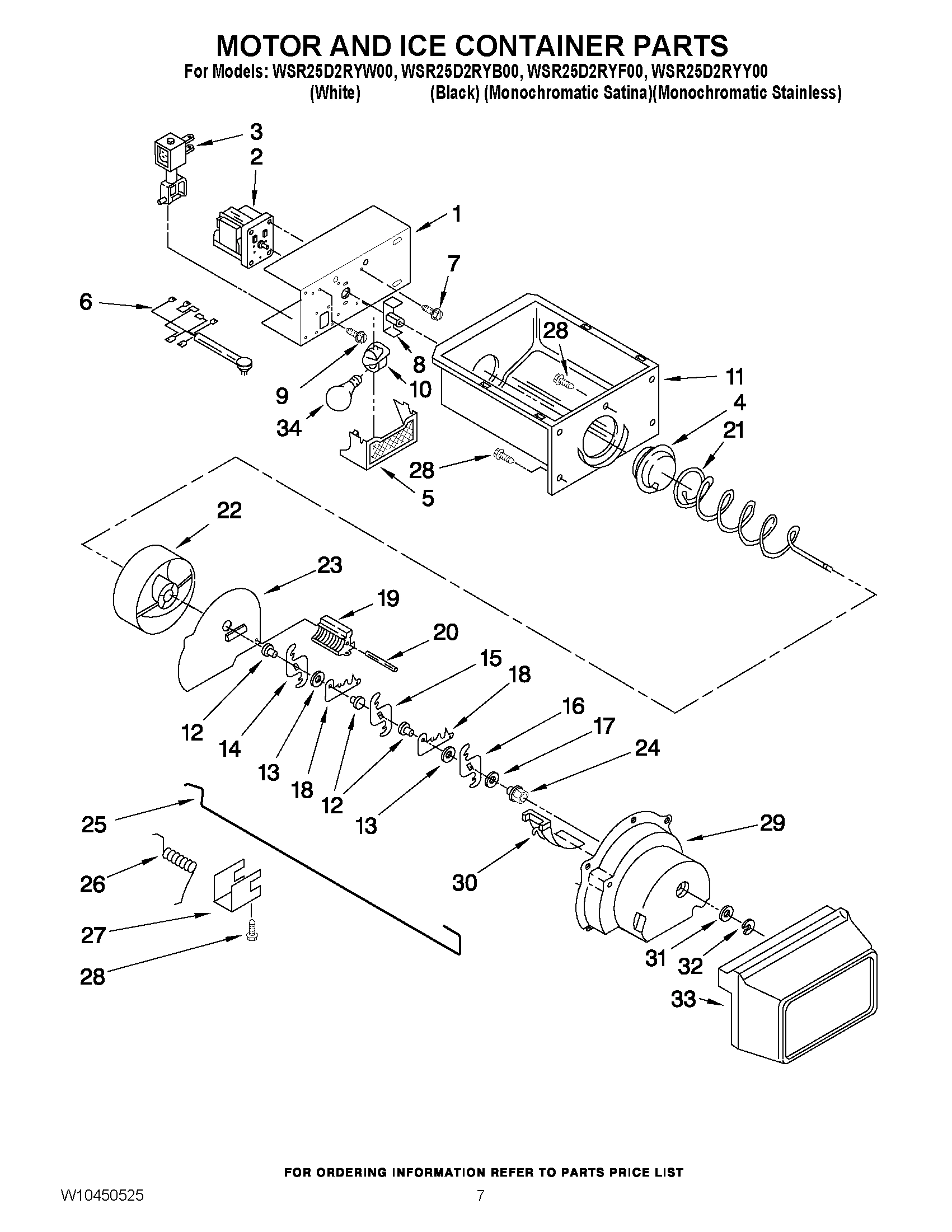

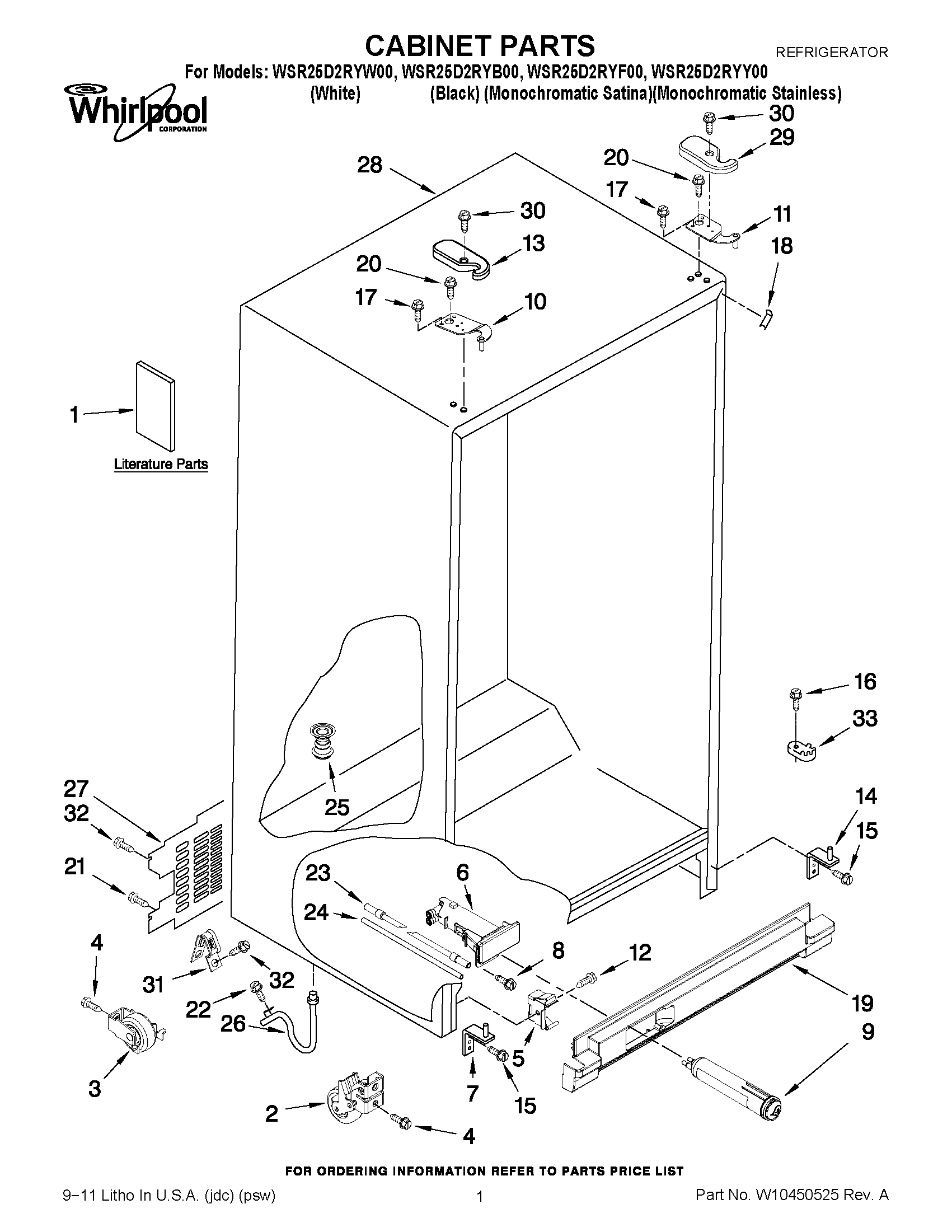

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

BRACKET, MOTOR WPL W10304376 Contact Us For Availability

2

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $69.58

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $9.24

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

STUD, SHELF SADDLE WPL 2196207 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $101.23

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

3

SHELF, WIRE WPL W10318946 Contact Us For Availability

4

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $44.36

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $33.21

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

4

WPW10318947 Whirlpool Wire Shelf Backorder WPL WPW10318947 $39.73

4

Clip, Wire WPL 2208280 Contact Us For Availability

5

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

5

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $40.33

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

5

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

6

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

6

W10862456 Whirlpool Water Filter Housing In Stock WPL W10862456 $67.61

6

W10862460 Whirlpool Water Filter Housing In Stock WPL W10862460 $88.40

6

W10862461 Whirlpool Refrigerator Water Filter In Stock WPL W10862461 $74.36

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WPW10257120 Whirlpool Refrigerator Handle Backorder WPL WPW10257120 $26.10

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $228.95

6

CONNECTOR WPL W10271542 Contact Us For Availability

7

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

7

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

7

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

7

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $138.30

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

8

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

8

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

8

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.71

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

9

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $63.59

9

THIMBLE, CAM WIRING WPL 2323535 Contact Us For Availability

10

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

10

WPW10196323 Whirlpool Refrigerator Rail Assem Backorder WPL WPW10196323 $54.42

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $59.15

W10242649 Whirlpool Refrigerator Door Hinge Backorder WPL W10242649 $35.25

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $36.65

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

TUBE, SUCTION WPL 2205765 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

BRACKET, DOOR STOP (CHROME) WPL W10219811 Contact Us For Availability

BRACKET, DOOR STOP (BLACK) WPL W10219812 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $34.31

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $68.49

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.84

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

Screw WPL W10191952 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $133.00

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $119.79

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $143.17

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10336489 Whirlpool Refrigerator Screw Backorder WPL W10336489 $5.44

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

LEVER, WATER DISPENSER (GRAY) WPL W10155162 Contact Us For Availability

18

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

18

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

FILLER, WRAPPER (BLACK) WPL W10348651 Contact Us For Availability

GRILLE, FRONT (WHITE) WPL W10348650 Contact Us For Availability

FILLER, WRAPPER (GRAY) WPL W10350049 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $13.14

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

21

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

22

Heat Shield WPL 2217194 Contact Us For Availability

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

23

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

23

WPW10350007 Whirlpool Refrigerator Water Tube In Stock WPL WPW10350007 $55.15

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $42.73

Spacer, Switch (2) WPL 625834 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W10196321 Whirlpool Refrigerator Frame Backorder WPL W10196321 $177.89

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.94

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.85

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $139.29

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

27

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

27

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

28

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $293.57

29

Screw WPL 489473 Contact Us For Availability

30

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

30

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

32

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

32

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

33

DOOR CLOSER, GRAVITY WPL 2223751 Contact Us For Availability

33

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

100

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $183.83

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE (5.0OZ. (R-134A)) WPL NP Contact Us For Availability
