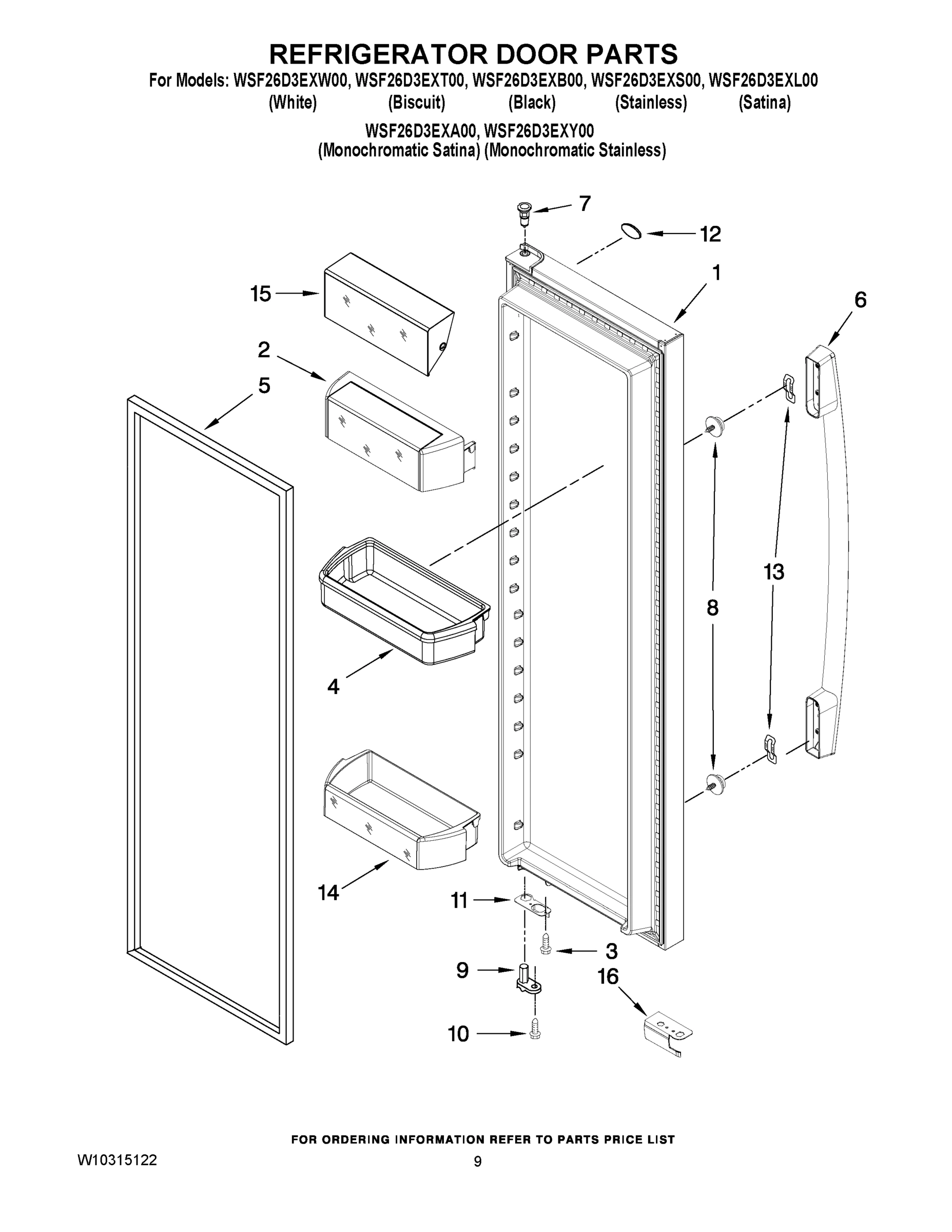

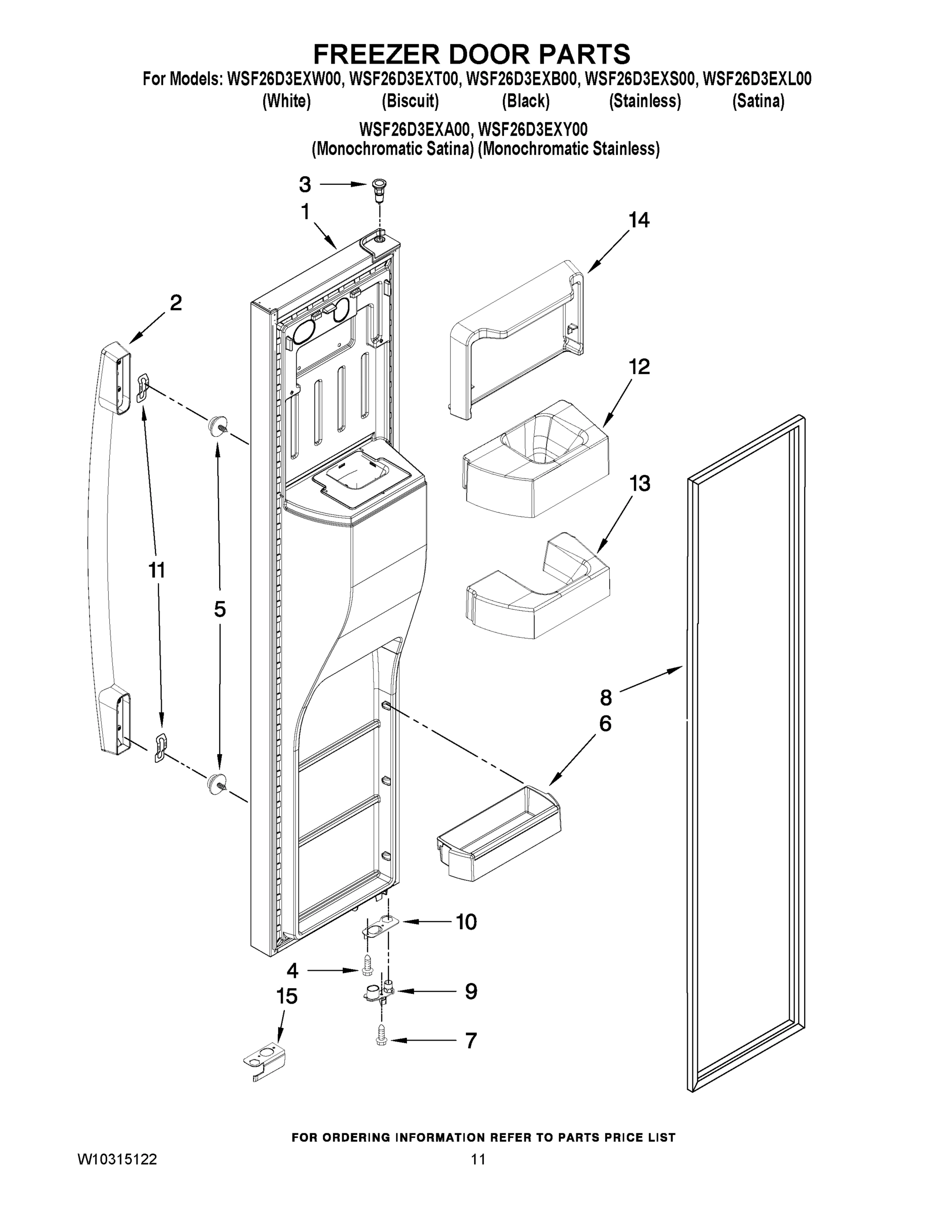

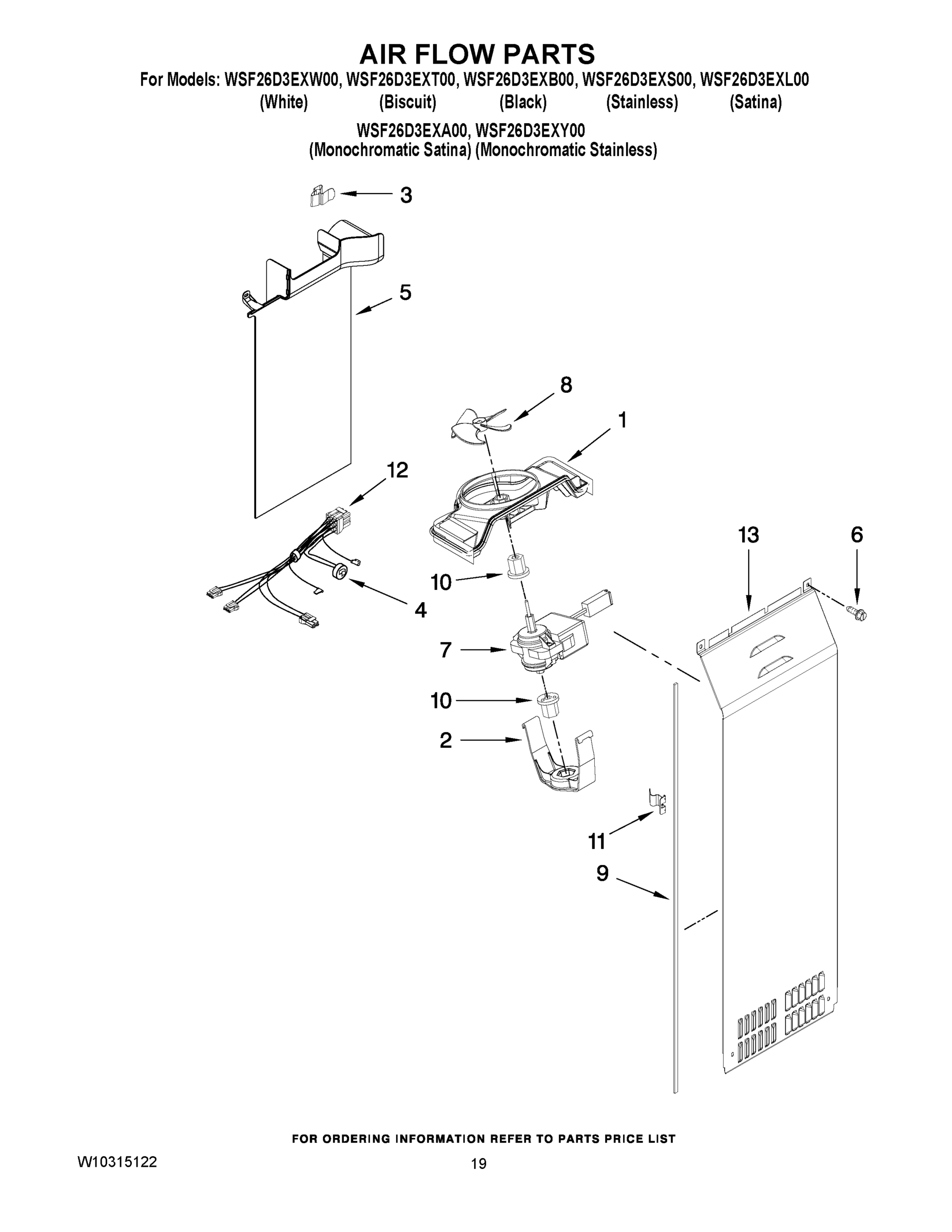

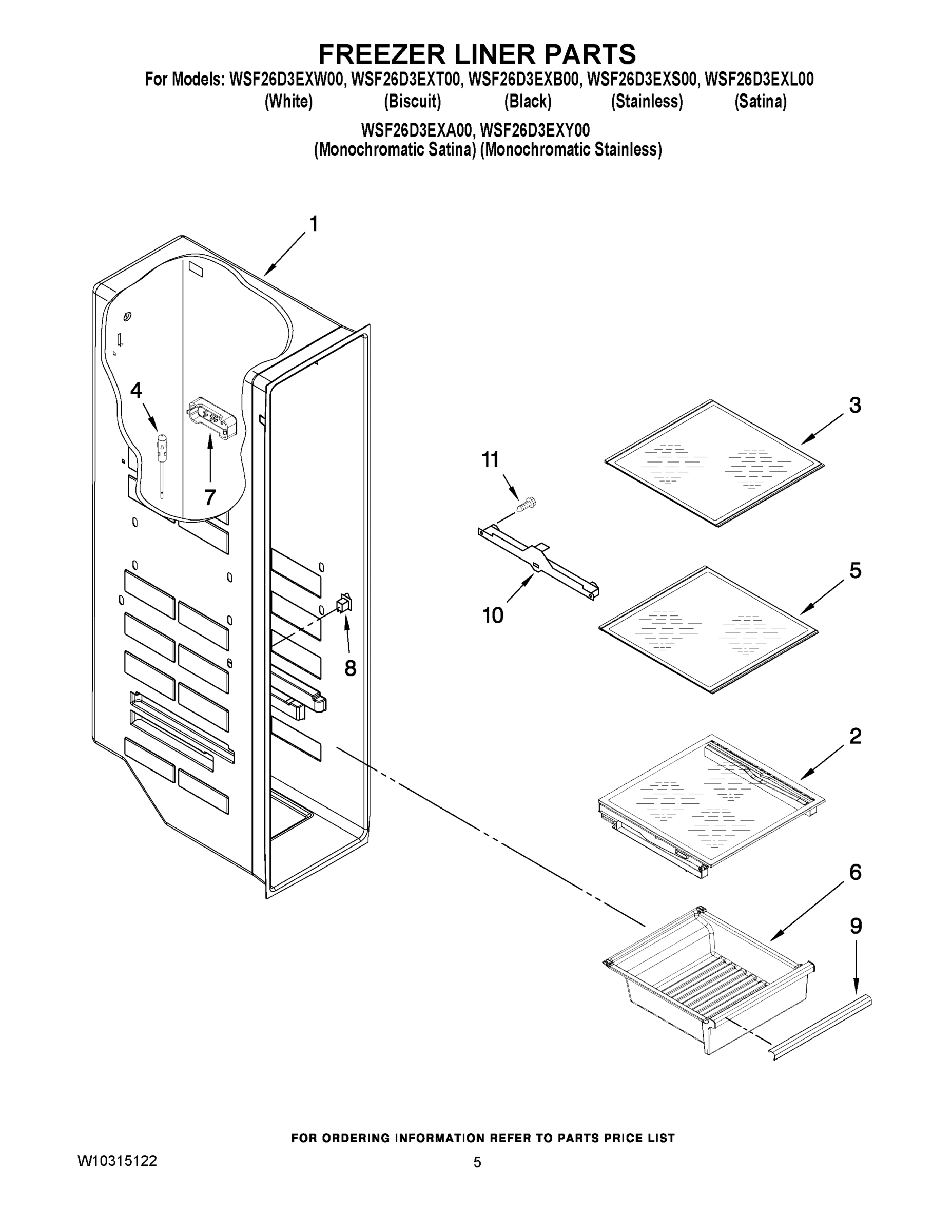

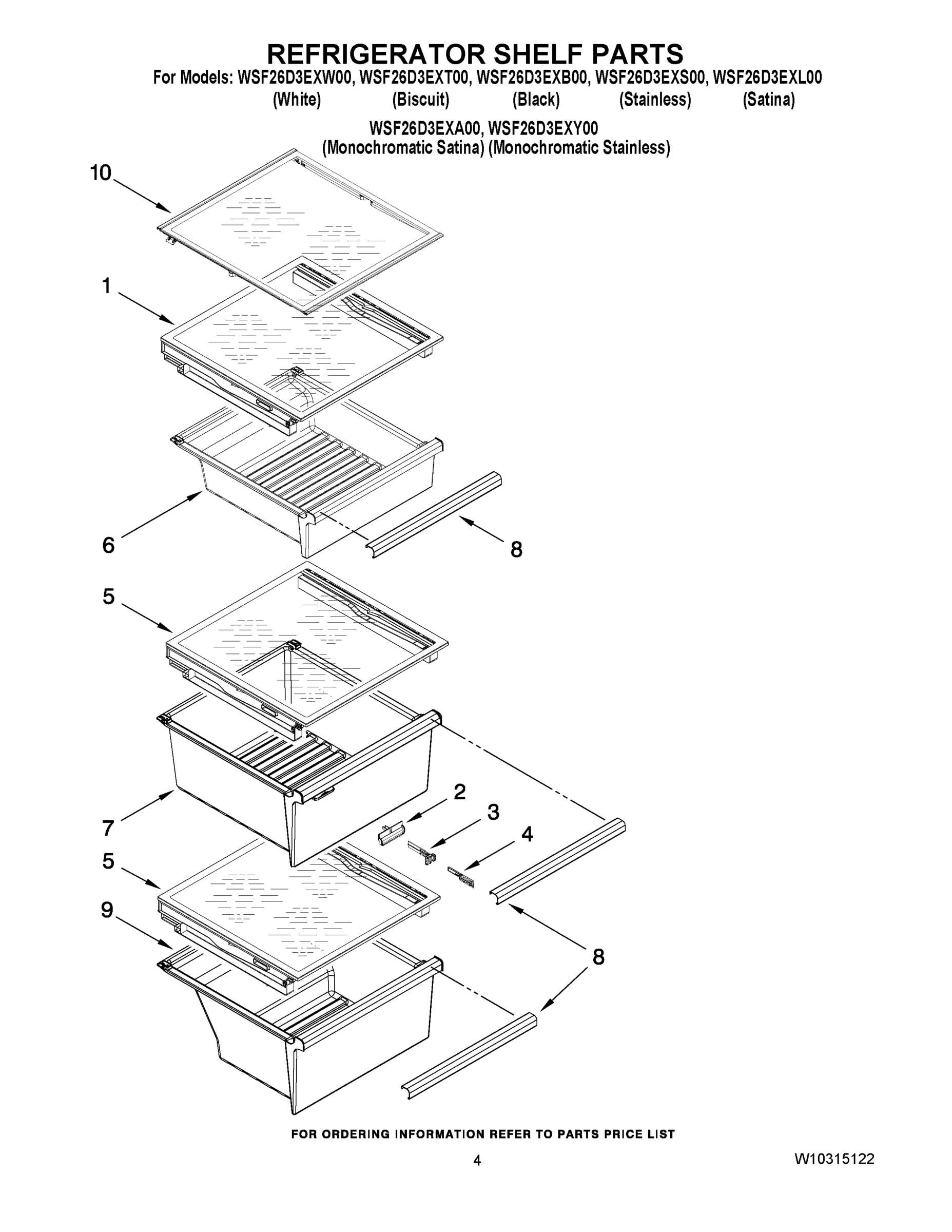

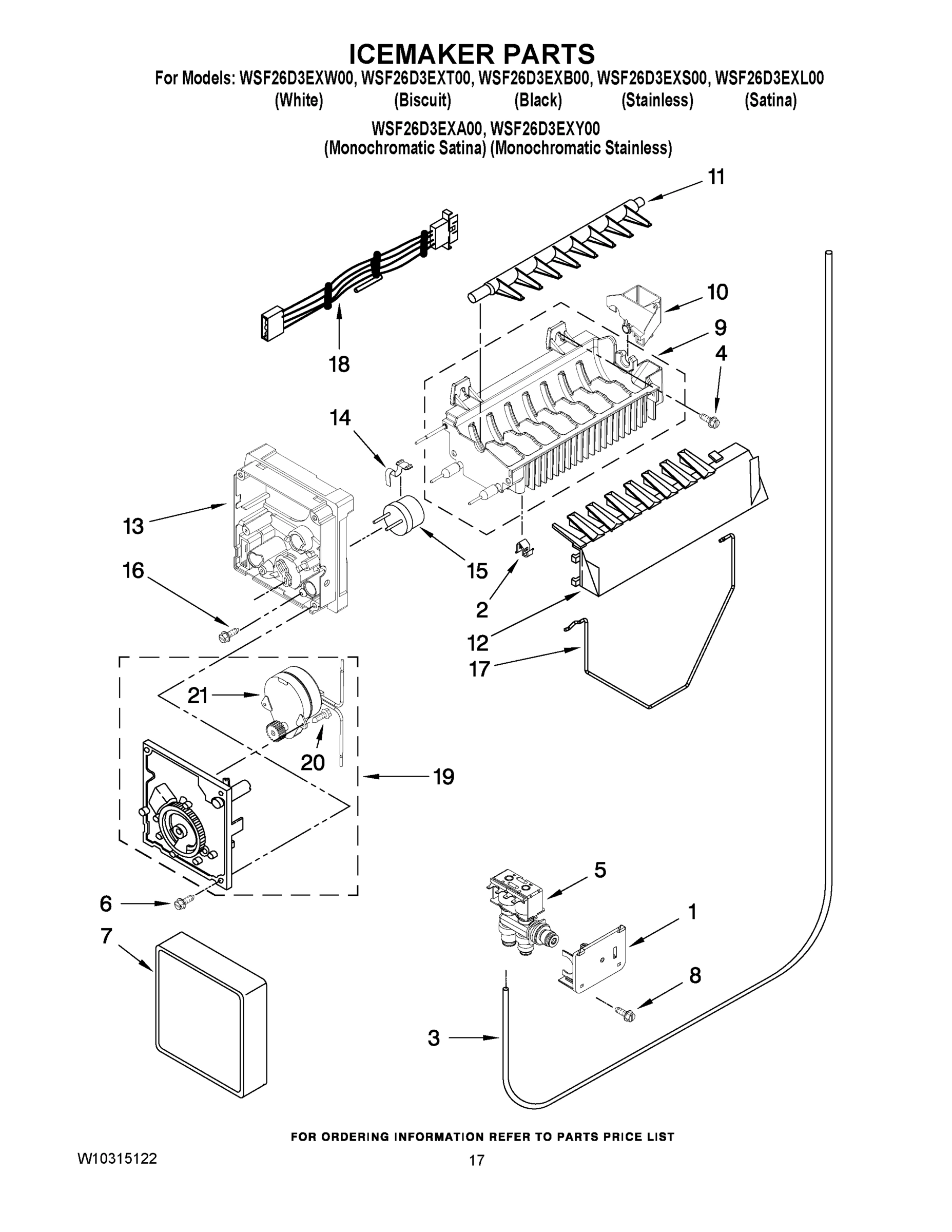

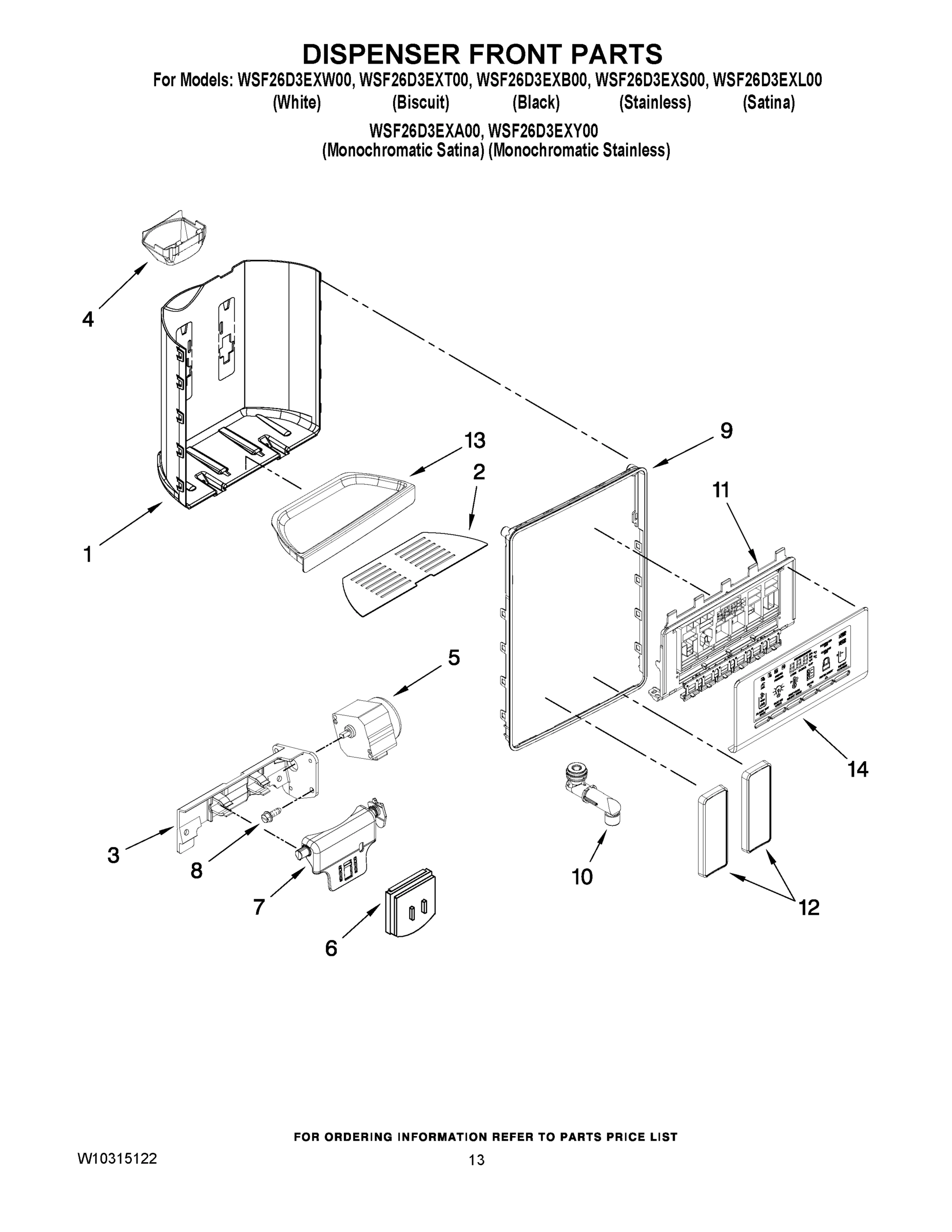

Model Whirlpool WSF26D3EXA00 REFRIGERATOR – Common Parts &amp; Diagrams

1

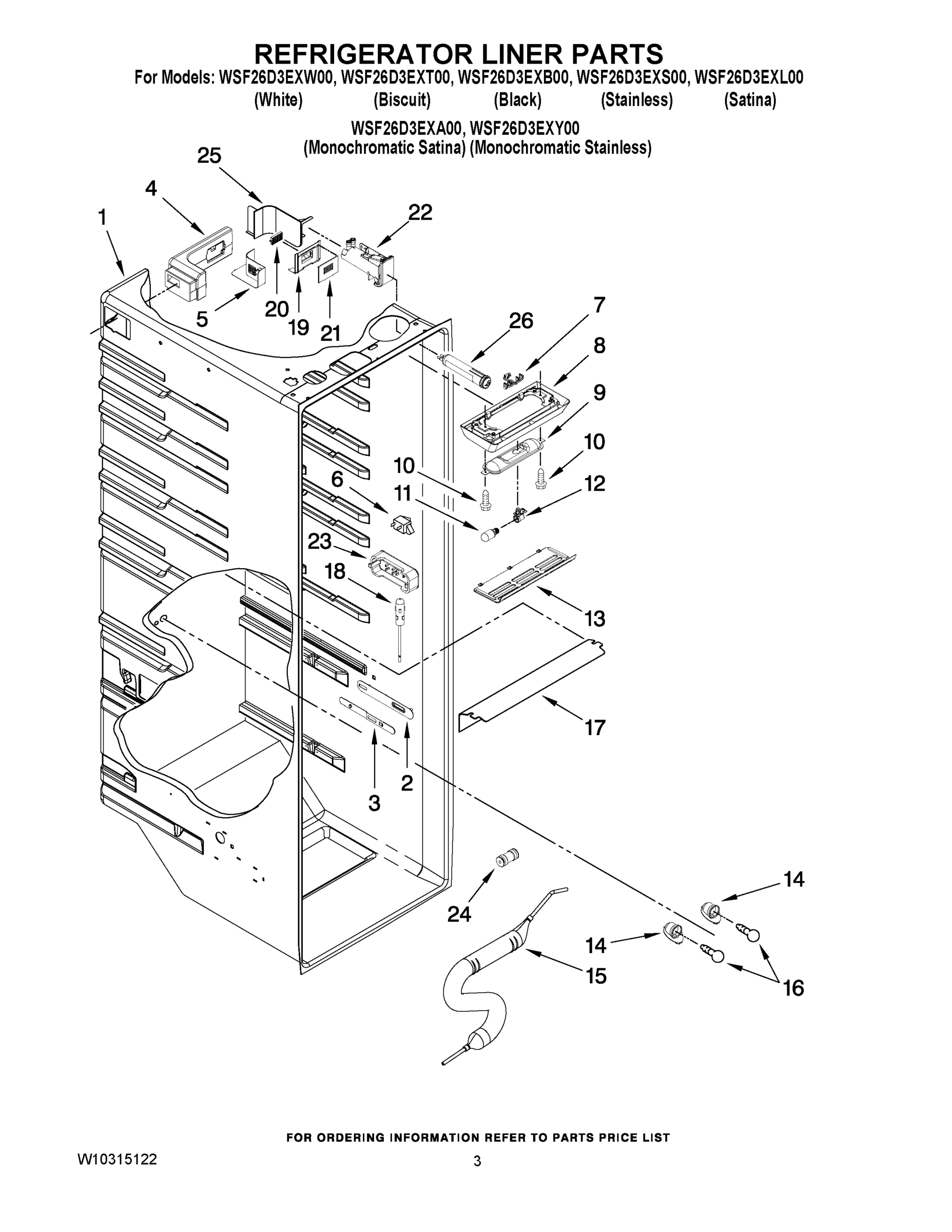

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

1

SHELF, SNACK PAN WPL W10282542 Contact Us For Availability

2

W10260988 Whirlpool Refrigerator Escutcheon Backorder WPL W10260988 $38.01

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $9.96

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

WPW10276221 Whirlpool Refrigerator Grille Backorder WPL WPW10276221 $32.26

2

WPW10276223 Whirlpool Refrigerator Grille Backorder WPL WPW10276223 $32.23

2

COVER ASSY WPL W10256766 Contact Us For Availability

2

BUTTON, HUMIDITY WPL W10282885 Contact Us For Availability

3

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

SHELF, GLASS UPPER WPL W10238483 Contact Us For Availability

3

SLIDE, MEAT PAN CONTROL WPL W10260989 Contact Us For Availability

3

SLIDE, HUMIDITY WPL W10257251 Contact Us For Availability

4

W10814173 Whirlpool Refrigerator Diffuser Backorder WPL W10814173 $122.64

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10282880 Whirlpool Refrigerator Control Bo Backorder WPL WPW10282880 $28.62

5

W10251474 Whirlpool Refrigerator Air Duct Backorder WPL W10251474 $60.04

5

WPW10205978 Whirlpool Motor Backorder WPL WPW10205978 $35.32

5

WPW10238102 Whirlpool Refrigerator Inlet Valv Backorder WPL WPW10238102 $120.76

5

WPW10247884 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10247884 $147.01

5

WPW10249912 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249912 $144.80

5

WPW10260409 Whirlpool Refrigerator Cover Backorder WPL WPW10260409 $29.43

5

WPW10269145 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10269145 $136.28

5

COVER, ASSY WPL W10282540 Contact Us For Availability

6

W11351146 Whirlpool Refrigerator Handle Backorder WPL W11351146 $100.67

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

6

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

6

WPW10256770 Whirlpool Refrigerator Snack Pan In Stock WPL WPW10256770 $90.25

6

WPW10260985 Whirlpool Refrigerator Freezer Bi Backorder WPL WPW10260985 $88.91

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

W10425253 Whirlpool Refrigerator Cover Backorder WPL W10425253 $30.71

7

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

7

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

7

WPW10247993 Whirlpool Refrigerator Control Bo In Stock WPL WPW10247993 $44.73

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

7

WIRE ASSY, TOP LIGHT WPL W10253305 Contact Us For Availability

7

CRISPER PAN (INCLUDES 2, 3, & 8) WPL W10283127 Contact Us For Availability

8

W10280178 Whirlpool Refrigerator Trim Backorder WPL W10280178 $52.83

8

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $25.27

8

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

8

WPW10247885 Whirlpool Door Gasket In Stock WPL WPW10247885 $151.09

8

WPW10249913 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249913 $146.07

8

WPW10256775 Whirlpool Refrigerator Pan Trim Backorder WPL WPW10256775 $45.66

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

W10257202 Whirlpool Refrigerator Thimble Backorder WPL W10257202 $33.95

9

W10276227 Whirlpool Refrigerator Dispense Tri Backorder WPL W10276227 $31.09

9

W11236850 Whirlpool Refrigerator Pan Trim Backorder WPL W11236850 $31.82

9

W11607100 Whirlpool Refrigerator Thimble Cam Backorder WPL W11607100 $4.90

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

9

WPW10248011 Whirlpool Refrigerator White Door In Stock WPL WPW10248011 $8.78

9

WPW10248015 Whirlpool Refrigerator Door Cam Backorder WPL WPW10248015 $9.35

9

WPW10256774 Whirlpool Refrigerator Meat Pan Backorder WPL WPW10256774 $93.20

9

WPW10257201 Whirlpool Door Closing Cam In Stock WPL WPW10257201 $8.67

9

WPW10257203 Whirlpool Refrigerator Lower Door In Stock WPL WPW10257203 $8.80

9

WPW10257206 Whirlpool Refrigerator Door Cam Backorder WPL WPW10257206 $9.17

9

TRIM RING (BLACK) WPL W10276187 Contact Us For Availability

9

SHIELD, HEAT WPL W10289520 Contact Us For Availability

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $24.28

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $48.73

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WPW10260370 Whirlpool Refrigerator Start Devi In Stock WPL WPW10260370 $65.50

WPW10308750 Whirlpool Refrigerator Screw Backorder WPL WPW10308750 $26.21

SHELF ASSY WPL W10269135 Contact Us For Availability

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

W11232019 Whirlpool Refrigerator Clip Backorder WPL W11232019 $4.39

W11311688 Whirlpool Refrigerator Tube Backorder WPL W11311688 $51.92

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $5.97

WPW10238100 Whirlpool Water Inlet Valve In Stock WPL WPW10238100 $87.26

W10688625 Whirlpool Refrigerator Wire Harness Backorder WPL W10688625 $78.21

W10901051 Whirlpool Refrigerator Door Hinge Backorder WPL W10901051 $26.55

W10901052 Whirlpool Refrigerator Door Hinge Backorder WPL W10901052 $26.55

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $8.55

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.51

W10239739 Whirlpool Refrigerator Evaporator C Backorder WPL W10239739 $114.49

W10276193 Whirlpool Refrigerator Disp Tray Backorder WPL W10276193 $38.61

W10276194 Whirlpool Refrigerator Drip Tray Backorder WPL W10276194 $38.58

W10280420 Whirlpool Refrigerator Light Lens Backorder WPL W10280420 $40.00

W11246841 Whirlpool Refrigerator Drip Tray Backorder WPL W11246841 $34.66

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $24.69

W11568758 Whirlpool Top Hinge Backorder WPL W11568758 $8.55

W11573587 Whirlpool Refrigerator Door Hinge Backorder WPL W11573587 $8.55

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W10276229 Whirlpool Refrigerator Escutcheon Backorder WPL W10276229 $124.71

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10254285 Whirlpool Refrigerator Escutcheon Backorder WPL WPW10254285 $138.02

W10249941 Whirlpool Refrigerator Door Hinge Backorder WPL W10249941 $35.43

W11293373 Whirlpool Refrigerator Door Hinge Backorder WPL W11293373 $25.57

W11293374 Whirlpool Refrigerator Door Hinge Backorder WPL W11293374 $39.42

W11613294 Whirlpool Refrigerator Reservoir In Stock WPL W11613294 $20.73

WP2321258 Whirlpool Refrigerator Bimetallic D Backorder WPL WP2321258 $33.89

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10257216 Whirlpool Refrigerator Wire Cover Backorder WPL W10257216 $12.08

W10789144 Whirlpool Refrigerator Wire Cover Backorder WPL W10789144 $11.11

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WASHER, PLAIN WPL W10189660 Contact Us For Availability

17

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

17

WPW10269099 Whirlpool Refrigerator Light Lens Backorder WPL WPW10269099 $52.78

17

Clamp WPL 2161324 Contact Us For Availability

18

W10242433 Whirlpool Refrigerator Wire Harness Backorder WPL W10242433 $49.46

18

W11724692 Whirlpool Thermistor Backorder WPL W11724692 $11.93

18

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

19

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

19

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

19

AIR FILTER HOUSING WPL W10260411 Contact Us For Availability

20

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

20

W10311524 Whirlpool Refrigerator FreshFlow Ai In Stock WPL W10311524 $5.04

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $15.96

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

FILLER, WRAPPER (BISCUIT) WPL 12587703C Contact Us For Availability

AIR FILTER COVER WPL W10251520 Contact Us For Availability

22

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

22

WPW10238123 Whirlpool Refrigerator Housing In Stock WPL WPW10238123 $143.57

23

W10277704 Whirlpool Refrigerator Support Backorder WPL W10277704 $108.63

23

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

23

WPW10425252 Whirlpool Refrigerator Cover In Stock WPL WPW10425252 $30.69

W10876198 Whirlpool Refrigerator Door Cam Backorder WPL W10876198 $5.09

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

WPW10242407 Whirlpool Refrigerator Power Cord Backorder WPL WPW10242407 $30.03

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $13.41

25

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

25

WPW10260405 Whirlpool Refrigerator Filter Cov Backorder WPL WPW10260405 $51.72

26

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

26

EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refri In Stock WPL EDR1RXD1 $55.44

28

W10247979 Whirlpool Refrigerator Fitting Backorder WPL W10247979 $27.27

28

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

29

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

30

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

31

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $48.39

33

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $47.14

33

W11661892 Whirlpool Refrigerator Ice Door Backorder WPL W11661892 $30.36

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

100

WPW10300022 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10300022 $118.88

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPW10300794 Whirlpool Refrigerator Hardware P Backorder WPL WPW10300794 $55.40

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability
