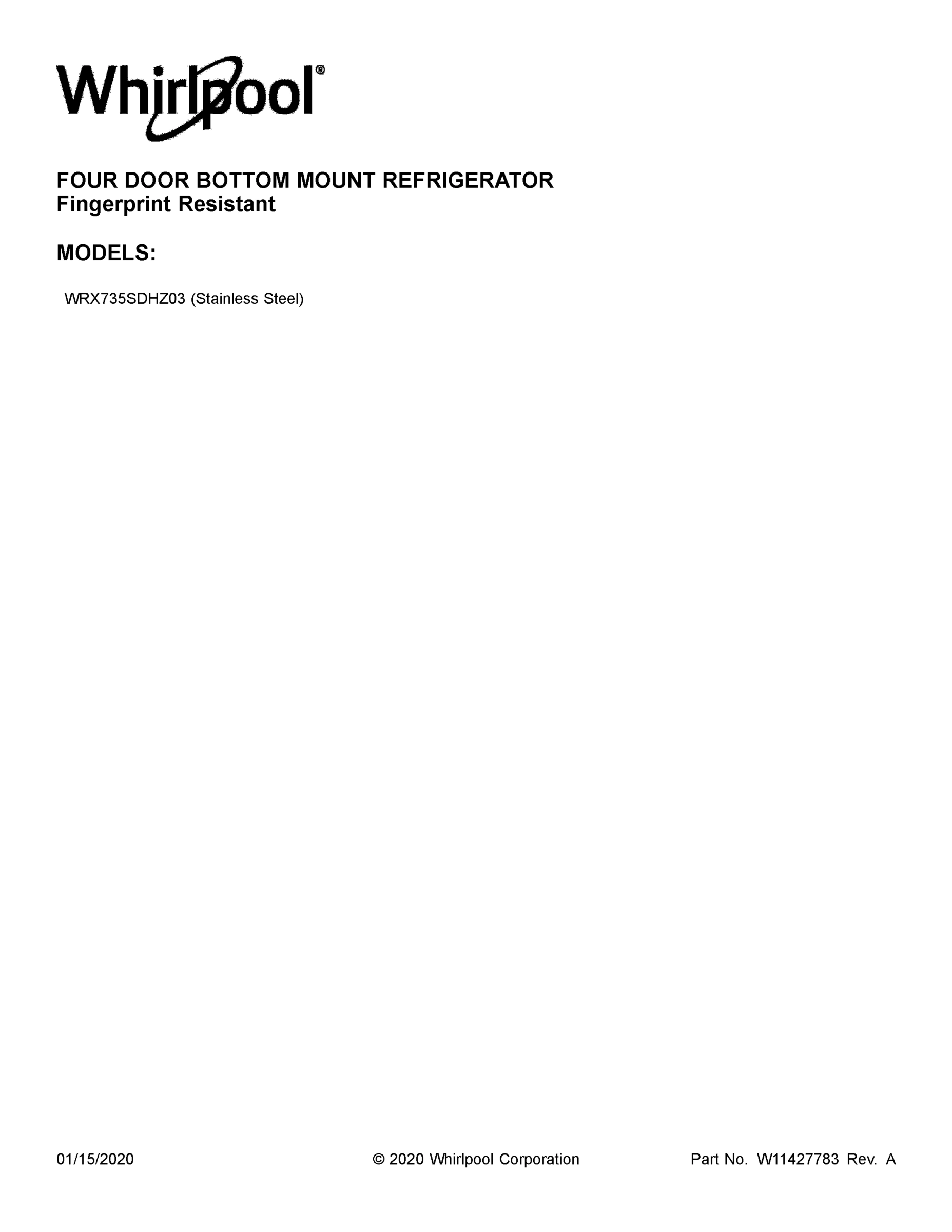

Model Whirlpool WRX735SDHZ03 REFRIGERATOR, 4-DOOR, BOTTOM MOUNT – Common Parts &amp; Diagrams

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.16

2

W11415785 Whirlpool Refrigerator Water Fill T In Stock WPL W11415785 $41.27

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.96

2

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

2

WPW10346891 Whirlpool Refrigerator Slide Backorder WPL WPW10346891 $99.95

2

WPW10714545 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10714545 $101.59

2A

WPW10346890 Whirlpool Refrigerator Slide Backorder WPL WPW10346890 $100.00

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

3

W10309863 Whirlpool Refrigerator Scroll Fan Backorder WPL W10309863 $34.48

3

W11045978 Whirlpool Refrigerator Shield Backorder WPL W11045978 $48.97

3

W11379148 Whirlpool Refrigerator Cantilever B Backorder WPL W11379148 $99.03

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $41.52

3

WP8281136 Whirlpool Screw Backorder WPL WP8281136 $2.51

3

WPW10293682 Whirlpool Refrigerator Freezer Bi Backorder WPL WPW10293682 $102.77

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W11529245 Whirlpool Refrigerator Evaporator M In Stock WPL W11529245 $76.27

4

WPW10353848 Whirlpool Refrigerator Pad In Stock WPL WPW10353848 $126.08

4

PAN, DELI WPL W10366647 Contact Us For Availability

5

W10555984 Whirlpool Refrigerator Grille Backorder WPL W10555984 $14.60

5

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $4.52

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.13

5

W11706640 Whirlpool Bin Containment Lever In Stock WPL W11706640 $42.31

5

WPW10337648 Whirlpool Refrigerator Cover Backorder WPL WPW10337648 $12.22

5

WPW10396909 Whirlpool Refrigerator Front Pan Backorder WPL WPW10396909 $50.54

6

W10146439 Whirlpool Refrigerator Divider Backorder WPL W10146439 $16.69

6

W10795418 Whirlpool Refrigerator Tube Backorder WPL W10795418 $47.51

6

WPW10353552 Whirlpool Refrigerator Separator In Stock WPL WPW10353552 $98.43

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $41.10

7

W11227371 Whirlpool Refrigerator Spigot Backorder WPL W11227371 $49.67

7

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $10.87

7

GROMMET, FAN MOTOR WPL W10151687 Contact Us For Availability

7A

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $10.96

8

W10830274 Whirlpool Door Gasket In Stock WPL W10830274 $112.85

8

W11489993 Whirlpool Refrigerator Rail In Stock WPL W11489993 $8.97

8

WPW10309864 Whirlpool Refrigerator Divider In Stock WPL WPW10309864 $44.76

8

WPW10443326 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10443326 $122.75

8

WPW10655368 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655368 $68.05

8A

W11489994 Whirlpool Refrigerator Rail In Stock WPL W11489994 $8.97

9

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $30.25

9

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $31.90

9

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $31.90

9

W11602886 Whirlpool Refrigerator LED Light Mo In Stock WPL W11602886 $19.22

W11093713 Whirlpool Refrigerator Adapter Backorder WPL W11093713 $76.15

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

W11666461 Whirlpool Water Tube In Stock WPL W11666461 $33.01

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $69.58

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $82.30

10A

W11093714 Whirlpool Refrigerator Adapter Backorder WPL W11093714 $75.33

10A

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.89

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $108.00

W11092533 Whirlpool Device Start In Stock WPL W11092533 $62.77

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $93.06

GEAR, SPUR WPL W10277360 Contact Us For Availability

W10284709 Whirlpool Refrigerator Cover Backorder WPL W10284709 $27.52

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $42.36

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $15.21

WPW10309866 Whirlpool Refrigerator Solenoid In Stock WPL WPW10309866 $69.00

12A

W10294414 Whirlpool Refrigerator Cover Backorder WPL W10294414 $31.64

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $12.77

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

WPW10311757 Whirlpool Door Guide In Stock WPL WPW10311757 $74.95

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.30

WEDGE, SPACER (LEFT HAND & RIGHT HAND) WPL W10316403 Contact Us For Availability

13A

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $59.75

14

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $10.41

14

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $43.13

15

W10346971 Whirlpool Refrigerator Bracket Backorder WPL W10346971 $30.96

15

W10802341 Whirlpool Refrigerator Shaft Backorder WPL W10802341 $35.98

16

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

16

W11378860 Whirlpool Refrigerator Spacer In Stock WPL W11378860 $7.01

16

WPW10309869 Whirlpool Refrigerator Cover Backorder WPL WPW10309869 $41.08

17

W11678963 Whirlpool Grommet In Stock WPL W11678963 $3.70

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

17

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $4.28

18

W10827867 Whirlpool Refrigerator Knob Backorder WPL W10827867 $29.33

18

WPW10312691 Whirlpool Refrigerator Air Baffle In Stock WPL WPW10312691 $125.74

18

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $152.87

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $11.03

W10355269 Whirlpool Cantilever Bin Backorder WPL W10355269 $41.72

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $42.05

WPW10300024 Whirlpool Ice Maker In Stock WPL WPW10300024 $140.28

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.93

20

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $30.85

21

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $35.59

21

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $50.23

21

WPW10351019 Whirlpool Refrigerator Extension In Stock WPL WPW10351019 $31.26

21A

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $36.00

21A

WPW10284683 Whirlpool Refrigerator Bracket Backorder WPL WPW10284683 $76.56

22

W10884722 Whirlpool Refrigerator Front Cover Backorder WPL W10884722 $9.04

22

W11536253 Whirlpool Refrigerator Evaporator Backorder WPL W11536253 $105.96

22

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $62.25

23

W11226688 Whirlpool Refrigerator Cover Backorder WPL W11226688 $31.81

23

W11340457 Whirlpool Refrigerator Divider Asse Backorder WPL W11340457 $24.81

24

W10316401 Whirlpool Refrigerator Insulation Backorder WPL W10316401 $27.52

24

WPW10296571 Whirlpool Glass Shelf Assembly In Stock WPL WPW10296571 $121.09

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

25

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

26

W10311723 Whirlpool Refrigerator Rail In Stock WPL W10311723 $51.17

26

W11666013 Whirlpool Wire Harness Backorder WPL W11666013 $40.19

26A

W11715934 Whirlpool Rail Backorder WPL W11715934 $16.65

30

W10311725 Whirlpool Refrigerator Cover Backorder WPL W10311725 $9.88

30

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $81.61

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $30.01

31

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

32

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $54.11

33

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

33

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $49.66

33A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $42.21

34

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

35

W11683243 Whirlpool Module In Stock WPL W11683243 $110.35

37

W10492234 Whirlpool Refrigerator Brace Backorder WPL W10492234 $48.84

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $8.67

NLA:TOUCH-UP Backorder WPL W10917540 $6.57

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
