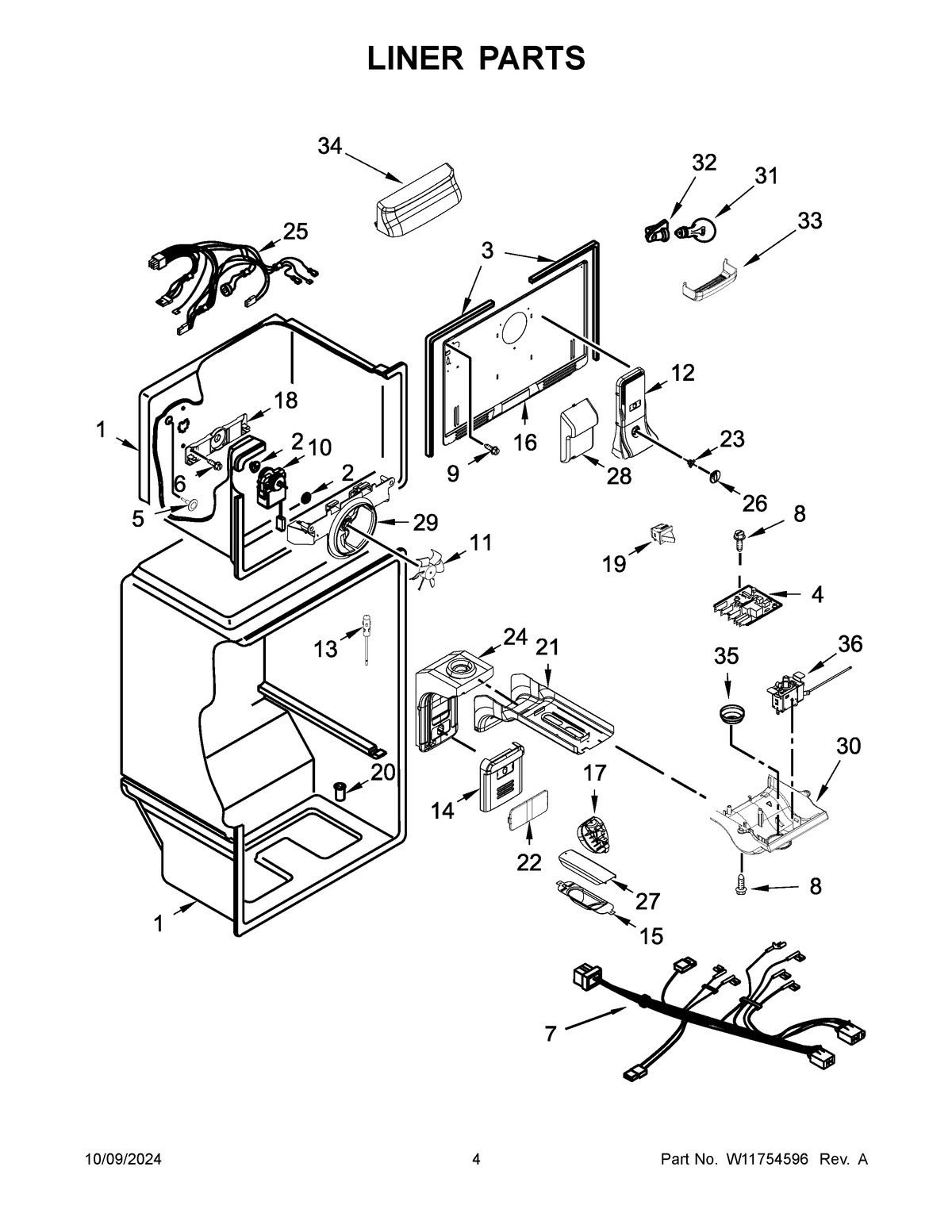

Model Whirlpool WRT511SZDM04 REFRIGERATOR, ALL – Common Parts & Diagrams

3

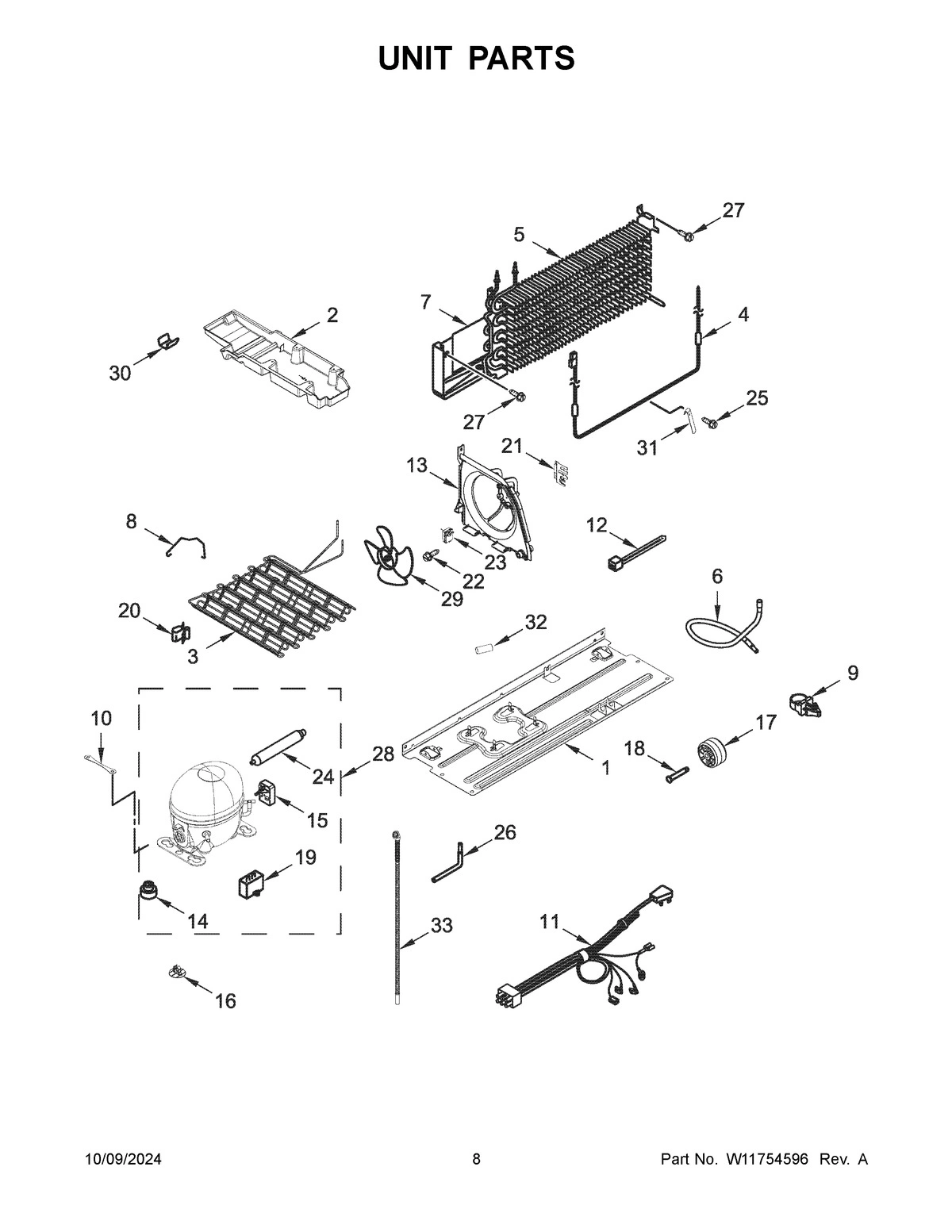

CONDENSER (ALSO ORDER THE FOLLOWING LOKRING
CONDENSER (ALSO ORDER THE FOLLOWING LOKRING WPL W10609393 Contact Us For Availability
View on Model
6

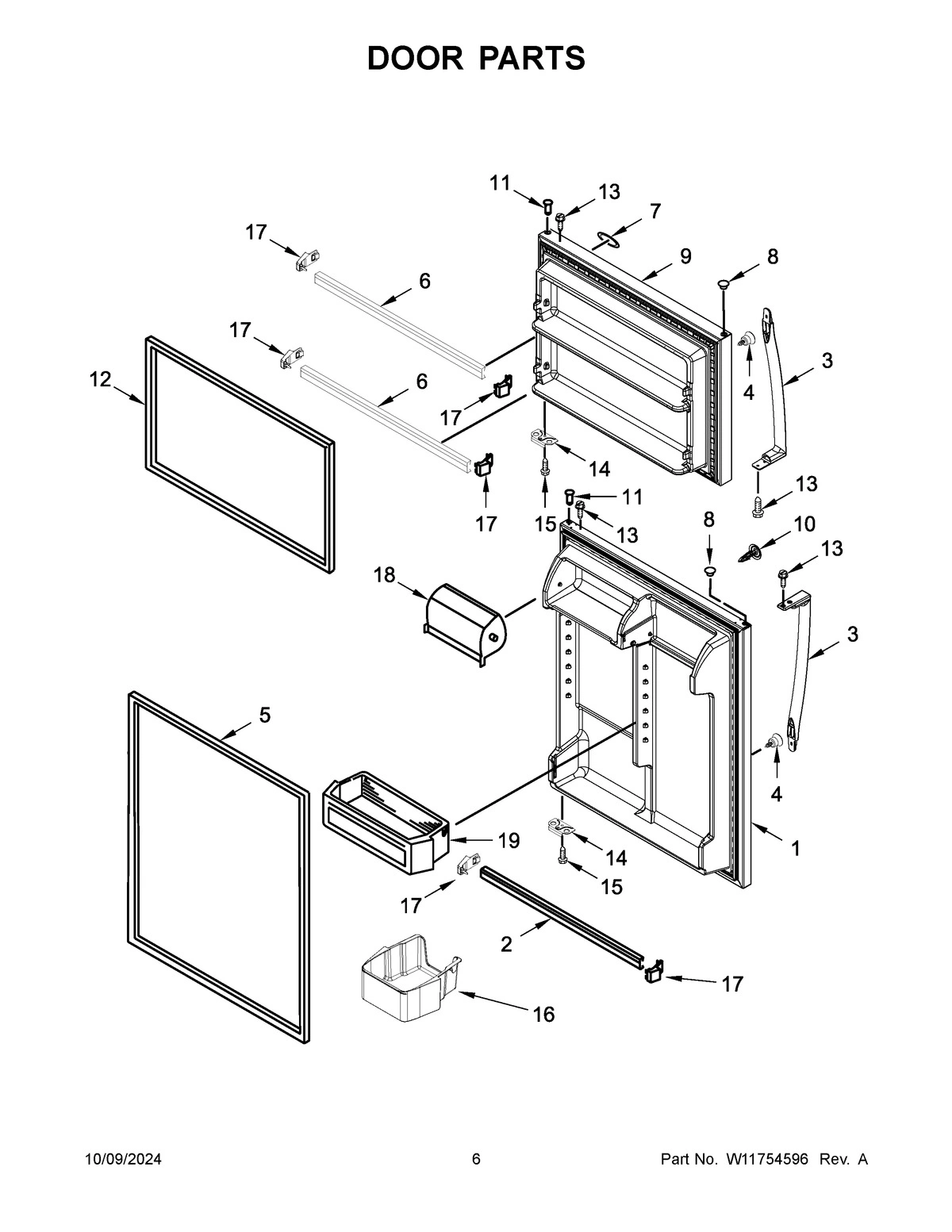

TRIM, DOOR
TRIM, DOOR WPL W10592150 Contact Us For Availability
View on Model
8
PLUG, HINGE (GREY)
PLUG, HINGE (GREY) WPL 2254517 Contact Us For Availability
View on Model
10
STRAP, COMPRESSOR
STRAP, COMPRESSOR WPL W10236396 Contact Us For Availability
View on Model
12

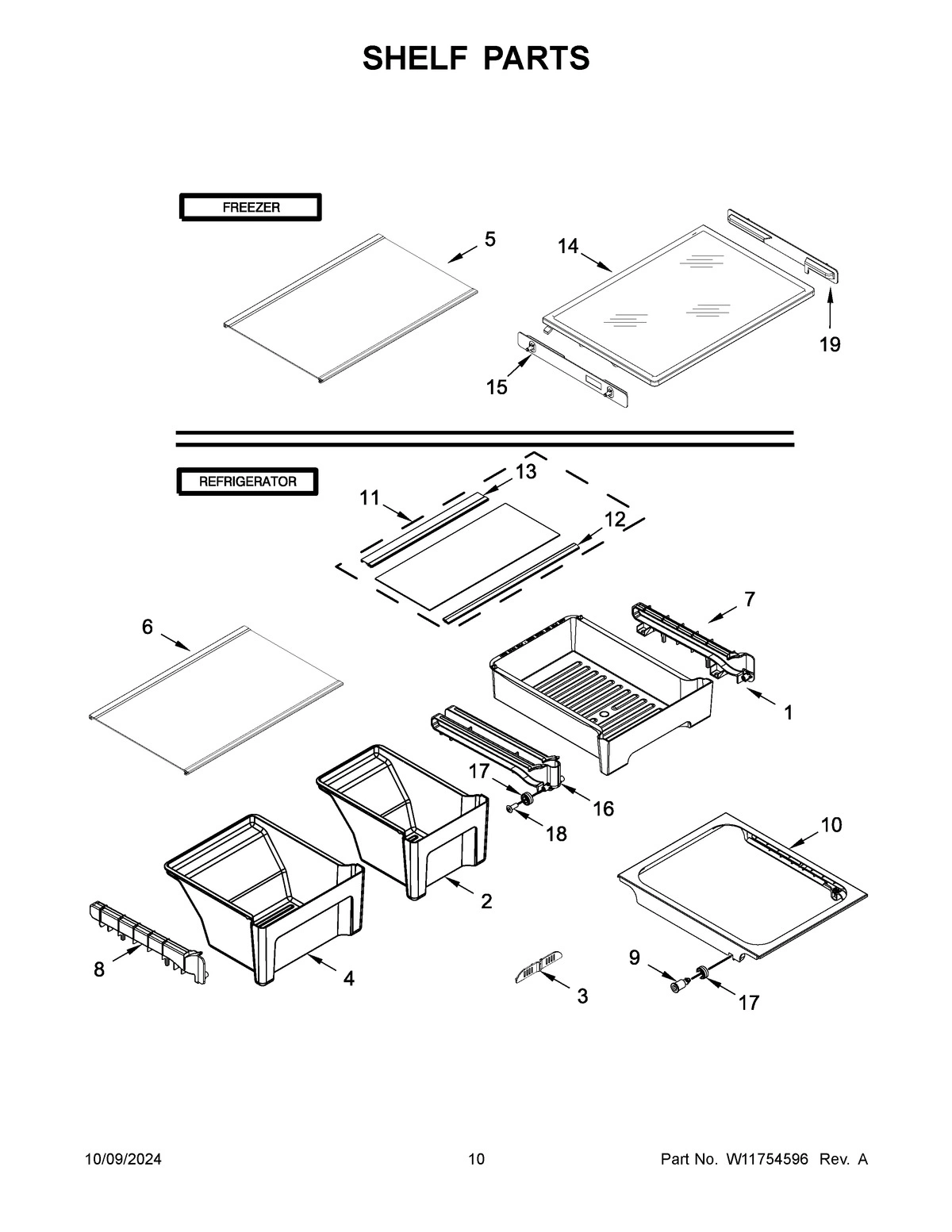

TRIM, SHELF FRONT
TRIM, SHELF FRONT WPL W10691528 Contact Us For Availability
View on Model
12
FILLER, WRAPPER (GREY)
FILLER, WRAPPER (GREY) WPL W11219642 Contact Us For Availability
View on Model
14
CUP, AIR DIFFUSER
CUP, AIR DIFFUSER WPL W10609502 Contact Us For Availability
View on Model
15
SUPPORT, FREEZER SHELF (LEFT SIDE)
SUPPORT, FREEZER SHELF (LEFT SIDE) WPL W11395919 Contact Us For Availability
View on Model
15
SHIELD, LIGHT
SHIELD, LIGHT WPL W10300161 Contact Us For Availability
View on Model
16
CLIP, BOTTOM COVER
CLIP, BOTTOM COVER WPL W10815861 Contact Us For Availability
View on Model
18
BRACKET, EVAPORATOR FAN REAR
BRACKET, EVAPORATOR FAN REAR WPL 2254454 Contact Us For Availability
View on Model
19
SUPPORT, FREEZER SHELF (RIGHT SIDE)
SUPPORT, FREEZER SHELF (RIGHT SIDE) WPL W11395921 Contact Us For Availability
View on Model
22
CUP, SCREW
CUP, SCREW WPL W10336009 Contact Us For Availability
View on Model
23
COVER, TOE GRILLE (GREY)
COVER, TOE GRILLE (GREY) WPL W10468611 Contact Us For Availability
View on Model
24A
5/4 NR MS 00 (SUCTION LINE TO CONDENSER)
5/4 NR MS 00 (SUCTION LINE TO CONDENSER) WPL W11504445 Contact Us For Availability
View on Model
24B
5/1.8 NR MS 00 (CAPILLARY TUBE TO DRIER)
5/1.8 NR MS 00 (CAPILLARY TUBE TO DRIER) WPL W11504447 Contact Us For Availability
View on Model
28C
8 NK MS 00 (SUCTION LINE TO EVAPORATOR)
8 NK MS 00 (SUCTION LINE TO EVAPORATOR) WPL W11506619 Contact Us For Availability
View on Model
35
KNOB, CONTROL
KNOB, CONTROL WPL W10716304 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. WHITE)
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BLACK)
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE) WPL 4392899 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, SEALER, GUM (4 FEET)
MISCELLANEOUS, SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND WPL 4392901 Contact Us For Availability
View on Model
NI
TOUCH-UP PAINT (APOLLO GREY)
TOUCH-UP PAINT (APOLLO GREY) WPL W10134625 Contact Us For Availability
View on Model
NI
WHITE PORCELAIN (2 OZ.)
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
View on Model
NI
INSULATION (2 PIECES, 3" X 24" X 48")
INSULATION (2 PIECES, 3" X 24" X 48") WPL 876370 Contact Us For Availability
View on Model
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2")
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR
MISCELLANEOUS, KIT, TERMINAL CONNECTOR WPL 833938 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER WPL 350942 Contact Us For Availability
View on Model
NI
TAPE, VINYL (3/4 X 108")
TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT. WHITE (UNCUT))
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
NI
TORX SCREW WRENCH, TORX KEY
TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
View on Model
