Model Whirlpool WRFF3436RV00 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

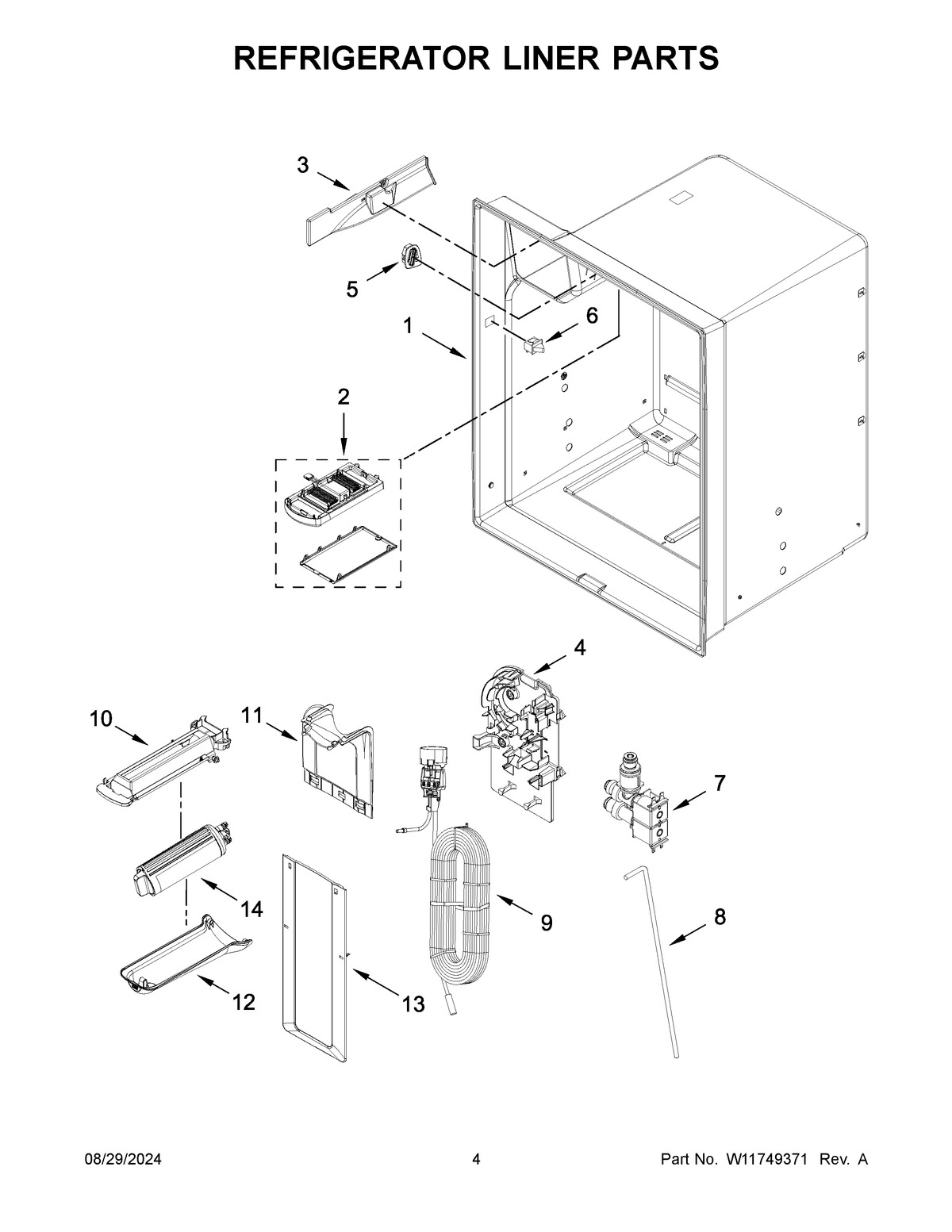

W11185686 Whirlpool Ice Bucket Assembly In Stock WPL W11185686 $191.59

1

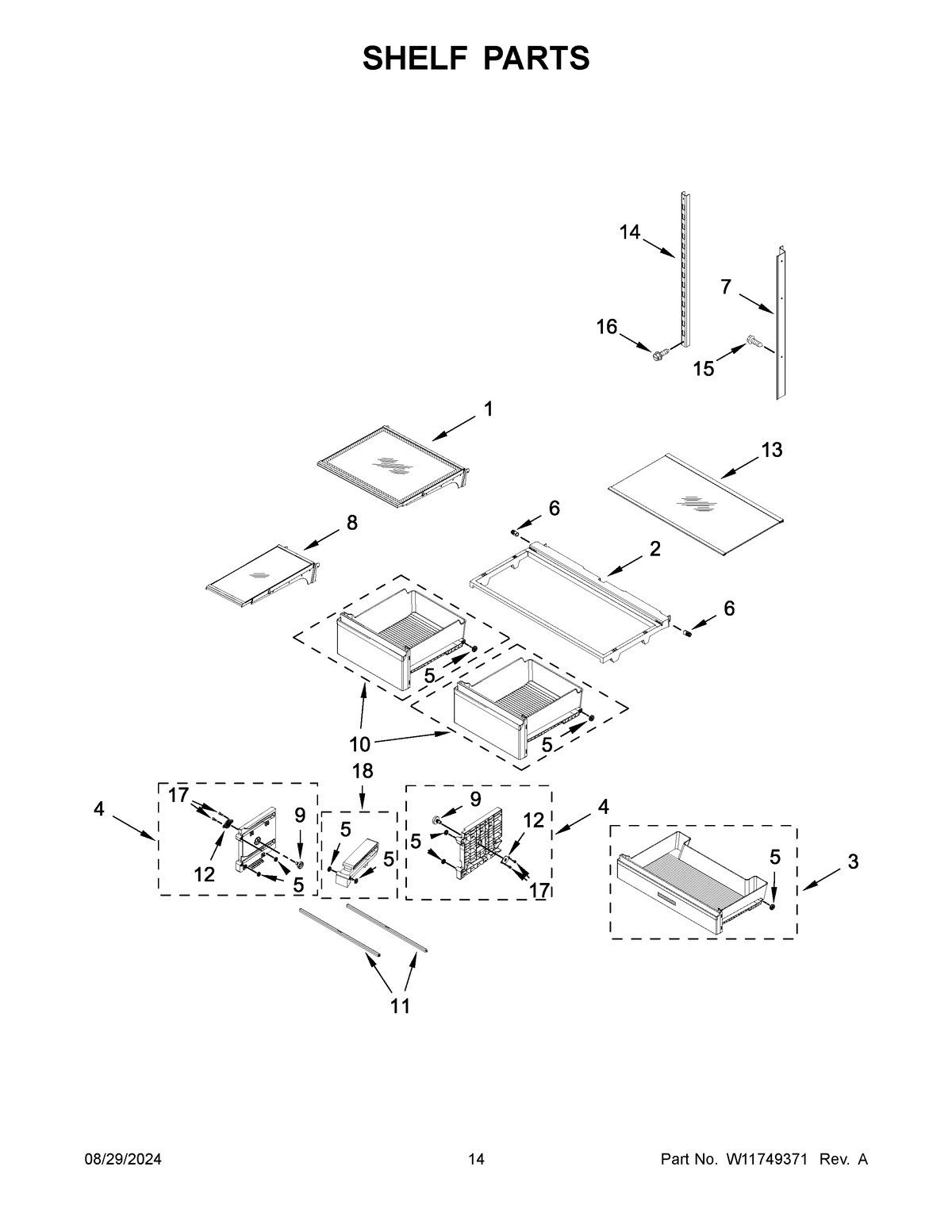

W11749333 Whirlpool Glass Shelf Backorder WPL W11749333 $104.20

1

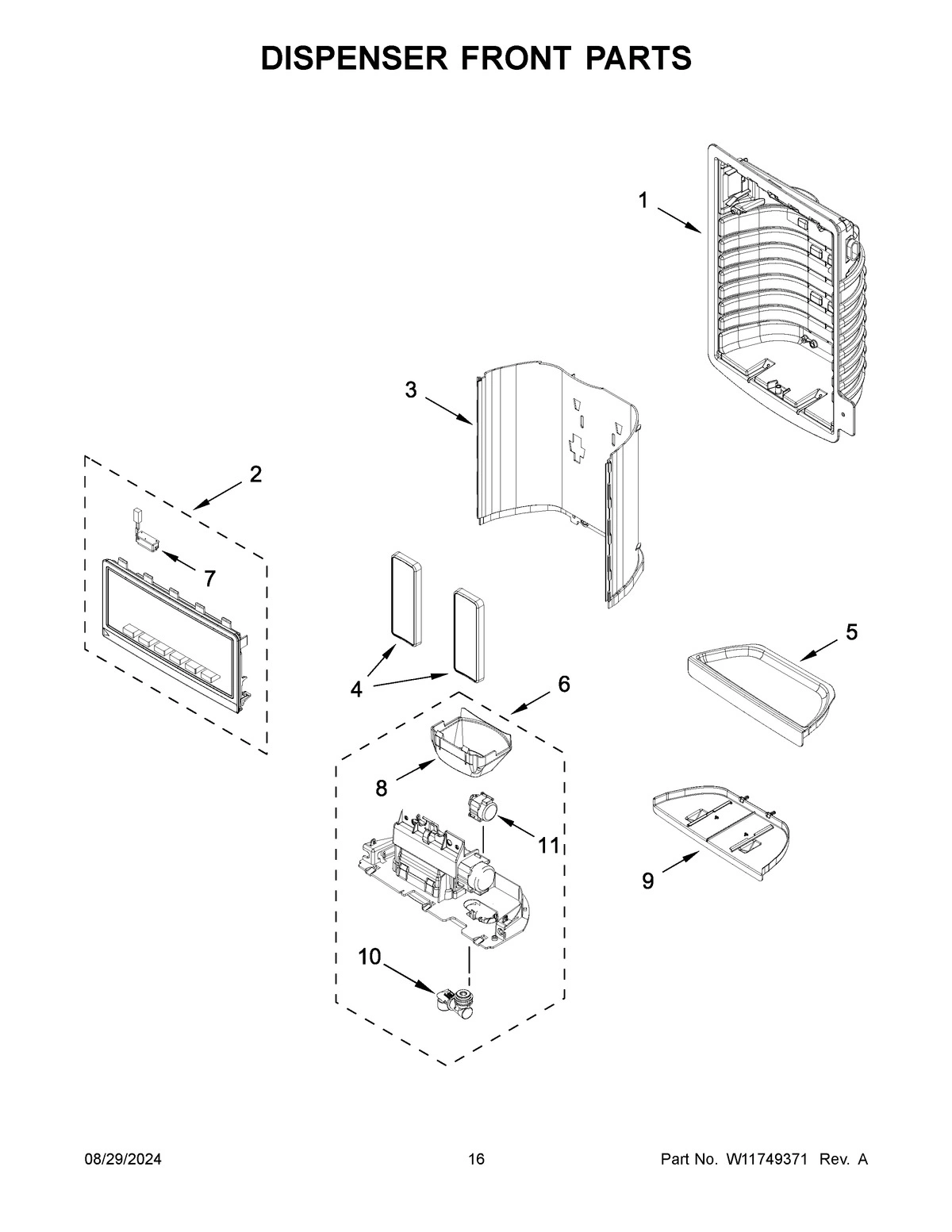

HOUSING, DISPENSER (NOT SERVICED) WPL ARI0820F7799426DB23CC858392159B72FE Contact Us For Availability

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.16

2

W11415785 Whirlpool Refrigerator Water Fill T In Stock WPL W11415785 $40.44

2

W11642015 Whirlpool UI Panel + Core Backorder WPL W11642015-includeCORE $186.37

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

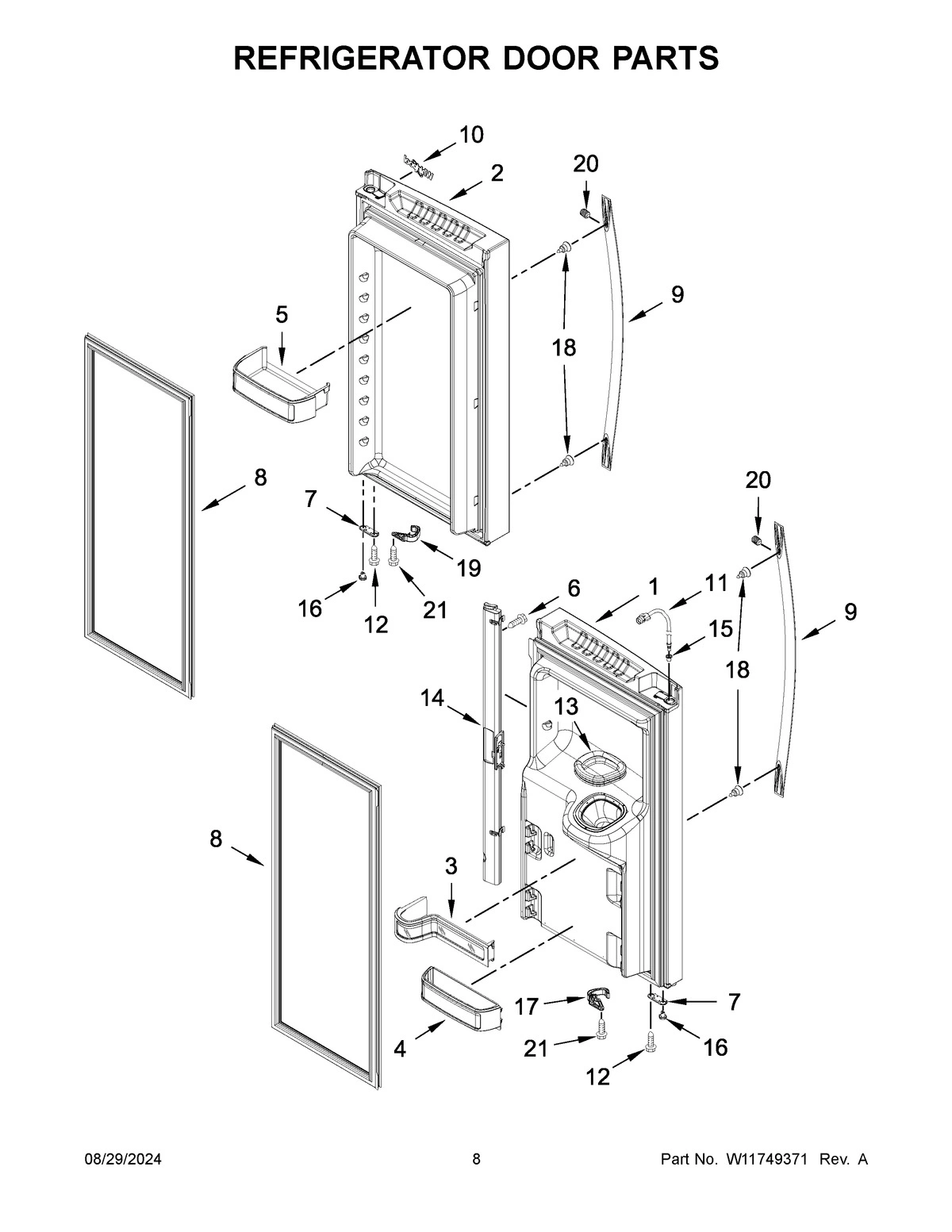

FRAME, PAN COVER GLASS WPL W11705144 Contact Us For Availability

3

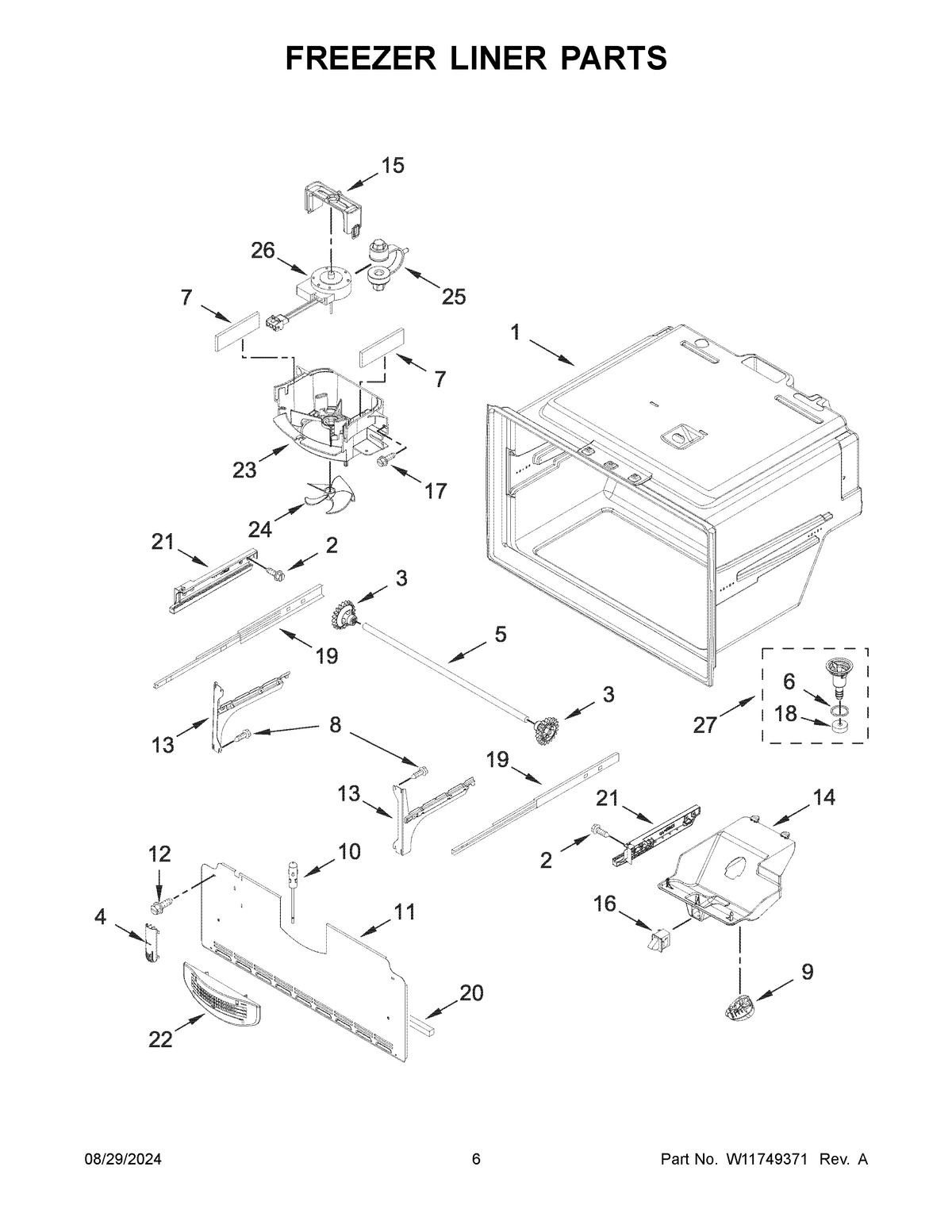

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10309863 Whirlpool Refrigerator Scroll Fan Backorder WPL W10309863 $32.83

3

W11045979 Whirlpool Shield Assembly Backorder WPL W11045979 $31.59

3

WPW10309869 Whirlpool Refrigerator Cover Backorder WPL WPW10309869 $39.13

3

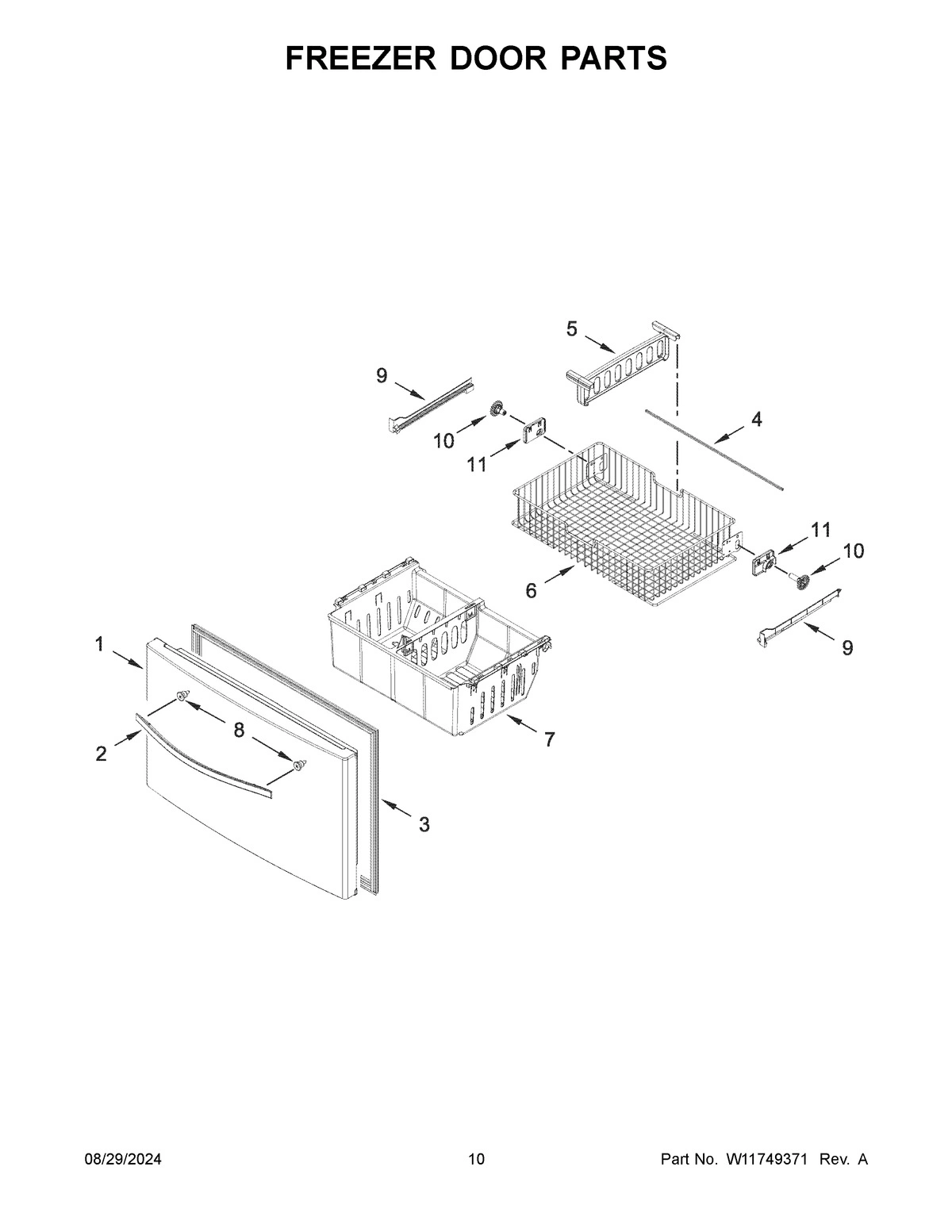

WPW10714545 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10714545 $101.59

3

DRAWER, PANTRY WPL W11702374 Contact Us For Availability

4

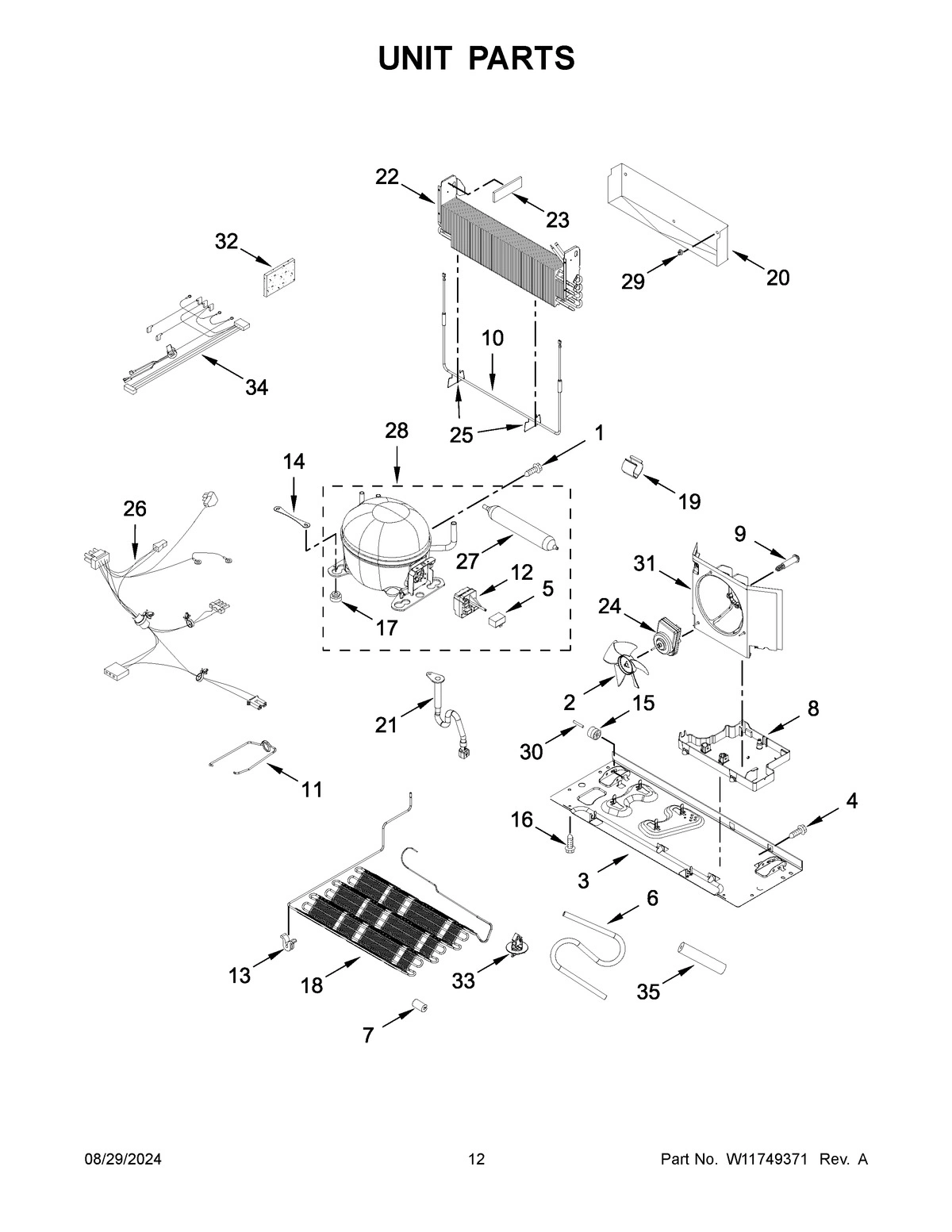

W11529245 Whirlpool Refrigerator Evaporator M In Stock WPL W11529245 $71.86

4

W11661207 Whirlpool Pad Assembly Backorder WPL W11661207 $22.77

4

ENDCAP, PANTRY (LEFT HAND) WPL W11702403 Contact Us For Availability

4A

ENDCAP, PANTRY (RIGHT HAND) WPL W11702400 Contact Us For Availability

5

W10146439 Whirlpool Refrigerator Divider Backorder WPL W10146439 $15.90

5

W10337647 Whirlpool Refrigerator Cover Backorder WPL W10337647 $13.74

5

W10555984 Whirlpool Refrigerator Grille Backorder WPL W10555984 $14.60

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

W11045974 Whirlpool Refrigerator Drip Tray Backorder WPL W11045974 $34.66

5

WPW10123444K Whirlpool Refrigerator Wheel In Stock WPL WPW10123444K $30.40

5

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $42.93

5

ROLLER ASSEMBLY, CRISPER WPL W11606482 Contact Us For Availability

6

W10165970 Whirlpool Refrigerator Clip Backorder WPL W10165970 $28.80

6

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

6

WPW10353552 Whirlpool Refrigerator Separator In Stock WPL WPW10353552 $97.61

6

SUPPORT, CRISPER FRAME WPL W11705308 Contact Us For Availability

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $39.14

7

W10251966 Whirlpool Refrigerator Ladder Backorder WPL W10251966 $28.80

7

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.57

7

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $29.59

7

WPW10293682 Whirlpool Refrigerator Freezer Bi Backorder WPL WPW10293682 $97.11

7

GROMMET, FAN MOTOR WPL W10151687 Contact Us For Availability

7A

W10251965 Whirlpool Refrigerator Ladder Backorder WPL W10251965 $11.38

8

W10830055 Whirlpool Refrigerator Door Gasket In Stock WPL W10830055 $124.35

8

WPW10309864 Whirlpool Refrigerator Divider In Stock WPL WPW10309864 $40.79

8

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

8

WPW10655368 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655368 $54.02

8

SHELF, MINI WPL W11697425 Contact Us For Availability

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

W10840922 Whirlpool Refrigerator Knob Backorder WPL W10840922 $28.75

9

W11045966 Whirlpool Tray Backorder WPL W11045966 $34.66

9

WP67006341 Whirlpool Refrigerator Gasket In Stock WPL WP67006341 $3.70

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

W11227371 Whirlpool Refrigerator Spigot Backorder WPL W11227371 $47.31

W11547652 Whirlpool Refrigerator Heater In Stock WPL W11547652 $46.52

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $65.49

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $10.87

PAN ASSEMBLY, CRISPER WPL W11694348 Contact Us For Availability

10A

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $10.96

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $102.86

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $30.38

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $74.68

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $37.17

STRAP, BALE WPL W11629200 Contact Us For Availability

BRACE, CRISPER SUPPORT WPL W11700717 Contact Us For Availability

11A

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $30.38

W11524472 Whirlpool Refrigerator Start Device In Stock WPL W11524472 $11.11

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

WPW10309866 Whirlpool Refrigerator Solenoid In Stock WPL WPW10309866 $68.93

FLANGE, SIDE SUPPORT WPL W10840918 Contact Us For Availability

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $12.77

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $14.38

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.00

GLASS, PAN COVER WPL W11694315 Contact Us For Availability

13A

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $56.13

12722815B Whirlpool Refrigerator Mullion Rail Backorder WPL 12722815B $118.05

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.43

W10236396 Whirlpool Refrigerator Strap Backorder WPL W10236396 $7.81

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $11.03

15

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

15

W10346971 Whirlpool Refrigerator Bracket Backorder WPL W10346971 $29.48

15

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

16

W11378860 Whirlpool Refrigerator Spacer In Stock WPL W11378860 $6.19

16

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

16

SCREW WPL 12992101 Contact Us For Availability

17

W10847999 Whirlpool Refrigerator Screw Backorder WPL W10847999 $9.59

17

WP63052-2 Whirlpool Refrigerator Impeller In Stock WPL WP63052-2 $28.80

17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.57

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $9.59

W11548539 Whirlpool Air Baffle Backorder WPL W11548539 $21.76

CONDENSER (ALSO ORDER THE FOLLOWING LOKRING WPL W11597885 Contact Us For Availability

ASSEMBLY, PAN CENTER SUPPORT WPL W11702378 Contact Us For Availability

18A

W11506623 Whirlpool Refrigerator Coupler In Stock WPL W11506623 $11.51

18B

W11504432 Whirlpool Refrigerator Coupler In Stock WPL W11504432 $13.58

19

W10281329 Whirlpool Clamp Backorder WPL W10281329 $6.59

19

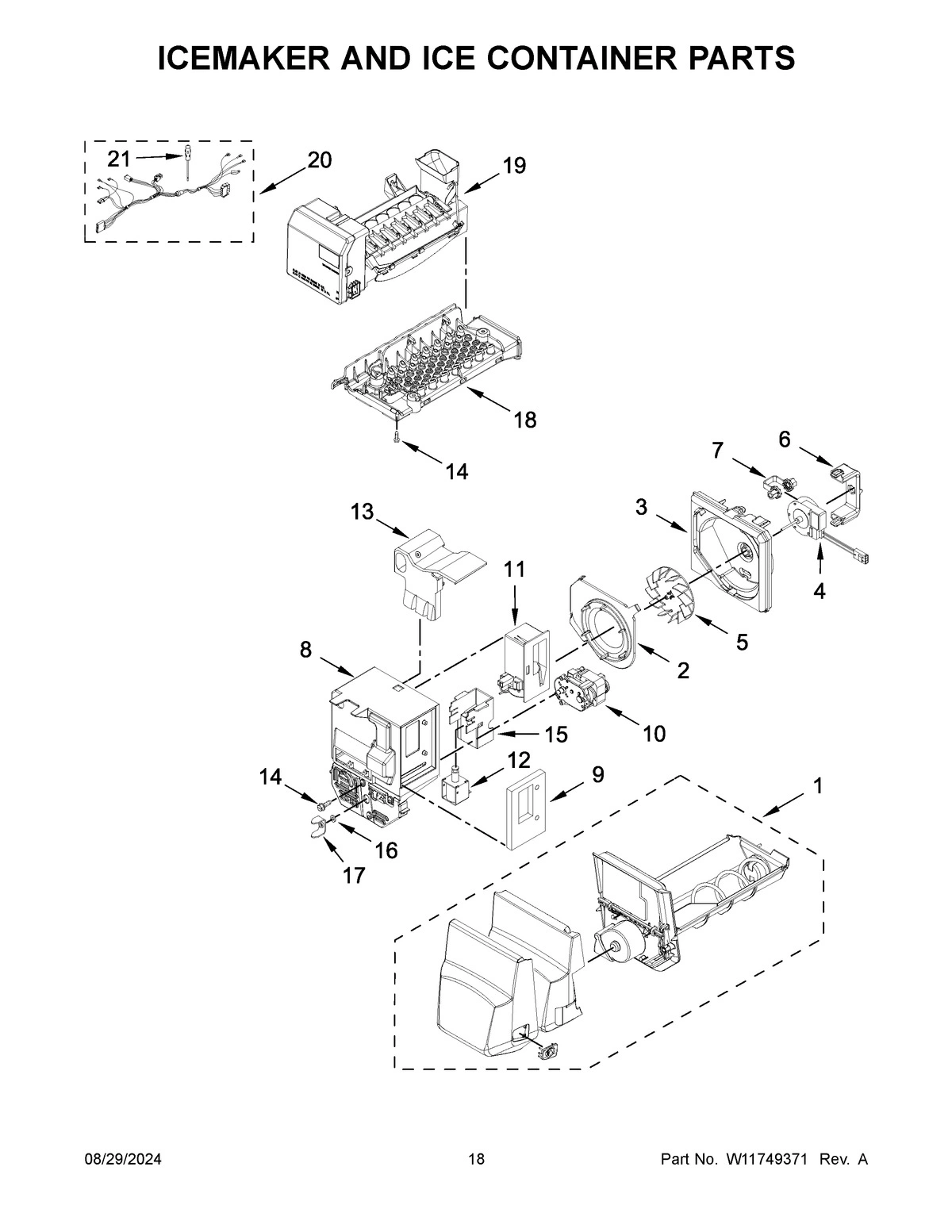

W11692161 Whirlpool Ice Maker Backorder WPL W11692161 $140.67

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

20

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $29.39

20

W11548538 Whirlpool Refrigerator Wire Harness In Stock WPL W11548538 $46.35

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $29.92

W10316760 Whirlpool Thermistor Kit In Stock WPL W10316760 $32.54

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $24.34

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $47.84

21A

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

21A

WPW10284683 Whirlpool Refrigerator Bracket Backorder WPL WPW10284683 $69.83

22

W11550396 Whirlpool Refrigerator Evaporator Backorder WPL W11550396 $105.14

22

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $55.37

22A

W11504423 Whirlpool Refrigerator Coupler In Stock WPL W11504423 $15.90

22B

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

23

W10296541 Whirlpool Refrigerator Wire Cover Backorder WPL W10296541 $13.60

23

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

25

12981401B Whirlpool Refrigerator Filtration C Backorder WPL 12981401B $7.78

25

W11380964 Whirlpool Clip Assembly Backorder WPL W11380964 $7.81

26

W11666013 Whirlpool Wire Harness In Stock WPL W11666013 $37.50

27

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

27

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $37.73

27A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $15.56

27A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $37.39

27B

W11504447 Whirlpool Refrigerator Coupler In Stock WPL W11504447 $22.97

28

W11686820 Whirlpool Compressor In Stock WPL W11686820 $152.56

28A

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $14.57

28B

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

28C

W11506621 Whirlpool Refrigerator Coupler In Stock WPL W11506621 $11.51

28D

W11506635 Whirlpool Refrigerator Valve Couple In Stock WPL W11506635 $20.70

29

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $77.72

29

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $25.69

32

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

33

W10815863 Whirlpool Clip Backorder WPL W10815863 $25.57

34

W11548536 Whirlpool Refrigerator Wire Harness Backorder WPL W11548536 $51.77

35

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $21.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL ARI3D14DF0CE53C9B0FBD6DA03DE207773B WPL ARI3D14DF0CE53C9B0FBD6DA03DE207773B Contact Us For Availability
