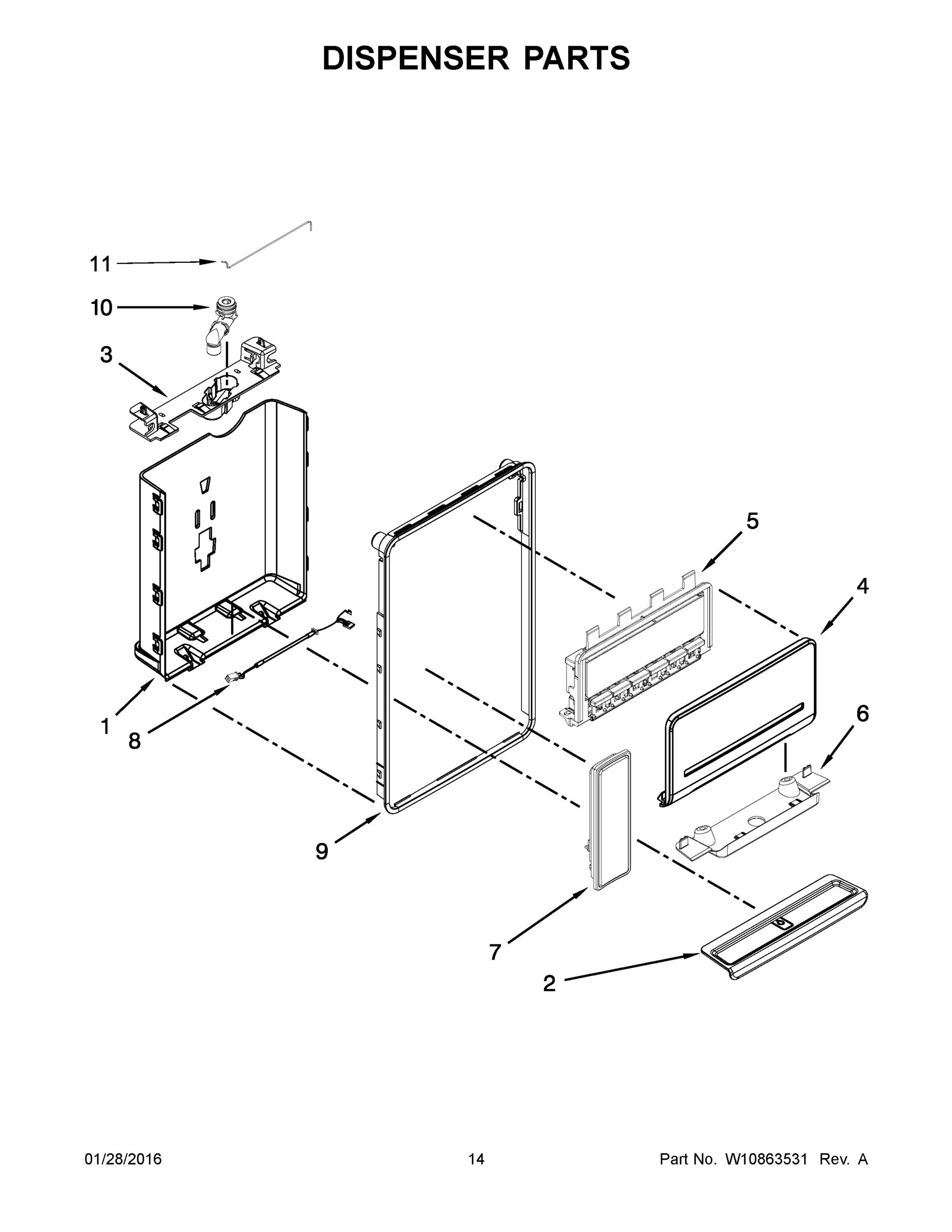

08 - DISPENSER PARTS
10 - OPTIONAL PARTS
06 - UNIT PARTS
02 - CABINET PARTS
03 - LINER PARTS
05 - FREEZER DOOR PARTS
07 - SHELF PARTS
09 - ICEMAKER PARTS
01 - COVER SHEET
04 - REFRIGERATOR DOOR PARTS
Common parts from model Whirlpool WRF560SEYM05 REFRIGERATOR
1
BASEPLATE WPL W10300116 Contact Us For Availability
2
HINGE, TOP (LEFT HAND) WPL W10546298 Contact Us For Availability
4
FASCIA, SPARSH (SILVER MIRROR) WPL W10435575 Contact Us For Availability
4A
ASSEMBLY, HANDLE (BLACK) WPL W10686483 Contact Us For Availability
4A
FASCIA, SPARSH (BLACK) WPL W10435576 Contact Us For Availability
5
HOUSING, LIGHT WPL W10469878 Contact Us For Availability
6
COVER, SEPARATOR (CHROMIUM FROST) WPL W10356029 Contact Us For Availability
6
CONTAINER, WATER RESERVOIR WPL W10798439 Contact Us For Availability
7
ASSEMBLY, SINGLE PAD (WHITE) WPL W10433547 Contact Us For Availability
7A
ASSEMBLY, SINGLE PAD (BLACK) WPL W10433546 Contact Us For Availability
8A
COVER, TOE GRILLE (BLACK) WPL W10353930 Contact Us For Availability
9
RING, TRIM WPL W10356017 Contact Us For Availability
11
TUBE, WATER DISPENSER WPL W10445080 Contact Us For Availability
13
CUP, SCREW WPL W10336009 Contact Us For Availability
14
HINGE, CENTER (LEFT HAND) WPL W10770878 Contact Us For Availability
16
COVER, EVAPORATOR WPL W10300900 Contact Us For Availability
16
COVER, ELECTRONIC CONTROL WPL W10313215 Contact Us For Availability
17
SCREW WPL W10001280 Contact Us For Availability
19
COVER, UNIT WPL W10636716 Contact Us For Availability
20
COVER, WATER RESERVOIR WPL W10413160 Contact Us For Availability
20
STRAP, COMPRESSOR WPL W10236396 Contact Us For Availability
21
SHAFT, RACK WPL W10802342 Contact Us For Availability
24
ASSEMBLY, UNIT WIRE WPL W10633276 Contact Us For Availability
24
SCREW WPL 489136 Contact Us For Availability
25
COVER, HINGE (LEFT HAND (WHITE)) WPL W10465765 Contact Us For Availability
25A
COVER, HINGE (RIGHT HAND (WHITE)) WPL W10465764 Contact Us For Availability
25B
COVER, HINGE (LEFT HAND (BLACK)) WPL W10465771 Contact Us For Availability
25C
COVER, HINGE (RIGHT HAND (BLACK)) WPL W10465770 Contact Us For Availability
25D
COVER, HINGE (LEFT HAND (GREY)) WPL W10465768 Contact Us For Availability
25E
COVER, HINGE (RIGHT HAND (GREY)) WPL W10465767 Contact Us For Availability
29
DRUM, TOE GRILLE WPL W10331226 Contact Us For Availability
30
BRACKET, EVAPORATOR FAN REAR WPL 2254454 Contact Us For Availability
30
COVER, CONDENSER BOTTOM WPL W10349514 Contact Us For Availability
34
TUBE, SUCTION WPL W10510988 Contact Us For Availability
38
BRACKET, EVAPORATOR WPL W10314197 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability
NI
VALVE, ACCESS WPL 876764 Contact Us For Availability
NI
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ WPL 4392901 Contact Us For Availability
NI
VALVE, ACCESS WPL 978026 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
NI
VALVE, ACCESS WPL 978027 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") WPL 876370 Contact Us For Availability
NI
VALVE, ACCESS WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS WPL 978030 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER WPL 350942 Contact Us For Availability
NI
BAG WPL 606755 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
× ![]()
