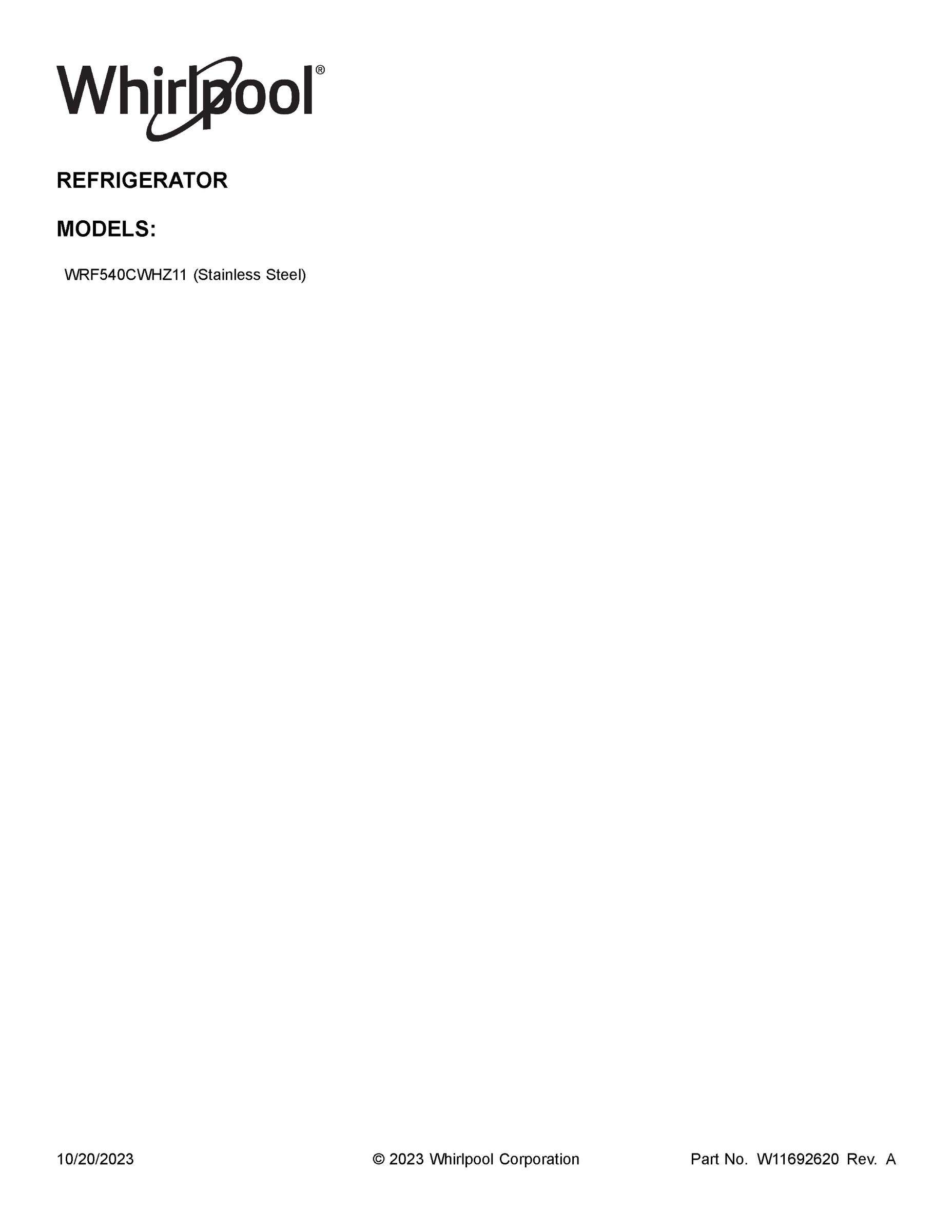

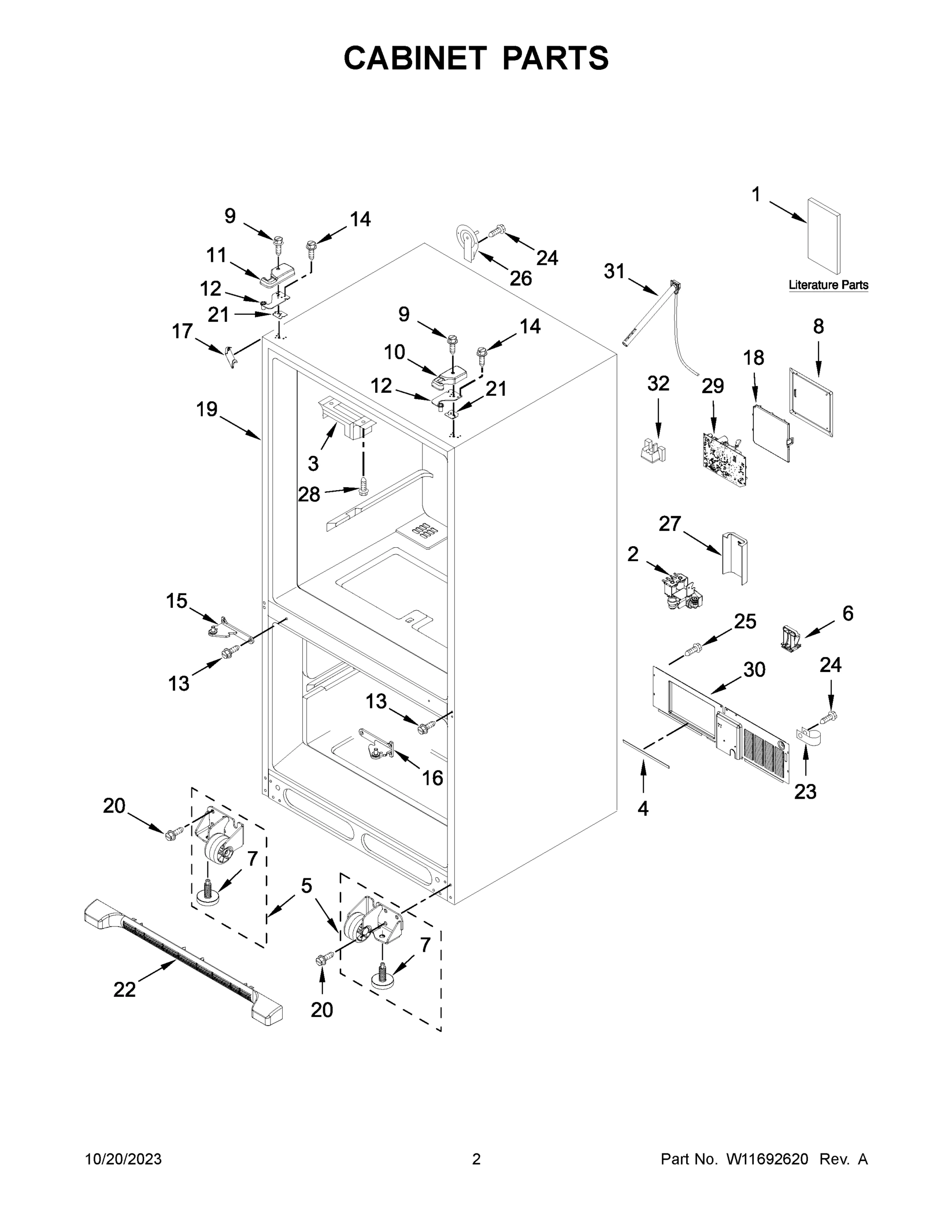

Model Whirlpool WRF540CWHZ11 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

W11125512 Whirlpool Refrigerator Glass Shelf Backorder WPL W11125512 $127.18

2

W10464764 Whirlpool Refrigerator Housing Backorder WPL W10464764 $38.80

2

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

WP67005923 Whirlpool Refrigerator Front Cover Backorder WPL WP67005923 $30.93

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W11712701 Whirlpool Overlay Backorder WPL W11712701 $86.90

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $39.55

3

WP67002321 Whirlpool Refrigerator Divider Pan Backorder WPL WP67002321 $15.76

4

W10528933 Whirlpool Refrigerator Shelf Trim Backorder WPL W10528933 $28.22

4

W11416469 Whirlpool Refrigerator Housing Backorder WPL W11416469 $83.33

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $42.93

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $41.23

5

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $10.87

5

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $37.73

5A

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $10.96

5A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $37.39

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

7

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $28.80

7

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $30.38

7

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $9.59

7

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

7A

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $30.38

8

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $39.14

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

8

W10443023 Whirlpool Refrigerator Housing Backorder WPL W10443023 $37.83

8

W10830162 Whirlpool Refrigerator Door Gasket In Stock WPL W10830162 $125.53

8

WPW10655368 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655368 $54.66

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

10

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $52.78

W11026424 Whirlpool Refrigerator Glass Shelf Backorder WPL W11026424 $132.27

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $32.79

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

WPW10337648 Whirlpool Refrigerator Cover Backorder WPL WPW10337648 $12.22

12

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $26.96

12

WPW10289497 Whirlpool Refrigerator Shelf Bin In Stock WPL WPW10289497 $42.77

13

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

13

WPW10330994 Whirlpool Refrigerator Bracket Backorder WPL WPW10330994 $54.13

13A

WPW10330995 Whirlpool Refrigerator Bracket Backorder WPL WPW10330995 $108.21

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

Backorder WPL W11750607 $18.30

WPW10235370 Whirlpool Refrigerator Glide In Stock WPL WPW10235370 $108.35

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $52.87

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $91.80

CLIP, EVAPORATOR MOTOR WPL 13058002 Contact Us For Availability

16

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

16

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $30.91

16A

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $28.22

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

17

WP67002659 Whirlpool Crisper Pan In Stock WPL WP67002659 $85.81

18

W10832723 Whirlpool Refrigerator Support Backorder WPL W10832723 $33.27

18

W11644420 Whirlpool Condenser Backorder WPL W11644420 $81.34

18A

W11506623 Whirlpool Refrigerator Coupler In Stock WPL W11506623 $11.51

18B

W11504432 Whirlpool Refrigerator Coupler In Stock WPL W11504432 $13.58

19

W10281329 Whirlpool Clamp Backorder WPL W10281329 $6.59

19

WPW10231485 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231485 $38.41

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

20

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $29.39

20

WP67006185 Whirlpool Refrigerator Crisper Fra In Stock WPL WP67006185 $104.17

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $33.89

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $26.21

WP67006655 Whirlpool Refrigerator Crisper Gla Backorder WPL WP67006655 $113.39

WPW10284692 Whirlpool Refrigerator Bracket Backorder WPL WPW10284692 $42.36

21A

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

21A

WPW10284693 Whirlpool Mounting Bracket Backorder WPL WPW10284693 $42.33

22

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $10.83

22

W11598433 Whirlpool Refrigerator Evaporator R Backorder WPL W11598433 $149.09

22

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $52.43

22A

W11504423 Whirlpool Refrigerator Coupler In Stock WPL W11504423 $15.90

22B

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

23

LADDER Backorder WPL W10569182 $10.41

23

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

23

W11690896 Whirlpool Thermistor In Stock WPL W11690896 $12.65

24

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

25

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.65

25

W11380964 Whirlpool Clip Assembly Backorder WPL W11380964 $8.09

25

W11690160 Whirlpool Grommet Backorder WPL W11690160 $2.40

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $33.78

HARNS-WIRE Backorder WPL W11752088 $37.55

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

27

W10208593 Whirlpool Refrigerator Valve Cover Backorder WPL W10208593 $9.24

27

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

27

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

27A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $15.56

27B

W11504447 Whirlpool Refrigerator Coupler In Stock WPL W11504447 $23.61

28

67003794 Whirlpool Refrigerator Temperature C Backorder WPL 67003794 $8.09

28

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

28

W11686820 Whirlpool Compressor Backorder WPL W11686820 $152.56

28A

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $14.57

28B

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

28C

W11506621 Whirlpool Refrigerator Coupler In Stock WPL W11506621 $11.51

28D

W11506635 Whirlpool Refrigerator Valve Couple In Stock WPL W11506635 $20.70

29

W11490183 Whirlpool Refrigerator Utility Pan Backorder WPL W11490183 $72.82

29

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.77

29

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

30

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.14

30

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $76.82

31

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $105.83

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

32

W10236396 Whirlpool Refrigerator Strap Backorder WPL W10236396 $7.81

32

W11125514 Whirlpool Refrigerator Freezer Bin Backorder WPL W11125514 $67.68

33

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $28.80

33

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $24.50

34

W10815863 Whirlpool Clip Backorder WPL W10815863 $25.57

34

W11268538 Whirlpool Freezer Basket Backorder WPL W11268538 $96.35

35

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

36

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $21.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.48

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TOUCH-UP PAINT (MIDNIGHT GREY) WPL W10917540 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

WPL ARI3D14DF0CE53C9B0FBD6DA03DE207773B WPL ARI3D14DF0CE53C9B0FBD6DA03DE207773B Contact Us For Availability

MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. WPL 542639 Contact Us For Availability
