  • Whirlpool WRF535SWHZ03 Parts List

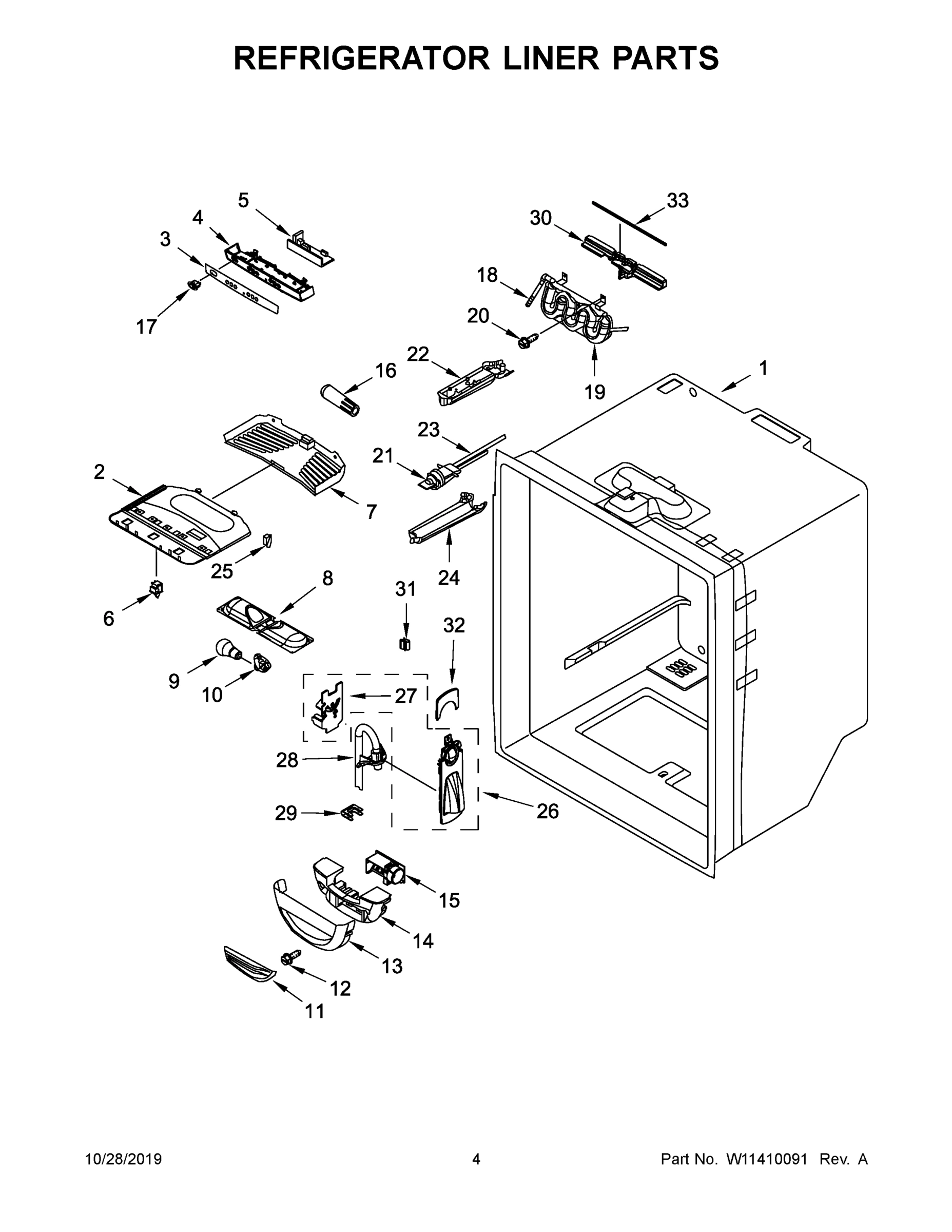

Model Whirlpool WRF535SWHZ03 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams

1
SCREW
SCREW WPL 12992301 Contact Us For Availability
View on Model
2
MODULE, LIGHT
MODULE, LIGHT WPL W10464764 Contact Us For Availability
View on Model
2
MOUNT, GEAR (LEFT HAND)
MOUNT, GEAR (LEFT HAND) WPL W10348259 Contact Us For Availability
View on Model
2A
MOUNT, GEAR (RIGHT HAND)
MOUNT, GEAR (RIGHT HAND) WPL W10348260 Contact Us For Availability
View on Model
4
SUPPORT, GLASS (INCLUDES PANTRY BRACE)
SUPPORT, GLASS (INCLUDES PANTRY BRACE) WPL W10528933 Contact Us For Availability
View on Model
4
DIVERTER, AIR
DIVERTER, AIR WPL W10157765 Contact Us For Availability
View on Model
4
GASKET
GASKET WPL B5759655 Contact Us For Availability
View on Model
5
GUARD, DUAL WATER VALVE
GUARD, DUAL WATER VALVE WPL W10208593 Contact Us For Availability
View on Model
7
GEAR
GEAR WPL 12002497 Contact Us For Availability
View on Model
7
DIVIDER, BASKET (UPPER)
DIVIDER, BASKET (UPPER) WPL W10171558 Contact Us For Availability
View on Model
8
GASKET, DOOR (GREY)
GASKET, DOOR (GREY) WPL W10830162 Contact Us For Availability
View on Model
8
DIVIDER, BASKET (UPPER)
DIVIDER, BASKET (UPPER) WPL W10241046 Contact Us For Availability
View on Model
8
HOUSING, LIGHT
HOUSING, LIGHT WPL W10443023 Contact Us For Availability
View on Model
10
HOUSING, CONTROL
HOUSING, CONTROL WPL 12656202 Contact Us For Availability
View on Model
10
COVER, ICEMAKER
COVER, ICEMAKER WPL W10445790 Contact Us For Availability
View on Model
13
CLIP, BUSHING
CLIP, BUSHING WPL 12996601 Contact Us For Availability
View on Model
13
GROMMET
GROMMET WPL W10121318 Contact Us For Availability
View on Model
13
COVER, WATER LINE
COVER, WATER LINE WPL 12726003 Contact Us For Availability
View on Model
14
STRAP, COMPRESSOR
STRAP, COMPRESSOR WPL W10236396 Contact Us For Availability
View on Model
15
CLIP, EVAPORATOR MOTOR
CLIP, EVAPORATOR MOTOR WPL 13058002 Contact Us For Availability
View on Model
22
LADDER, CENTER
LADDER, CENTER WPL W10273463 Contact Us For Availability
View on Model
25
SCREW
SCREW WPL W10215666 Contact Us For Availability
View on Model
26
SHIM, TOP HINGE (LEFT HAND)
SHIM, TOP HINGE (LEFT HAND) WPL 12999501 Contact Us For Availability
View on Model
26
HARNESS, UNIT (INCLUDES POWER CORD)
HARNESS, UNIT (INCLUDES POWER CORD) WPL W11218259 Contact Us For Availability
View on Model
26A
SHIM, TOP HINGE (RIGHT HAND)
SHIM, TOP HINGE (RIGHT HAND) WPL 12999502 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. WHITE)
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BLACK)
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability
View on Model
NI
VALVE, ACCESS (3/16")
VALVE, ACCESS (3/16") WPL 876764 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, SEALER, GUM (4 FEET)
MISCELLANEOUS, SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ WPL 4392901 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-
PAINT, TOUCH- WPL W10134625 Contact Us For Availability
View on Model
NI
VALVE, ACCESS (5/16")
VALVE, ACCESS (5/16") WPL 978026 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
View on Model
NI
WPL W10917540
WPL W10917540 WPL W10917540 Contact Us For Availability
View on Model
NI
VALVE, ACCESS (3/8")
VALVE, ACCESS (3/8") WPL 978027 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24"
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" WPL 876370 Contact Us For Availability
View on Model
NI
VALVE, ACCESS (5/8")
VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability
View on Model
NI
VALVE, ACCESS (3/4")
VALVE, ACCESS (3/4") WPL 978030 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2"
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR
MISCELLANEOUS, KIT, TERMINAL CONNECTOR WPL 833938 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER WPL 350942 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108")
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT. WHITE (UNCUT))
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
NI
TORX SCREW WRENCH, TORX KEY
TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
View on Model
