Model LG WM3499HVA.ASSEPUS 2.3 cu.ft. Smart wi-fi Enabled Compact All-In-One Washer/Dryer – Common Parts & Diagrams

Common parts from model LG WM3499HVA.ASSEPUS 2.3 cu.ft. Smart wi-fi Enabled Compact All-In-One Washer/Dryer

DIAGRAM 1

Print

• This Diagram
• All Diagrams

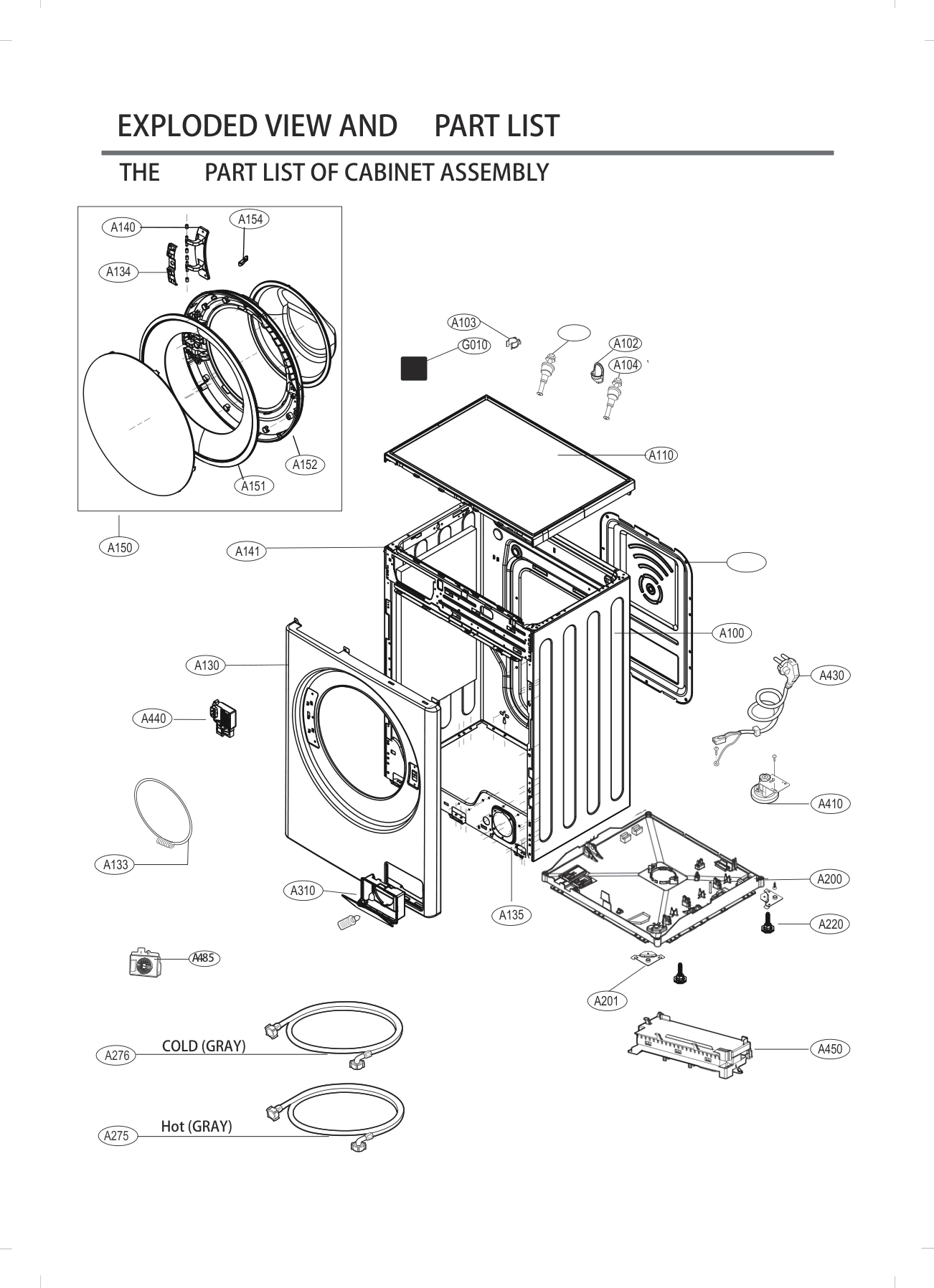

A104

4011EN3006B LG Bolt Assembly In Stock LGE 4011EN3006B View Details $9.86

View on Model

A130

MCK67732602 LG Cabinet Cover Backorder LGE MCK67732602 View Details $235.58

View on Model

A154

MFG63099101 LG Locker Hook In Stock LGE MFG63099101 View Details $15.46

View on Model

A220

AFC72909305 LG Washer Leg Assembly Backorder LGE AFC72909305 View Details $8.16

View on Model

A275

5215FD3715U LG Washer Hot Water Inlet Fill Ho Backorder LGE 5215FD3715U View Details $26.88

View on Model

A276

5215FD3715V LG Washer Cold Water Inlet Fill H Backorder LGE 5215FD3715V View Details $26.88

View on Model

A410

6601ER1006F LG Pressure Switch Assembly In Stock LGE 6601ER1006F View Details $49.19

View on Model

A430

EAD61246487 LG Power Cord Assembly Backorder LGE EAD61246487 View Details $72.49

View on Model

A440

EBF61315802 LG Washer Lid Lock Switch Assembl In Stock LGE EBF61315802 View Details $120.02

View on Model

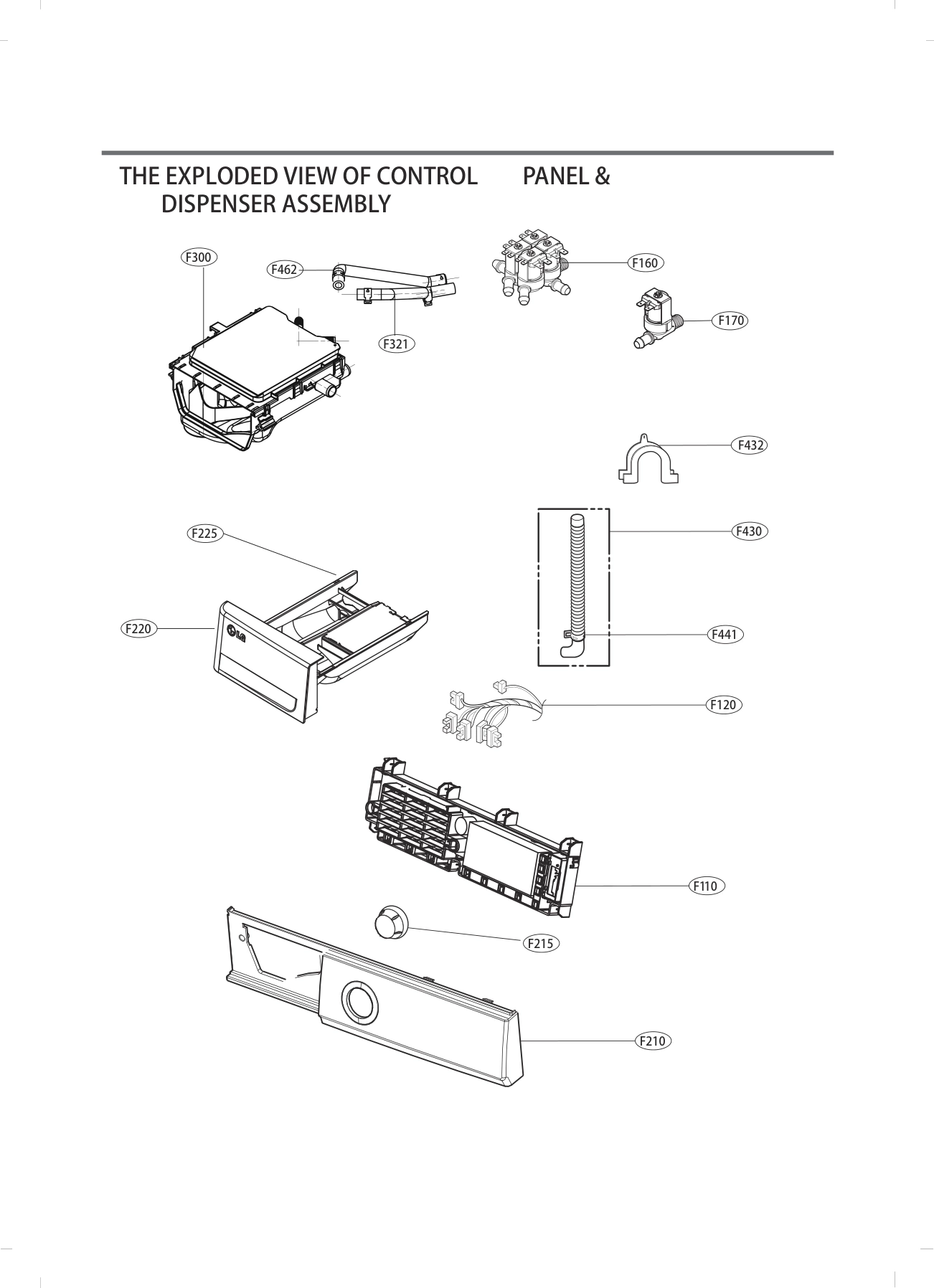

F110

EBR85111468 LG Printed Circuit Board Display Backorder LGE EBR85111468 View Details $277.57

View on Model

F140

EAD63406430 LG Multi Harness Backorder LGE EAD63406430 View Details $49.19

View on Model

F160

5220FR2006H LG Washer Hot Water Inlet Valve In Stock LGE 5220FR2006H View Details $17.77

View on Model

F170

5221EA1009V LG Inlet Valve Assembly Backorder LGE 5221EA1009V View Details $107.42

View on Model

F220

AGL76733397 LG Drawer Panel Assembly Backorder LGE AGL76733397 View Details $72.49

View on Model

F310

4738EN2002A LG Bellows Backorder LGE 4738EN2002A View Details $26.26

View on Model

F432

4991EN3002A LG Washer Pivot Hanger Assembly Backorder LGE 4991EN3002A View Details $2.31

View on Model

F432

4991EN3002J LG Pivot Hanger Assembly In Stock LGE 4991EN3002J View Details $6.19

View on Model

F461

4861EN3003C LG Washer Clamp Assembly Backorder LGE 4861EN3003C View Details $6.19

View on Model

F462

4861FR3068C LG Clamp In Stock LGE 4861EN3003A View Details $4.94

View on Model

F464

4350EN3002A LG Snap Ring Backorder LGE 4350EN3002A View Details $6.19

View on Model

F467

4860EN3001E LG Tub Clamp Backorder LGE 4860EN3001E View Details $2.31

View on Model

F468

4861EN3003D LG Clamp Assembly Backorder LGE 4861EN3003D View Details $3.48

View on Model

K105

AGM75471405 LG Parts Assembly Backorder LGE AGM75471405 View Details $531.15

View on Model

K105

AJQ74554903 LG Outer Tub Assembly Backorder LGE AJQ74554903 View Details $241.26

View on Model

K110

AJQ73473812 LG Drum Inner Tub Assembly Backorder LGE AJQ73473812 View Details $222.11

View on Model

K111

MFE57764506 LG Lifter Backorder LGE MFE57764506 View Details $9.86

View on Model

K115

MHW62021605 LG Spider Backorder LGE MHW62021605 View Details $126.81

View on Model

K123

FAA30970901 LG Bolt Assembly Backorder LGE FAA30970901 View Details $8.16

View on Model

K130

MAG62382901 LG Weight Balance Backorder LGE MAG62382901 View Details $63.62

View on Model

K131

FAA30831001 LG Bolt Assembly Backorder LGE FAA30831001 View Details $6.19

View on Model

K135

MAG62383001 LG Balance Weight Backorder LGE MAG62383001 View Details $53.56

View on Model

K140

ACQ89039604 LG Tub Cover Assembly Backorder LGE ACQ89039604 View Details $277.57

View on Model

K141

4036EN4002F LG Gasket Backorder LGE 4036EN4002F View Details $14.79

View on Model

K143

4011EN4013A LG Bolt Assembly Backorder LGE 4011EN4013A View Details $6.19

View on Model

K320

AEG33121504 LG Heater Assembly Backorder LGE AEG33121504 View Details $117.30

View on Model

K340

4681EA2001T LG Washer Drain Pump and Motor In Stock LGE 4681EA2001T View Details $44.47

View on Model

K345

EAU61383506 LG AC Pump Motor Assembly Backorder LGE EAU61383506 View Details $117.30

View on Model

K349

5859ER1002B LG Pump Backorder LGE 5859ER1002B View Details $212.13

View on Model

K350

AJB73816001 LG Stator Assembly Backorder LGE AJB73816001 View Details $258.86

View on Model

K360

AHL73855301 LG Rotor Assembly Backorder LGE AHL73855301 View Details $167.80

View on Model

K410

MHY62644801 LG Hinge Spring Backorder LGE MHY62644801 View Details $14.79

View on Model

K411

4930EN3004A LG Washer Holder Retainer Backorder LGE 4930EN3004A View Details $4.94

View on Model

K510

MDS63939301 LG Gasket In Stock LGE MDS63939301 View Details $102.82

View on Model

K510

Gasket LGE MDS65696501 Contact Us For Availability

View on Model

K520

MAR61882201 LG Bellows Backorder LGE MAR61882201 View Details $26.26

View on Model

K530

4861EN3002A LG Clamp Assembly Backorder LGE 4861EN3002A View Details $6.19

View on Model

K540

3504EN3001A LG Air Chamber Backorder LGE 3504EN3001A View Details $6.19

View on Model

K550

5214EN4001N LG Inlet Hose Backorder LGE 5214EN4001N View Details $14.79

View on Model

K570

5214FR4058V LG Hose Connector Backorder LGE 5214FR4058V View Details $9.86

View on Model

K571

4932ER4007C LG Hose Connector Backorder LGE 4932ER4007C View Details $6.19

View on Model

K572

4861FR3068R LG Clamp Backorder LGE 4861FR3068R View Details $6.19

View on Model

K610

4901ER2003A LG Washer Drum Support Damper Ass In Stock LGE 4901ER2003A View Details $19.09

View on Model

K610

4901ER2003K LG Damper Assembly - Friction Backorder LGE 4901ER2003K View Details $20.35

View on Model

K611

4774EN3002A LG Hinge In Stock LGE 4774EN3002A View Details $8.16

View on Model

K612

4738ER2002A LG Washer Drain Bellows In Stock LGE 4738ER2002A View Details $26.26

View on Model

K615

ADQ73353401 LG Filter Assembly Mesh Backorder LGE ADQ73353401 View Details $20.35

View on Model

K616

AGB73212401 LG Assembly Nozzle Backorder LGE AGB73212401 View Details $14.79

View on Model

M100

5209EN1002U LG Duct Assembly Backorder LGE 5209EN1002U View Details $126.81

View on Model

M110

EAU37932709 LG DC Fan Motor Assembly Backorder LGE EAU37932709 View Details $167.80

View on Model

M130

AGB73572404 LG Nozzle Assembly Backorder LGE AGB73572404 View Details $53.62

View on Model

×
