Model Whirlpool WFW88HEAC0 LAUNDRY, WASHER – Common Parts &amp; Diagrams

1

WPW10267642 Whirlpool Hose In Stock WPL WPW10267642 $31.73

1

WPW10435242 Whirlpool Water Inlet Valve In Stock WPL WPW10435242 $89.20

1

CONSOLE ASSEMBLY (WHITE) WPL W10446409 Contact Us For Availability

1A

CONSOLE ASSEMBLY (CHROME SHADOW) WPL W10463529 Contact Us For Availability

2

WPW10208373 Whirlpool Top In Stock WPL WPW10208373 $196.43

2

WPW10208398 Whirlpool Hinge Pin Cap In Stock WPL WPW10208398 $8.29

2

WPW10253476 Whirlpool Screw In Stock WPL WPW10253476 $5.22

2A

WPW10460693 Whirlpool Top Assembly Backorder WPL WPW10460693 $179.73

3

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

3

W11166595 Whirlpool Cabinet Assembly Backorder WPL W11166595 $196.63

3

WPW10208419 Whirlpool Plate Backorder WPL WPW10208419 $31.27

3A

W11166600 Whirlpool Cabinet Backorder WPL W11166600 $208.38

4

8572266 Whirlpool Bumper Assembly In Stock WPL 8572266 $4.87

4

W10273036 Whirlpool Hose Clamp Backorder WPL W10273036 $6.84

4

W10422888 Whirlpool Electronic Control Board Backorder WPL W10422888 $222.50

4

W10435238 Whirlpool Hose Backorder WPL W10435238 $29.68

4

W11253212 Whirlpool Washer Screw In Stock WPL W11253212 $9.59

4

WPW10441116 Whirlpool Panel Backorder WPL WPW10441116 $171.40

4A

PANEL, FRONT (CHROME SHADOW) WPL W10441111 Contact Us For Availability

5

W11266654 Whirlpool Washer Door Boot Seal Cla In Stock WPL W11266654 $12.43

5

WPW10239966 Whirlpool Hose Backorder WPL WPW10239966 $33.31

5

KNOB ASSEMBLY WPL W10391535 Contact Us For Availability

5

SCREW WPL W10288126 Contact Us For Availability

5

PIPE, VENTILATION ASSEMBLY WPL W10261582 Contact Us For Availability

6

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $19.36

6

WPW10486216 Whirlpool Wire Harness Backorder WPL WPW10486216 $7.39

6

WPW10488048 Whirlpool Strike In Stock WPL WPW10488048 $3.88

7

W10208197 Whirlpool Bracket Backorder WPL W10208197 $64.40

7

W10253014 Whirlpool Counterweight Backorder WPL W10253014 $83.68

7

W11230114 Whirlpool Screw Assembly Backorder WPL W11230114 $9.59

8

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $2.51

8

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

9

W10237535 Whirlpool Counterweight Backorder WPL W10237535 $83.82

9

W11084830 Whirlpool Detergent Divider Backorder WPL W11084830 $97.78

9

WPW10208275 Whirlpool Inner Door Assembly Backorder WPL WPW10208275 $125.31

9

SEAL, FILTER CAP WPL 8181736 Contact Us For Availability

W10241027 Whirlpool Filter Backorder WPL W10241027 $35.45

W10317566 Whirlpool Clip Backorder WPL W10317566 $4.56

W11106747 Whirlpool Washer Front Load Door Bo In Stock WPL W11106747 $91.57

WPW10365887 Whirlpool Dispenser Cover Housing In Stock WPL WPW10365887 $52.70

HARNESS, WIRING LOWER MAIN WPL W10498561 Contact Us For Availability

W11218344 Whirlpool Boot Seal Retaining Ring In Stock WPL W11218344 $12.43

WPW10365885 Whirlpool Washer Dispenser Drawer In Stock WPL WPW10365885 $63.49

WPW10374126-includeCORE Whirlpool WPW10374126 Backorder WPL WPW10374126-includeCORE $283.14

WPW10486571 Whirlpool Wire Harness Backorder WPL WPW10486571 $8.18

GLASS, DOOR WPL W10208263 Contact Us For Availability

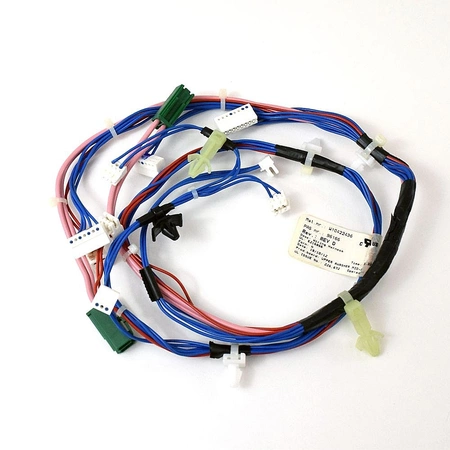

W10422436 Whirlpool Wire Harness Backorder WPL W10422436 $97.98

W10441646 Whirlpool Clip Assembly Backorder WPL W10441646 $7.96

WPW10446403 Whirlpool Handle In Stock WPL WPW10446403 $43.30

DOOR, OUTER ASSEMBLY WPL W10208408 Contact Us For Availability

12A

WPW10446405 Whirlpool Handle Assembly In Stock WPL WPW10446405 $43.79

13

W10237498 Whirlpool Bracket Assembly Backorder WPL W10237498 $28.38

13

W10353599 Whirlpool Hose Clamp Backorder WPL W10353599 $12.22

13

W11178521 Whirlpool Dishwasher Nameplate In Stock WPL W11178521 $31.95

14

W10239910 Whirlpool Clamp Backorder WPL W10239910 $35.56

14

WPW10260500 Whirlpool Trap Assembly Backorder WPL WPW10260500 $16.38

14

SCREEN, DOOR WPL W10208270 Contact Us For Availability

15

W11099174 Whirlpool Trim Ring Backorder WPL W11099174 $209.79

15

CLAMP, HOSE WPL 371499 Contact Us For Availability

16

W10208411 Whirlpool Handle Backorder WPL W10208411 $49.98

16

WPW10467483 Whirlpool Bracket Backorder WPL WPW10467483 $14.42

17

W10261496 Whirlpool Screw Backorder WPL W10261496 $7.91

17

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

18

WPW10181028 Whirlpool Clip Backorder WPL WPW10181028 $7.92

19

WPW10352818 Whirlpool Vent Pipe Backorder WPL WPW10352818 $27.91

19

WPW10367632 Whirlpool Filter In Stock WPL WPW10367632 $43.79

20

W10316388 Whirlpool Clip Assembly Backorder WPL W10316388 $4.76

20

WPW10448876 Whirlpool Pressure Switch In Stock WPL WPW10448876 $27.76

21

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $3.70

22

W10245452 Whirlpool Retainer Backorder WPL W10245452 $25.73

23

W10273034 Whirlpool Clamp Backorder WPL W10273034 $4.78

23

W10467484 Whirlpool Bracket Backorder WPL W10467484 $17.02

24

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

25

W10318155 Whirlpool Cover Backorder WPL W10318155 $30.25

25

WPW10280024 Whirlpool Retainer Backorder WPL WPW10280024 $30.25

26

W11281268 Whirlpool Hose In Stock WPL W11281268 $13.08

26

WPW10426377 Whirlpool Heater Assembly Backorder WPL WPW10426377 $124.92

27

W11035353 Whirlpool Washer Power Cord Backorder WPL W11035353 $50.71

27

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

28

W11415987 Whirlpool Shock Absorber In Stock WPL W11415987 $53.27

28

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

29

W10467494 Whirlpool Housing In Stock WPL W10467494 $9.52

1903WH Whirlpool Laundry Cart Backorder WPL 1903WH $57.29

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $15.74

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $19.37

8212526 Whirlpool Washer Water Leak Protectio Backorder WPL 8212526 $51.88

8212638RP Whirlpool Fill Hose Assembly, 2 Pac In Stock WPL 8212638RP $31.22

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $8.78

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

W10869845 Whirlpool Stack Kit In Stock WPL W10869845 $52.43

ACCESSORY PARTS, APPLIANCE CLEANER WPL 31682 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability
