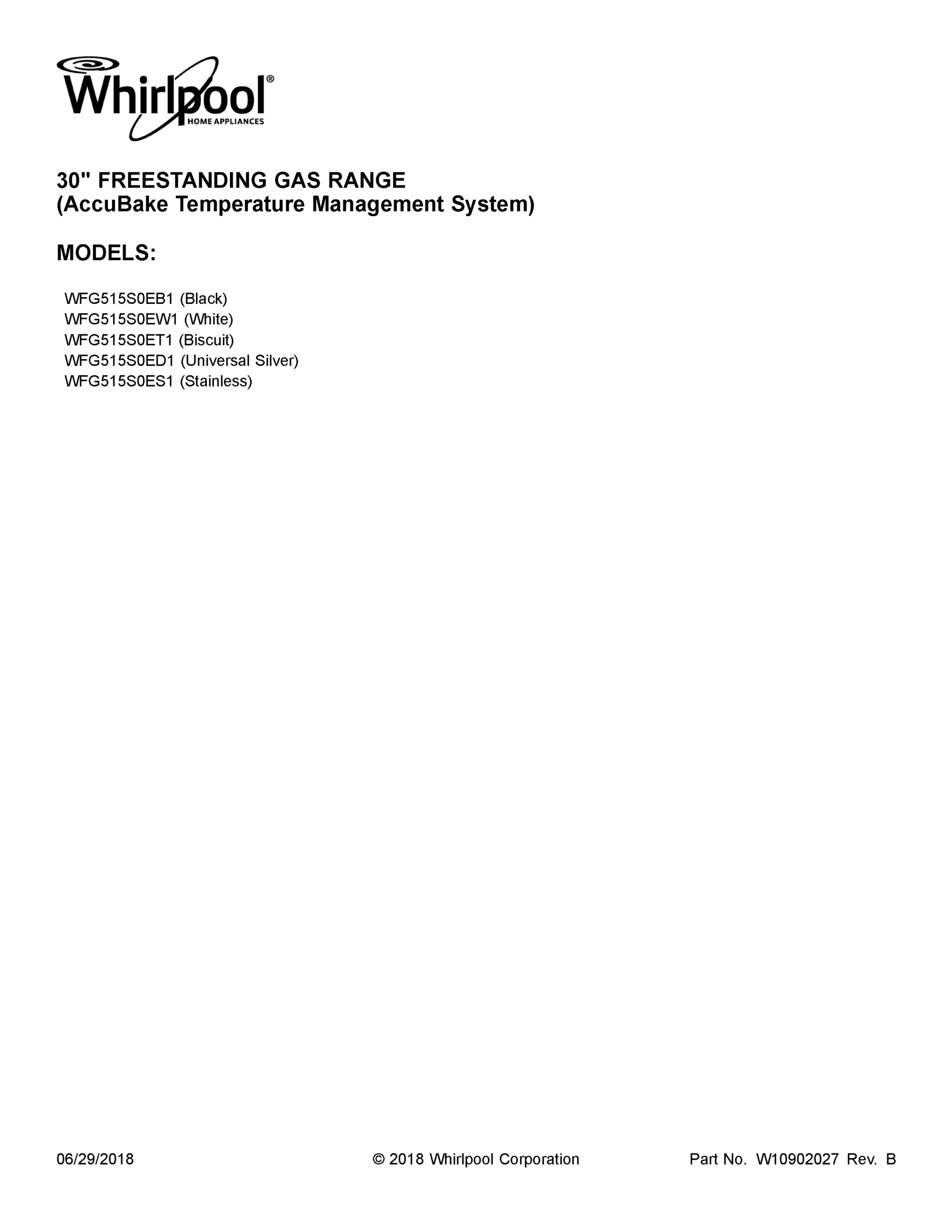

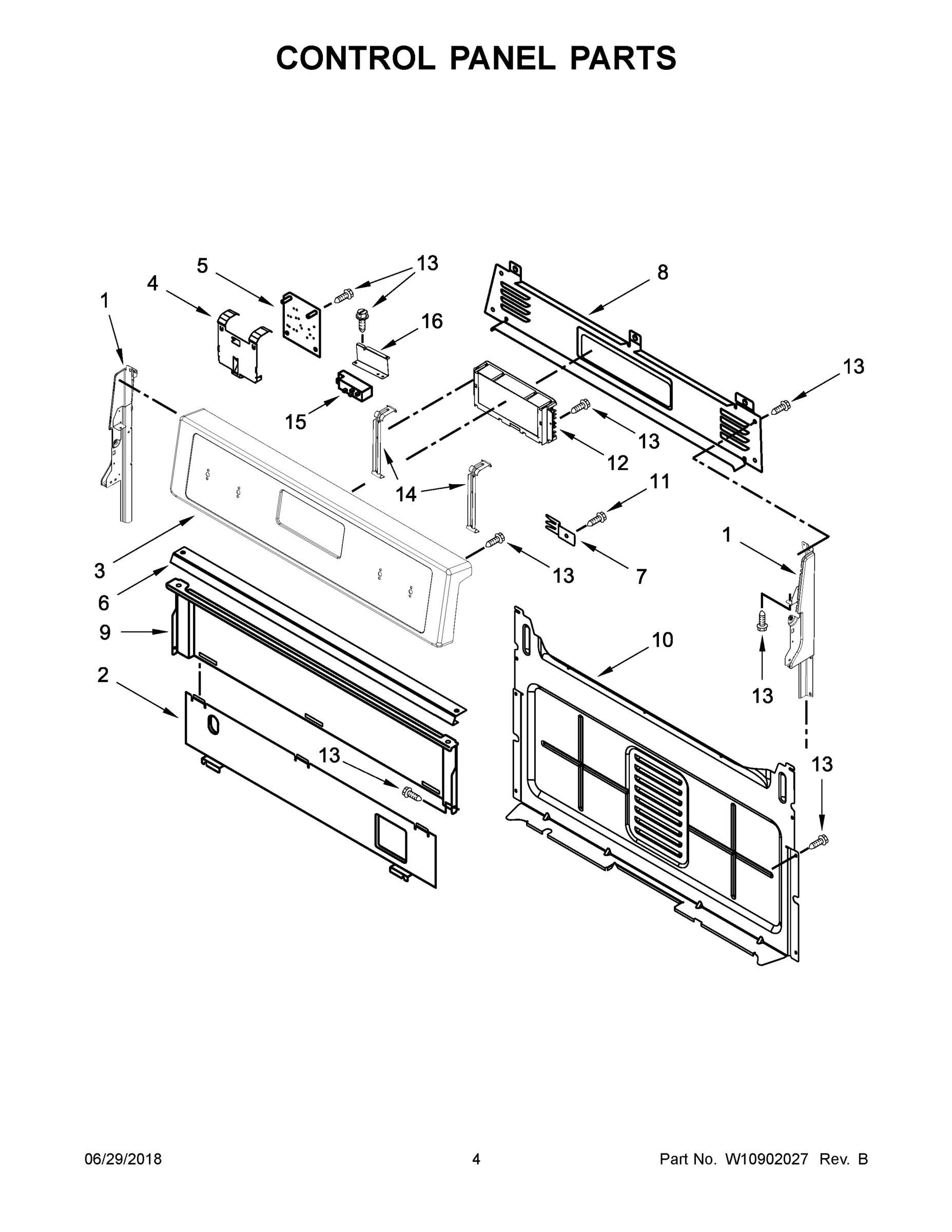

Model Whirlpool WFG515S0EB1 RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts &amp; Diagrams

1

W11457094 Whirlpool Oven Flue Backorder WPL W11457094 $82.95

1

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

1

WPW10310922 Whirlpool Air Grille In Stock WPL WPW10310922 $91.55

1A

W10817433 Whirlpool Vent Trim In Stock WPL W10817433 $52.39

1A

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

1B

WPW10310923 Whirlpool Vent Trim In Stock WPL WPW10310923 $84.62

2

8053505 Whirlpool Oven Shield Backorder WPL 8053505 $54.35

2

W10949105 Whirlpool Mounting Bracket Backorder WPL W10949105 $11.53

2

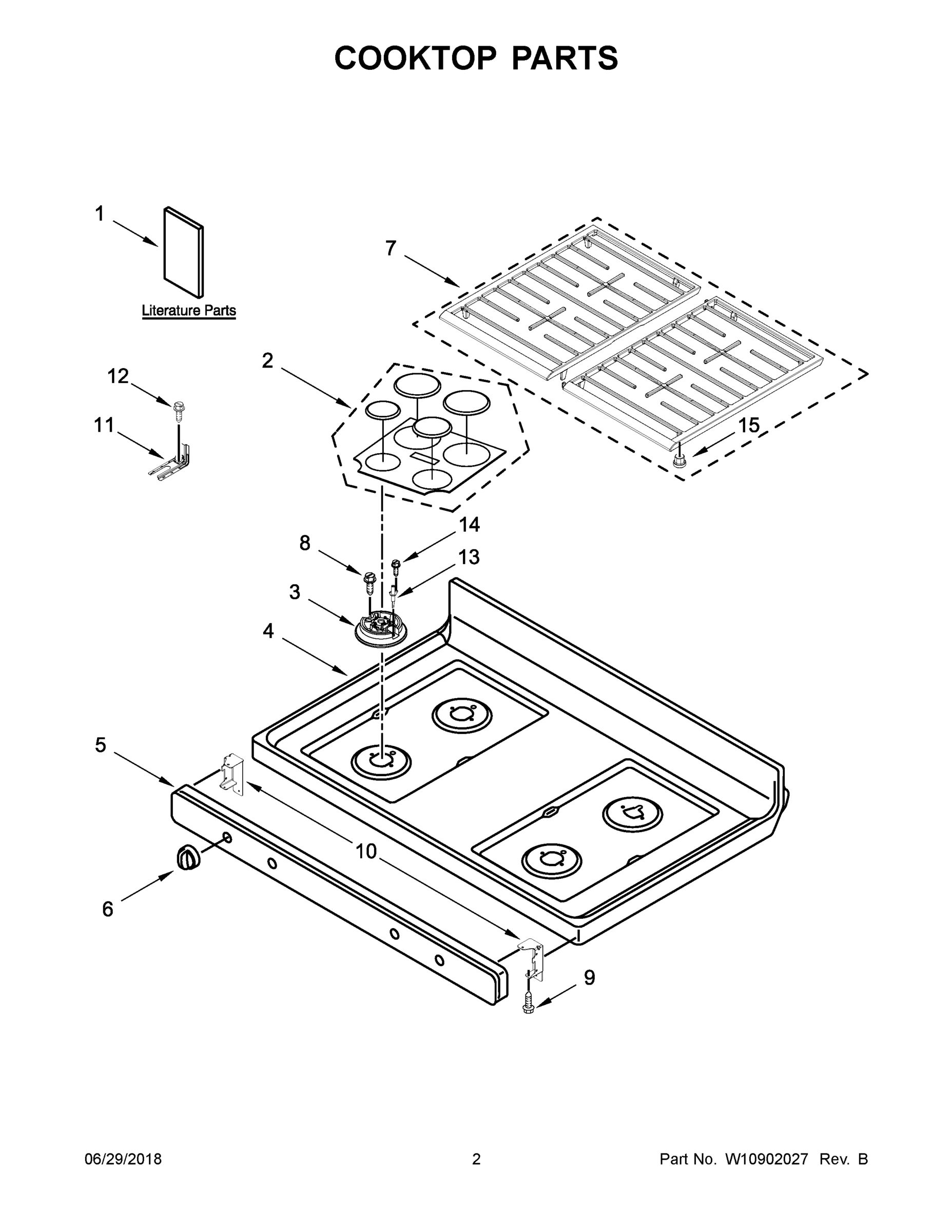

WPW10183375 Whirlpool Burner Cap In Stock WPL WPW10183375 $88.94

2

WPW10200660 Whirlpool Range Oven Door Handle In Stock WPL WPW10200660 $2.51

3

W10300490 Whirlpool Door Handle In Stock WPL W10300490 $88.20

3

W10462911 Whirlpool Bracket Mounting Backorder WPL W10462911 $85.23

3

W11197500 Whirlpool Orifice Holder Backorder WPL W11197500 $41.25

3

WPW10515455 Whirlpool Burner Head In Stock WPL WPW10515455 $50.25

W10300489 Whirlpool Door Handle Backorder WPL W10300489 $88.94

W11700294 Whirlpool Range Orifice Holder Backorder WPL W11700294 $29.77

W11759228 Whirlpool Mounting Bracket Backorder WPL W11759228 $11.02

WPW10515454 Whirlpool Burner Head In Stock WPL WPW10515454 $39.75

3B

W10300491 Whirlpool Door Handle Backorder WPL W10300491 $89.20

3B

W11234417 Whirlpool Surface Burner Orifice Ho Backorder WPL W11234417 $36.89

3B

WPW10515453 Whirlpool Burner Head In Stock WPL WPW10515453 $35.36

3C

W11700304 Whirlpool Orifice Holder Backorder WPL W11700304 $29.77

3C

WPW10618239 Whirlpool Door Handle In Stock WPL WPW10618239 $95.17

4

W11680399 Whirlpool Gas Tubing Backorder WPL W11680399 $56.31

4

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $58.52

4

WP9761344 Whirlpool Door Liner In Stock WPL WP9761344 $135.17

4A

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

4B

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $81.54

5

W10137382 Whirlpool Clip Backorder WPL W10137382 $27.12

5

W10444447 Whirlpool Manifold Panel Backorder WPL W10444447 $108.26

5

W11256561 Whirlpool Wire Harness Backorder WPL W11256561 $69.34

5

WPW10031790 Whirlpool Screw In Stock WPL WPW10031790 $2.51

5A

W10444446 Whirlpool Manifold Panel Backorder WPL W10444446 $108.62

6

W10516123 Whirlpool Mounting Bracket Backorder WPL W10516123 $52.25

6

WP9758079 Whirlpool Oven Igniter In Stock WPL WP9758079 $26.99

6A

W10909673 Whirlpool Knob Assembly Backorder WPL W10909673 $30.51

7

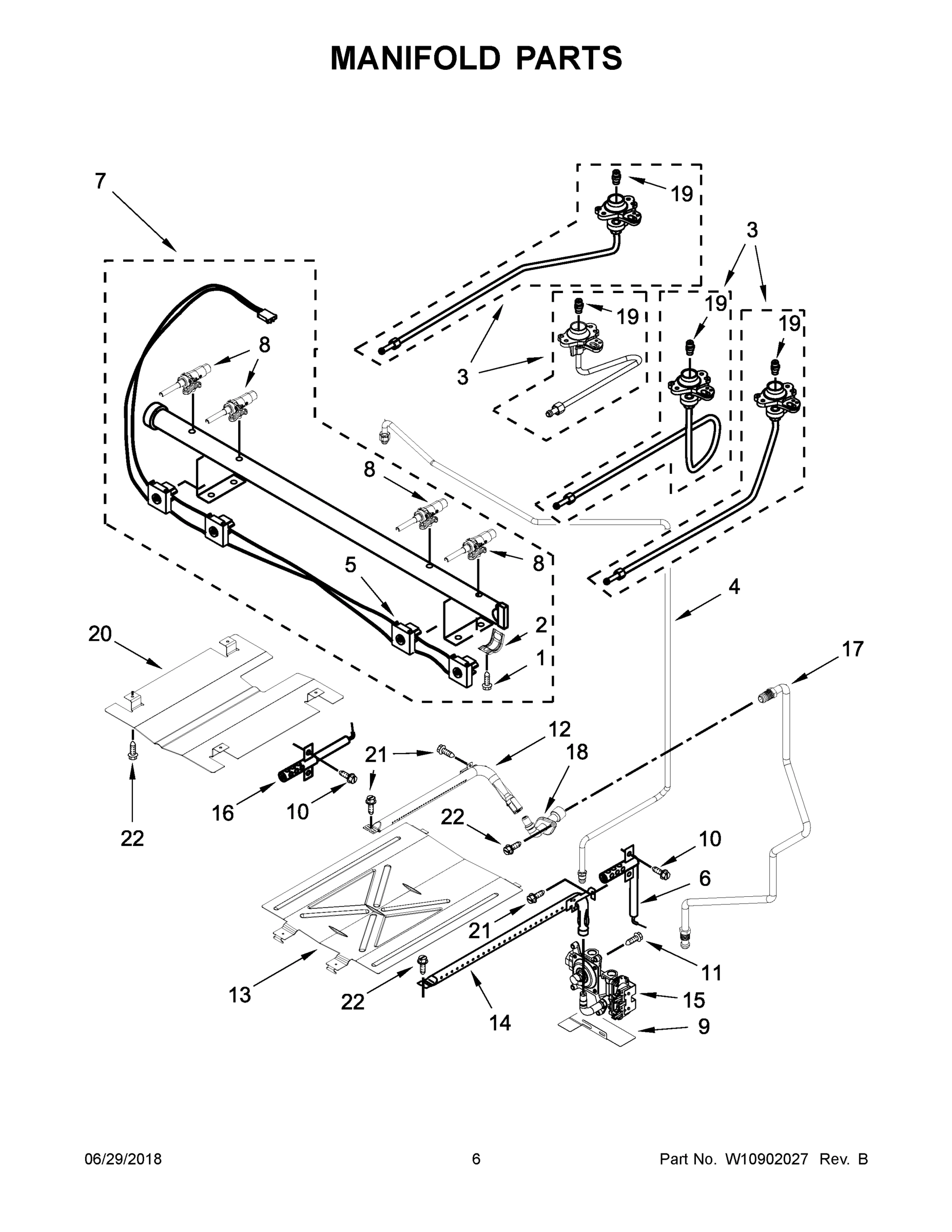

W10812382 Whirlpool Manifold Backorder WPL W10812382 $123.59

7

W11394363 Whirlpool Grate Kit In Stock WPL W11394363 $189.04

7

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $28.80

8

W10198745 Whirlpool Rear Cover Backorder WPL W10198745 $87.57

8

WPW10067840 Whirlpool Screw In Stock WPL WPW10067840 $2.51

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $40.48

8

WPW10279615 Whirlpool Burner Valve In Stock WPL WPW10279615 $108.20

8A

WPW10279614 Whirlpool Burner Valve Backorder WPL WPW10279614 $114.04

8B

WPW10247744 Whirlpool Burner Valve Backorder WPL WPW10247744 $114.13

9

W10192841 Whirlpool Heat Shield Backorder WPL W10192841 $53.05

9

W10224921 Whirlpool Bracket Mounting Backorder WPL W10224921 $26.21

9

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

9

WPW10341186 Whirlpool Refrigerator Front Leve In Stock WPL WPW10341186 $10.80

8523249 Whirlpool Oven Support Bracket Backorder WPL 8523249 $24.74

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

WPW10299224 Whirlpool Range Door Hinge Assemb In Stock WPL WPW10299224 $38.12

COVER, BACK WPL W10184370 Contact Us For Availability

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $11.99

WP3195097 Whirlpool Oven Bottom In Stock WPL WP3195097 $81.40

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

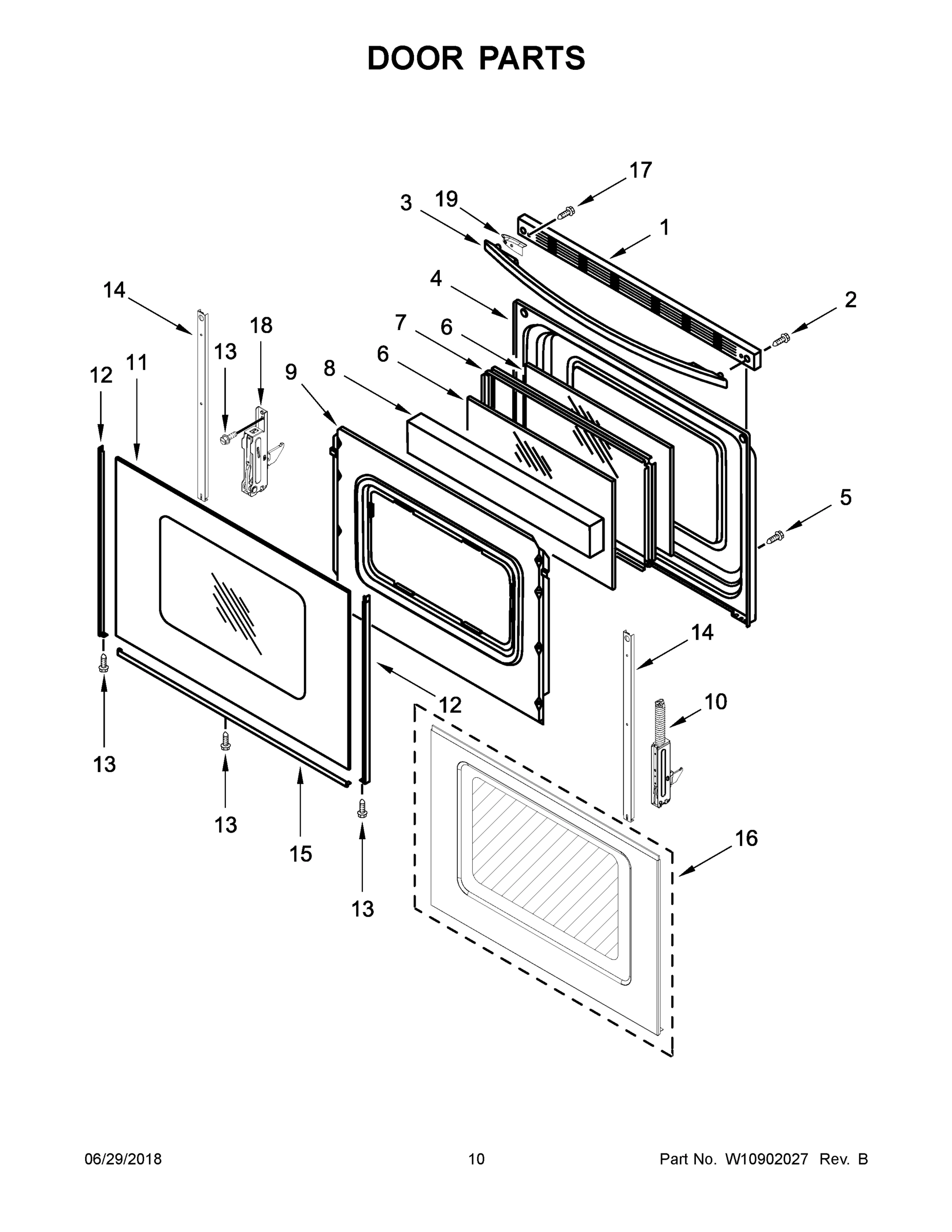

WPW10409946 Whirlpool Door Glass In Stock WPL WPW10409946 $120.77

11A

WPW10409945 Whirlpool Glass Door In Stock WPL WPW10409945 $121.97

11B

WPW10409947 Whirlpool Glass Door Backorder WPL WPW10409947 $111.94

12

W10833885 Whirlpool Temperature Sensor In Stock WPL W10833885 $85.59

12

WP8054078 Whirlpool Broiler Burner Backorder WPL WP8054078 $93.47

12B

WP8523172 Whirlpool Left Door Trim In Stock WPL WP8523172 $36.29

12B

WPW10413072-includeCORE Whirlpool WPW10413072 Backorder WPL WPW10413072-includeCORE $316.92

12C

WP8523166 Whirlpool Door Trim In Stock WPL WP8523166 $36.38

12D

WP8523173 Whirlpool Door Trim Backorder WPL WP8523173 $35.47

12E

WP8523167 Whirlpool Door Trim Assembly Backorder WPL WP8523167 $35.41

13

8053967 Whirlpool Oven Heat Baffle Backorder WPL 8053967 $106.98

13

WPW10184491 Whirlpool Burner Baffle Backorder WPL WPW10184491 $85.58

W11230932 Whirlpool Bracket Mounting Backorder WPL W11230932 $40.97

W11502236 Whirlpool Door Trim Backorder WPL W11502236 $9.28

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.51

WP9758078 Whirlpool Oven Burner In Stock WPL WP9758078 $94.99

15

W10919249 Whirlpool Burner Grate Foot In Stock WPL W10919249 $4.81

15

WP8523177 Whirlpool Door Trim Assembly In Stock WPL WP8523177 $52.25

15

WPW10602001 Whirlpool Gas Valve In Stock WPL WPW10602001 $159.88

15A

WP8523175 Whirlpool Door Trim Assembly In Stock WPL WP8523175 $47.18

15B

WP8523178 Whirlpool Door Trim Backorder WPL WP8523178 $52.70

15C

TRIM, BOTTOM (UNIVERSAL SILVER) WPL W10067550 Contact Us For Availability

16

WPW10333842 Whirlpool Oven Igniter In Stock WPL WPW10333842 $44.02

16

ASSEMBLY, OUTER DOOR GLASS (UNIVERSAL SILVER) WPL W10330079 Contact Us For Availability

16A

WPW10330077 Whirlpool Door Glass In Stock WPL WPW10330077 $198.18

17

9757239 Whirlpool Oven Door Rod Backorder WPL 9757239 $31.59

17

W10420040 Whirlpool Gas Tubing Backorder WPL W10420040 $134.03

17

WPW10465148 Whirlpool Screw In Stock WPL WPW10465148 $2.80

18

W10592836 Whirlpool Fitting Backorder WPL W10592836 $40.97

18

WPW10299227 Whirlpool Range Door Hinge In Stock WPL WPW10299227 $30.38

19

W10379120 Whirlpool Screw Backorder WPL W10379120 $26.21

19

WPW10347414 Whirlpool Orifice Spud Backorder WPL WPW10347414 $25.48

19

WPW10410341 Whirlpool Spacer In Stock WPL WPW10410341 $25.80

19A

WPW10170508 Whirlpool Orifice Spud Backorder WPL WPW10170508 $38.81

19B

WPW10170506 Whirlpool Orifice Spud In Stock WPL WPW10170506 $32.56

20

W10137062 Whirlpool Burner Baffle Backorder WPL W10137062 $154.20

20

BACK, MAIN WPL W10416100 Contact Us For Availability

21

3196265 Whirlpool Oven Screw Backorder WPL 3196265 $9.59

21

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

22

W10435470 Whirlpool Brace Backorder WPL W10435470 $26.21

22

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

23

9761449 Whirlpool Oven Retainer Backorder WPL 9761449 $130.62

23A

9761448 Whirlpool Oven Retainer Backorder WPL 9761448 $130.62

24

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

25

W11582239 Whirlpool Range Power Cord In Stock WPL W11582239 $9.04

26

W10647259 Whirlpool Hinge Receiver In Stock WPL W10647259 $2.51

30

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

31

W10078370 Whirlpool Latch Rod Backorder WPL W10078370 $28.80

32

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $111.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

4396096RB Whirlpool Griddle Backorder WPL 4396096RB $149.59

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10334923 Whirlpool Clip Backorder WPL W10334923 $5.29

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W10797422 Whirlpool Wire Harness Backorder WPL W10797422 $67.02

W10809927 Whirlpool Wire Harness Backorder WPL W10809927 $69.34

W11126051 Whirlpool Conversion Kit In Stock WPL W11126051 $87.30

W11161843 Whirlpool Wire Harness Backorder WPL W11161843 $107.70

W11520287 Whirlpool Rack Assembly In Stock WPL W11520287 $31.31

W11684915 Whirlpool Insulation Backorder WPL W11684915 $45.31

WPW10170534 Whirlpool LP Conversion Kit In Stock WPL WPW10170534 $36.89

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN WPL 31617A Contact Us For Availability

ACCESSORY PARTS, CLEANER, GRANITE WPL W10275756 Contact Us For Availability
