Model Whirlpool WED560LHW1 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts & Diagrams

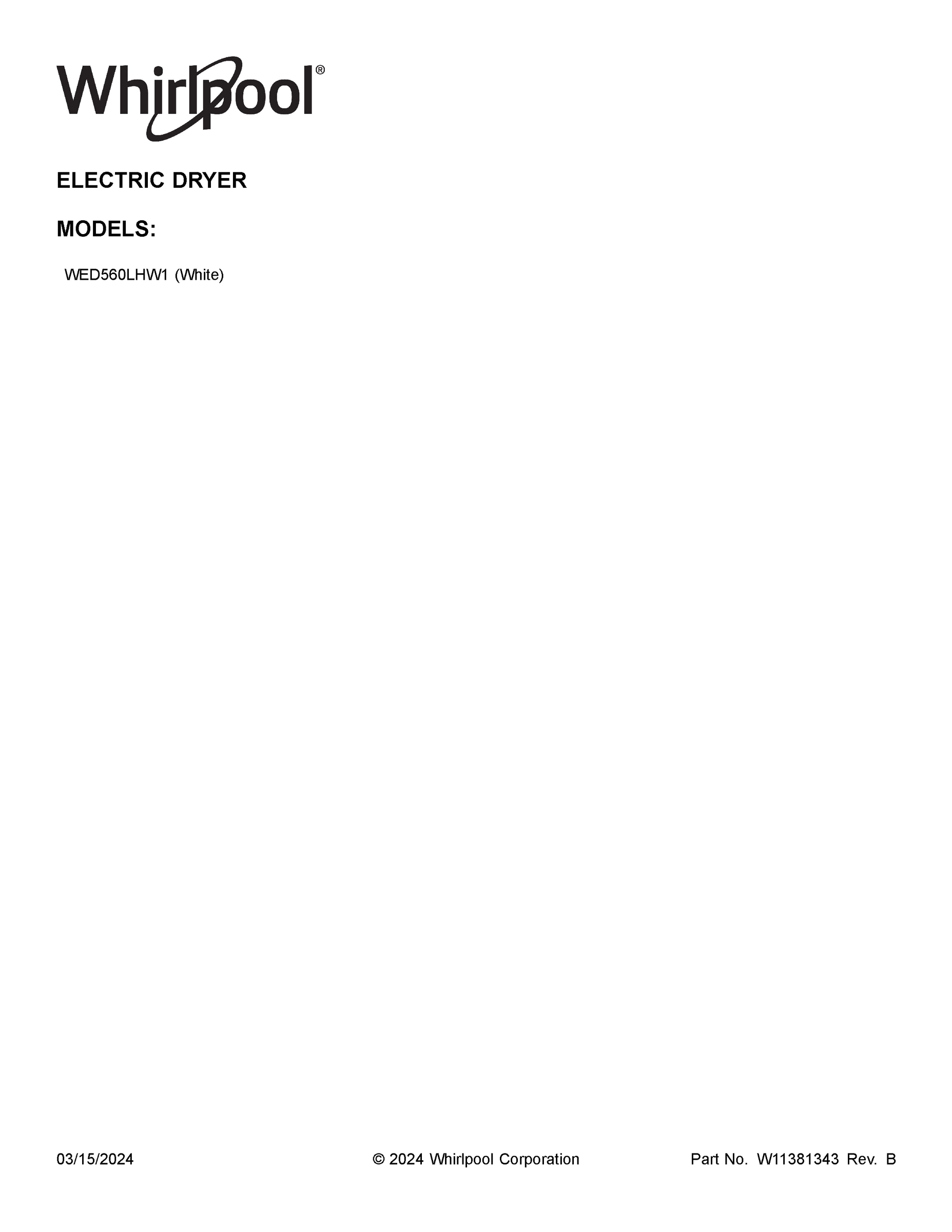

01 - COVER SHEET

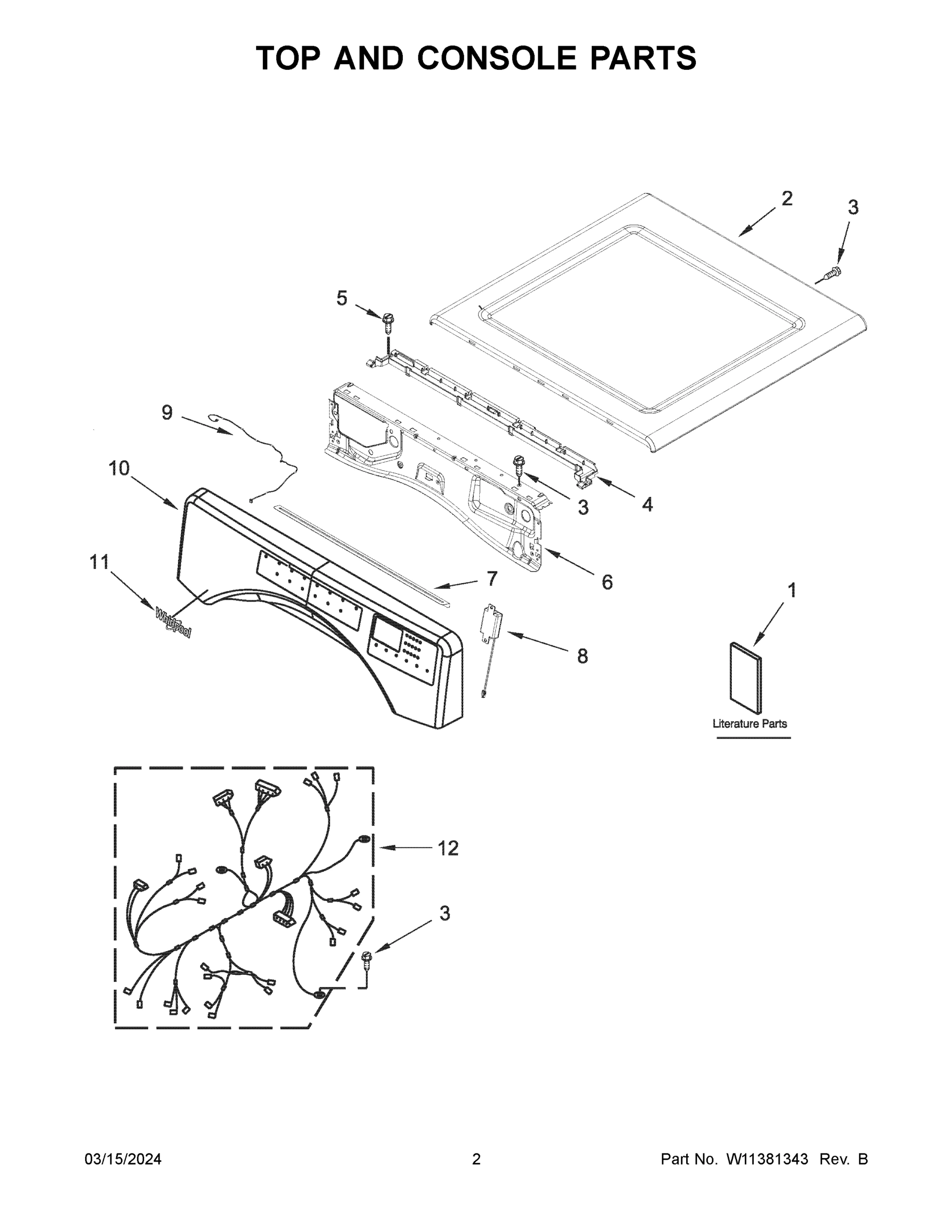

02 - TOP AND CONSOLE PARTS
03 - CABINET PARTS
04 - BULKHEAD PARTS
05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool WED560LHW1 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER
1
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL WPL 279318 Contact Us For Availability
2
SCREW KIT, TERMINAL BLOCK WPL 279393 Contact Us For Availability
6
SCREW WPL W10288126 Contact Us For Availability
8
PANEL, REAR WPL W10487431 Contact Us For Availability
10
COVER, HINGE WPL W11120174 Contact Us For Availability
11
ASSEMBLY, DRUM (COMPLETE) WPL W10508188 Contact Us For Availability
11
SCREW WPL 9742177 Contact Us For Availability
12
BAFFFLE, DRUM WPL W10416098 Contact Us For Availability
13
SCREW, GROUNDING WPL 8540479 Contact Us For Availability
17
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING WPL 279457 Contact Us For Availability
25
CLIP, LINT DUCT WPL W10414388 Contact Us For Availability
37
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) WPL 280148 Contact Us For Availability
38
BRACKET, HEATER BOX WPL 8066099 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, STACK WPL W10869845 Contact Us For Availability
NI
KIT, 4-WAY VENT WPL W10323246 Contact Us For Availability
NI
4', 30 AMP, 3 WIRE, DRYER CORD WPL PT220L Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) WPL 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) WPL W10446202 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
× ![]()
