Model Hotpoint VLLR1020T0WO Washer – Common Parts & Diagrams
BACKSPLASH
BASKET & AGITATOR

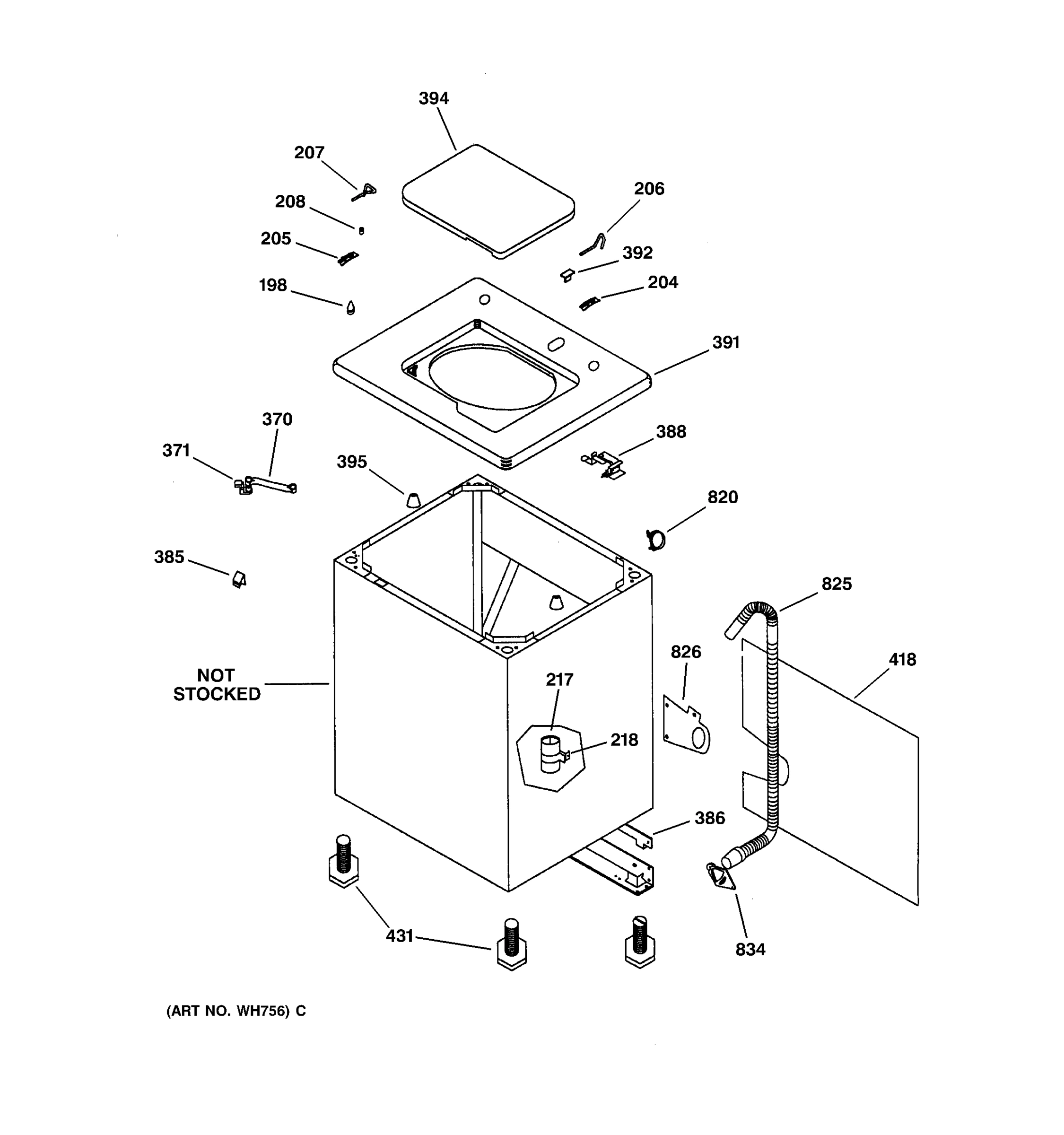

CABINET PARTS

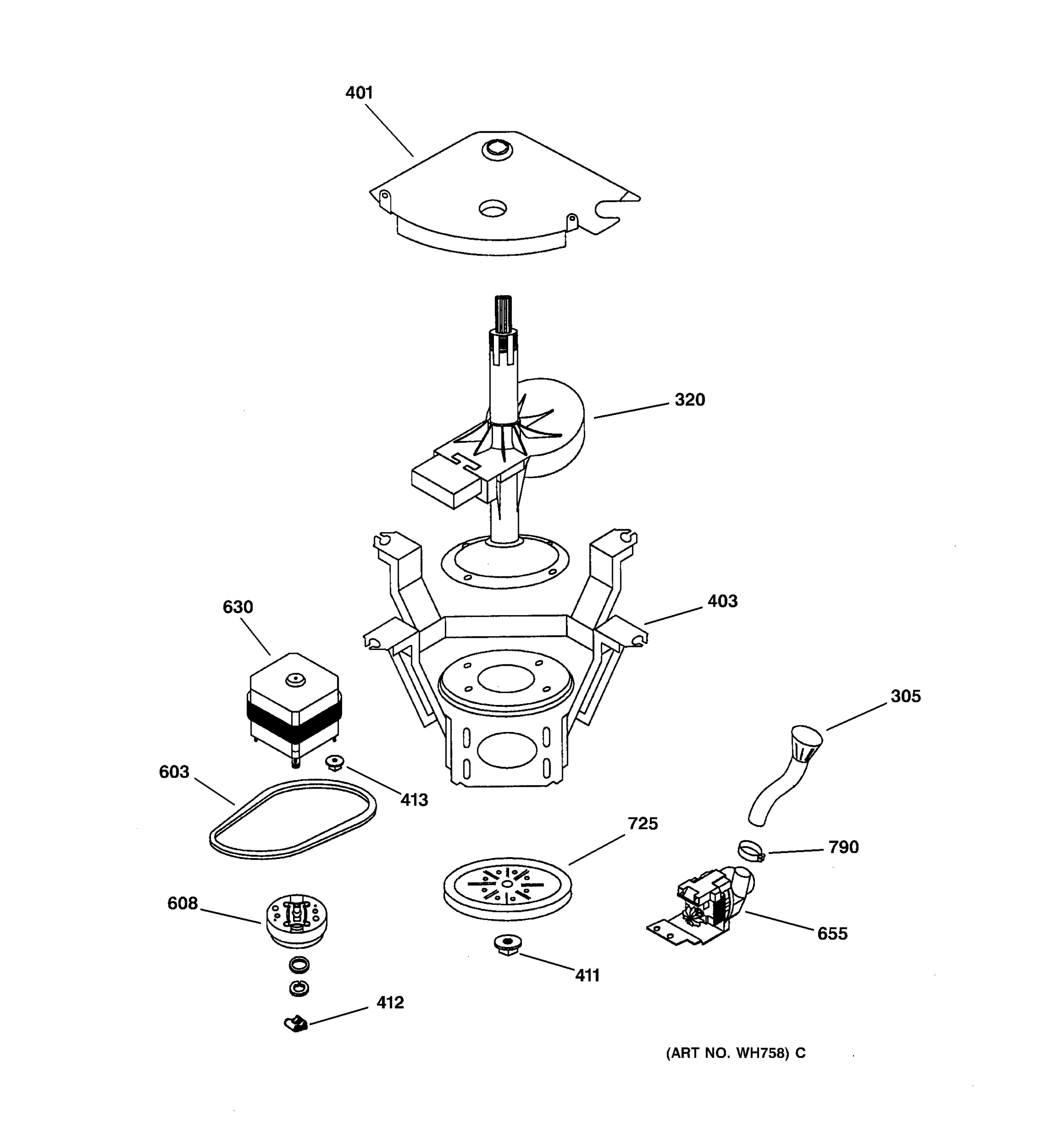

MOTOR-PUMP & DRIVE PARTS
Common parts from model Hotpoint VLLR1020T0WO Washer
1
GEN 31-1749 GEN 31-1749 Contact Us For Availability
1
GEN 39-9361 GEN 39-9361 Contact Us For Availability
2
GEN WH46X10009 GEN WH46X10009 Contact Us For Availability
3
GEN WE19X10004 GEN WE19X10004 Contact Us For Availability
4
GEN WE19X10005 GEN WE19X10005 Contact Us For Availability
6
RING COMP GEN WH02X0650 Contact Us For Availability
7
GEN WH11X10004 GEN WH11X10004 Contact Us For Availability
8
GEN WH01X2757 GEN WH01X2757 Contact Us For Availability
10
GEN WH12X10010 GEN WH12X10010 Contact Us For Availability
13
GEN WH42X10007 GEN WH42X10007 Contact Us For Availability
72
GEN WH46X10008 GEN WH46X10008 Contact Us For Availability
100
GEN WH12X1029 GEN WH12X1029 Contact Us For Availability
207
GEN WH01X2743 GEN WH01X2743 Contact Us For Availability
208
GEN WH01X2742 GEN WH01X2742 Contact Us For Availability
217
GEN WH12X10012 GEN WH12X10012 Contact Us For Availability
218
GEN WH01X10029 GEN WH01X10029 Contact Us For Availability
293
GEN WH01X10030 GEN WH01X10030 Contact Us For Availability
300
GEN WH43X10004 GEN WH43X10004 Contact Us For Availability
302
GEN WH43X10003 GEN WH43X10003 Contact Us For Availability
304
GEN WH41X10016 GEN WH41X10016 Contact Us For Availability
305
GEN WH41X10017 GEN WH41X10017 Contact Us For Availability
313
GEN WH02X1195 GEN WH02X1195 Contact Us For Availability
316
GEN WH45X10008 GEN WH45X10008 Contact Us For Availability
317
GEN WH45X10011 GEN WH45X10011 Contact Us For Availability
320
TRANSMISSION BRAKE ASM GEN WH38X0055 Contact Us For Availability
321
GEN WH01X2728 GEN WH01X2728 Contact Us For Availability
327
GEN WH45X10010 GEN WH45X10010 Contact Us For Availability
328
GEN WH02X10033 GEN WH02X10033 Contact Us For Availability
329
GEN WH45X10009 GEN WH45X10009 Contact Us For Availability
385
GEN WH01X10026 GEN WH01X10026 Contact Us For Availability
385
CLIP COVER REAR GEN WH01X1923 Contact Us For Availability
386
GEN WH46X10007 GEN WH46X10007 Contact Us For Availability
388
GEN WH12X10011 GEN WH12X10011 Contact Us For Availability
391
GEN WH44X10004 GEN WH44X10004 Contact Us For Availability
392
GEN WH01X2734 GEN WH01X2734 Contact Us For Availability
394
GEN WH44X10003 GEN WH44X10003 Contact Us For Availability
395
GEN WH01X10027 GEN WH01X10027 Contact Us For Availability
401
GEN WH45X10012 GEN WH45X10012 Contact Us For Availability
403
GEN WH17X10002 GEN WH17X10002 Contact Us For Availability
412
GEN WH01X2733 GEN WH01X2733 Contact Us For Availability
413
GEN WH02X1204 GEN WH02X1204 Contact Us For Availability
414
GEN WH16X10011 GEN WH16X10011 Contact Us For Availability
415
GEN WH16X10012 GEN WH16X10012 Contact Us For Availability
418
GEN WH44X10005 GEN WH44X10005 Contact Us For Availability
546
GEN WH12X0870 GEN WH12X0870 Contact Us For Availability
557
GEN WH19X0311 GEN WH19X0311 Contact Us For Availability
603
GEN WH01X10031 GEN WH01X10031 Contact Us For Availability
608
GEN WH05X10001 GEN WH05X10001 Contact Us For Availability
630
GEN WH20X10003 GEN WH20X10003 Contact Us For Availability
655
GEN WH23X10002 GEN WH23X10002 Contact Us For Availability
725
GEN WH07X0126 GEN WH07X0126 Contact Us For Availability
790
GEN WH01X10034 GEN WH01X10034 Contact Us For Availability
803
GEN WH41X10015 GEN WH41X10015 Contact Us For Availability
805
GEN WH13X10001 GEN WH13X10001 Contact Us For Availability
811
GEN WH41X10014 GEN WH41X10014 Contact Us For Availability
826
GEN WH16X10013 GEN WH16X10013 Contact Us For Availability
× ![]()
