Model Unimac UM100 Washer – Common Parts & Diagrams

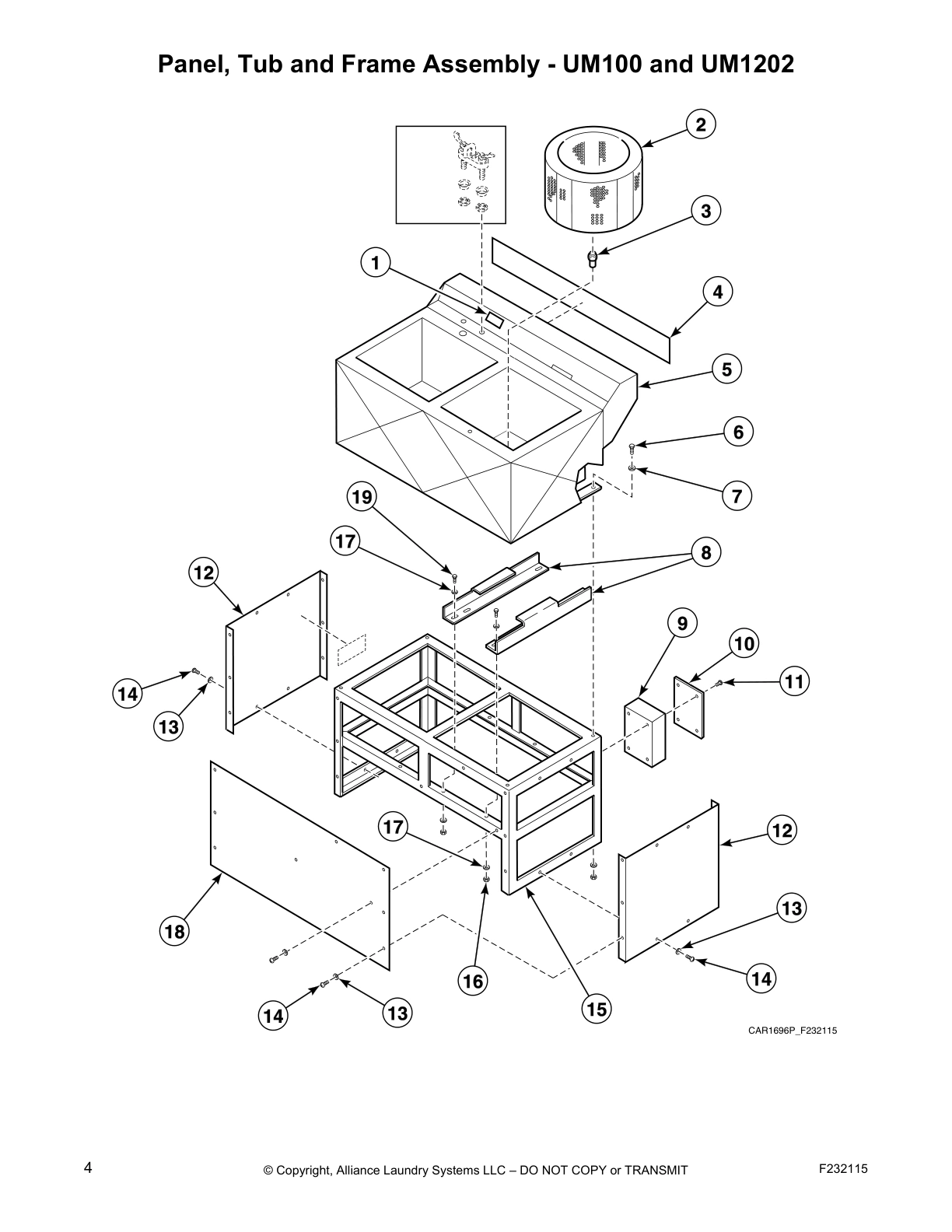

Panel, Tub and Frame Assembly - UM100 and UM1202

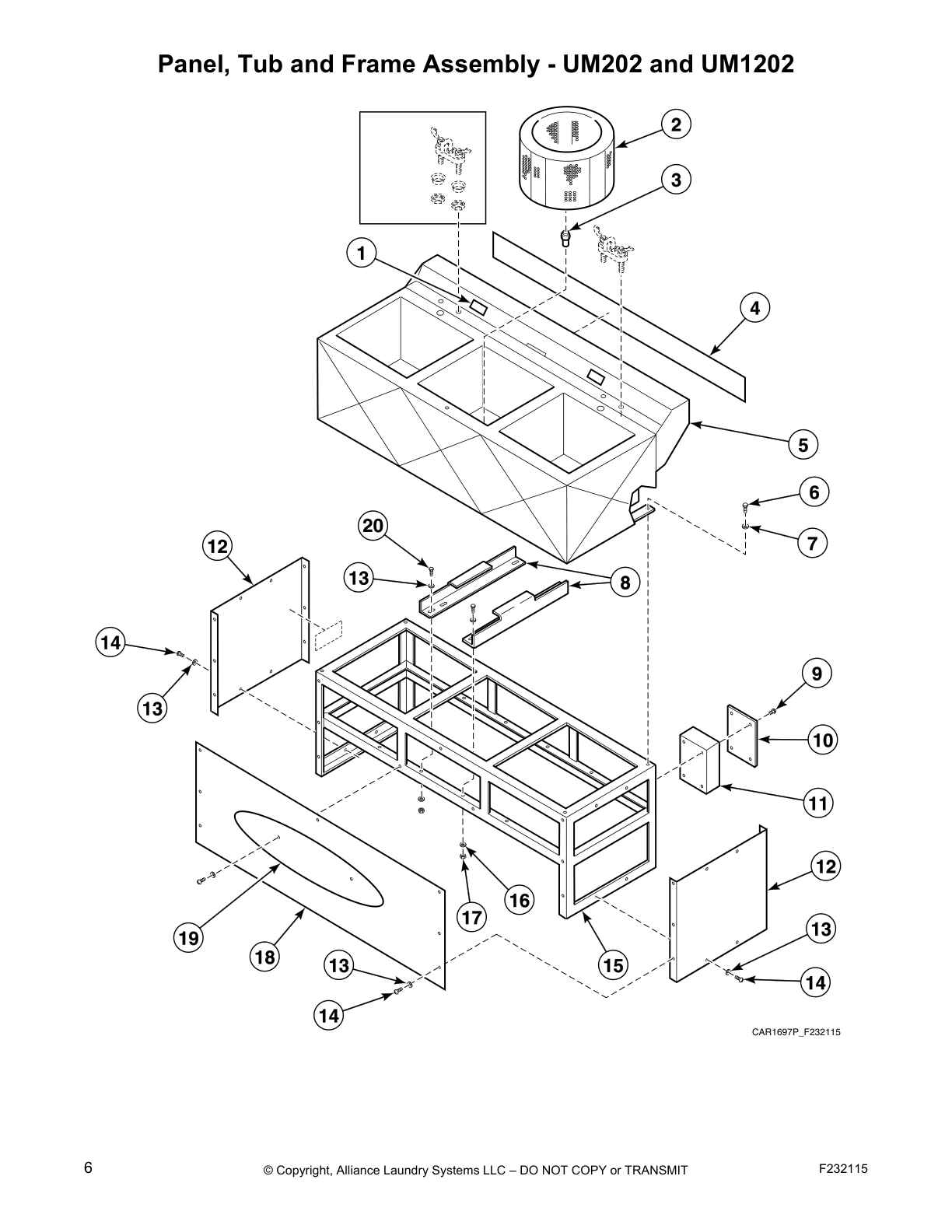

Panel, Tub and Frame Assembly - UM202 and UM1202
Lid Assembly
Lid Lock Assembly
Lock Assembly - Models Starting Serial No. 26643
Lock Assembly - Models Through Serial No. 26642
Control Panel Assembly -
Carwash and Combination Timer Option Controls
Control Panel Assembly -
Standard and Combination Timer Option Controls
Contactor Box Assembly - AB Contactors
Contactor Box Assembly - Benedict and Jaeger Contactors
Drain, Spray-Rinse and Fill Assembly - UM100 and UM1202
Drain, Spray-Rinse and Fill Assembly - UM202 and UM1202
Drain Valve Assembly - Models Through 1997
Drain Valve Assembly - Models Starting 1998
Float Valve Assembly
Faucet Assembly
Motor Assembly
Transmission and Agitator Assembly - Models Starting 1985
Through 1994
Transmission and Agitator Assembly - Models Starting 1995
Through May 18, 1998
Transmission Retrofit Kit Assembly -
Models Through May 18, 1998
Transmission and Agitator Assembly -
Models Starting May 19, 1998
Transmission Assembly
Common parts from model Unimac UM100 Washer
SPQ F330337P SPQ F330337P Contact Us For Availability
SPQ F330206 SPQ F330206 Contact Us For Availability
SPQ F8069601 SPQ F8069601 Contact Us For Availability
SPQ F140400 SPQ F140400 Contact Us For Availability
SPQ F743800 SPQ F743800 Contact Us For Availability
SPQ F608623-2 SPQ F608623-2 Contact Us For Availability
SPQ F380987P SPQ F380987P Contact Us For Availability
1
Screw SPQ F430906 Contact Us For Availability
1
Timer Kit SPQ F730202 Contact Us For Availability
1
Street Elbow SPQ F422310 Contact Us For Availability
1
Insulator Bushing SPQ F140910 Contact Us For Availability
1
Float Valve SPQ F380401P Contact Us For Availability
1
Cold Faucet Button SPQ F190912 Contact Us For Availability
1
Flinger SPQ F100206 Contact Us For Availability
1
Agitator Cap SPQ F180301 Contact Us For Availability
2
Lid Handle Weldment SPQ F430147 Contact Us For Availability
2
Lid Lock Slide Carrier SPQ F150354 Contact Us For Availability
2
Solenoid Spring SPQ F190310 Contact Us For Availability
2
Washer SPQ F170601 Contact Us For Availability
2
Button Kit SPQ F231053 Contact Us For Availability
2
Contactor Mounting Rail SPQ F350148 Contact Us For Availability
2
Fuse SPQ F330110P Contact Us For Availability
2
Motor SPQ F431112 Contact Us For Availability
2
Screw SPQ F431502 Contact Us For Availability
2
Screw SPQ F190101 Contact Us For Availability
2
Bushing SPQ F422004 Contact Us For Availability
2
Basketball SPQ F430104 Contact Us For Availability
2
Flanged Elbow Gasket SPQ F180463A Contact Us For Availability
3
SPQ F601033 SPQ F601033 Contact Us For Availability
3
Lid Latch Block Assembly SPQ F431106 Contact Us For Availability
3
Lid Lock Solenoid SPQ F310105 Contact Us For Availability
3
Contact SPQ F8069902P Contact Us For Availability
3
Fuse Holder SPQ F350104 Contact Us For Availability
3
Drain Elbow SPQ F422404P Contact Us For Availability
3
Drain Valve Flange Assembly SPQ F430108 Contact Us For Availability
3
Nipple SPQ F421915 Contact Us For Availability
3
Faucet Handle SPQ F190916 Contact Us For Availability
3
Top Bearing Assembly SPQ F602508 Contact Us For Availability
3
SPQ F180443 SPQ F180443 Contact Us For Availability
4
SPQ F432308 SPQ F432308 Contact Us For Availability
4
Cotter Pin SPQ F431216 Contact Us For Availability
4
Lid Handle Weldment SPQ F602484 Contact Us For Availability
4
Timer SPQ F350412 Contact Us For Availability
4
Contactor Mounting Rail SPQ F350304P Contact Us For Availability
4
Transformer SPQ F430928 Contact Us For Availability
4
DIN Coil SPQ F602493-1 Contact Us For Availability
4
Nut SPQ F200114P Contact Us For Availability
4
Drain Valve Disc SPQ F8504201 Contact Us For Availability
4
Elbow SPQ F422315 Contact Us For Availability
4
Right Faucet Trim Unit SPQ F190903 Contact Us For Availability
4
SPQ F601387 SPQ F601387 Contact Us For Availability
4
SPQ F180302P SPQ F180302P Contact Us For Availability
4
SPQ F430946 SPQ F430946 Contact Us For Availability
5
SPQ F431028 SPQ F431028 Contact Us For Availability
5
Rivet SPQ F200194600P Contact Us For Availability
5
Cable Support Bracket SPQ F605388 Contact Us For Availability
5
Nut SPQ F231050 Contact Us For Availability
5
Drain Valve Gasket SPQ F430115 Contact Us For Availability
5
Junction Box Cover SPQ F610083 Contact Us For Availability
5
SPQ F602493 SPQ F602493 Contact Us For Availability
5
Faucet and H SPQ F8080501 Contact Us For Availability
5
Faucet Assembly SPQ F190703 Contact Us For Availability
5
SPQ F430100 SPQ F430100 Contact Us For Availability
5
SPQ F431116 SPQ F431116 Contact Us For Availability
6
Lid Lock Spring SPQ F431603 Contact Us For Availability
6
Timer Kit SPQ F230732 Contact Us For Availability
6
Contactor Kit SPQ F330227 Contact Us For Availability
6
Mechanical Interlock SPQ F140401 Contact Us For Availability
6
SPQ F431402 SPQ F431402 Contact Us For Availability
6
Left Faucet Trim Unit SPQ F190904 Contact Us For Availability
6
SPQ M400015 SPQ M400015 Contact Us For Availability
6
SPQ F180300 SPQ F180300 Contact Us For Availability
6
Groove Pin SPQ F180477 Contact Us For Availability
7
SPQ F150206 SPQ F150206 Contact Us For Availability
7
Lid Lock Slide SPQ F8624801 Contact Us For Availability
7
Cotter Pin SPQ F430209 Contact Us For Availability
7
Timer Kit SPQ F200233400 Contact Us For Availability
7
Electrical Box SPQ F430231 Contact Us For Availability
7
Auxiliary Block Contactor SPQ F330111 Contact Us For Availability
7
SPQ F431500 SPQ F431500 Contact Us For Availability
7
SPQ F170100 SPQ F170100 Contact Us For Availability
7
SPQ F280405 SPQ F280405 Contact Us For Availability
7
SPQ F0634464-00 SPQ F0634464-00 Contact Us For Availability
8
Lid Lock and Cable Kit SPQ F310128 Contact Us For Availability
8
Timer SPQ F200299500 Contact Us For Availability
8
Auxiliary Block SPQ F330137 Contact Us For Availability
8
SPQ F170107 SPQ F170107 Contact Us For Availability
8
SPQ F601167 SPQ F601167 Contact Us For Availability
8
SPQ F798881 SPQ F798881 Contact Us For Availability
8
SPQ F280268 SPQ F280268 Contact Us For Availability
9
SPQ F730087 SPQ F730087 Contact Us For Availability
9
Pop Rivet SPQ F431210 Contact Us For Availability
9
SPQ F430401 SPQ F430401 Contact Us For Availability
9
SPQ F340444 SPQ F340444 Contact Us For Availability
9
Screw SPQ F330136 Contact Us For Availability
9
SPQ F200215 SPQ F200215 Contact Us For Availability
9
SPQ F170500 SPQ F170500 Contact Us For Availability
9
SPQ F601050 SPQ F601050 Contact Us For Availability
9
SPQ F100121 SPQ F100121 Contact Us For Availability
10
Screw SPQ F430903 Contact Us For Availability
10
Microswitch SPQ F340903 Contact Us For Availability
10
Lid Lock Solenoid SPQ F300107 Contact Us For Availability
10
Timer Knob SPQ F730201 Contact Us For Availability
10
Junction Box SPQ F140430 Contact Us For Availability
10
This Machine Must Be Protected Decal SPQ F230301 Contact Us For Availability
10
Hose Clamp SPQ F200230 Contact Us For Availability
10
Drain Valve SPQ F150301 Contact Us For Availability
10
Proximity Sensor SPQ F370545P Contact Us For Availability
10
Centerplate and Post Assembly SPQ F603452 Contact Us For Availability
10
Screw SPQ F430144 Contact Us For Availability
10
Nut SPQ F430233 Contact Us For Availability
11
Washer SPQ F431113 Contact Us For Availability
11
Nut SPQ F300106P Contact Us For Availability
11
Motor Equipped with Auto Decal SPQ F230300 Contact Us For Availability
11
Hose SPQ F200104P Contact Us For Availability
11
Washer SPQ F430312 Contact Us For Availability
11
Transmission Plate SPQ F604863 Contact Us For Availability
12
Nut SPQ F431022 Contact Us For Availability
12
Screw SPQ F430920 Contact Us For Availability
12
Lid Lock Mounting Bracket Assembly SPQ F431000 Contact Us For Availability
12
Water Level Caution Decal SPQ F952P3 Contact Us For Availability
12
Relay SPQ F330109P Contact Us For Availability
12
Drain Manifold SPQ F601457 Contact Us For Availability
12
Water Hose SPQ F200166 Contact Us For Availability
12
Spacer SPQ F422522 Contact Us For Availability
13
Drain Valve/Air Trap Assemb SPQ F431005 Contact Us For Availability
13
Cotter Pin SPQ F430938 Contact Us For Availability
13
Cap SPQ F430996 Contact Us For Availability
13
Screw SPQ F602483 Contact Us For Availability
13
Proximity Breaking System SPQ F370543 Contact Us For Availability
13
Contactor SPQ F330114 Contact Us For Availability
13
Pressure Bulb SPQ F200164 Contact Us For Availability
13
Proximity Wheel SPQ F370547 Contact Us For Availability
13
Transmission Bracket SPQ F604864 Contact Us For Availability
13
Nut SPQ F430205 Contact Us For Availability
13
Motor/Transmission Plate Assembly SPQ F431004 Contact Us For Availability
14
Screw SPQ F959P3 Contact Us For Availability
14
Interlock Contactor SPQ F330186P Contact Us For Availability
14
Drain Valve Rod SPQ F200014700 Contact Us For Availability
14
Pulley SPQ F280272P Contact Us For Availability
14
Motor and Transmission Cover SPQ F422521 Contact Us For Availability
15
Washer SPQ F430264 Contact Us For Availability
15
Lid Lock Spring Bracket SPQ F431202 Contact Us For Availability
15
Lid Unlock Enable Decal SPQ F330506 Contact Us For Availability
15
Trunnion Frame SPQ F430211 Contact Us For Availability
15
Cotter Pin SPQ F601388 Contact Us For Availability
15
Washer SPQ F430913 Contact Us For Availability
16
Standoff SPQ F330175P Contact Us For Availability
16
Lid Hinge Assembly SPQ F601958 Contact Us For Availability
16
Lid Lock Cable SPQ F601184 Contact Us For Availability
16
Trunnion Frame Angle SPQ F430322 Contact Us For Availability
16
Push-Pull Knob SPQ F431605 Contact Us For Availability
16
Pulley Assembly SPQ F200004100 Contact Us For Availability
17
Lid Lock Grommet SPQ F190800 Contact Us For Availability
17
Extract Decal SPQ F231442 Contact Us For Availability
17
Sponge Rubber SPQ F601375 Contact Us For Availability
17
Transmission Hose Coupling SPQ F180432 Contact Us For Availability
17
Motor/Bolt Weldment SPQ F630460 Contact Us For Availability
17
Belt SPQ F430215 Contact Us For Availability
18
Extractor Lid Kit
Includes items 17, 20, 21 a SPQ F430986 Contact Us For Availability
18
Latch Mounting Base SPQ F430998 Contact Us For Availability
18
Fuse SPQ F180501 Contact Us For Availability
18
Washer SPQ F8322806 Contact Us For Availability
18
Transmission Support Bracket SPQ M400013 Contact Us For Availability
18
Sensor Drip Cover Assembly SPQ F601182 Contact Us For Availability
19
Hook st SPQ F603300 Contact Us For Availability
19
Momentary Pushbutton SPQ F432291 Contact Us For Availability
19
Insulator Bushing SPQ F8322803P Contact Us For Availability
19
Motor Kit SPQ F430112 Contact Us For Availability
19
Drain Elbow SPQ 70142 Contact Us For Availability
19
Motor Pulley SPQ F8186601 Contact Us For Availability
20
Machine May Be Hot Warning Decal SPQ F730020 Contact Us For Availability
20
Light SPQ F230730 Contact Us For Availability
20
Contact SPQ F200233401P Contact Us For Availability
20
Flange Relay SPQ F610078 Contact Us For Availability
20
Trunnion Cap SPQ F170111 Contact Us For Availability
20
Gear Case Gasket SPQ F180469 Contact Us For Availability
20
Agitator Shaft Seal SPQ F609837 Contact Us For Availability
21
Left Wash Dial Decal SPQ F340720 Contact Us For Availability
21
Trunnion SPQ F604254 Contact Us For Availability
21
Agitator Drive Block SPQ F430993 Contact Us For Availability
21
Transmission Motor Base SPQ F280372 Contact Us For Availability
22
Spring Bracket SPQ F431102 Contact Us For Availability
22
Contact Block Switch SPQ F8069602 Contact Us For Availability
22
Z-Clip SPQ F8504501P Contact Us For Availability
23
Contact Block and Mounting Switch SPQ F340709 Contact Us For Availability
23
Motor Support Ear SPQ F015030401 Contact Us For Availability
24
Saddle Hinge SPQ F230757 Contact Us For Availability
25
Post and Screw Kit
Includes items 17, 18 and SPQ F230607 Contact Us For Availability
25
Bell Plug SPQ F430317 Contact Us For Availability
26
Transmission Retrofit Kit SPQ F430106 Contact Us For Availability
27
SPQ F0280153-00 SPQ F0280153-00 Contact Us For Availability
28
SPQ F430107 SPQ F430107 Contact Us For Availability
28
Drive Block Stud SPQ F180405 Contact Us For Availability
28
SPQ F430935 SPQ F430935 Contact Us For Availability
29
SPQ F8367401P SPQ F8367401P Contact Us For Availability
30
SPQ F180435 SPQ F180435 Contact Us For Availability
31
SPQ F180404 SPQ F180404 Contact Us For Availability
32
SPQ F430204 SPQ F430204 Contact Us For Availability
33
SPQ F150302 SPQ F150302 Contact Us For Availability
34
SPQ F170501 SPQ F170501 Contact Us For Availability
NI
SPQ F730109 SPQ F730109 Contact Us For Availability
NI
SPQ F431017 SPQ F431017 Contact Us For Availability
NI
Lid Lock and Cable Kit SPQ F730368P Contact Us For Availability
NI
Lid Lock Assembly SPQ F605423P Contact Us For Availability
NI
SPQ F730008 SPQ F730008 Contact Us For Availability
NI
SPQ F330170 SPQ F330170 Contact Us For Availability
NI
SPQ F330203 SPQ F330203 Contact Us For Availability
NI
SPQ F8069901P SPQ F8069901P Contact Us For Availability
NI
SPQ F8069903P SPQ F8069903P Contact Us For Availability
NI
SPQ F8069603 SPQ F8069603 Contact Us For Availability
NI
SPQ F350125 SPQ F350125 Contact Us For Availability
NI
SPQ F360117P SPQ F360117P Contact Us For Availability
NI
SPQ F330185P SPQ F330185P Contact Us For Availability
NI
SPQ F602684 SPQ F602684 Contact Us For Availability
NI
SPQ F8618601 SPQ F8618601 Contact Us For Availability
NI
SPQ F200213 SPQ F200213 Contact Us For Availability
NI
SPQ F610071 SPQ F610071 Contact Us For Availability
NI
SPQ F380986P SPQ F380986P Contact Us For Availability
NI
Faucet Kit SPQ F730357 Contact Us For Availability
× ![]()
