Model Unimac UCN040GN2 Washer – Common Parts & Diagrams

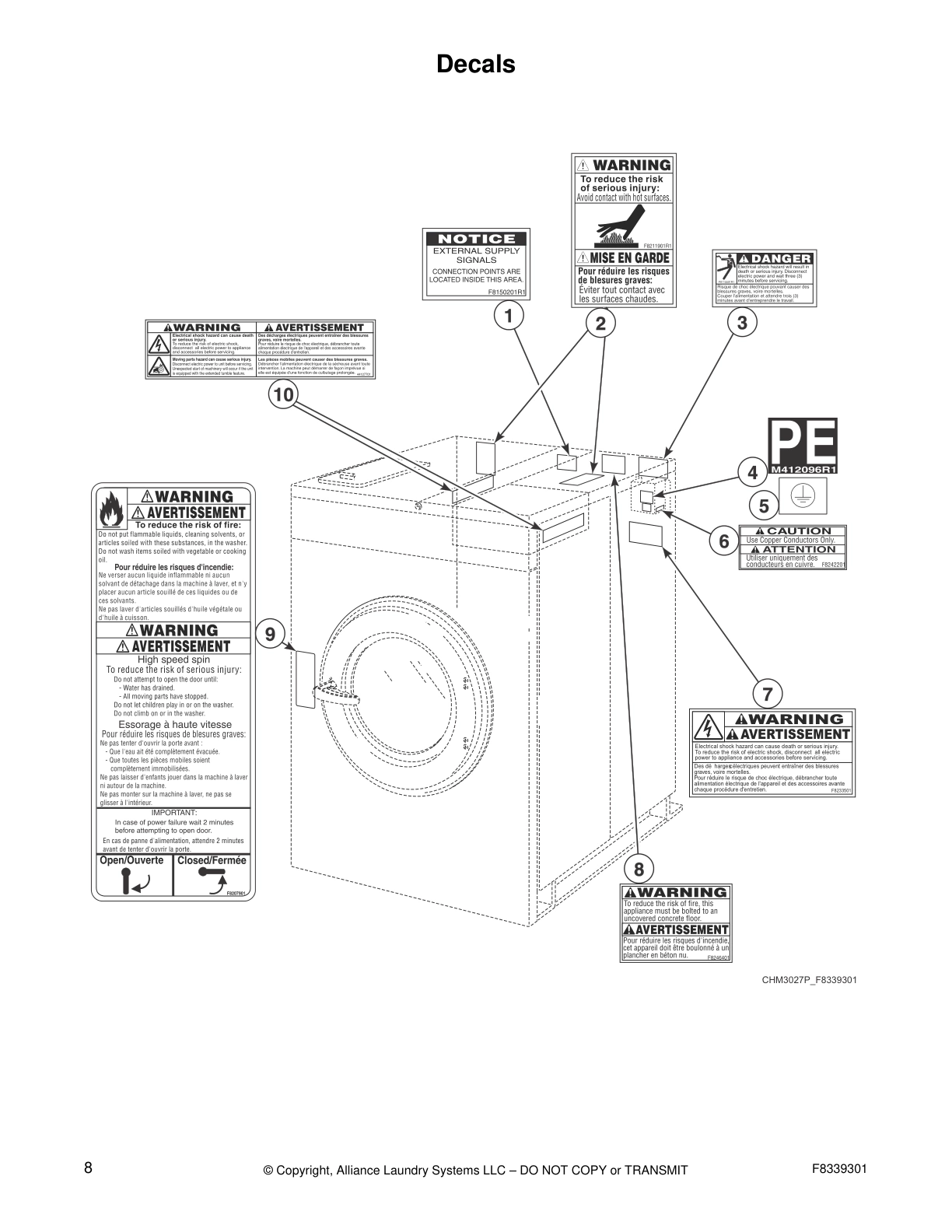

Decals

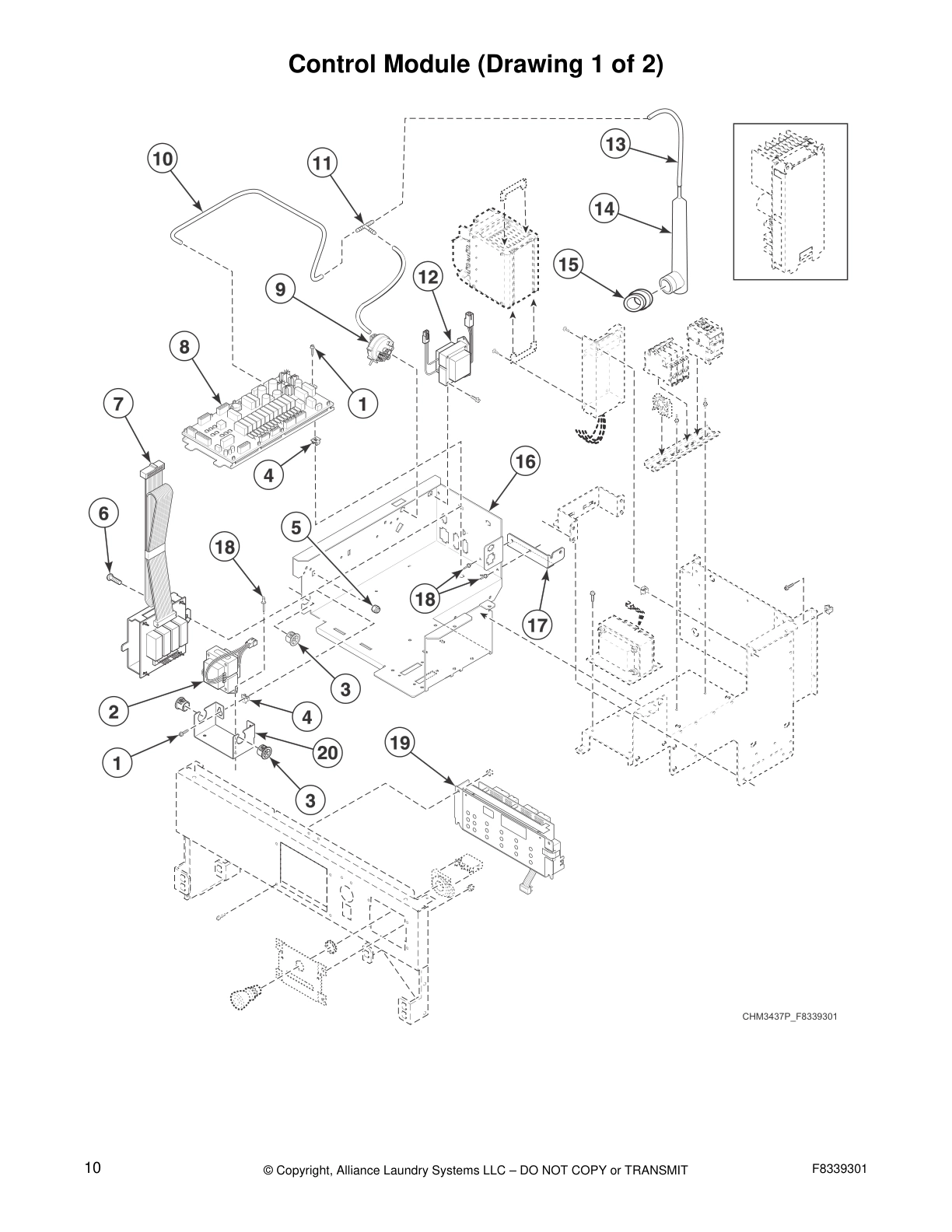

Control Module (Drawing 1 of 2)
Control Module (Drawing 2 of 2)
Rocker Switch and Temperature Knob
Front Panel and Control Panel
Control Panel Overlays
Panels
Door - 20 Pound HC Models
Door - 20 Pound IC, SC and UC Models
Door - 30 Pound HC Models
Door - 30 Pound IC, SC and UC Models
Door - 40 and 60 Pound HC Models
Door - 40 and 60 Pound IC, SC and UC Models
Door Lock
Shell Front and Basket
Bearing Housing - 20 and 30 Pound Models
Bearing Housing - 40 and 60 Pound Models
Shell and Frame
Drain Plumbing
Drain Valve Assembly - 20 and 30 Pound Models
Drain Valve Assembly - 40 and 60 Pound Models
Steam Filter (Optional) and Water Supply Hose
Fill Plumbing Assembly
Motor, Pulley and Belt (Drawing 1 of 3)
Motor, Pulley and Belt (Drawing 2 of 3)
Motor, Pulley and Belt (Drawing 3 of 3)
Electric Heat Option
Steam Heat Option
Common parts from model Unimac UCN040GN2 Washer
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
External Door Lock Harness SPQ F8340001 Contact Us For Availability
1
Shell Front Assembly SPQ F8229601 Contact Us For Availability
1
Bearing SPQ F100137P Contact Us For Availability
1
Drain Valve Kit SPQ F8577201 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Temperature Knob SPQ 44104601 Contact Us For Availability
2
Pushbutton Switch SPQ 70413301 Contact Us For Availability
2
Door Lock Splash Shield SPQ F430225 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
2
Drain Valve Motor SPQ F380933P Contact Us For Availability
2
Nut SPQ F8047901 Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
3
Spacer SPQ F200203200 Contact Us For Availability
3
Lid Clamp SPQ F8230601 Contact Us For Availability
3
Nut SPQ F430215 Contact Us For Availability
3
UC models through 8/13/2014 SPQ F8199401P Contact Us For Availability
3
Drain Valve Cover SPQ F8618901P Contact Us For Availability
3
Vacuum Breaker Assembly SPQ F200222 Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
4
Top Cover SPQ F8091701 Contact Us For Availability
4
Black SPQ F431916 Contact Us For Availability
4
Door Lock Plate Assembly SPQ F320200 Contact Us For Availability
4
SPQ F150398 SPQ F150398 Contact Us For Availability
4
Bolt SPQ F200133600 Contact Us For Availability
4
SPQ F8535601 SPQ F8535601 Contact Us For Availability
5
SPQ F8040301 SPQ F8040301 Contact Us For Availability
5
Door Lock Plate Shim SPQ F431901 Contact Us For Availability
5
Triple Lip Seal SPQ F8203803 Contact Us For Availability
5
Drain Valve SPQ F200182700 Contact Us For Availability
5
SPQ F8047801 SPQ F8047801 Contact Us For Availability
5
Washer SPQ F431115 Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
6
SPQ F430174 SPQ F430174 Contact Us For Availability
6
Screw SPQ F8223202 Contact Us For Availability
6
Retaining Ring SPQ F8337801 Contact Us For Availability
6
SPQ F8043404 SPQ F8043404 Contact Us For Availability
6
Pipe Insulation SPQ F410300 Contact Us For Availability
6
Steam Bracket SPQ H86070034 Contact Us For Availability
7
Door Latch Arm Assembly SPQ F8221401 Contact Us For Availability
7
DIN Valve Kit SPQ F8206901 Contact Us For Availability
7
Door
Vertical brush SPQ F602842-2 Contact Us For Availability
7
Shell Band Kit SPQ F8537803 Contact Us For Availability
7
Basket Tool Kit SPQ F100134 Contact Us For Availability
7
SPQ F200213 SPQ F200213 Contact Us For Availability
8
Jumper Configuration Assembly SPQ F980P3 Contact Us For Availability
8
Door Lock Solenoid Replacement SPQ F8344401 Contact Us For Availability
8
Basket Assembly SPQ F8391701P Contact Us For Availability
8
SPQ F8042804 SPQ F8042804 Contact Us For Availability
8
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
Steam Heat Kit SPQ F8490301 Contact Us For Availability
9
Shaft Seal Sleeve Kit SPQ F8343906P Contact Us For Availability
9
SPQ F8048601 SPQ F8048601 Contact Us For Availability
9
Steam Valve Repair Kit SPQ F8521501 Contact Us For Availability
10
Top Cabinet Brace SPQ F8043801 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Excluder Seal SPQ F8337001 Contact Us For Availability
10
Nut SPQ F200201 Contact Us For Availability
10
Element SPQ F360205P Contact Us For Availability
10
Pipe Nipple SPQ 70263801 Contact Us For Availability
11
Vacuum Breaker Hose SPQ F0200244-02 Contact Us For Availability
11
Heating Element Plug SPQ F360202 Contact Us For Availability
12
Top Cover Hinge SPQ F8258601 Contact Us For Availability
12
Door Glass SPQ F8485401P Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Nut SPQ 70030401 Contact Us For Availability
13
Bolt SPQ F8270701 Contact Us For Availability
13
Steam Filter SPQ 431486 Contact Us For Availability
14
Door Gasket
Models through 10/12/2014 SPQ F170124 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Door Gasket
Black SPQ F8111502 Contact Us For Availability
14
Screw SPQ F8230301 Contact Us For Availability
15
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
15
Extension Spring SPQ F310124 Contact Us For Availability
15
Screw SPQ F420409 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
16
Drain Tee SPQ F8232901 Contact Us For Availability
16
Terminal Tray Cover SPQ F8177001 Contact Us For Availability
16
Street Elbow SPQ 20253 Contact Us For Availability
18
Panel Lock SPQ 44089303P Contact Us For Availability
18
Door Lock Microswitch SPQ F431902 Contact Us For Availability
19
Door Gasket
Models starting 10/13/2014 SPQ F8390801 Contact Us For Availability
19
Siphon Cover SPQ 430642 Contact Us For Availability
19
Blind Rivet SPQ F8245101 Contact Us For Availability
20
Magnet SPQ F431222 Contact Us For Availability
20
Ground Lug Connector SPQ F430232 Contact Us For Availability
21
Bolt SPQ F8230501 Contact Us For Availability
21
Rod
40 pound models SPQ F602813-3 Contact Us For Availability
21
3-Way Valve SPQ M411283 Contact Us For Availability
22
Dispenser Lid SPQ F8048101 Contact Us For Availability
22
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
22
Washer SPQ F430909 Contact Us For Availability
23
Screw SPQ F430536 Contact Us For Availability
23
Hose SPQ F8286402P Contact Us For Availability
24
P-Trap Hose SPQ F8286401P Contact Us For Availability
25
Door Mount SPQ F431929 Contact Us For Availability
26
Dispenser Gasket SPQ F8232002 Contact Us For Availability
27
Washer SPQ F150271 Contact Us For Availability
27
Door Handle
SC models SPQ F190216P Contact Us For Availability
27
Access Cover SPQ F8042202 Contact Us For Availability
29
Vacuum Supply Hose SPQ F8333201 Contact Us For Availability
30
SPQ F8308301 SPQ F8308301 Contact Us For Availability
31
SPQ F606816-1 SPQ F606816-1 Contact Us For Availability
NI
Door Handle Spacer Kit
Includes items 9 and 1 SPQ F8567501 Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
SPQ F977P3 SPQ F977P3 Contact Us For Availability
NI
SPQ F8340501 SPQ F8340501 Contact Us For Availability
NI
SPQ 389P4 SPQ 389P4 Contact Us For Availability
NI
SPQ F200215 SPQ F200215 Contact Us For Availability
NI
Hose Clamp SPQ F8602602 Contact Us For Availability
NI
SPQ F953P3 SPQ F953P3 Contact Us For Availability
× ![]()
