Model UniMac UCN020GNF Washer – Common Parts & Diagrams
Decals
Control Module (Drawing 1 of 2)

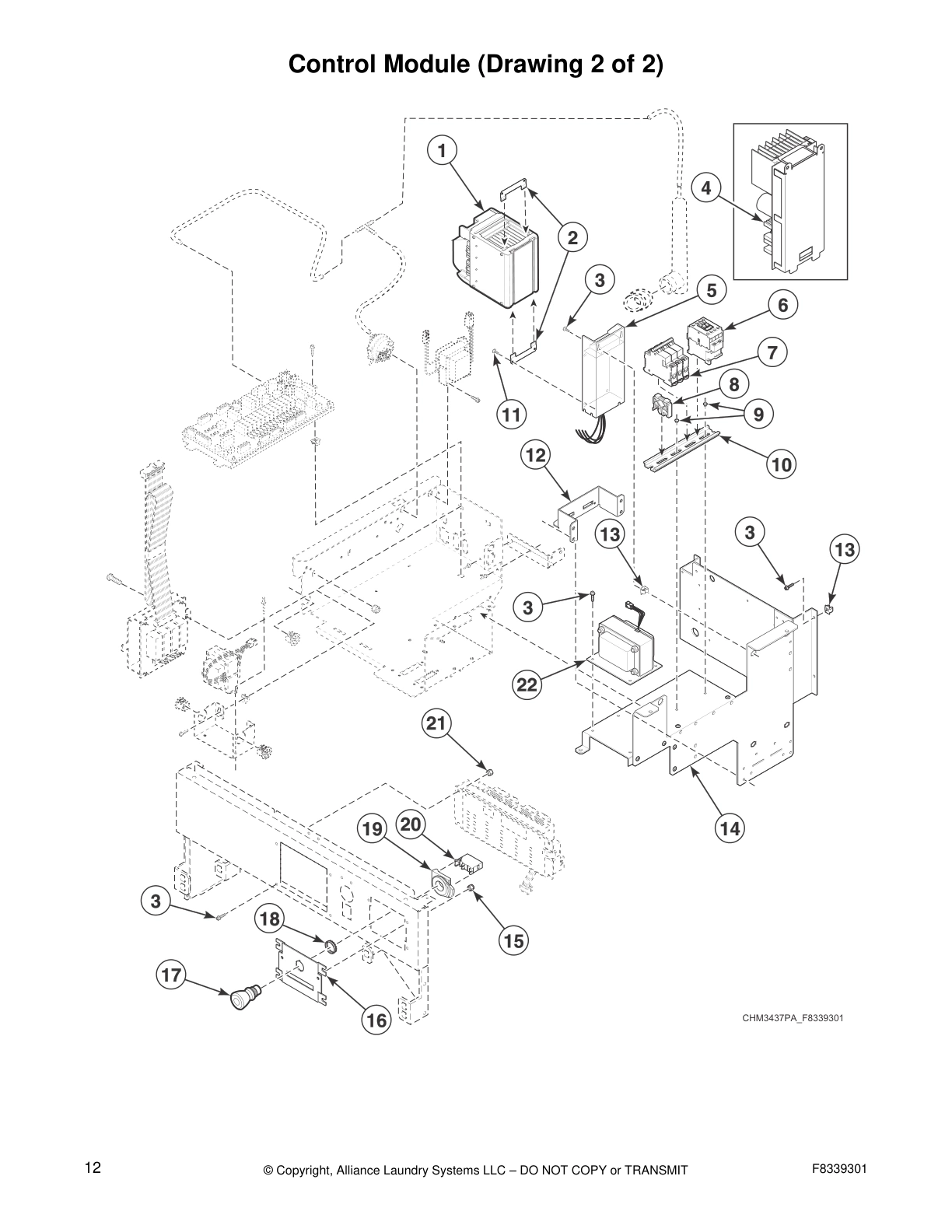

Control Module (Drawing 2 of 2)

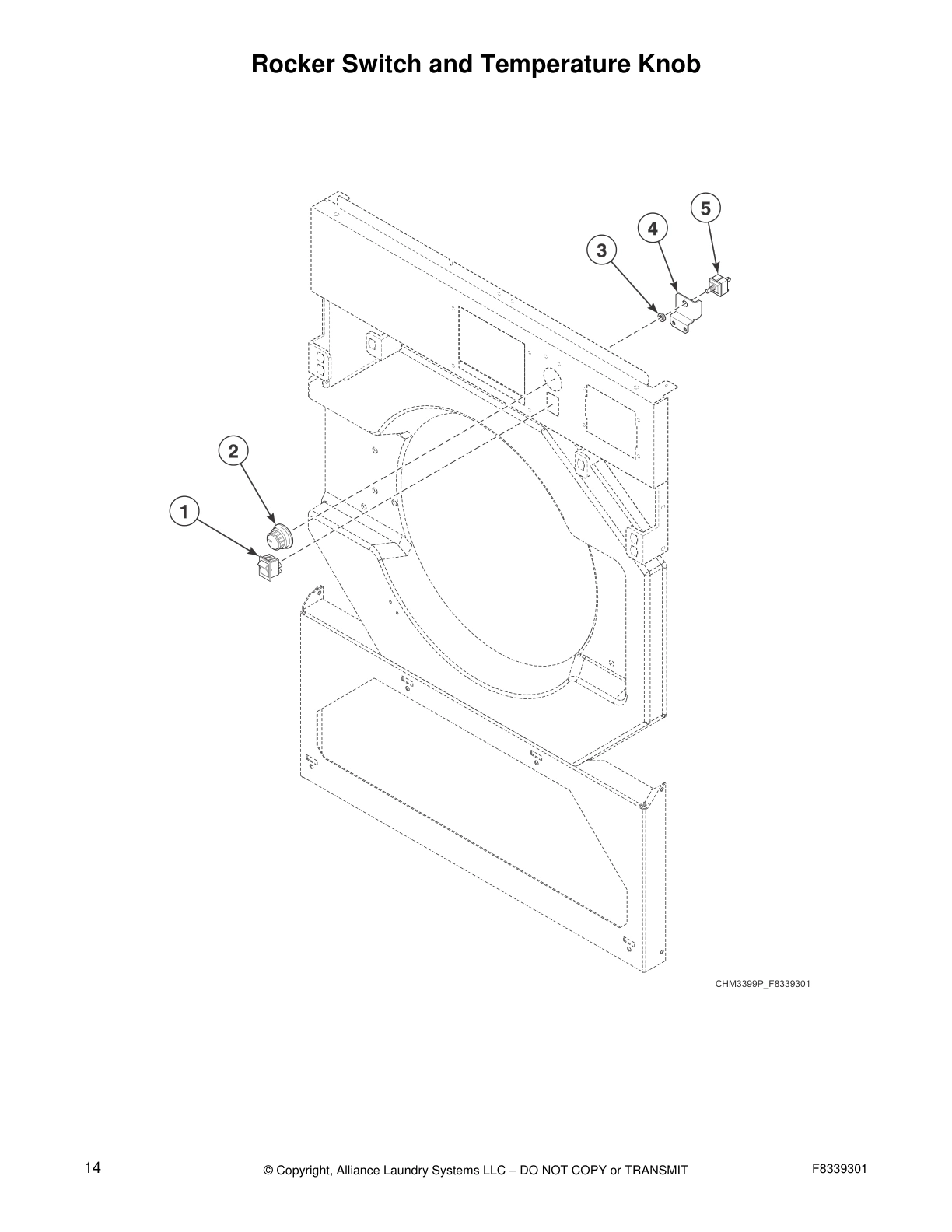

Rocker Switch and Temperature Knob

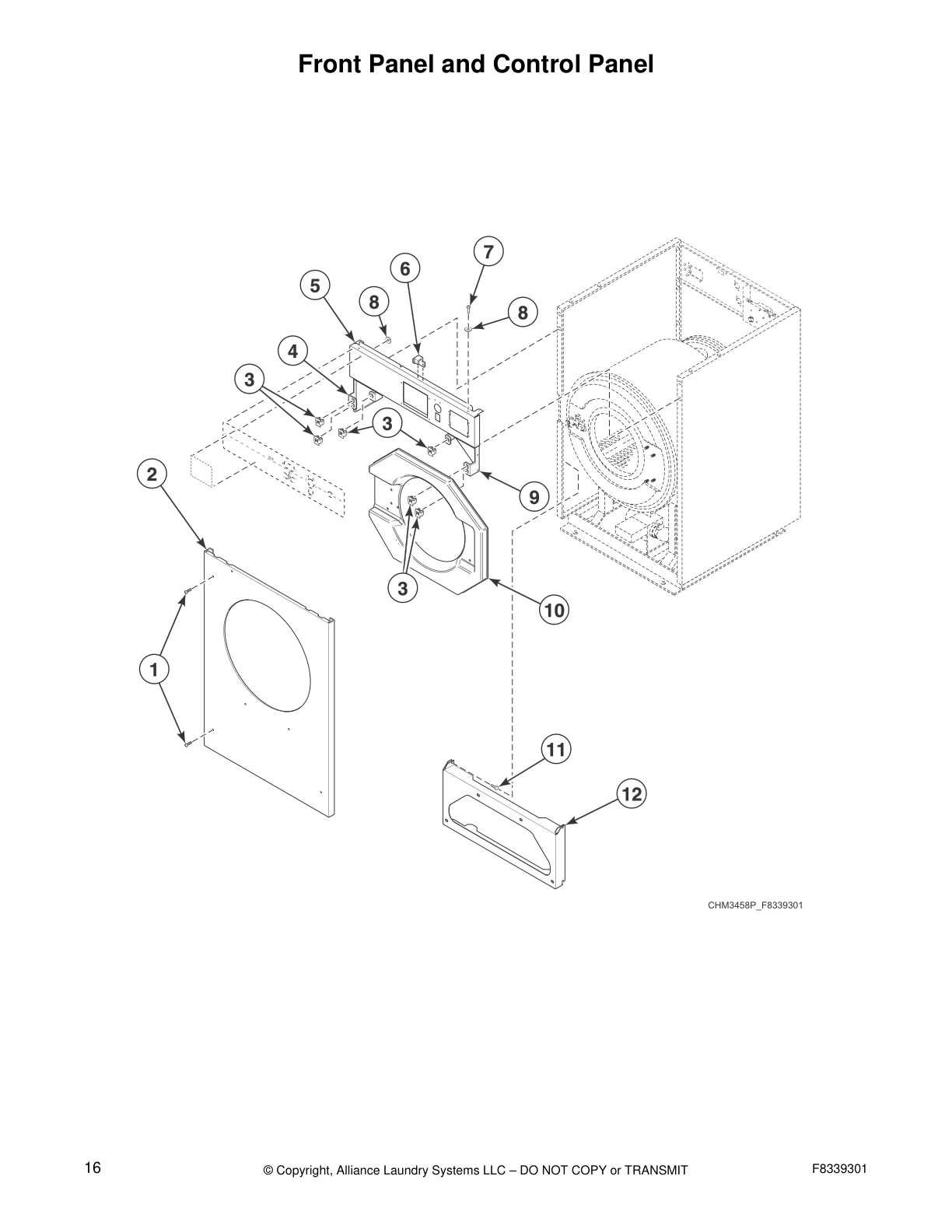

Front Panel and Control Panel

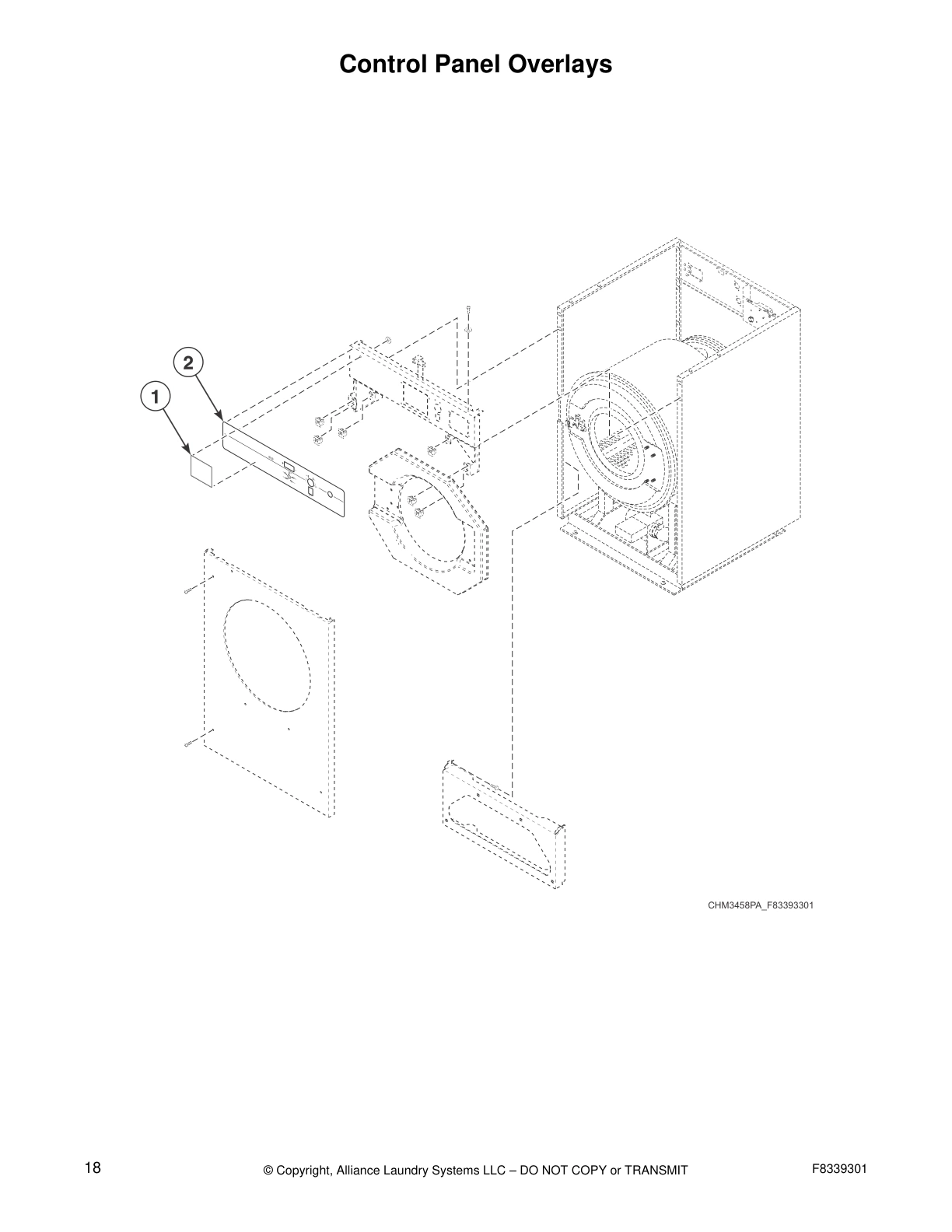

Control Panel Overlays

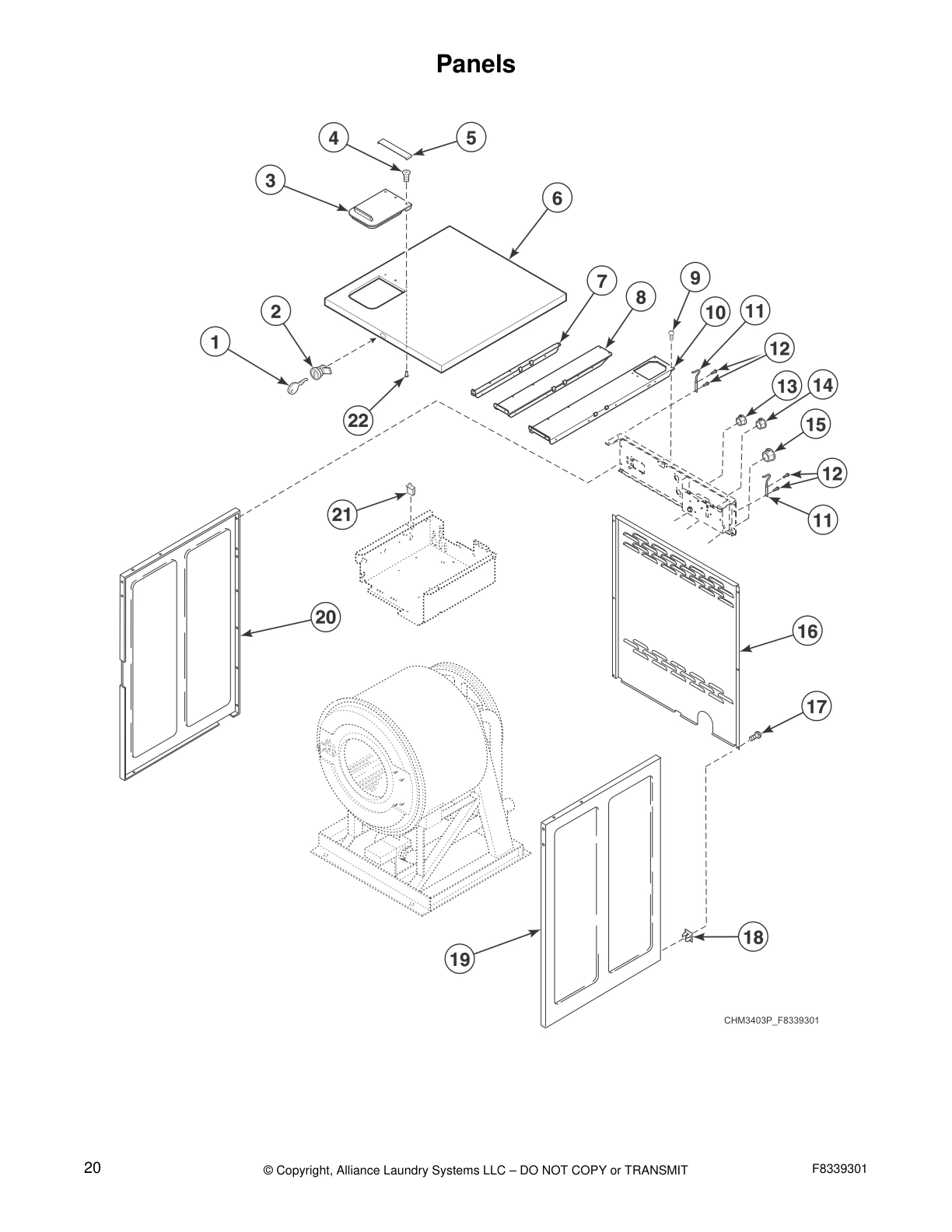

Panels
Door - 20 Pound HC Models
Door - 20 Pound IC, SC and UC Models

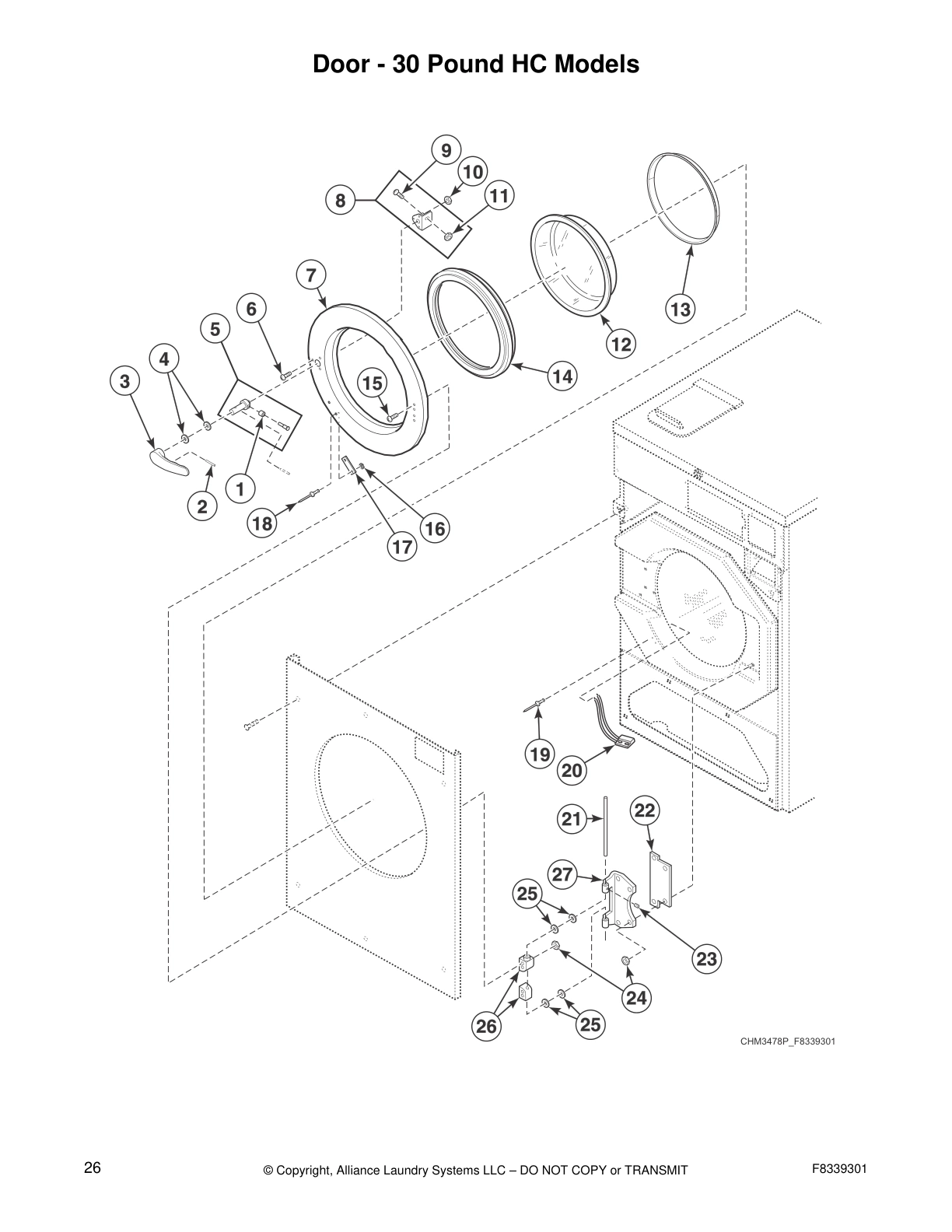

Door - 30 Pound HC Models

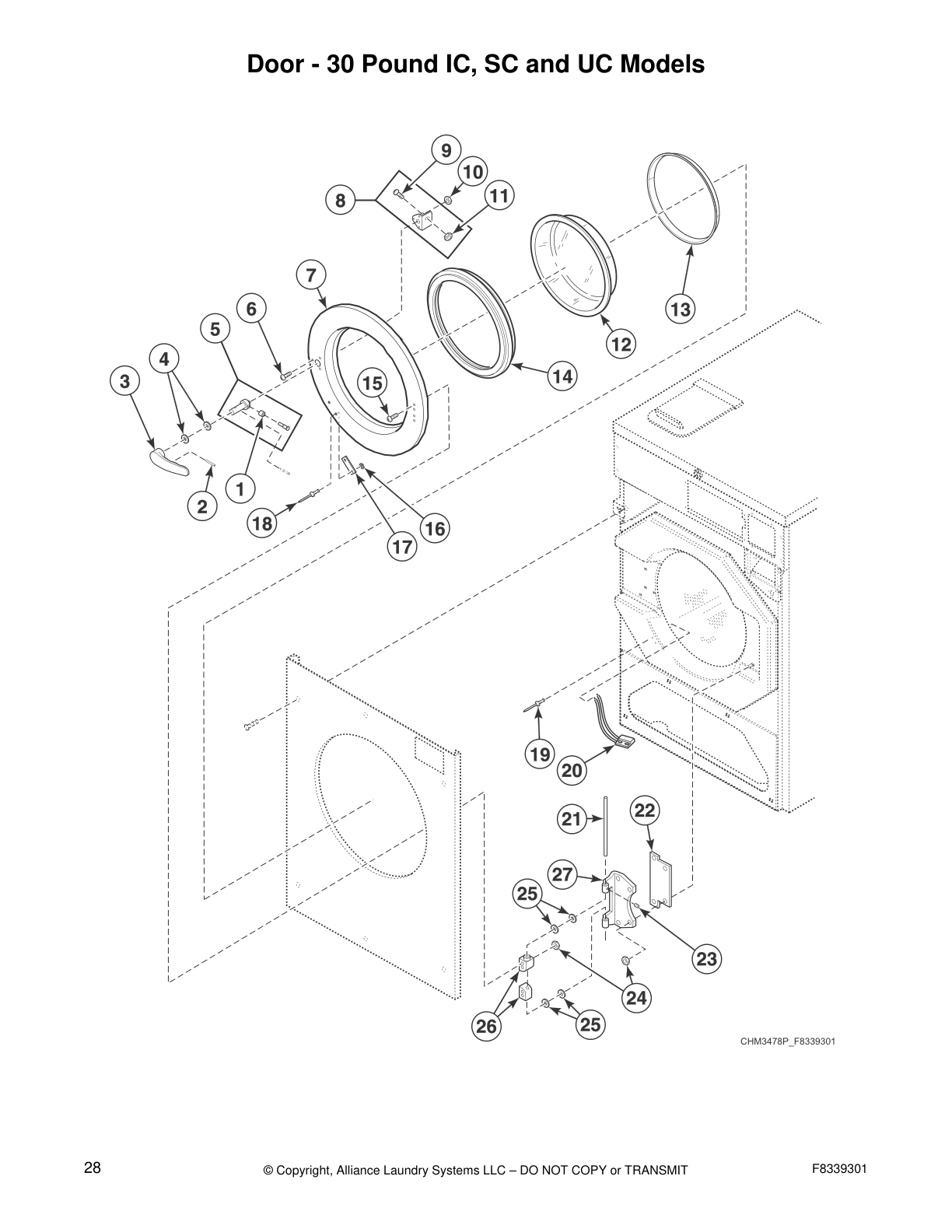

Door - 30 Pound IC, SC and UC Models

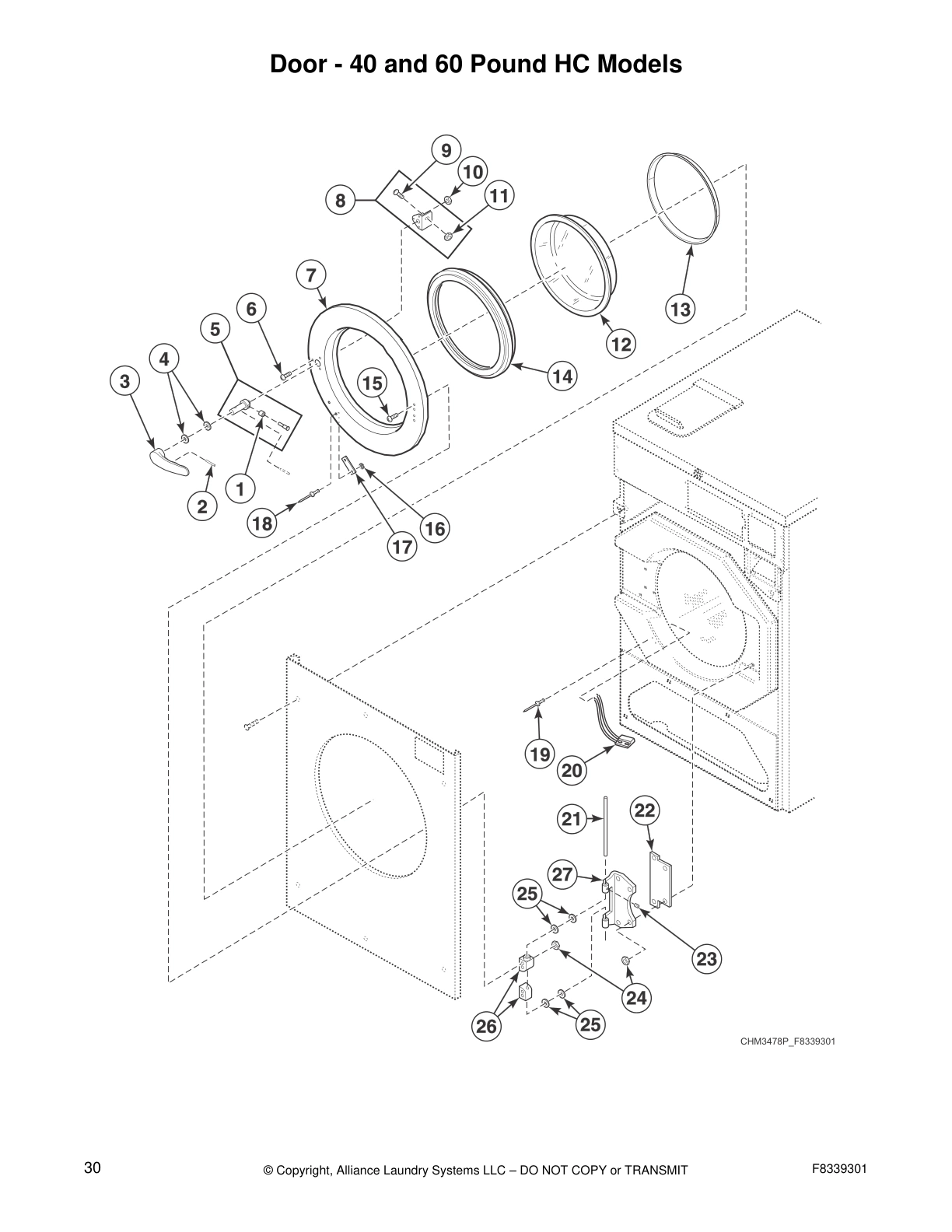

Door - 40 and 60 Pound HC Models

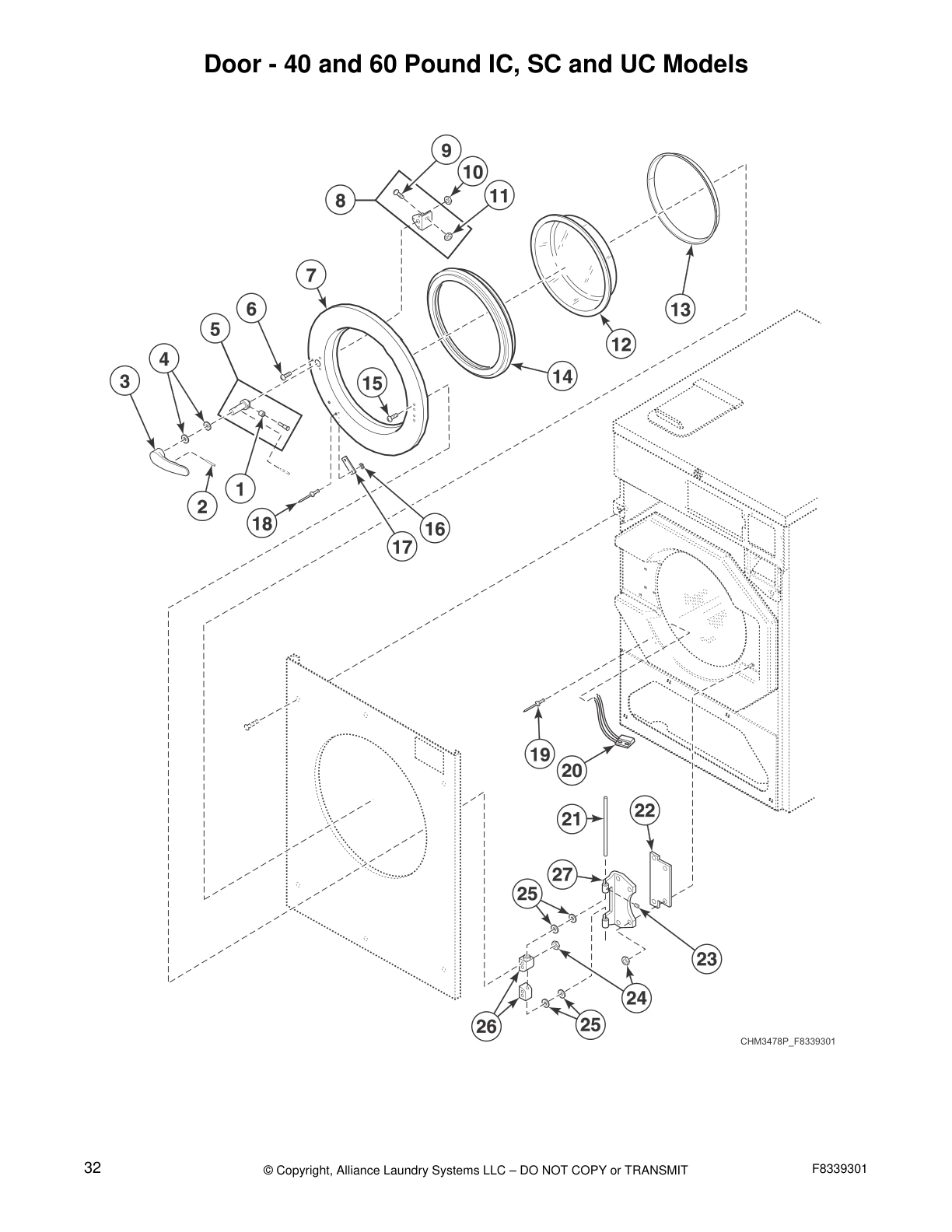

Door - 40 and 60 Pound IC, SC and UC Models

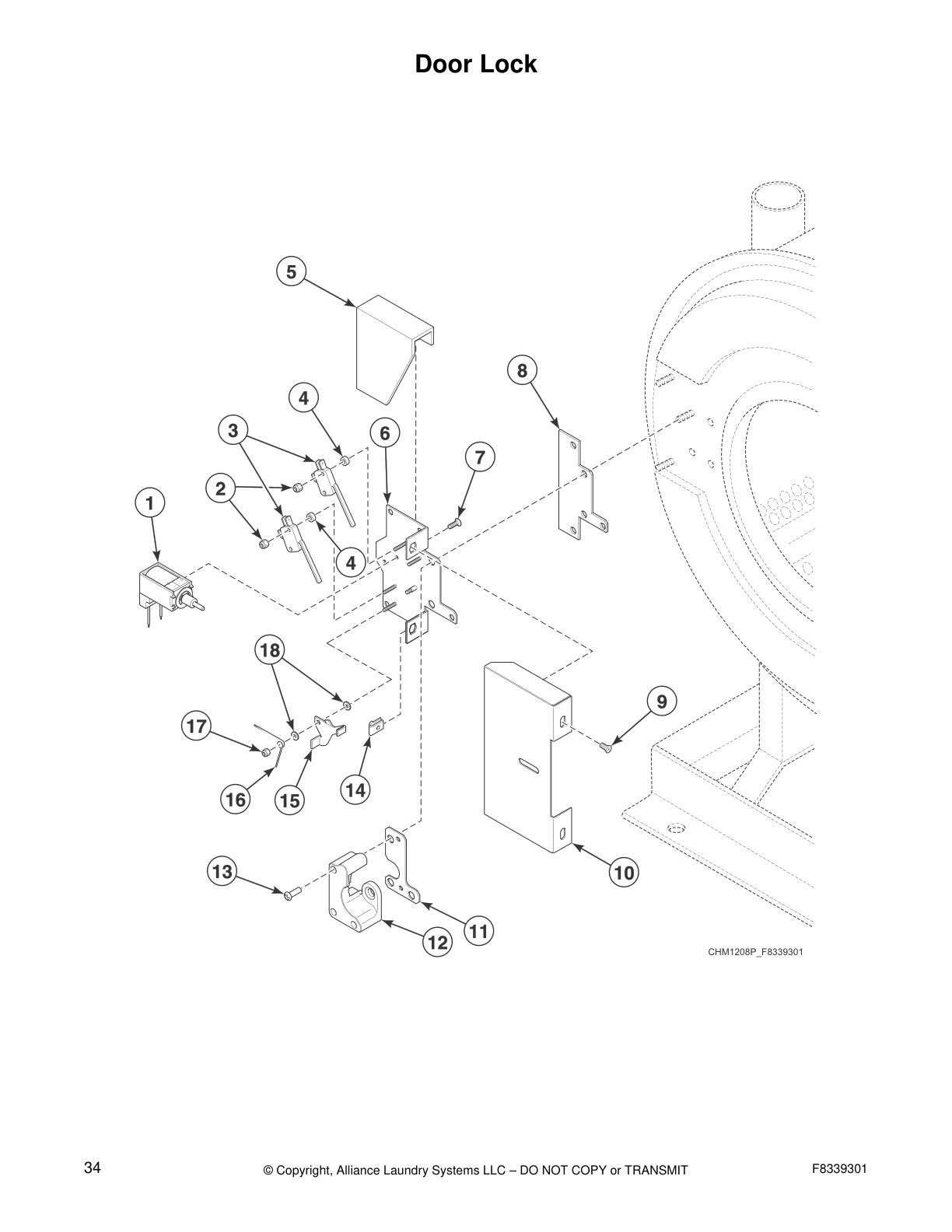

Door Lock

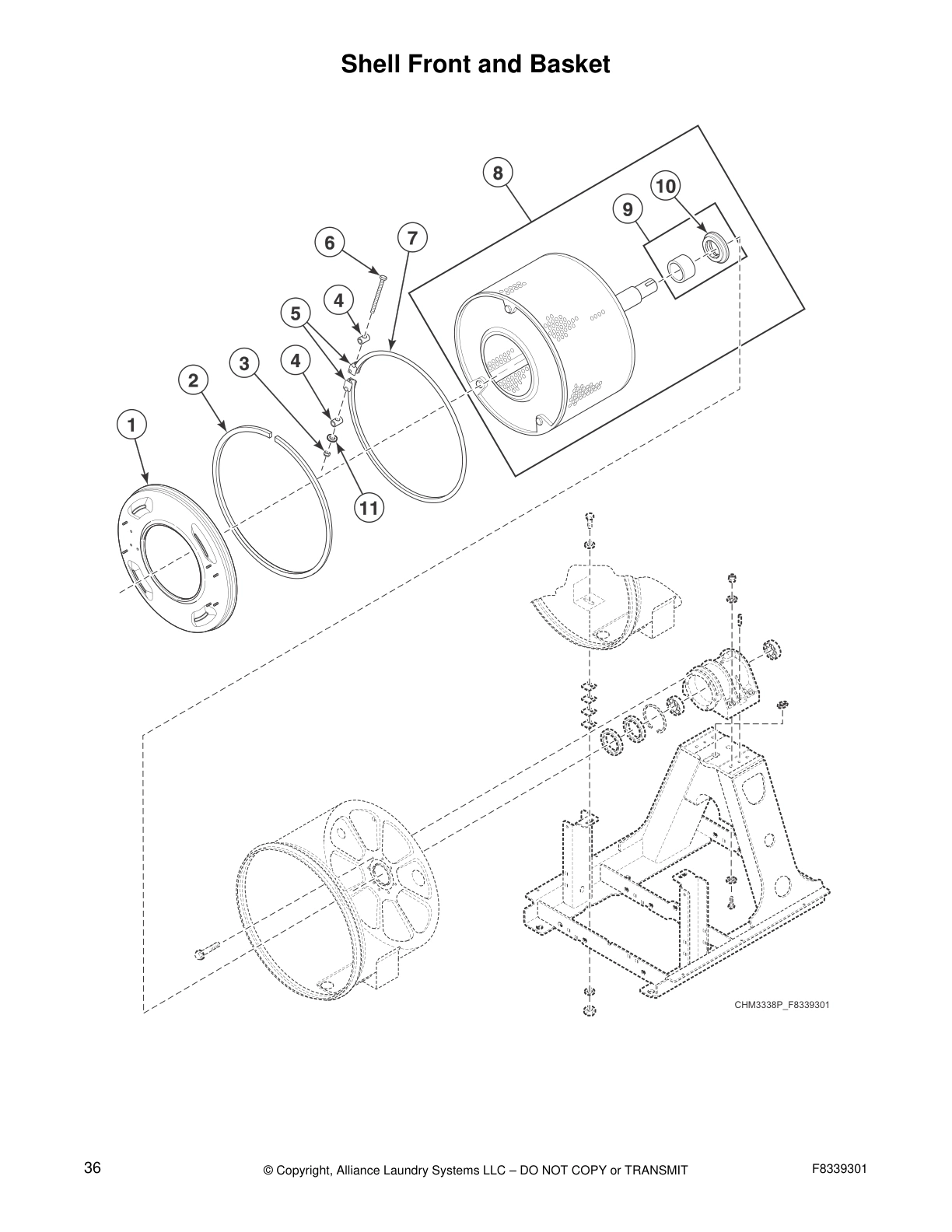

Shell Front and Basket

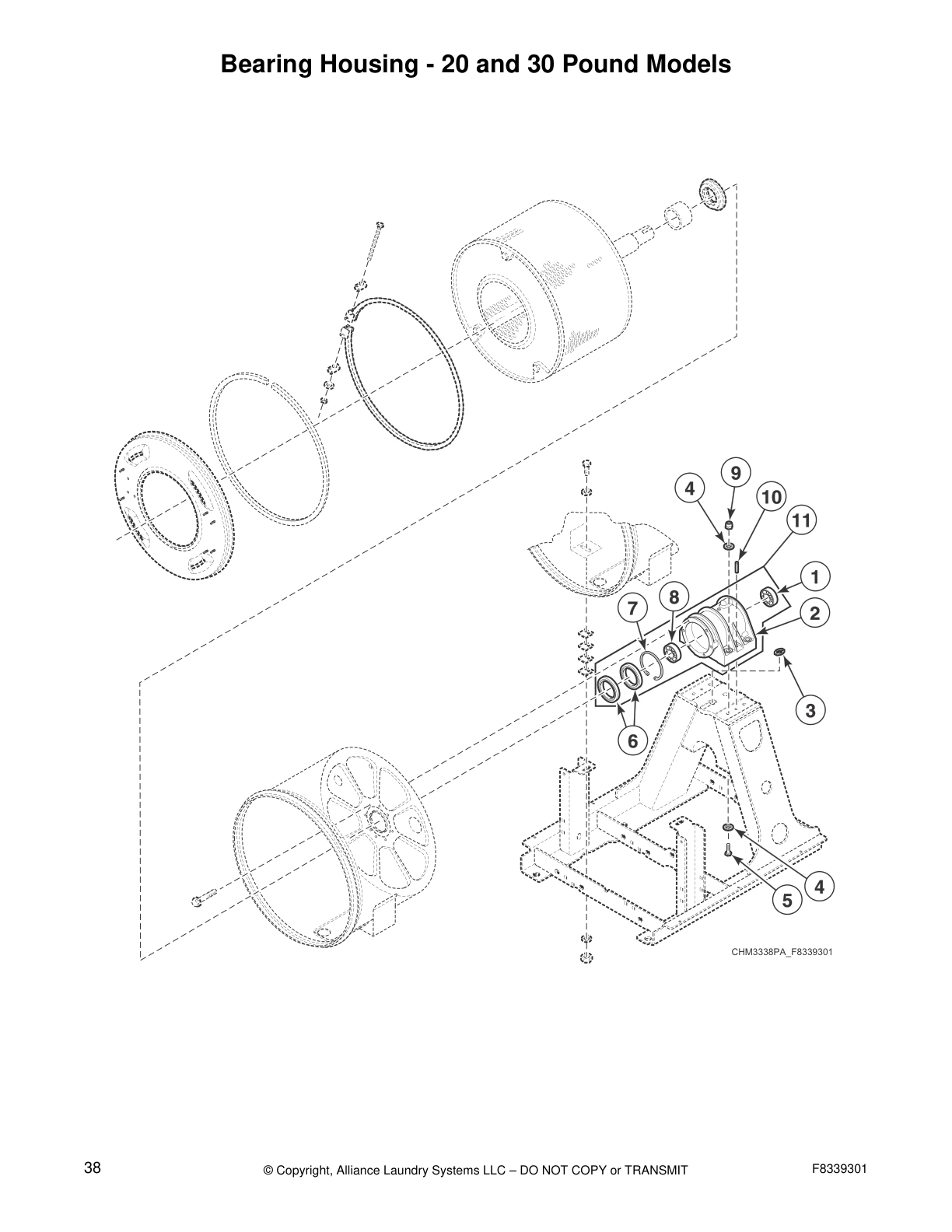

Bearing Housing - 20 and 30 Pound Models
Bearing Housing - 40 and 60 Pound Models

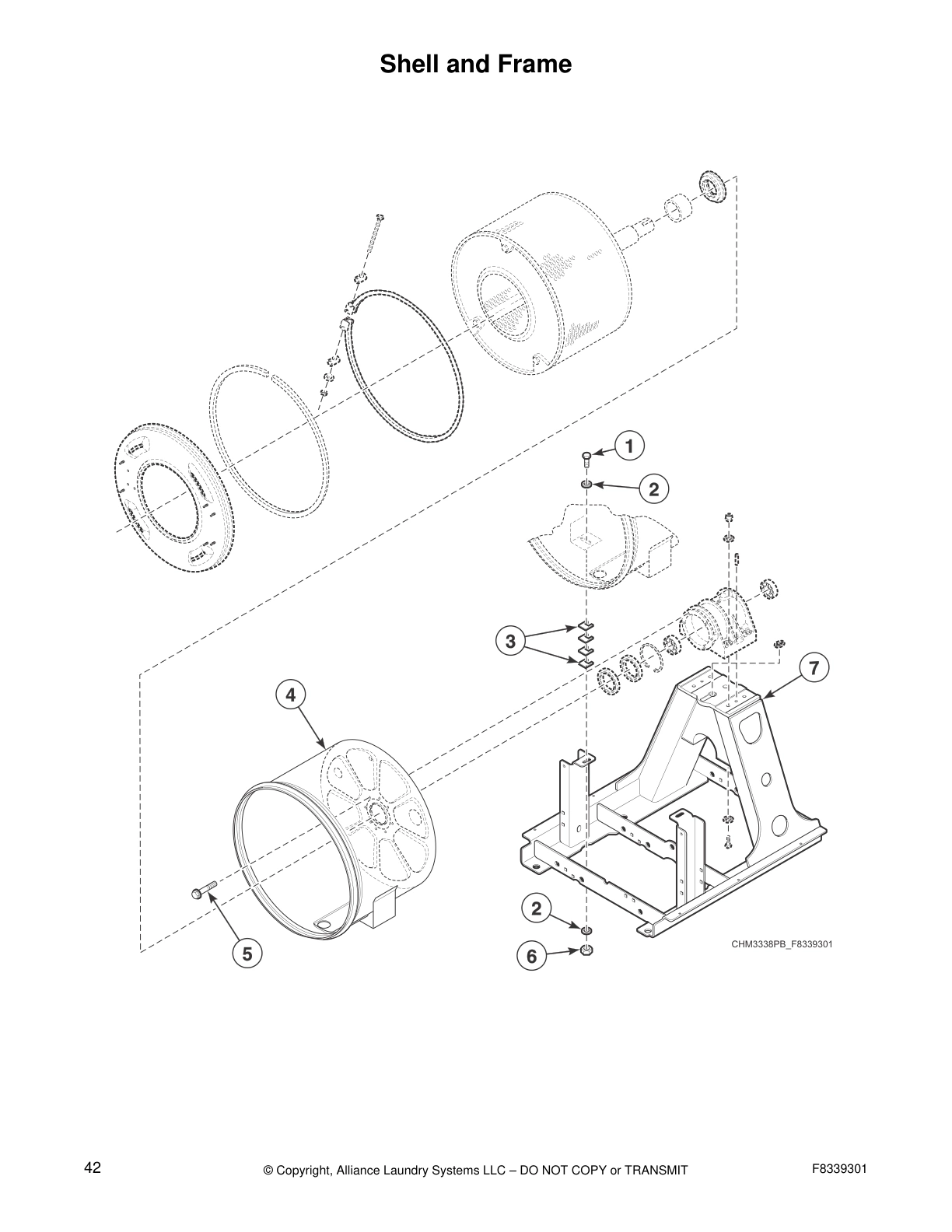

Shell and Frame

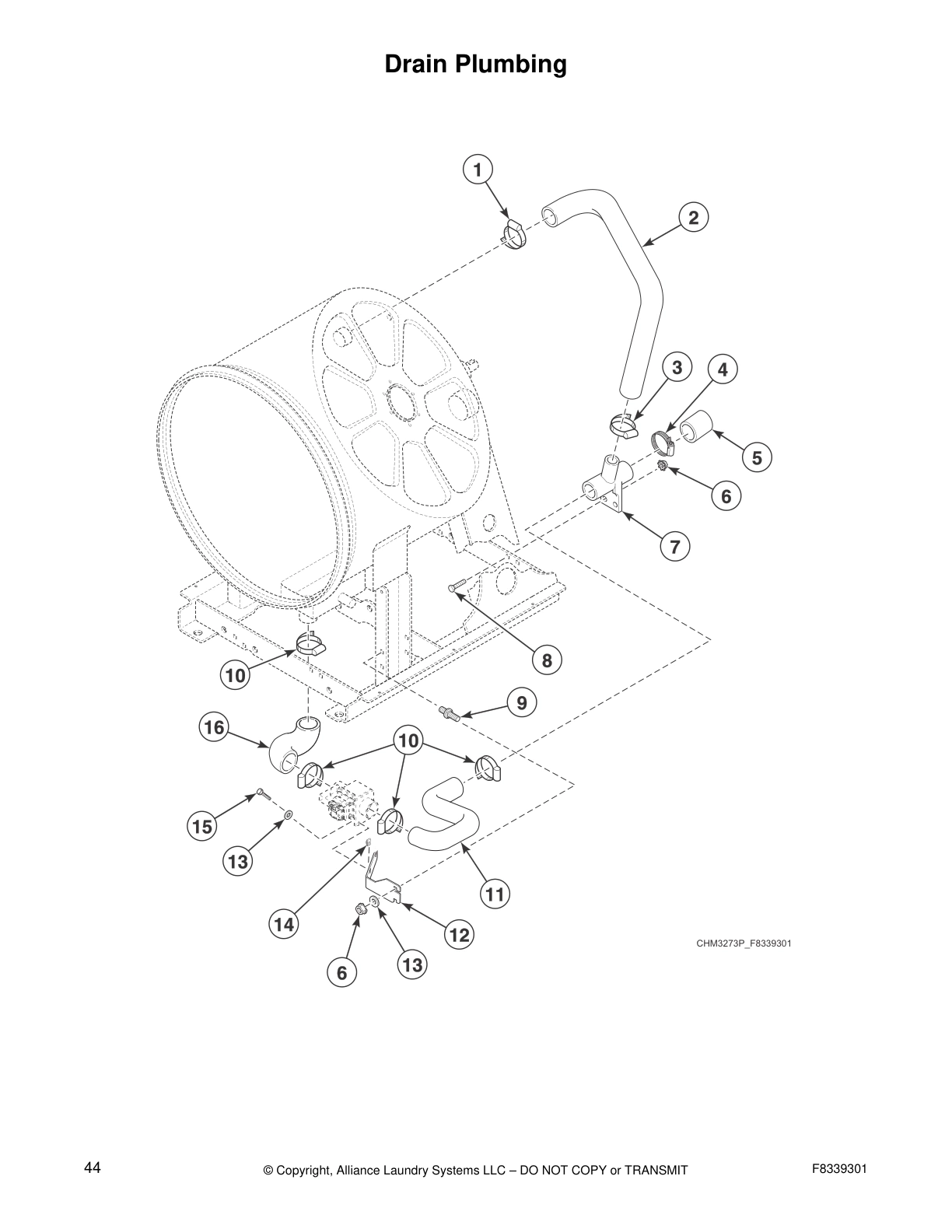

Drain Plumbing

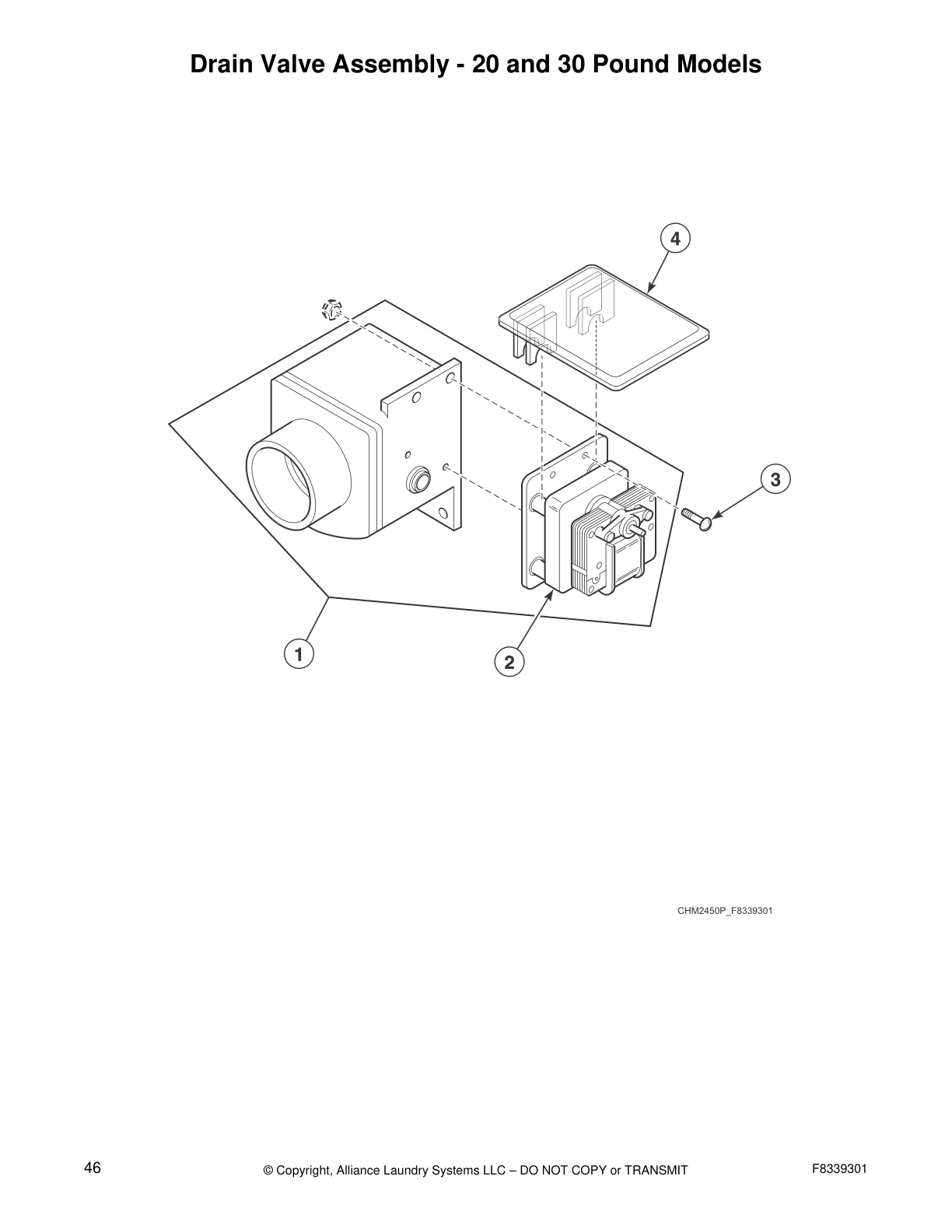

Drain Valve Assembly - 20 and 30 Pound Models

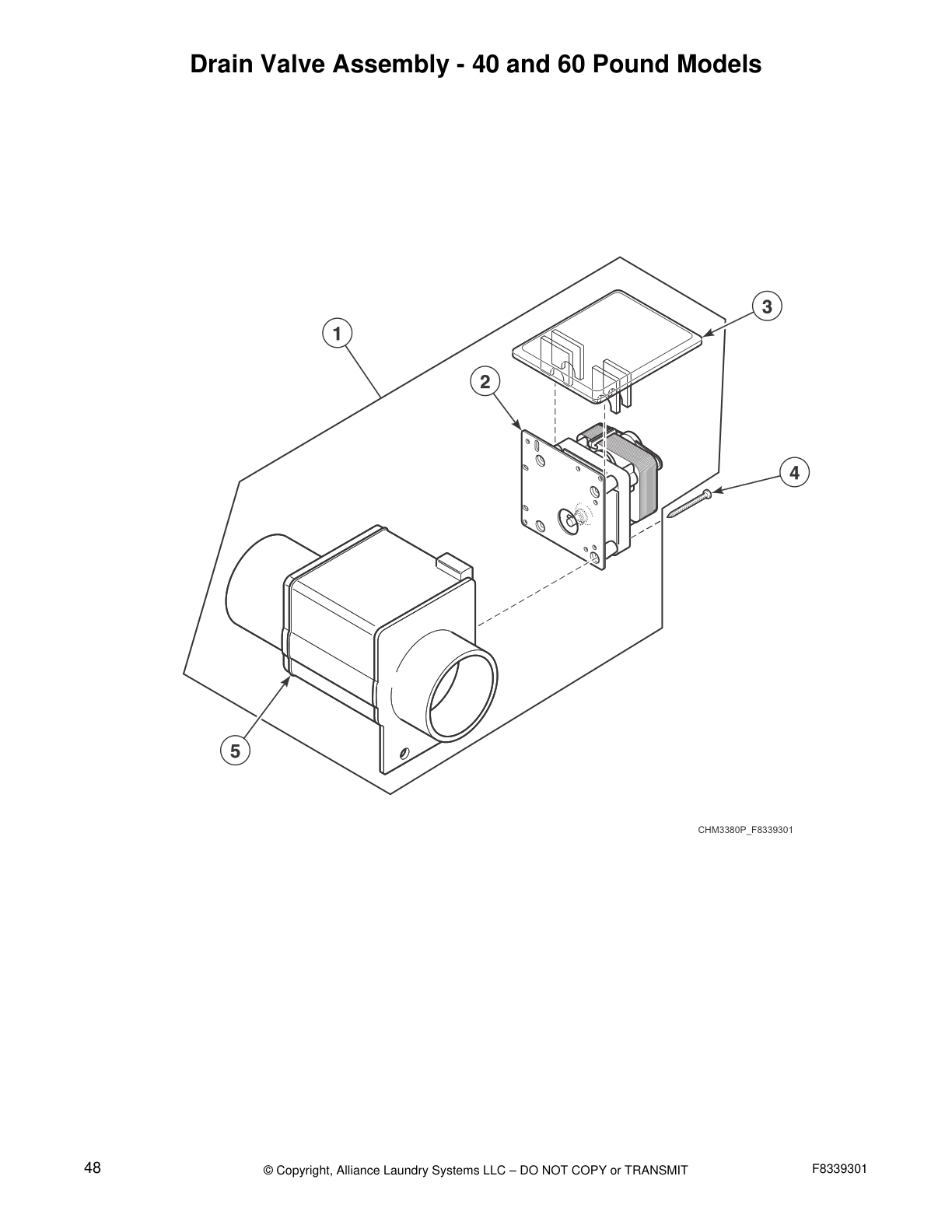

Drain Valve Assembly - 40 and 60 Pound Models

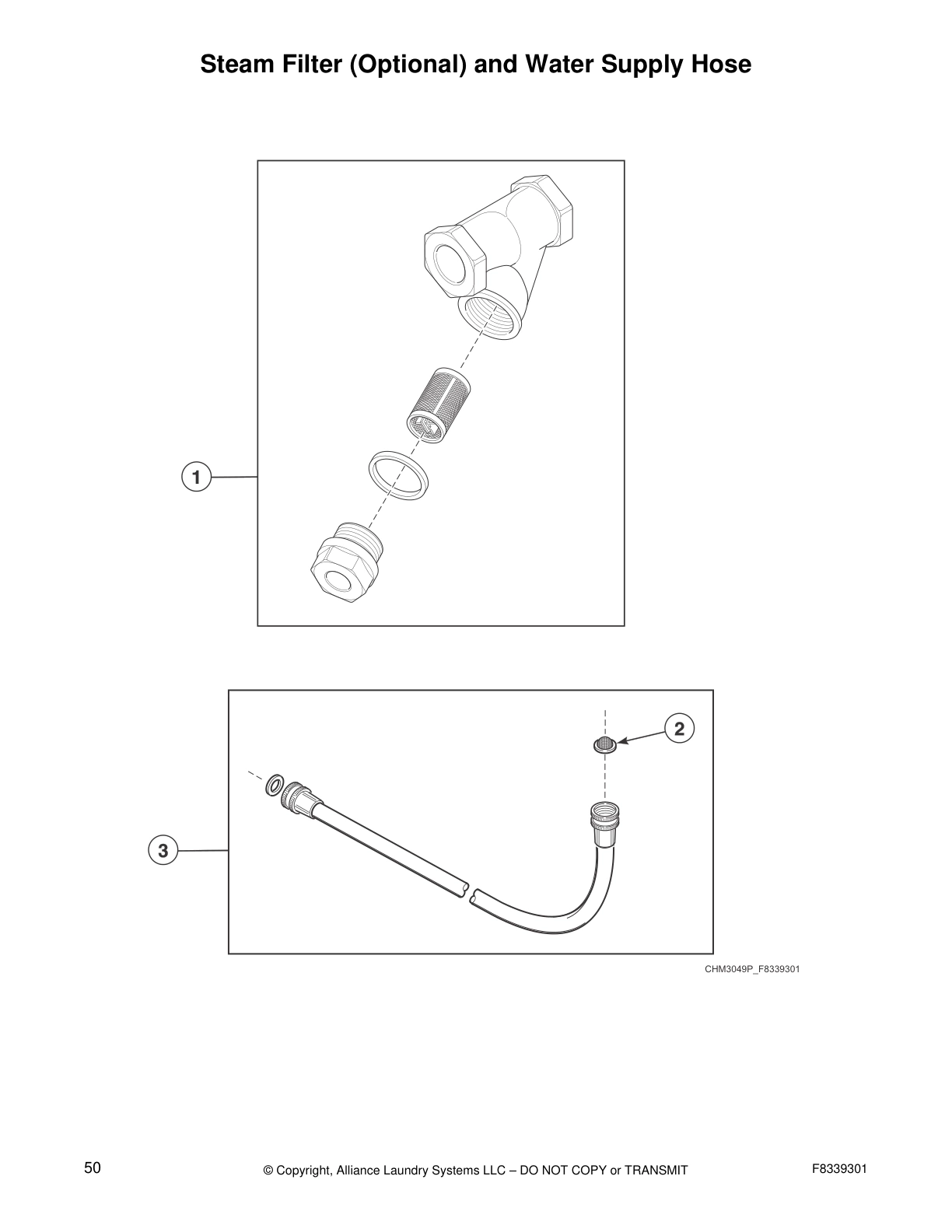

Steam Filter (Optional) and Water Supply Hose

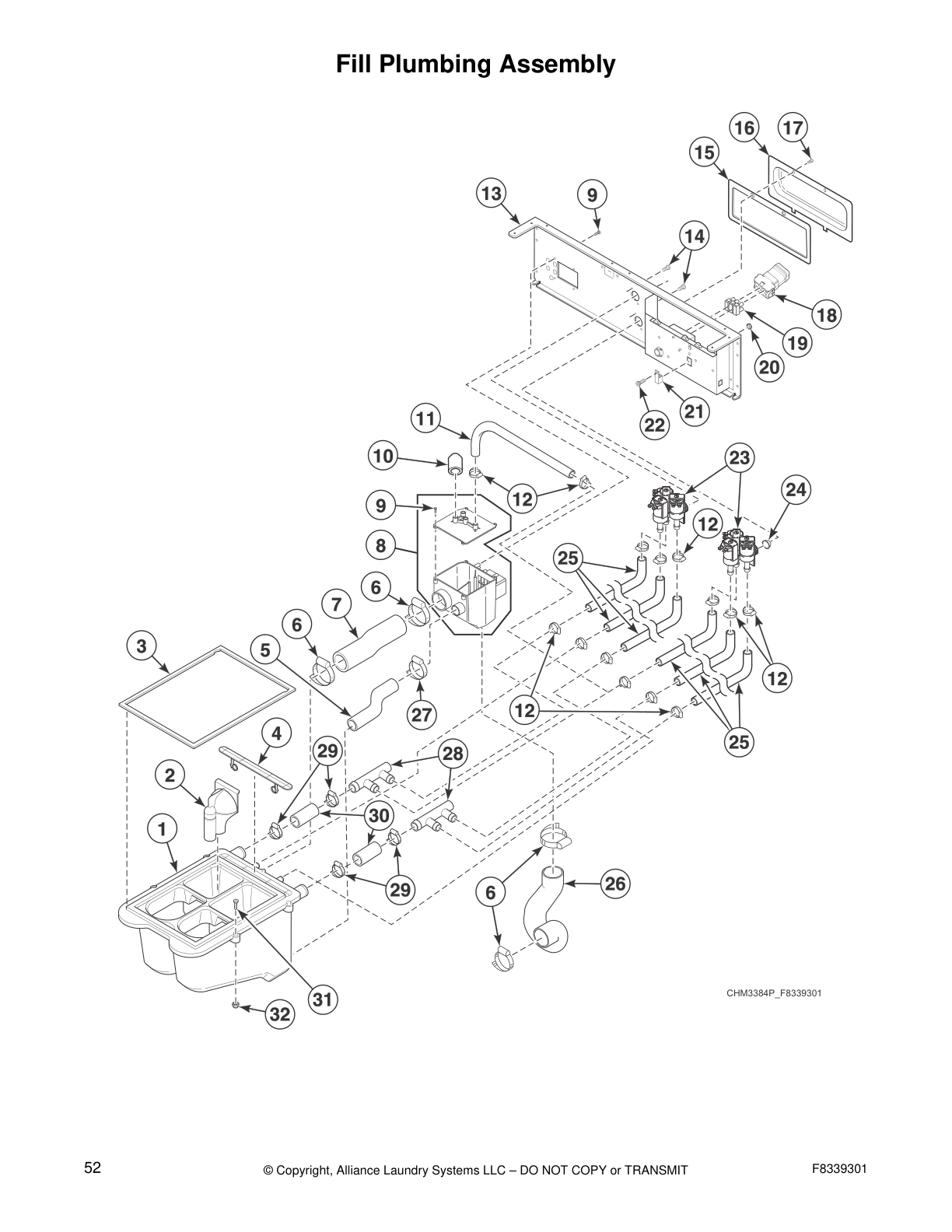

Fill Plumbing Assembly

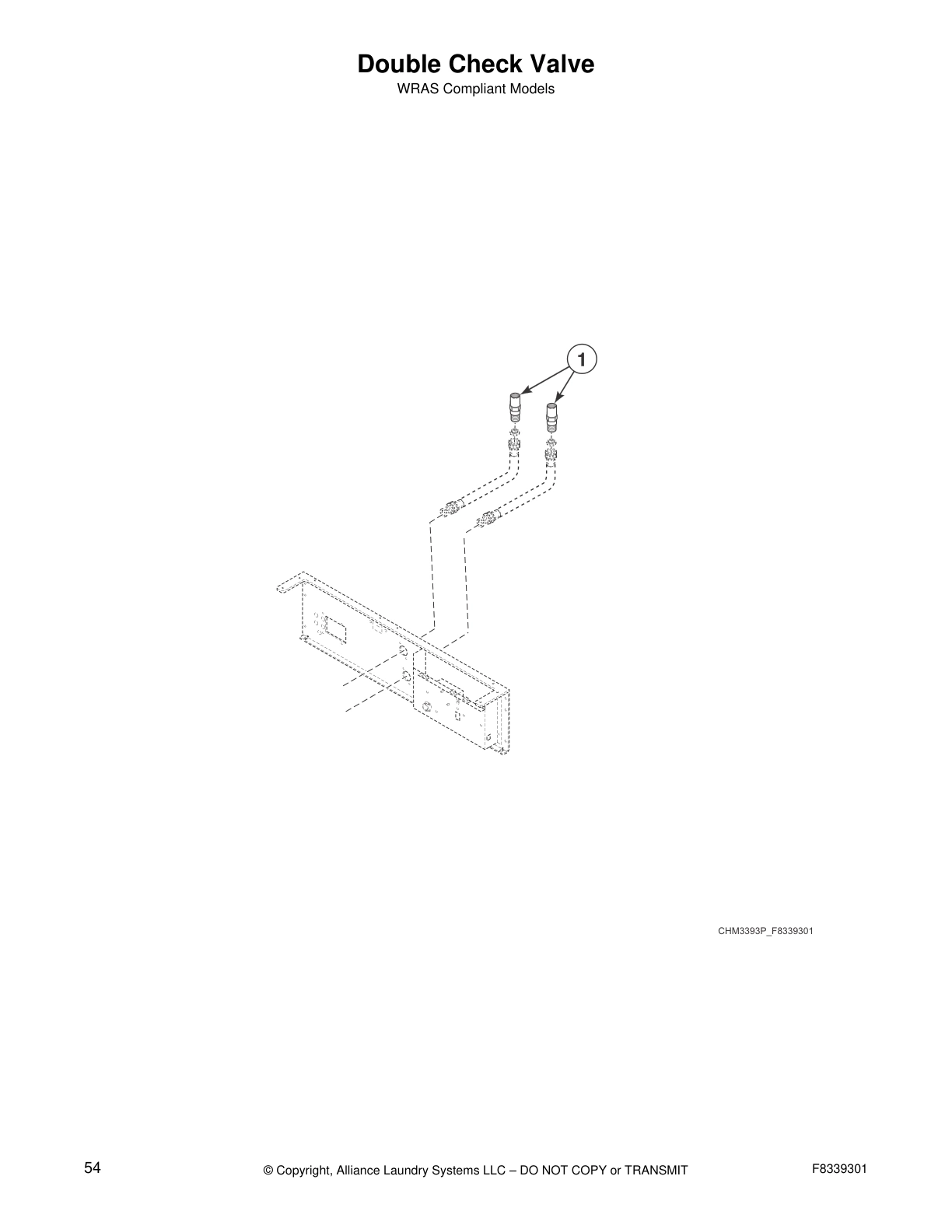

Double Check Valve
Motor, Pulley and Belt (Drawing 1 of 3)

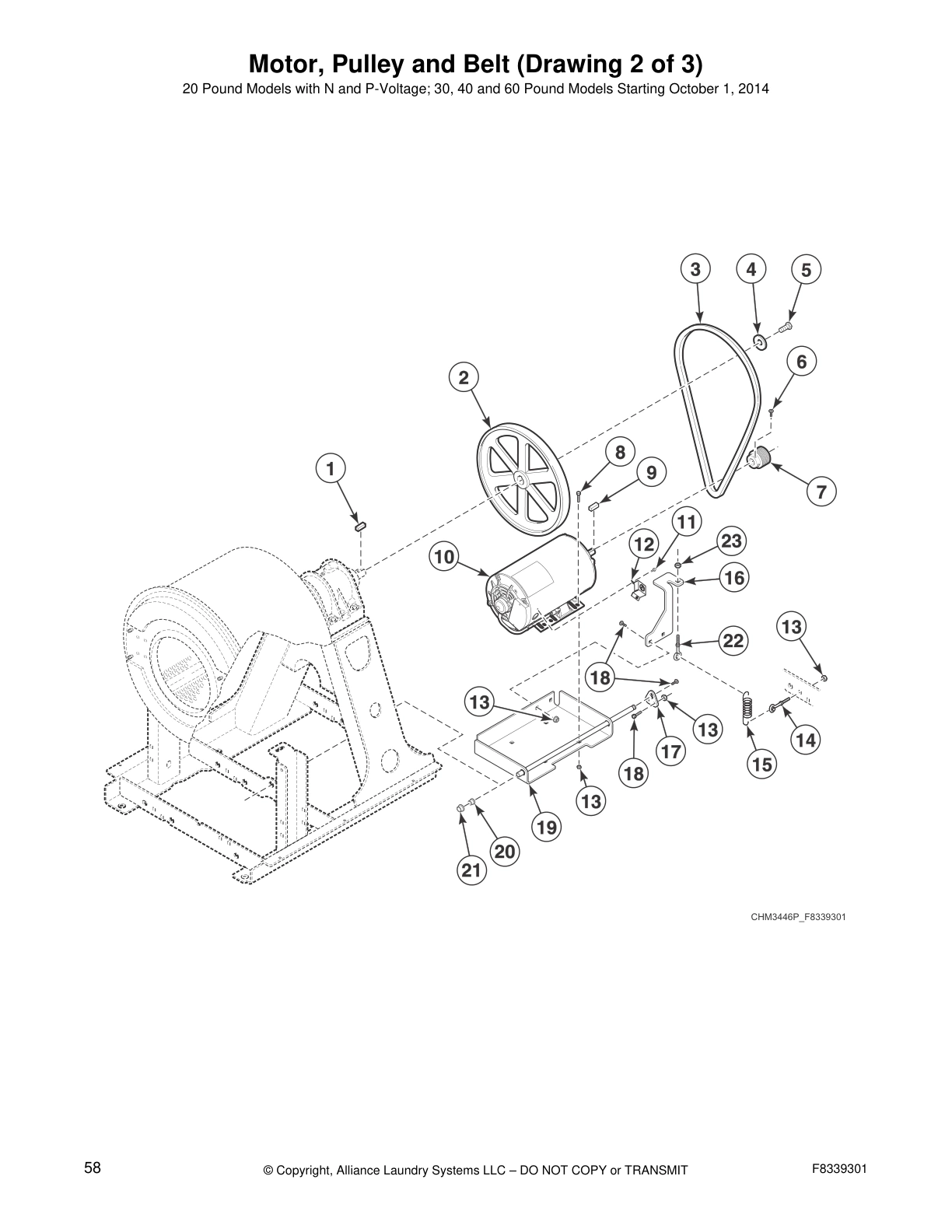

Motor, Pulley and Belt (Drawing 2 of 3)

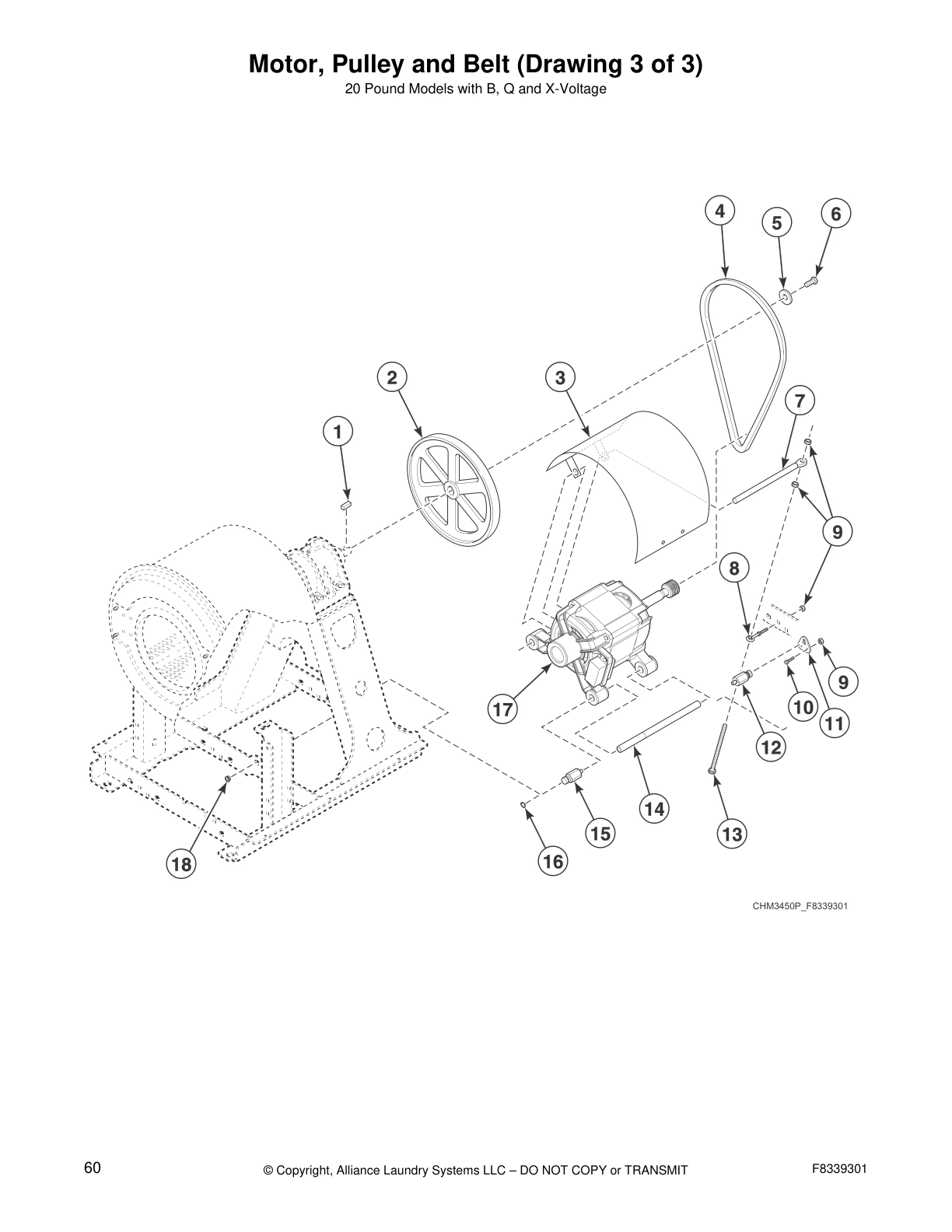

Motor, Pulley and Belt (Drawing 3 of 3)

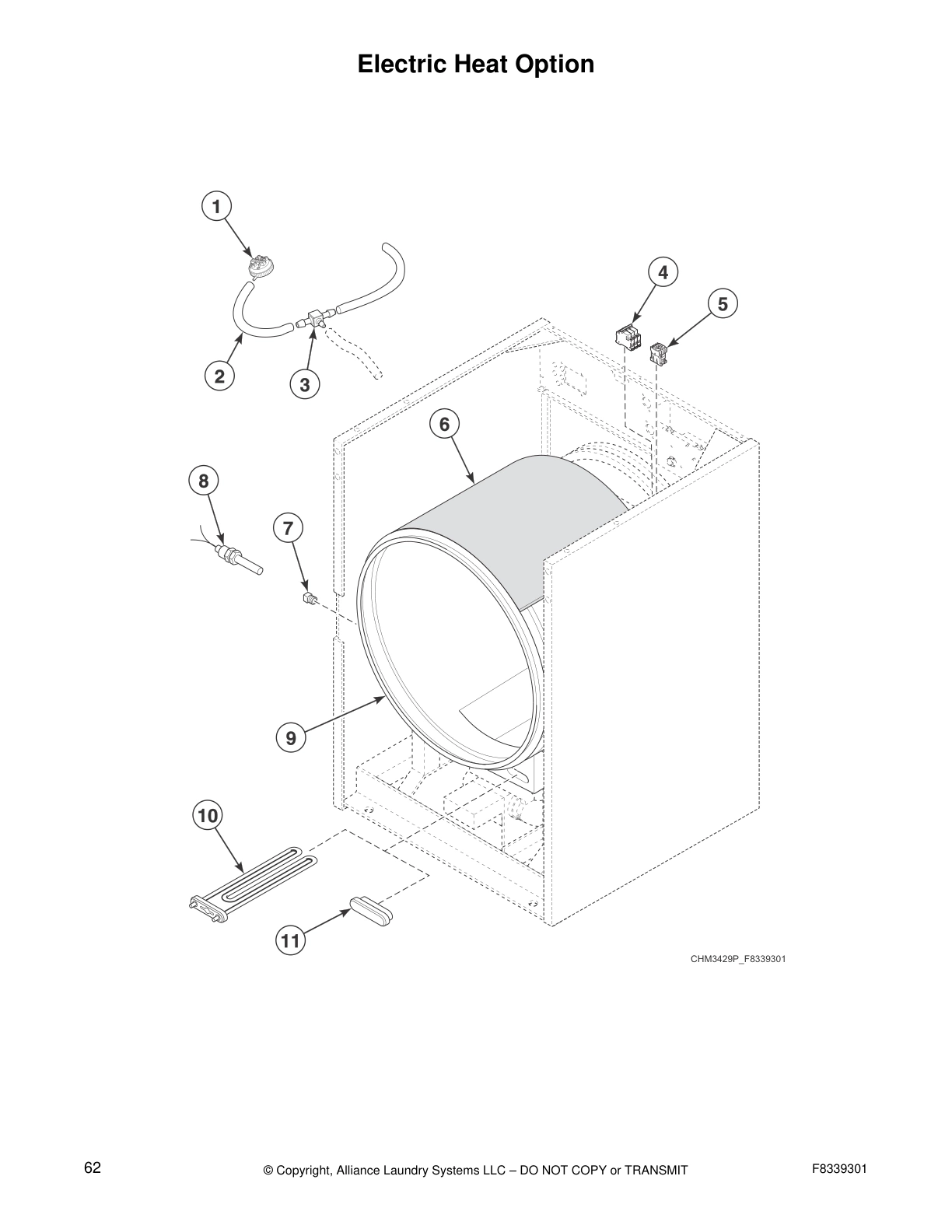

Electric Heat Option

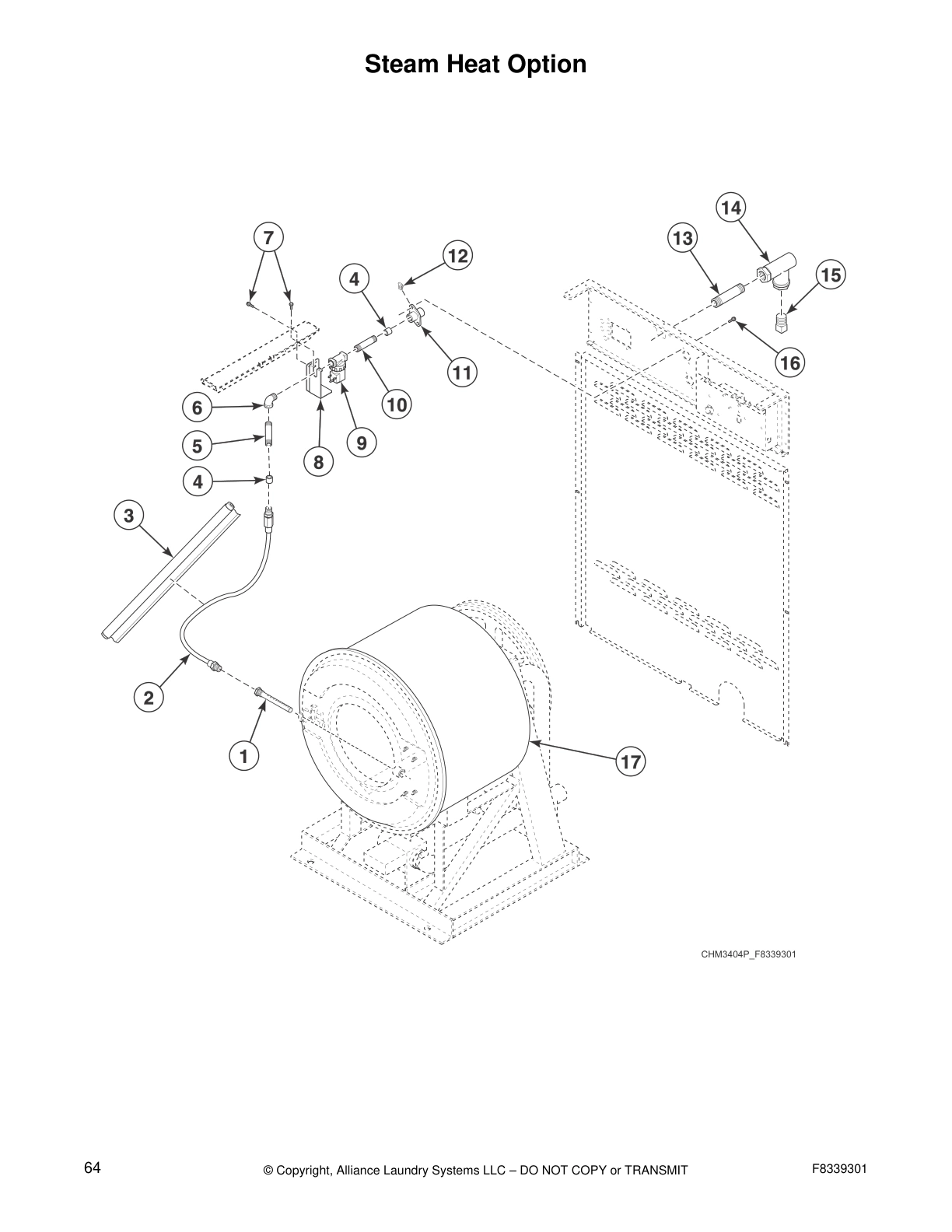

Steam Heat Option
Common parts from model UniMac UCN020GNF Washer
SPQ F8230601 SPQ F8230601 Contact Us For Availability
SPQ F8091702 SPQ F8091702 Contact Us For Availability
SPQ F8043501 SPQ F8043501 Contact Us For Availability
Models starting 8/14/2014 SPQ F430532 Contact Us For Availability
Chrome SPQ F8187208 Contact Us For Availability
Basket Pulley Puller Tool SPQ F8608502P Contact Us For Availability
SPQ F8665603 SPQ F8665603 Contact Us For Availability
SPQ F8665601 SPQ F8665601 Contact Us For Availability
Valve Kit SPQ F8382301 Contact Us For Availability
SPQ F8514601P SPQ F8514601P Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Logo SPQ F8443101 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
External Door Lock Harness SPQ F8340001 Contact Us For Availability
1
Shell Front Assembly SPQ F8229401 Contact Us For Availability
1
Bearing SPQ F100137P Contact Us For Availability
1
Screw SPQ F8621601 Contact Us For Availability
1
Drain Valve Kit SPQ F8577201 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Double Check Valve SPQ F8301201 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Water Pressure Switch SPQ F8404401 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Temperature Knob SPQ 44104601 Contact Us For Availability
2
Expansion Clip SPQ F8492302 Contact Us For Availability
2
Overlay SPQ F8219701 Contact Us For Availability
2
Pushbutton Switch SPQ F8492401 Contact Us For Availability
2
Spring Pin SPQ F8245101 Contact Us For Availability
2
Door Lock Splash Shield SPQ F430225 Contact Us For Availability
2
Bearing Housing SPQ F8271601P Contact Us For Availability
2
Bolt SPQ F8367901 Contact Us For Availability
2
Siphon Cover SPQ F8454401 Contact Us For Availability
2
Basket Pulley SPQ F150270 Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
3
Spacer SPQ F200203200 Contact Us For Availability
3
Nut SPQ F431017 Contact Us For Availability
3
Gusset Plate SPQ F8171302P Contact Us For Availability
3
Top Cover SPQ F8492404 Contact Us For Availability
3
UC models through 8/13/2014 SPQ F190216P Contact Us For Availability
3
Nut SPQ F8513501 Contact Us For Availability
3
Seal Scupper Pad SPQ F8247902 Contact Us For Availability
3
Shell Weldment SPQ F8402701 Contact Us For Availability
3
Drain Valve Cover SPQ F200133600 Contact Us For Availability
3
Motor Drip Shield SPQ F200216900 Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
4
Temperature Selector Switch Bracket SPQ 70391701 Contact Us For Availability
4
Top Cabinet Brace SPQ F8492402 Contact Us For Availability
4
Pin SPQ F430215 Contact Us For Availability
4
Black SPQ F8199401P Contact Us For Availability
4
Door Lock Plate Assembly SPQ F320200 Contact Us For Availability
4
Washer SPQ F8350301 Contact Us For Availability
4
Nut SPQ F8360603 Contact Us For Availability
4
Bolt SPQ F200182700 Contact Us For Availability
4
SPQ F606816-1 SPQ F606816-1 Contact Us For Availability
4
Eye Bolt SPQ F200201700P Contact Us For Availability
4
Circuit Breaker SPQ 70256901P Contact Us For Availability
4
Steam Bracket SPQ F8116301 Contact Us For Availability
5
Control Panel Assembly SPQ F8186702 Contact Us For Availability
5
SPQ F8399204 SPQ F8399204 Contact Us For Availability
5
Screw SPQ F431901 Contact Us For Availability
5
Clamp Ring Bracket SPQ F8302701 Contact Us For Availability
5
Screw SPQ F8366601 Contact Us For Availability
5
SPQ F8535601 SPQ F8535601 Contact Us For Availability
5
Washer SPQ F431115 Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
6
Top Cover Latch SPQ F8038505 Contact Us For Availability
6
SPQ F8399202 SPQ F8399202 Contact Us For Availability
6
Door Handle
UC models SPQ F8435501 Contact Us For Availability
6
Door Lock Plate Shim SPQ F8223202 Contact Us For Availability
6
Screw SPQ F8302401 Contact Us For Availability
6
Triple Lip Seal SPQ F8368701 Contact Us For Availability
6
Concrete Kit SPQ F8442702 Contact Us For Availability
6
SPQ F0431807-00 SPQ F0431807-00 Contact Us For Availability
6
Pipe Insulation SPQ F410300 Contact Us For Availability
6
DIN Valve Kit SPQ H86070034 Contact Us For Availability
7
Pop Rivet SPQ F8038503 Contact Us For Availability
7
SPQ 70413301 SPQ 70413301 Contact Us For Availability
7
Valve SPQ F8206901 Contact Us For Availability
7
Door Lock Solenoid Replacement SPQ F430977 Contact Us For Availability
7
Retaining Ring SPQ F8203801 Contact Us For Availability
7
SPQ F8047801 SPQ F8047801 Contact Us For Availability
7
Washer SPQ M400077 Contact Us For Availability
7
Spring Mount Rod SPQ F8361301 Contact Us For Availability
7
Plug SPQ F200202600 Contact Us For Availability
8
Washer SPQ F8201001 Contact Us For Availability
8
Models starting 8/14/2014 SPQ F431916 Contact Us For Availability
8
SPQ F8344401 SPQ F8344401 Contact Us For Availability
8
Basket Assembly SPQ F8537801 Contact Us For Availability
8
Nut SPQ F8344901 Contact Us For Availability
8
SPQ F430522 SPQ F430522 Contact Us For Availability
8
SPQ F8043401 SPQ F8043401 Contact Us For Availability
8
Motor Pulley SPQ F8362501 Contact Us For Availability
8
Eye Bolt SPQ F8404501 Contact Us For Availability
8
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
Steam Heat Kit SPQ F8490301 Contact Us For Availability
9
Basket Puller Tool SPQ F100136P Contact Us For Availability
9
Water Pressure Switch SPQ F980P3 Contact Us For Availability
9
SPQ 70412601 SPQ 70412601 Contact Us For Availability
9
SPQ F8230501 SPQ F8230501 Contact Us For Availability
9
Door
Chrome SPQ F0602431-02 Contact Us For Availability
9
Shaft Seal Sleeve Kit SPQ F8391303 Contact Us For Availability
9
SPQ F200213 SPQ F200213 Contact Us For Availability
9
Motor Harness
30 and 40 pound models N and P- SPQ H8752006H Contact Us For Availability
9
DIN Valve Adapter Kit SPQ F8521501 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Excluder Seal SPQ F8336801 Contact Us For Availability
10
Dowel Pin SPQ F8388101 Contact Us For Availability
10
Bolt SPQ F8402801 Contact Us For Availability
10
Rear Drain Hose SPQ F8365601 Contact Us For Availability
10
Cap SPQ F8047402 Contact Us For Availability
10
Motor
20, 30 and 40 pound models SPQ F8335001P Contact Us For Availability
10
Element SPQ F360205P Contact Us For Availability
10
Pipe Nipple SPQ 70263801 Contact Us For Availability
11
Bolt SPQ F431041 Contact Us For Availability
11
Shim SPQ F8484401 Contact Us For Availability
11
Washer SPQ F8336802 Contact Us For Availability
11
Bearing Housing Assembly SPQ F8271602 Contact Us For Availability
11
Bracket SPQ F8365401 Contact Us For Availability
11
Vacuum Breaker Hose SPQ F8197701 Contact Us For Availability
11
Screw SPQ 23222 Contact Us For Availability
11
Motor Rod Plate SPQ F8441101 Contact Us For Availability
11
Heating Element Plug SPQ F360202 Contact Us For Availability
11
Coupling SPQ F8362701 Contact Us For Availability
12
Front Panel SPQ F8173801 Contact Us For Availability
12
Top Cover Hinge SPQ F8258601 Contact Us For Availability
12
Door Gasket
Black SPQ F290205P Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Washer SPQ M405535 Contact Us For Availability
12
Nut SPQ 70030401 Contact Us For Availability
12
Hose Clamp SPQ F0200244-02 Contact Us For Availability
12
Motor Conduit Mounting Bracket SPQ 70321701 Contact Us For Availability
12
Motor Rod Extension SPQ F8387101 Contact Us For Availability
13
Plug SPQ M400985 Contact Us For Availability
13
Bolt SPQ F8270701 Contact Us For Availability
13
Screw SPQ F8406601 Contact Us For Availability
13
Steam Filter SPQ 431486 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Hole Plug SPQ F8223901 Contact Us For Availability
14
Bolt SPQ F200000202 Contact Us For Availability
14
Screw SPQ 202175 Contact Us For Availability
14
Screw SPQ F8398701 Contact Us For Availability
14
Motor Mount Rod SPQ 801062 Contact Us For Availability
15
Rear Panel SPQ F8223801 Contact Us For Availability
15
Bolt
Polished SPQ F430974 Contact Us For Availability
15
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
15
Drain Hose SPQ F8261303 Contact Us For Availability
15
Terminal Tray Cover Gasket SPQ F8230301 Contact Us For Availability
15
Extension Spring SPQ F310124 Contact Us For Availability
15
Motor Isolation Kit SPQ F8562504 Contact Us For Availability
15
Screw SPQ F420409 Contact Us For Availability
16
Grommet SPQ F8433001 Contact Us For Availability
16
Expansion Clip SPQ F8492501 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
16
Overflow Hose SPQ F8261302 Contact Us For Availability
16
Terminal Tray Cover SPQ F8230001 Contact Us For Availability
16
Spring Plate SPQ F8363901 Contact Us For Availability
16
Spring Plate SPQ F8525801 Contact Us For Availability
16
Flanged Bushing SPQ F8333302 Contact Us For Availability
16
Shell Weldment SPQ 20253 Contact Us For Availability
17
Right Side Panel SPQ F8362401 Contact Us For Availability
17
Magnet SPQ F8508101 Contact Us For Availability
17
Street Elbow SPQ F8360602 Contact Us For Availability
17
Harness SPQ F8177001 Contact Us For Availability
17
Induction Motor SPQ 801194P Contact Us For Availability
18
Pop Rivet SPQ F8390801 Contact Us For Availability
18
Door Lock Microswitch SPQ F431902 Contact Us For Availability
18
Spacer SPQ F8451601 Contact Us For Availability
19
Left Side Panel SPQ F8492403 Contact Us For Availability
19
Blind Rivet SPQ F431223 Contact Us For Availability
19
Basket Pulley
20 pound models SPQ F8387601 Contact Us For Availability
19
Terminal Block SPQ F8454601 Contact Us For Availability
19
Motor Bracket Weldment
20 and 30 pound models SPQ F8441603 Contact Us For Availability
20
Reed Switch Assembly SPQ F431222 Contact Us For Availability
20
Nut SPQ 430642 Contact Us For Availability
20
Contact Switch SPQ F8322401 Contact Us For Availability
20
Bolt SPQ F8399203 Contact Us For Availability
20
Motor Isolation Kit
20 and 30 pound models SPQ F8562501 Contact Us For Availability
21
Transformer SPQ F8069501 Contact Us For Availability
21
Dispenser Lid SPQ F8399201 Contact Us For Availability
21
Ground Lug Connector SPQ F8047901 Contact Us For Availability
21
Use with 2 h SPQ F8441601 Contact Us For Availability
21
Includes F8535 Plate and F8535201 Isolator SPQ F8535202 Contact Us For Availability
22
Lid Clamp SPQ 44089303P Contact Us For Availability
22
3-Way Valve SPQ F430232 Contact Us For Availability
22
Door Hinge Shim Kit SPQ F602813-2 Contact Us For Availability
22
Motor Bracket Weldment
20 and 30 pound models SPQ F8441901 Contact Us For Availability
23
Screw SPQ F200131000P Contact Us For Availability
23
Washer SPQ M411283 Contact Us For Availability
23
O-Ring SPQ F8333301 Contact Us For Availability
23
Flanged Isolator SPQ F8319503 Contact Us For Availability
24
Washer SPQ F430536 Contact Us For Availability
24
Hose SPQ F430909 Contact Us For Availability
25
P-Trap Hose SPQ F8286402P Contact Us For Availability
26
Door Hinge SPQ F431929 Contact Us For Availability
26
Manifold SPQ F8286401P Contact Us For Availability
27
Door Handle
SC models SPQ F150271 Contact Us For Availability
28
Access Cover SPQ F8232004 Contact Us For Availability
29
Dispenser Overflow Hose SPQ F8042201 Contact Us For Availability
30
Vacuum Breaker Assembly SPQ F8333201 Contact Us For Availability
31
Regulator SPQ F200222 Contact Us For Availability
32
Diaphragm and Guide Kit SPQ F8308301 Contact Us For Availability
NI
SPQ F8048101 SPQ F8048101 Contact Us For Availability
NI
SPQ F8567501 SPQ F8567501 Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
SPQ F8385102 SPQ F8385102 Contact Us For Availability
NI
SPQ F430174 SPQ F430174 Contact Us For Availability
NI
SPQ F8201101 SPQ F8201101 Contact Us For Availability
NI
SPQ F8186701 SPQ F8186701 Contact Us For Availability
NI
Control Panel Overlay SPQ F8531501 Contact Us For Availability
NI
SPQ F8091701 SPQ F8091701 Contact Us For Availability
NI
SPQ F8040201 SPQ F8040201 Contact Us For Availability
NI
Door Handle Spacer Kit
Includes items 9 and 1 SPQ F8535501 Contact Us For Availability
NI
Door Handle Spacer Kit
Includes items 9 and 1 SPQ F8507501P Contact Us For Availability
NI
Includes i 21-27 SPQ F8187209 Contact Us For Availability
NI
Door Assembly
UC models SPQ F8187202 Contact Us For Availability
NI
SPQ F977P3 SPQ F977P3 Contact Us For Availability
NI
Basket Puller Tool SPQ F460129P Contact Us For Availability
NI
Basket Puller Tool SPQ F8391301P Contact Us For Availability
NI
Basket Rental Tool Kit SPQ F8343901P Contact Us For Availability
NI
Basket Rental Tool Kit SPQ 390P4-1 Contact Us For Availability
NI
SPQ F8388001 SPQ F8388001 Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
NI
SPQ F8433301 SPQ F8433301 Contact Us For Availability
NI
SPQ 1111P SPQ 1111P Contact Us For Availability
NI
Hose Clamp SPQ F200215 Contact Us For Availability
NI
SPQ 70334702 SPQ 70334702 Contact Us For Availability
NI
Fill Hose Kit SPQ F8665604 Contact Us For Availability
NI
SPQ F8665602 SPQ F8665602 Contact Us For Availability
NI
SPQ F8544601 SPQ F8544601 Contact Us For Availability
NI
SPQ F8042801 SPQ F8042801 Contact Us For Availability
NI
SPQ F8048601 SPQ F8048601 Contact Us For Availability
NI
SPQ F8402201 SPQ F8402201 Contact Us For Availability
NI
SPQ G582P3 SPQ G582P3 Contact Us For Availability
NI
SPQ F8396601 SPQ F8396601 Contact Us For Availability
NI
Motor Harness SPQ F8384801 Contact Us For Availability
NI
Jumper Wire SPQ F8056001 Contact Us For Availability
NI
Steam Valve Repair Kit SPQ F8322801P Contact Us For Availability
NI
Coil SPQ F953P3 Contact Us For Availability
NI
SPQ F8379501P SPQ F8379501P Contact Us For Availability
× ![]()
