Model UniMac UCL060GNF Washer – Common Parts & Diagrams

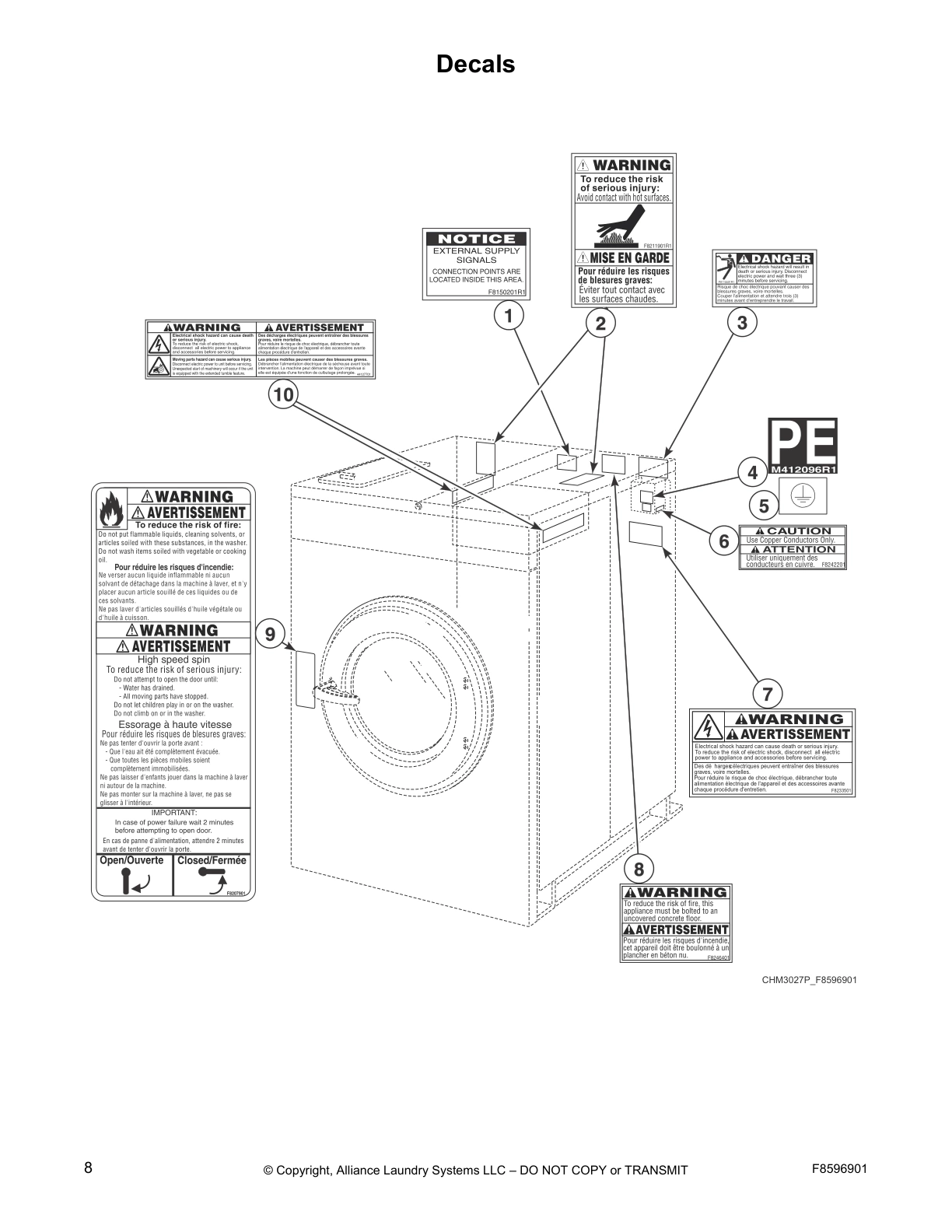

Decals

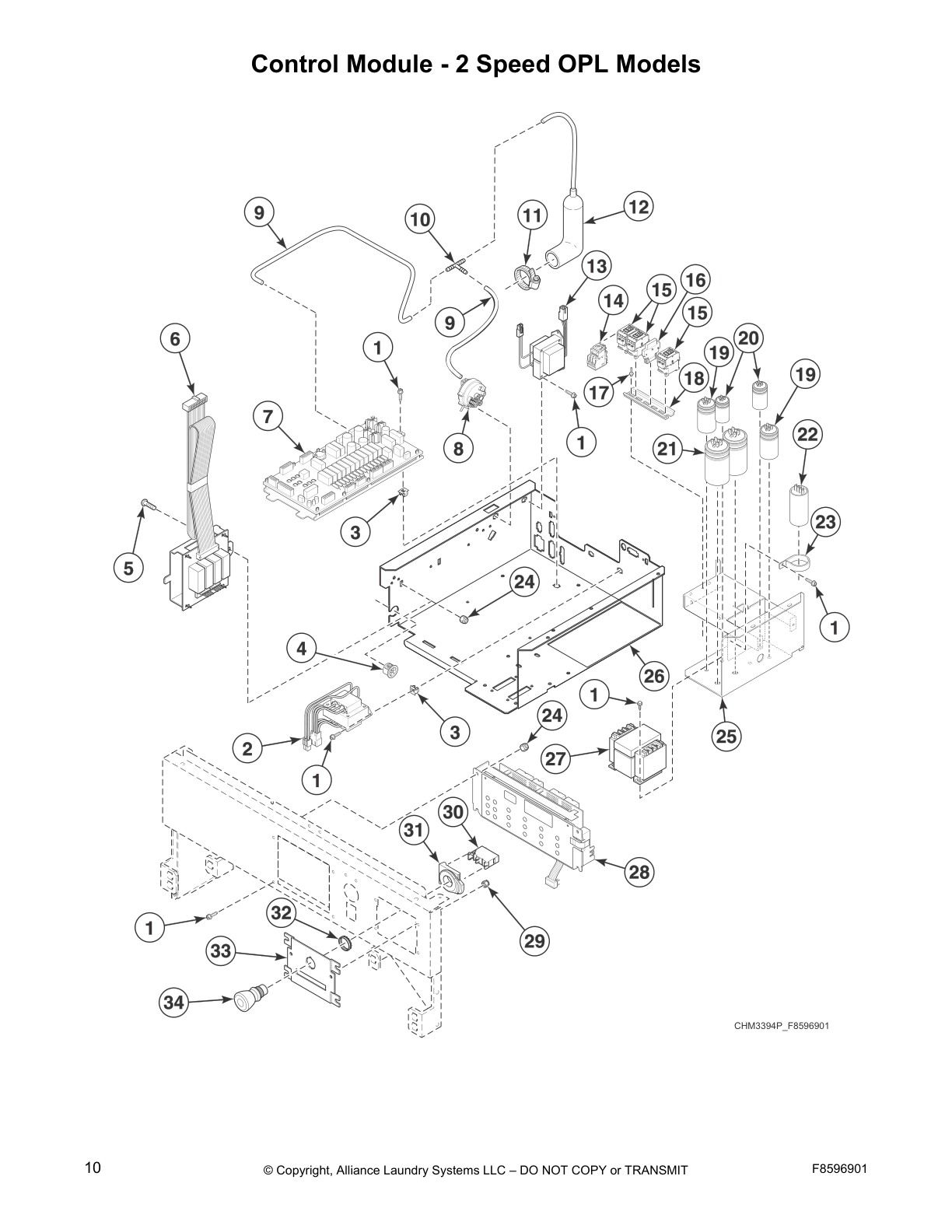

Control Module - 2 Speed OPL Models

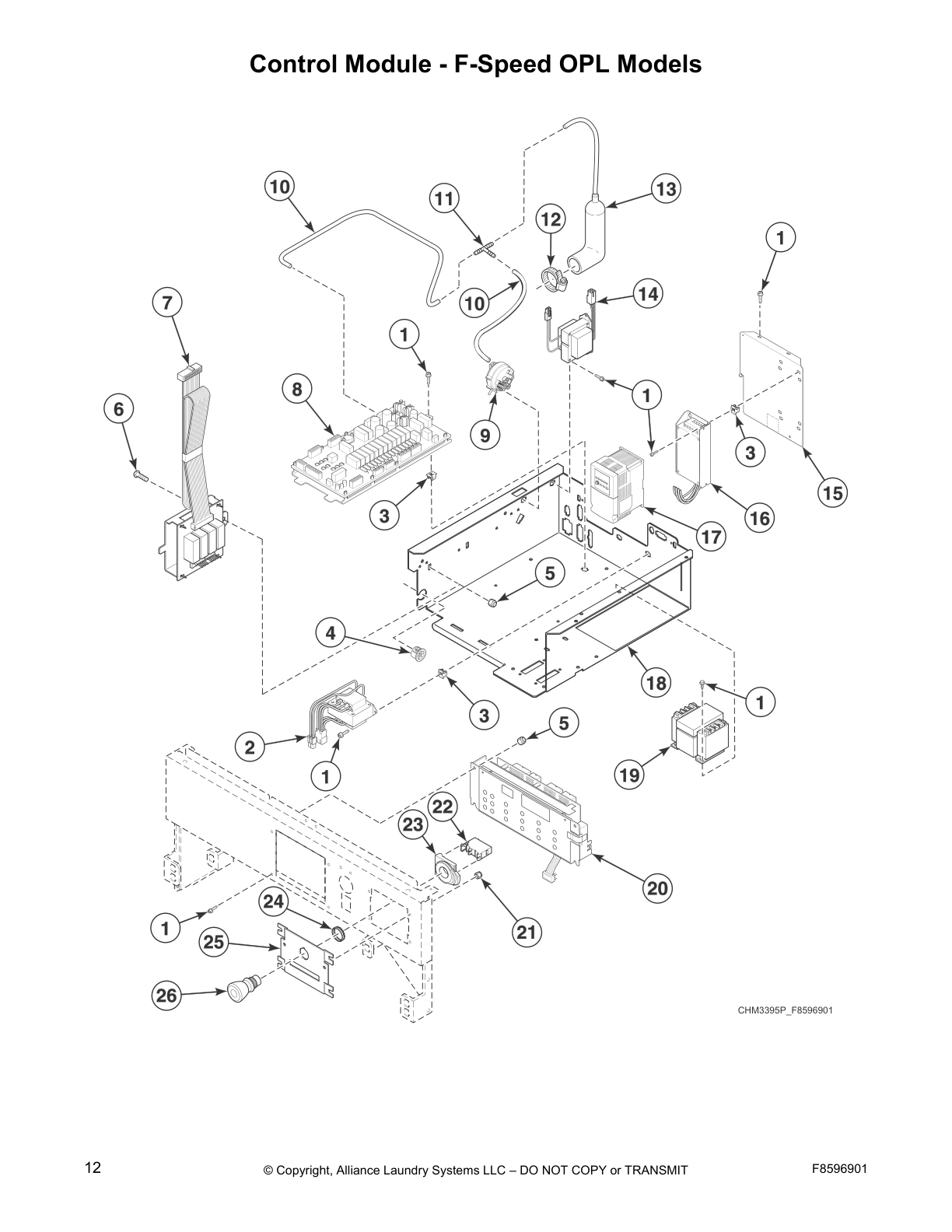

Control Module - F-Speed OPL Models

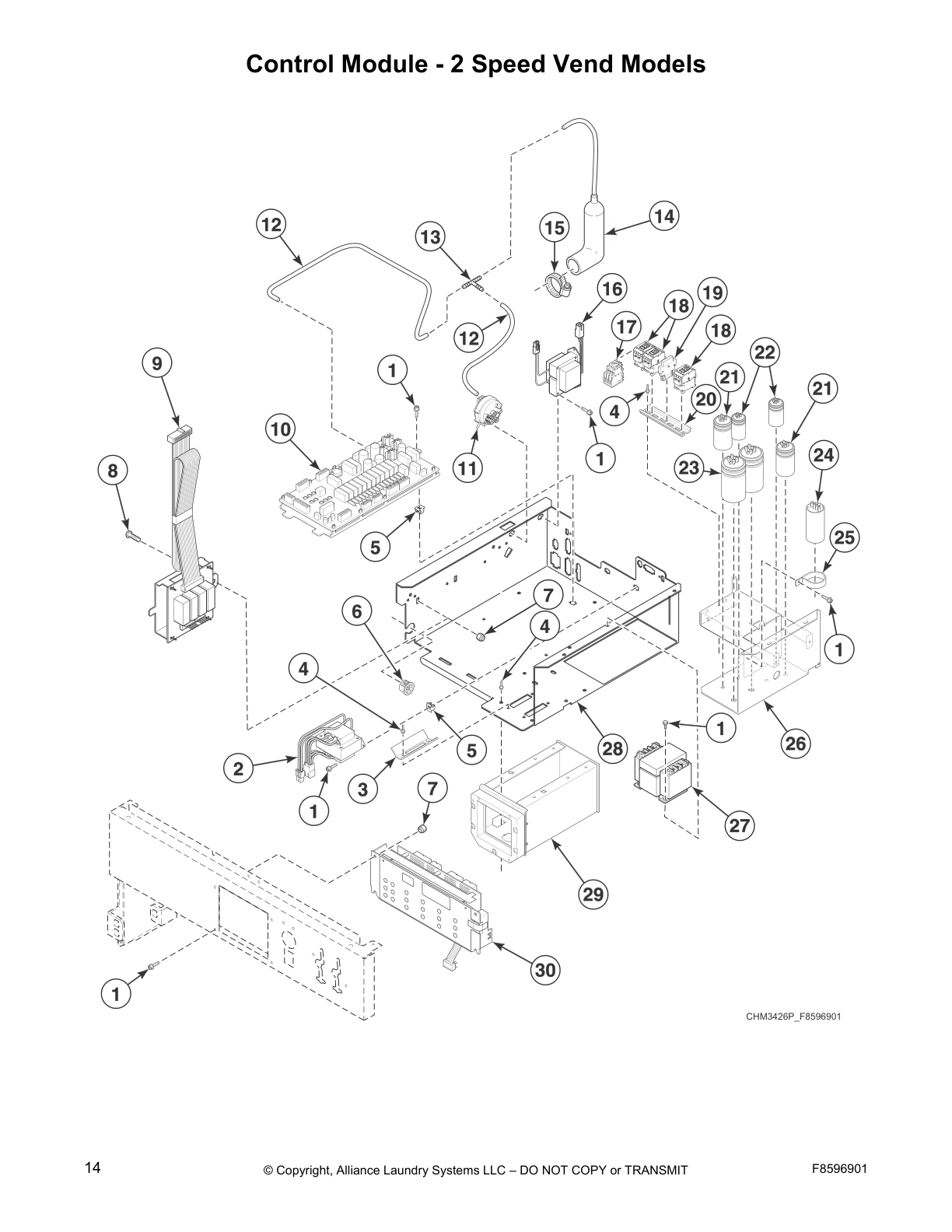

Control Module - 2 Speed Vend Models

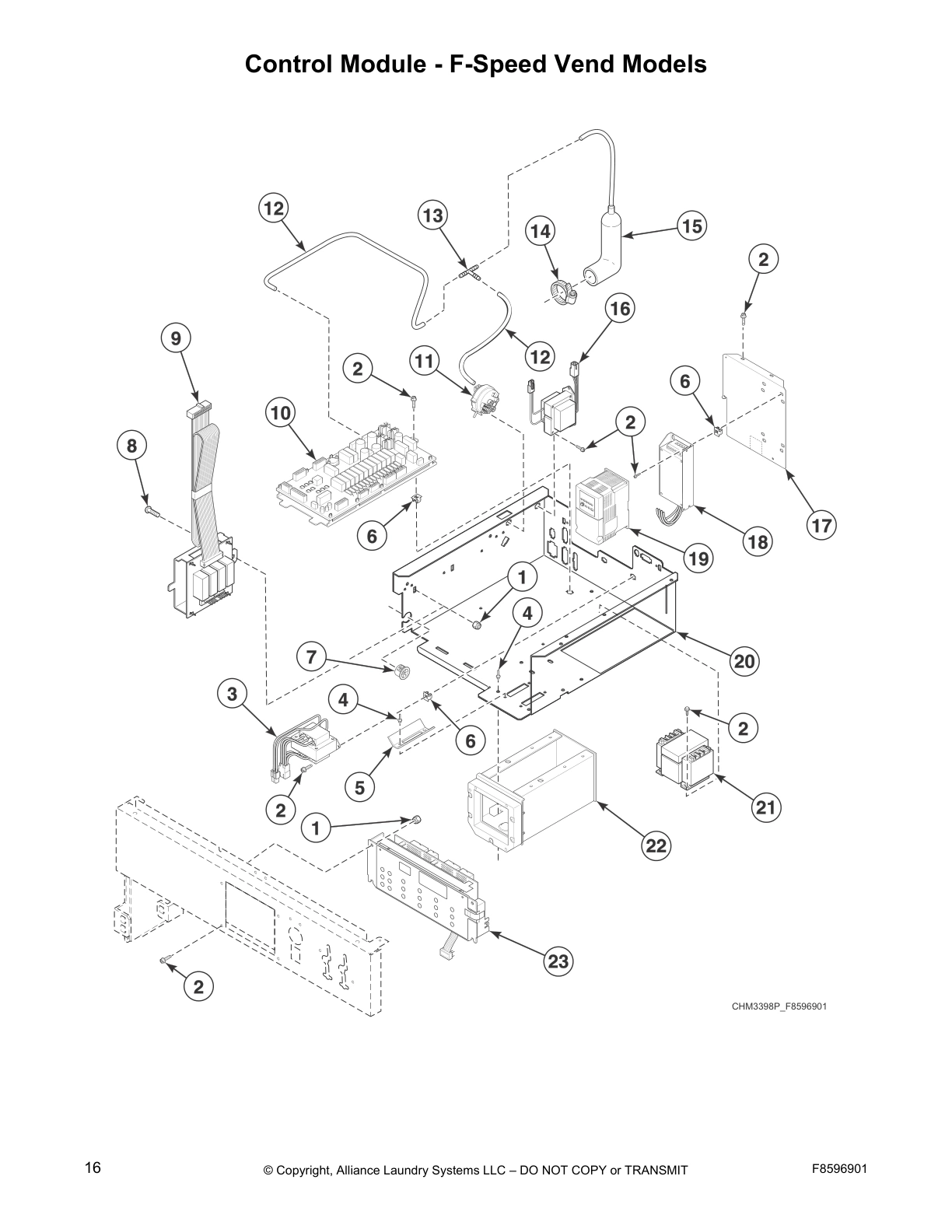

Control Module - F-Speed Vend Models

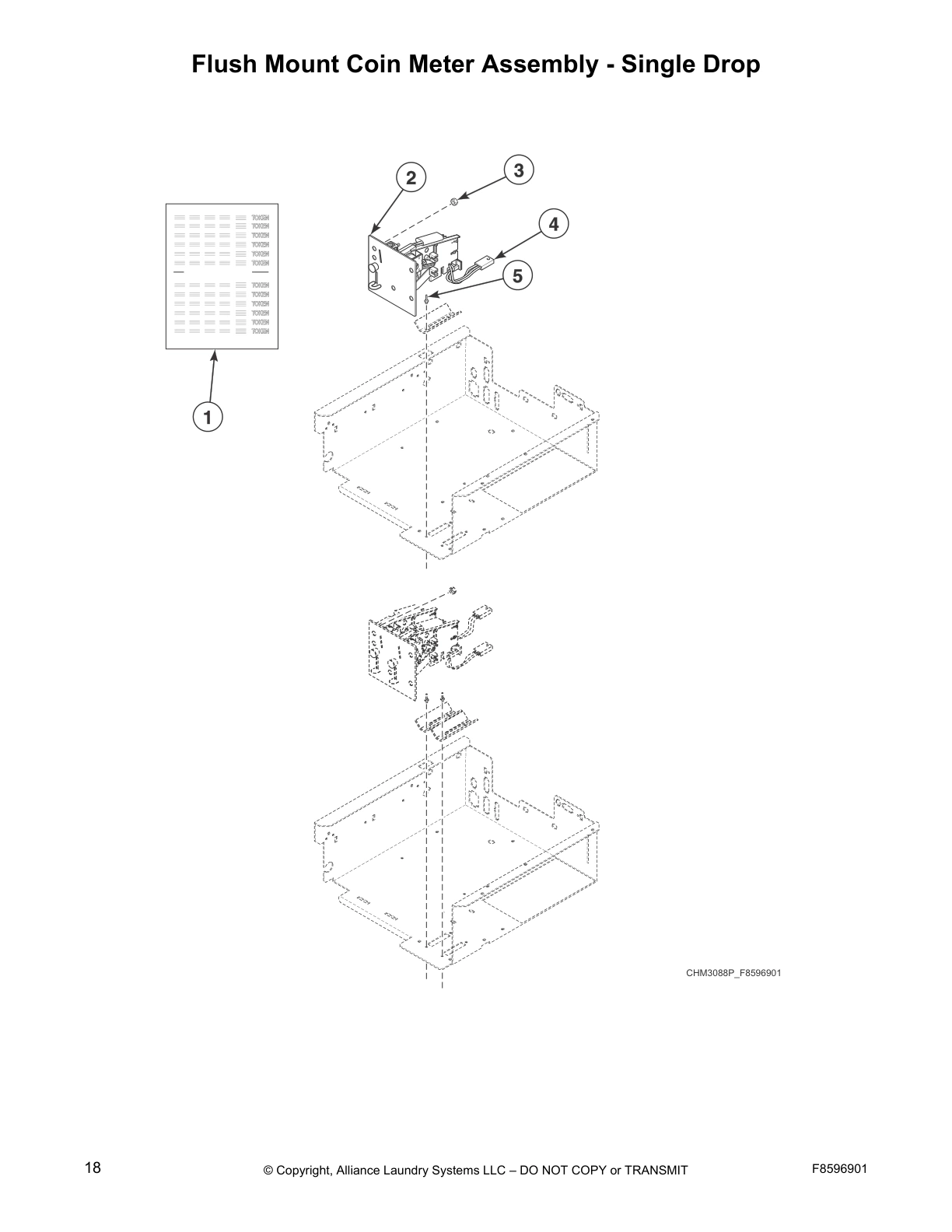

Flush Mount Coin Meter Assembly - Single Drop

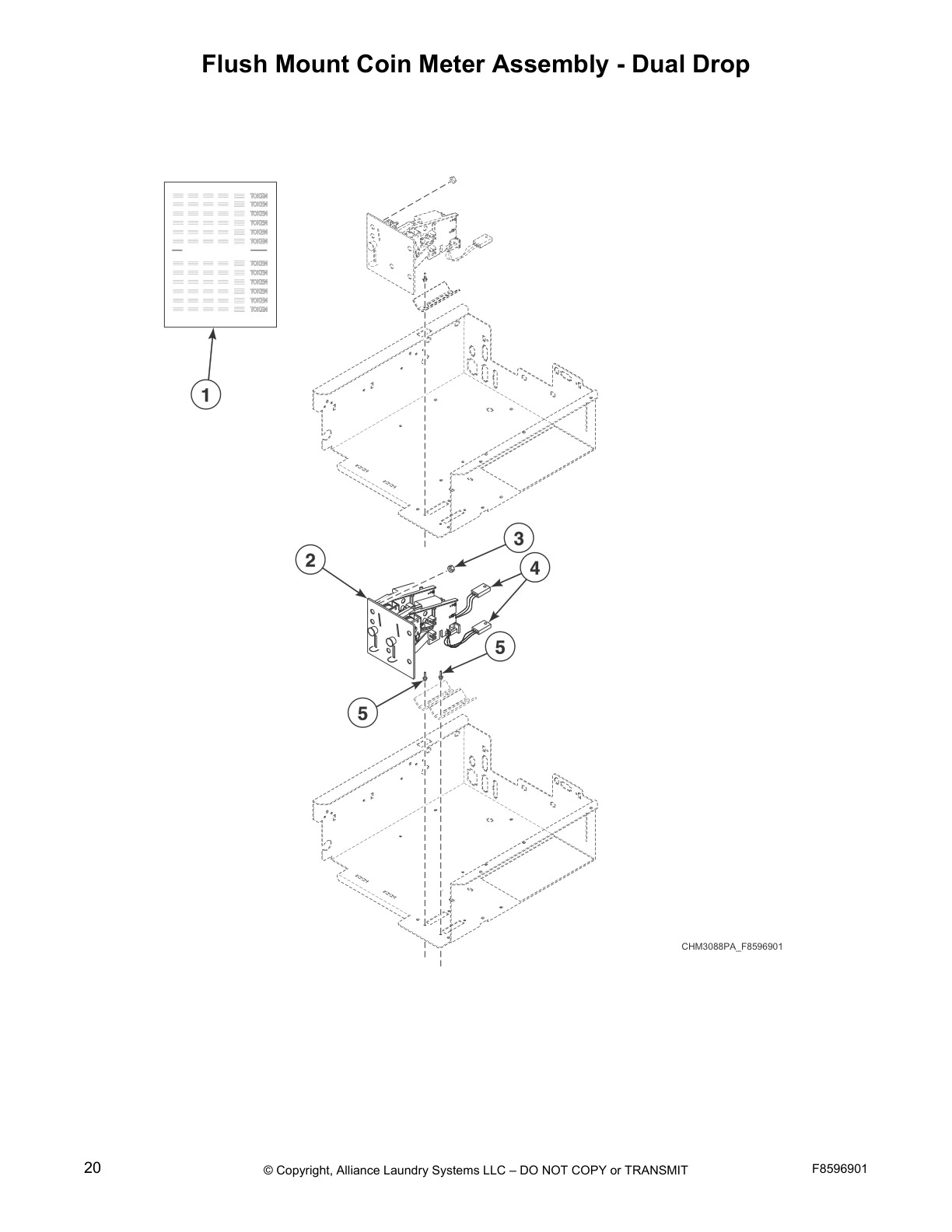

Flush Mount Coin Meter Assembly - Dual Drop

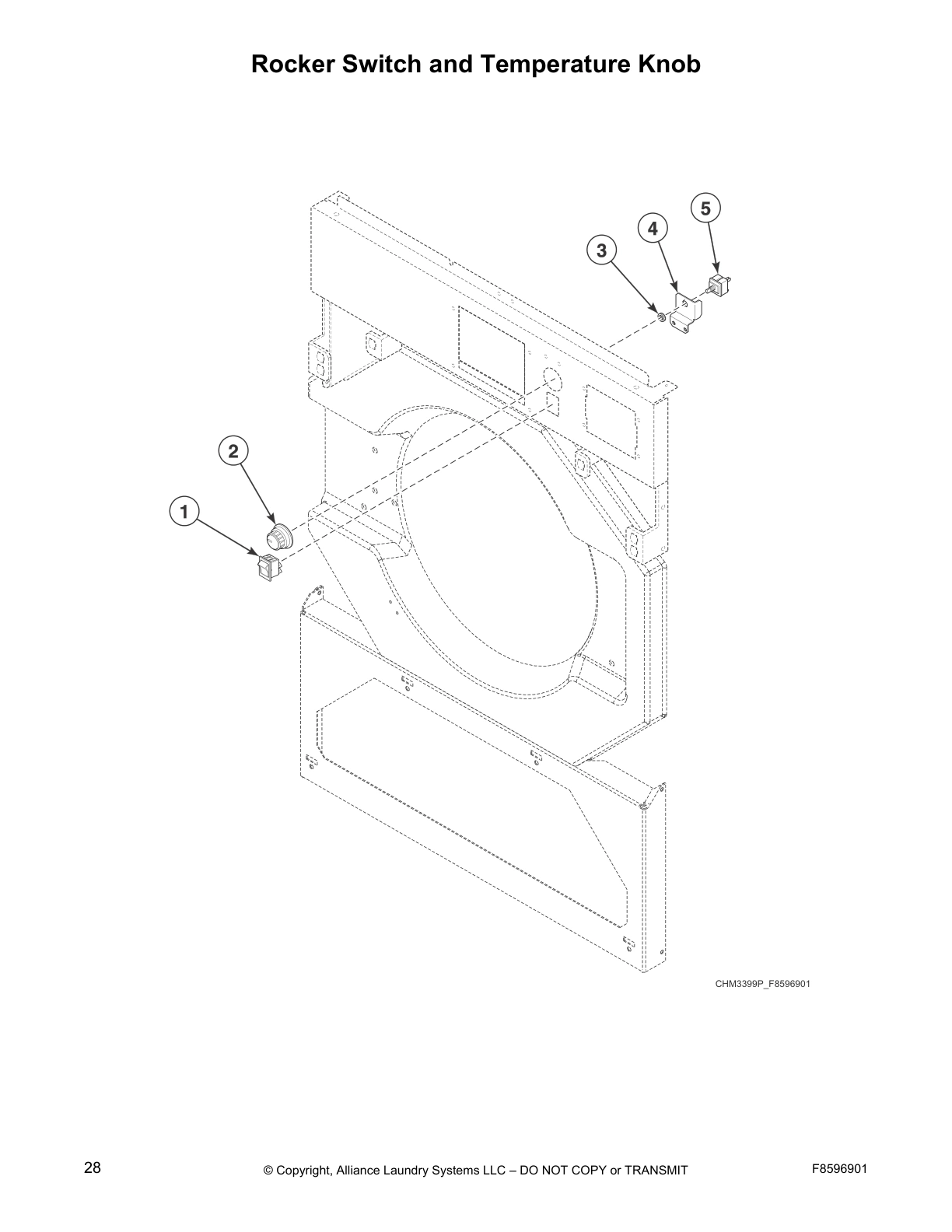

Rocker Switch and Temperature Knob

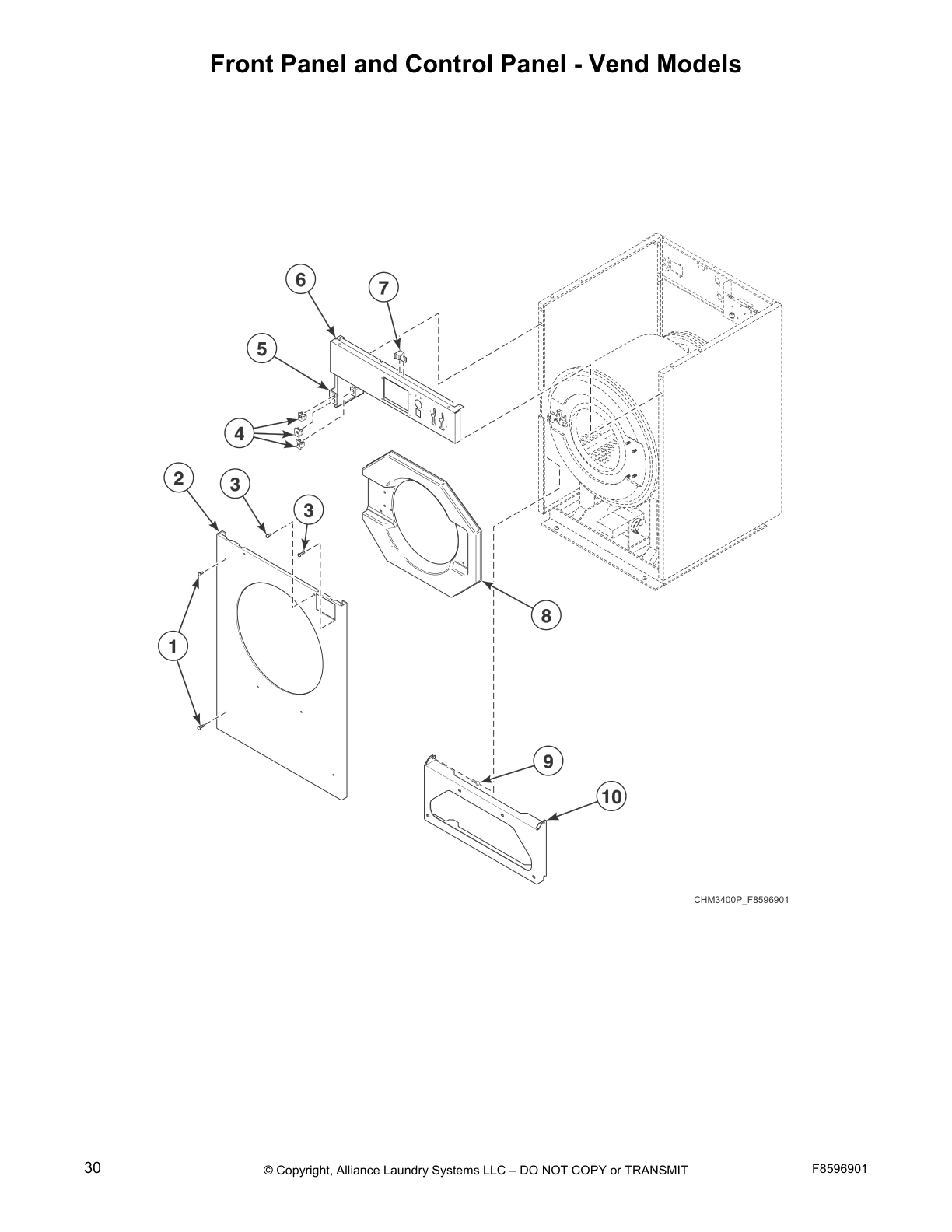

Front Panel and Control Panel - Vend Models

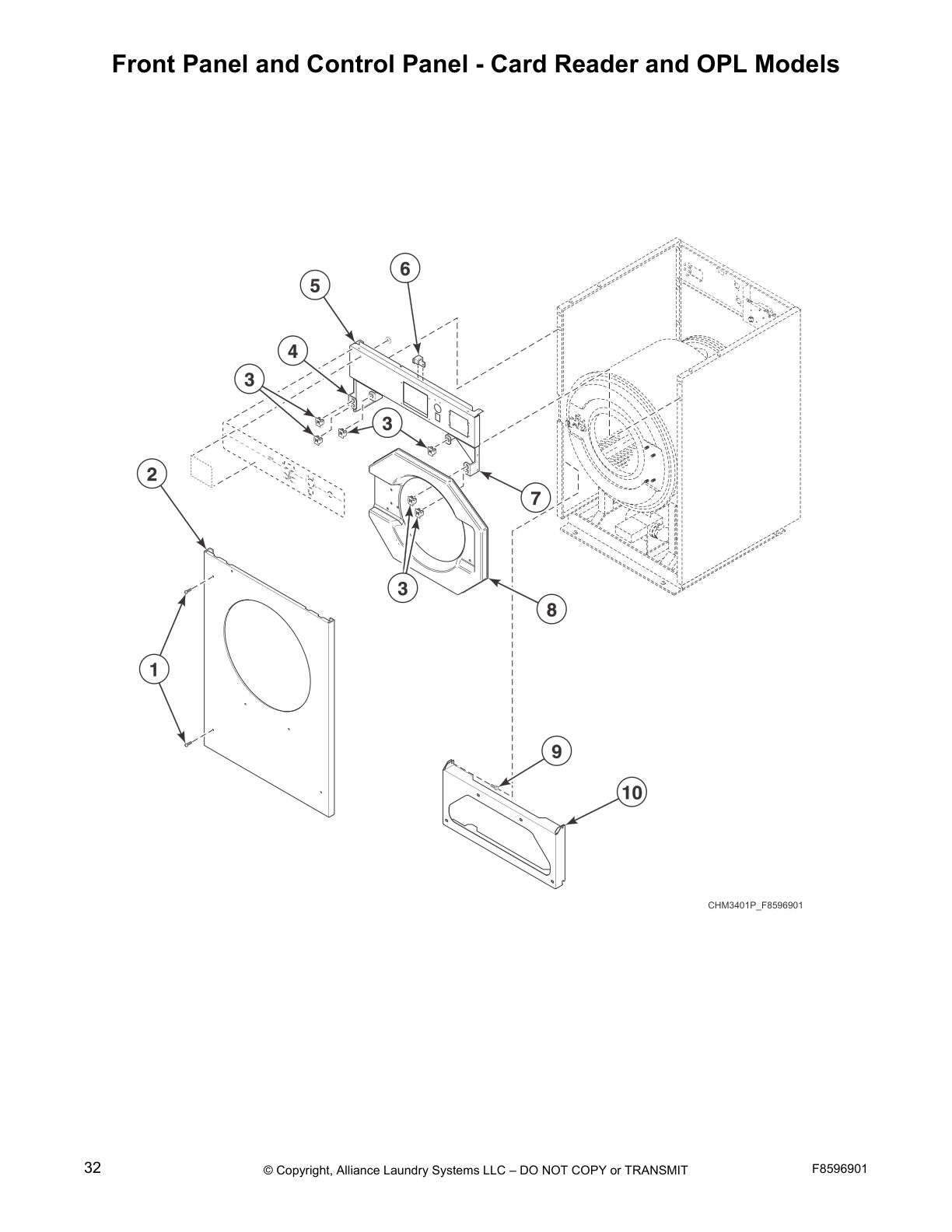

Front Panel and Control Panel - Card Reader and OPL Models

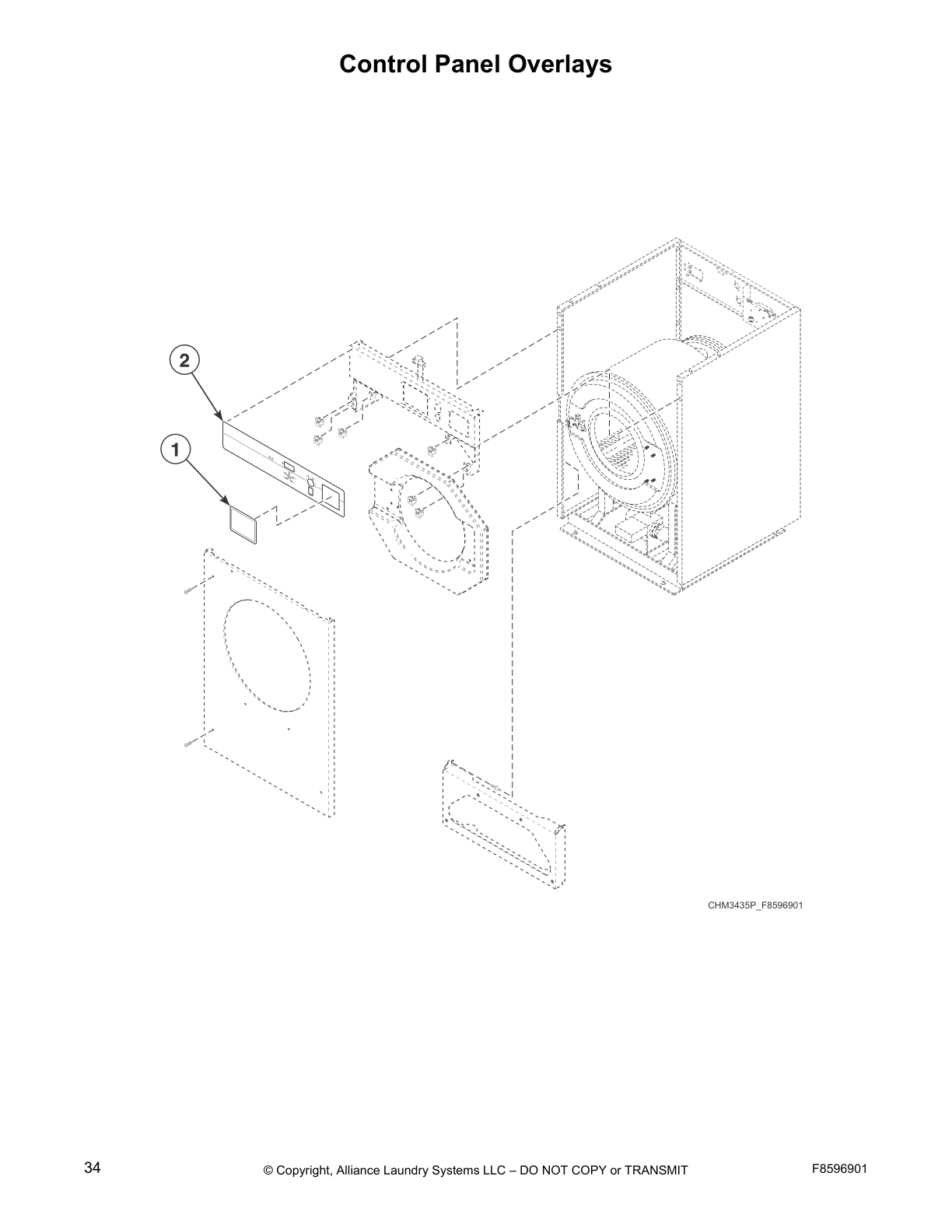

Control Panel Overlays

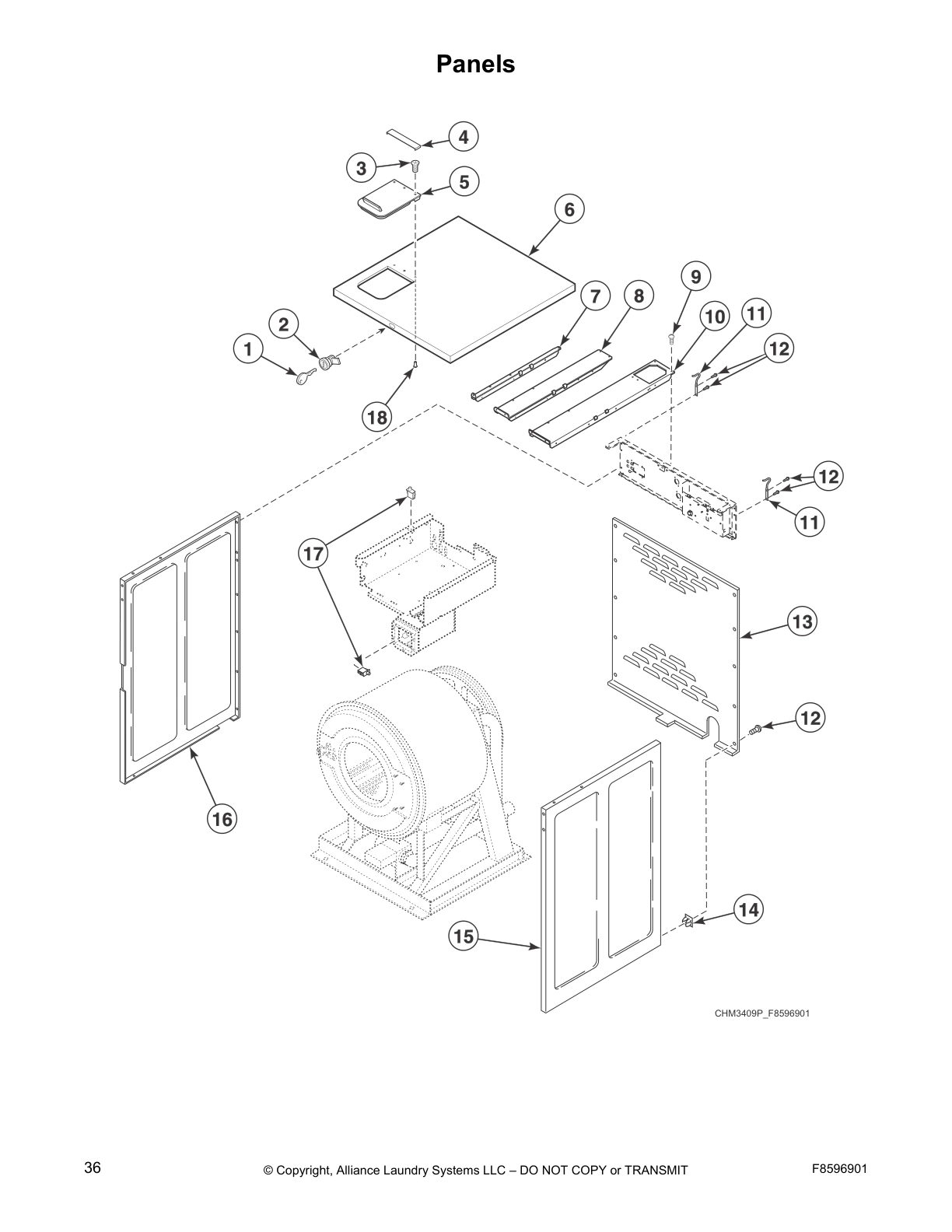

Panels

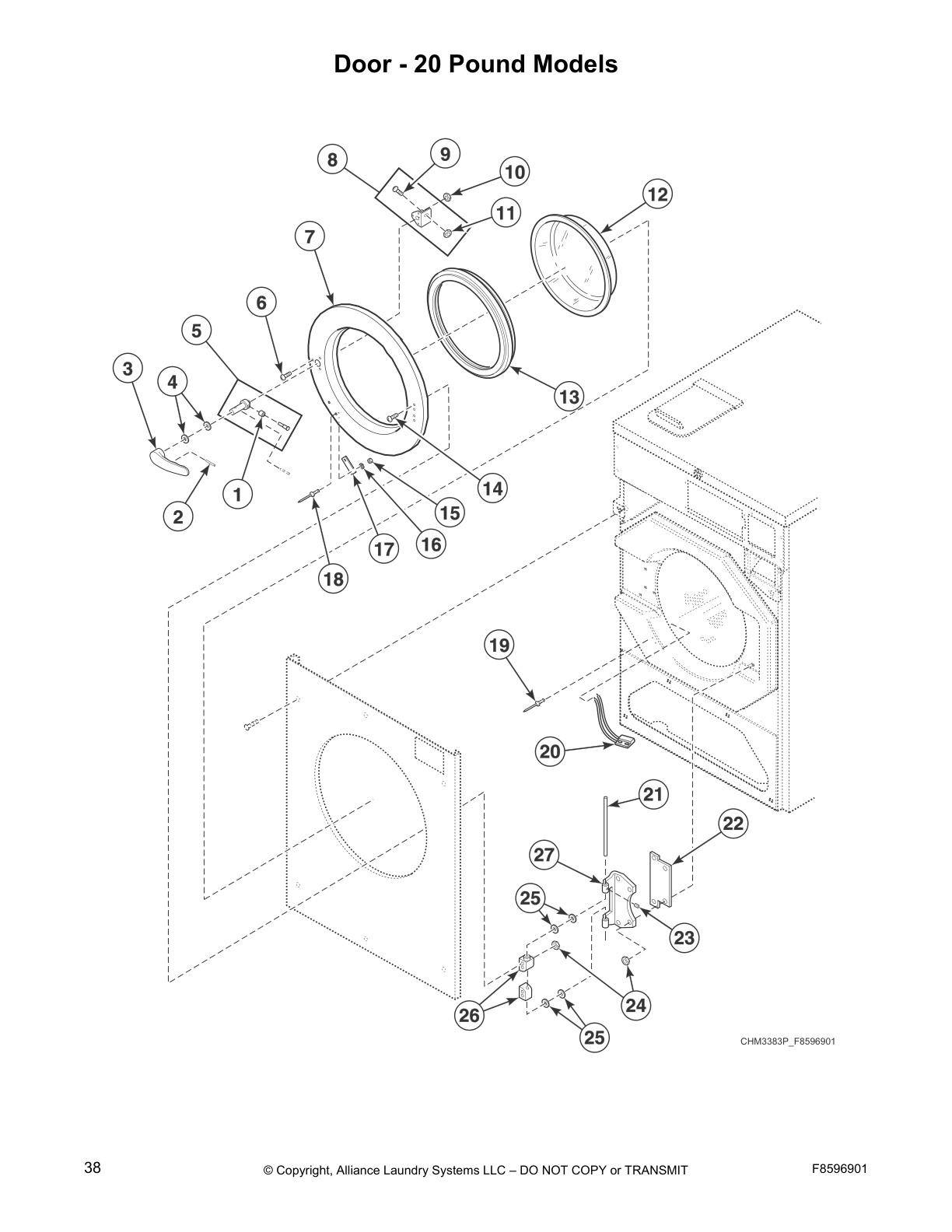

Door - 20 Pound Models
Door - 30 Pound Models

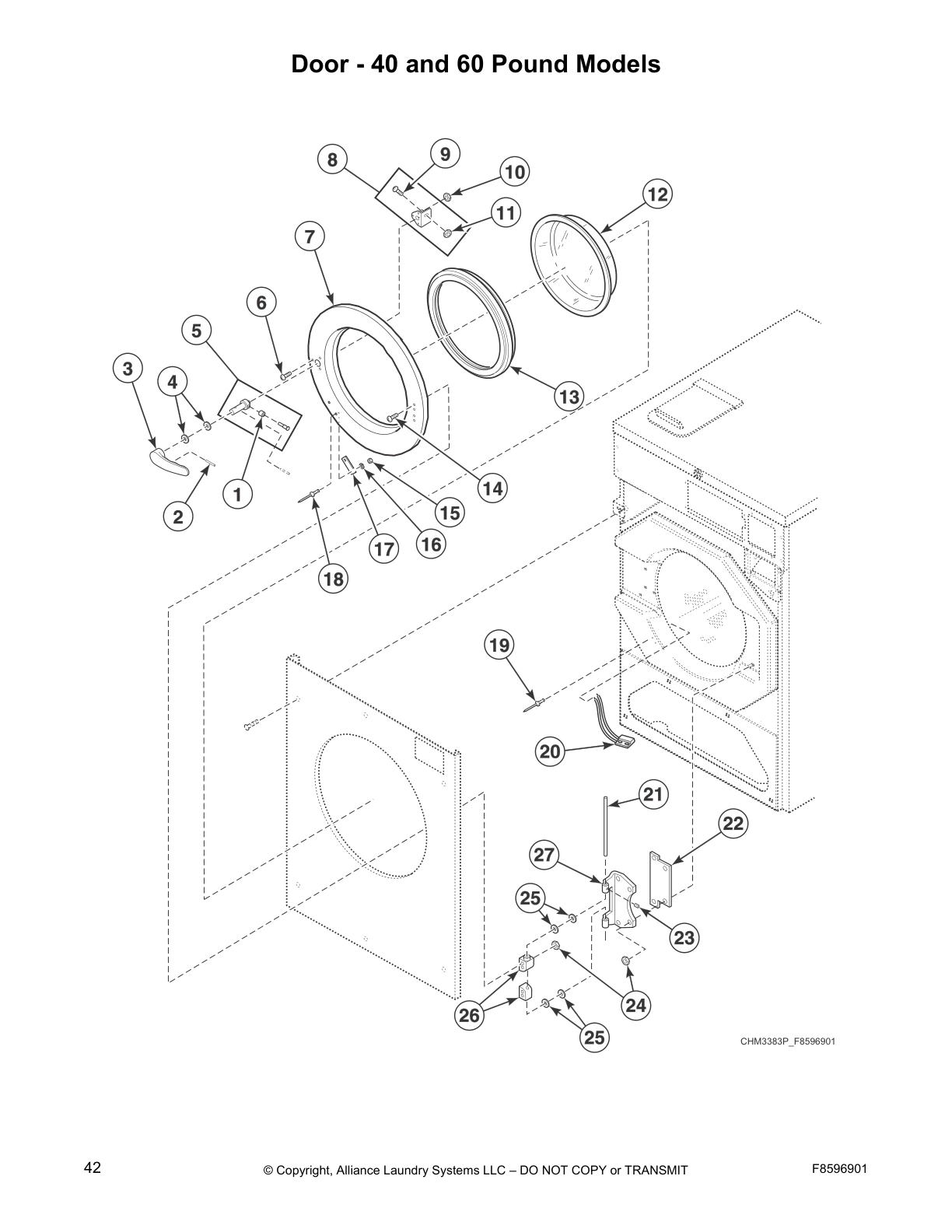

Door - 40 and 60 Pound Models

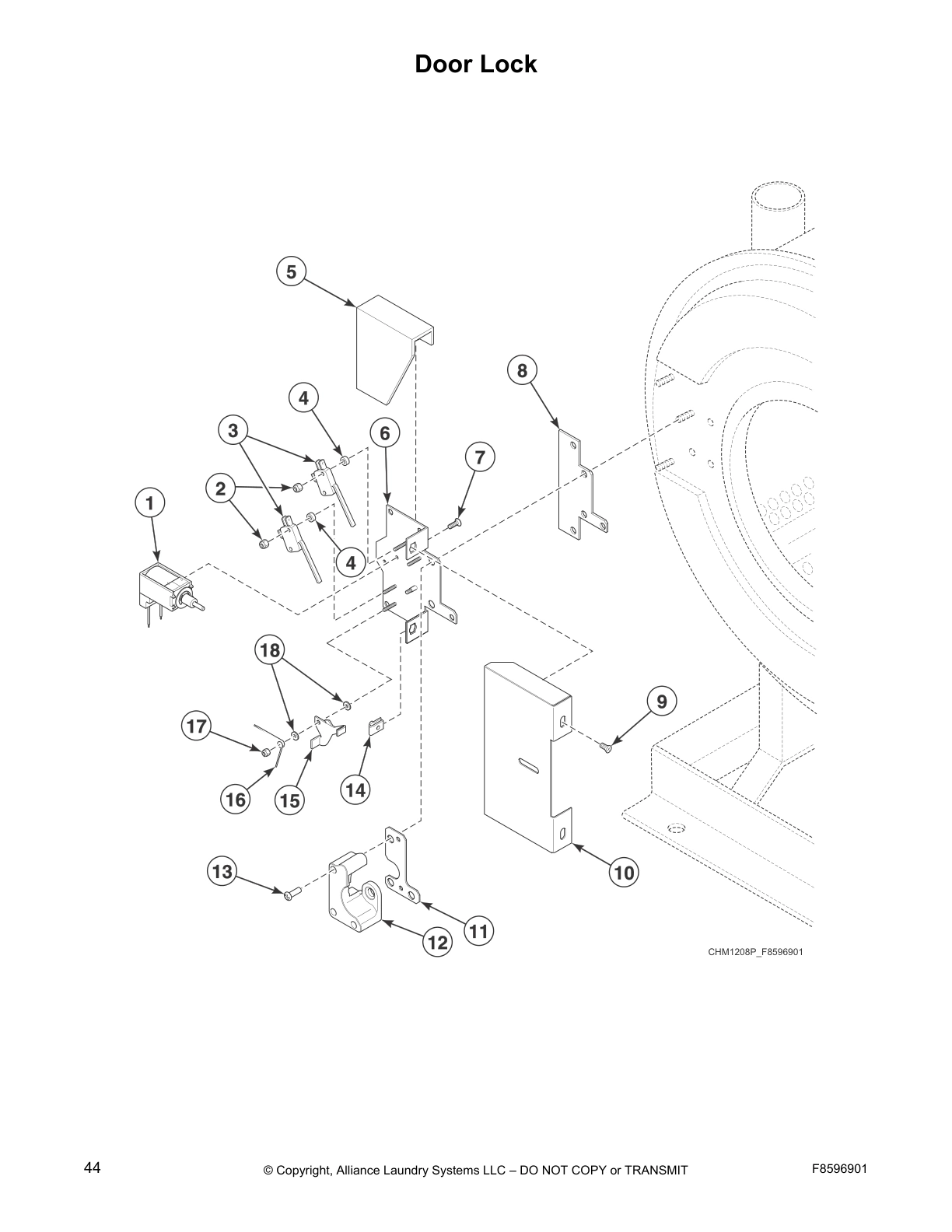

Door Lock

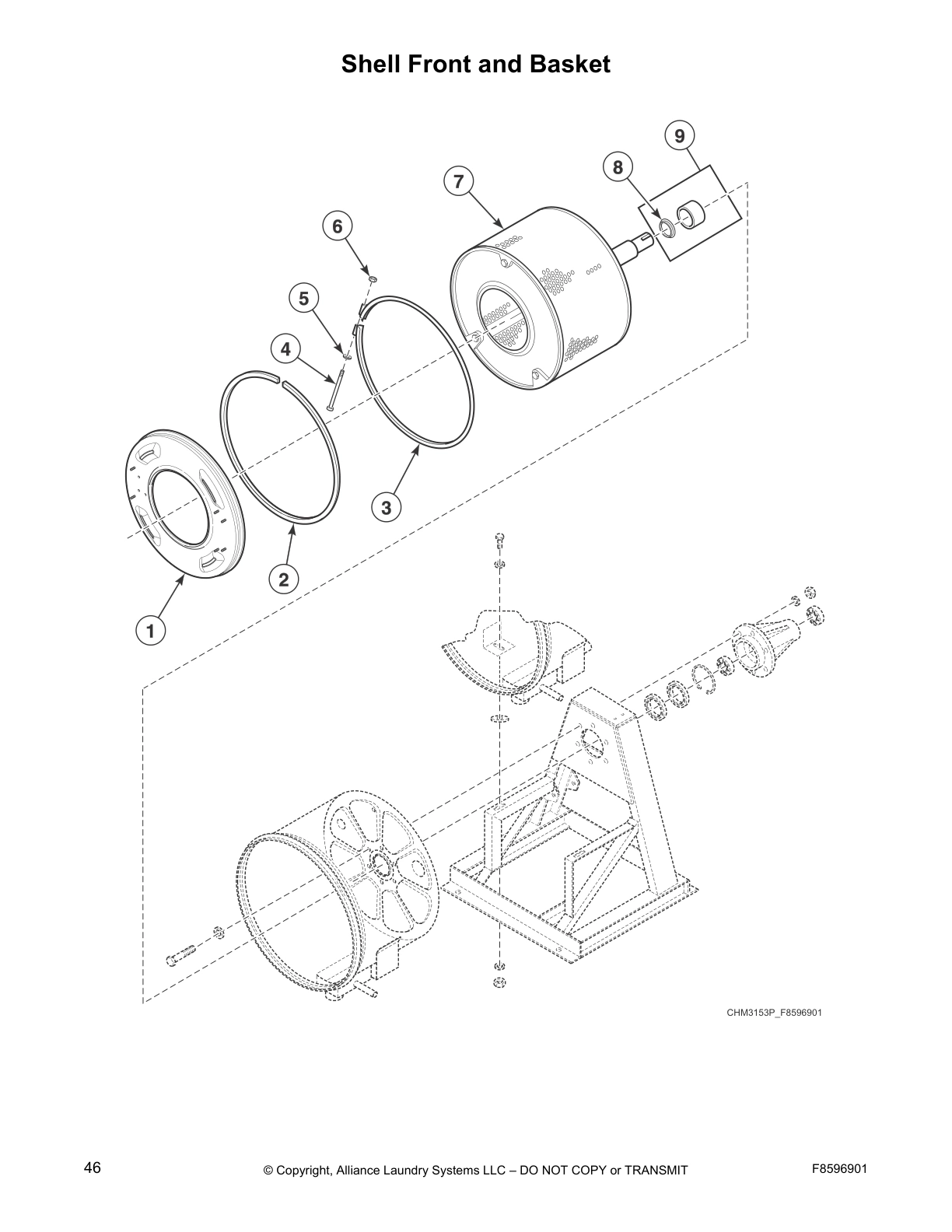

Shell Front and Basket

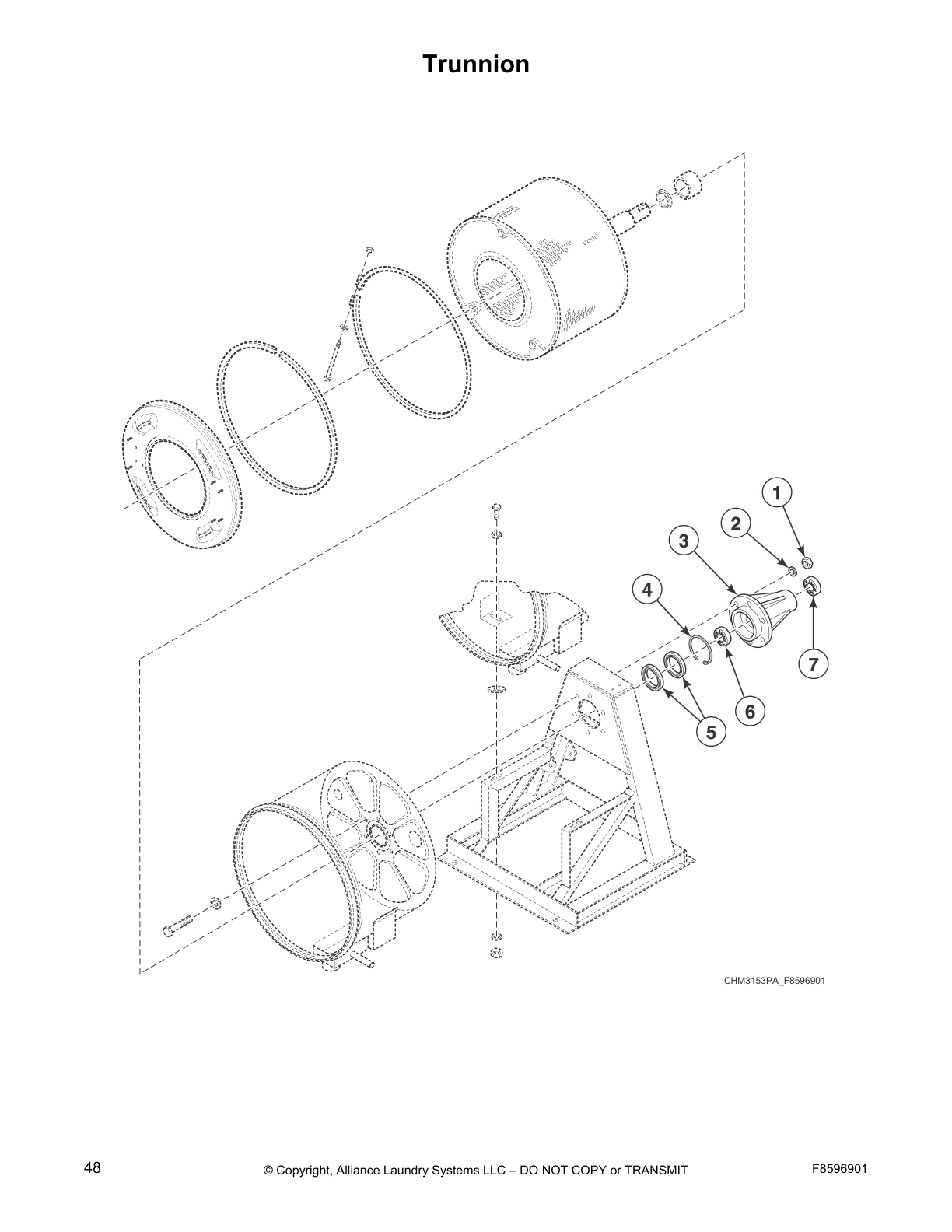

Trunnion

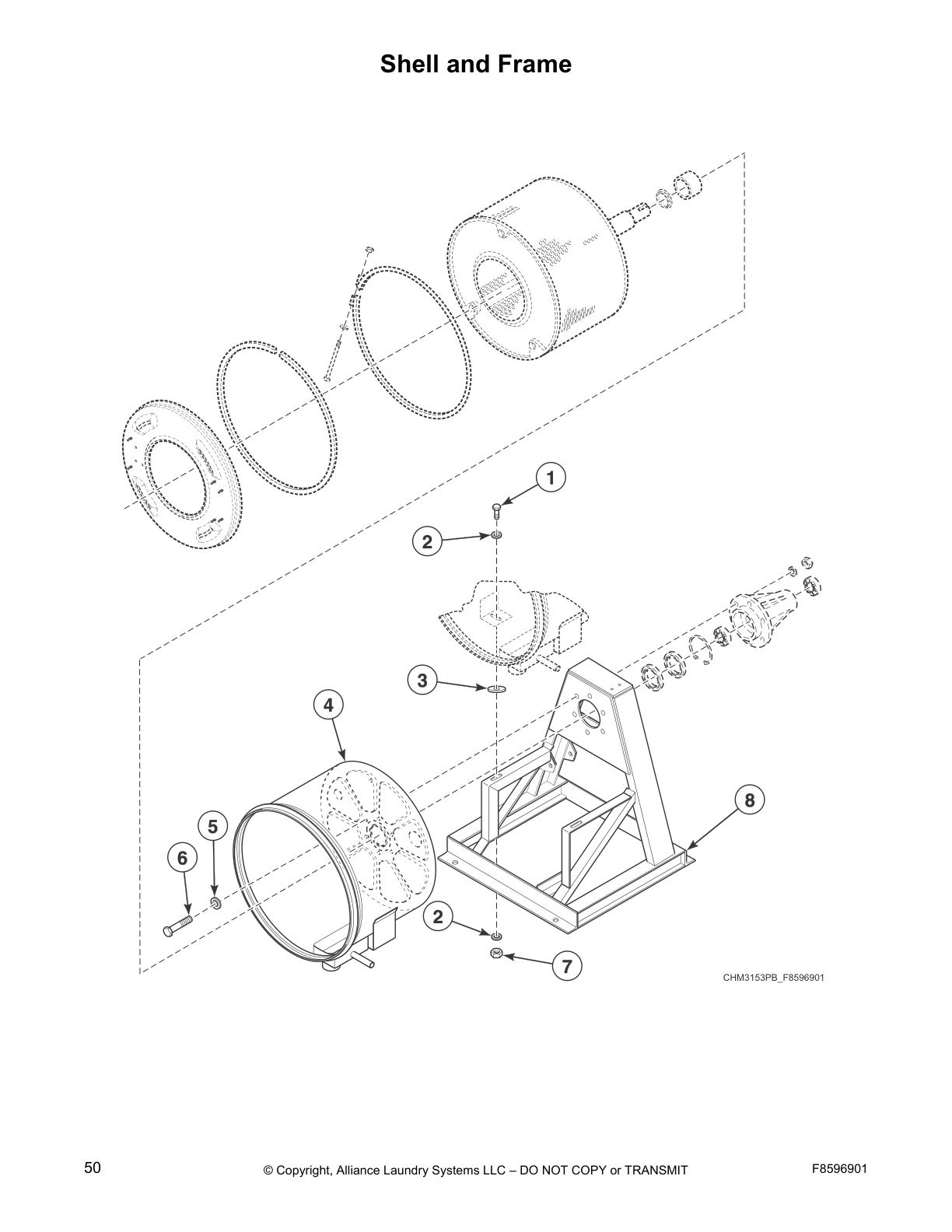

Shell and Frame

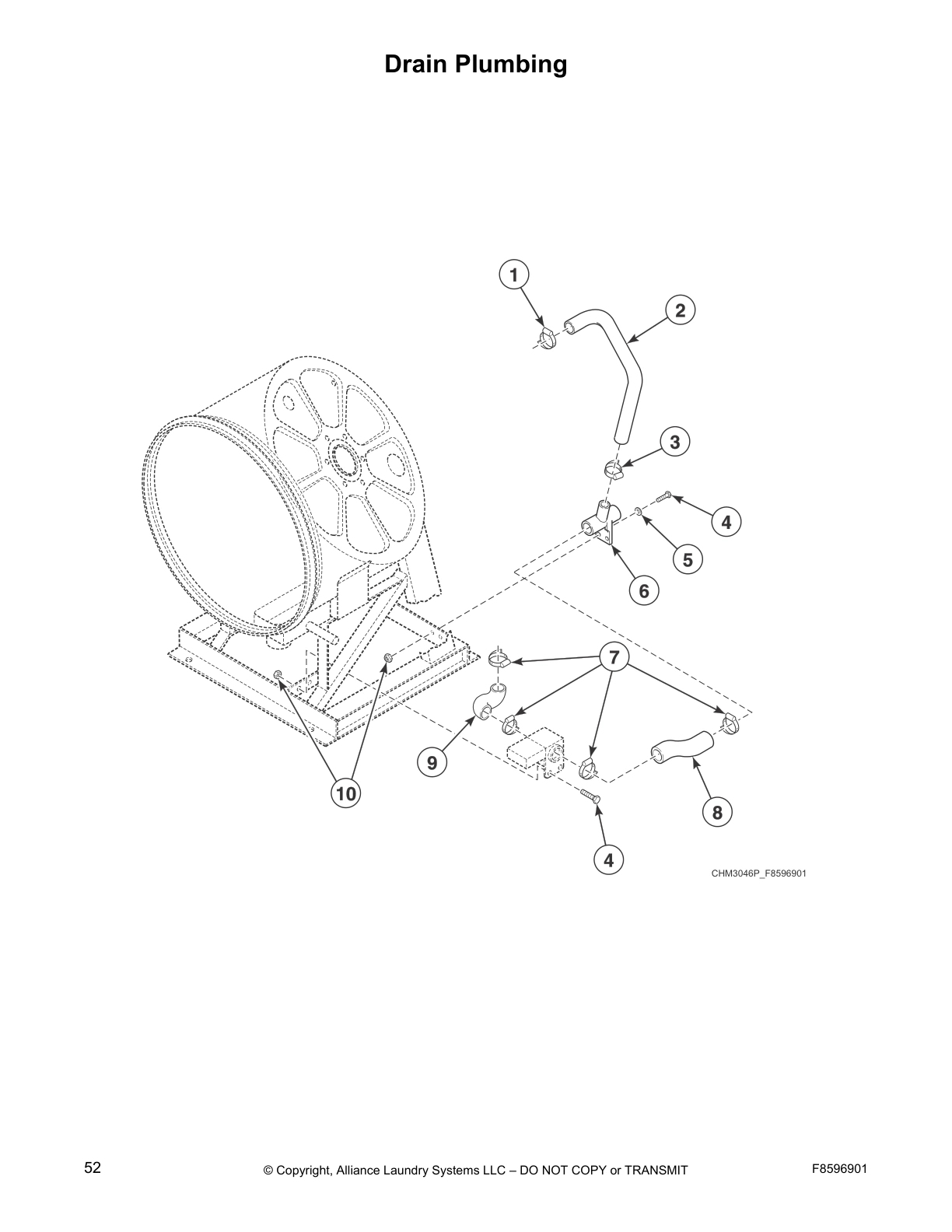

Drain Plumbing

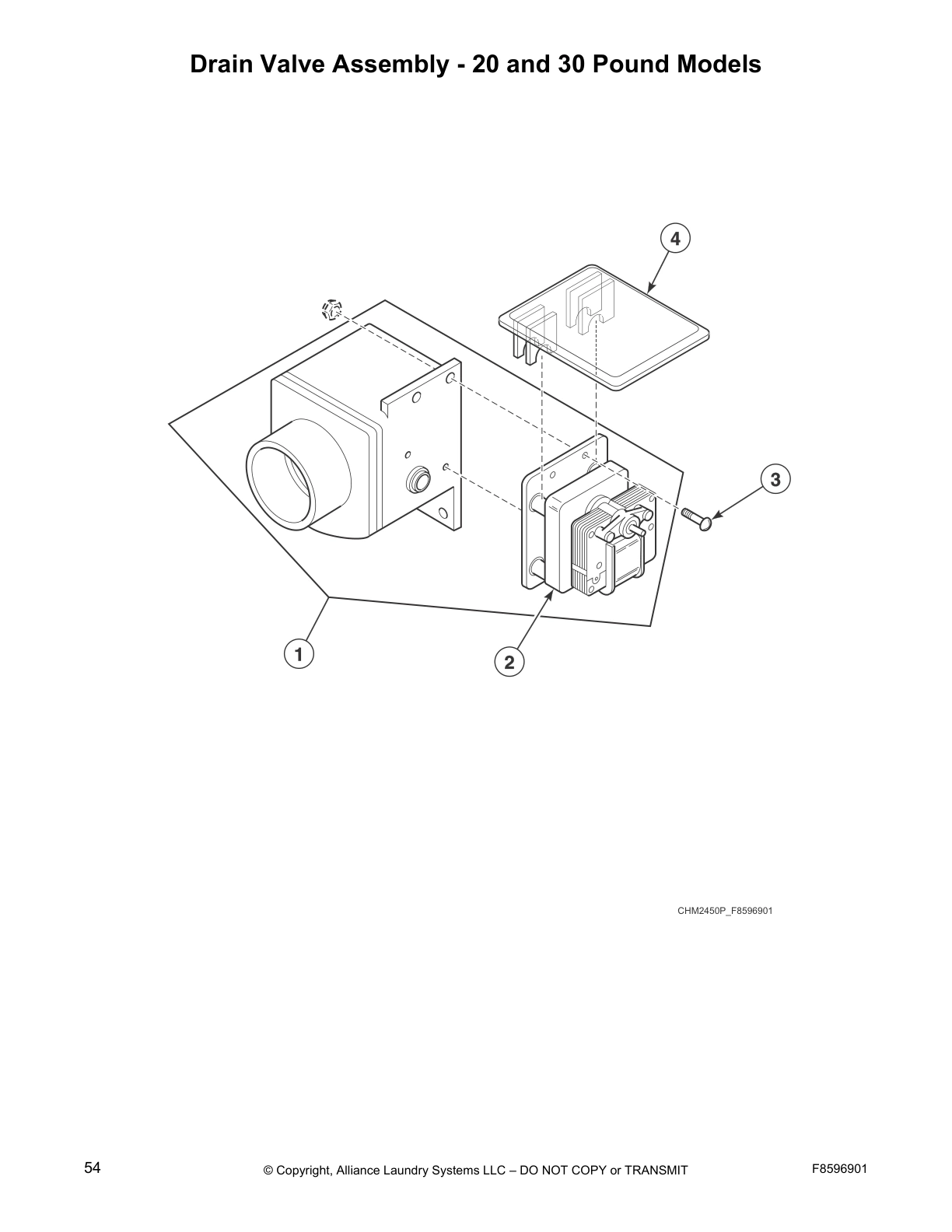

Drain Valve Assembly - 20 and 30 Pound Models

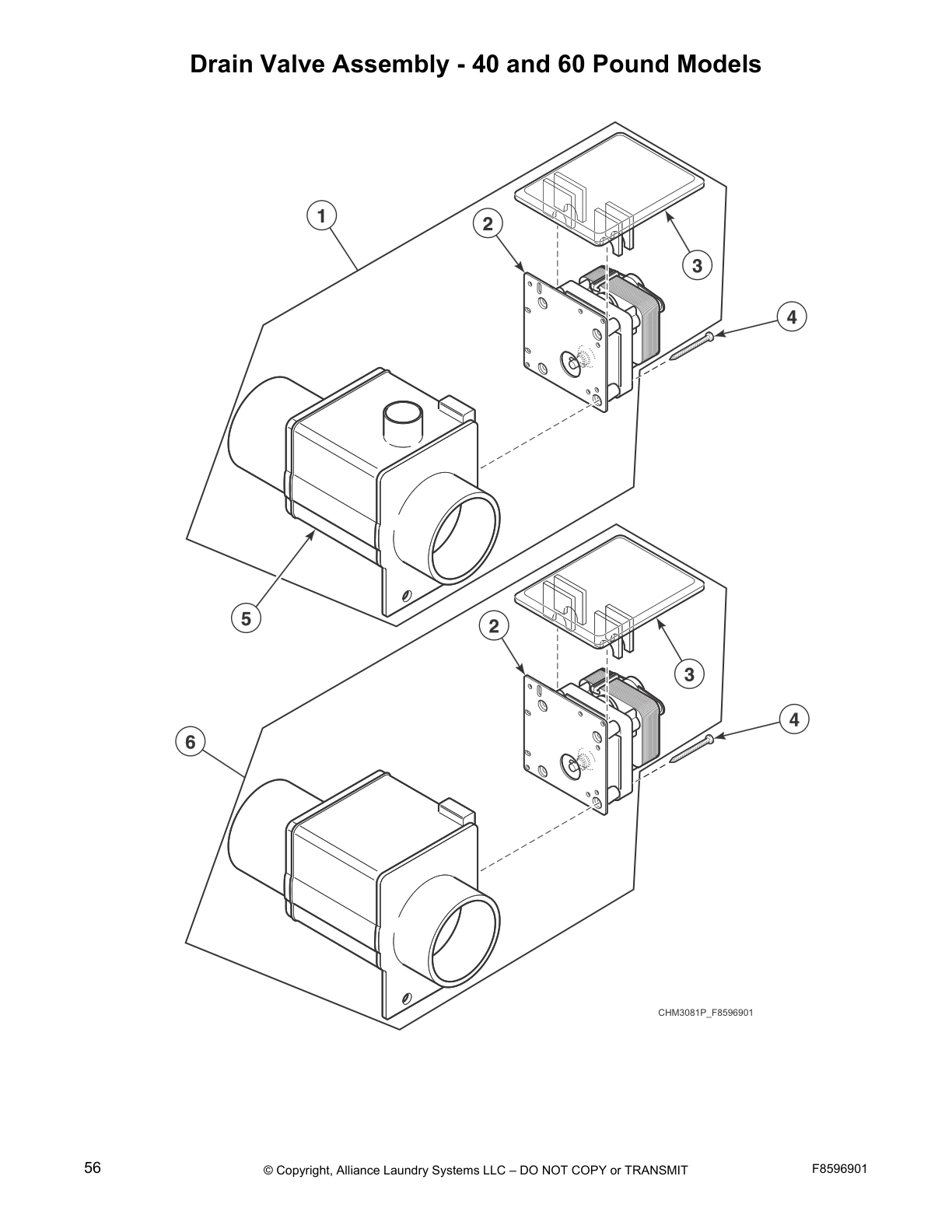

Drain Valve Assembly - 40 and 60 Pound Models

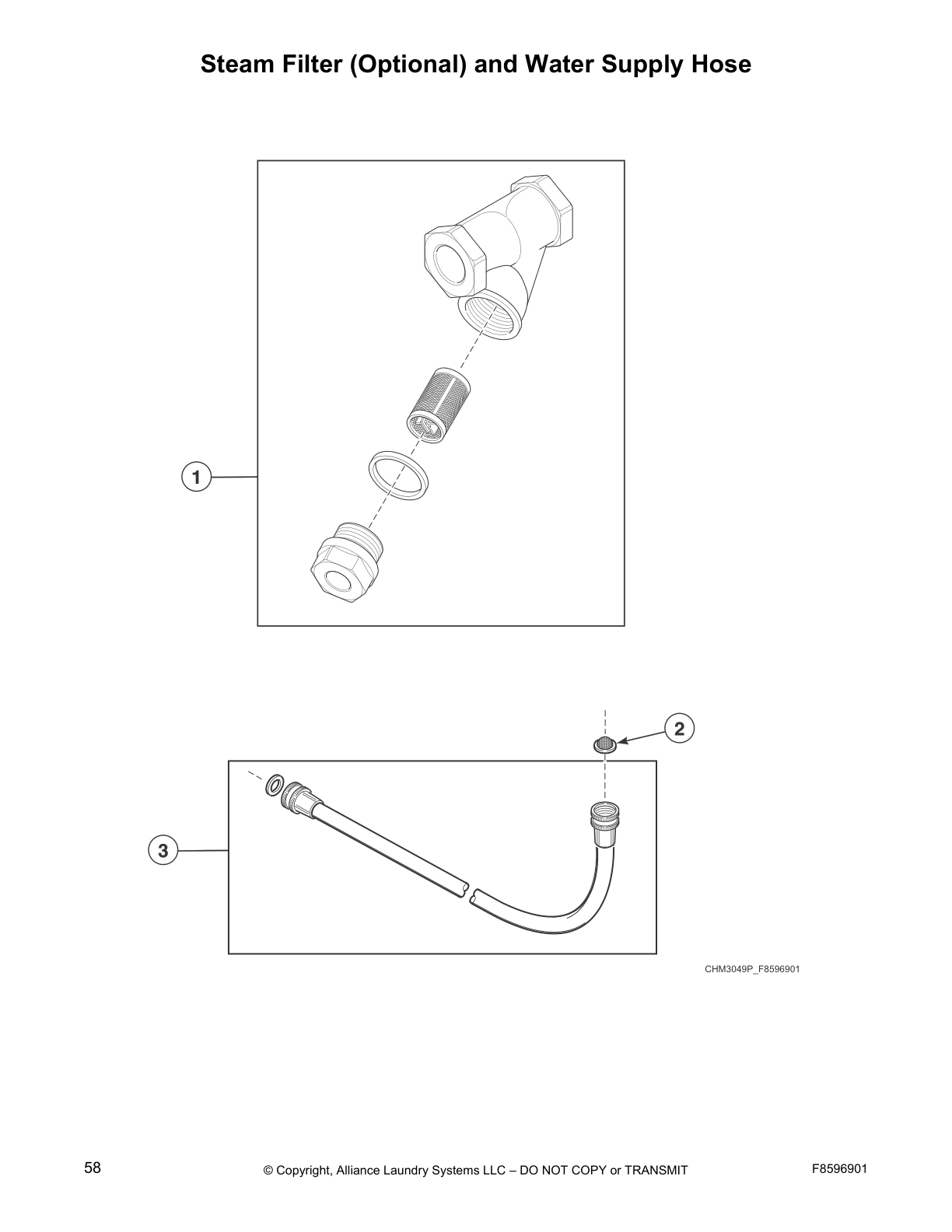

Steam Filter (Optional) and Water Supply Hose

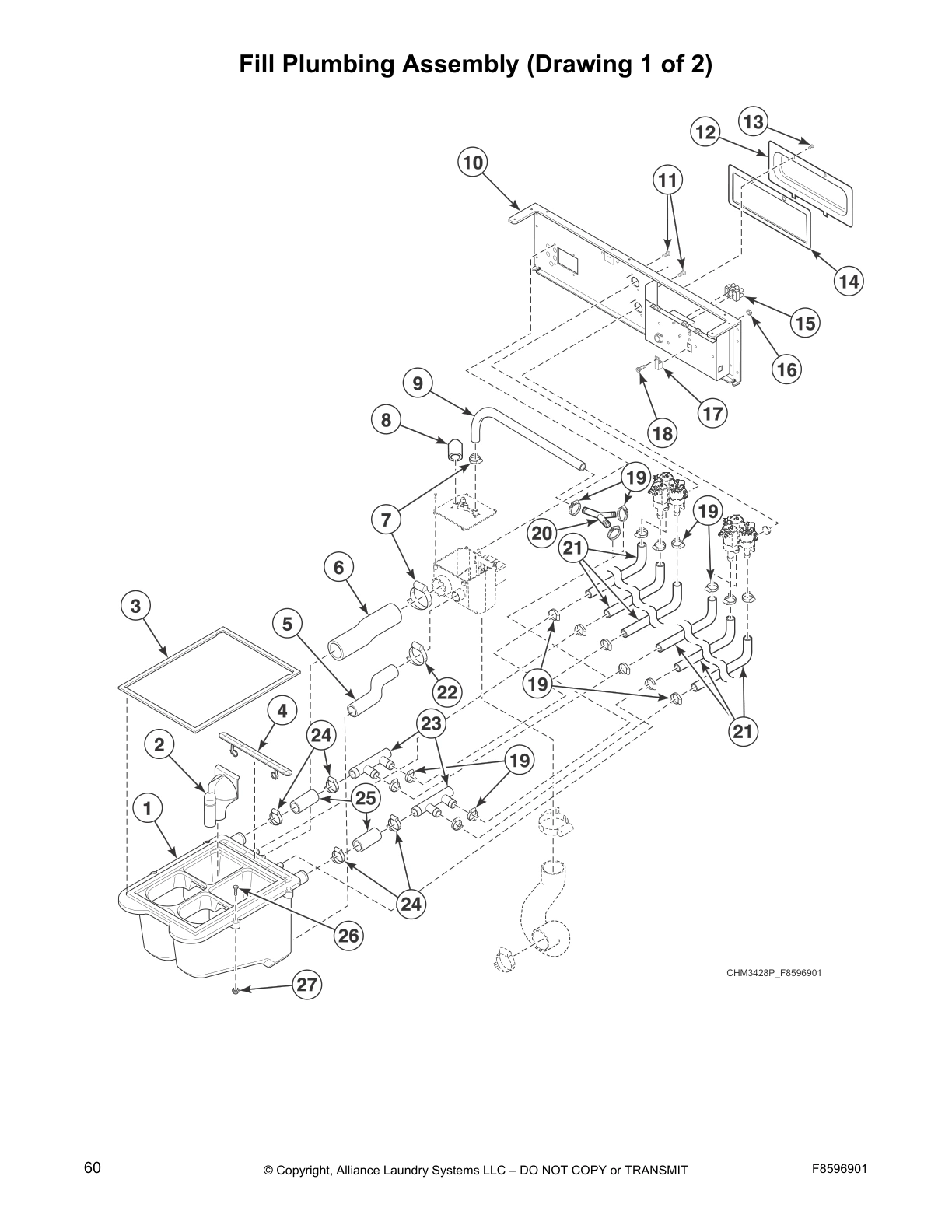

Fill Plumbing Assembly (Drawing 1 of 2)

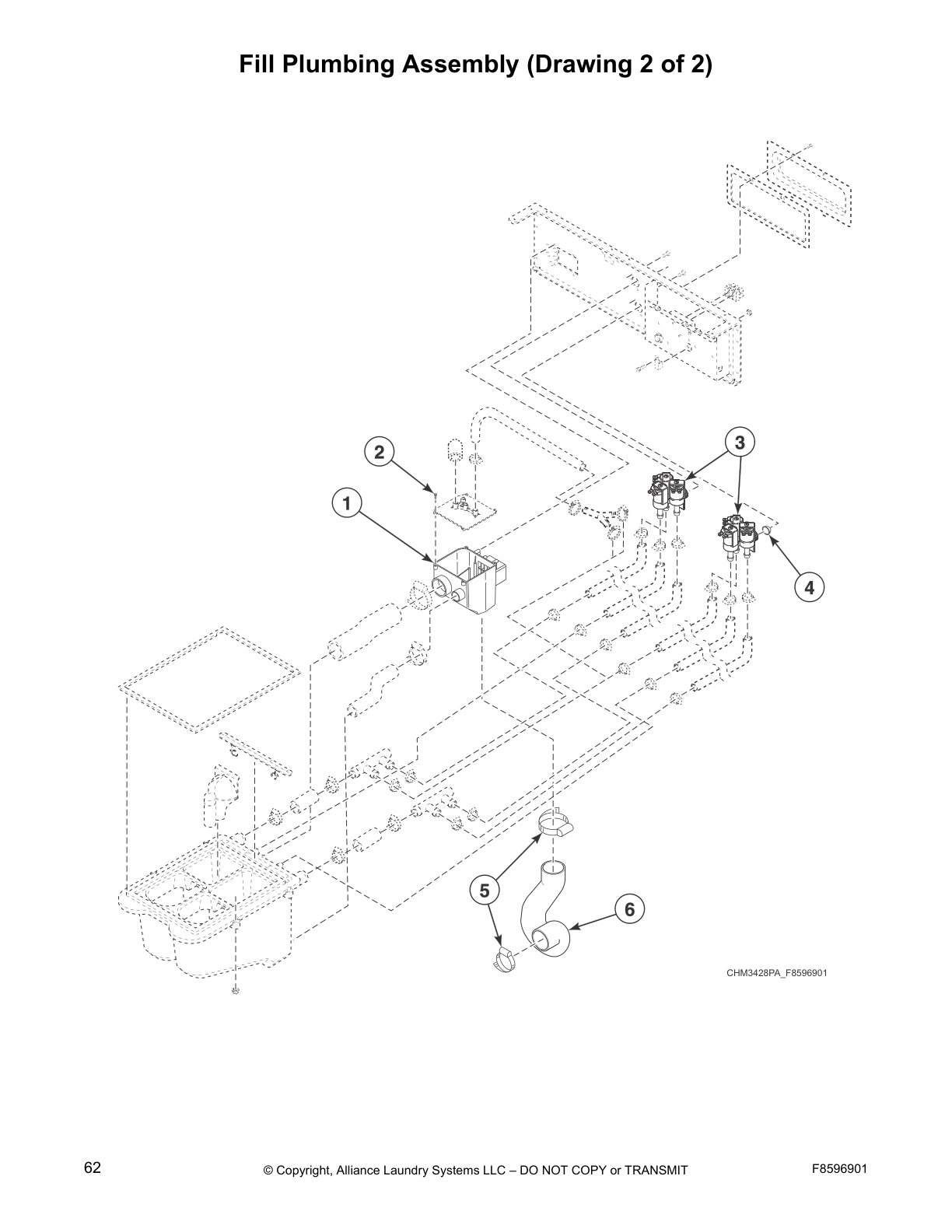

Fill Plumbing Assembly (Drawing 2 of 2)

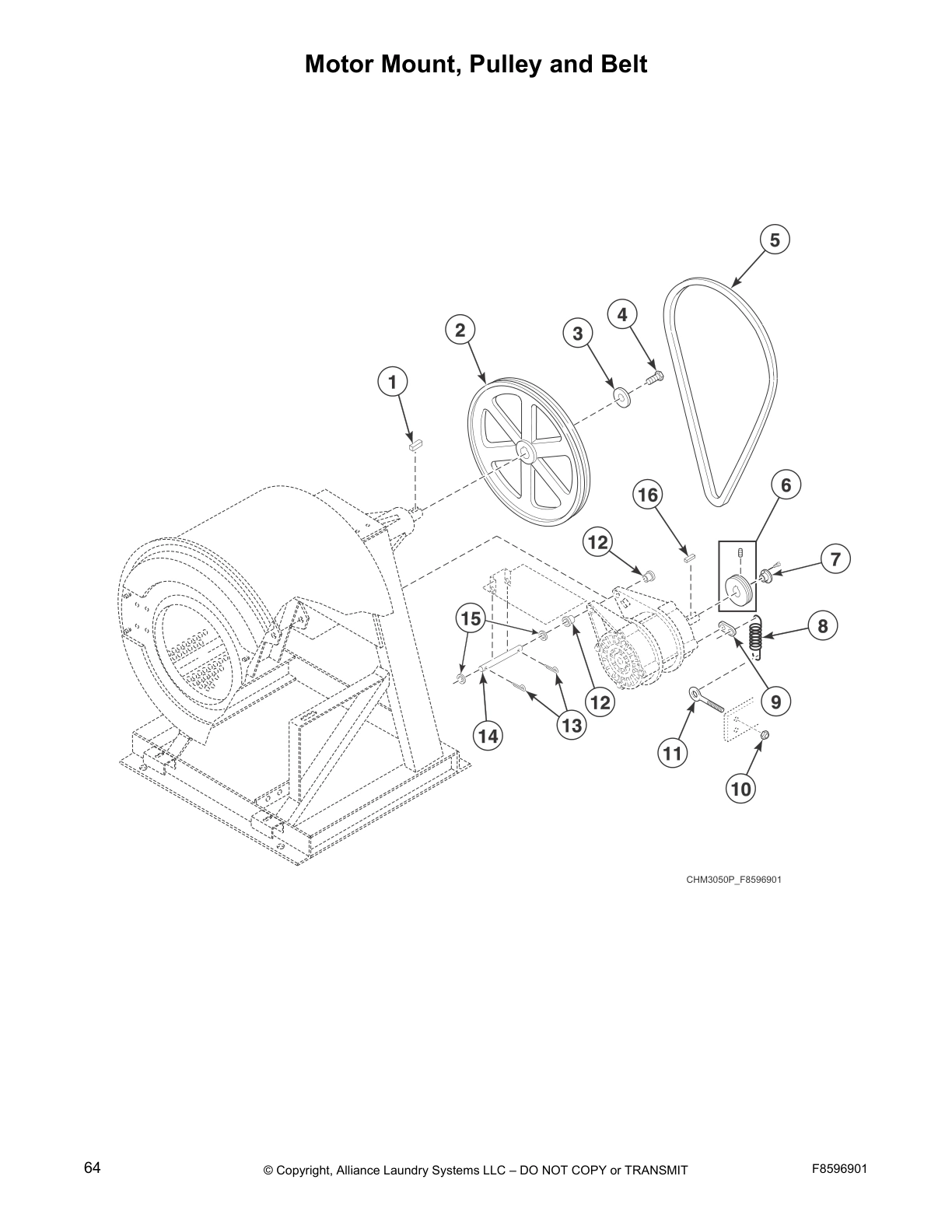

Motor Mount, Pulley and Belt

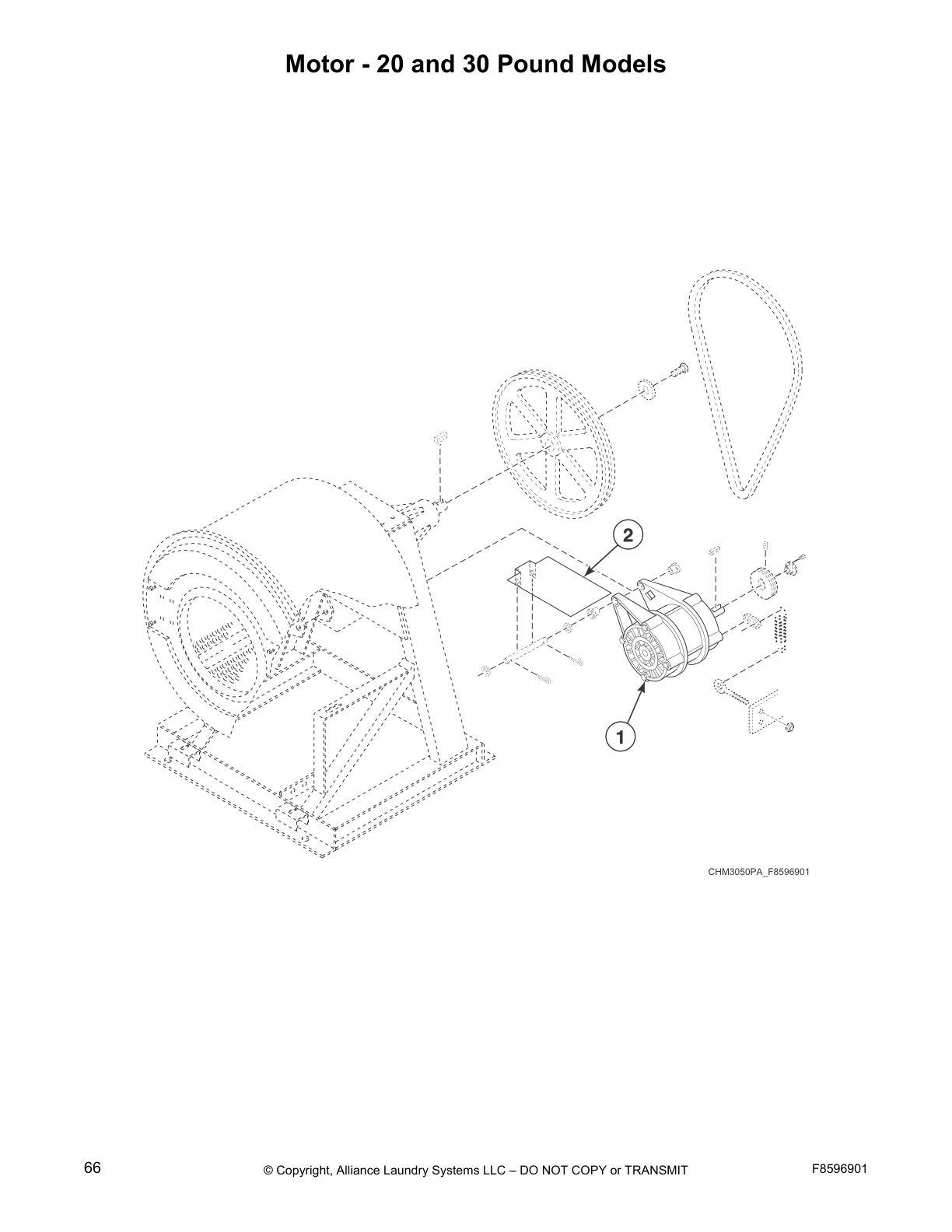

Motor - 20 and 30 Pound Models
Motor - 40 and 60 Pound Models

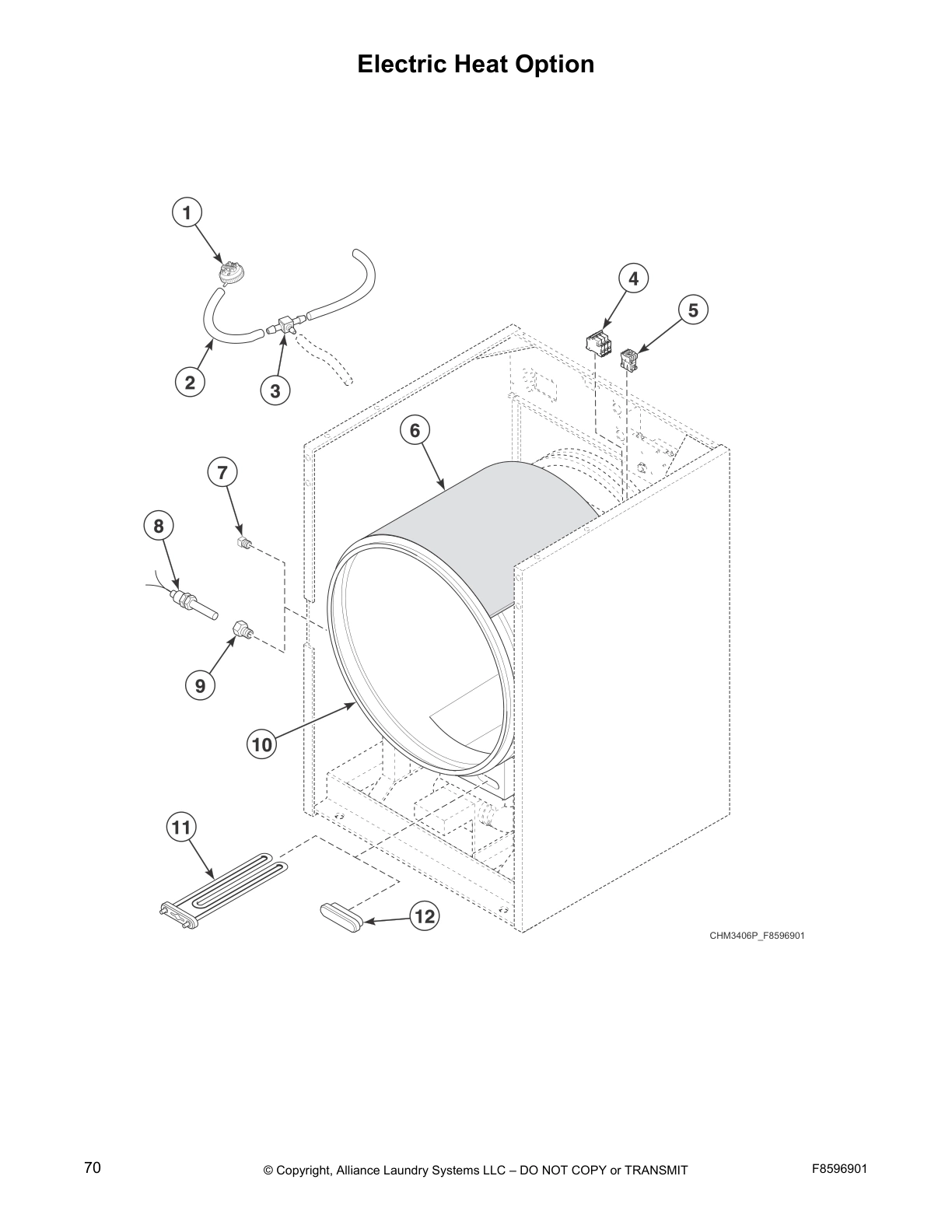

Electric Heat Option

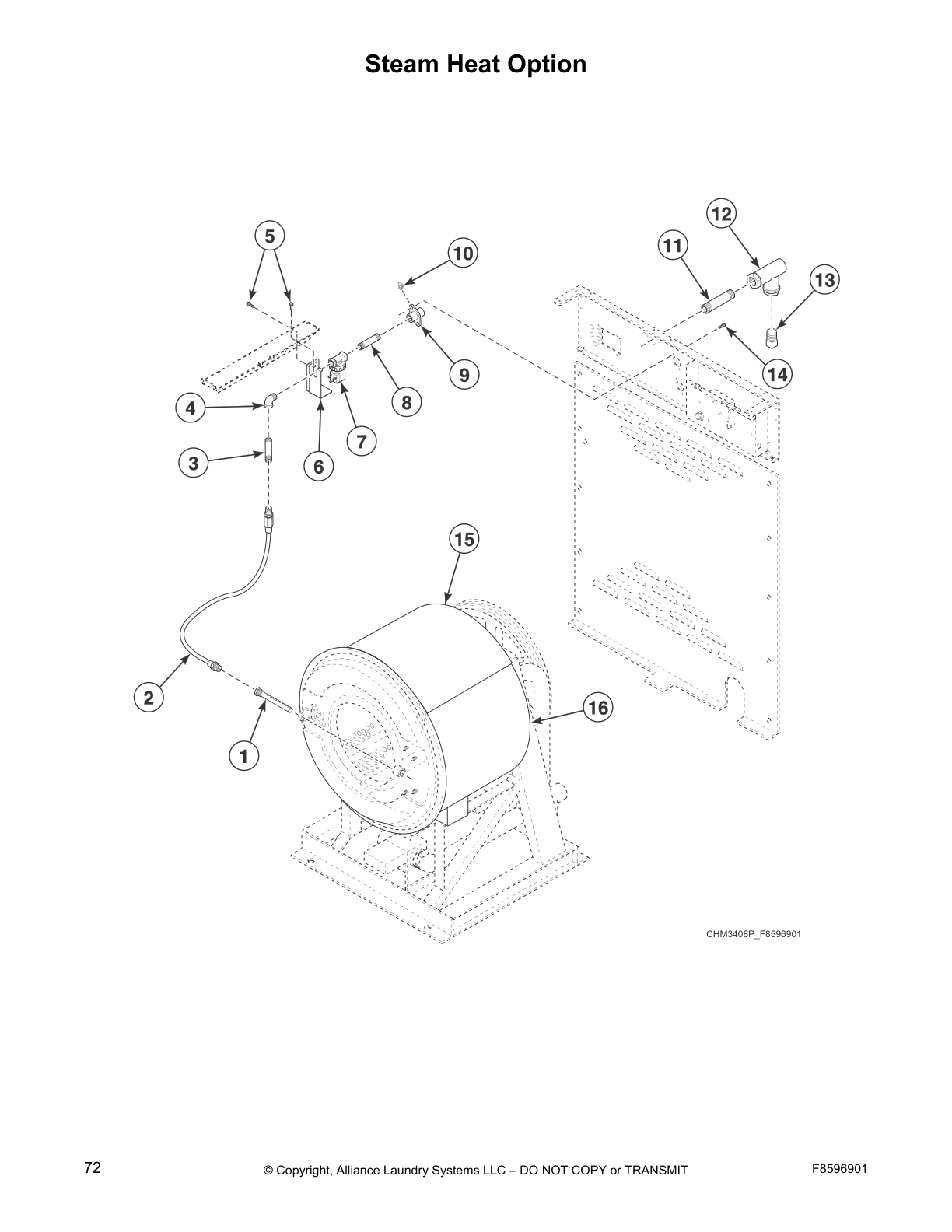

Steam Heat Option
Common parts from model UniMac UCL060GNF Washer
SPQ F8028105P SPQ F8028105P Contact Us For Availability
Output/Logic Harness SPQ F430903 Contact Us For Availability
SPQ F937P3 SPQ F937P3 Contact Us For Availability
SPQ F8028701 SPQ F8028701 Contact Us For Availability
SPQ F977P3 SPQ F977P3 Contact Us For Availability
Basket Rental Tool Kit SPQ 390P4-1 Contact Us For Availability
SPQ F200108P SPQ F200108P Contact Us For Availability
Steam Valve Repair Kit SPQ F8382301 Contact Us For Availability
Valve Kit SPQ F8514601P Contact Us For Availability
1
Water Pressure Switch SPQ F8223001P Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
Solenoid SPQ F8630601 Contact Us For Availability
1
Shell Front Assembly SPQ F8229701 Contact Us For Availability
1
Nut SPQ F430240 Contact Us For Availability
1
Screw SPQ F430942 Contact Us For Availability
1
Drain Valve Kit SPQ F200166400 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Motor Conversion Kit SPQ F8329201P Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Temperature Knob SPQ 44104601 Contact Us For Availability
2
Spring Pin SPQ F431222 Contact Us For Availability
2
Panel Lock SPQ 44089303P Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
2
PowerFlex 40 Drive SPQ F8053901P Contact Us For Availability
2
Front Panel SPQ F8173202P Contact Us For Availability
2
Overlay SPQ F8220001 Contact Us For Availability
2
Door Lock Splash Shield SPQ F431902 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
2
Overflow Hose SPQ F150417 Contact Us For Availability
2
Drain Valve Cover SPQ F8577201 Contact Us For Availability
2
Belt SPQ F200299700 Contact Us For Availability
2
Motor Drip Shield SPQ F200216900 Contact Us For Availability
2
Steam Hose SPQ F200197 Contact Us For Availability
3
Trunnion Kit SPQ F747005 Contact Us For Availability
3
Auxiliary Control Assembly SPQ F200233401P Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
3
Nut SPQ F431017 Contact Us For Availability
3
Lid Clamp SPQ F8230601 Contact Us For Availability
3
Black SPQ F8199401P Contact Us For Availability
3
Spacer SPQ F430225 Contact Us For Availability
3
Shell Band Kit SPQ F8537804 Contact Us For Availability
3
Shell Weldment SPQ F430303 Contact Us For Availability
3
Bolt SPQ F200133600 Contact Us For Availability
3
SPQ F0431807-00 SPQ F0431807-00 Contact Us For Availability
3
3-Way Valve SPQ F8286402P Contact Us For Availability
3
Pulley SPQ F431115 Contact Us For Availability
3
Nipple SPQ F8110601 Contact Us For Availability
4
Door Lock Plate Assembly SPQ F200203200 Contact Us For Availability
4
Expansion Clip SPQ F8205903 Contact Us For Availability
4
Temperature Selector Switch Bracket SPQ 70391701 Contact Us For Availability
4
Gusset Plate SPQ F8186702 Contact Us For Availability
4
Dispenser Lid SPQ F8091701 Contact Us For Availability
4
Door Latch Arm Assembly SPQ F431916 Contact Us For Availability
4
Screw SPQ F430518 Contact Us For Availability
4
Retaining Ring SPQ F8337901 Contact Us For Availability
4
Nut SPQ F8179503 Contact Us For Availability
4
Washer SPQ F430107 Contact Us For Availability
4
Drain Valve SPQ F200182700 Contact Us For Availability
4
SPQ F8308301 SPQ F8308301 Contact Us For Availability
4
Washer SPQ F8286401P Contact Us For Availability
4
Circuit Breaker SPQ 70256901P Contact Us For Availability
4
Street Elbow SPQ H86070034 Contact Us For Availability
5
Top Cover SPQ F8048101 Contact Us For Availability
5
Hose Clamp SPQ F8406303 Contact Us For Availability
5
Fuse SPQ F8201301 Contact Us For Availability
5
Control Panel Assembly SPQ F8038803 Contact Us For Availability
5
Door SPQ F8221403 Contact Us For Availability
5
Screw SPQ F320200 Contact Us For Availability
5
Drain Tee SPQ F430317 Contact Us For Availability
5
Triple Lip Seal SPQ F8203806 Contact Us For Availability
5
SPQ F8047801 SPQ F8047801 Contact Us For Availability
5
Sheave SPQ F280366P Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
6
Water Pressure Switch SPQ F200233500 Contact Us For Availability
6
Snap Bushing SPQ F360157P Contact Us For Availability
6
Top Cover Latch SPQ F8201001 Contact Us For Availability
6
SPQ F8040401P SPQ F8040401P Contact Us For Availability
6
Door Handle Spacer Kit
Includes items 9 and 1 SPQ F8535501 Contact Us For Availability
6
Door Lock Plate Shim SPQ F431901 Contact Us For Availability
6
SPQ F431131 SPQ F431131 Contact Us For Availability
6
Bearing SPQ F100135 Contact Us For Availability
6
P-Trap Hose SPQ F200213 Contact Us For Availability
6
Drain Hose SPQ F150398 Contact Us For Availability
6
Overflow Plug SPQ F200166402 Contact Us For Availability
6
SPQ F8043405 SPQ F8043405 Contact Us For Availability
6
Bushing SPQ F280422P Contact Us For Availability
6
DIN Valve Kit SPQ F8490301 Contact Us For Availability
7
Auxiliary Control Assembly SPQ F999P3 Contact Us For Availability
7
SPQ F8186701 SPQ F8186701 Contact Us For Availability
7
Door Assembly
SC and UC models SPQ F602842-2 Contact Us For Availability
7
Door Lock Solenoid Replacement SPQ F8223202 Contact Us For Availability
7
Basket Assembly SPQ F8502801P Contact Us For Availability
7
SPQ F100134 SPQ F100134 Contact Us For Availability
7
SPQ F8442702 SPQ F8442702 Contact Us For Availability
7
SPQ F200201 SPQ F200201 Contact Us For Availability
7
SPQ F8042805 SPQ F8042805 Contact Us For Availability
7
Extension Spring SPQ F0280385-00 Contact Us For Availability
7
Plug SPQ F421507 Contact Us For Availability
7
DIN Valve Kit SPQ F8521501 Contact Us For Availability
8
Includes items 1-14, 23-27 SPQ F8567501 Contact Us For Availability
8
Jumper Harness Assembly SPQ F980P3 Contact Us For Availability
8
External Door Lock Harness SPQ F430977 Contact Us For Availability
8
Pressfit Upgrade Kit SPQ F939P3 Contact Us For Availability
8
SPQ F8231902 SPQ F8231902 Contact Us For Availability
8
SPQ M412995P SPQ M412995P Contact Us For Availability
8
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
Valve SPQ F8322801P Contact Us For Availability
9
SPQ F430174 SPQ F430174 Contact Us For Availability
9
Black SPQ F430533 Contact Us For Availability
9
Door Lock Assembly Kit SPQ F8344401 Contact Us For Availability
9
Excluder Seal SPQ F8337101 Contact Us For Availability
9
SPQ F8232901 SPQ F8232901 Contact Us For Availability
9
SPQ F8197701 SPQ F8197701 Contact Us For Availability
9
Reducer Bushing SPQ F421936 Contact Us For Availability
9
Coupling SPQ 70263801 Contact Us For Availability
10
Lower Cabinet Brace SPQ F8174101 Contact Us For Availability
10
Top Cabinet Brace SPQ F8043901 Contact Us For Availability
10
Nut SPQ F430215 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Shell Weldment SPQ F8179502 Contact Us For Availability
10
Valve Panel SPQ F8047402 Contact Us For Availability
10
Nut SPQ 70030401 Contact Us For Availability
11
Top Cover Hinge SPQ F8258601 Contact Us For Availability
11
Door Glass
SC and UC models SPQ F431041 Contact Us For Availability
11
Shim SPQ F8484401 Contact Us For Availability
11
Screw SPQ F8039801 Contact Us For Availability
11
Element SPQ F360205P Contact Us For Availability
11
Pipe Nipple SPQ 431486 Contact Us For Availability
12
HC models through 1 SPQ F8485401P Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Terminal Tray Cover SPQ F8230301 Contact Us For Availability
12
Motor Support Bushing SPQ F200186100 Contact Us For Availability
12
Heating Element Plug SPQ F360202 Contact Us For Availability
13
Rear Panel SPQ F8177501P Contact Us For Availability
13
Door Gasket
SC and UC models SPQ F8111502 Contact Us For Availability
13
Bolt SPQ F8223601 Contact Us For Availability
13
Terminal Tray Cover Gasket SPQ F8177001 Contact Us For Availability
13
Cotter Pin SPQ F430401 Contact Us For Availability
13
Plug SPQ F420409 Contact Us For Availability
14
Terminal Block SPQ F8206901 Contact Us For Availability
14
Black SPQ F430974 Contact Us For Availability
14
Nut SPQ F8270701 Contact Us For Availability
14
Motor Support Rod SPQ F603897 Contact Us For Availability
14
Screw SPQ 20253 Contact Us For Availability
15
Door Lock Switch Lever SPQ F430264 Contact Us For Availability
15
Right Side Panel SPQ F8043301P Contact Us For Availability
15
Bolt SPQ F431022 Contact Us For Availability
15
Nut SPQ F8230001 Contact Us For Availability
15
Washer SPQ 901690 Contact Us For Availability
15
Pipe Insulation SPQ F410300 Contact Us For Availability
16
Ground Lug Connector SPQ 430642 Contact Us For Availability
16
Air Trap Hose SPQ F020014200 Contact Us For Availability
16
Left Side Panel SPQ F8043302P Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8223401 Contact Us For Availability
16
Basket Pulley SPQ F430802 Contact Us For Availability
16
Shell Weldment SPQ F8360902 Contact Us For Availability
17
Magnet SPQ F8390801 Contact Us For Availability
17
Hose Clamp SPQ F430232 Contact Us For Availability
17
Pushbutton Switch SPQ 70413301 Contact Us For Availability
17
Washer SPQ F8070301 Contact Us For Availability
18
Bolt SPQ F8230501 Contact Us For Availability
18
Pop Rivet SPQ F431223 Contact Us For Availability
18
Siphon Cover SPQ M411283 Contact Us For Availability
19
EMI Filter SPQ F8053902 Contact Us For Availability
19
Blind Rivet SPQ F8245101 Contact Us For Availability
19
Y Connector SPQ F430909 Contact Us For Availability
20
Screw SPQ F8169440 Contact Us For Availability
20
Reed Switch Assembly SPQ F8066802 Contact Us For Availability
20
Manifold SPQ F8047901 Contact Us For Availability
21
Control Tray Assembly SPQ F8169407 Contact Us For Availability
21
Rod SPQ F602813-3 Contact Us For Availability
21
Dispenser Gasket SPQ F422816 Contact Us For Availability
22
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
22
Access Cover SPQ F8232002 Contact Us For Availability
23
Control Kit SPQ F8169441 Contact Us For Availability
23
Screw SPQ F430536 Contact Us For Availability
24
Vacuum Supply Hose SPQ F8333201 Contact Us For Availability
25
Cap SPQ F200222 Contact Us For Availability
25
Expansion Clip SPQ F8069501 Contact Us For Availability
25
Door Mount SPQ F431929 Contact Us For Availability
26
Door Hinge SPQ F150271 Contact Us For Availability
26
Snap Bushing SPQ F8538101 Contact Us For Availability
26
Vacuum Breaker Hose SPQ F606816-1 Contact Us For Availability
27
Door Handle
All other models SPQ F190216P Contact Us For Availability
27
SPQ F8535601 SPQ F8535601 Contact Us For Availability
NI
Coil SPQ F380984P Contact Us For Availability
NI
External Supply Harness SPQ 44071501 Contact Us For Availability
NI
USB IR Interface Kit SPQ F8189401P Contact Us For Availability
NI
SPQ F8060501 SPQ F8060501 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
SPQ F8261501P SPQ F8261501P Contact Us For Availability
NI
Control Tray Harness SPQ M413506 Contact Us For Availability
NI
SPQ F8191201P SPQ F8191201P Contact Us For Availability
NI
SPQ F8187402 SPQ F8187402 Contact Us For Availability
NI
SPQ F8059701 SPQ F8059701 Contact Us For Availability
NI
SPQ F8340001 SPQ F8340001 Contact Us For Availability
NI
SPQ F8626501 SPQ F8626501 Contact Us For Availability
NI
Shaft Seal Sleeve Kit SPQ F8343909P Contact Us For Availability
NI
Basket Puller Tool SPQ F460129P Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
NI
SPQ 1111P SPQ 1111P Contact Us For Availability
NI
SPQ F200215 SPQ F200215 Contact Us For Availability
NI
SPQ F150352 SPQ F150352 Contact Us For Availability
NI
SPQ F8544601 SPQ F8544601 Contact Us For Availability
NI
SPQ F0200244-01 SPQ F0200244-01 Contact Us For Availability
NI
Regulator SPQ F8042301 Contact Us For Availability
NI
Diaphragm and Guide Kit SPQ F8402201 Contact Us For Availability
NI
SPQ G582P3 SPQ G582P3 Contact Us For Availability
NI
SPQ F310124 SPQ F310124 Contact Us For Availability
NI
Jumper Wire SPQ F8056001 Contact Us For Availability
NI
Steam Heat Kit SPQ F8154501 Contact Us For Availability
NI
DIN Valve Adapter Kit SPQ F953P3 Contact Us For Availability
NI
SPQ F8379501P SPQ F8379501P Contact Us For Availability
× ![]()
