Model Unimac UCL030GN2 Washer – Common Parts & Diagrams

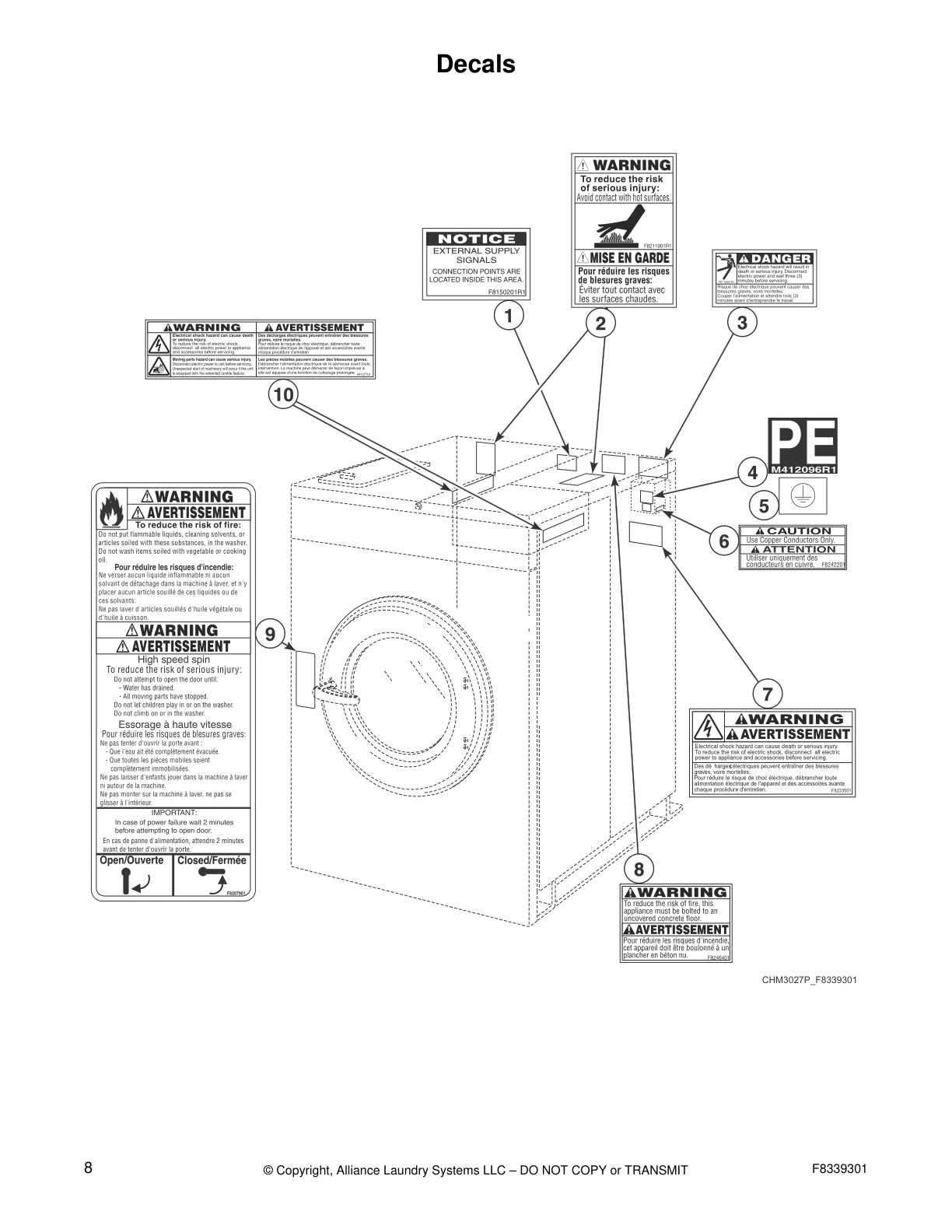

Decals

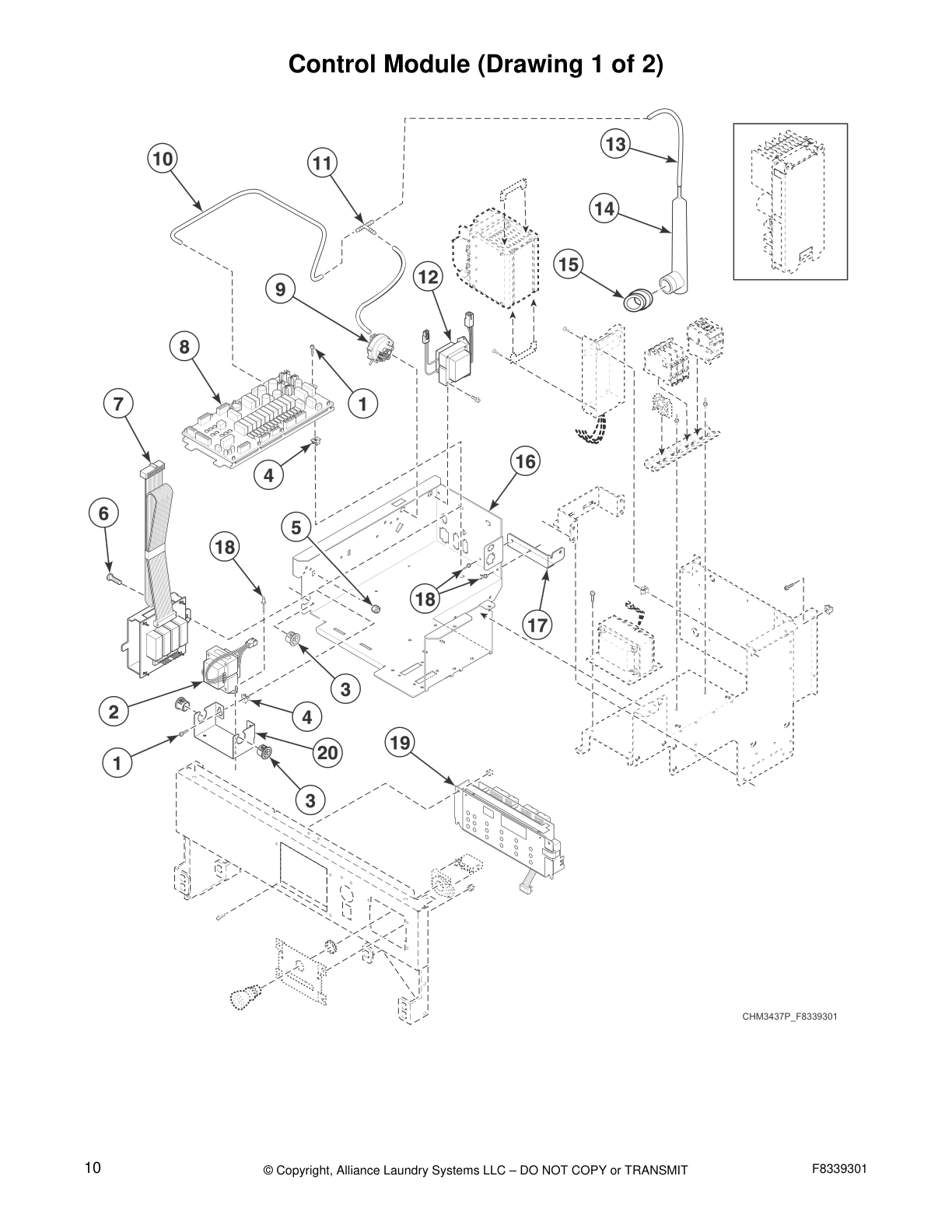

Control Module (Drawing 1 of 2)

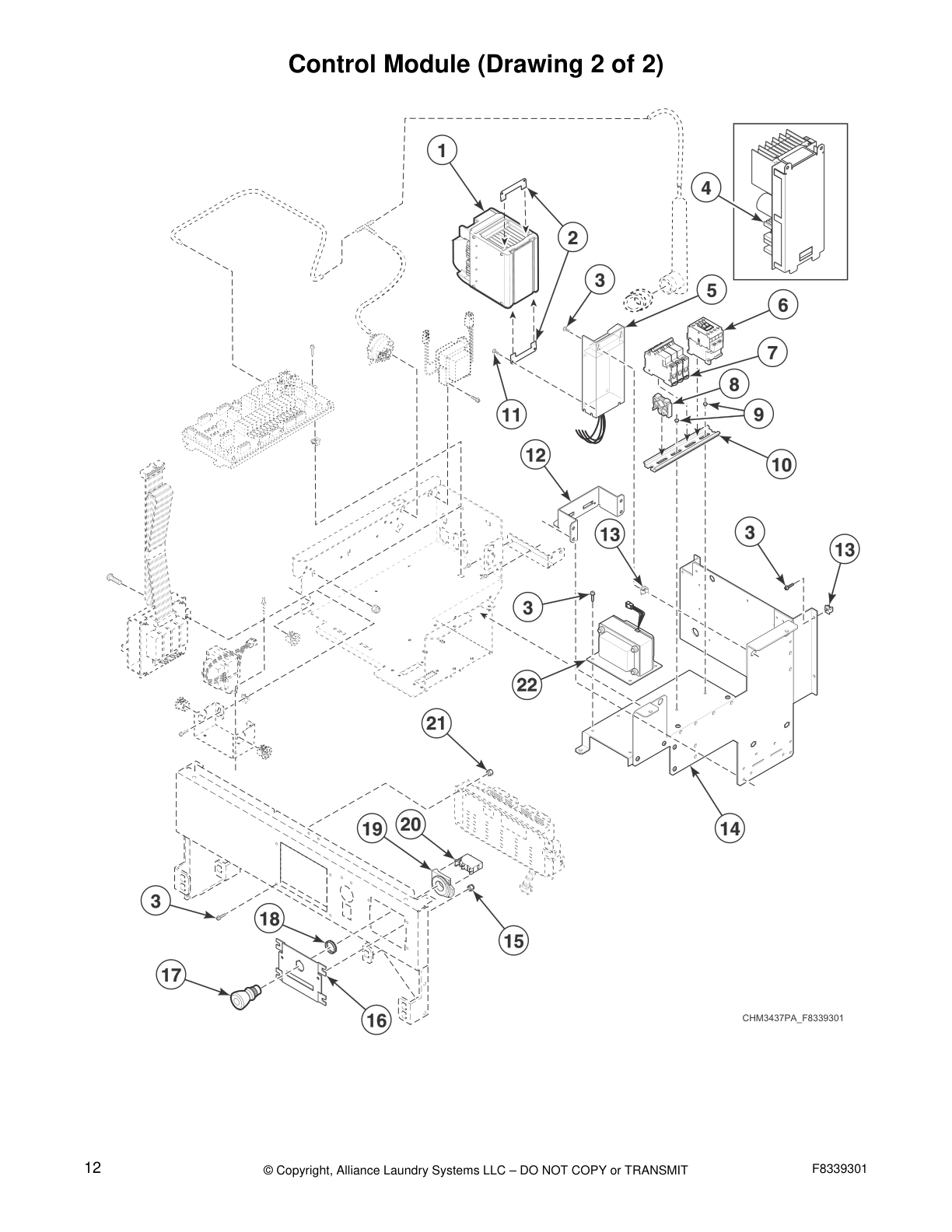

Control Module (Drawing 2 of 2)

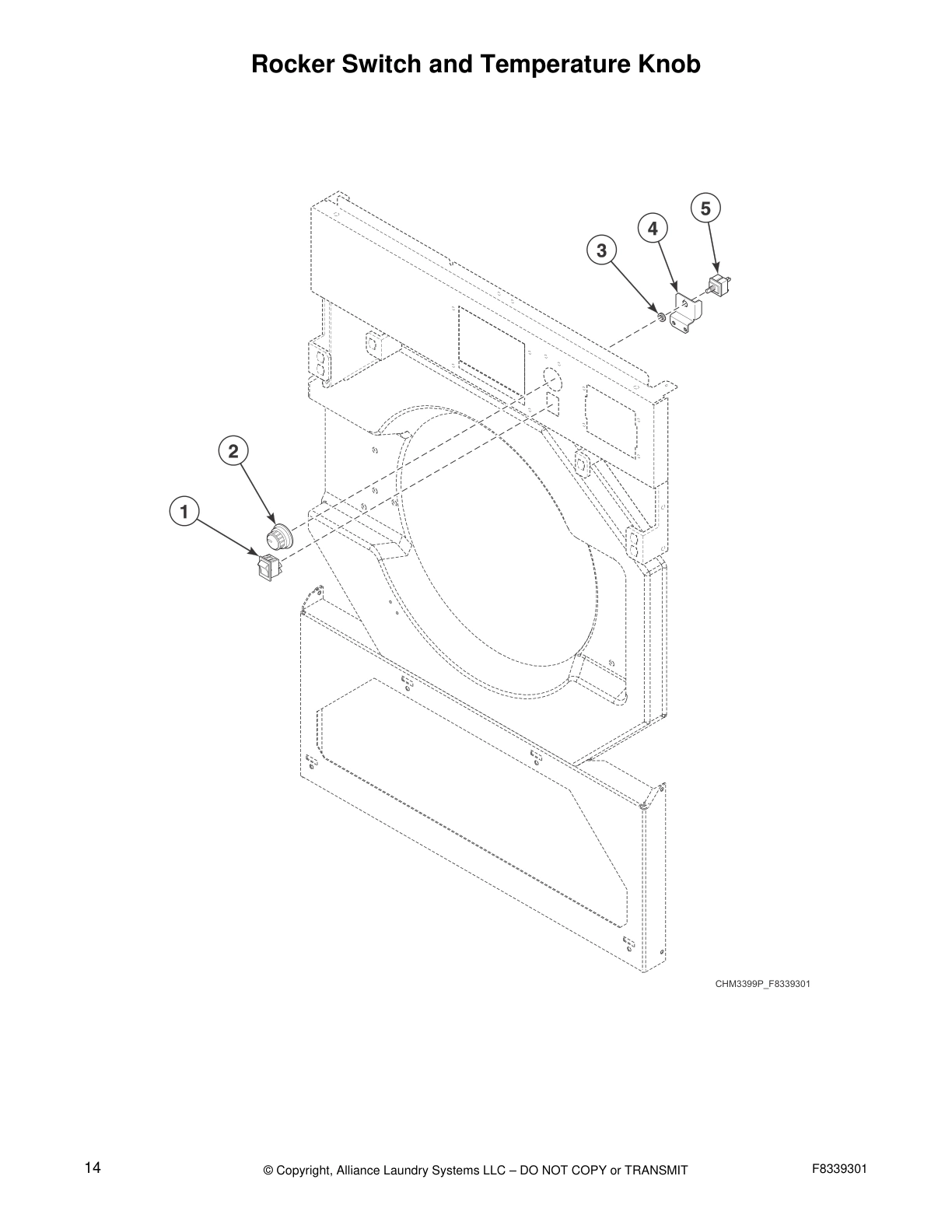

Rocker Switch and Temperature Knob

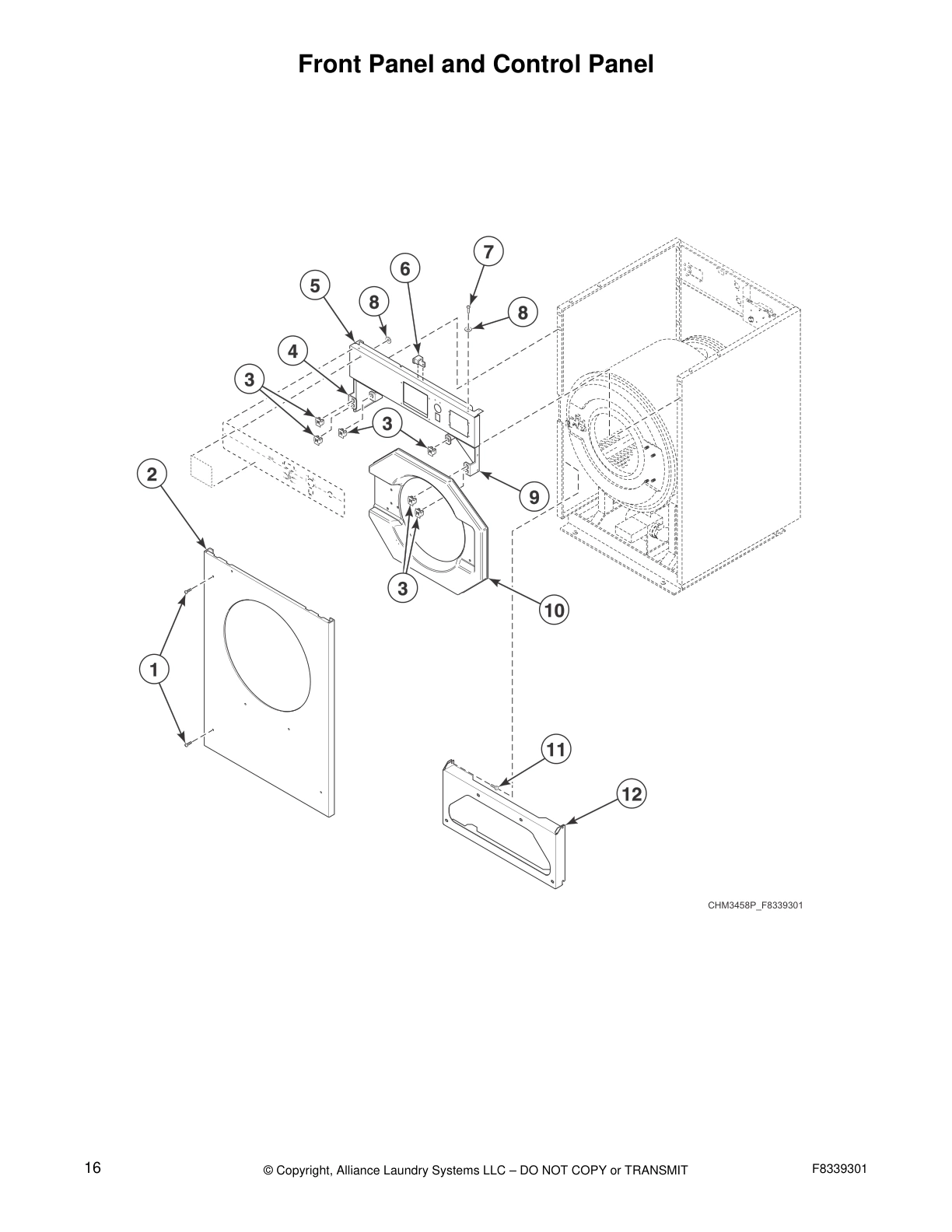

Front Panel and Control Panel

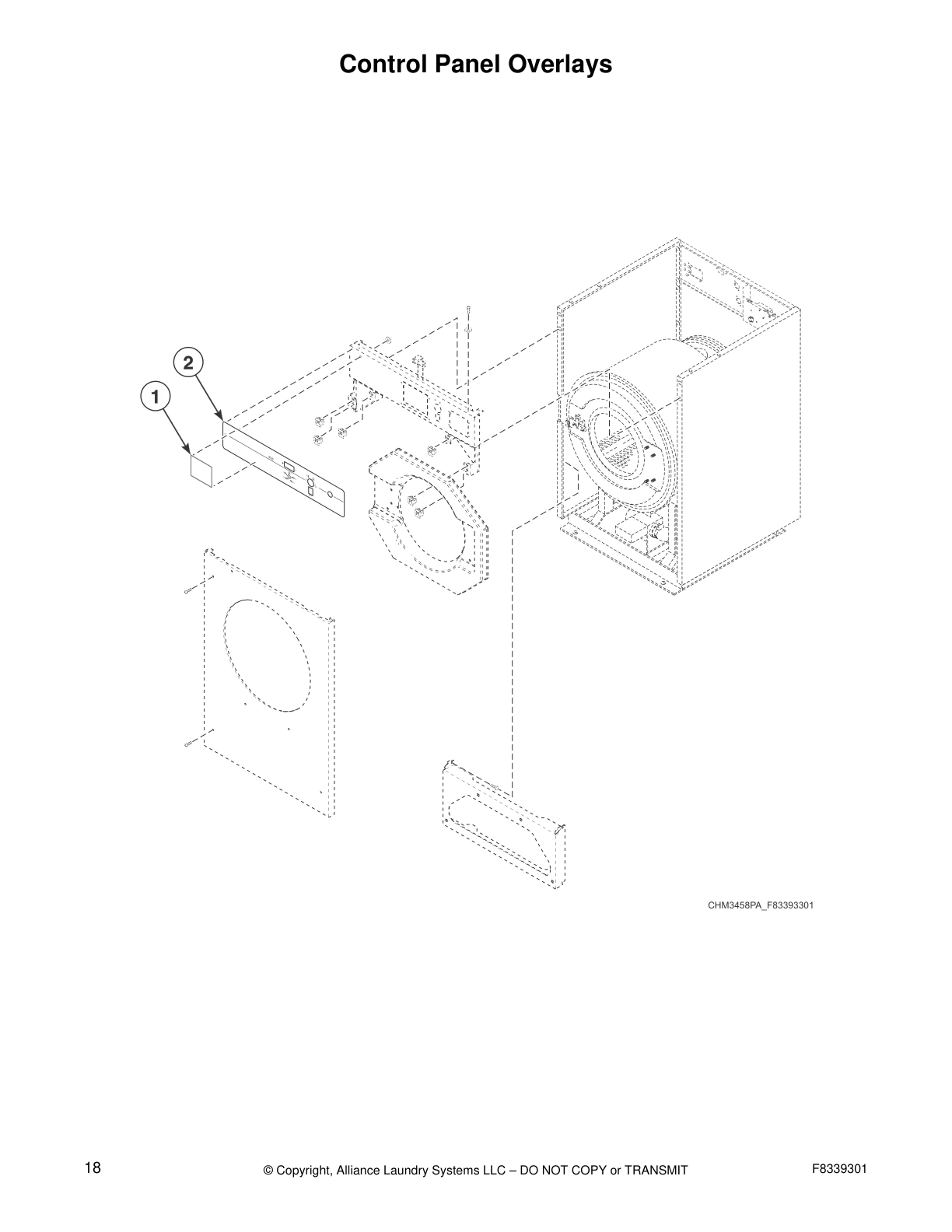

Control Panel Overlays

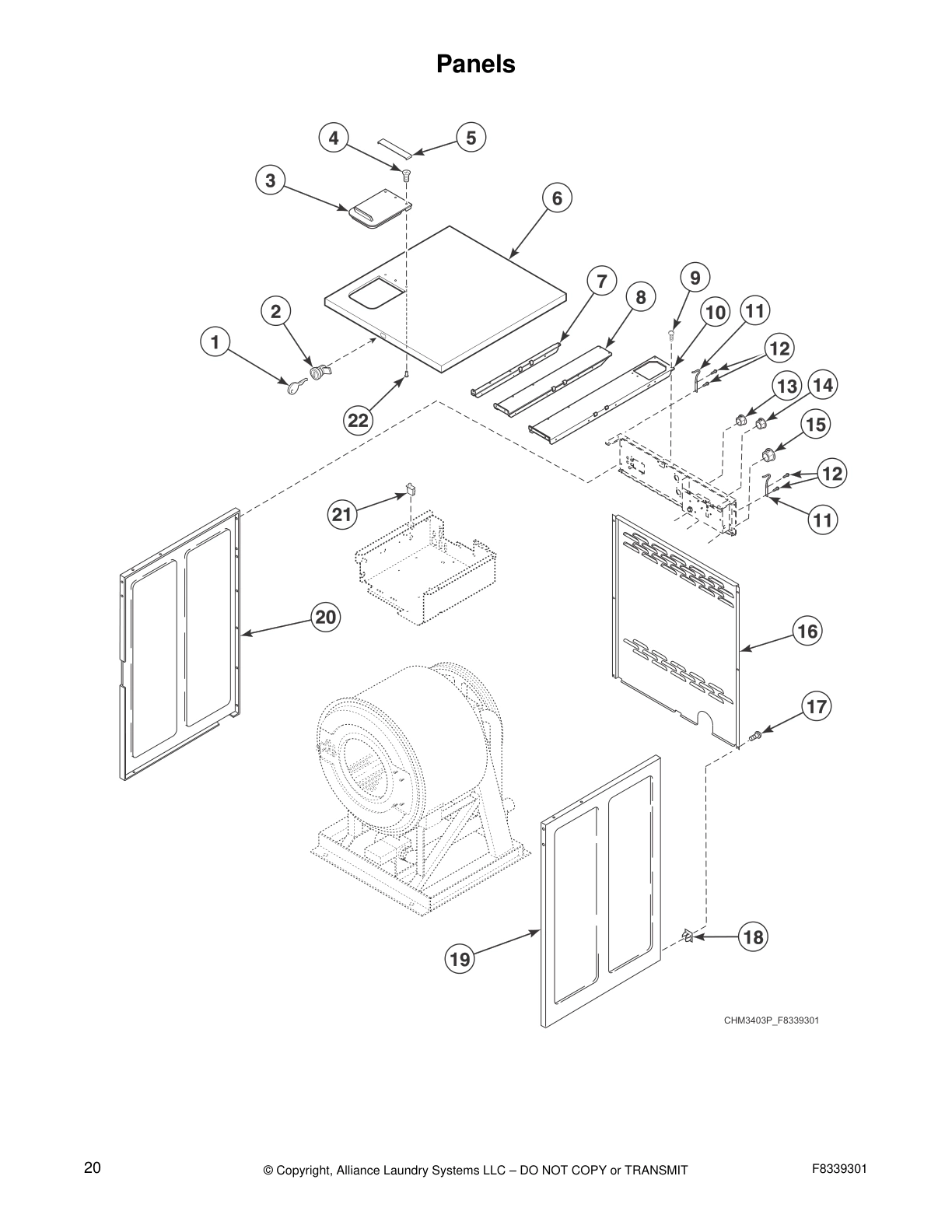

Panels

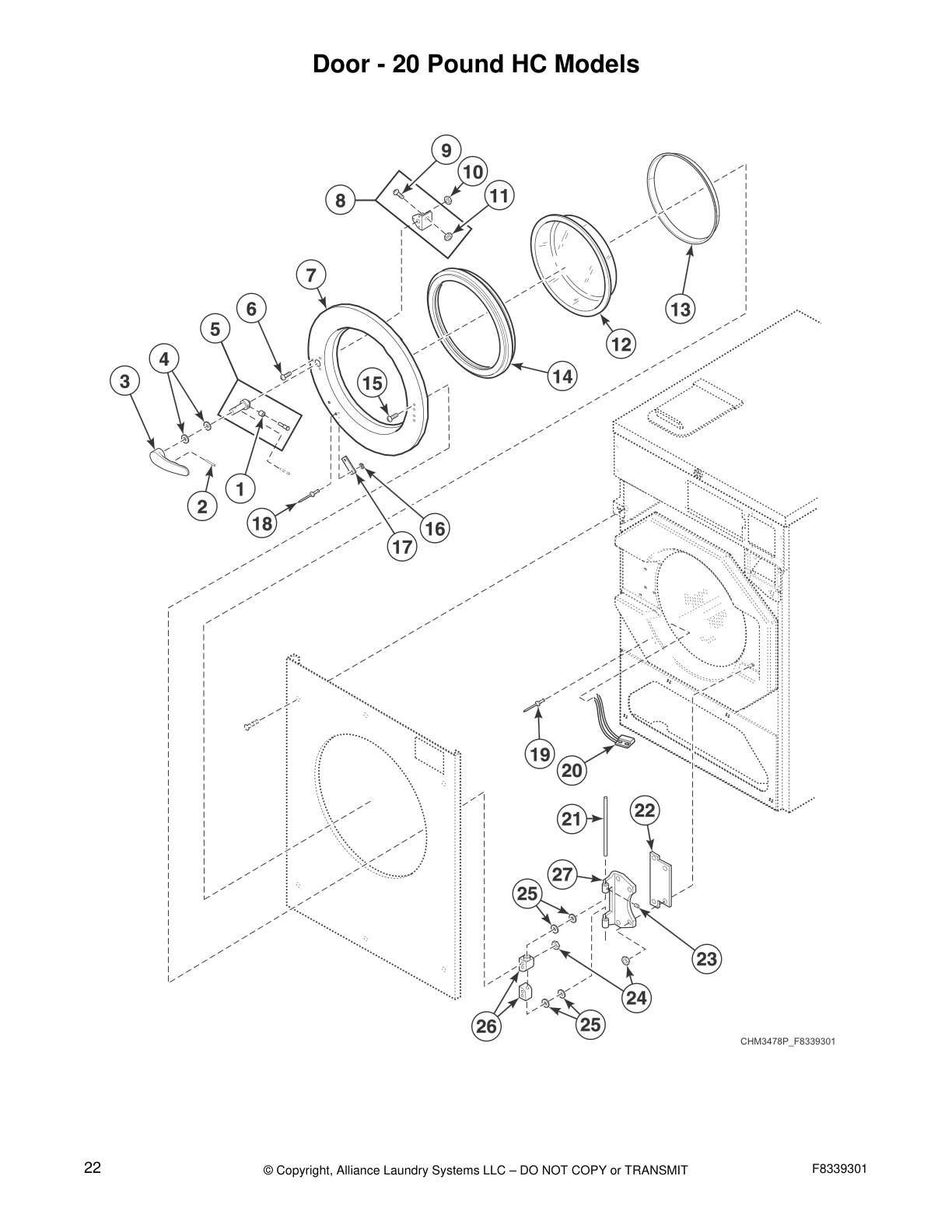

Door - 20 Pound HC Models

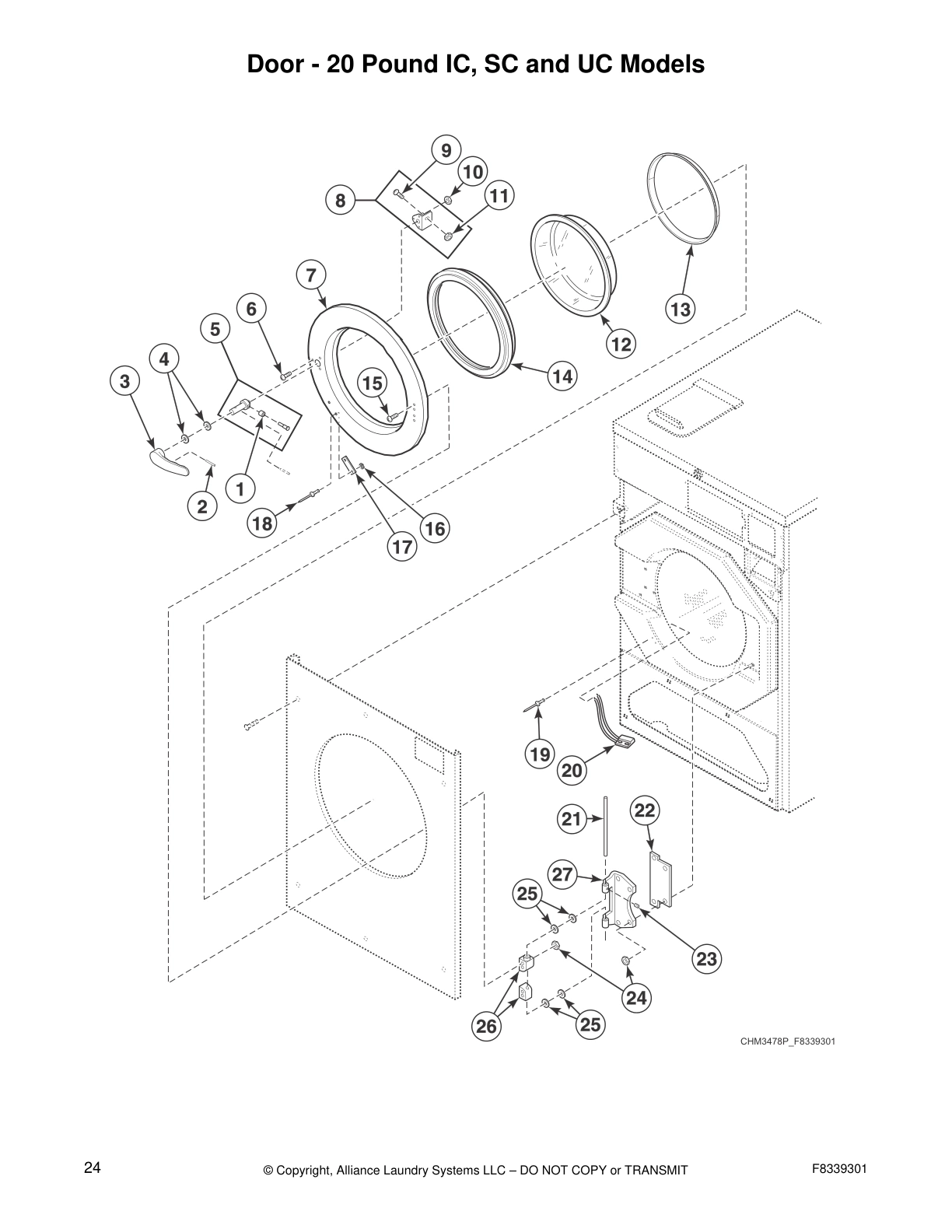

Door - 20 Pound IC, SC and UC Models
Door - 30 Pound HC Models
Door - 30 Pound IC, SC and UC Models

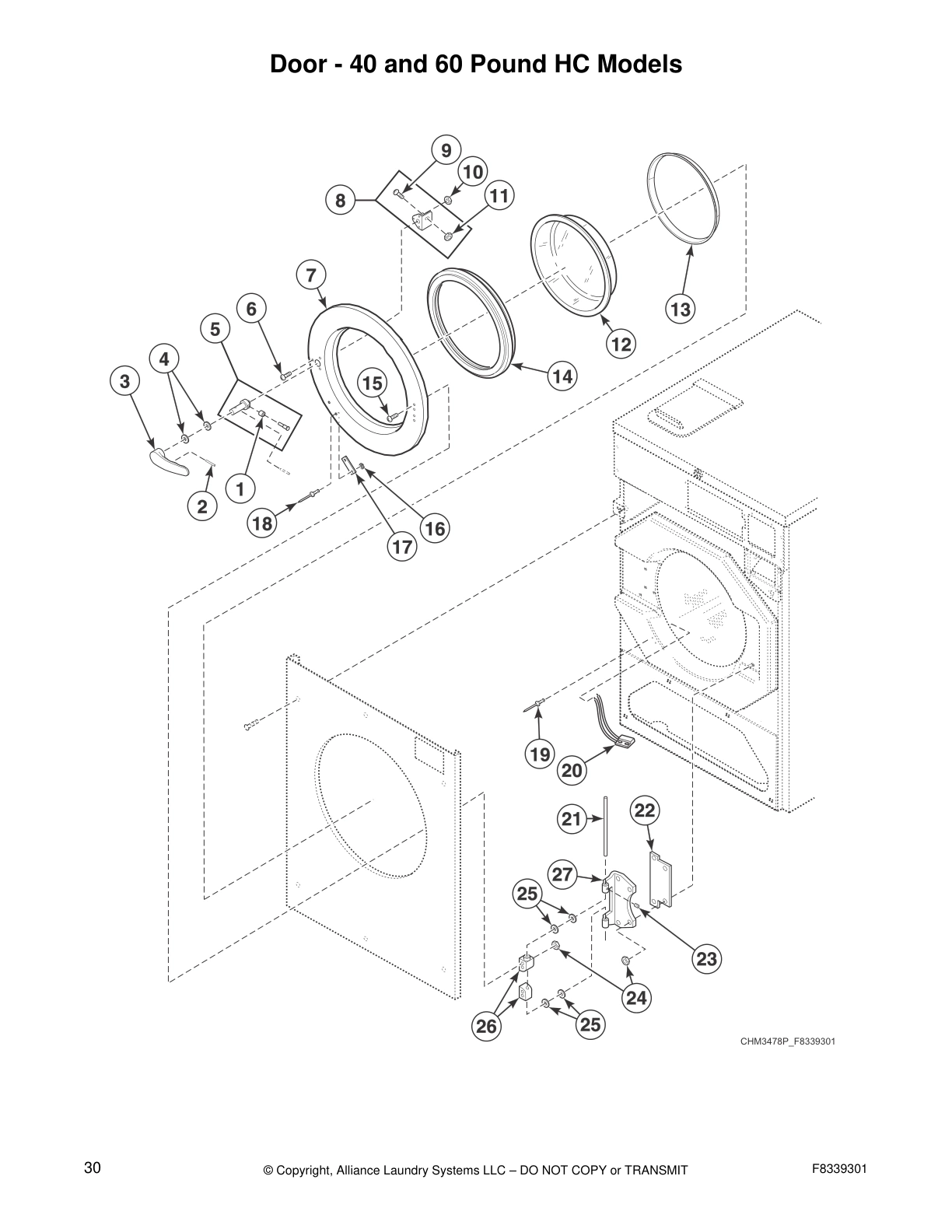

Door - 40 and 60 Pound HC Models

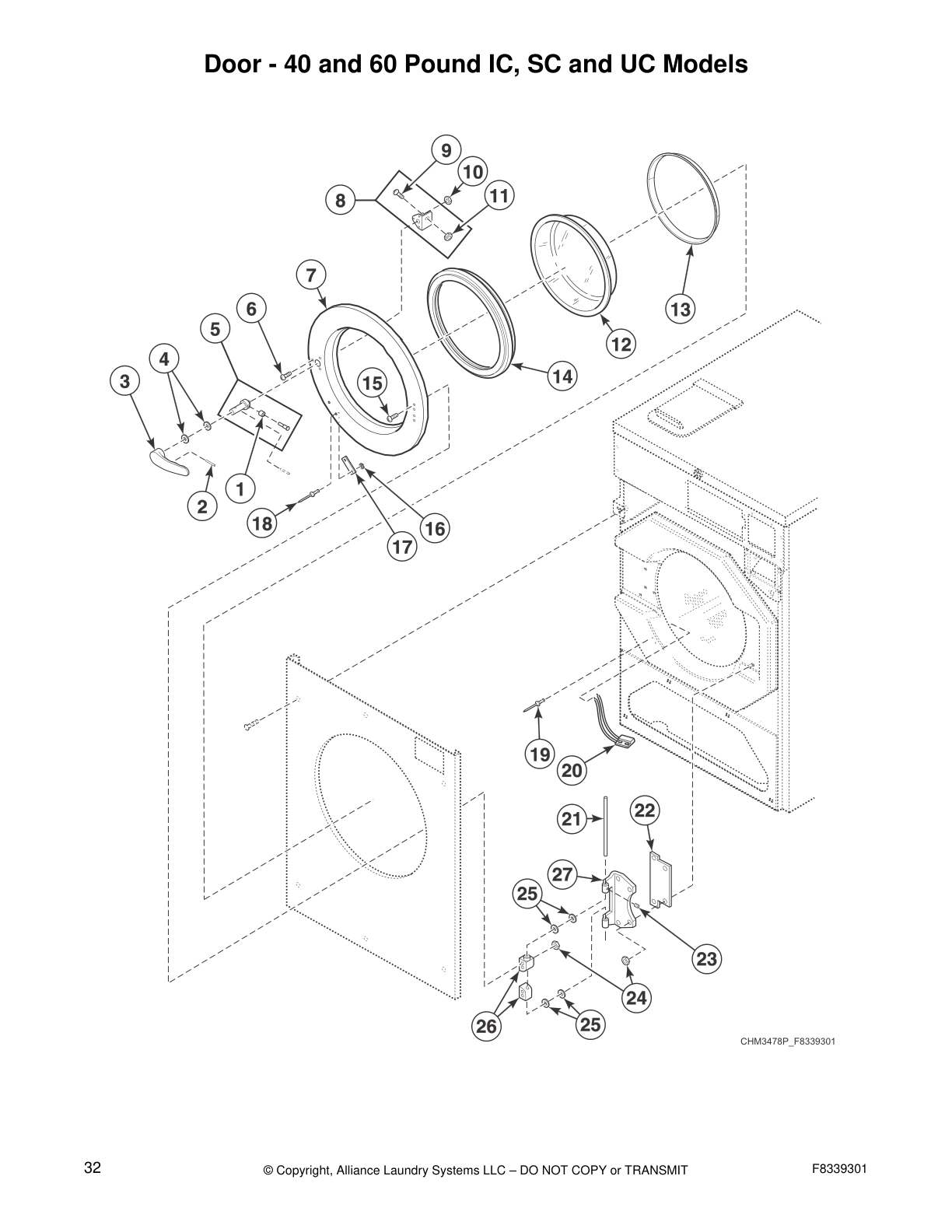

Door - 40 and 60 Pound IC, SC and UC Models

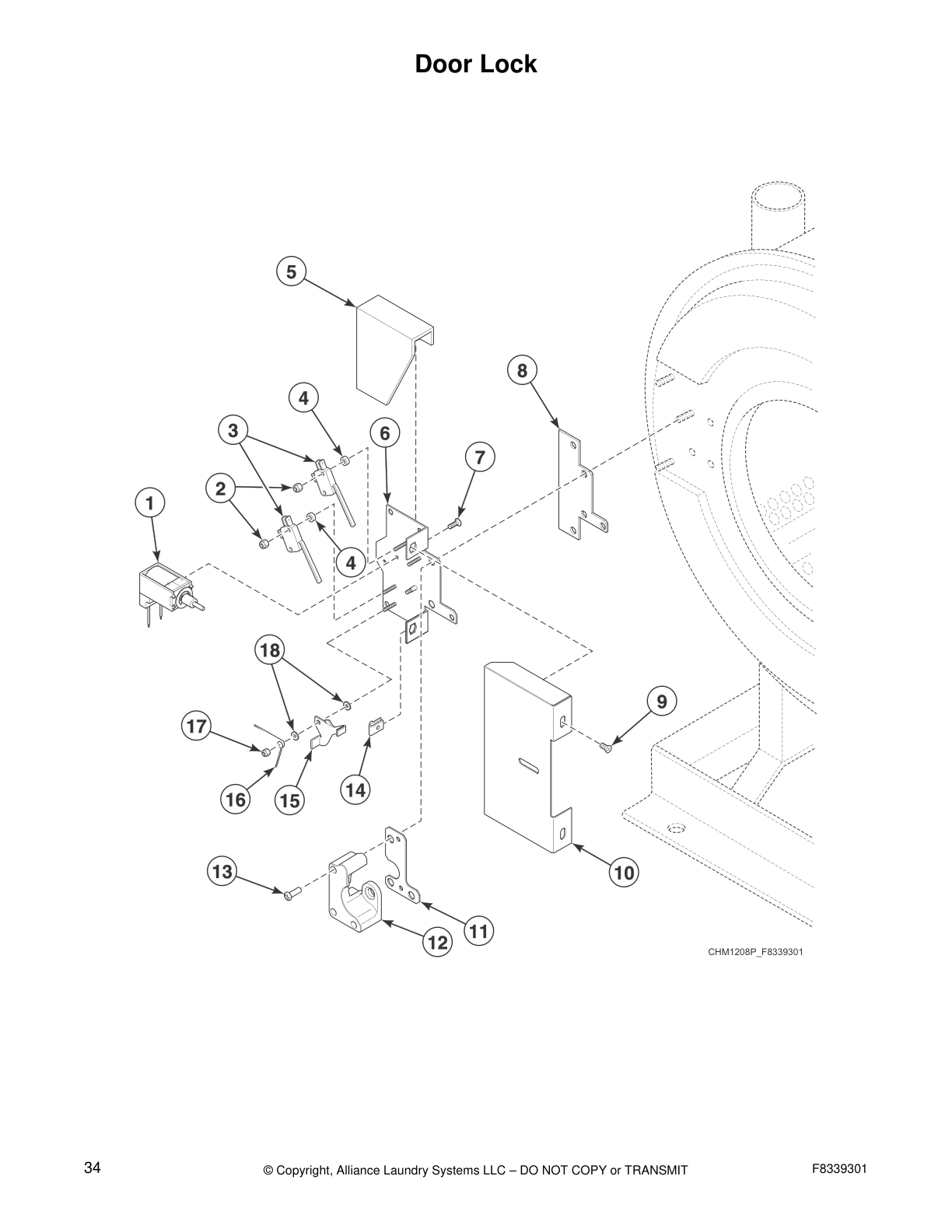

Door Lock

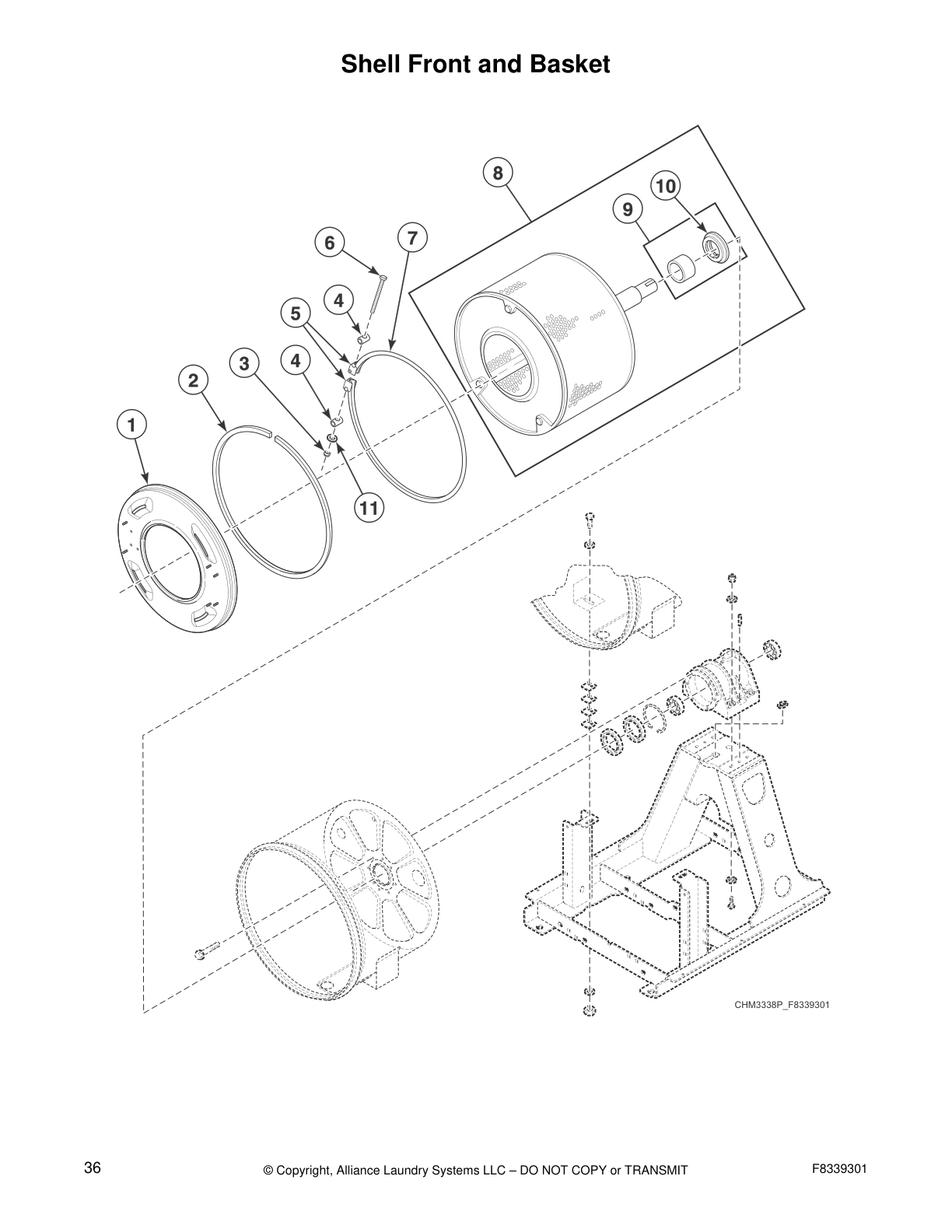

Shell Front and Basket
Bearing Housing - 20 and 30 Pound Models

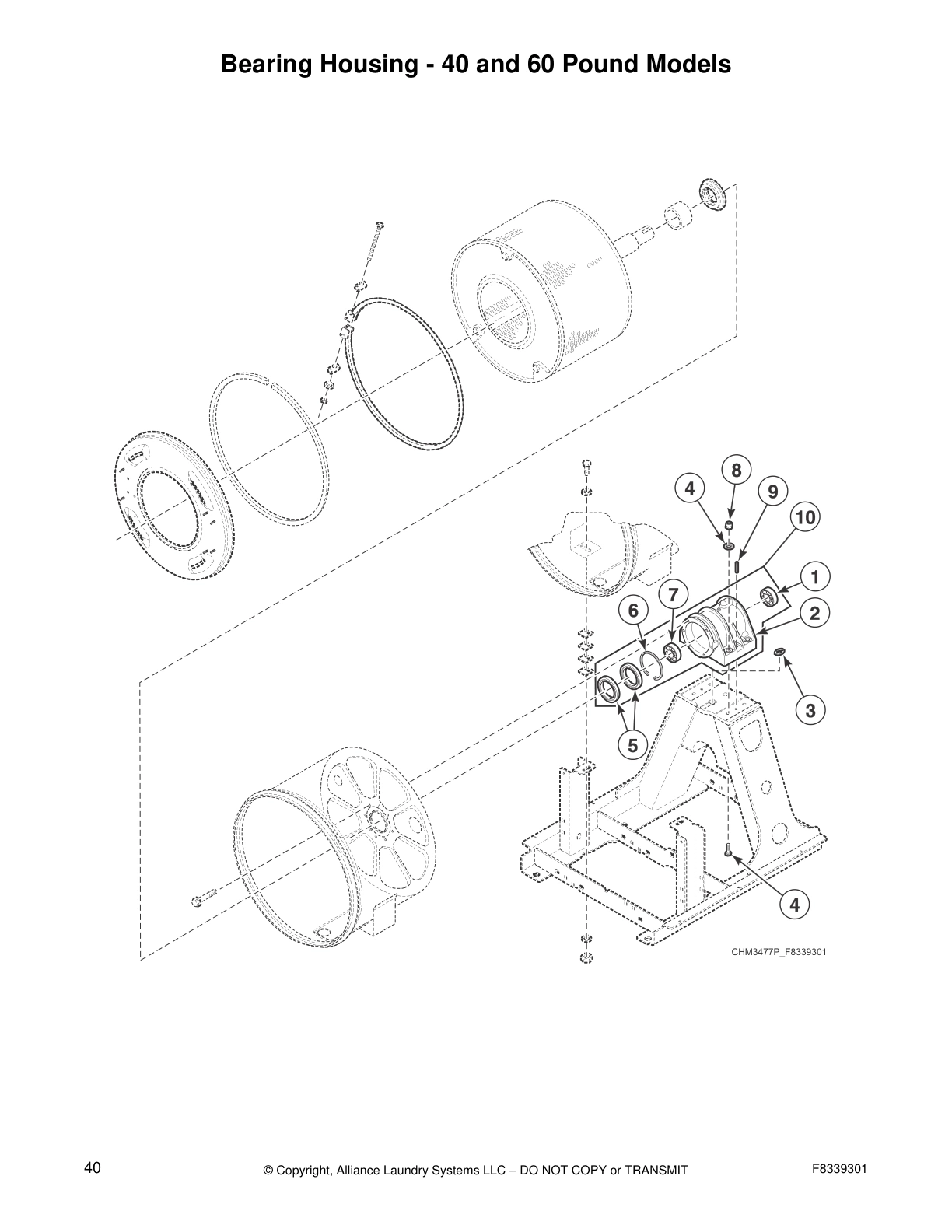

Bearing Housing - 40 and 60 Pound Models

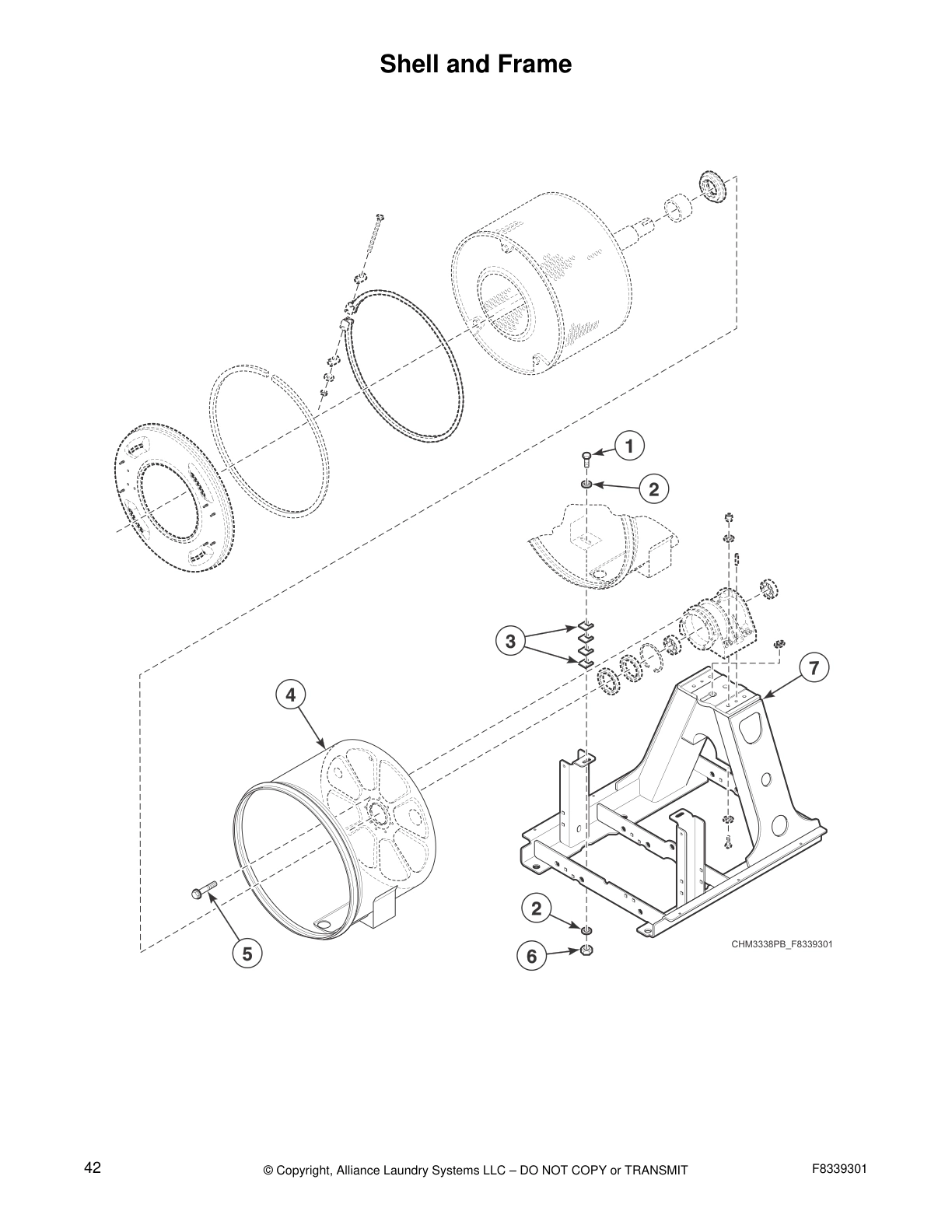

Shell and Frame

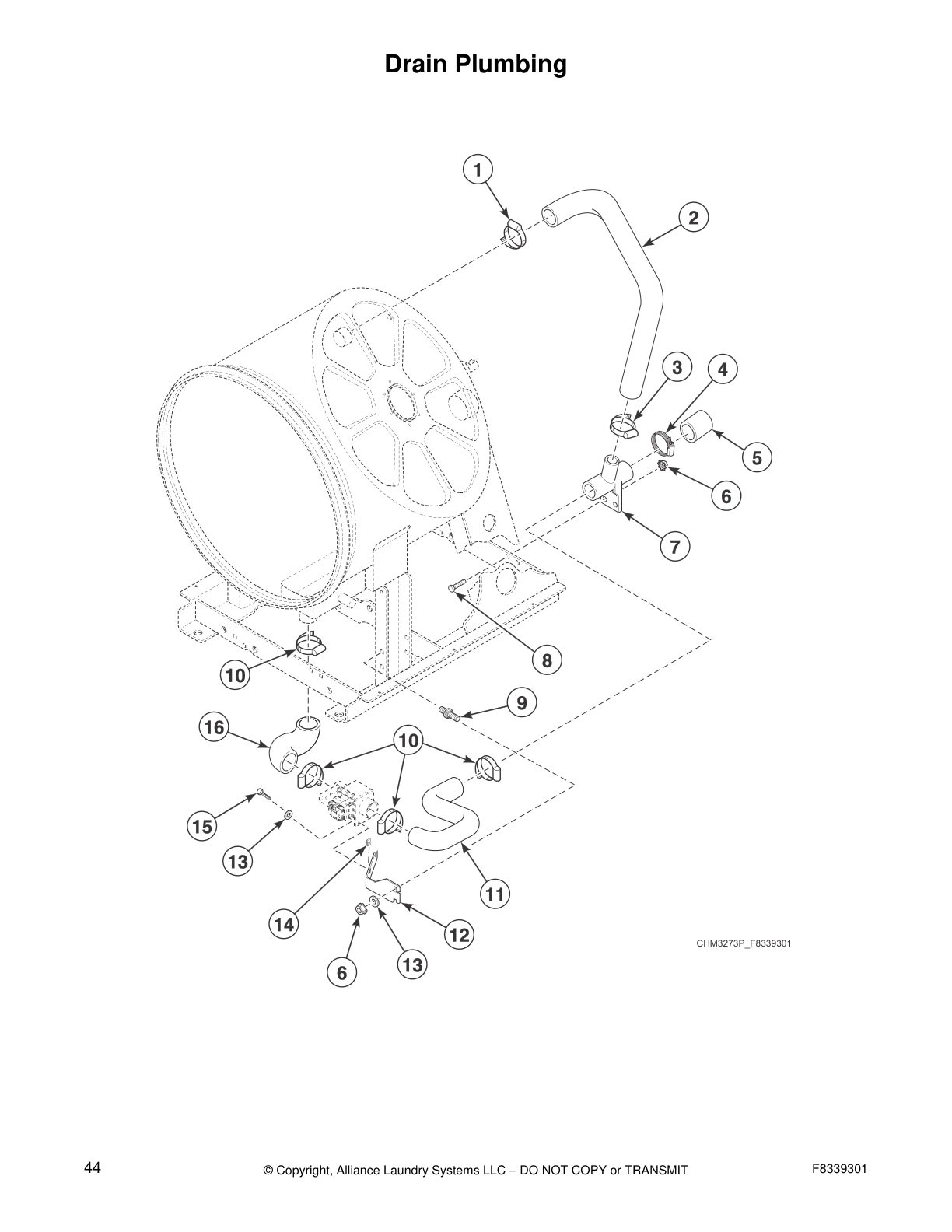

Drain Plumbing

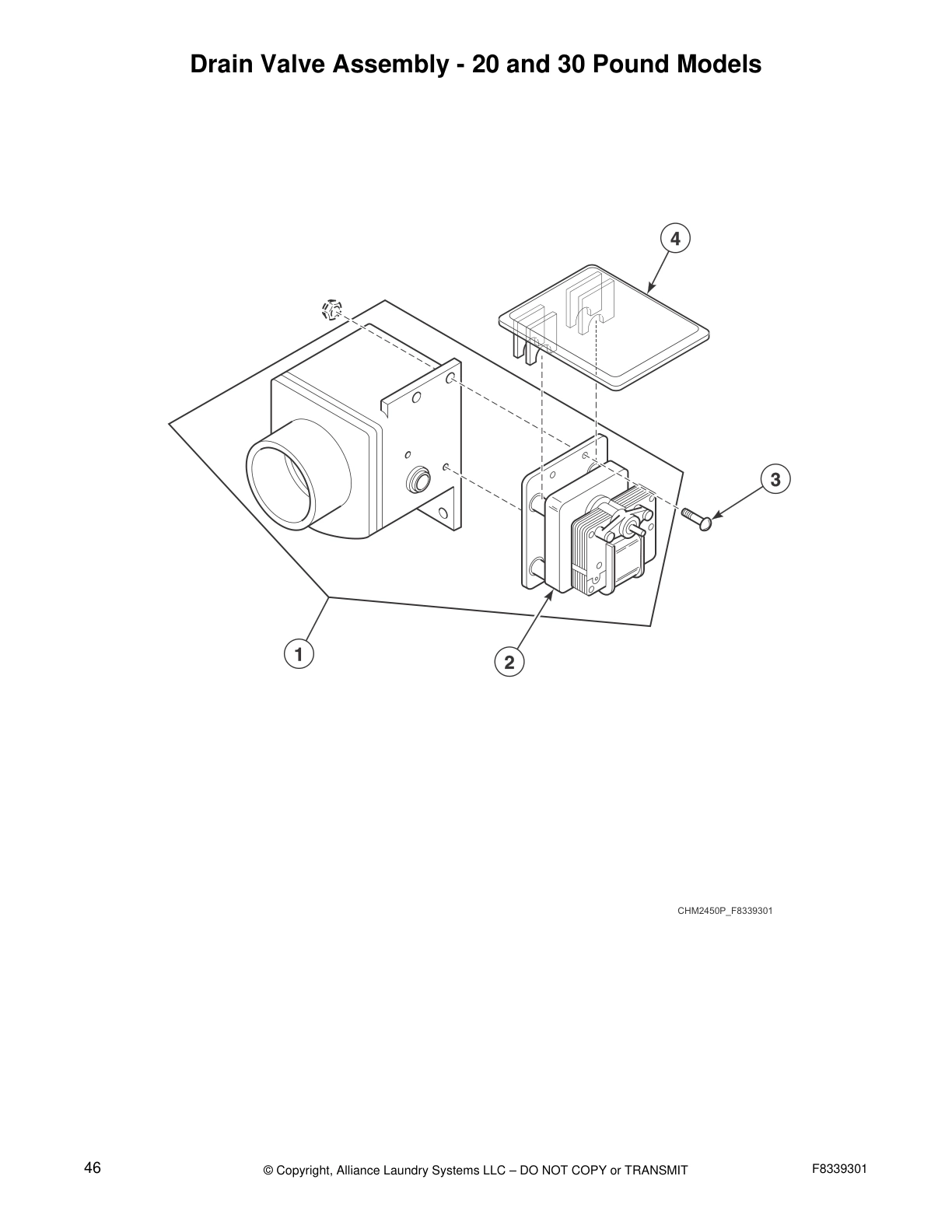

Drain Valve Assembly - 20 and 30 Pound Models

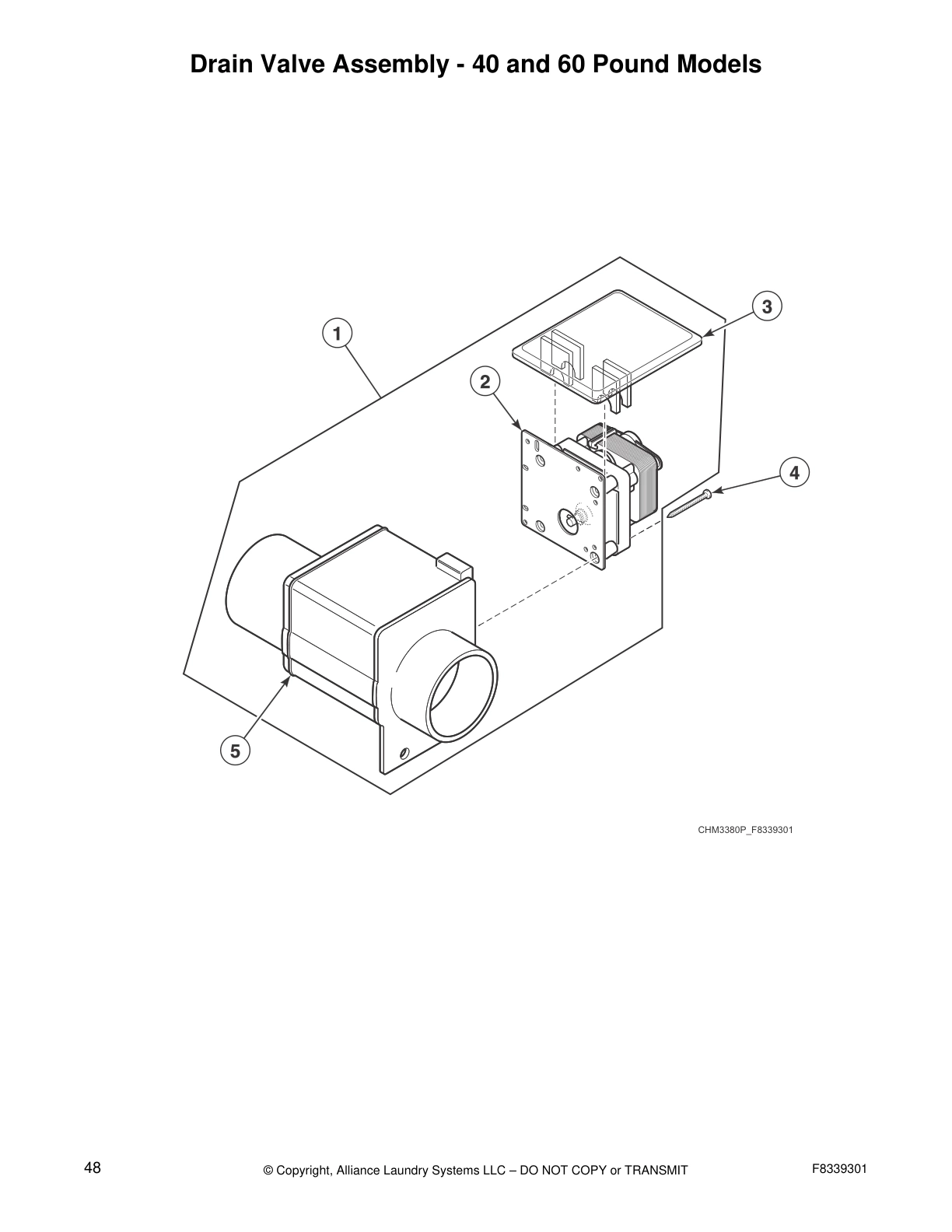

Drain Valve Assembly - 40 and 60 Pound Models

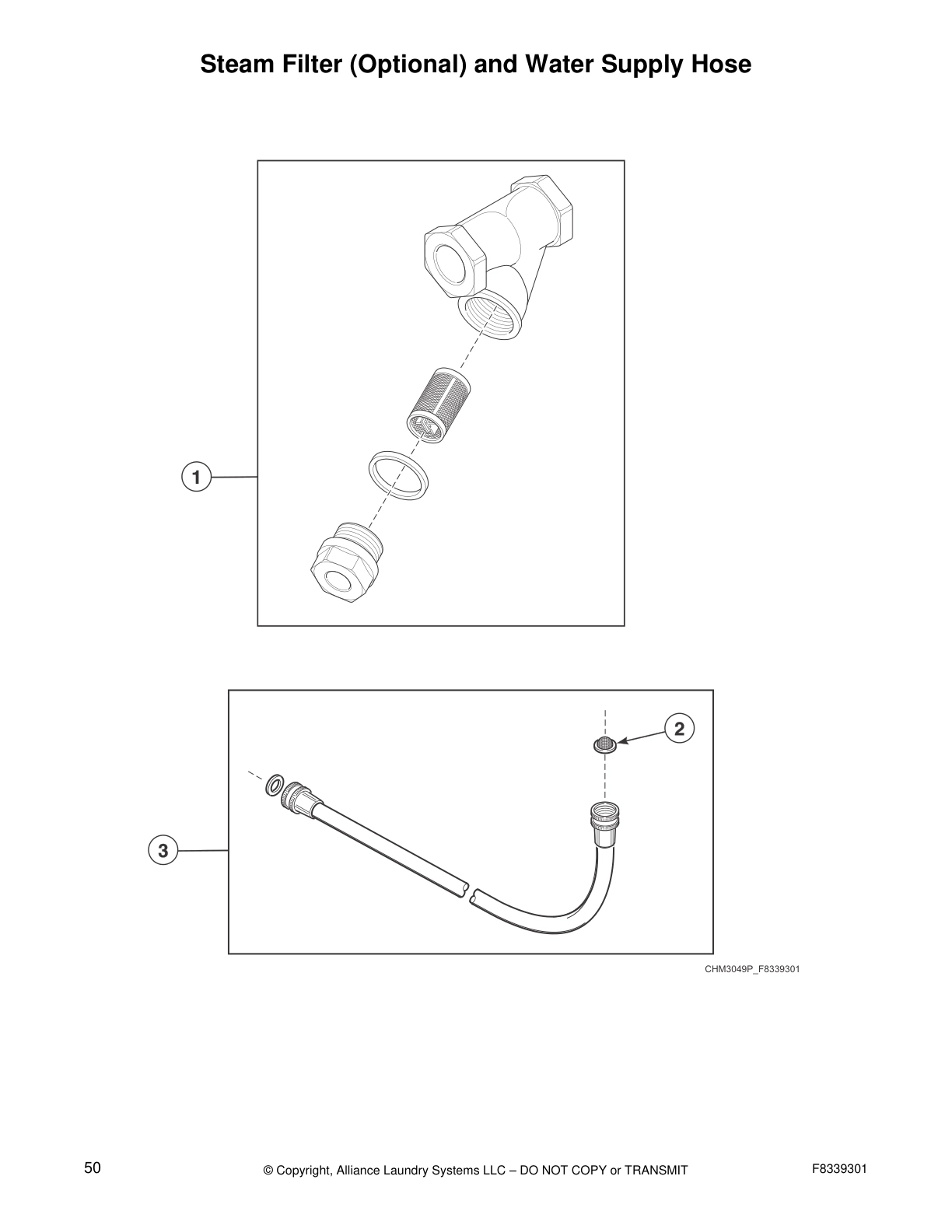

Steam Filter (Optional) and Water Supply Hose

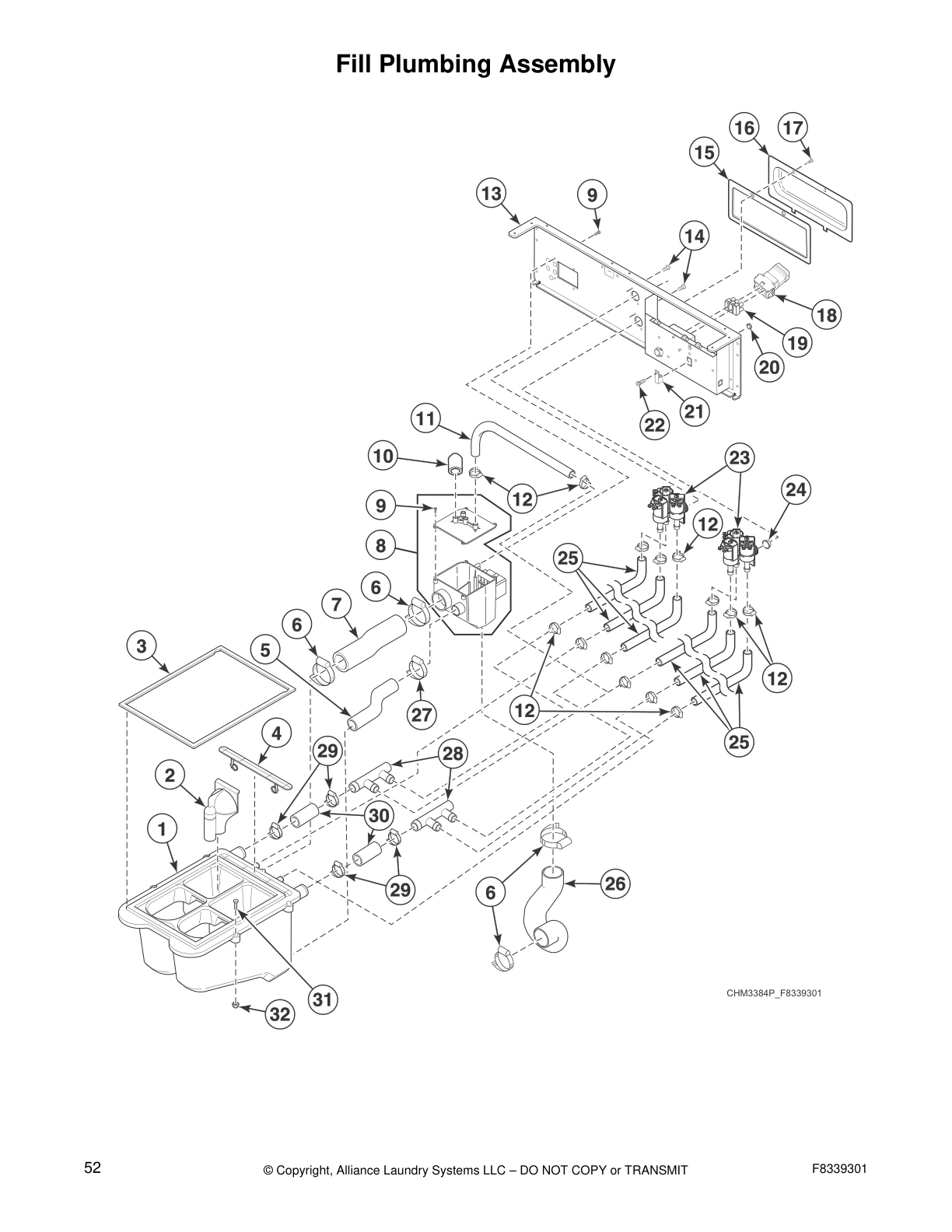

Fill Plumbing Assembly
Motor, Pulley and Belt (Drawing 1 of 3)

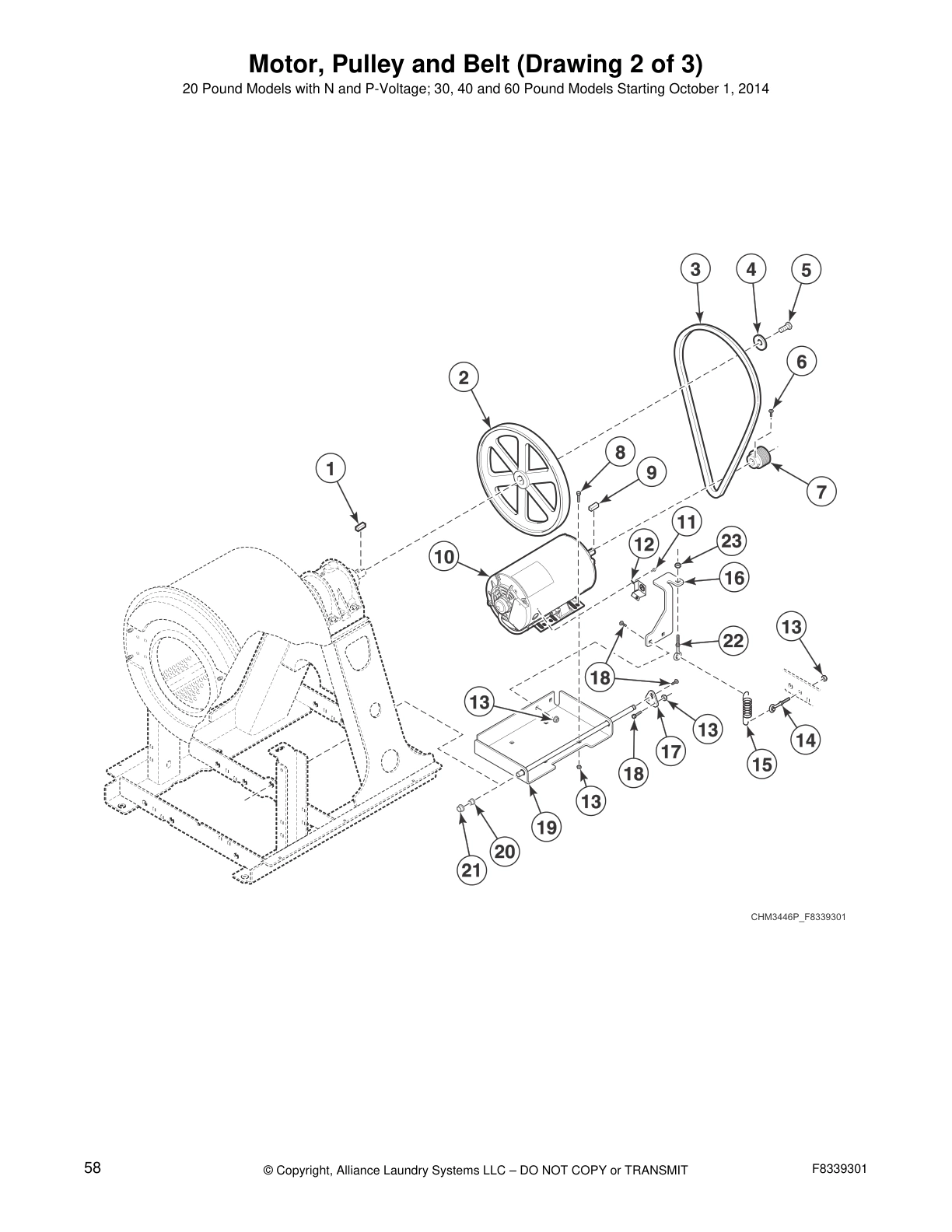

Motor, Pulley and Belt (Drawing 2 of 3)

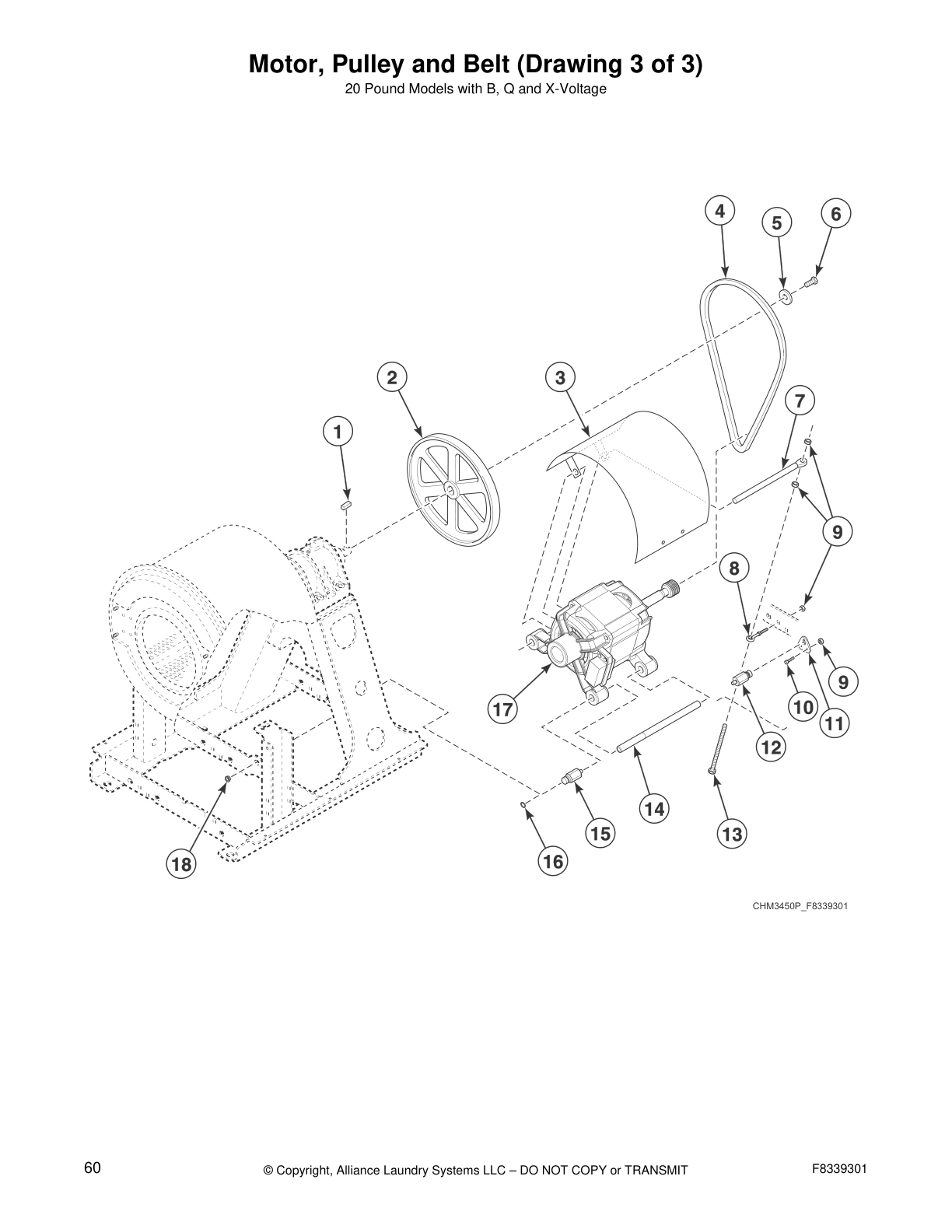

Motor, Pulley and Belt (Drawing 3 of 3)

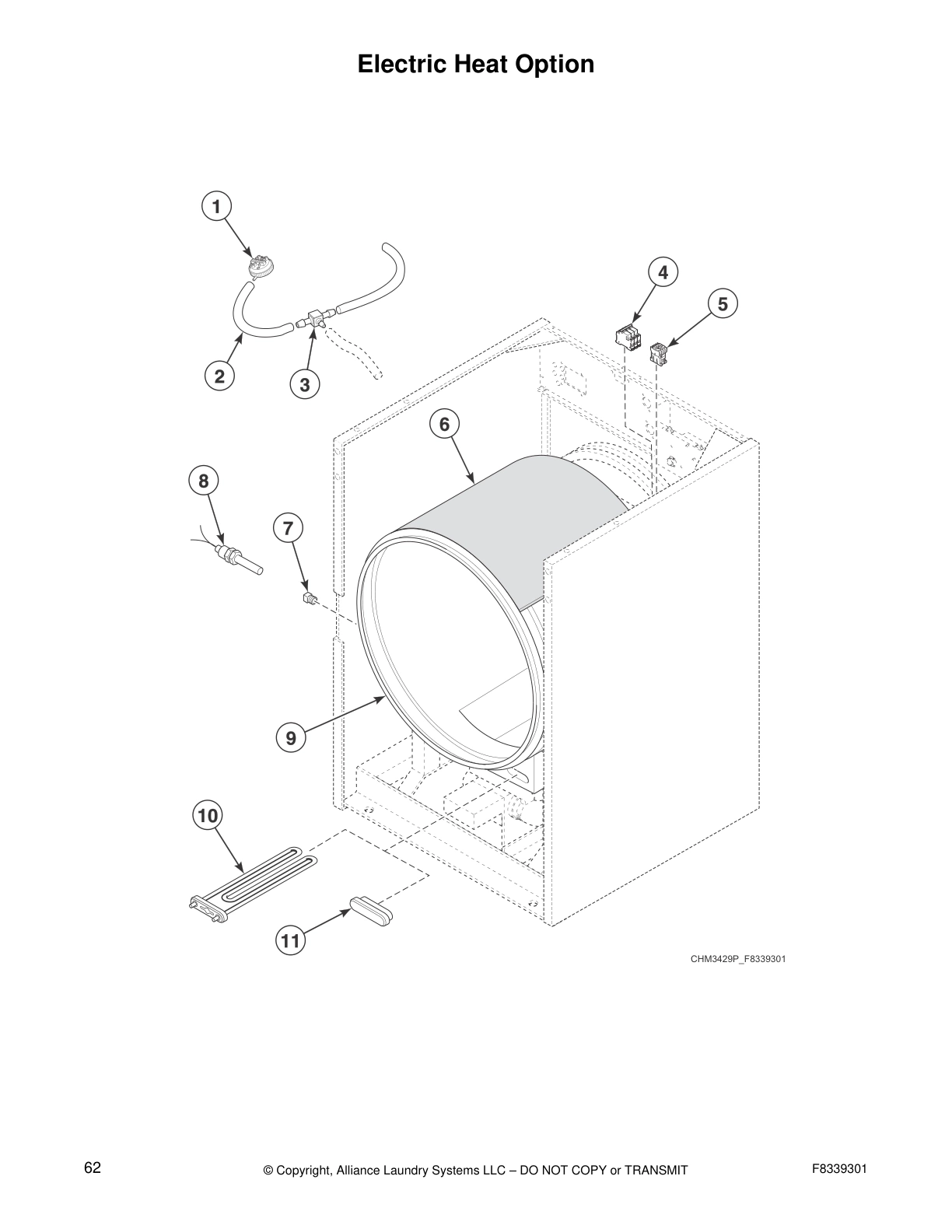

Electric Heat Option

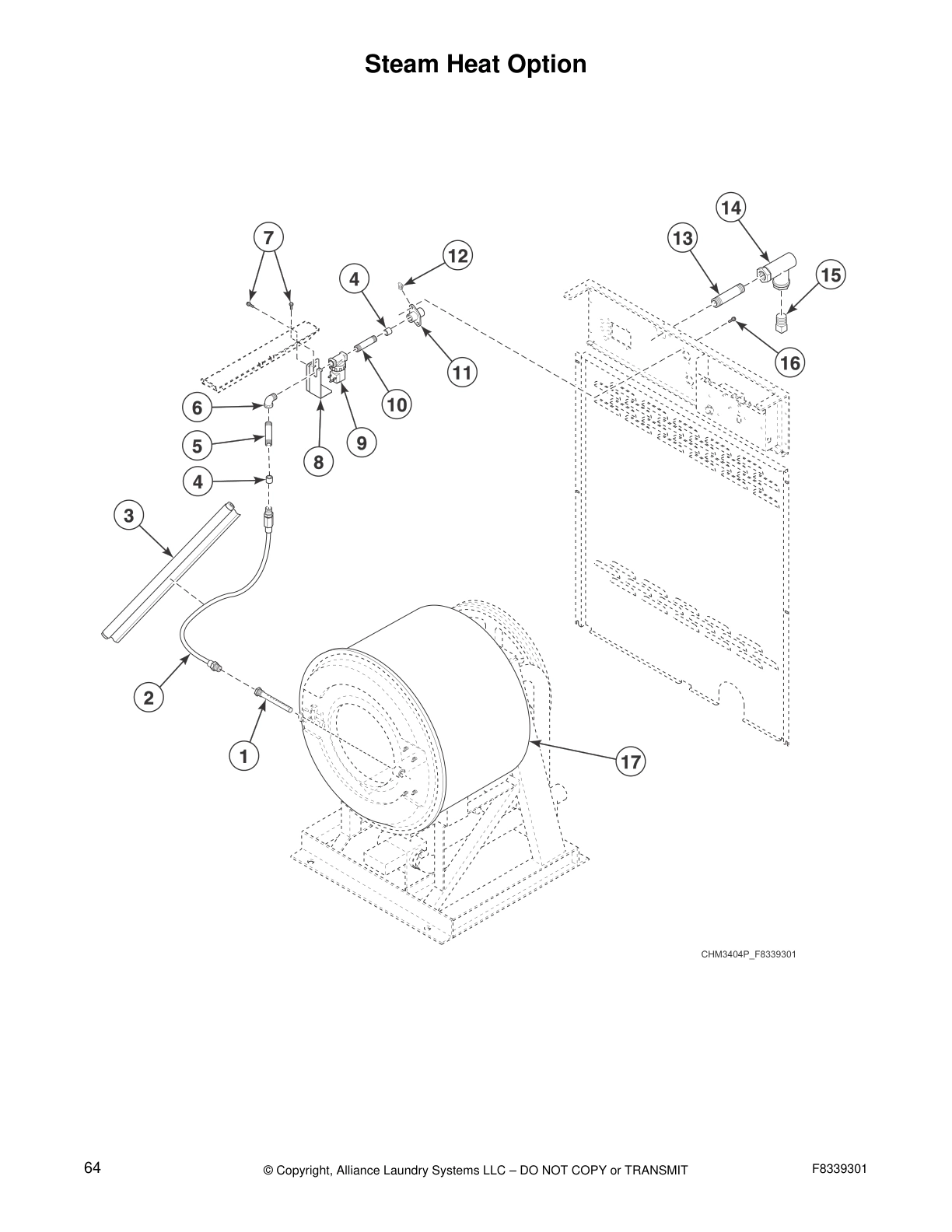

Steam Heat Option
Common parts from model Unimac UCL030GN2 Washer
1
Bearing SPQ F100123P Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
External Door Lock Harness SPQ F8340001 Contact Us For Availability
1
Shell Front Assembly SPQ F8229501 Contact Us For Availability
1
Drain Valve Kit SPQ F8577201 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Temperature Knob SPQ 44104601 Contact Us For Availability
2
Spring Pin SPQ F431222 Contact Us For Availability
2
Door Lock Splash Shield SPQ F430225 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
2
Drain Valve Motor SPQ F380933P Contact Us For Availability
2
Nut SPQ F8047901 Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
3
Spacer SPQ F200203200 Contact Us For Availability
3
Nut SPQ F430215 Contact Us For Availability
3
UC models through 8/13/2014 SPQ F8199401P Contact Us For Availability
3
Drain Valve Cover SPQ F8618901P Contact Us For Availability
3
Vacuum Breaker Assembly SPQ F200222 Contact Us For Availability
3
Motor Drip Shield SPQ F200216900 Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
4
Black SPQ F431916 Contact Us For Availability
4
Door Lock Plate Assembly SPQ F320200 Contact Us For Availability
4
Bolt SPQ F200133600 Contact Us For Availability
4
SPQ F8535601 SPQ F8535601 Contact Us For Availability
5
Door SPQ F8221401 Contact Us For Availability
5
Top Cabinet Brace SPQ F8017401 Contact Us For Availability
5
Door Lock Plate Shim SPQ F431901 Contact Us For Availability
5
SPQ F8047801 SPQ F8047801 Contact Us For Availability
5
Washer SPQ F431115 Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
6
Triple Lip Seal SPQ F8203802 Contact Us For Availability
6
SPQ F8043701 SPQ F8043701 Contact Us For Availability
6
Screw SPQ F8223202 Contact Us For Availability
6
SPQ F8043403 SPQ F8043403 Contact Us For Availability
6
Pipe Insulation SPQ F410300 Contact Us For Availability
6
Steam Bracket SPQ H86070034 Contact Us For Availability
7
DIN Valve Kit SPQ F8206901 Contact Us For Availability
7
Door Handle Spacer Kit
Includes items 9 and 1 SPQ F0602837-02 Contact Us For Availability
7
Retaining Ring SPQ F8345001 Contact Us For Availability
7
SPQ F200213 SPQ F200213 Contact Us For Availability
8
Basket Tool Kit SPQ F100108 Contact Us For Availability
8
Door Assembly
SC models SPQ F8567501 Contact Us For Availability
8
Jumper Configuration Assembly SPQ F980P3 Contact Us For Availability
8
SPQ F430174 SPQ F430174 Contact Us For Availability
8
Door Lock Solenoid Replacement SPQ F8344401 Contact Us For Availability
8
SPQ F8042803 SPQ F8042803 Contact Us For Availability
8
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
Steam Heat Kit SPQ F8490301 Contact Us For Availability
9
Shaft Seal Sleeve Kit SPQ F8343904P Contact Us For Availability
9
SPQ F8048601 SPQ F8048601 Contact Us For Availability
9
Steam Valve Repair Kit SPQ F8521501 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Excluder Seal SPQ F8336901 Contact Us For Availability
10
Element SPQ F360205P Contact Us For Availability
10
Pipe Nipple SPQ 70263801 Contact Us For Availability
11
Vacuum Breaker Hose SPQ F0200244-02 Contact Us For Availability
11
Heating Element Plug SPQ F360202 Contact Us For Availability
12
Top Cover Hinge SPQ F8258601 Contact Us For Availability
12
Door Glass SPQ F8485301P Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Nut SPQ 70030401 Contact Us For Availability
13
Bolt SPQ F8270701 Contact Us For Availability
13
Steam Filter SPQ 431486 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Door Gasket
Black SPQ F8111602 Contact Us For Availability
14
Screw SPQ F8230301 Contact Us For Availability
15
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
15
Extension Spring SPQ F310124 Contact Us For Availability
15
Screw SPQ F420409 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
16
Terminal Tray Cover SPQ F8177001 Contact Us For Availability
16
Street Elbow SPQ 20253 Contact Us For Availability
17
Magnet SPQ F8390801 Contact Us For Availability
18
Panel Lock SPQ 44089303P Contact Us For Availability
18
Door Lock Microswitch SPQ F431902 Contact Us For Availability
19
Siphon Cover SPQ 430642 Contact Us For Availability
19
Blind Rivet SPQ F8245101 Contact Us For Availability
20
Ground Lug Connector SPQ F430232 Contact Us For Availability
20
Reed Switch Assembly SPQ F8066802 Contact Us For Availability
21
Bolt SPQ F8230501 Contact Us For Availability
21
Rod SPQ F602813-2 Contact Us For Availability
21
3-Way Valve SPQ M411283 Contact Us For Availability
22
Dispenser Lid SPQ F8048101 Contact Us For Availability
22
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
22
Washer SPQ F430909 Contact Us For Availability
23
Screw SPQ F430536 Contact Us For Availability
23
Hose SPQ F8286402P Contact Us For Availability
24
P-Trap Hose SPQ F8286401P Contact Us For Availability
25
Door Mount SPQ F431929 Contact Us For Availability
26
Door Hinge SPQ F150271 Contact Us For Availability
26
Dispenser Gasket SPQ F8232001 Contact Us For Availability
27
Door Handle
SC models SPQ F190216P Contact Us For Availability
27
Access Cover SPQ F8042202 Contact Us For Availability
29
Vacuum Supply Hose SPQ F8333201 Contact Us For Availability
30
SPQ F8308301 SPQ F8308301 Contact Us For Availability
31
SPQ F606816-1 SPQ F606816-1 Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
UC models through 8/13/201 items 1-18 and 21 SPQ F8187302 Contact Us For Availability
NI
SPQ F977P3 SPQ F977P3 Contact Us For Availability
NI
SPQ F8340501 SPQ F8340501 Contact Us For Availability
NI
Clamp Ring Assembly SPQ F8388002 Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
NI
SPQ F200182700 SPQ F200182700 Contact Us For Availability
NI
SPQ F953P3 SPQ F953P3 Contact Us For Availability
× ![]()
