Model Whirlpool TT18DKXEW02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

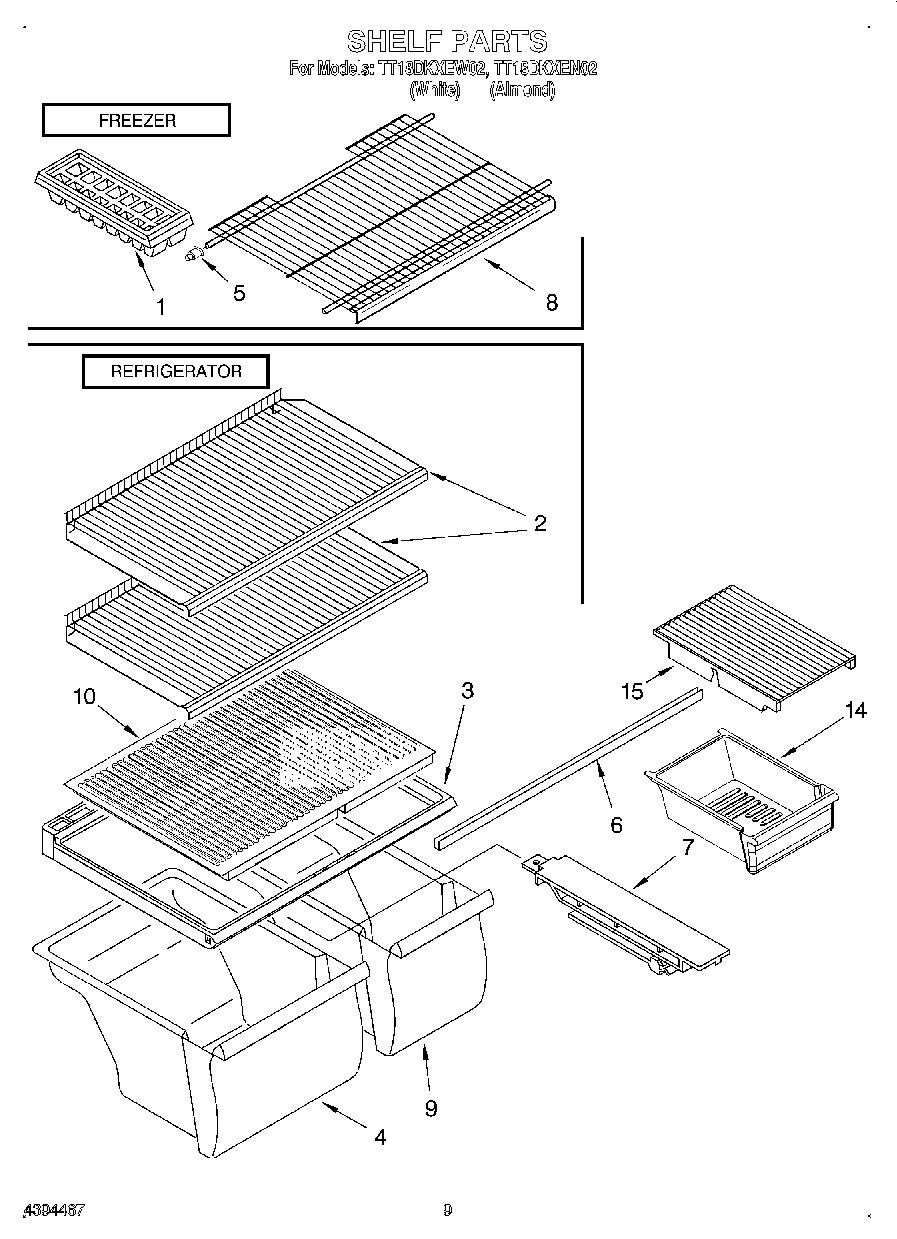

05 - SHELF, LIT/OPTIONAL

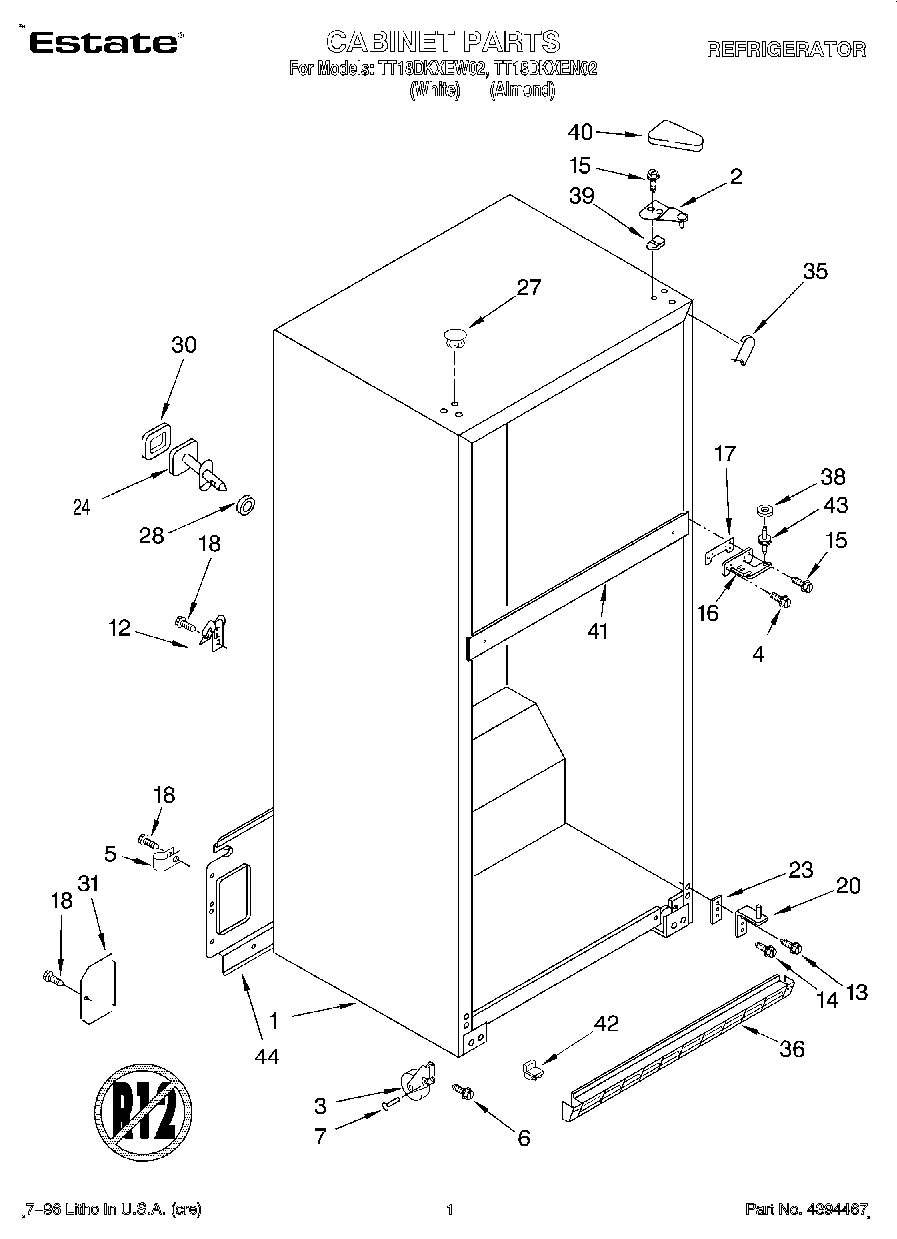

01 - CABINET

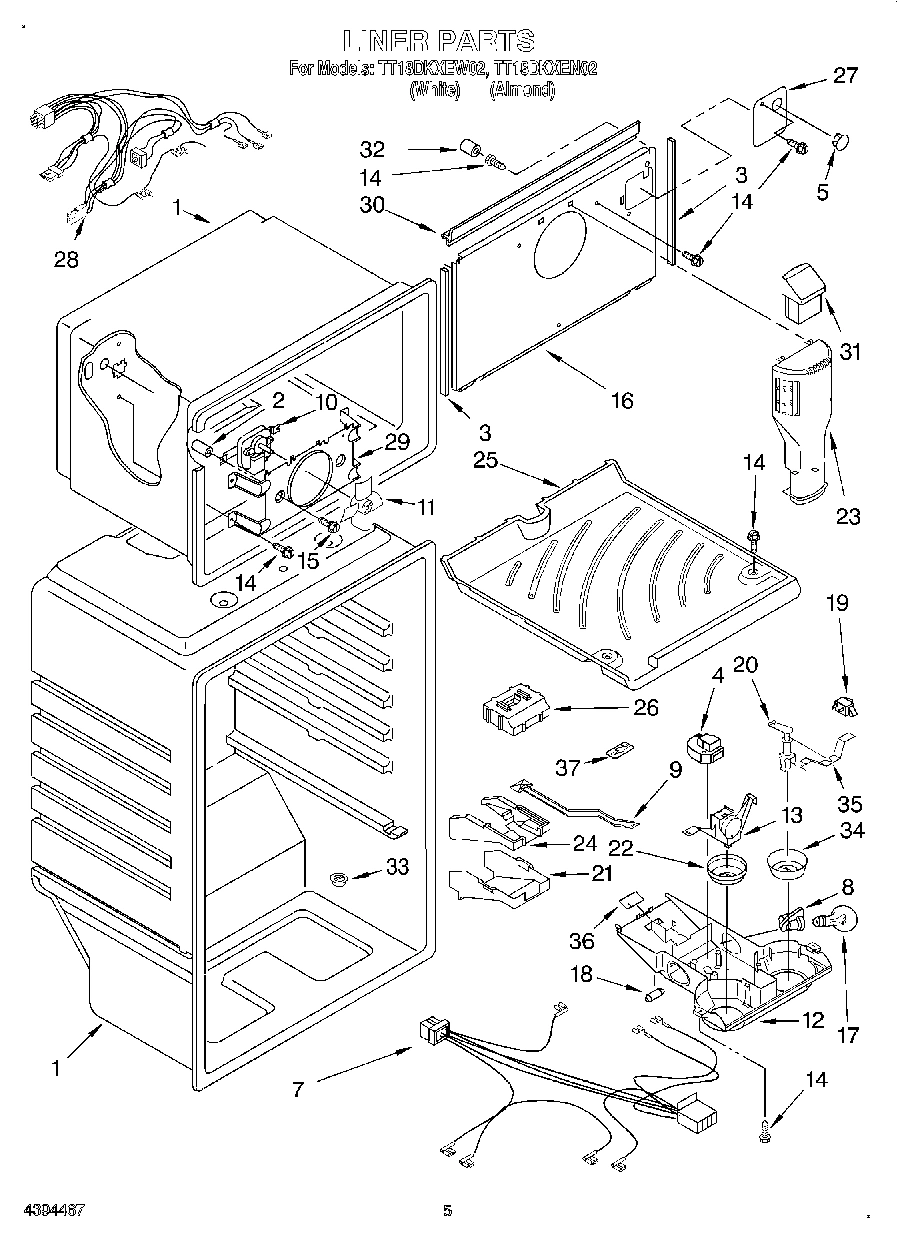

03 - LINER

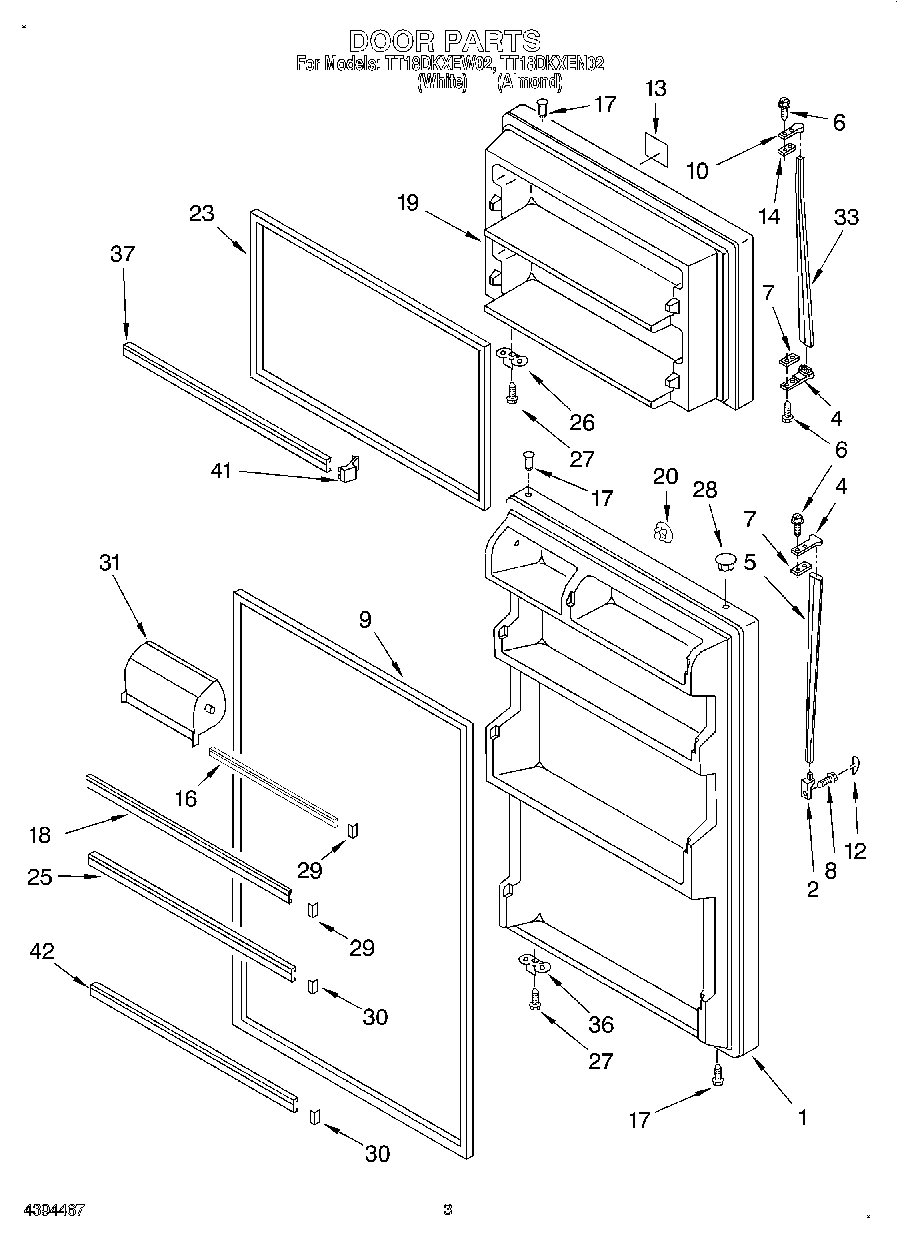

02 - DOOR

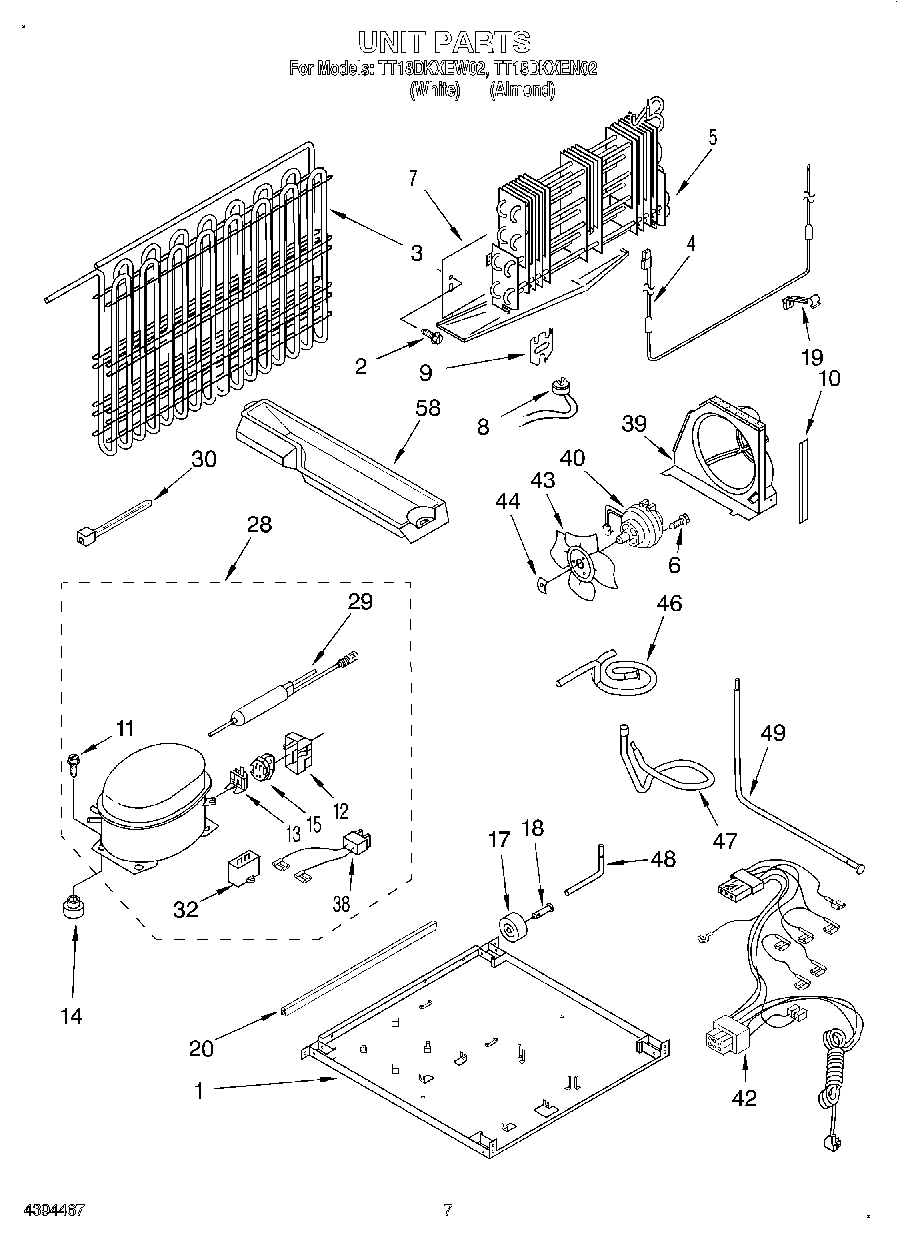

04 - UNIT
Common parts from model Whirlpool TT18DKXEW02 TOP MOUNT REFRIGERATOR
Torx Key WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.17) (Wh WPL 2171269 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.17) (Al WPL 2171270 Contact Us For Availability
1
Plate, Unit Mounting WPL 2189104 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Screw WPL 489473 Contact Us For Availability
12
Cover, Endcap (White) WPL 9791769 Contact Us For Availability
12
Cover, Endcap (Almond) WPL 9791770 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2183234 Contact Us For Availability
14
Shim WPL 943187 Contact Us For Availability
15
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
15
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
15
Cover, Meat Pan WPL 2163848 Contact Us For Availability
15
Relay (See Overload) WPL ARI133179A Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.17 & No.23) (White) WPL 2182487 Contact Us For Availability
19
Freezer Door (Includes No.17 & No.23) (Almond WPL 2182491 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Protector WPL 2183803 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
25
Trim, Door Shelf WPL 2163684 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Bracket, Door Stop WPL 944035 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Wire Assembly, Freezer WPL 2179823 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
32
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
37
Clip WPL 2176341 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
42
Trim, Door WPL 2163685 Contact Us For Availability
42
Wire Assy. Unit WPL 2184586 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evaporator Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
