Model Whirlpool TS25AWXAN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
06 - REFRIGERATOR DOOR

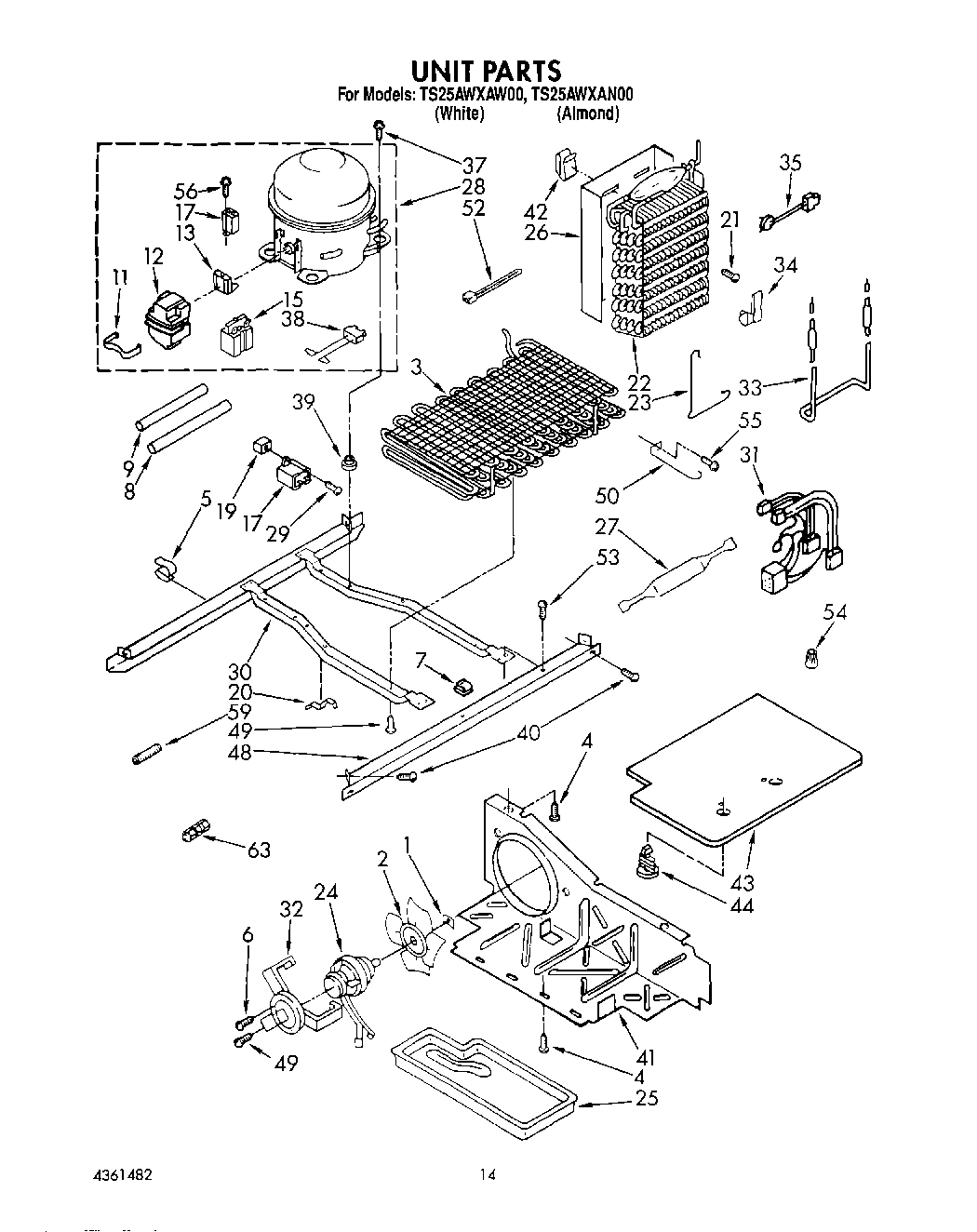

09 - UNIT

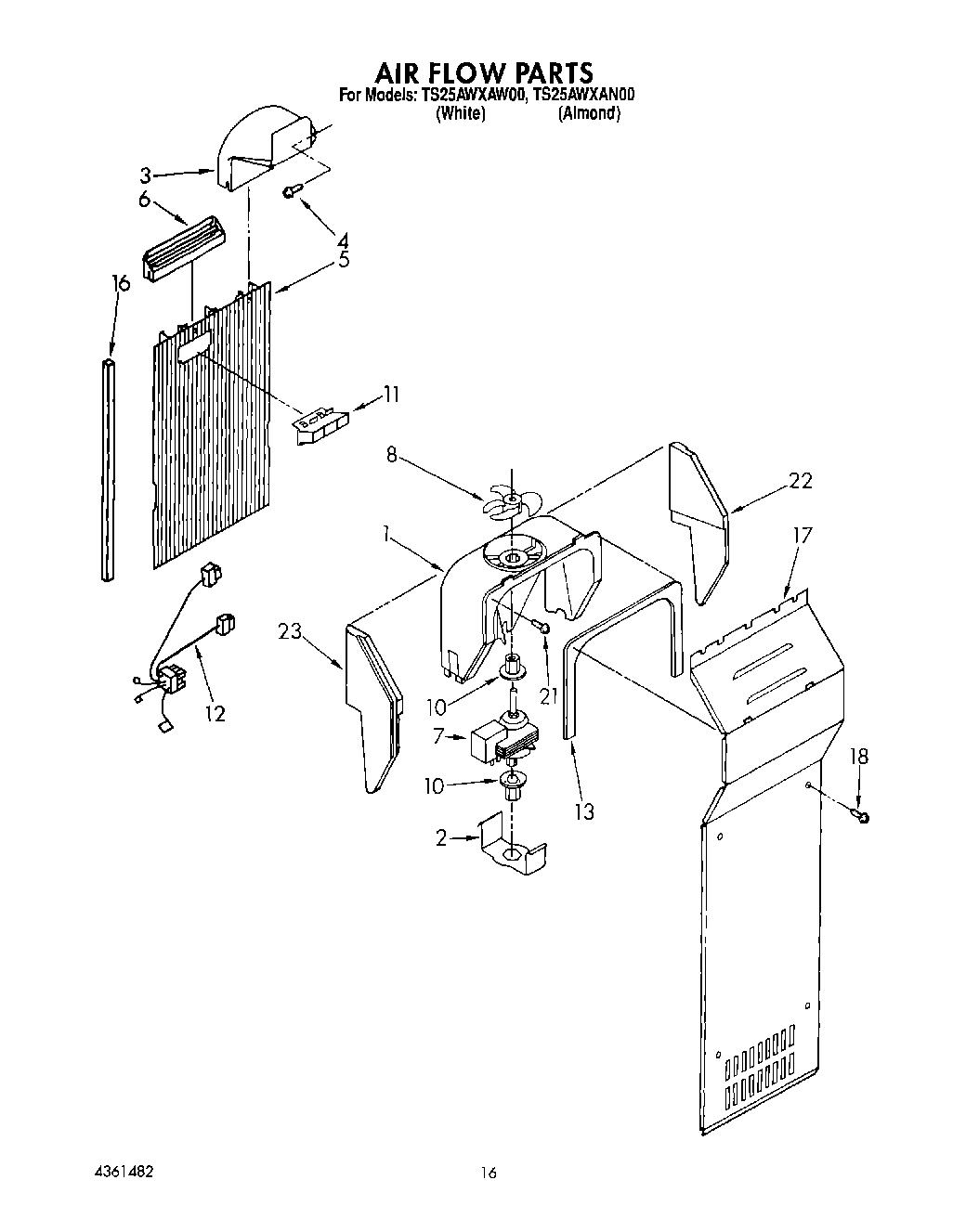

10 - AIR FLOW

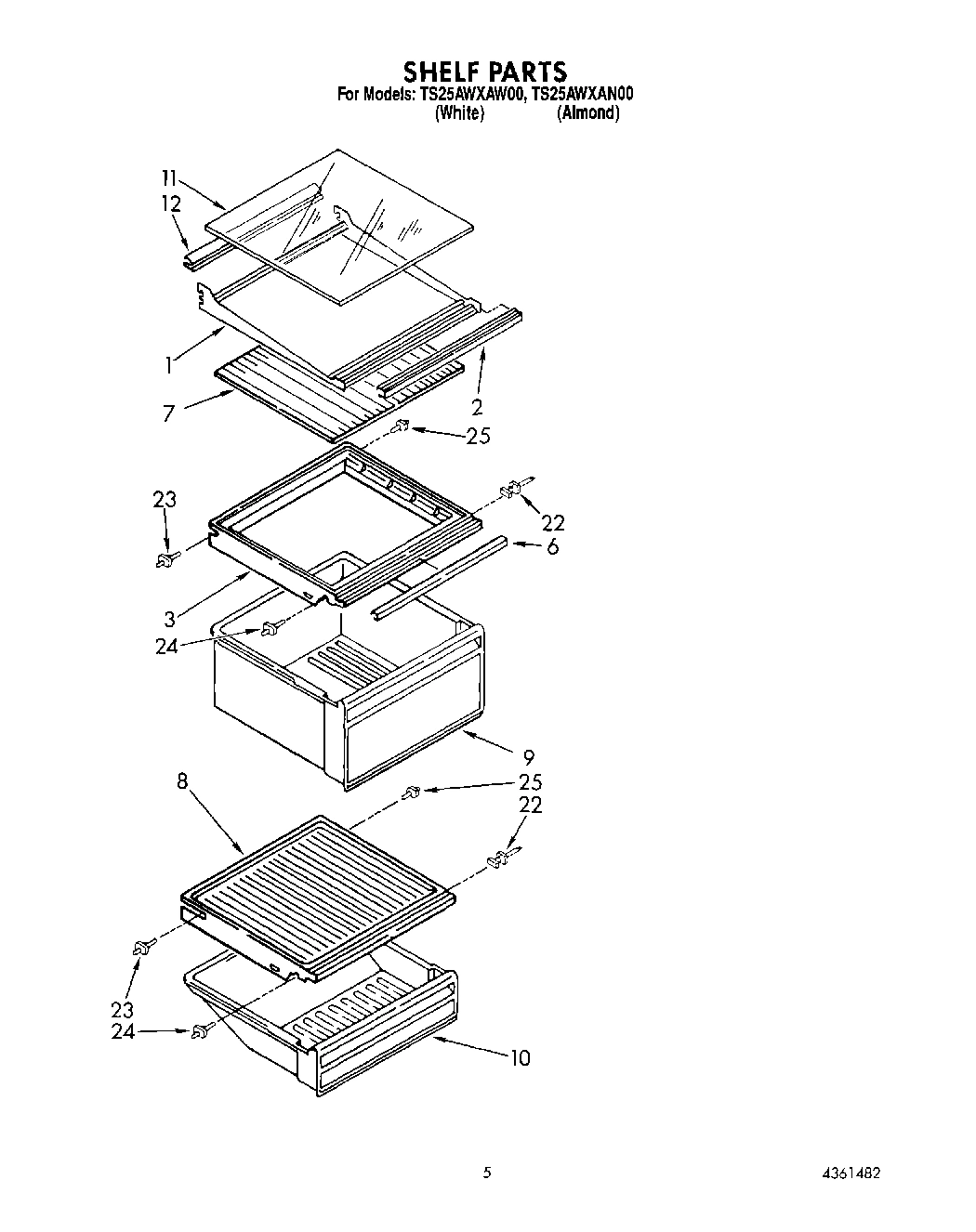

03 - SHELF

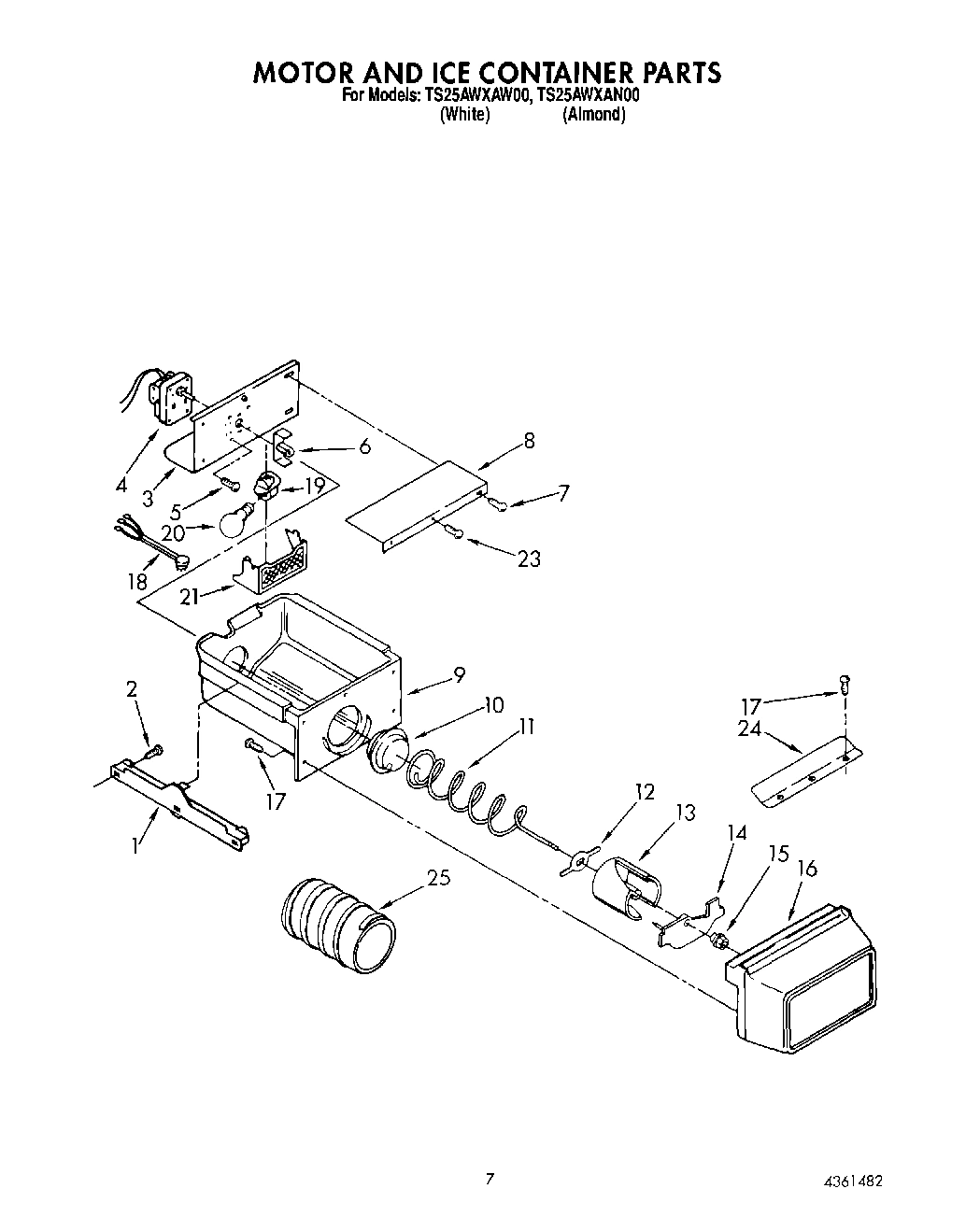

05 - MOTOR AND ICE CONTAINER

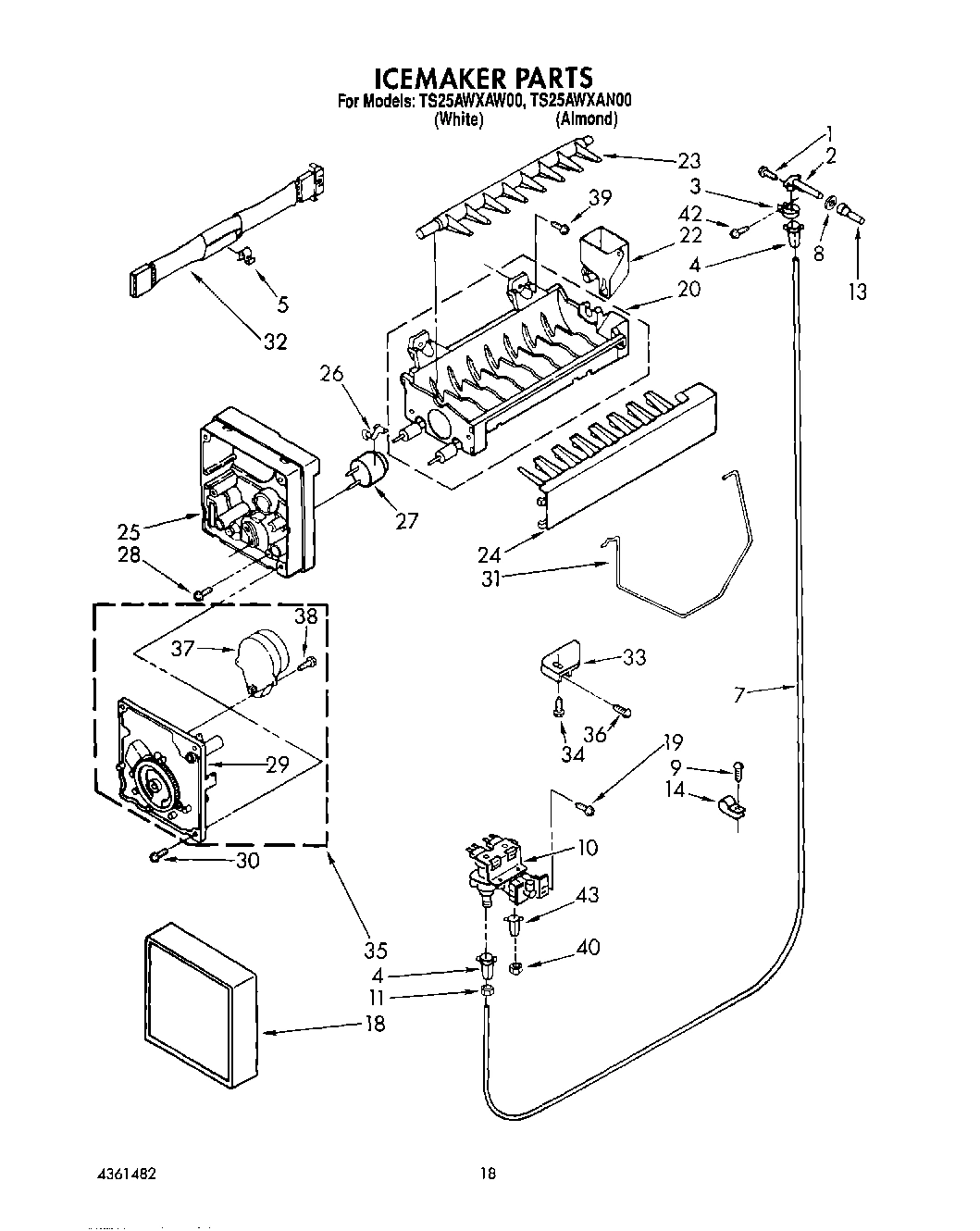

12 - ICEMAKER, LIT/OPTIONAL

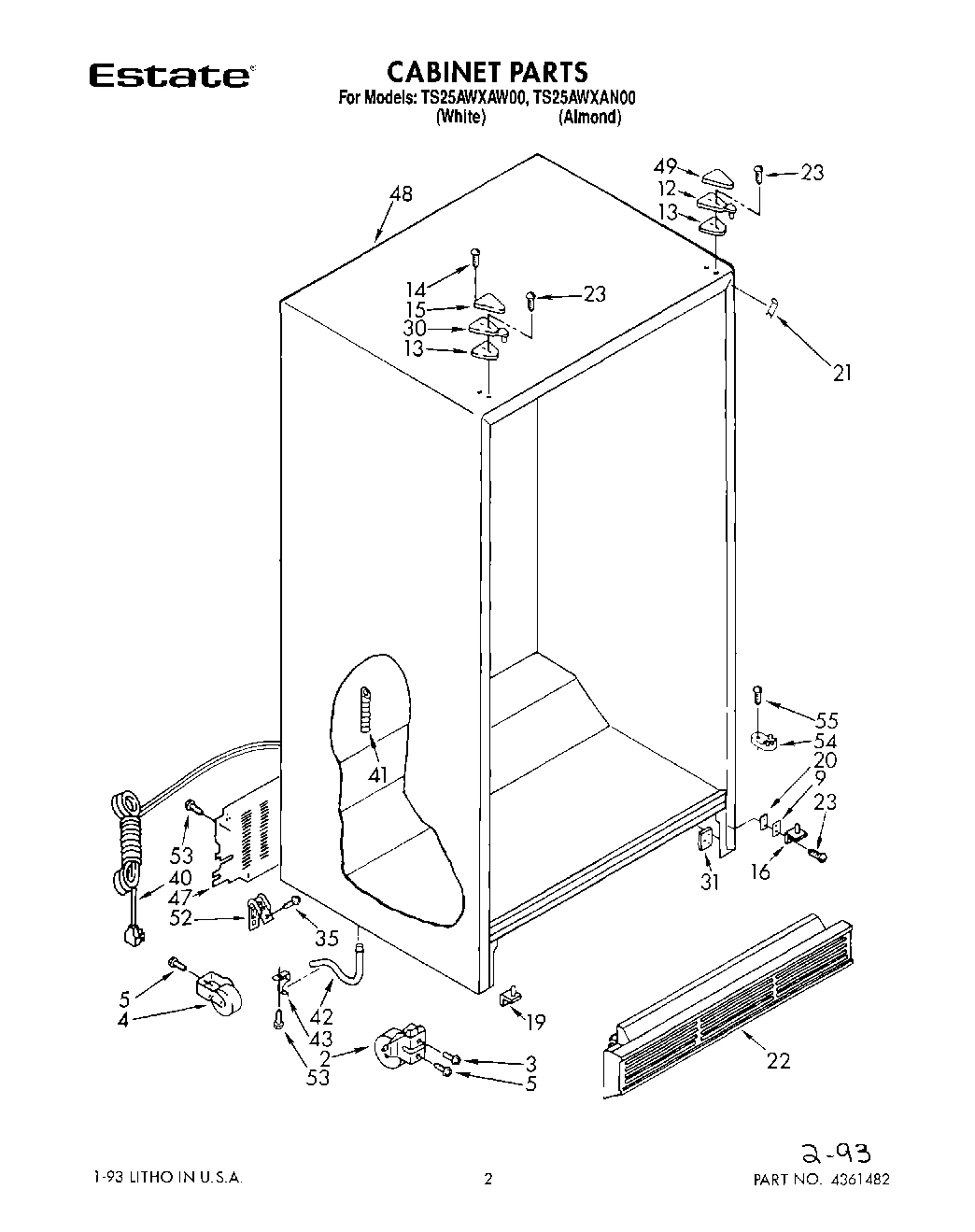

01 - CABINET

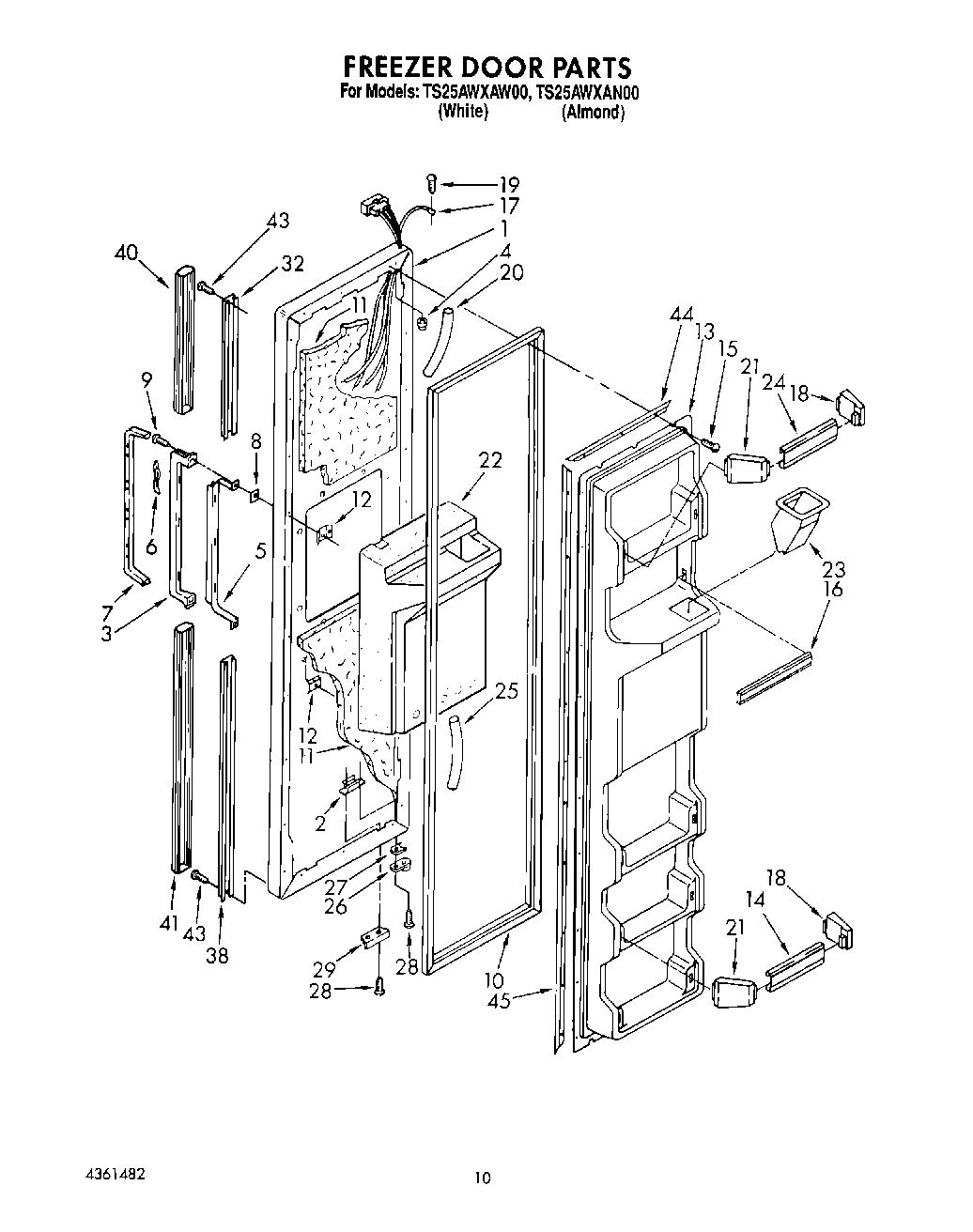

07 - FREEZER DOOR

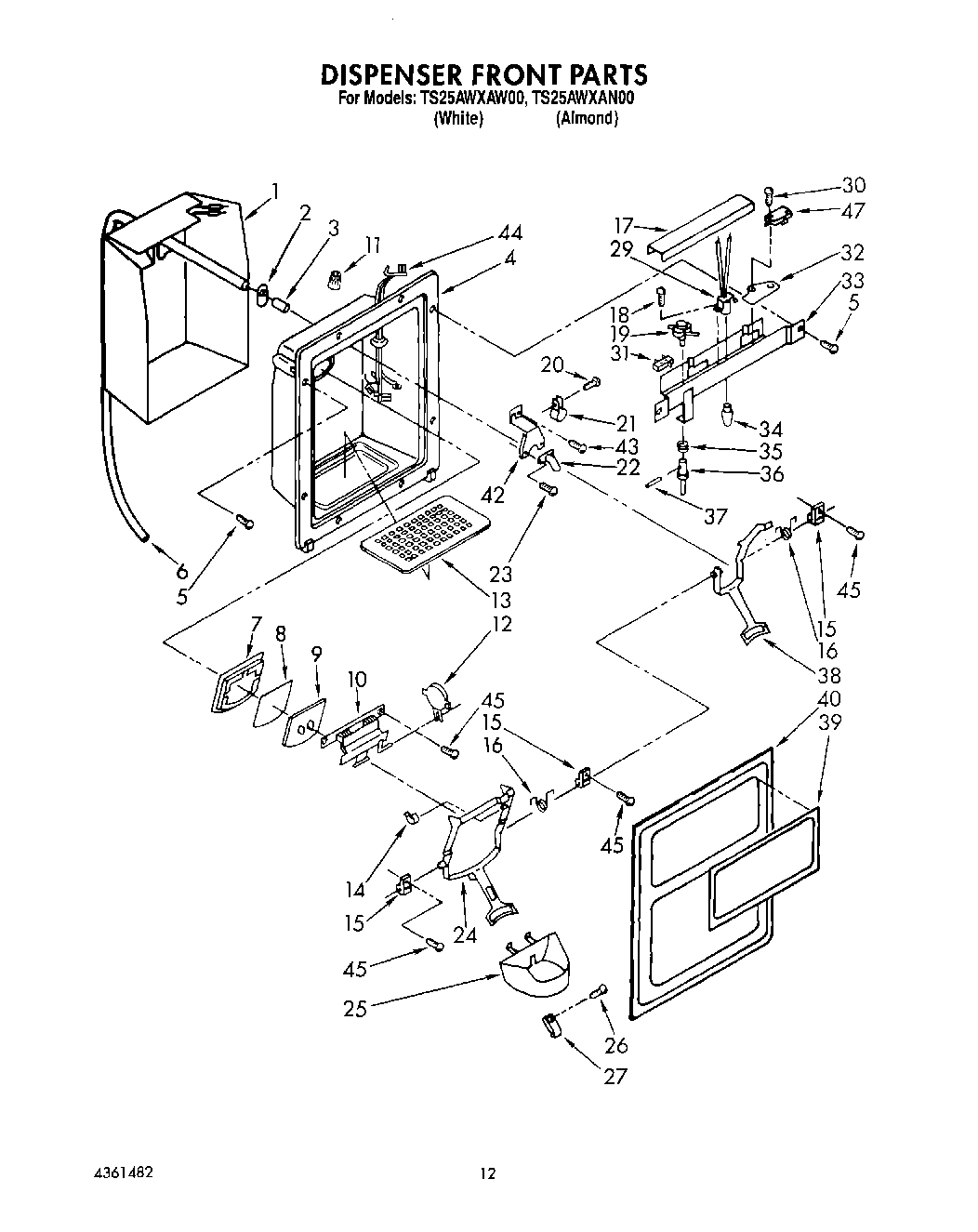

08 - DISPENSER FRONT

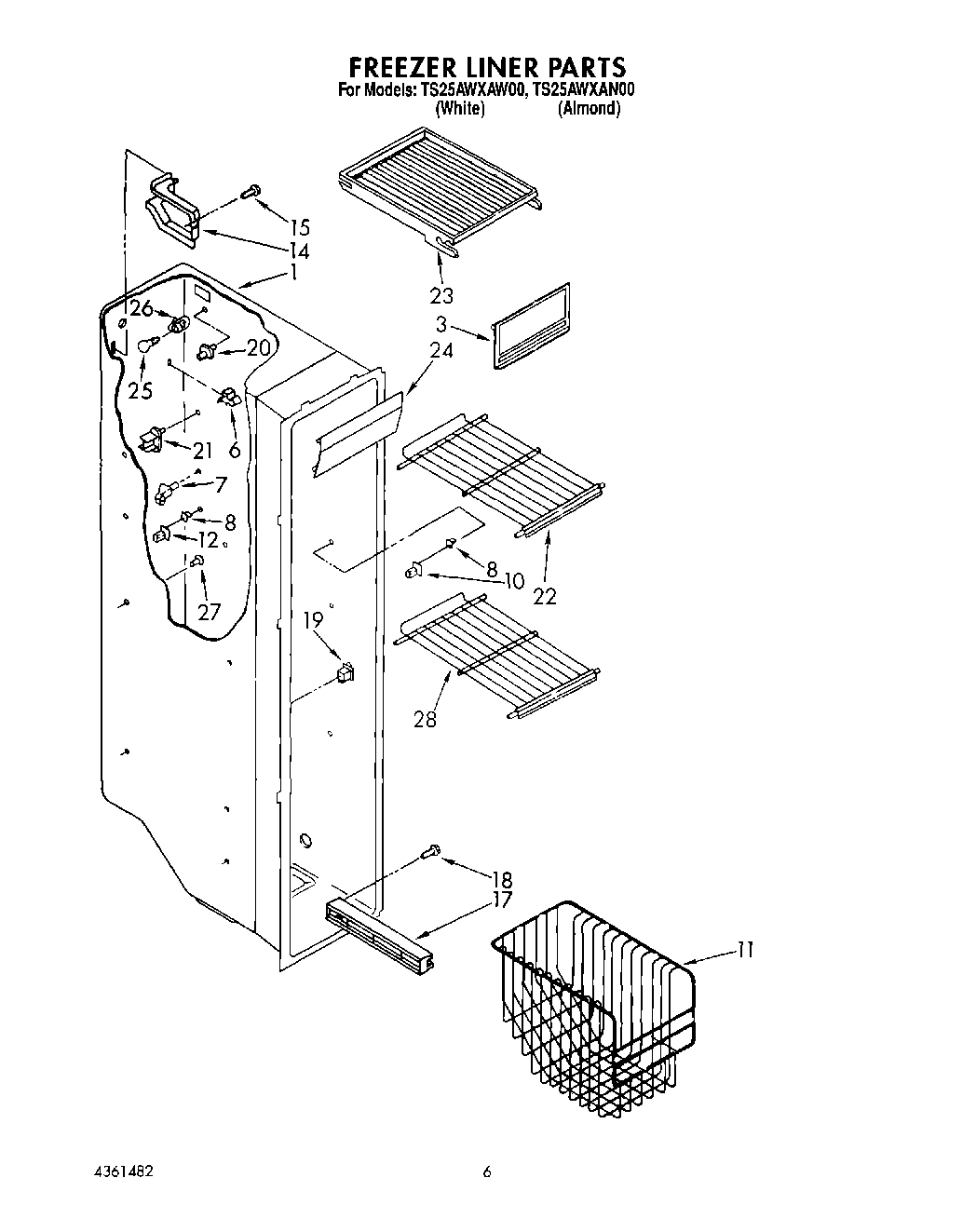

04 - FREEZER LINER

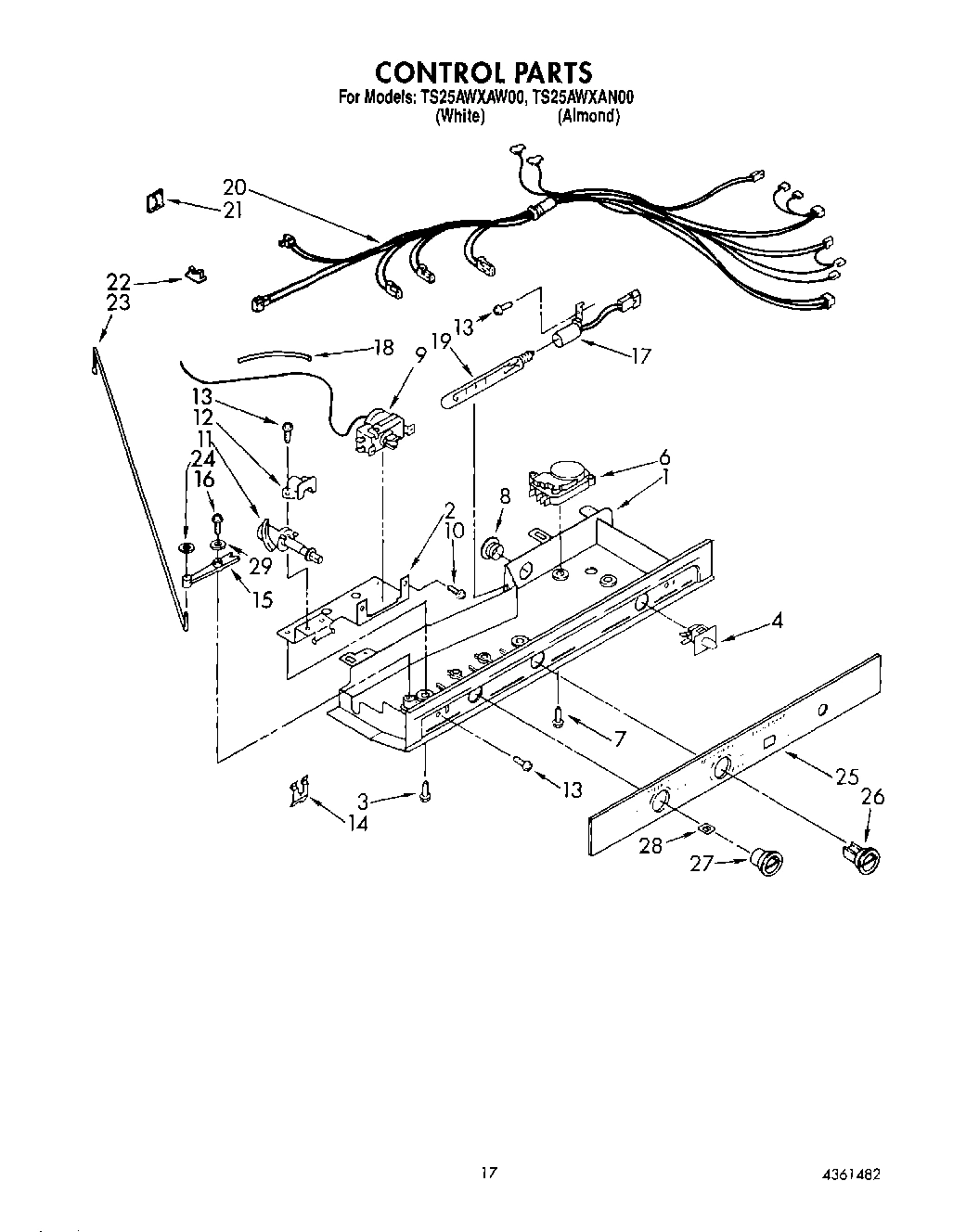

11 - CONTROL
Common parts from model Whirlpool TS25AWXAN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155588 WPL LIT2155588 Contact Us For Availability
WPL LIT2163370 WPL LIT2163370 Contact Us For Availability
WPL LIT2163452 WPL LIT2163452 Contact Us For Availability
WPL LIT4361482 WPL LIT4361482 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Shelf Assembly, Cantilever WPL 1118413 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2147504 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2147506 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI132368A Contact Us For Availability
1
Control Box WPL 2155518 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Trim, Shelf WPL 2163428 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Handle (For Almond Model) WPL 1127464 Contact Us For Availability
3
Handle (For White Model) WPL 2147470 Contact Us For Availability
3
Door, Ice Compartment WPL 2163423 Contact Us For Availability
3
Screw WPL 489397 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Housing, Dispenser (For Almond Model) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (For White Model) WPL 1124715 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
5
Reinforcement, Handle WPL 1127465 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
6
Clip, Handle (3) WPL 849445 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Glass, Crisper Cover WPL 2163431 Contact Us For Availability
7
Insert, Handle WPL 2147581 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
8
Shim, Handle (2) WPL 2147097 Contact Us For Availability
8
Support, Stud WPL 946355 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Pan, Meat WPL 2163427 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1127308 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
11
Glass, Shelf WPL 2163429 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Retainer, Glass WPL 1125594 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Tube, Water Inlet WPL 2149262 Contact Us For Availability
13
Panel, Interior Door WPL 1124969 Contact Us For Availability
13
Grille, Overflow (For White Model) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (For Almond Model) WPL 2152678 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Trim, Door Shelf WPL 2163442 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever WPL 983696 Contact Us For Availability
16
Front Cover WPL 2163421 Contact Us For Availability
16
Hinge Bottom (R.H) (Black) WPL 2151619 Contact Us For Availability
16
Hinge Bottom (R.H) (Chrome) WPL 2151629 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Harness, Door WPL 1116960 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Shelf Track (Right Side) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
End Cap, Trim WPL 1115364 Contact Us For Availability
19
Hinge Bottom (L.H) (Black) WPL 2151620 Contact Us For Availability
19
Hinge Bottom (L.H) (Chrome) WPL 2151630 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Tube, Door Wiring (Top) WPL 2147080 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
End Cap, Trim WPL 1115333 Contact Us For Availability
21
Stud, Shelf WPL 1115386 Contact Us For Availability
22
Grille (White) WPL 1125715 Contact Us For Availability
22
Grille (For Almond Model) WPL 1129054 Contact Us For Availability
22
Insulation, Dispenser WPL 1115345 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Shelf Stud WPL 1115290 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Deflector, Ice Container WPL 1119043 Contact Us For Availability
24
Trim WPL 2163441 Contact Us For Availability
24
Lever, Ice Dispenser (For Almond Model) WPL 1127421 Contact Us For Availability
24
Lever, Ice Dispenser (For White Model) WPL 2155815 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Tube, Door Wiring (Bottom) WPL 1119060 Contact Us For Availability
25
Guide, Ice (For Almond Model) WPL 1118269 Contact Us For Availability
25
Guide, Ice (For White Model) WPL 2147479 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163420 Contact Us For Availability
26
Screw (For White Model) WPL 488892 Contact Us For Availability
26
Screw (For Almond Model) WPL 489197 Contact Us For Availability
27
Stop, Glass (For Almond Model) WPL 1119056 Contact Us For Availability
27
Also Order Cement Alumilastic WPL 542369 Contact Us For Availability
27
Stop, Glass (For White Model) WPL 2147480 Contact Us For Availability
27
Grommet (8) WPL 1110779 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Shelf (2) WPL 1116956 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Bracket, Door Stop (Black) WPL 1115906 Contact Us For Availability
29
Bracket, Door Stop (Chrome) WPL 988420 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Retainer (Top) WPL 2147895 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Trim, Shelf WPL 2163438 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Screw WPL 486214 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Retainer (Bottom) WPL 2147896 Contact Us For Availability
38
Lever, Water Dispenser (For Almond Model) WPL 1115349 Contact Us For Availability
38
Lever, Water Dispenser (For White Model) WPL 2155909 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2163466 Contact Us For Availability
39
Plaque, Front Cover (For Almond Model) WPL 2163467 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Extension (Top) (For Almond Model) WPL 1127470 Contact Us For Availability
40
Extension (Top) (White) WPL 2163432 Contact Us For Availability
40
Front Cover, Housing (Includes WPL 2163468 Contact Us For Availability
40
WPL 2163469 WPL 2163469 Contact Us For Availability
41
Extension (Bottom) (For Almond Model) WPL 1127473 Contact Us For Availability
41
Extension (Bottom) (For White Model) WPL 2147471 Contact Us For Availability
42
Clip, Heat Sheild WPL 2155547 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Insert, Tube WPL 1129177 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
44
Retainer, Gasket WPL 1118306 Contact Us For Availability
44
WPL 2149783 WPL 2149783 Contact Us For Availability
45
Retainer, Gasket WPL 1118302 Contact Us For Availability
47
Cover, Unit WPL 2157298 Contact Us For Availability
47
WPL 841336 WPL 841336 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI132366A Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
