Model GE TPX21PRXFAA Refrigerator – Common Parts & Diagrams

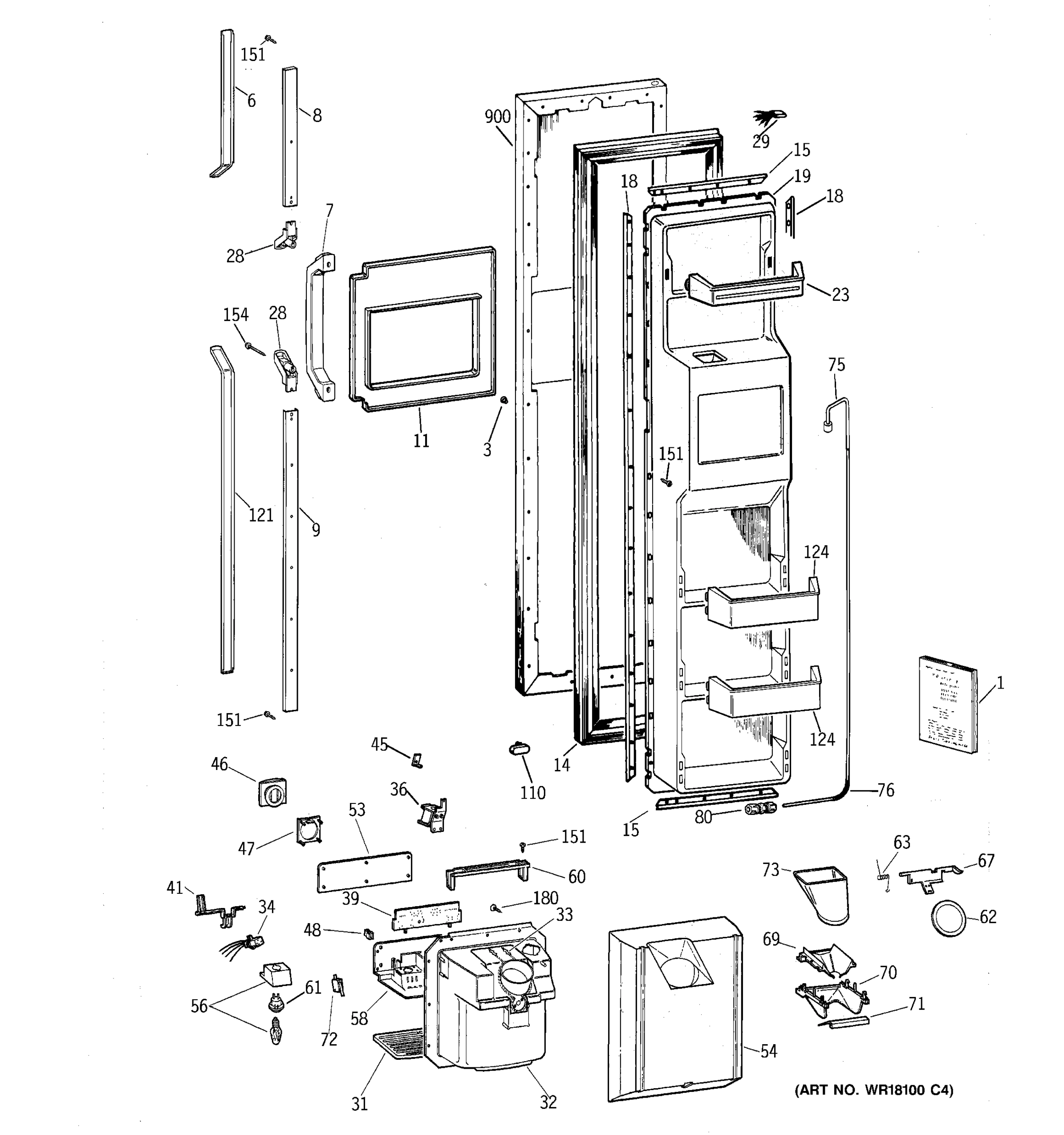

FREEZER DOOR

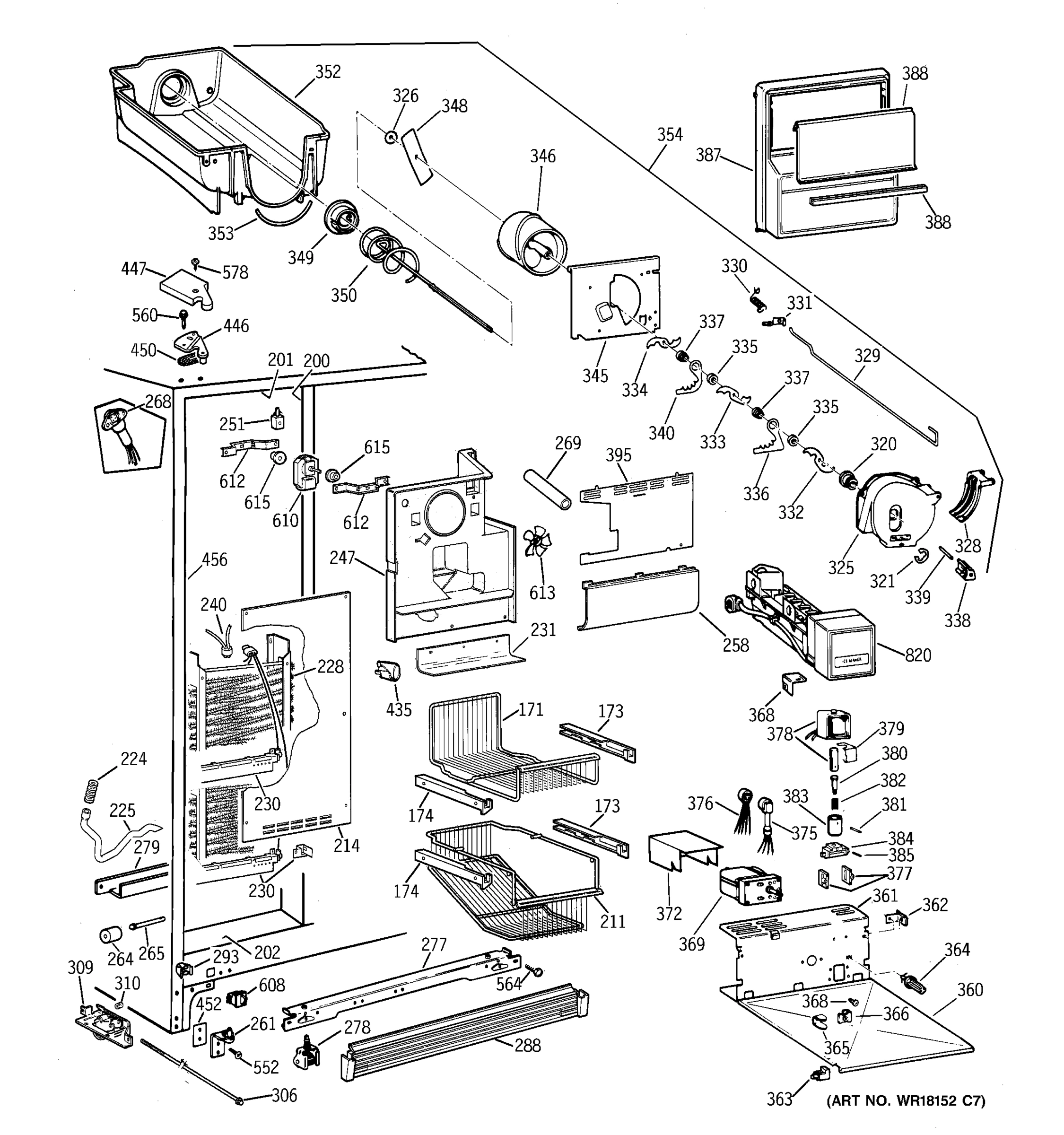

FREEZER SECTION
FRESH FOOD DOOR
FRESH FOOD SECTION
FRESH FOOD SHELVES

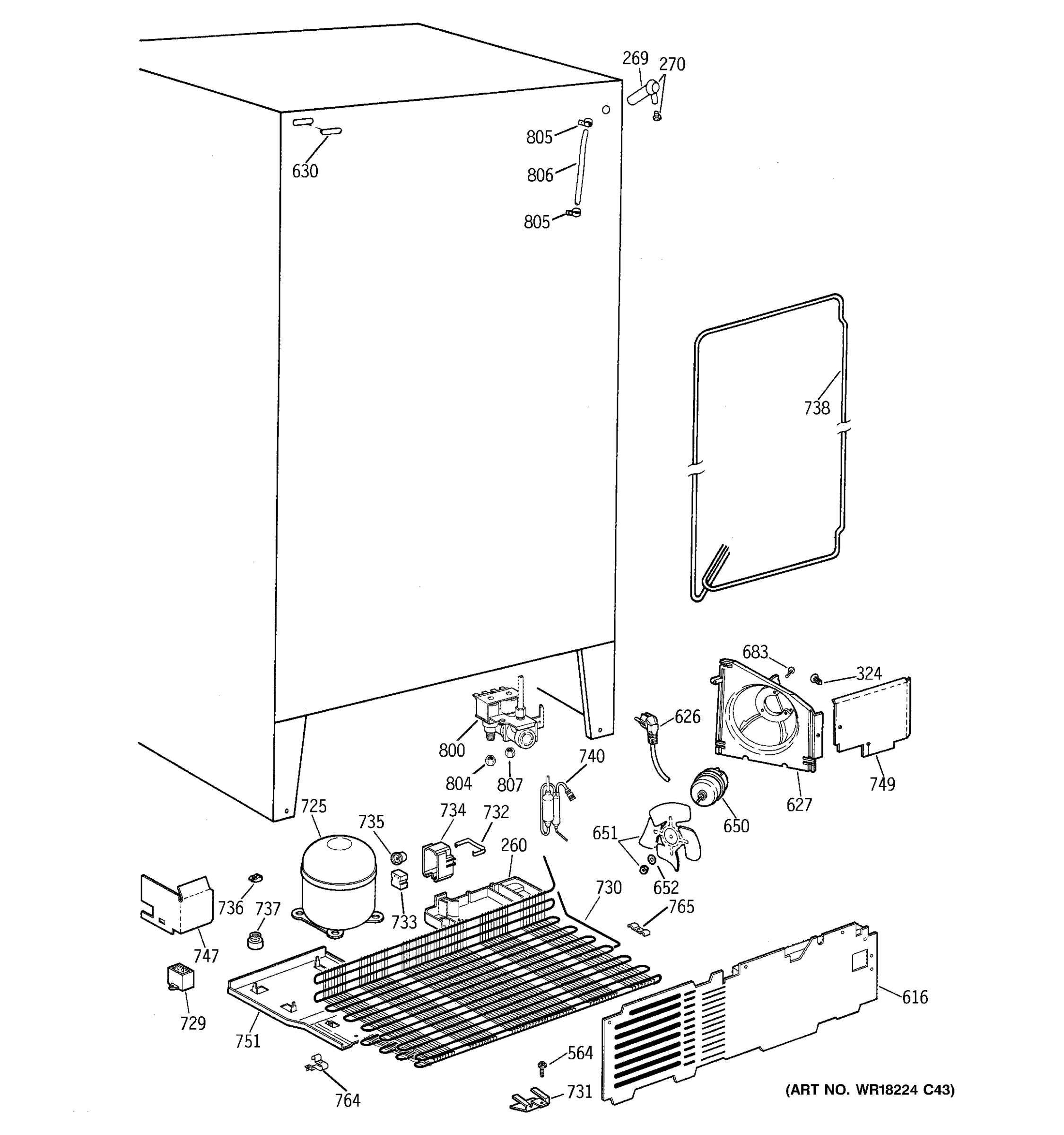

UNIT PARTS
Common parts from model GE TPX21PRXFAA Refrigerator
6
GEN WR12X0854 GEN WR12X0854 Contact Us For Availability
7
GEN WR12X0870 GEN WR12X0870 Contact Us For Availability
8
GEN WR12X1062 GEN WR12X1062 Contact Us For Availability
9
CHANNEL HANDLE GEN WR12X1061 Contact Us For Availability
12
GEN WR02X9302 GEN WR02X9302 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
13
SHIM CAM DOOR STOP GEN WR02X7490 Contact Us For Availability
18
GEN WR17X2092 GEN WR17X2092 Contact Us For Availability
28
GEN WR02X8576 GEN WR02X8576 Contact Us For Availability
33
GEN WR51X0353 GEN WR51X0353 Contact Us For Availability
34
GEN WR23X0456 GEN WR23X0456 Contact Us For Availability
39
GEN WR55X0129 GEN WR55X0129 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8726 GEN WR02X8726 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8723 GEN WR02X8723 Contact Us For Availability
53
GEN WR17X3855 GEN WR17X3855 Contact Us For Availability
54
GEN WR17X4022 GEN WR17X4022 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X8686 GEN WR02X8686 Contact Us For Availability
58
GEN WR17X3210 GEN WR17X3210 Contact Us For Availability
60
GEN WR02X8685 GEN WR02X8685 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
SUPT. FUNNEL GUARD AD GEN WR02X8956 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
73
GEN WR17X3309 GEN WR17X3309 Contact Us For Availability
75
GROMMET TUBE ASM GEN WR17X3611 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
96
GEN WR72X0121 GEN WR72X0121 Contact Us For Availability
97
GEN WR72X0236 GEN WR72X0236 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
103
GEN WR24X0526 GEN WR24X0526 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X2037 GEN WR38X2037 Contact Us For Availability
106
GEN WR22X0383 GEN WR22X0383 Contact Us For Availability
108
GEN WR77X0623 GEN WR77X0623 Contact Us For Availability
109
GEN WR71X2637 GEN WR71X2637 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
115
GEN WR71X2603 GEN WR71X2603 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
121
GEN WR12X0851 GEN WR12X0851 Contact Us For Availability
124
GEN WR71X2628 GEN WR71X2628 Contact Us For Availability
128
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
154
GEN WR01X2085 GEN WR01X2085 Contact Us For Availability
154
GEN WR01X2127 GEN WR01X2127 Contact Us For Availability
171
GEN WR71X2402 GEN WR71X2402 Contact Us For Availability
174
GEN WR02X8667 GEN WR02X8667 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
GEN WR40X1763 GEN WR40X1763 Contact Us For Availability
201
GEN WR40X1753 GEN WR40X1753 Contact Us For Availability
202
GEN WR40X1754 GEN WR40X1754 Contact Us For Availability
211
GEN WR71X2403 GEN WR71X2403 Contact Us For Availability
214
GEN WR01X2128 GEN WR01X2128 Contact Us For Availability
214
GEN WR14X0456 GEN WR14X0456 Contact Us For Availability
214
GEN WR17X3915 GEN WR17X3915 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
231
GEN WR01X1987 GEN WR01X1987 Contact Us For Availability
231
GEN WR01X2110 GEN WR01X2110 Contact Us For Availability
231
GEN WR17X3651 GEN WR17X3651 Contact Us For Availability
247
GEN WR17X3317 GEN WR17X3317 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X1424 GEN WR17X1424 Contact Us For Availability
259
GEN WR17X2555 GEN WR17X2555 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
264
GEN WR02X8838 GEN WR02X8838 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X3661 GEN WR17X3661 Contact Us For Availability
280
GEN WR02X8519 GEN WR02X8519 Contact Us For Availability
288
GEN WR74X0209 GEN WR74X0209 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
306
GEN WR01X1907 GEN WR01X1907 Contact Us For Availability
309
GEN WR02X8821 GEN WR02X8821 Contact Us For Availability
309
GEN WR02X8822 GEN WR02X8822 Contact Us For Availability
310
GEN WR02X8832 GEN WR02X8832 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X4309 GEN WR17X4309 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X2465 GEN WR71X2465 Contact Us For Availability
361
COVER MOTOR SOLENOID GEN WR17X3310 Contact Us For Availability
362
GEN WR02X8839 GEN WR02X8839 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
375
GEN WR23X0386 GEN WR23X0386 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X2964 GEN WR17X2964 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
395
GEN WR17X3321 GEN WR17X3321 Contact Us For Availability
403
GEN WR71X2124 GEN WR71X2124 Contact Us For Availability
405
GEN WR17X3312 GEN WR17X3312 Contact Us For Availability
407
GEN WR32X1405 GEN WR32X1405 Contact Us For Availability
408
GEN WR32X1403 GEN WR32X1403 Contact Us For Availability
409
GEN WR32X1400 GEN WR32X1400 Contact Us For Availability
410
GEN WR17X3314 GEN WR17X3314 Contact Us For Availability
411
GEN WR17X3315 GEN WR17X3315 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1401 GEN WR32X1401 Contact Us For Availability
416
GEN WR32X1599 GEN WR32X1599 Contact Us For Availability
417
GEN WR14X0432 GEN WR14X0432 Contact Us For Availability
418
GEN WR17X3325 GEN WR17X3325 Contact Us For Availability
418
GEN WR17X4025 GEN WR17X4025 Contact Us For Availability
419
GEN WR17X3308 GEN WR17X3308 Contact Us For Availability
420
GEN WR38X1995 GEN WR38X1995 Contact Us For Availability
421
GEN WR14X0433 GEN WR14X0433 Contact Us For Availability
421
GEN WR17X10049 GEN WR17X10049 Contact Us For Availability
422
GEN WR14X0429 GEN WR14X0429 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR02X8914 GEN WR02X8914 Contact Us For Availability
424
GEN WR09X0521 GEN WR09X0521 Contact Us For Availability
425
GEN WR02X9439 GEN WR02X9439 Contact Us For Availability
426
GEN WR02X8826 GEN WR02X8826 Contact Us For Availability
426
GEN WR02X8831 GEN WR02X8831 Contact Us For Availability
427
GEN WR23X0407 GEN WR23X0407 Contact Us For Availability
428
GEN WR02X8828 GEN WR02X8828 Contact Us For Availability
428
GEN WR02X8829 GEN WR02X8829 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
433
SOCKET TERM WH GEN WR02X8202 Contact Us For Availability
434
GEN WR02X8827 GEN WR02X8827 Contact Us For Availability
436
GEN WR02X8819 GEN WR02X8819 Contact Us For Availability
436
GEN WR02X8820 GEN WR02X8820 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
439
GEN WR17X3323 GEN WR17X3323 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X8840 GEN WR02X8840 Contact Us For Availability
443
GEN WR17X3318 GEN WR17X3318 Contact Us For Availability
443
GEN WR17X3319 GEN WR17X3319 Contact Us For Availability
446
GEN WR13X0660 GEN WR13X0660 Contact Us For Availability
447
GEN WR02X8843 GEN WR02X8843 Contact Us For Availability
447
GEN WR02X8844 GEN WR02X8844 Contact Us For Availability
448
GEN WR13X0659 GEN WR13X0659 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X9443 GEN WR02X9443 Contact Us For Availability
453
GEN WR40X1760 GEN WR40X1760 Contact Us For Availability
454
GEN WR40X1745 GEN WR40X1745 Contact Us For Availability
455
GEN WR40X1746 GEN WR40X1746 Contact Us For Availability
456
GEN WR40X1761 GEN WR40X1761 Contact Us For Availability
457
GEN WR40X1762 GEN WR40X1762 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR02X9376 GEN WR02X9376 Contact Us For Availability
458
GEN WR40X1740 GEN WR40X1740 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
470
GEN WR14X0428 GEN WR14X0428 Contact Us For Availability
471
GEN WR32X1404 GEN WR32X1404 Contact Us For Availability
472
GEN WR17X3313 GEN WR17X3313 Contact Us For Availability
480
GEN WR01X2203 GEN WR01X2203 Contact Us For Availability
480
GEN WR72X0232 GEN WR72X0232 Contact Us For Availability
480
GEN WR72X0233 GEN WR72X0233 Contact Us For Availability
500
GEN WR71X2407 GEN WR71X2407 Contact Us For Availability
501
GEN WR32X1402 GEN WR32X1402 Contact Us For Availability
502
GEN WR38X2233 GEN WR38X2233 Contact Us For Availability
503
GEN WR02X8573 GEN WR02X8573 Contact Us For Availability
505
GEN WR02X8574 GEN WR02X8574 Contact Us For Availability
505
GEN WR02X8575 GEN WR02X8575 Contact Us For Availability
520
GEN WR71X2408 GEN WR71X2408 Contact Us For Availability
521
GEN WR32X1529 GEN WR32X1529 Contact Us For Availability
522
GEN WR38X2234 GEN WR38X2234 Contact Us For Availability
523
GEN WR71X2638 GEN WR71X2638 Contact Us For Availability
525
GEN WR72X0234 GEN WR72X0234 Contact Us For Availability
525
GEN WR72X0235 GEN WR72X0235 Contact Us For Availability
526
GEN WR32X1407 GEN WR32X1407 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
560
GEN WR01 GEN WR01 Contact Us For Availability
560
GEN WR01X2140 GEN WR01X2140 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
616
GEN WR82X10013 GEN WR82X10013 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
627
GEN WR17X3811 GEN WR17X3811 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
652
WASHER COND MTR GEN WR01X1714 Contact Us For Availability
683
SCREW COND HSG. GEN WR01X1716 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
730
GEN WR84X0196 GEN WR84X0196 Contact Us For Availability
731
GEN WR02X8951 GEN WR02X8951 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0170 GEN WR08X0170 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0168 GEN WR84X0168 Contact Us For Availability
747
GEN WR17X3688 GEN WR17X3688 Contact Us For Availability
749
GEN WR17X3689 GEN WR17X3689 Contact Us For Availability
751
GEN WR17X3645 GEN WR17X3645 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
807
INSERT 5/16 GEN WR02X4046 Contact Us For Availability
811
GEN WR02X8659 GEN WR02X8659 Contact Us For Availability
900
GEN WR78X8594 GEN WR78X8594 Contact Us For Availability
910
GEN WR78X8593 GEN WR78X8593 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
× ![]()
