Model GE TFX27PFSBAA Refrigerator – Common Parts & Diagrams
0
1

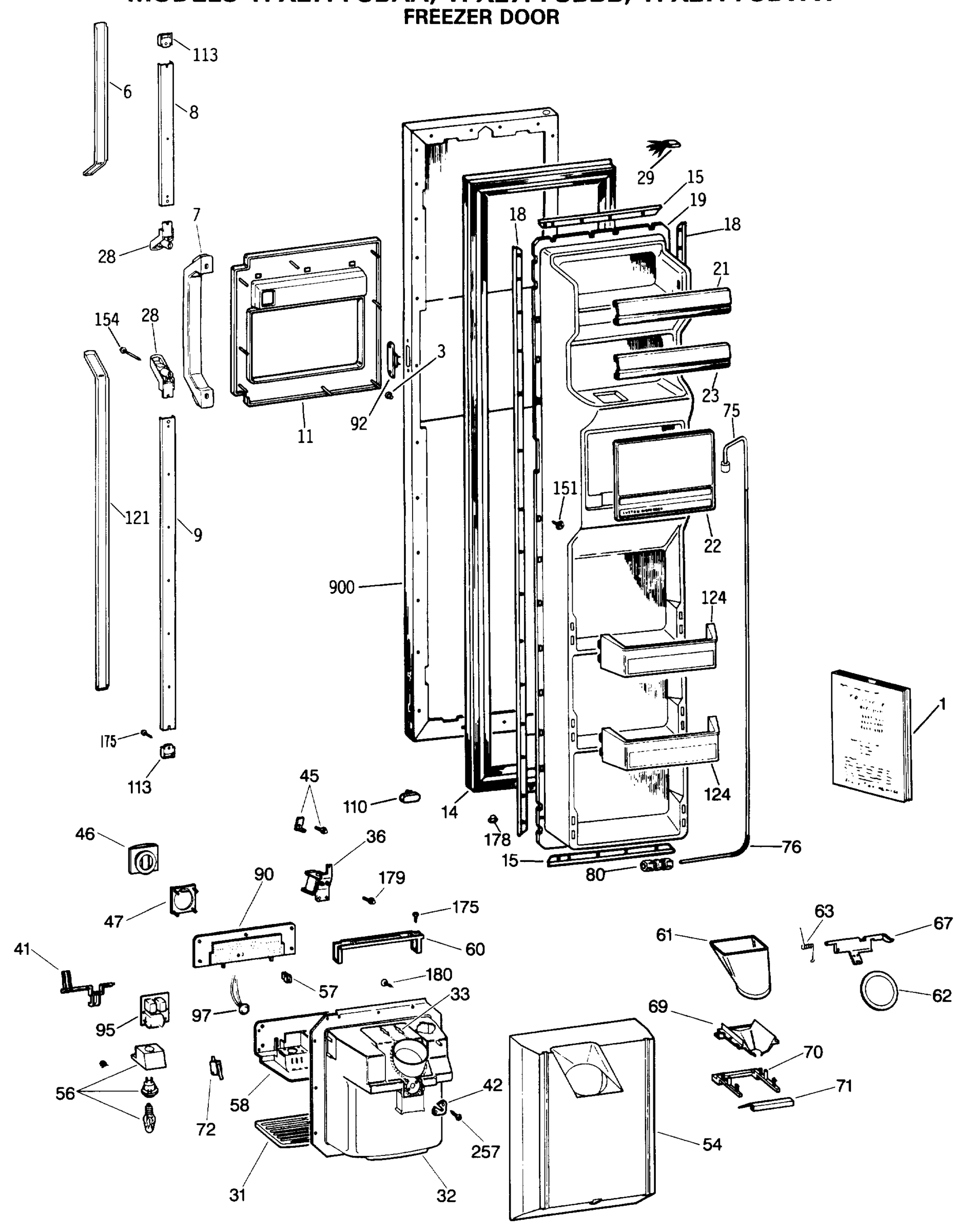

FREEZER DOOR

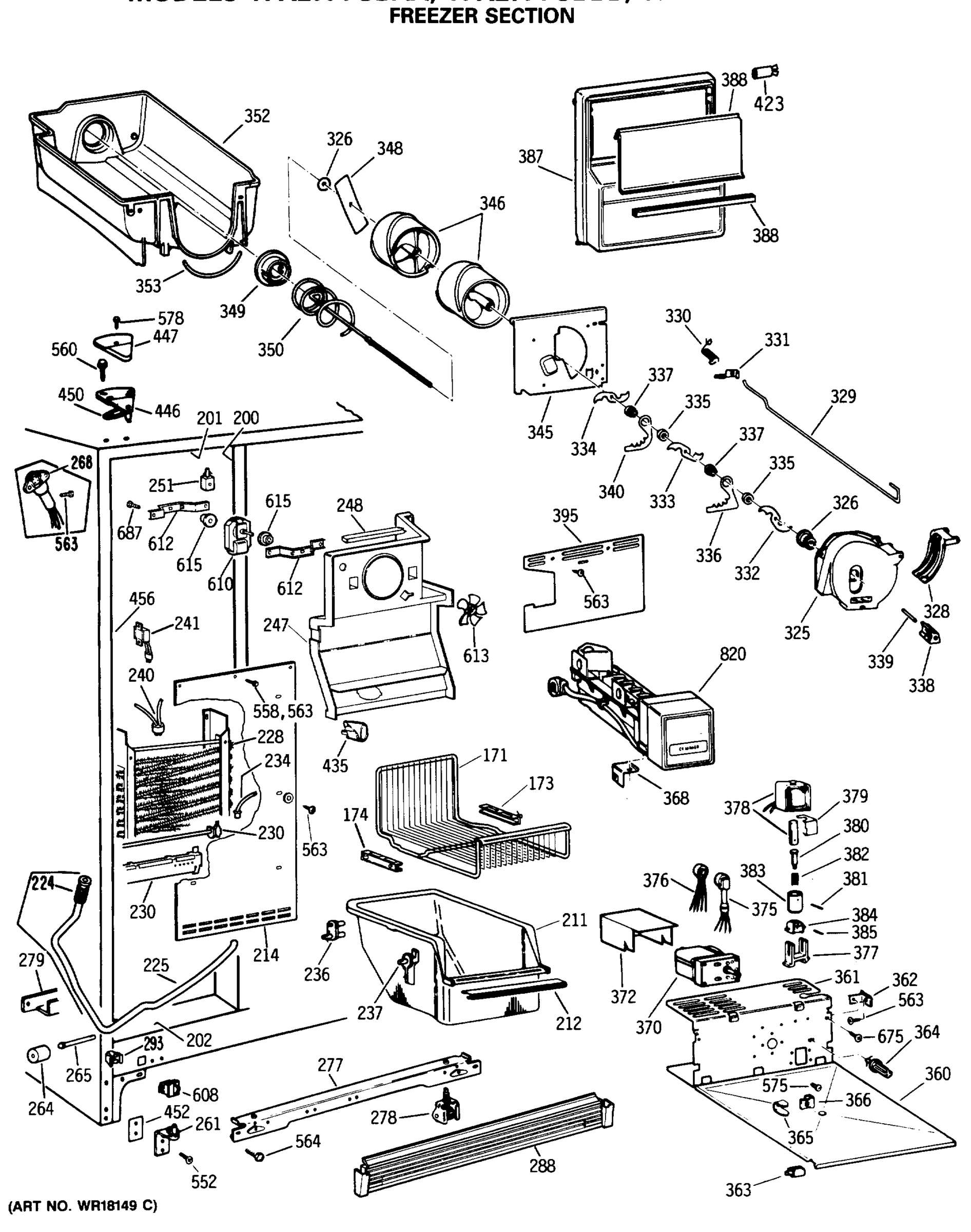

FREEZER SECTION

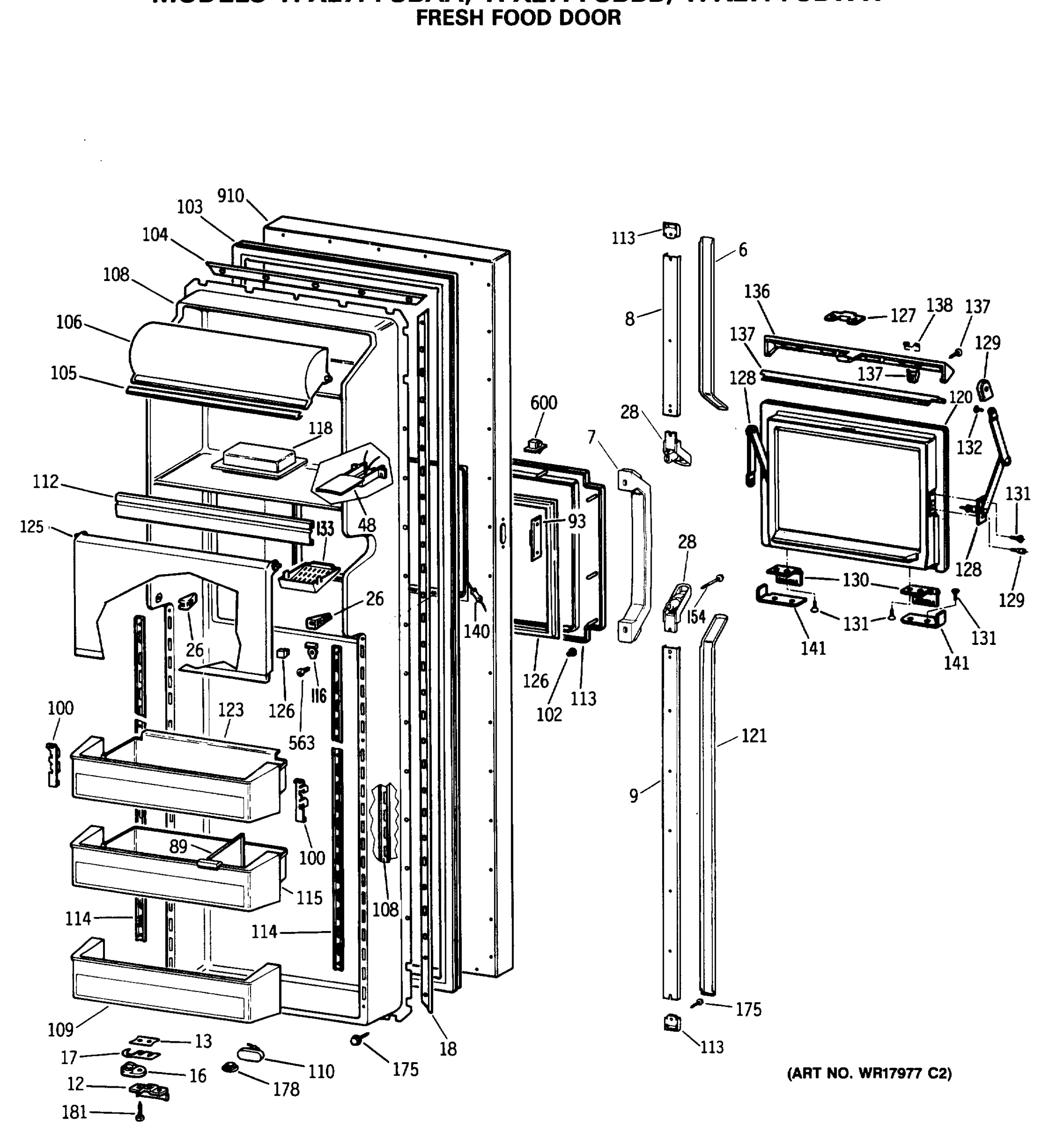

FRESH FOOD DOOR

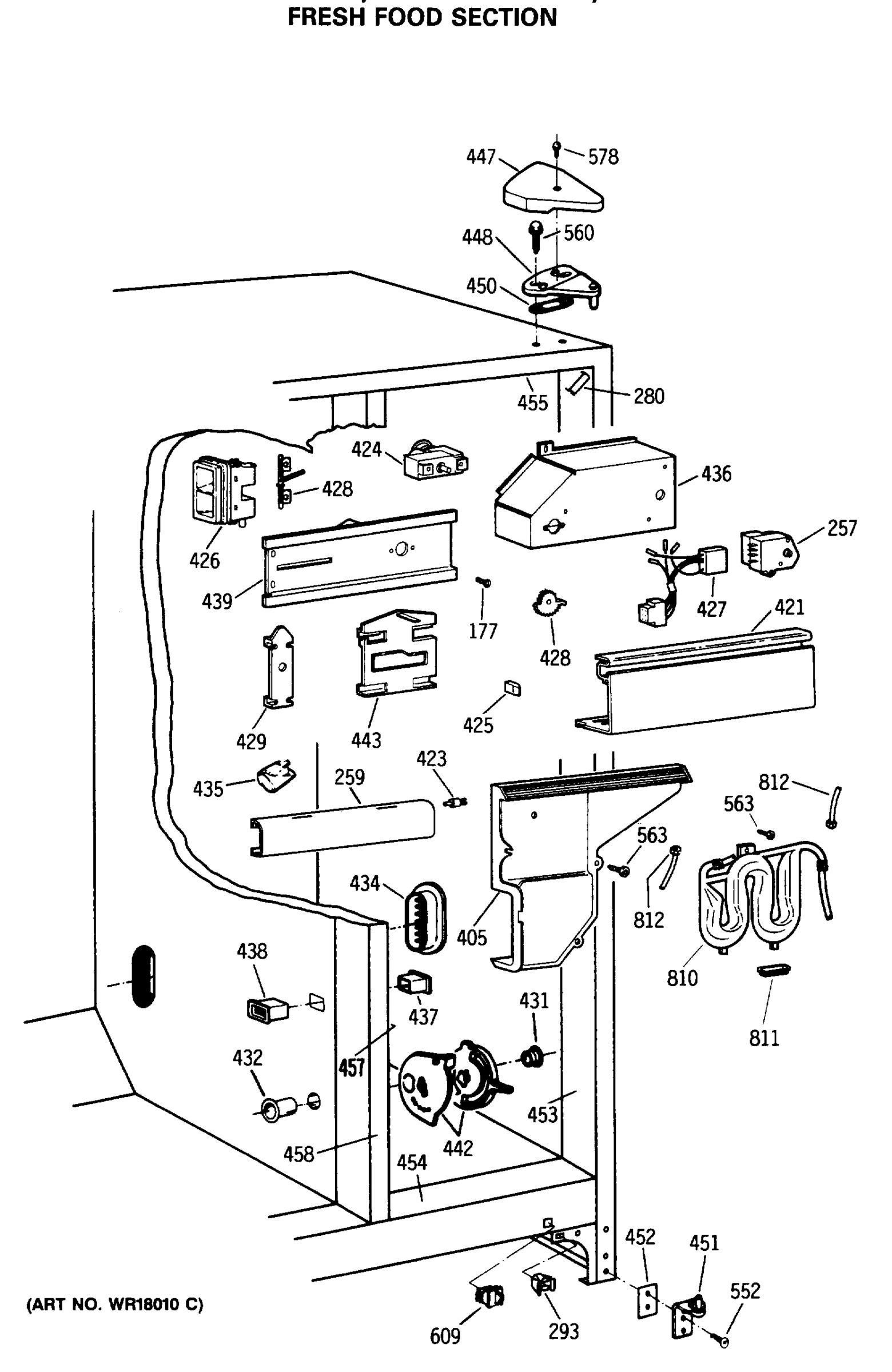

FRESH FOOD SECTION
Common parts from model GE TFX27PFSBAA Refrigerator
